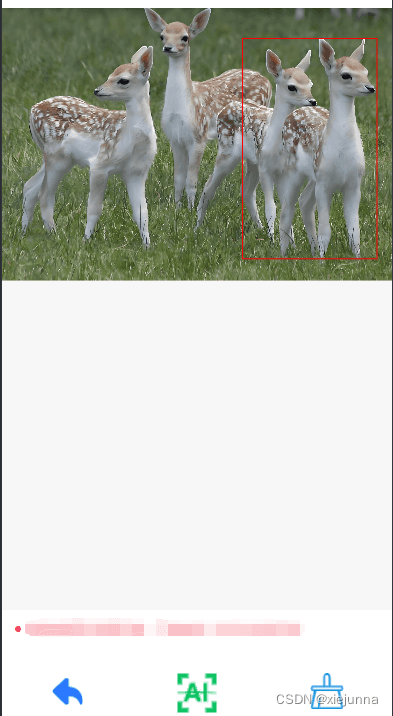

微信小程序画布显示图片绘制矩形选区效果

<view class="page-body">
  <!-- 画布 -->
  <view class="page-body-wrapper">
    <canvas canvas-id="mycanvas" type="2d" id="mycanvas" class='mycanvas' bindtouchstart="touchstart" bindtouchmove="touchmove" bindtouchend="touchend"></canvas>
  </view>
  <!-- 操作 -->
  <view class="layout-bottom">
    <view class="page-bottom">
      <view class="pbottom pmiddle" bindtap="pre">
        <image src="/images/next2.png" style="height: 65rpx; width: 65rpx; " mode="aspectfit"></image>
        <view class="picturebottomarea"><p>返回</p></view>
      </view>
      <view class="pbottom pmiddle" bindtap="detection">
        <image src="{{sburl}}" style="height: 100rpx; width: 100rpx; " mode="aspectfit"></image>
        <view class="picturebottomarea1"><p>识别</p></view>
      </view>
      <view class="pbottom pmiddle" bindtap="clear">
        <image src="/images/qc3.png" style="height: 70rpx; width: 70rpx; " mode="aspectfit"></image>
        <view class="picturebottomarea"><p>清除选区</p></view>
      </view>
    </view>
  </view>
</view>

.mycanvas { background-color: #f7f7f7; width: 100vw; height: 100vh; }
page { width: 100%; height: 100%; padding: 0; margin: 0; background-color: #f8f8f8; font-size: 32rpx; line-height: 1.6; display: flex; display: -webkit-flex; flex-direction: column; flex-wrap: wrap; justify-content: center; align-items: center; }
.page-body { width: 100%; height: 100%; padding: 0; margin: 0; }  .page-body-wrapper { width: 100%; height: 80%; display: flex; flex-direction: column; align-items: center; width: 100%; }
.layout-bottom { width: 100%; height: 20%; background-color: white; }
.page-bottom { width: 100%; height: 75%; display: flex; display: -webkit-flex; flex-direction: row; flex-wrap: wrap; justify-content: center; align-items: center; }
.pbottom { width: 33.333333333%; height: 100%; }
.pmiddle{ display: flex; display: -webkit-flex; flex-direction: column; flex-wrap: wrap; justify-content: center; align-items: center; }
.picturebottomarea { margin-top: 15rpx; font-size: small; }
.picturebottomarea1 { font-size: 0.9rem; letter-spacing:4rpx; font-weight: 600; color: #585858; }

// 定义变量
let startx, starty, endx, endy, rectwidth, rectheight
page({
  data: {
    drawwidth: 0,
    drawheight: 0,
    drawx: 0,
    drawy: 0,
    ratio: 0,//缩放比例
    sburl: '/images/a2.png',//按钮
    imgsrc: '/images/ll.png',
    area: [],
    ctx: null,
    canvas: null,
    drawimage: null,
  },
  onload(options) {
    startx = 0
    starty = 0
    endx = 0
    endy = 0
    rectwidth = 0
    rectheight = 0
    //把图片绘制到画布上
    this.drawimage(this.data.imgsrc)
  },
  //把图片绘制到画布上
  drawimage(imgsrc){
    let _this = this
    wx.createselectorquery().select('#mycanvas').fields({ node: true, size: true }).exec((res0) => {
      //获取canvas宽高
      const canvas = res0[0].node
      console.log(canvas)
      let ctx = canvas.getcontext('2d');
      const cw = res0[0].width
      const ch = res0[0].height
      console.log('canvas宽度：'+cw, 'canvas高度：'+ch)
      const dpr = wx.getsysteminfosync().pixelratio
      console.log(dpr)
      canvas.width = cw * dpr     // 获取宽
      canvas.height = ch * dpr  // 获取高
      console.log(cw * dpr, ch * dpr)
      ctx.scale(dpr, dpr)
      wx.getimageinfo({
        src: imgsrc,
        success: function (res) {
          //获取图片宽高
          let iw = res.width
          let ih = res.height
          console.log('图片宽度：'+iw, '图片高度：'+ih);
          // 计算绘制位置，保持原始比例
          let ratio = math.min(cw / iw, ch / ih);
          console.log(ratio)
          // 图片适配画布显示，关键在于计数图片缩放比例
          let drawwidth = iw * ratio;
          let drawheight = ih * ratio;
          console.log('图片缩放后宽度：'+drawwidth, '图片缩放后高度：'+drawheight);
          let drawx = (cw - drawwidth) / 2;
          let drawy = (ch - drawheight) / 2;
          // 到这里就可以直接绘制
          let image = canvas.createimage();//创建iamge实例
          image.src = imgsrc;  // 引入本地图片
          image.onload = function () {
            ctx.drawimage(image, 0, 0, drawwidth, drawheight);
          }
          _this.setdata({drawwidth: drawwidth,drawheight: drawheight,drawx: drawx,drawy: drawy,  ratio: ratio,ctx: ctx,canvas: canvas,drawimage: image})
        },
        fail: function (res) {
          console.error('获取图片信息失败', res);
        }
      });
    })
  },
  // 触摸开始事件
  touchstart(e) {
    startx = e.touches[0].x
    starty = e.touches[0].y
    console.log("触摸开始事件", e.touches[0], startx, starty)
  },
  // 触摸移动事件
  touchmove(e) {
    let imgsrc = this.data.imgsrc
    let drawwidth = this.data.drawwidth
    let drawheight = this.data.drawheight
    let ctx = this.data.ctx
    let image = this.data.drawimage
    endx = e.touches[0].x
    endy = e.touches[0].y
    ctx.clearrect(0, 0, drawwidth, drawheight)
    ctx.drawimage(image, 0, 0, drawwidth, drawheight);
    rectwidth = endx - startx
    rectheight = endy - starty
    ctx.strokerect(startx, starty, rectwidth, rectheight)
    ctx.strokestyle = 'red'
    ctx.stroke()
  },
  // 触摸结束事件
  touchend(e) {
    // 绘制完成后的操作
    // 可以将坐标框的位置和大小保存到全局变量或发送给服务器等
    console.log("触摸结束事件",e.changedtouches[0])
  },
  //清除绘制的图形
  clear(){
    console.log("清除绘制")
    let imgsrc = this.data.imgsrc
    let drawwidth = this.data.drawwidth
    let drawheight = this.data.drawheight
    let ctx = this.data.ctx
    let image = this.data.drawimage
    ctx.clearrect(0, 0, drawwidth, drawheight)
    ctx.drawimage(image, 0, 0, drawwidth, drawheight);
    startx = 0
    starty = 0
    endx = 0
    endy = 0
    rectwidth = 0
    rectheight = 0
  },
  // 识别
  detection(e){
    console.log("开始识别")
    let ratio = this.data.ratio
    //获取绘制选区的相关信息，这里要除以图片缩放比例，才是真是图片上的框选区
    if (rectwidth != 0 && rectheight != 0){
        console.log('矩形','x='+startx/ratio,'y='+starty/ratio,'width='+rectwidth/ratio,'height='+rectheight/ratio)
     }
  },
  //上一页
  pre(){
    console.log("上一页")
  }
})
