Oracle 26ai搭建ADG Far Sync日志备库的实例_Oracle

1.dg far sync概述

active data guard far sync是oracle 12c引入的新功能（也称为far sync standby）

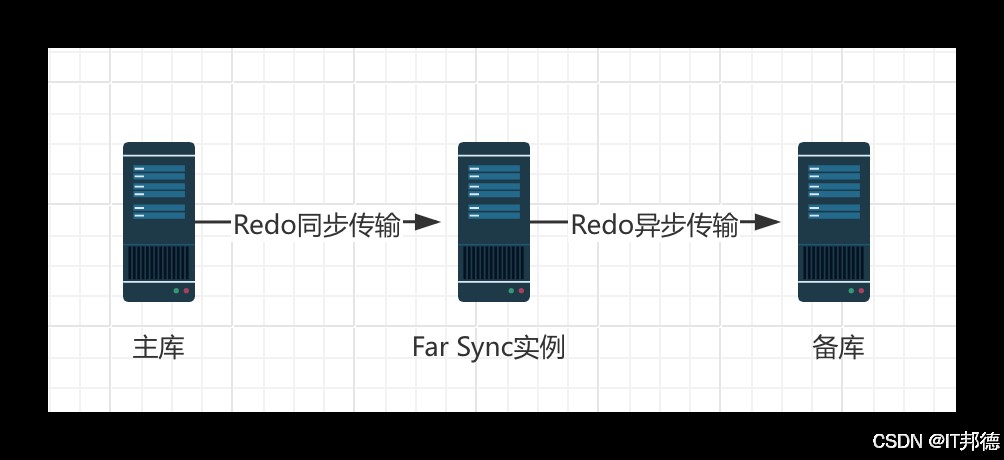

可以在主备库之间添加一个far sync实例,redo数据先由主库传输到far sync实例，再由于far sync实例转发给备库。

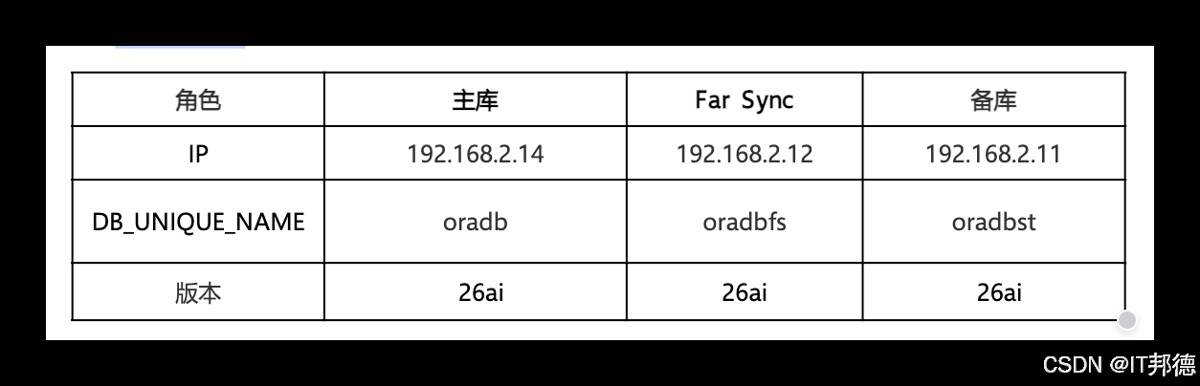

2.配置环境

强制日志、开归档
mkdir -p /u01/recovery
mkdir -p /u01/arch

sql> set linesize 300
sql> select name,open_mode,log_mode,force_logging,database_role,
switchover_status from v$database;
sql> alter database force logging;

数据库开归档
如果想开快速恢复区的设置，做如下操作
alter system set db_recovery_file_dest_size=1800g;
alter system set db_recovery_file_dest=‘/u01/recovery’;

开归档的方式如下：
alter system set log_archive_dest_1=‘location=/u01/arch’;
shutdown immediate;
startup mount;
alter database archivelog;
alter database open;

alter system switch logfile;

3.far sync实例

3.1 在主库上创建far sync实例的控制文件

alter database create far sync
instance controlfile as ‘/home/oracle/control01.ctl’;

3.2 创建far sync实例的pfile文件

create pfile=‘/home/oracle/pfile.init’ from spfile;

db_unique_name=oradb
db_file_name_convert='/oradbst/','/oradb/'
log_file_name_convert='/oradbst/','/oradb/'
fal_server=oradbst
log_archive_config='dg_config=(oradb,oradbfs,oradbst)'
log_archive_dest_1='location=/u01/arch valid_for=(all_logfiles,all_roles) db_unique_name=oradb'
log_archive_dest_2='service=oradbfs sync affirm valid_for=(online_logfiles,primary_role) db_unique_name=oradbfs'
log_archive_dest_state_2=enable
log_archive_dest_3='service=oradbst async noaffirm valid_for=(online_logfiles,primary_role) db_unique_name=oradbst'
log_archive_dest_state_3=alternate
standby_file_management=auto

3.3 在主库上以pfile启动并配置standbylogfile

startup pfile=‘/home/oracle/pfile.init’;
alter system set standby_file_management=manual;
添加standbylogfile

alter database add standby logfile group 4 (‘/u01/app/oracle/oradata/oradb/standby_redo04.log’) size 200m;
alter database add standby logfile group 5 (‘/u01/app/oracle/oradata/oradb/standby_redo05.log’) size 200m;
alter database add standby logfile group 6 (‘/u01/app/oracle/oradata/oradb/standby_redo06.log’) size 200m;
alter database add standby logfile group 7 (‘/u01/app/oracle/oradata/oradb/standby_redo07.log’) size 200m;
alter system set standby_file_management=auto;

3.4 生成spfile文件：

create spfile from pfile='/home/oracle/pfile.init';
将上面的控制文件和参数文件和密码文件复制到far sync实例所在的服务器。
将控制文件存放在/u01/app/oracle/oradata/oradbfs/control01.ctl
scp $oracle_home/dbs/orapworadb
192.168.2.12:/u01/app/oracle/product/23.26.1/dbhome_1/dbs/
scp $oracle_home/dbs/orapworadb
192.168.2.11:/u01/app/oracle/product/23.26.1/db_1/dbs/dbs

3.5 在far sync实例上配置pfile文件

db_unique_name=oradbfs
db_file_name_convert='/oradb/','/oradbfs/','/oradbst/','/oradbfs/'
log_file_name_convert='/oradb/','/oradbfs/','/oradbst/','/oradbfs/'
fal_server=oradb
log_archive_config='dg_config=(oradb,oradbfs,oradbst)'
log_archive_dest_1='location=/u01/arch
valid_for=(all_logfiles,all_roles) db_unique_name=oradbfs'
log_archive_dest_2='service=oradbst
async valid_for=(standby_logfiles,standby_role) db_unique_name=oradbst'
log_archive_dest_state_2=enable
standby_file_management=auto
service_names=oradb

3.6 创建监听和tnsnames.ora

将备库和far sync实例创建好监听后一起写入主库的tnsnames.ora中并拷贝至每个节点

–tns配置如下：

oradb =
  (description =
    (address = (protocol = tcp)(host = 192.168.2.14)(port = 1521))
    (connect_data =
      (server = dedicated)
      (service_name = oradb)
    )
  )
oradbfs =
  (description =
    (address = (protocol = tcp)(host = 192.168.2.12)(port = 1521))
    (connect_data =
      (server = dedicated)
      (service_name = oradb)
    )
  )
oradbst =
  (description =
    (address = (protocol = tcp)(host = 192.168.2.11)(port = 1521))
    (connect_data =
      (server = dedicated)
      (service_name = oradb)
    )
  )

–监听配置如下

sid_list_listener =
  (sid_list =
    (sid_desc =
      (global_dbname = oradb)
      (oracle_home = /u01/app/oracle/product/23.26.1/dbhome_1)
      (sid_name= oradb)
    )
   )
sid_list_listener =
  (sid_list =
    (sid_desc =
      (global_dbname = oradb)
      (oracle_home = /u01/app/oracle/product/23.26.1/db_1)
      (sid_name= oradb)
    )
   )

3.7 启动far sync到mount模式

export oracle_sid=oradb
startup nomount pfile=‘/home/oracle/pfile.init’;

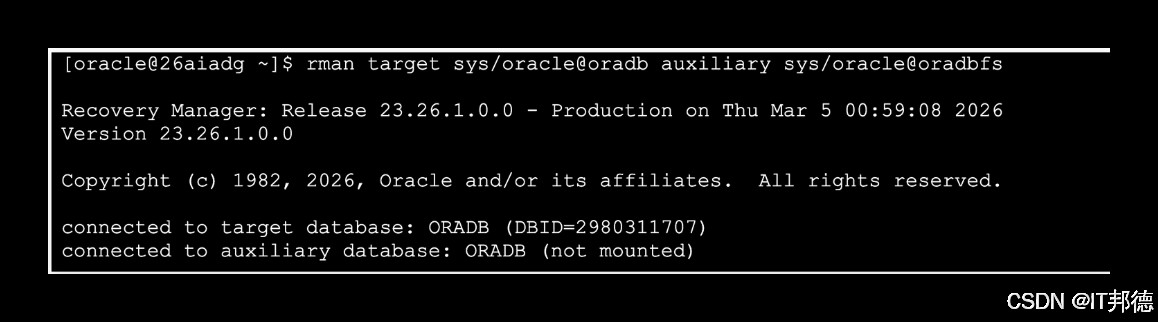

rman target sys/oracle@oradb auxiliary sys/oracle@oradbfs

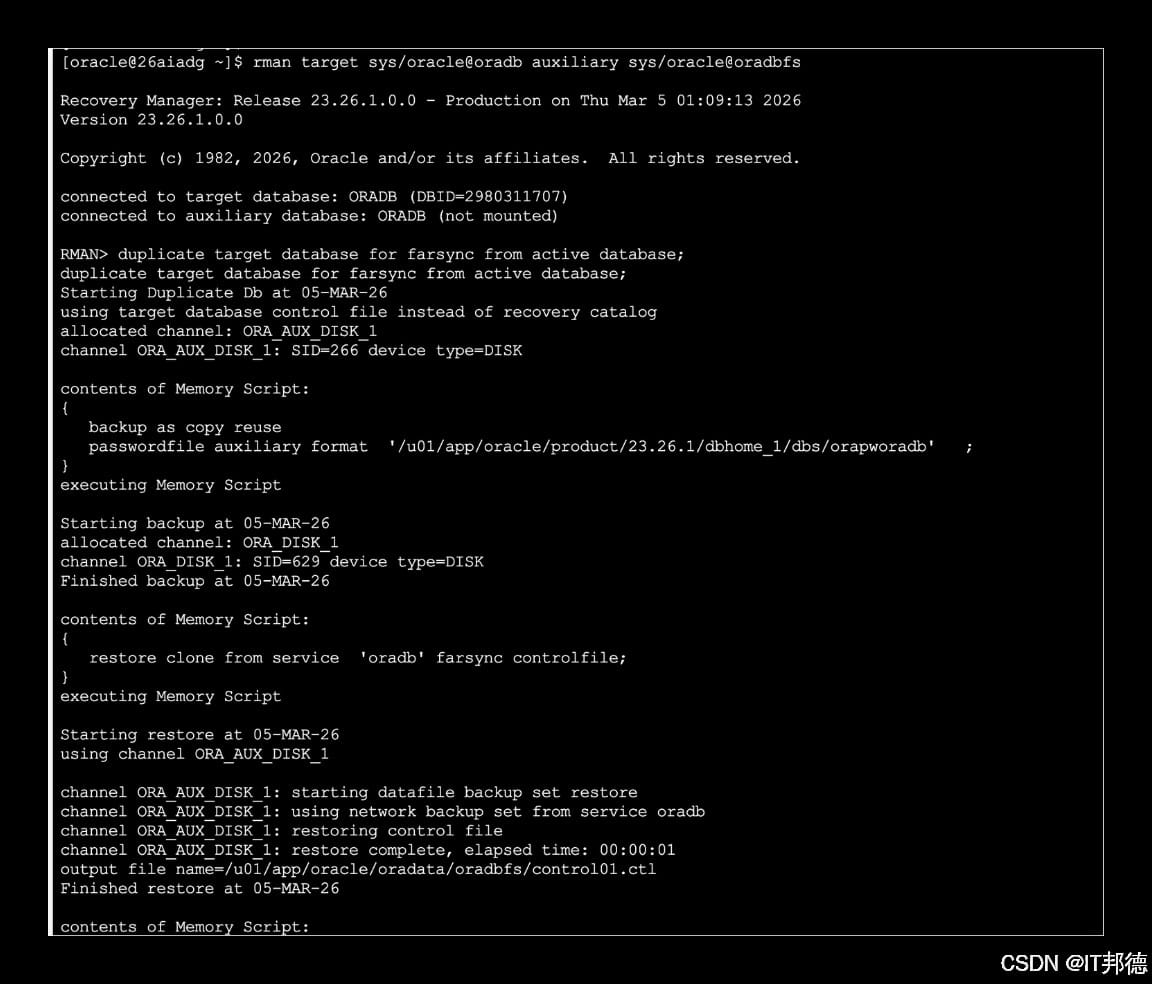

duplicate target database for farsync from active database;

4.备库搭建

在standby数据库上创建pfile文件

control_files='/u01/app/oracle/oradata/oradbst/control01.ctl'
db_unique_name=oradbst
db_file_name_convert='/oradb/','/oradbst/'
log_file_name_convert='/oradb/','/oradbst/'
fal_server='oradbfs','orad'
log_archive_config='dg_config=(oradb,oradbfs,oradbst)'
log_archive_dest_1='location=/u01/arch valid_for=(all_logfiles,all_roles) db_unique_name=oradbst'
log_archive_dest_2='service=oradbfs async valid_for=(standby_logfiles,standby_role) db_unique_name=oradb'
log_archive_dest_state_2=enable
standby_file_management=auto
service_names=oradb

恢复备库数据库
export oracle_sid=oradb
startup nomount pfile=‘/home/oracle/pfile.init’;

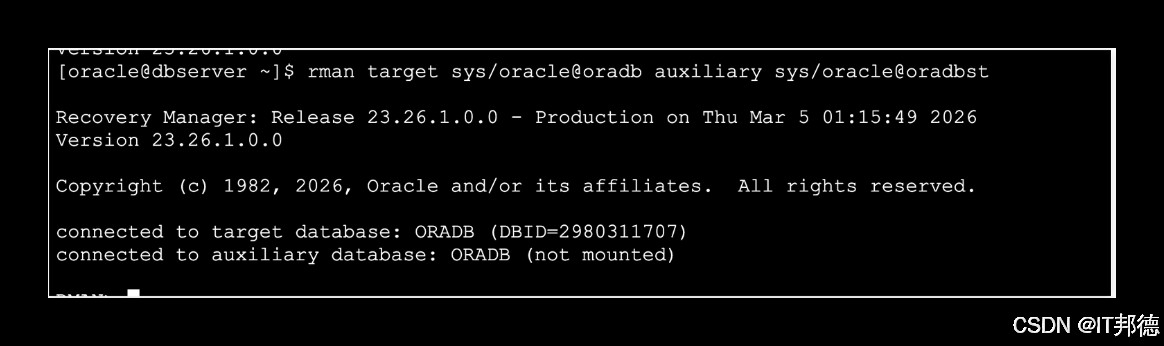

rman target sys/oracle@oradb auxiliary sys/oracle@oradbst

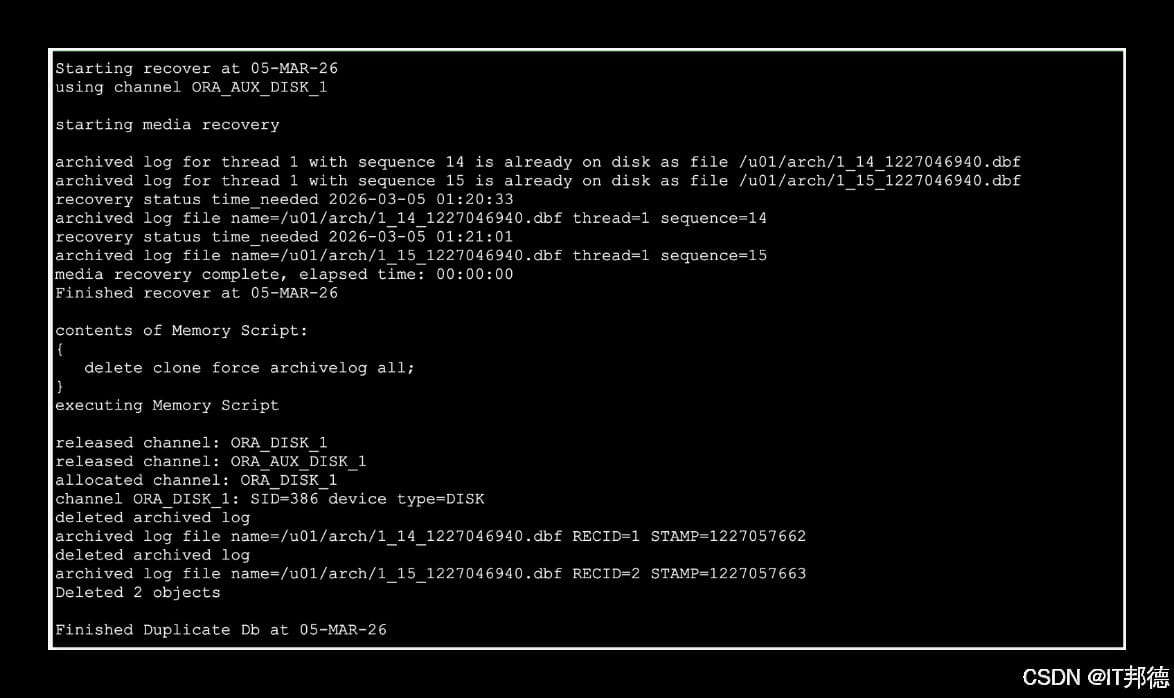

duplicate target database for standby from active database dorecover nofilenamecheck;

在备库启动managed recovery process
alter database recover managed standby database disconnect from session;

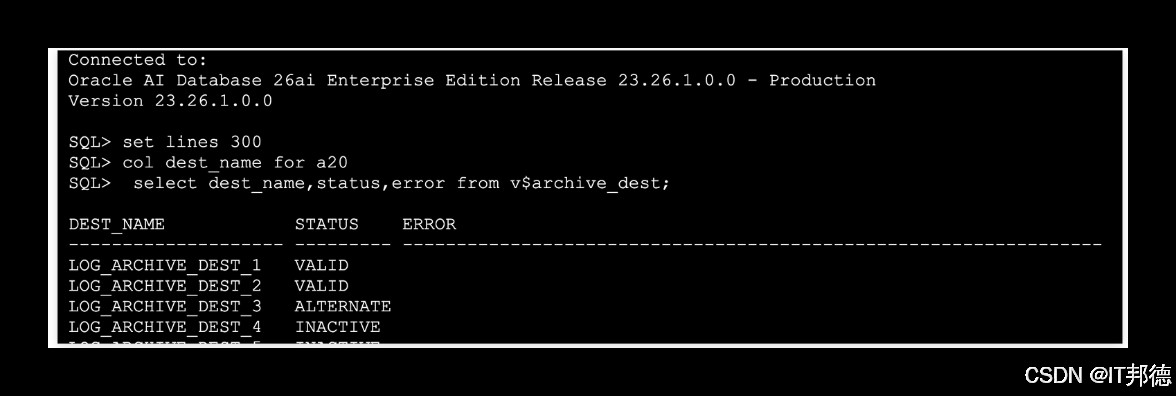

在主库上查询日志应用情况
set lines 300
col dest_name for a20
select dest_name,status,error from v$archive_dest;

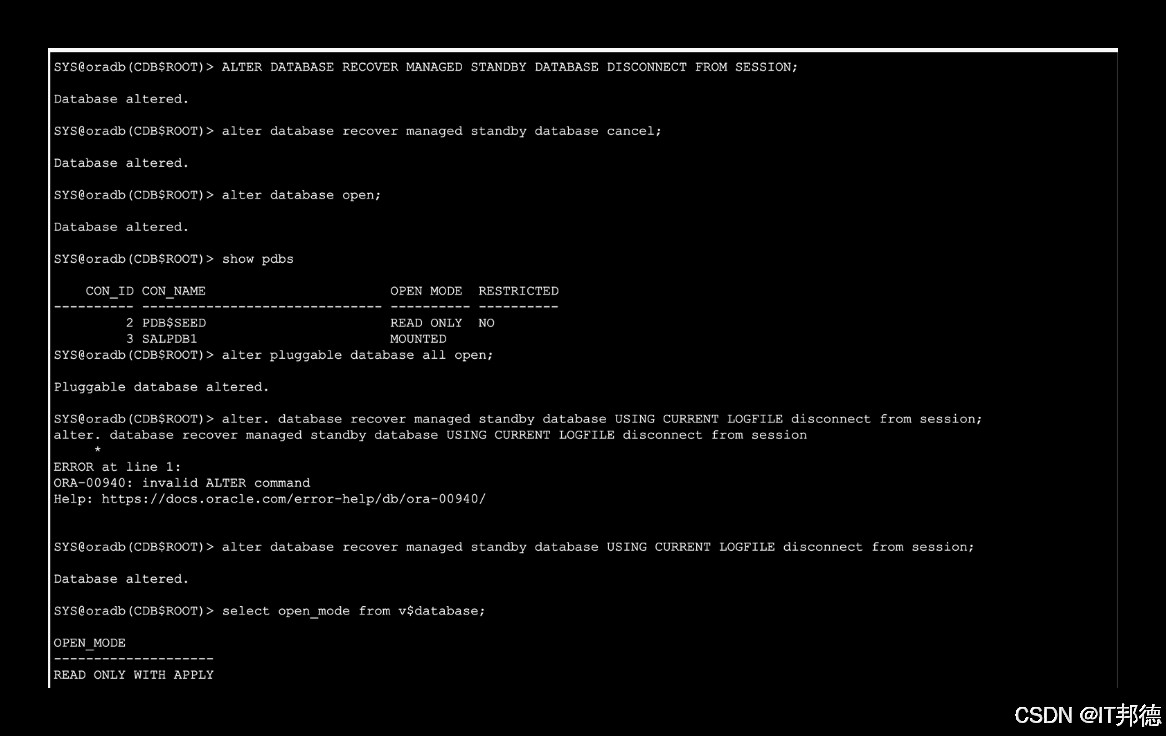

将备库启动到adg模式：
sql> alter database recover managed standby database cancel;
sql> alter database open;
sql> alter pluggable database all open;
sql> alter database recover managed standby database using current logfile disconnect from session;
sql> select open_mode from v$database;
