MQTT SpringBoot整合实战教程_Java

mqtt-springboot

创建简单 springboot 项目

导入必须依赖

pom.xml

<?xml version="1.0" encoding="utf-8"?>
<project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
    xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelversion>4.0.0</modelversion>
    <groupid>com.study</groupid>
    <artifactid>mqttdemo</artifactid>
    <version>0.0.1-snapshot</version>
    <name>springbootmqttdemo</name>
    <description>springbootmqttdemo</description>
    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceencoding>utf-8</project.build.sourceencoding>
        <project.reporting.outputencoding>utf-8</project.reporting.outputencoding>
        <spring-boot.version>2.6.13</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter</artifactid>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-test</artifactid>
            <scope>test</scope>
        </dependency>
        <!-- spring boot项目web开发的起步依赖 -->
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-web</artifactid>
        </dependency>
        <!-- spring boot项目集成消息中间件基础依赖 -->
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-integration</artifactid>
        </dependency>
        <!-- spring boot项目和mqtt客户端集成起步依赖 -->
        <dependency>
            <groupid>org.springframework.integration</groupid>
            <artifactid>spring-integration-mqtt</artifactid>
            <version>5.4.3</version>
        </dependency>
        <!-- lombok依赖 -->
        <dependency>
            <groupid>org.projectlombok</groupid>
            <artifactid>lombok</artifactid>
        </dependency>
        <!-- fastjson依赖 -->
        <dependency>
            <groupid>com.alibaba</groupid>
            <artifactid>fastjson</artifactid>
            <version>1.2.83</version>
        </dependency>
    </dependencies>
    <dependencymanagement>
        <dependencies>
            <dependency>
                <groupid>org.springframework.boot</groupid>
                <artifactid>spring-boot-dependencies</artifactid>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencymanagement>
    <build>
        <plugins>
            <plugin>
                <groupid>org.apache.maven.plugins</groupid>
                <artifactid>maven-compiler-plugin</artifactid>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>utf-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupid>org.springframework.boot</groupid>
                <artifactid>spring-boot-maven-plugin</artifactid>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainclass>com.study.mqtt.demo.mqttdemoapplication</mainclass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

增加mqtt相关配置

application.yml

spring:
  mqtt:
    # mqtt 服务器地址
    url: tcp://192.168.40.128:1883
    # 订阅客户端id
    subclientid: sub_client_id_1
    # 订阅主题
    subtopic: lq/iot/demo/
    # 发布客户端id
    pubclientid: pub_client_id_1
    # 用户名
    username: admin
    # 密码
    password: admin123456

编写对应java类

配置类

mqttconfig.java

package com.study.mqtt.demo.domain;
import lombok.data;
import org.springframework.boot.context.properties.configurationproperties;
@data
@configurationproperties(prefix = "spring.mqtt")
public class mqttconfig {
    private string username;
    private string password;
    private string url;
    private string subclientid ;
    private string subtopic ;
    private string pubclientid ;
}

启动类增加开启配置

mqttdemoapplication.java

package com.study.mqtt.demo;
import com.study.mqtt.demo.domain.mqttconfig;
import org.springframework.boot.springapplication;
import org.springframework.boot.autoconfigure.springbootapplication;
import org.springframework.boot.context.properties.enableconfigurationproperties;
@springbootapplication
@enableconfigurationproperties(value = mqttconfig.class)
public class mqttdemoapplication {
    public static void main(string[] args) {
        springapplication.run(mqttdemoapplication.class, args);
    }
}

创建mqtt连接工厂类

mqttfactory.java

package com.study.mqtt.demo.factory;
import com.study.mqtt.demo.domain.mqttconfig;
import org.eclipse.paho.client.mqttv3.mqttconnectoptions;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.context.annotation.bean;
import org.springframework.context.annotation.configuration;
import org.springframework.integration.mqtt.core.defaultmqttpahoclientfactory;
import org.springframework.integration.mqtt.core.mqttpahoclientfactory;
@configuration
public class mqttfactory {
    @autowired
    private mqttconfig mqttconfig;
    @bean
    public mqttpahoclientfactory mqttclientfactory() {
        // 创建客户端工厂
        defaultmqttpahoclientfactory  factory = new defaultmqttpahoclientfactory();
        mqttconnectoptions options = new mqttconnectoptions();
        options.setusername(mqttconfig.getusername());
        options.setpassword(mqttconfig.getpassword().tochararray());
        options.setserveruris(new string[]{mqttconfig.geturl()});
        options.setcleansession(true);
        factory.setconnectionoptions(options);
        return factory;
    }
}

接收消息处理类

receivemsghandler.java

package com.study.mqtt.demo.handler;
import org.springframework.messaging.message;
import org.springframework.messaging.messagehandler;
import org.springframework.messaging.messageheaders;
import org.springframework.messaging.messagingexception;
import org.springframework.stereotype.component;
@component
public class receivemsghandler implements messagehandler {
    @override
    public void handlemessage(message<?> message) throws messagingexception {
        system.out.println("接收到消息对象：" + message);
        // 消息内容
        object payload = message.getpayload();
        messageheaders headers = message.getheaders();
        object mqttreceivedtopic = headers.get("mqtt_receivedtopic");
        system.out.println("接收的消息主题：" + mqttreceivedtopic);
        system.out.println("接收的消息内容：" + payload);
    }
}

接收消息配置类

mqttinboundconfig.java

package com.study.mqtt.demo.inbound;
import com.study.mqtt.demo.domain.mqttconfig;
import com.study.mqtt.demo.factory.mqttfactory;
import com.study.mqtt.demo.handler.receivemsghandler;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.context.annotation.bean;
import org.springframework.context.annotation.configuration;
import org.springframework.integration.annotation.serviceactivator;
import org.springframework.integration.channel.directchannel;
import org.springframework.integration.core.messageproducer;
import org.springframework.integration.mqtt.core.mqttpahoclientfactory;
import org.springframework.integration.mqtt.inbound.mqttpahomessagedrivenchanneladapter;
import org.springframework.integration.mqtt.support.defaultpahomessageconverter;
import org.springframework.messaging.messagechannel;
import org.springframework.messaging.messagehandler;
@configuration
public class mqttinboundconfig {
    @autowired
    private mqttconfig mqttconfig ;
    @autowired
    private receivemsghandler receivemsghandler;
    /**
     * 配置消息接收通道
     * @return
     */
    @bean
    public messagechannel mqttinputchannel() {
        return new directchannel();
    }
    /**
     * 配置接收适配器
     */
    @bean
    public messageproducer messageproducer(mqttpahoclientfactory mqttpahoclientfactory) {
        mqttpahomessagedrivenchanneladapter adapter  =
                new mqttpahomessagedrivenchanneladapter(mqttconfig.geturl() ,
                        mqttconfig.getsubclientid() ,
                        mqttpahoclientfactory , mqttconfig.getsubtopic().split(",")) ;
        adapter.setconverter(new defaultpahomessageconverter());
        // 质量服务等级
        adapter.setqos(1);
        adapter.setoutputchannel(mqttinputchannel());
        return adapter ;
    }
    /**
     * 配置接收消息处理器
     * @return
     */
    @bean
    @serviceactivator(inputchannel = "mqttinputchannel") // 指定处理消息使用得通道
    public messagehandler messagehandler() {
        return this.receivemsghandler ;
    }
}

发送消息配置类

mqttoutboundconfig.java

package com.study.mqtt.demo.outbound;
import com.study.mqtt.demo.domain.mqttconfig;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.context.annotation.bean;
import org.springframework.context.annotation.configuration;
import org.springframework.integration.annotation.serviceactivator;
import org.springframework.integration.channel.directchannel;
import org.springframework.integration.mqtt.core.mqttpahoclientfactory;
import org.springframework.integration.mqtt.outbound.mqttpahomessagehandler;
import org.springframework.messaging.messagechannel;
import org.springframework.messaging.messagehandler;
@configuration
public class mqttoutboundconfig {
    @autowired
    private mqttconfig mqttconfig;
    @autowired
    private mqttpahoclientfactory pahoclientfactory ;
    @bean
    public messagechannel mqttoutputchannel() {
        return new directchannel();
    }
    @bean
    @serviceactivator(inputchannel = "mqttoutputchannel")
    public messagehandler mqttoutboundmassagehandler() {
        mqttpahomessagehandler messagehandler = new mqttpahomessagehandler(mqttconfig.geturl() ,
                mqttconfig.getpubclientid() , pahoclientfactory ) ;
        messagehandler.setasync(true);
        messagehandler.setdefaultqos(0);
        messagehandler.setdefaulttopic("default");
        return messagehandler ;
    }
}

发送消息网关接口类

mqttgateway.java

package com.study.mqtt.demo.gateway;
import org.springframework.integration.annotation.messaginggateway;
import org.springframework.integration.mqtt.support.mqttheaders;
import org.springframework.messaging.handler.annotation.header;
import org.springframework.stereotype.component;
@messaginggateway(defaultrequestchannel = "mqttoutputchannel")
public interface mqttgateway {
    /**
     * 发送mqtt消息
     * @param topic 主题
     * @param payload 内容
     */
    void sendtomqtt(@header(mqttheaders.topic) string topic, string payload);
    /**
     * 发送包含qos的消息
     * @param topic 主题
     * @param qos 对消息处理的几种机制。
     *          * 0 发送成功就算完成，会出现消息丢失
     *          * 1 增加消息重试机制，消息发送失败会重新发送，会出现重复消息
     *          * 2 多了一次去重的动作，确保只有一次消息推给订阅者。
     * @param payload 消息体
     */
    void sendtomqtt(@header(mqttheaders.topic) string topic, @header(mqttheaders.qos) int qos, string payload);
}

发送消息服务类

mqttmsgsenderservice.java

package com.study.mqtt.demo.service;
import com.study.mqtt.demo.gateway.mqttgateway;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.stereotype.service;
@service
public class mqttmsgsenderservice {
    @autowired
    private mqttgateway mqttgateway;
    public void send(string topic, string payload) {
        mqttgateway.sendtomqtt(topic, payload);
    }
    public void send(string topic, int qos, string payload) {
        mqttgateway.sendtomqtt(topic, qos, payload);
    }
}

测试验证

订阅消息验证

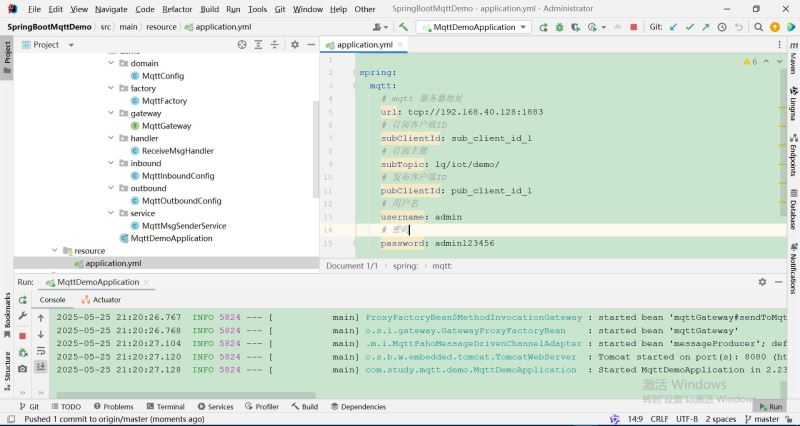

启动项目

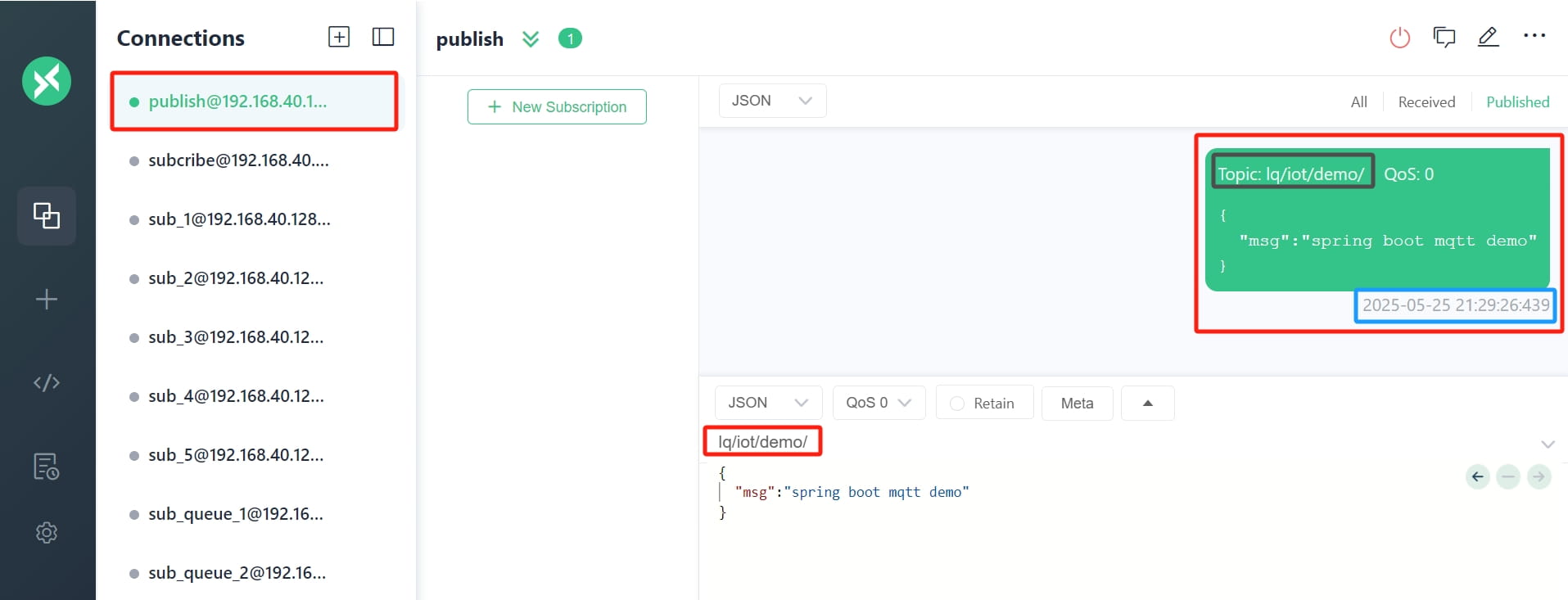

发送消息

主题为配置文件中配置的订阅主题 lq/iot/demo/
发送时间： 2025-05-25 21:29:26:439

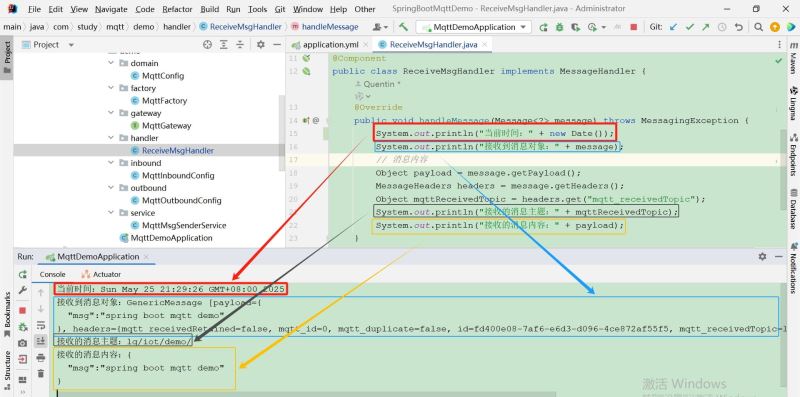

订阅收到消息

接收到消息的时间：sun may 25 21:29:26 gmt+08:00 2025
接收到的主题：lq/iot/demo/
接收到的内容：{ "msg":"spring boot mqtt demo" }

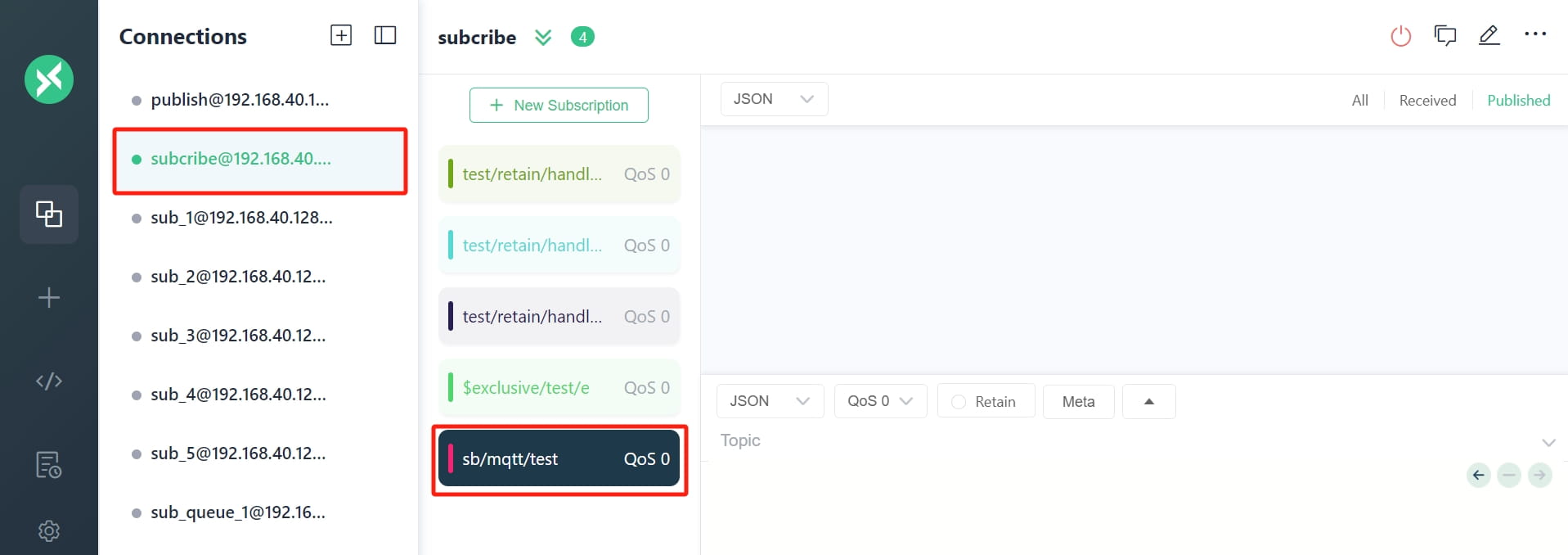

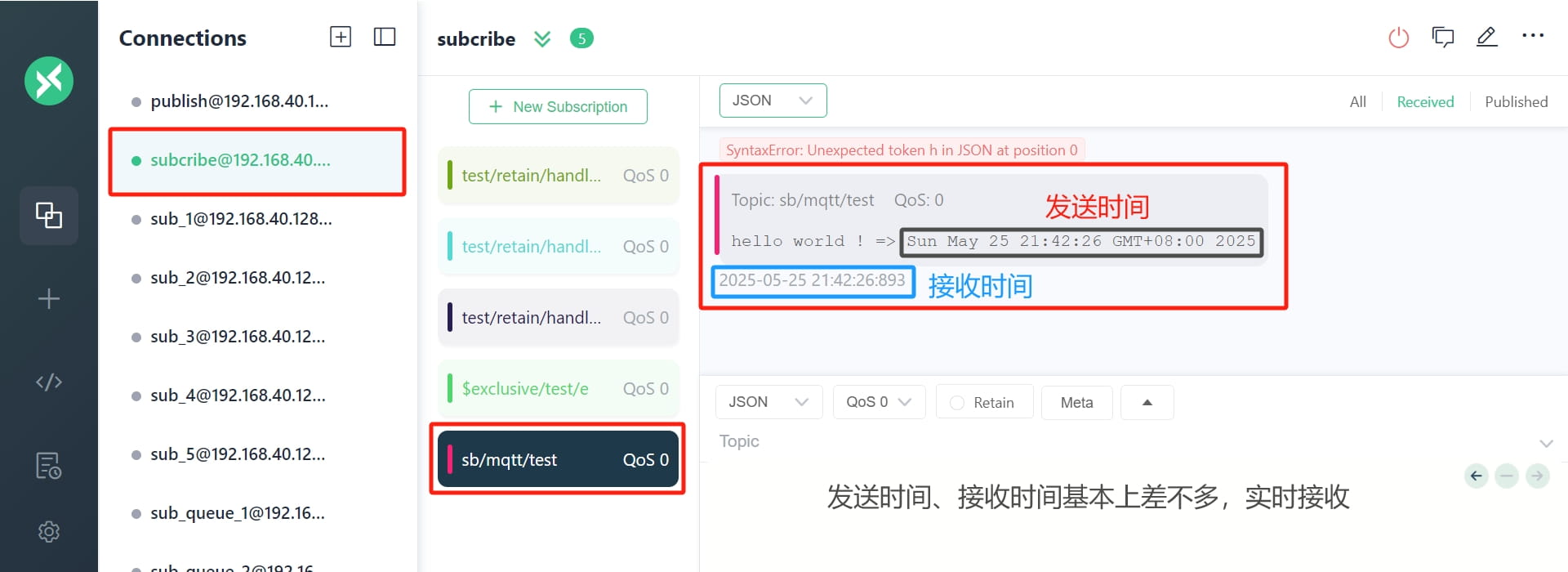

发送消息验证

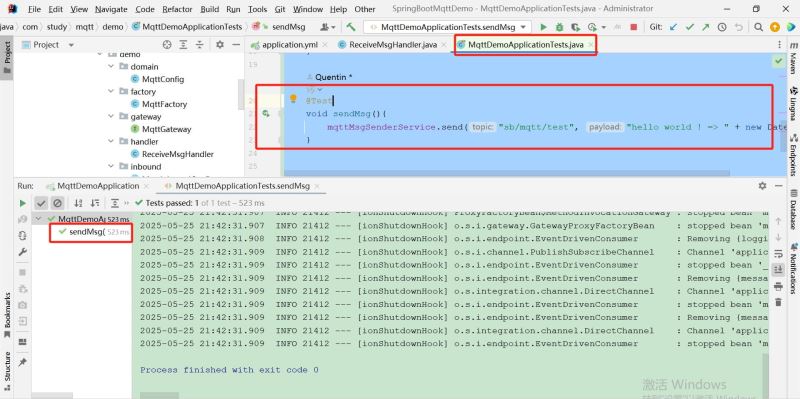

编写测试类
- 发送主题：sb/mqtt/test
- 发送内容：hello world ！=> 当前时间

package com.study.mqtt.demo;
import com.study.mqtt.demo.service.mqttmsgsenderservice;
import org.junit.jupiter.api.test;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.boot.test.context.springboottest;
import java.util.date;
@springboottest(classes = mqttdemoapplication.class)
class mqttdemoapplicationtests {
    @autowired
    private mqttmsgsenderservice mqttmsgsenderservice;
    @test
    void contextloads() {
    }
    @test
    void sendmsg(){
        mqttmsgsenderservice.send("sb/mqtt/test", "hello world ! => " + new date());
    }
}
