python实现简易SSL的项目实践_Python

本篇博客使用python实现了一个简易的ssl，以帮助理解ssl的大致实现流程。

ssl（secure socket layer）安全套接层是netscape公司率先采用的网络安全协议。它是在传输通信协议（tcp/ip）上实现的一种安全协议，采用公开密钥技术。

运行环境

操作系统：浪潮云启操作系统 inlinux 23.12 lts sp1
python版本：3.9.9
使用的python包：cryptography、ownca、signify

浪潮云启操作系统（inlinux）面向企业级业务，提供自主可控、安全可靠的新一代服务器操作系统，全面支持云计算、大数据、人工智能、物联网等新型场景，具备性能高效、扩展便捷、管理智能、内生安全等特性。

运行前准备

# 安装python
yum install -y python

# 安装python包
pip install cryptography ownca signify

程序实现与流程说明

本程序实现了一个简易的ssl，共分为三个模块：ca.py，server.py，client.py。

ca.py负责签发证书，server.py与client.py通信，过程中会实现生成公私钥对、会话密钥等过程。为了简易性，server能够从本地直接获取证书，且只有server对client检查证书。

程序流程如下：

ca生成根证书、公私钥对
client生成公私钥对、向ca发送csr请求
ca收到csr请求，用私钥签名，向client发送签名证书，client拿到证书
client第一次向server发送数据，并附带证书信息
server检验证书信息，并生成session_key，利用client公钥加密session_key，将密文发回给client，之后的对话用session_key验证。
client解密session_key，利用消息和session_key生成mac，向server发送消息并附带mac
server收到消息并验证mac，对话结束。

运行截图

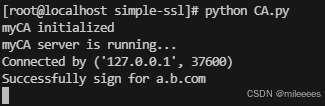

ca.py

请添加图片描述

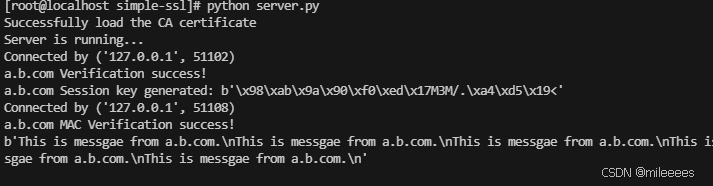

server.py

在这里插入图片描述

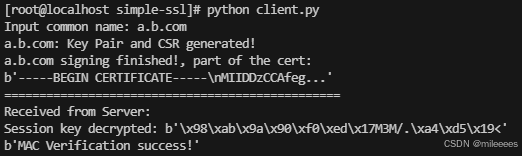

client.py

在这里插入图片描述

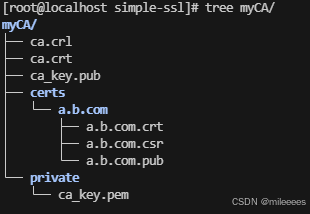

证书目录：

在这里插入图片描述

代码

ca.py

import ownca.ownca
import socket
from cryptography import x509
from cryptography.x509 import nameoid

ca = ownca.certificateauthority(ca_storage='./myca',common_name='myca')
print("myca initialized")

host = "127.0.0.1"  # standard loopback interface address (localhost)
port = 11111  # port to listen on (non-privileged ports are > 1023)

server_socket = socket.socket(socket.af_inet, socket.sock_stream)
server_socket.bind((host, port))
server_socket.listen(5)
print("myca server is running...")
while true:
    conn, addr = server_socket.accept()
    print(f"connected by {addr}")
    data = conn.recv(2048)
    csr = x509.load_pem_x509_csr(data)
    try:
        # sign the csr, if success, the certificate will generate and store
        ca.sign_csr(csr,csr.public_key(),maximum_days=825)
    except exception as e:
        print(e)
    # extract cn from csr
    common_name = csr.subject.get_attributes_for_oid(nameoid.common_name)[0].value
    # load the issued certificate from existing file
    load_cert = ca.load_certificate(common_name)
    print('successfully sign for ' + common_name)
    # send the certificate bytes
    send_data = load_cert.cert_bytes
    conn.sendall(send_data)
    conn.close()

client.py

import socket
import pickle
from cryptography import x509
from cryptography.x509.oid import nameoid
from cryptography.hazmat.primitives import hashes, hmac
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric import rsa, padding


def generatecsr(common_name, private_key):
    csr = x509.certificatesigningrequestbuilder().subject_name(x509.name([
        # provide various details about who we are.
        x509.nameattribute(nameoid.country_name, u"cn"),
        x509.nameattribute(nameoid.state_or_province_name, u"beijing"),
        # x509.nameattribute(nameoid.locality_name, u"richmond"),
        # x509.nameattribute(nameoid.organization_name, u"my organization"),
        x509.nameattribute(nameoid.common_name, common_name),
    ])).sign(private_key, hashes.sha256())
    return csr

def rsadecryption(cipher, private_key):
    msg = private_key.decrypt(
        cipher,
        padding.oaep(
            mgf=padding.mgf1(algorithm=hashes.sha256()),
            algorithm=hashes.sha256(),
            label=none
        )
    )
    return msg

# generate the rsa private key
private_key = rsa.generate_private_key(public_exponent=65537, key_size=2048)
cn = input("input common name: ")
csr = generatecsr(cn, private_key)
public_key = private_key.public_key()
# public_key = csr.public_key()
csr_bytes = csr.public_bytes(serialization.encoding.pem)
print(cn + ": key pair and csr generated!")

host = "127.0.0.1"  # the server's hostname or ip address

ca_port = 11111  # the ca server port
with socket.socket(socket.af_inet, socket.sock_stream) as s:
    s.connect((host, ca_port))
    s.sendall(csr_bytes) # send the generated csr
    cert_data = s.recv(2048)
print(cn + " signing finished!, part of the cert:")
print(cert_data[:40] + b'...')

print('================================================')
server_port = 22222  # the server port
session_key = b''
msg = b''
hmac = b''
public_key_pem = public_key.public_bytes(
    encoding=serialization.encoding.pem,
    format=serialization.publicformat.subjectpublickeyinfo
)
with socket.socket(socket.af_inet, socket.sock_stream) as s:
    s.connect((host, server_port))
    # send all params to the server
    params = [cn, cert_data, public_key_pem, session_key, msg, hmac]
    data = pickle.dumps(params)
    s.sendall(data)
    data = s.recv(2048)
print("received from server: ")
session_key = rsadecryption(data, private_key)
print("session key decrypted:",session_key)

msg = b'this is messgae from ' + cn.encode('utf-8') + b'.\n'
with socket.socket(socket.af_inet, socket.sock_stream) as s:
    s.connect((host, server_port))
    msg = msg * 10
    h = hmac.hmac(session_key,hashes.sha256())
    h.update(msg)
    hmac = h.finalize()
    # send all params with valid session_key, msg and hmac
    params = [cn, cert_data, public_key_pem, session_key, msg, hmac]
    data = pickle.dumps(params)
    s.sendall(data)
    data = s.recv(2048)
    print(data)

server.py

import os
import pickle
import socket
import ownca
from cryptography.hazmat.primitives import hashes, hmac
from cryptography.hazmat.primitives.asymmetric import padding
from cryptography.hazmat.primitives.serialization import load_pem_public_key
from signify.x509 import certificatestore, verificationcontext, certificate

ca = ownca.certificateauthority(ca_storage='./myca',common_name='myca')
print("successfully load the ca certificate")

host = "127.0.0.1"
port = 22222
server_socket = socket.socket(socket.af_inet, socket.sock_stream)
server_socket.bind((host, port))
server_socket.listen()
print("server is running...")

# generate a list of random bytes as session key
def generatesessionkey(byte_num=16):
    return os.urandom(byte_num)

# encrypt the msg using rsa
def rsaencryption(msg, public_key):
    cipher = public_key.encrypt(
        msg,
        padding.oaep(
            mgf=padding.mgf1(algorithm=hashes.sha256()),
            algorithm=hashes.sha256(),
            label=none
        )
    )
    return cipher

while true:
    conn, addr = server_socket.accept()
    print(f"connected by {addr}")
    data = conn.recv(2048)
    # find all params from the received data
    params = pickle.loads(data)
    cn = params[0]
    cert_from_cli_pem = params[1]
    public_key_pem = params[2] # for encrypting the session_key
    session_key = params[3]
    msg = params[4]
    hmac_to_check = params[5]
    # if no session built
    if not session_key:
        try:
            # using signify to verify the certificate
            # raise exception if verification error
            trust_store = certificatestore([certificate.from_pem(ca.cert_bytes)], trusted=true)
            context = verificationcontext(trust_store)
            certificate.from_pem(cert_from_cli_pem).verify(context)
        except exception as e:
            print(cn + "verification error: ", e)
            conn.sendall(b"verification error!\n")
            conn.close()
            continue
        finally:
            print(cn + " verification success!")
        # load cert from stu_pem and find the public_key
        public_key = load_pem_public_key(public_key_pem)
        session_key = generatesessionkey()
        print(cn + " session key generated:",session_key)
        cipher = rsaencryption(session_key,public_key)
        conn.sendall(cipher)
    # valid session key
    else:
        h = hmac.hmac(session_key, hashes.sha256())
        h.update(msg)
        try:
            h.verify(hmac_to_check)
        except exception as e:
            print(cn + " mac verification wrong:",e)
            conn.close()
            continue
        finally:
            print(cn + " mac verification success!")
            print(msg)
            conn.sendall(b'mac verification success!')
    conn.close()
