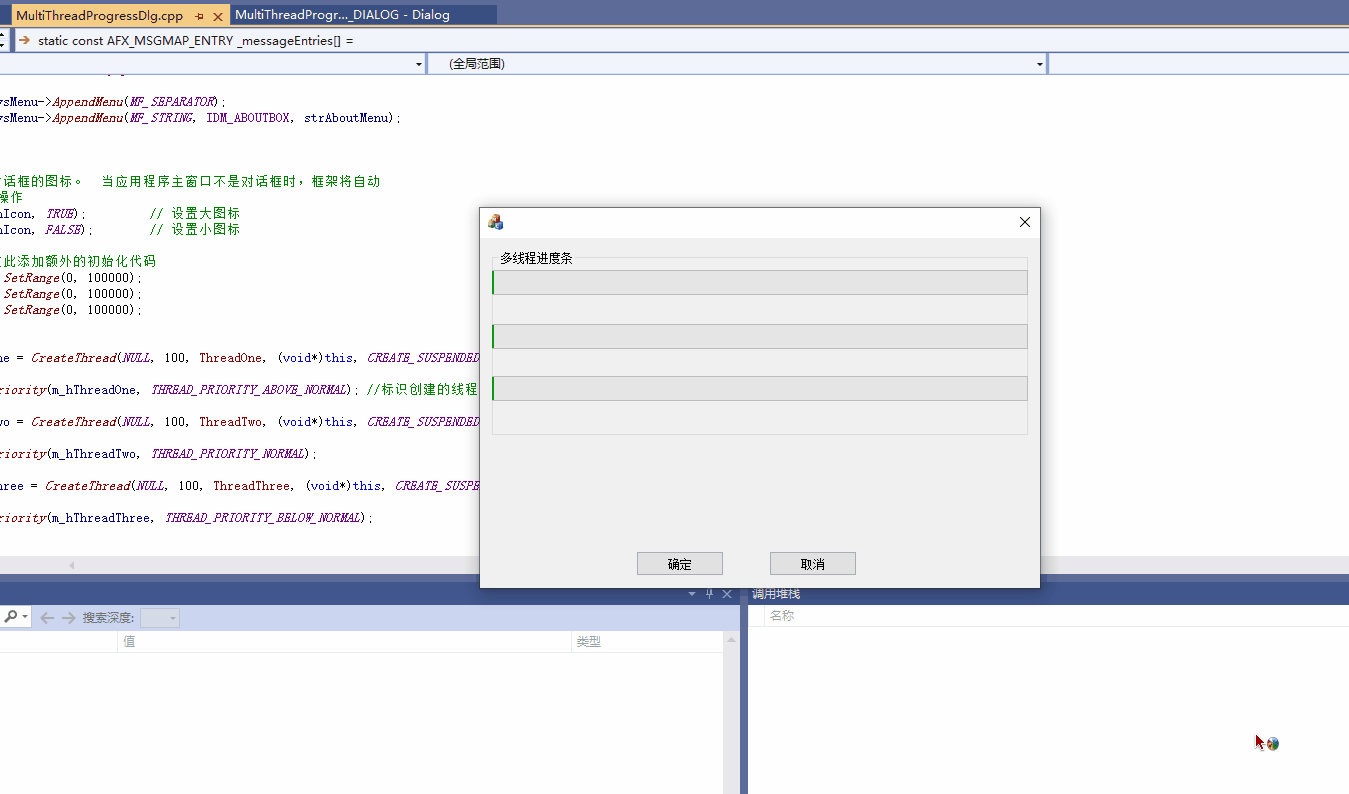

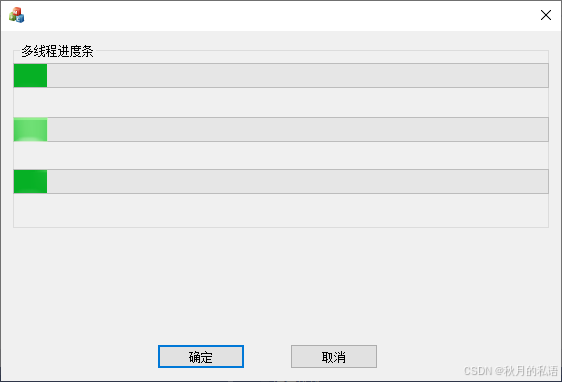

我要评论先看下效果，mfc对话框中实现多线程进度条，对话框支持拖拽不卡死。
直接上代码
我这里提供完整的对话框代码：
// multithreadprogressdlg.h: 头文件
//
#pragma once
// cmultithreadprogressdlg 对话框
class cmultithreadprogressdlg : public cdialogex
{
// 构造
public:
cmultithreadprogressdlg(cwnd* pparent = nullptr); // 标准构造函数
// 对话框数据
#ifdef afx_design_time
enum { idd = idd_multithreadprogress_dialog };
#endif
protected:
virtual void dodataexchange(cdataexchange* pdx); // ddx/ddv 支持
// 实现
protected:
hicon m_hicon;
// 生成的消息映射函数
virtual bool oninitdialog();
afx_msg void onsyscommand(uint nid, lparam lparam);
afx_msg void onpaint();
afx_msg hcursor onquerydragicon();
declare_message_map()
public:
afx_msg void onbnclickedok();
cprogressctrl m_hthread1;
cprogressctrl m_hthread2;
cprogressctrl m_hthread3;
static dword _stdcall threadone(lpvoid ipparameter);
static dword _stdcall threadtwo(lpvoid ipparameter);
static dword _stdcall threadthree(lpvoid ipparameter);
handle m_hthreadone;
handle m_hthreadtwo;
handle m_hthreadthree;
};然后是实现文件
// multithreadprogressdlg.cpp: 实现文件
//
#include "pch.h"
#include "framework.h"
#include "multithreadprogress.h"
#include "multithreadprogressdlg.h"
#include "afxdialogex.h"
#ifdef _debug
#define new debug_new
#endif
// 用于应用程序“关于”菜单项的 caboutdlg 对话框
class caboutdlg : public cdialogex
{
public:
caboutdlg();
// 对话框数据
#ifdef afx_design_time
enum { idd = idd_aboutbox };
#endif
protected:
virtual void dodataexchange(cdataexchange* pdx); // ddx/ddv 支持
// 实现
protected:
declare_message_map()
};
caboutdlg::caboutdlg() : cdialogex(idd_aboutbox)
{
}
void caboutdlg::dodataexchange(cdataexchange* pdx)
{
cdialogex::dodataexchange(pdx);
}
begin_message_map(caboutdlg, cdialogex)
end_message_map()
// cmultithreadprogressdlg 对话框
cmultithreadprogressdlg::cmultithreadprogressdlg(cwnd* pparent /*=nullptr*/)
: cdialogex(idd_multithreadprogress_dialog, pparent)
{
m_hicon = afxgetapp()->loadicon(idr_mainframe);
}
void cmultithreadprogressdlg::dodataexchange(cdataexchange* pdx)
{
cdialogex::dodataexchange(pdx);
ddx_control(pdx, idc_progress1, m_hthread1);
ddx_control(pdx, idc_progress2, m_hthread2);
ddx_control(pdx, idc_progress3, m_hthread3);
}
begin_message_map(cmultithreadprogressdlg, cdialogex)
on_wm_syscommand()
on_wm_paint()
on_wm_querydragicon()
on_bn_clicked(idok, &cmultithreadprogressdlg::onbnclickedok)
end_message_map()
// cmultithreadprogressdlg 消息处理程序
bool cmultithreadprogressdlg::oninitdialog()
{
cdialogex::oninitdialog();
// 将“关于...”菜单项添加到系统菜单中。
// idm_aboutbox 必须在系统命令范围内。
assert((idm_aboutbox & 0xfff0) == idm_aboutbox);
assert(idm_aboutbox < 0xf000);
cmenu* psysmenu = getsystemmenu(false);
if (psysmenu != nullptr)
{
bool bnamevalid;
cstring straboutmenu;
bnamevalid = straboutmenu.loadstring(ids_aboutbox);
assert(bnamevalid);
if (!straboutmenu.isempty())
{
psysmenu->appendmenu(mf_separator);
psysmenu->appendmenu(mf_string, idm_aboutbox, straboutmenu);
}
}
// 设置此对话框的图标。 当应用程序主窗口不是对话框时，框架将自动
// 执行此操作
seticon(m_hicon, true); // 设置大图标
seticon(m_hicon, false); // 设置小图标
// todo: 在此添加额外的初始化代码
m_hthread1.setrange(0, 100000);
m_hthread2.setrange(0, 100000);
m_hthread3.setrange(0, 100000);
//创建线程
m_hthreadone = createthread(null, 100, threadone, (void*)this, create_suspended, null); // create_suspended标识创建的线程可以被挂起的
setthreadpriority(m_hthreadone, thread_priority_above_normal); //标识创建的线程具有的优先级别
m_hthreadtwo = createthread(null, 100, threadtwo, (void*)this, create_suspended, null);
setthreadpriority(m_hthreadtwo, thread_priority_normal);
m_hthreadthree = createthread(null, 100, threadthree, (void*)this, create_suspended, null);
setthreadpriority(m_hthreadthree, thread_priority_below_normal);
//启动线程
resumethread(m_hthreadone);
resumethread(m_hthreadtwo);
resumethread(m_hthreadthree);
return true; // 除非将焦点设置到控件，否则返回 true
}
void cmultithreadprogressdlg::onsyscommand(uint nid, lparam lparam)
{
if ((nid & 0xfff0) == idm_aboutbox)
{
caboutdlg dlgabout;
dlgabout.domodal();
}
else
{
cdialogex::onsyscommand(nid, lparam);
}
}
// 如果向对话框添加最小化按钮，则需要下面的代码
// 来绘制该图标。 对于使用文档/视图模型的 mfc 应用程序，
// 这将由框架自动完成。
void cmultithreadprogressdlg::onpaint()
{
if (isiconic())
{
cpaintdc dc(this); // 用于绘制的设备上下文
sendmessage(wm_iconerasebkgnd, reinterpret_cast<wparam>(dc.getsafehdc()), 0);
// 使图标在工作区矩形中居中
int cxicon = getsystemmetrics(sm_cxicon);
int cyicon = getsystemmetrics(sm_cyicon);
crect rect;
getclientrect(&rect);
int x = (rect.width() - cxicon + 1) / 2;
int y = (rect.height() - cyicon + 1) / 2;
// 绘制图标
dc.drawicon(x, y, m_hicon);
}
else
{
cdialogex::onpaint();
}
}
//当用户拖动最小化窗口时系统调用此函数取得光标
//显示。
hcursor cmultithreadprogressdlg::onquerydragicon()
{
return static_cast<hcursor>(m_hicon);
}
void cmultithreadprogressdlg::onbnclickedok()
{
// todo: 在此添加控件通知处理程序代码
cdialogex::onok();
}
dword _stdcall cmultithreadprogressdlg::threadone(lpvoid ipparameter)
{
cmultithreadprogressdlg* pdlg = (cmultithreadprogressdlg*)ipparameter;
int low, high, pos;
pos = pdlg->m_hthread1.getpos();
pdlg->m_hthread1.getrange(low, high);
while (pos < high)
{
pos = pdlg->m_hthread1.getpos();
sleep(10);
pdlg->m_hthread1.setpos(pos + 1);
}
pdlg->m_hthread1.setpos(0);
return 0;
}
dword _stdcall cmultithreadprogressdlg::threadtwo(lpvoid ipparameter)
{
cmultithreadprogressdlg* pdlg = (cmultithreadprogressdlg*)ipparameter;
int low, high, pos;
pos = pdlg->m_hthread2.getpos();
pdlg->m_hthread2.getrange(low, high);
while (pos < high)
{
pos = pdlg->m_hthread2.getpos();
sleep(10);
pdlg->m_hthread2.setpos(pos + 1);
}
pdlg->m_hthread2.setpos(0);
return 0;
}
dword _stdcall cmultithreadprogressdlg::threadthree(lpvoid ipparameter)
{
cmultithreadprogressdlg* pdlg = (cmultithreadprogressdlg*)ipparameter;
int low, high, pos;
pos = pdlg->m_hthread3.getpos();
pdlg->m_hthread3.getrange(low, high);
while (pos < high)
{
pos = pdlg->m_hthread3.getpos();
sleep(10);
pdlg->m_hthread3.setpos(pos + 1);
}
pdlg->m_hthread3.setpos(0);
return 0;
}直接编译运行，即可看到效果。
为了进一步研究动态添加进度条，于是我写了下面这个小程序，可以根据对话框的大小，动态增减进度条的个数，其中宽度为当前对话框的宽度：
直接上完整代码：
// dynamicprogressbarsdlg.h: 头文件
//
#pragma once
#include <vector>
// cdynamicprogressbarsdlg 对话框
class cdynamicprogressbarsdlg : public cdialogex
{
// 构造
public:
cdynamicprogressbarsdlg(cwnd* pparent = nullptr); // 标准构造函数
// 对话框数据
#ifdef afx_design_time
enum { idd = idd_dynamicprogressbars_dialog };
#endif
protected:
virtual void dodataexchange(cdataexchange* pdx); // ddx/ddv 支持
//创建一个进度条
cprogressctrl* createprogressbar(const crect rect);
//进度条指针
std::vector<cprogressctrl*> m_vpprgoressctrl;
int m_nshowcount = 0;
// 实现
protected:
hicon m_hicon;
// 生成的消息映射函数
virtual bool oninitdialog();
afx_msg void onsyscommand(uint nid, lparam lparam);
afx_msg void onpaint();
afx_msg hcursor onquerydragicon();
declare_message_map()
public:
afx_msg void onsize(uint ntype, int cx, int cy);
};实现文件：
// dynamicprogressbarsdlg.cpp: 实现文件
//
#include "pch.h"
#include "framework.h"
#include "dynamicprogressbars.h"
#include "dynamicprogressbarsdlg.h"
#include "afxdialogex.h"
#ifdef _debug
#define new debug_new
#endif
#define idc_prg_start 1000
// 用于应用程序“关于”菜单项的 caboutdlg 对话框
class caboutdlg : public cdialogex
{
public:
caboutdlg();
// 对话框数据
#ifdef afx_design_time
enum { idd = idd_aboutbox };
#endif
protected:
virtual void dodataexchange(cdataexchange* pdx); // ddx/ddv 支持
// 实现
protected:
declare_message_map()
};
caboutdlg::caboutdlg() : cdialogex(idd_aboutbox)
{
}
void caboutdlg::dodataexchange(cdataexchange* pdx)
{
cdialogex::dodataexchange(pdx);
}
begin_message_map(caboutdlg, cdialogex)
end_message_map()
// cdynamicprogressbarsdlg 对话框
cdynamicprogressbarsdlg::cdynamicprogressbarsdlg(cwnd* pparent /*=nullptr*/)
: cdialogex(idd_dynamicprogressbars_dialog, pparent)
{
m_hicon = afxgetapp()->loadicon(idr_mainframe);
}
void cdynamicprogressbarsdlg::dodataexchange(cdataexchange* pdx)
{
cdialogex::dodataexchange(pdx);
}
cprogressctrl* cdynamicprogressbarsdlg::createprogressbar(const crect rect)
{
//创建一个进度条
cprogressctrl* pprogress = new cprogressctrl;
// 创建进度条
if (!pprogress->create(ws_child | ws_visible | pbs_smooth, rect, this, idc_prg_start))
{
trace(_t("创建进度条失败！\n"));
delete pprogress;
return null;
}
// 设置进度条范围和初始位置
pprogress->setrange(0, 100);
pprogress->setpos(60);
return pprogress;
}
begin_message_map(cdynamicprogressbarsdlg, cdialogex)
on_wm_syscommand()
on_wm_paint()
on_wm_querydragicon()
on_wm_size()
end_message_map()
// cdynamicprogressbarsdlg 消息处理程序
bool cdynamicprogressbarsdlg::oninitdialog()
{
cdialogex::oninitdialog();
// 将“关于...”菜单项添加到系统菜单中。
// idm_aboutbox 必须在系统命令范围内。
assert((idm_aboutbox & 0xfff0) == idm_aboutbox);
assert(idm_aboutbox < 0xf000);
cmenu* psysmenu = getsystemmenu(false);
if (psysmenu != nullptr)
{
bool bnamevalid;
cstring straboutmenu;
bnamevalid = straboutmenu.loadstring(ids_aboutbox);
assert(bnamevalid);
if (!straboutmenu.isempty())
{
psysmenu->appendmenu(mf_separator);
psysmenu->appendmenu(mf_string, idm_aboutbox, straboutmenu);
}
}
// 设置此对话框的图标。 当应用程序主窗口不是对话框时，框架将自动
// 执行此操作
seticon(m_hicon, true); // 设置大图标
seticon(m_hicon, false); // 设置小图标
// todo: 在此添加额外的初始化代码
return true; // 除非将焦点设置到控件，否则返回 true
}
void cdynamicprogressbarsdlg::onsyscommand(uint nid, lparam lparam)
{
if ((nid & 0xfff0) == idm_aboutbox)
{
caboutdlg dlgabout;
dlgabout.domodal();
}
else
{
cdialogex::onsyscommand(nid, lparam);
}
}
// 如果向对话框添加最小化按钮，则需要下面的代码
// 来绘制该图标。 对于使用文档/视图模型的 mfc 应用程序，
// 这将由框架自动完成。
void cdynamicprogressbarsdlg::onpaint()
{
if (isiconic())
{
cpaintdc dc(this); // 用于绘制的设备上下文
sendmessage(wm_iconerasebkgnd, reinterpret_cast<wparam>(dc.getsafehdc()), 0);
// 使图标在工作区矩形中居中
int cxicon = getsystemmetrics(sm_cxicon);
int cyicon = getsystemmetrics(sm_cyicon);
crect rect;
getclientrect(&rect);
int x = (rect.width() - cxicon + 1) / 2;
int y = (rect.height() - cyicon + 1) / 2;
// 绘制图标
dc.drawicon(x, y, m_hicon);
}
else
{
cdialogex::onpaint();
}
}
//当用户拖动最小化窗口时系统调用此函数取得光标
//显示。
hcursor cdynamicprogressbarsdlg::onquerydragicon()
{
return static_cast<hcursor>(m_hicon);
}
void cdynamicprogressbarsdlg::onsize(uint ntype, int cx, int cy)
{
cdialogex::onsize(ntype, cx, cy);
// todo: 在此处添加消息处理程序代码
crect rectwindow;
getwindowrect(&rectwindow);
int nwidth = rectwindow.width();
int nheight = rectwindow.height();
int nnewcount = nheight / 60;
size_t nprogressbarcount = m_vpprgoressctrl.size();
if (nprogressbarcount < nnewcount)
{
for (size_t i = m_nshowcount; i < nnewcount; ++i)
{
crect rect(0, i * 60, nwidth, i * 60 + 55);
if (cprogressctrl* pctrl = createprogressbar(rect))
{
m_vpprgoressctrl.emplace_back(pctrl);
}
}
m_nshowcount = nnewcount;
}
else
{
for (size_t i = 0; i < m_nshowcount; ++i)
{
if (cprogressctrl* pctrl = m_vpprgoressctrl[i])
{
pctrl->showwindow(sw_show);
}
}
for (size_t i = nnewcount; i < nprogressbarcount; ++i)
{
if (cprogressctrl * pctrl = m_vpprgoressctrl[i])
{
pctrl->showwindow(sw_hide);
}
}
}
}关键代码在onsize()函数中。
