基于WPF封装一个可扩展的Window_C#

前言

wpf中window相信大家都很熟悉，有时我们有一些自定义需求默认window是无法满足的，比如在标题栏上放一些自己东西，这个时候我们就需要写一个自己的window，实现起来也很简单，只要给window设置一个windowchrome.windowchrome附加属性就可以实现，windowchrome 可以让你自定义窗口的非工作区的外观和行为。非工作区就是窗口的标题栏和边框，通常由操作系统绘制和管理。windowchrome 可以让你将 wpf 的内容扩展到非工作区，同时保留一些系统的功能和行为，比如调整大小，移动，最大化，最小化等。

一、示例代码

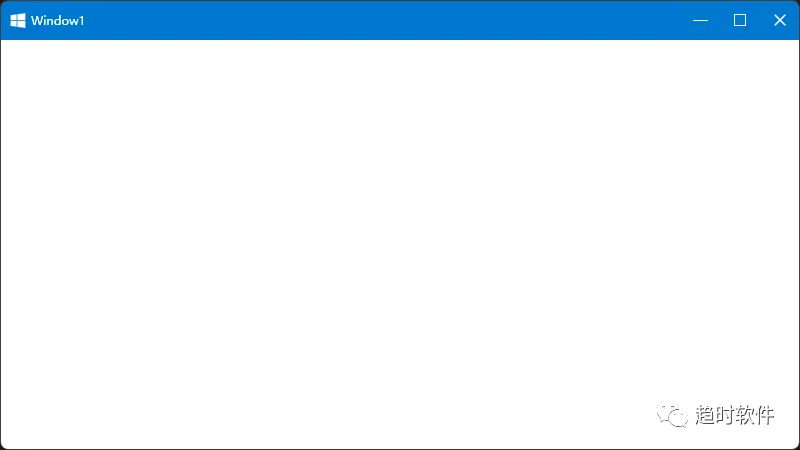

1.1 基本使用

<local:customwindow
    x:class="customwindowdemo.window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:customwindowdemo"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    title="window1"
    width="800"
    height="450"
    icon="/logo.png"
    mc:ignorable="d">
    <grid />
</local:customwindow>

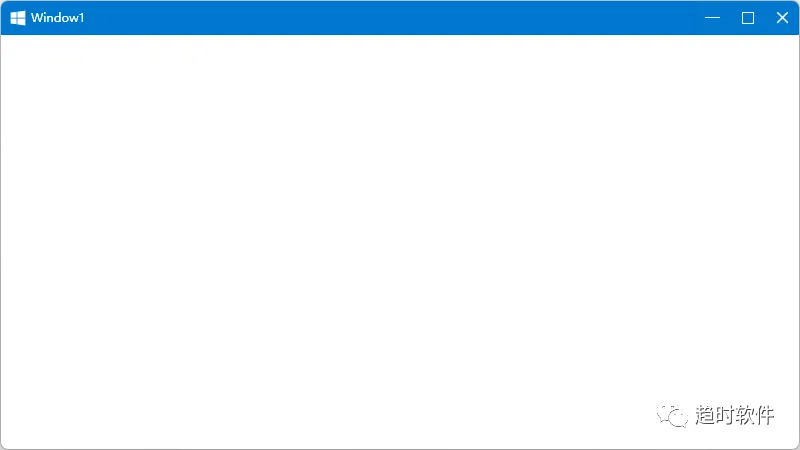

1.2 自定义标题栏高度

<local:customwindow
    x:class="customwindowdemo.window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:customwindowdemo"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    title="window1"
    width="800"
    height="450"
    captionheight="35"
    icon="/logo.png"
    mc:ignorable="d">
    <grid />
</local:customwindow>

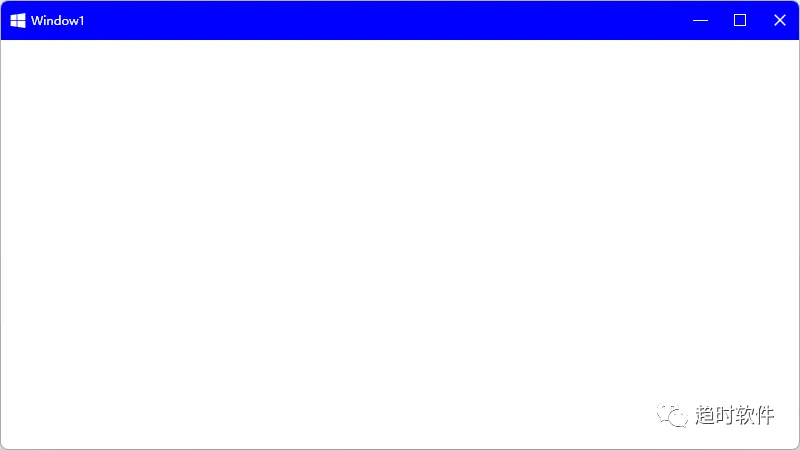

1.3 自定义标题栏颜色

<local:customwindow
    x:class="customwindowdemo.window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:customwindowdemo"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    title="window1"
    width="800"
    height="450"
    captionbackground="blue"
    icon="/logo.png"
    mc:ignorable="d">
    <grid />
</local:customwindow>

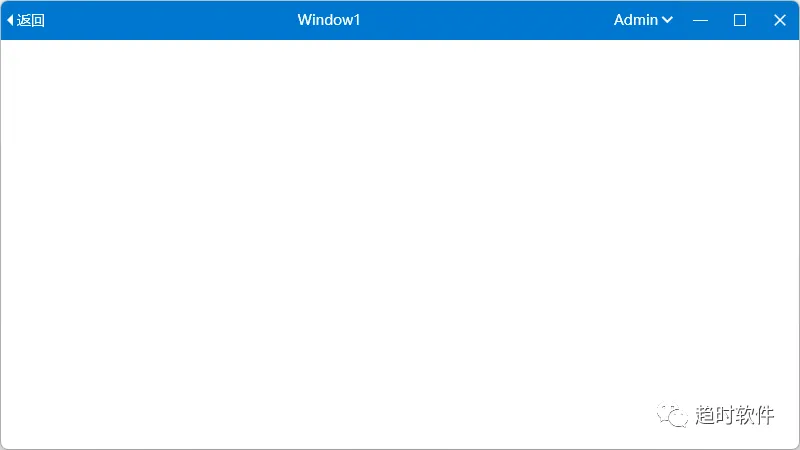

1.4 自定义标题栏内容

<local:customwindow
    x:class="customwindowdemo.window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:customwindowdemo"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    title="window1"
    width="800"
    height="450"
    icon="/logo.png"
    mc:ignorable="d">
    <local:customwindow.captionbarcontent>
        <grid>
            <grid.columndefinitions>
                <columndefinition width="auto" />
                <columndefinition width="*" />
                <columndefinition width="auto" />
            </grid.columndefinitions>

            <button
                margin="5"
                padding="2"
                verticalalignment="center"
                background="transparent"
                borderthickness="0"
                windowchrome.ishittestvisibleinchrome="true">
                <stackpanel orientation="horizontal">
                    <polygon
                        verticalalignment="center"
                        fill="white"
                        points="0,6 6,0 6,12" />
                    <textblock
                        margin="4,0,0,0"
                        verticalalignment="center"
                        fontsize="14"
                        foreground="white"
                        text="返回" />
                </stackpanel>
            </button>
            <textblock
                grid.column="1"
                horizontalalignment="center"
                verticalalignment="center"
                fontsize="14"
                foreground="white"
                text="{binding relativesource={relativesource ancestortype=window}, path=title}" />
            <button
                grid.column="2"
                margin="5"
                padding="2"
                verticalalignment="center"
                background="transparent"
                borderthickness="0"
                fontsize="14"
                foreground="white"
                windowchrome.ishittestvisibleinchrome="true">
                <stackpanel orientation="horizontal">
                    <textblock
                        margin="0,0,4,0"
                        verticalalignment="center"
                        text="admin" />
                    <polyline
                        verticalalignment="center"
                        points="0,0 5,5 10,0"
                        stroke="white"
                        strokethickness="2" />
                </stackpanel>
            </button>
        </grid>
    </local:customwindow.captionbarcontent>
    <grid />
</local:customwindow>
