前言

公司项目涉及到员工任务管理，需要从员工任务中获取任务信息生成个人词云图，可以把员工任务中较为高频的词语突出展示。

一、词云是什么

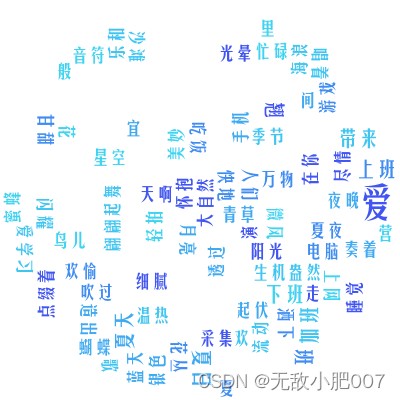

词云就是对文本中出现频率较高的“关键词”予以视觉上的突出，形成“关键词云层” 或“关键词渲染”，从而过滤掉大量的文本信息，使浏览网页者只要一眼扫过文本就可以领略文本的主旨。

二、使用步骤

1.引入依赖

<!--   ik分词器    -->
<dependency>
    <groupid>cn.shenyanchao.ik-analyzer</groupid>
    <artifactid>ik-analyzer</artifactid>
    <version>9.0.0</version>
</dependency>
<!--    詞雲    -->
<dependency>
    <groupid>com.kennycason</groupid>
    <artifactid>kumo-core</artifactid>
    <version>1.28</version>
</dependency>
<dependency>
    <groupid>com.kennycason</groupid>
    <artifactid>kumo-tokenizers</artifactid>
    <version>1.28</version>
</dependency>
<!--    web    -->
<dependency>
    <groupid>org.springframework.boot</groupid>
    <artifactid>spring-boot-starter-web</artifactid>
</dependency>
<dependency>
    <groupid>org.projectlombok</groupid>
    <artifactid>lombok</artifactid>
    <optional>true</optional>
</dependency>

2.application.yml

server:
  port: 8088
# 关闭日志输出 （可选）
logging:
  level:
    com.kennycason.kumo.wordcloud: off

3.controller

import com.chendi.mydemo.utils.ikanalyzerutils;
import com.chendi.mydemo.utils.workcloudutil;
import org.springframework.web.bind.annotation.getmapping;
import org.springframework.web.bind.annotation.restcontroller;

import java.util.arraylist;
import java.util.list;
import java.util.map;

@restcontroller
public class testcontroller {

    @getmapping("/")
    public void test() {
        list<string> list = new arraylist<>();
        list.add("爱购物，爱手机，爱电脑，爱上网");
        list.add("爱学习，爱游戏，爱吃饭，爱睡觉");
        list.add("爱上班，爱下班，爱加班，爱翘班");
        list.add("爱上班，爱下班，爱加班，爱翘班");
        list.add("夏天的阳光明媚灿烂，\n" +
                "大自然万物生机盎然。\n" +
                "清晨的微风吹过花丛，\n" +
                "点缀着青草和蓝天。\n" +
                "\n" +
                "蝴蝶翩翩起舞在花间，\n" +
                "蜜蜂忙碌采集甘甜。\n" +
                "鸟儿欢快地歌唱着，\n" +
                "为夏日带来欢欣和欢愉。\n" +
                "\n" +
                "海浪轻拍沙滩起伏，\n" +
                "沙粒细腻温热宜走。\n" +
                "阳光透过水面璀璨，\n" +
                "让海洋如银河般流动。\n" +
                "\n" +
                "夏日的夜晚星空闪耀，\n" +
                "月亮洒下银色光晕。\n" +
                "夏虫的音符演奏着，\n" +
                "营造出夏夜的美妙。\n" +
                "\n" +
                "夏天啊，你是如此迷人，\n" +
                "给人们带来快乐和欢欣。\n" +
                "在你的怀抱里，我们尽情享受，\n" +
                "夏天，你是美丽的季节！");

        map<string, integer> wordmap = ikanalyzerutils.wordcloud(list, 0);
        workcloudutil.generatewriteimage(wordmap);
    }

}

4.分词工具类

import org.wltea.analyzer.core.iksegmenter;
import org.wltea.analyzer.core.lexeme;

import java.io.ioexception;
import java.io.stringreader;
import java.util.*;

/**
 * 解析工具类
 */
public class ikanalyzerutils {

    /**
     * 拆分词云
     *
     * @param list     需要拆分的词云集合
     * @param quantity 结果集取的数量
     */
    public static string wordcloudparsing(list<string> list, integer quantity) {
        map<string,integer> result = wordcloud(list,quantity);
        stringbuilder str = new stringbuilder();
        result.foreach((k, v) -> {
            string value = " " + k;
            str.append(value);
        });
        return str.tostring().trim();
    }

    /**
     * 拆分词云
     *
     * @param list     需要拆分的词云集合
     * @param quantity 结果集取的数量
     */
    public static list<map<string,object>> wordcloudlist(list<string> list, integer quantity) {
        map<string,integer> result = wordcloud(list,quantity);
        list<map<string,object>> maplist = new linkedlist<>();
        result.foreach((k, v) -> {
            map<string,object> map = new hashmap<>(16);
            map.put("name",k);
            map.put("value",v);
            maplist.add(map);
        });
        collections.reverse(maplist);
        return maplist;
    }

    /**
     * 拆分词云
     *
     * @param list     需要拆分的词云集合
     * @param quantity 结果集取的数量
     */
    public static map<string,integer> wordcloud(list<string> list, integer quantity) {
        stringreader reader = new stringreader(string.join(",", list));
        iksegmenter iksegmenter = new iksegmenter(reader, true);
        map<string, integer> map = null;
        try {
            lexeme lexeme;
            map = new hashmap<>(16);
            while ((lexeme = iksegmenter.next()) != null) {
                string str = lexeme.getlexemetext();
                integer num = map.get(str);
                if (num != null && num > 0) {
                    map.put(str, num + 1);
                } else {
                    map.put(str, 1);
                }
            }
            reader.close();
        } catch (ioexception e) {
            e.printstacktrace();
        }
        map<string, integer> result = new linkedhashmap<>();
        if (quantity != null && quantity > 0) {
            map.entryset().stream().sorted(map.entry.comparingbyvalue()).limit(quantity)
                    .foreachordered(item -> result.put(item.getkey(), item.getvalue()));
        } else {
            map.entryset().stream().sorted(map.entry.comparingbyvalue())
                    .foreachordered(item -> result.put(item.getkey(), item.getvalue()));
        }
        return result;
    }
}

5.词云生成工具类、支持输出文件和字节流

import com.kennycason.kumo.collisionmode;
import com.kennycason.kumo.wordcloud;
import com.kennycason.kumo.wordfrequency;
import com.kennycason.kumo.bg.circlebackground;
import com.kennycason.kumo.font.kumofont;
import com.kennycason.kumo.font.scale.sqrtfontscalar;
import com.kennycason.kumo.nlp.frequencyanalyzer;
import com.kennycason.kumo.nlp.tokenizers.chinesewordtokenizer;
import com.kennycason.kumo.palette.colorpalette;
import lombok.sneakythrows;

import java.awt.*;
import java.io.bytearrayinputstream;
import java.io.bytearrayoutputstream;
import java.io.inputstream;
import java.util.arraylist;
import java.util.list;
import java.util.map;

public class workcloudutil {

    @sneakythrows
    public static inputstream generateimagestream(map<string, integer> wordmap) {
        wordcloud wordcloud = generatewordcloud(wordmap);
        //输出字节流
        bytearrayoutputstream out =new bytearrayoutputstream();
        wordcloud.writetostreamaspng(out);
        return new bytearrayinputstream(out.tobytearray());
    }


    @sneakythrows
    public static void generatewriteimage(map<string, integer> wordmap) {
        wordcloud wordcloud = generatewordcloud(wordmap);
        wordcloud.writetofile("d:\\chendi\\cd.png");
    }

    public static wordcloud generatewordcloud(map<string, integer> wordmap){
        if (wordmap == null || wordmap.size() == 0) {
            return null;
        }
        final frequencyanalyzer frequencyanalyzer = new frequencyanalyzer();
        frequencyanalyzer.setwordfrequenciestoreturn(600);
        frequencyanalyzer.setminwordlength(2);
        frequencyanalyzer.setwordtokenizer(new chinesewordtokenizer());
        final list<wordfrequency> wordfrequencies = new arraylist<>();
        for (map.entry<string, integer> entry : wordmap.entryset()) {
            wordfrequencies.add(new wordfrequency(entry.getkey(), entry.getvalue()));
        }
        font font = fontutil.getfont("/static/fonts/qingniaohuaguangjianmeihei-2.ttf");
        //设置图片分辨率
        final dimension dimension = new dimension(400, 400);
        //此处的设置采用内置常量即可，生成词云对象
        final wordcloud wordcloud = new wordcloud(dimension, collisionmode.pixel_perfect);
        //设置边界及字体
        wordcloud.setpadding(2);
        wordcloud.setbackgroundcolor(color.white);
        //设置背景图层为圆形，设置圆形的大小
        wordcloud.setbackground(new circlebackground(200));
        //设置词云显示的三种颜色，越靠前设置表示词频越高的词语的颜色
        wordcloud.setcolorpalette(new colorpalette(new color(0x4055f1), new color(0x408df1), new color(0x40aaf1), new color(0x40c5f1), new color(0x40d3f1), new color(0xffffff)));
        //设置字体的大小
        wordcloud.setfontscalar(new sqrtfontscalar(10, 40));
        wordcloud.setkumofont(new kumofont(font));
        wordcloud.build(wordfrequencies);
        //设置背景图片，如果想要固定的形状，就插入这个形状的图片
        //wordcloud.setbackground(new pixelboundrybackground("e:\\星星/star.jpg"));
        return wordcloud;
    }

}

fontutil

import org.springframework.core.io.classpathresource;
import org.springframework.util.stringutils;

import java.awt.*;
import java.io.inputstream;

public class fontutil {

    public static font loadfont(inputstream inputstream  , float fontsize) {
        try {
        font dynamicfont = font.createfont(font.truetype_font, inputstream);
        font dynamicfontpt = dynamicfont.derivefont(fontsize);
        inputstream.close();
        return dynamicfontpt;
        } catch (exception e){
            return new font("微软雅黑", font.plain, 18);
        }
    }

    public static font getfont(string path) {
        if(stringutils.isempty(path)){
            return new font("微软雅黑", font.plain, 18);
        }
        //获取字体文件
        classpathresource classpathresource = new classpathresource(path);
        inputstream inputstream;
        try {
            inputstream = classpathresource.getinputstream();
        } catch (exception e) {
            return new font("微软雅黑", font.plain, 18);
        }
        return fontutil.loadfont(inputstream, 18);

    }
}
