最近又碰上了导出，真的服了，还是低代码的导出，其中过程的曲折真的是一言难尽..........平台各种适配，依赖冲突，真的是崩溃.......

简单说一下为什么使用poi-tl，最开始想用的是poi实现，但是结果就是poi不好控制图片的位置，因为图片插入之后是“浮于文字上方”，单纯的插入图片会占行数，为了方便控制格式后续就采用了poi-tl但是他同样也不支持插入图片之后将图片设置为“浮于文字上方”，也是找了一些博客参考，最终实现了想要的效果

参考博客：poi-tl导出word实现图片环绕方式为浮于在文字上方办法

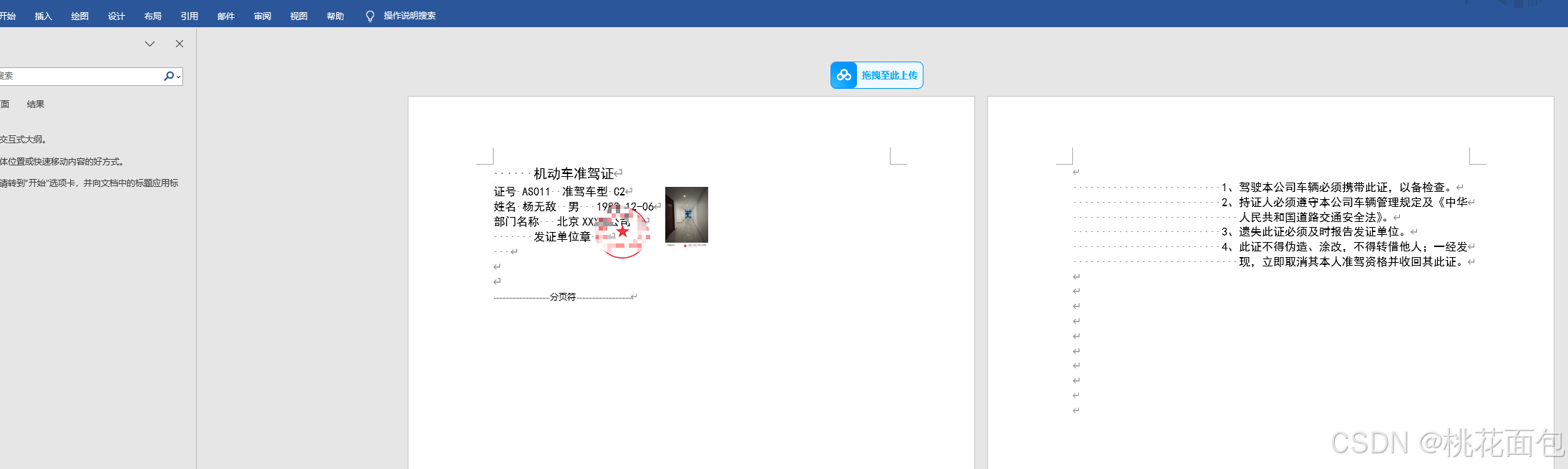

老样子上效果图：

实现步骤

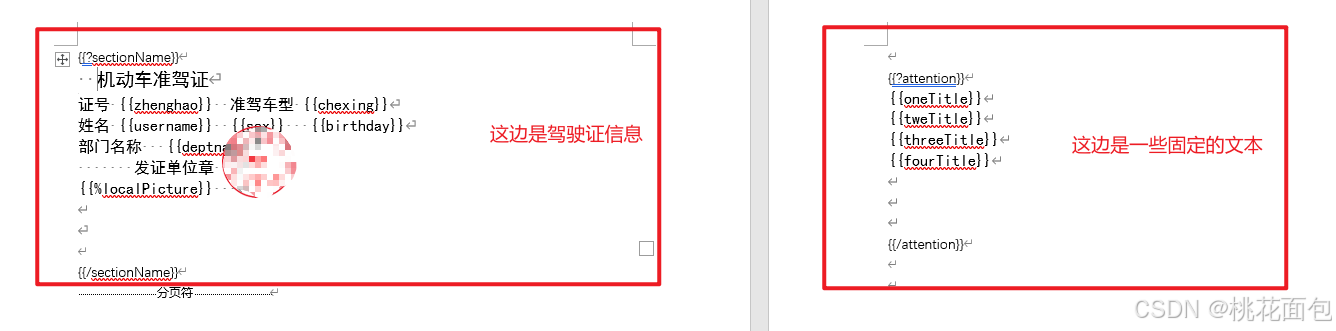

1.准备模板

2.添加依赖

        <dependency>
            <groupid>com.deepoove</groupid>
            <artifactid>poi-tl</artifactid>
            <version>1.10.0-beta</version>
        </dependency>

        <dependency>
            <groupid>org.apache.poi</groupid>
            <artifactid>poi</artifactid>
            <version>5.2.3</version>
        </dependency>

        <dependency>
            <groupid>org.apache.poi</groupid>
            <artifactid>poi-ooxml</artifactid>
            <version>5.2.3</version>
        </dependency>

        <dependency>
            <groupid>org.apache.poi</groupid>
            <artifactid>poi-ooxml-schemas</artifactid>
            <version>4.1.2</version>
        </dependency>

3.代码实现

package com.example.demo;

import cn.hutool.core.util.urlutil;
import com.deepoove.poi.xwpftemplate;
import com.deepoove.poi.config.configure;
import com.deepoove.poi.config.configurebuilder;
import com.deepoove.poi.data.picturerenderdata;
import com.deepoove.poi.data.pictures;
import com.deepoove.poi.plugin.table.looprowtablerenderpolicy;
import com.example.controller.mypicturerenderpolicy;
import org.springframework.core.io.support.pathmatchingresourcepatternresolver;

import java.io.*;
import java.util.arraylist;
import java.util.hashmap;
import java.util.list;
import java.util.map;

public class studentcardexporter001 {

    public static void main(string[] args) {
        // 创建数据映射列表
        list<map<string, object>> sectionlist = new arraylist<>();
        hashmap<string, object> sectionmap = new hashmap<>();
        sectionmap.put("zhenghao", "as011");
        sectionmap.put("chexing", "c2");
        sectionmap.put("username", "杨无敌");
        sectionmap.put("sex", "男");
        sectionmap.put("birthday", "1983-12-06");
        sectionmap.put("deptname", "北京xxxxxxx");
        sectionmap.put("date", "2025-12-09");
        sectionmap.put("localpicture",  pictures.oflocal( "d:\\xiazai\\1212.jpg").size(45, 65).create());


        sectionlist.add(sectionmap);

        // 这里可以设置多条数据
        /*sectionmap.put("zhenghao", "as011");
        sectionmap.put("chexing", "c2");
        sectionmap.put("username", "光头强");
        sectionmap.put("sex", "男");
        sectionmap.put("birthday", "1983-12-06");
        sectionmap.put("deptname", "北京xxxxxxx");
        sectionmap.put("date", "2025-12-09");
        sectionmap.put("localpicture",  pictures.oflocal( "d:\\xiazai\\1212.jpg").size(45, 65).create());
        sectionlist.add(sectionmap);*/

        hashmap<string, object> parammap = new hashmap<>();
        parammap.put("sectionname", sectionlist);
        arraylist<object> titlelist = new arraylist<>();
        // 创建最终的数据映射
        for (int i = 0; i < 2; i++) {


            hashmap<string, object> titlemap = new hashmap<>();
            titlemap.put("onetitle", "                          1、驾驶车辆必须携带此证，以备检查。");
            titlemap.put("twetitle", "                          2、持证人必须遵守本公司车辆管理规定及《中华\n" +
                    "                             人民共和国道路交通安全法》。");
            titlemap.put("threetitle", "                          3、遗失此证必须及时报告发证单位。");
            titlemap.put("fourtitle", "                          4、此证不得伪造、涂改，不得转借他人；一经发\n" +
                    "                             现，立即取消其本人准驾资格并收回其此证。\n");

            titlelist.add(titlemap);
        }
        parammap.put("attention", titlelist);
        // 加载模板文件
        pathmatchingresourcepatternresolver resolver = new pathmatchingresourcepatternresolver();
        try {
            org.springframework.core.io.resource[] resources = resolver.getresources("classpath:exceltemplate/model1.docx");
            if (resources.length == 0) {
                throw new ioexception("template file not found.");
            }
            inputstream inputstream = resources[0].getinputstream();

            configurebuilder builder = configure.builder();
            builder.addplugin('%', new mypicturerenderpolicy());

            // 编译并渲染模板
            xwpftemplate template = xwpftemplate.compile(inputstream, builder.build()).render(parammap);
//            xwpftemplate compile = xwpftemplate.compile(inputstream, builder.build()).render(parammap);

            // 输出生成的文档
            try (fileoutputstream out = new fileoutputstream("d:\\xiazai\\1209.docx")) {
                template.write(out);
            }
        } catch (ioexception e) {
            e.printstacktrace();
        }
    }
}

自定义mypicturerenderpolicy

package com.example.controller;

import com.deepoove.poi.data.picturerenderdata;
import com.deepoove.poi.data.picturetype;
import com.deepoove.poi.data.pictures;
import com.deepoove.poi.data.style.picturestyle;
import com.deepoove.poi.exception.renderexception;
import com.deepoove.poi.policy.abstractrenderpolicy;
import com.deepoove.poi.render.rendercontext;
import com.deepoove.poi.util.bufferedimageutils;
import com.deepoove.poi.util.svgconvertor;
import com.deepoove.poi.util.unitutils;
import com.deepoove.poi.xwpf.bodycontainer;
import com.deepoove.poi.xwpf.bodycontainerfactory;
import com.deepoove.poi.xwpf.widthscalepattern;
import com.deepoove.poi.xwpf.xwpfrunwrapper;
import com.example.demo.exportutil;
import org.apache.poi.util.units;
import org.apache.poi.xwpf.usermodel.ibodyelement;
import org.apache.poi.xwpf.usermodel.paragraphalignment;
import org.apache.poi.xwpf.usermodel.xwpfparagraph;
import org.apache.poi.xwpf.usermodel.xwpfrun;
import org.openxmlformats.schemas.drawingml.x2006.main.ctgraphicalobject;
import org.openxmlformats.schemas.drawingml.x2006.wordprocessingdrawing.ctanchor;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.ctdrawing;

import java.awt.image.bufferedimage;
import java.io.bytearrayinputstream;
import java.io.inputstream;
import java.util.function.supplier;

public class mypicturerenderpolicy extends abstractrenderpolicy<object> {

    @override
    protected boolean validate(object data) {
        if (null == data) {
            return false;
        } else if (data instanceof picturerenderdata) {
            return null != ((picturerenderdata) data).getpicturesupplier();
        } else {
            return true;
        }
    }

    @override
    public void dorender(rendercontext<object> context) throws exception {
        mypicturerenderpolicy.helper.renderpicture(context.getrun(), wrapper(context.getdata()));
    }

    @override
    protected void afterrender(rendercontext<object> context) {
        this.clearplaceholder(context, false);
    }

    @override
    protected void rethrowexception(rendercontext<object> context, exception e) {
        this.logger.info("render picture " + context.geteletemplate() + " error: {}", e.getmessage());
        string alt = "";
        if (context.getdata() instanceof picturerenderdata) {
            alt = ((picturerenderdata) context.getdata()).getaltmeta();
        }

        context.getrun().settext(alt, 0);
    }

    private static picturerenderdata wrapper(object object) {
        return object instanceof picturerenderdata ? (picturerenderdata) object : pictures.of(object.tostring()).fitsize().create();
    }


    public static class helper {
        public static void renderpicture(xwpfrun run, picturerenderdata picture) throws exception {
            supplier<byte[]> supplier = picture.getpicturesupplier();
            byte[] imagebytes = (byte[]) supplier.get();
            if (null == imagebytes) {
                throw new illegalstateexception("can't read picture byte arrays!");
            } else {
                picturetype picturetype = picture.getpicturetype();
                if (null == picturetype) {
                    picturetype = picturetype.suggestfiletype(imagebytes);
                }

                if (null == picturetype) {
                    throw new renderexception("picturerenderdata must set picture type!");
                } else {
                    picturestyle style = picture.getpicturestyle();
                    if (null == style) {
                        style = new picturestyle();
                    }

                    int width = style.getwidth();
                    int height = style.getheight();
                    if (picturetype == picturetype.svg) {
                        imagebytes = svgconvertor.topng(imagebytes, (float) width, (float) height);
                        picturetype = picturetype.png;
                    }

                    if (!issetsize(style)) {
                        bufferedimage original = bufferedimageutils.readbufferedimage(imagebytes);
                        width = original.getwidth();
                        height = original.getheight();
                        if (style.getscalepattern() == widthscalepattern.fit) {
                            bodycontainer bodycontainer = bodycontainerfactory.getbodycontainer(((ibodyelement) run.getparent()).getbody());
                            int pagewidth = unitutils.twips2pixel(bodycontainer.elementpagewidth((ibodyelement) run.getparent()));
                            if (width > pagewidth) {
                                double ratio = (double) pagewidth / (double) width;
                                width = pagewidth;
                                height = (int) ((double) height * ratio);
                            }
                        }
                    }

                    inputstream stream = new bytearrayinputstream(imagebytes);
                    throwable var25 = null;

                    try {
                        picturestyle.picturealign align = style.getalign();
                        if (null != align && run.getparent() instanceof xwpfparagraph) {
                            ((xwpfparagraph) run.getparent()).setalignment(paragraphalignment.valueof(align.ordinal() + 1));
                        }

                        xwpfrunwrapper wrapper = new xwpfrunwrapper(run, false);
                        wrapper.addpicture(stream, picturetype.type(), "generated", units.pixeltoemu(width), units.pixeltoemu(height));

                        ctdrawing drawing = run.getctr().getdrawingarray(0);
                        ctgraphicalobject graphicalobject = drawing.getinlinearray(0).getgraphic();
                        //拿到新插入的图片替换添加ctanchor 设置浮动属性 删除inline属性
                        ctanchor anchor = exportutil.getanchorwithgraphic(graphicalobject, "generated",
                                units.toemu(width), units.toemu(height),//图片大小
                                units.toemu(180), units.toemu(-60), false);//相对当前段落位置 需要计算段落已有内容的左偏移

                        drawing.setanchorarray(new ctanchor[]{anchor});//添加浮动属性
                        drawing.removeinline(0);//删除行内属性
                    } catch (throwable var20) {
                        var25 = var20;
                        throw var20;
                    } finally {
                        if (stream != null) {
                            if (var25 != null) {
                                try {
                                    stream.close();
                                } catch (throwable var19) {
                                    var25.addsuppressed(var19);
                                }
                            } else {
                                stream.close();
                            }
                        }

                    }

                }
            }
        }

    }

    private static boolean issetsize(picturestyle style) {
        return (style.getwidth() != 0 || style.getheight() != 0) && style.getscalepattern() == widthscalepattern.none;
    }

}

图片处理

package com.example.demo;

import org.apache.xmlbeans.xmlexception;
import org.openxmlformats.schemas.drawingml.x2006.main.ctgraphicalobject;
import org.openxmlformats.schemas.drawingml.x2006.wordprocessingdrawing.ctanchor;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.ctdrawing;

import java.math.biginteger;

public class exportutil {


    /**
     * @param ctgraphicalobject 图片数据
     * @param deskfilename      图片描述
     * @param width             宽
     * @param height            高
     * @param leftoffset        水平偏移 left
     * @param topoffset         垂直偏移 top
     * @param behind            文字上方，文字下方
     * @return
     * @throws exception
     */
    public static ctanchor getanchorwithgraphic(ctgraphicalobject ctgraphicalobject,
                                                string deskfilename, int width, int height,
                                                int leftoffset, int topoffset, boolean behind) {
        string anchorxml =
                "<wp:anchor xmlns:wp=\"http://schemas.openxmlformats.org/drawingml/2006/wordprocessingdrawing\" "
                        + "simplepos=\"0\" relativeheight=\"0\" behinddoc=\"" + ((behind) ? 1 : 0) + "\" locked=\"0\" layoutincell=\"1\" allowoverlap=\"1\">"
                        + "<wp:simplepos x=\"0\" y=\"0\"/>"
                        + "<wp:positionh relativefrom=\"character\">"
                        + "<wp:posoffset>" + leftoffset + "</wp:posoffset>"
                        + "</wp:positionh>"
                        + "<wp:positionv relativefrom=\"paragraph\">"
                        + "<wp:posoffset>" + topoffset + "</wp:posoffset>"
                        + "</wp:positionv>"
                        + "<wp:extent cx=\"" + width + "\" cy=\"" + height + "\"/>"
                        + "<wp:effectextent l=\"0\" t=\"0\" r=\"0\" b=\"0\"/>"
                        + "<wp:wrapnone/>"
                        + "<wp:docpr id=\"1\" name=\"drawing 0\" descr=\"" + deskfilename + "\"/><wp:cnvgraphicframepr/>"
                        + "</wp:anchor>";

        ctdrawing drawing = null;
        try {
            drawing = ctdrawing.factory.parse(anchorxml);
        } catch (xmlexception e) {
            e.printstacktrace();
        }
        ctanchor anchor = drawing.getanchorarray(0);
        anchor.setgraphic(ctgraphicalobject);

        // 减少左偏移量以使图片更靠前
        leftoffset = math.max(0, leftoffset - 500); // 根据需要调整减去的值

        anchor.getpositionh().setposoffset(leftoffset);
        anchor.getpositionv().setposoffset(topoffset);

        return anchor;
    }


}
