我要评论一、机器准备
机器
主机名 | ip地址 | 角色 | 软件 |
mic-master | 192.168.252.148 | 主节点 | mysql8.0.23 mysql-shell-8.0.23 |
mic-node1 | 192.168.252.142 | node1 | mysql8.0.23 |
mic-node2 | 192.168.252.145 | node2 | mysql8.0.23 |
关闭防火墙
systemctl stop firewalld setenforce 0
二、环境准备
安装mysql8.0.23
官方地址：mysql :: begin your download
三台机器均安装
1.安装工具 yum -y install perl-json perl-test-simple 2.获取安装包 wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-server-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-client-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-client-plugins-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-devel-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-common-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-libs-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-libs-compat-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-embedded-compat-8.0.23-1.el7.x86_64.rpm wget https://downloads.mysql.com/archives/get/p/23/file/mysql-community-test-8.0.23-1.el7.x86_64.rpm 3.安装 rpm -ivh mysql-community-common-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-client-plugins-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-libs-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-client-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-devel-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-libs-compat-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-embedded-compat-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-server-8.0.23-1.el7.x86_64.rpm rpm -ivh mysql-community-test-8.0.23-1.el7.x86_64.rpm
修改配置文件
所有节点修改进行修改配置文件
添加配置的模版 server_id=[id] #每一台的都不一样，要唯一 report_host=[当前服务器ip] report_port=[mysql端口号] loose-group_replication_ip_whitelist="[ip1],[ip2],[ip3]"
进行修改
vim /etc/my.cnf

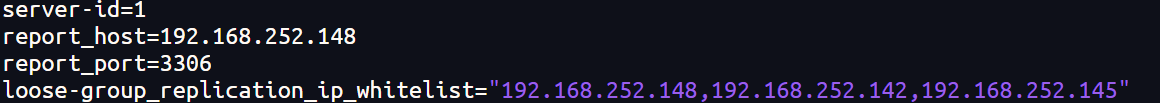

192.168.252.148：
server-id=1 report_host=192.168.252.148 report_port=3306 loose-group_replication_ip_whitelist="192.168.252.148,192.168.252.142,192.168.252.145"

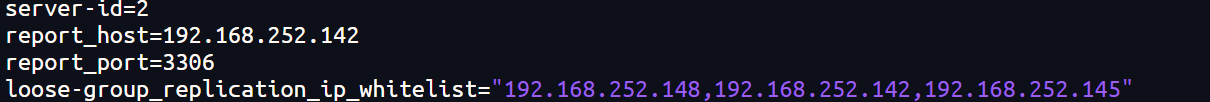

192.168.252.142：
server-id=2 report_host=192.168.252.142 report_port=3306 loose-group_replication_ip_whitelist="192.168.252.148,192.168.252.142,192.168.252.145"

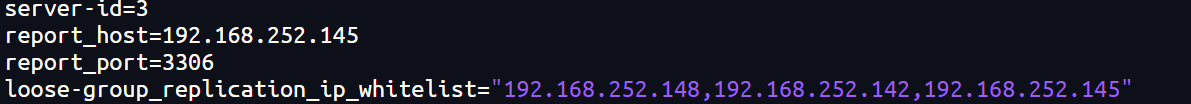

192.168.252.145：
server-id=3 report_host=192.168.252.145 report_port=3306 loose-group_replication_ip_whitelist="192.168.252.148,192.168.252.142,192.168.252.145"
启动并修改密码
systemctl start mysqld
192.168.252.148：
cat /var/log/mysqld.log | grep "password" mysqladmin -uroot -p'cu)ghjzfk3_j' password @syh2025659
192.168.252.142：
cat /var/log/mysqld.log | grep "password" mysqladmin -uroot -p'*qywtizhh8-j' password '@syh2025659'
192.168.252.145：
cat /var/log/mysqld.log | grep "password" mysqladmin -uroot -p'z+ly31m>y#sy' password '@syh2025659'
主服务器安装mysql-shell-8.0.23
wget https://downloads.mysql.com/archives/get/p/43/file/mysql-shell-8.0.23-linux-glibc2.12-x86-64bit.tar.gz 解压： tar -xzf mysql-shell-8.0.23-linux-glibc2.12-x86-64bit.tar.gz -c /usr/local/ cd /usr/local mv mysql-shell-8.0.23-linux-glibc2.12-x86-64bi mysql-shell
三、终端操作
mysql操作

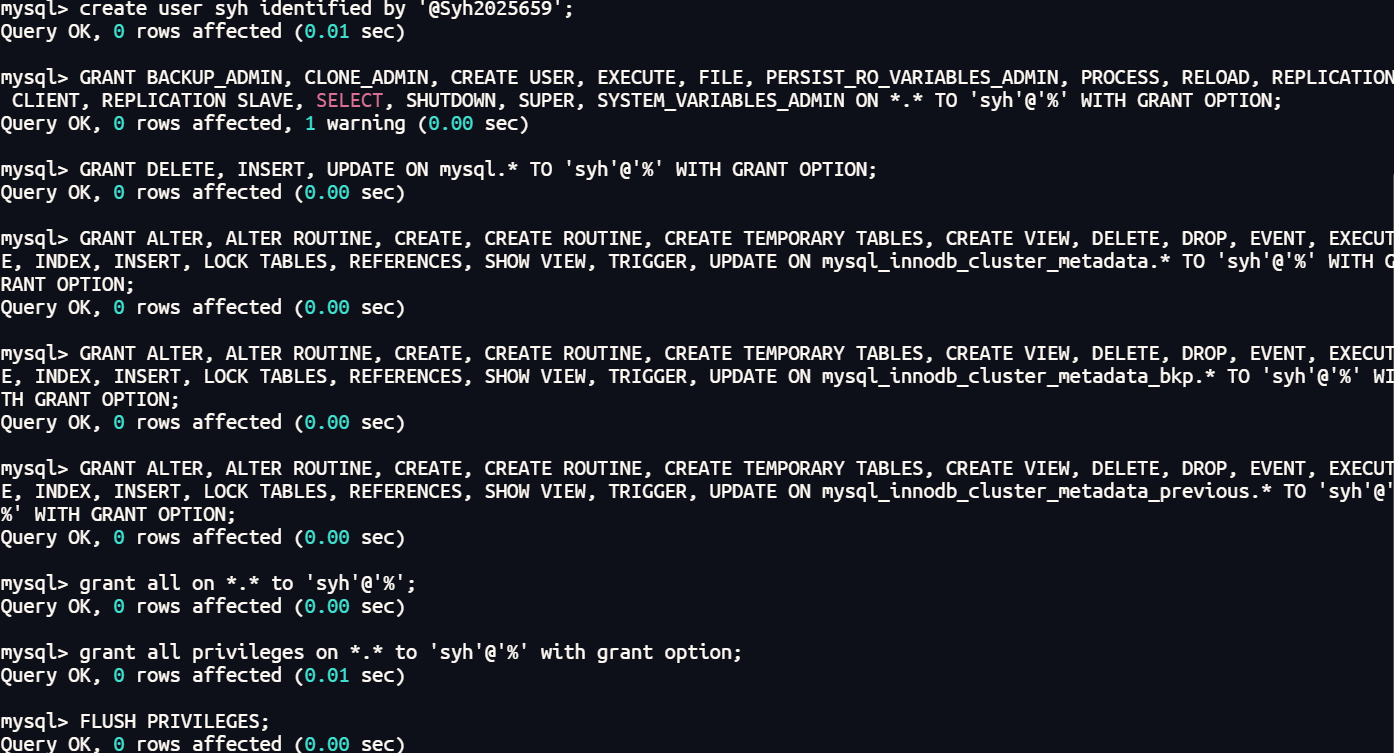

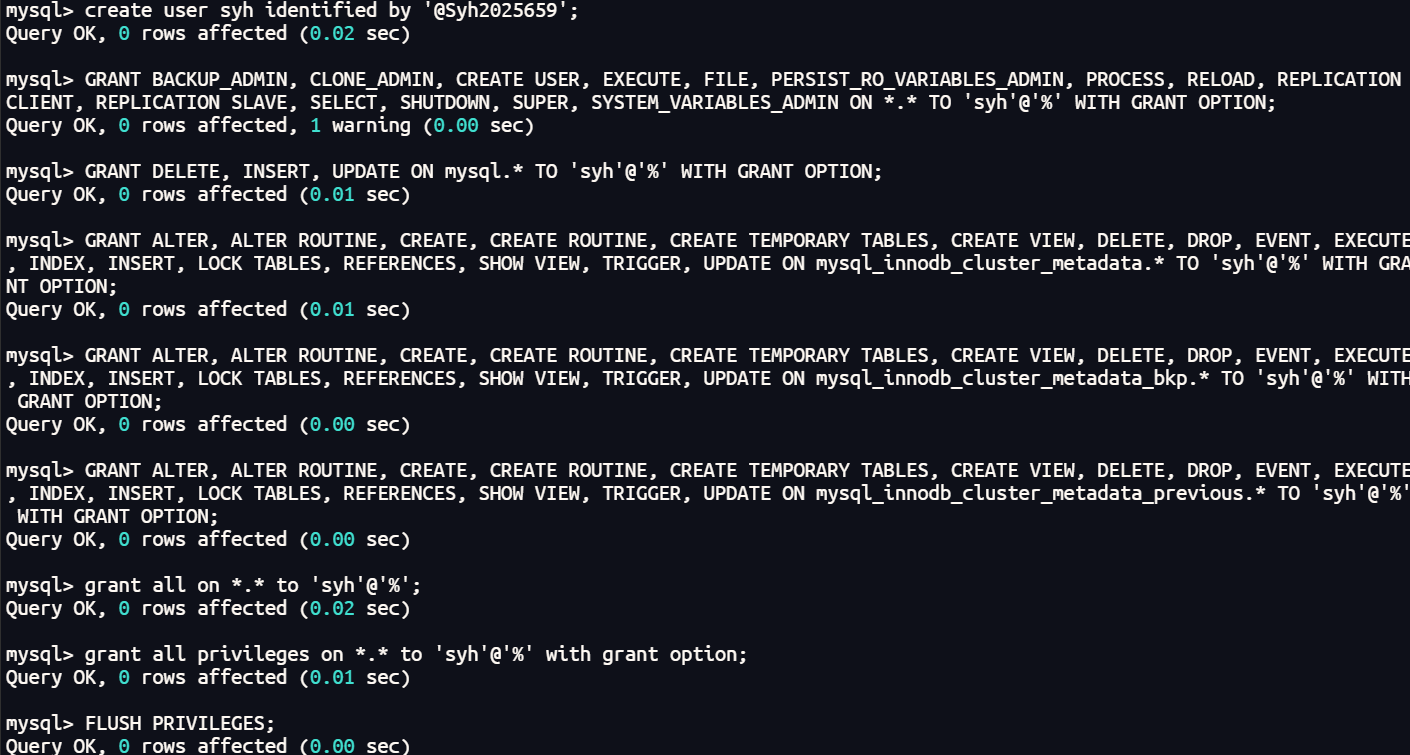

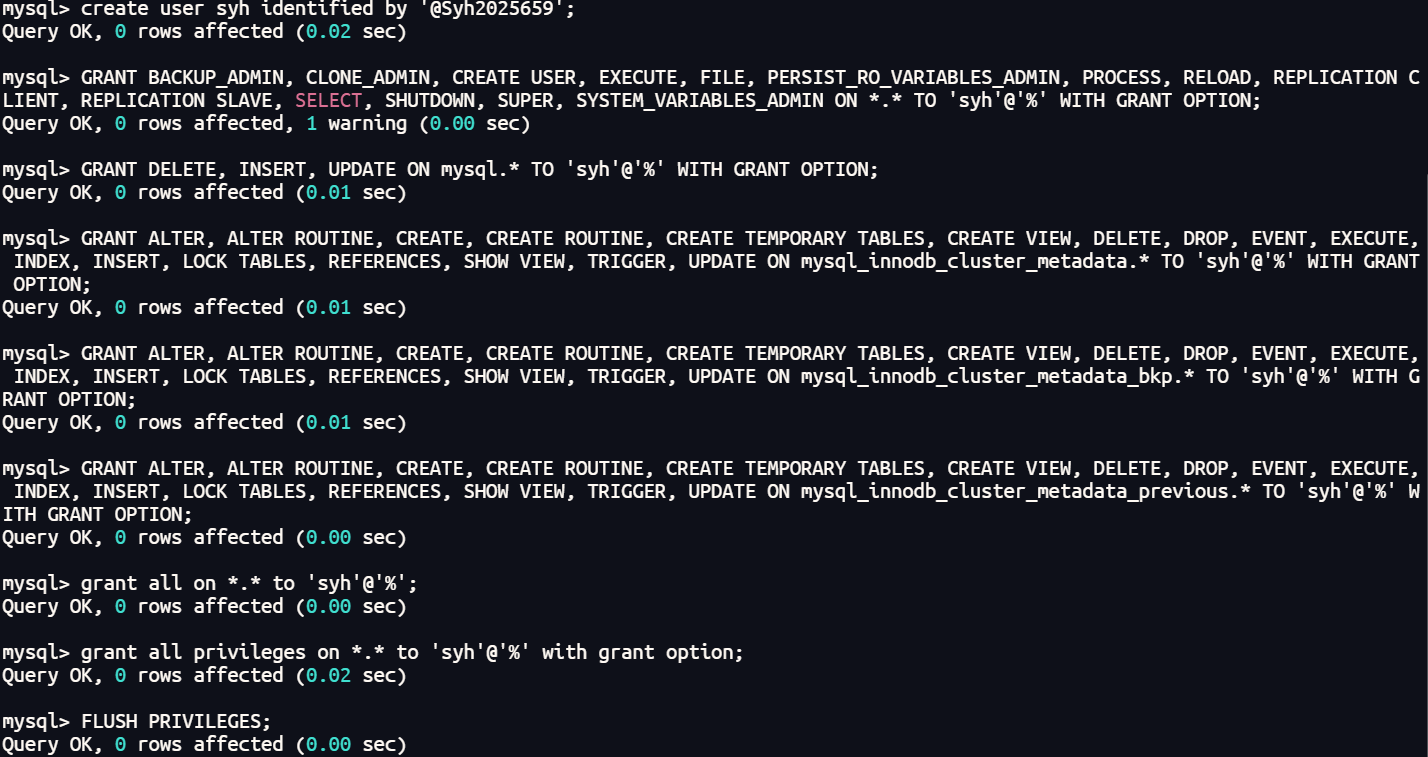

创建用户并授权
三台机器均添加
1.创建用户 create user syh identified by '@syh2025659'; 2.授权给用户 grant backup_admin, clone_admin, create user, execute, file, persist_ro_variables_admin, process, reload, replication client, replication slave, select, shutdown, super, system_variables_admin on *.* to 'syh'@'%' with grant option; grant delete, insert, update on mysql.* to 'syh'@'%' with grant option; grant alter, alter routine, create, create routine, create temporary tables, create view, delete, drop, event, execute, index, insert, lock tables, references, show view, trigger, update on mysql_innodb_cluster_metadata.* to 'syh'@'%' with grant option; grant alter, alter routine, create, create routine, create temporary tables, create view, delete, drop, event, execute, index, insert, lock tables, references, show view, trigger, update on mysql_innodb_cluster_metadata_bkp.* to 'syh'@'%' with grant option; grant alter, alter routine, create, create routine, create temporary tables, create view, delete, drop, event, execute, index, insert, lock tables, references, show view, trigger, update on mysql_innodb_cluster_metadata_previous.* to 'syh'@'%' with grant option; grant all on *.* to 'syh'@'%'; grant all privileges on *.* to 'syh'@'%' with grant option; 3.刷新权限 flush privileges;
192.168.252.148:
192.168.252.142:
192.168.252.145:
mysql-shell操作

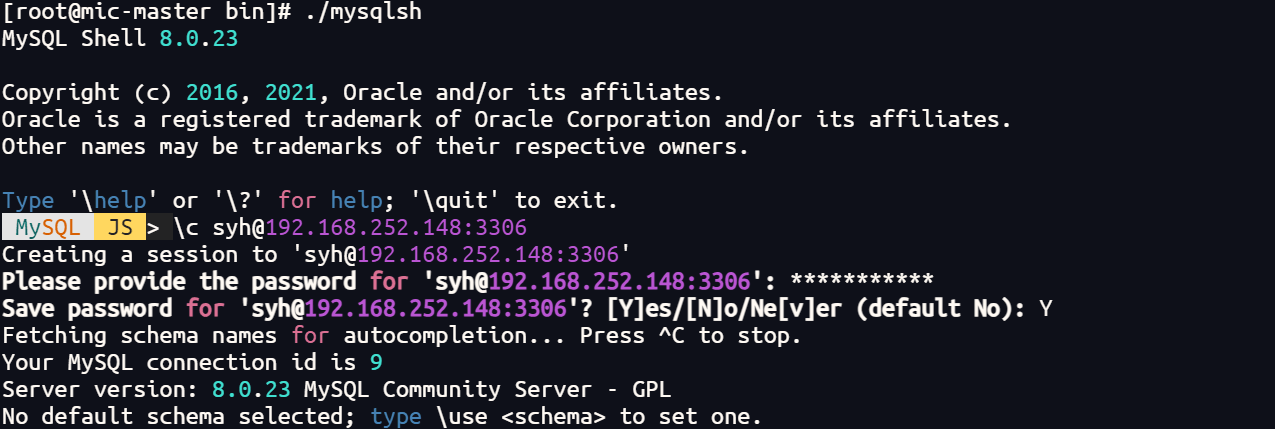

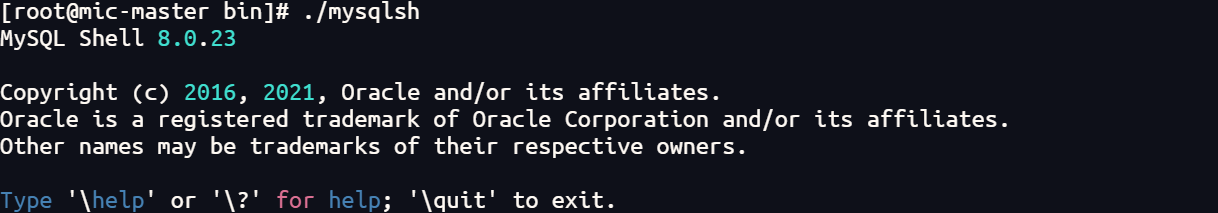

进入mysql-shell
/usr/local/mysql-shell/bin/mysqlsh #启动
连接主库信息
\c syh@192.168.252.148:3306

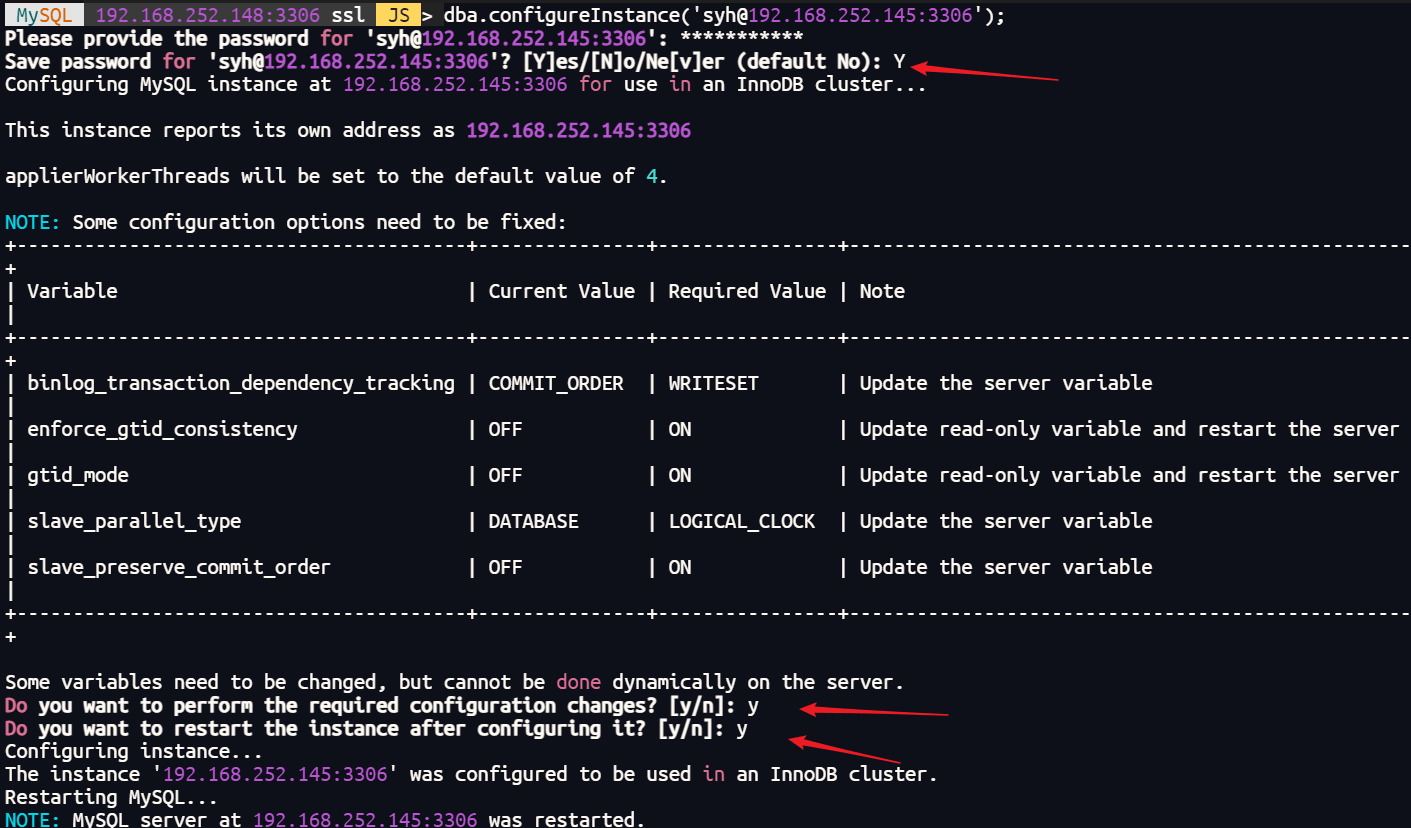

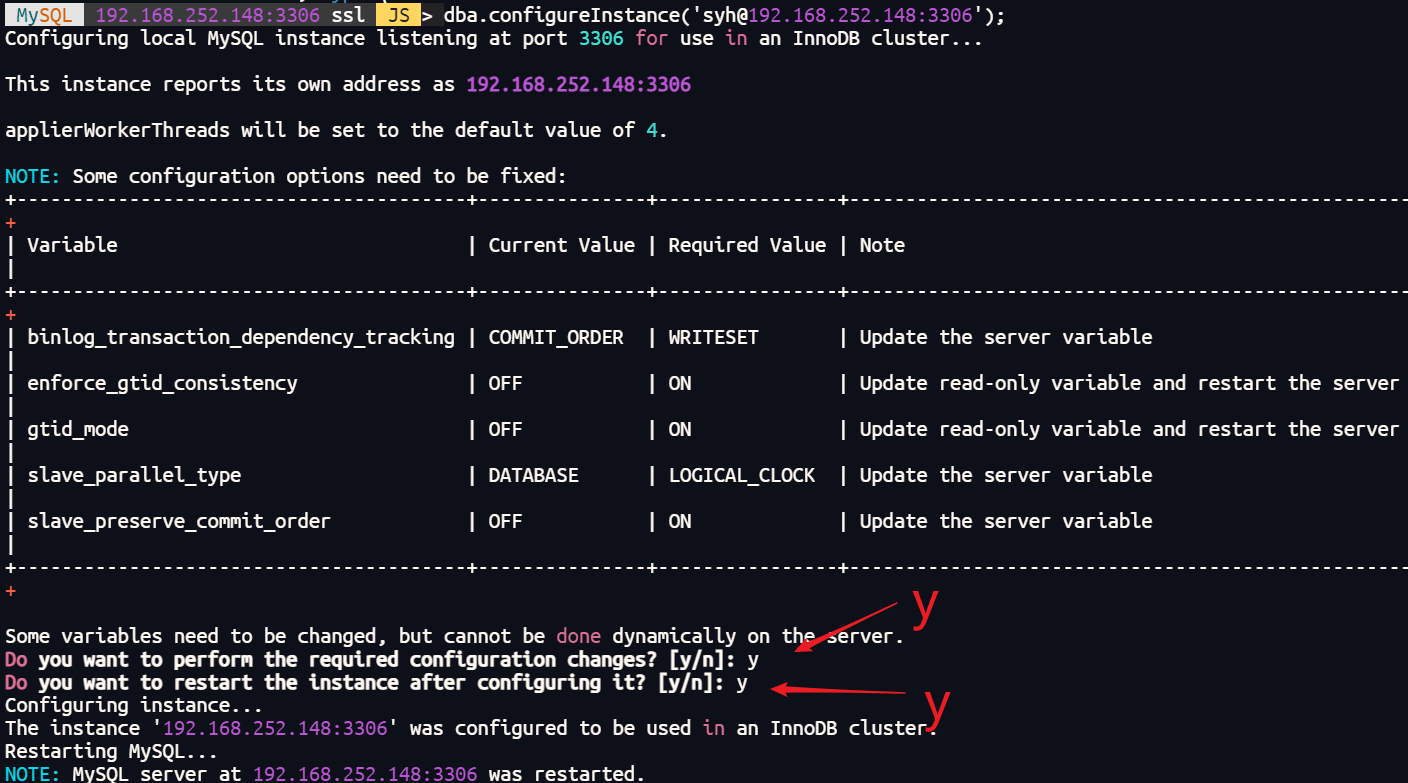

配置集群
dba.configureinstance('syh@192.168.252.148:3306');
dba.configureinstance('syh@192.168.252.142:3306');
dba.configureinstance('syh@192.168.252.145:3306');

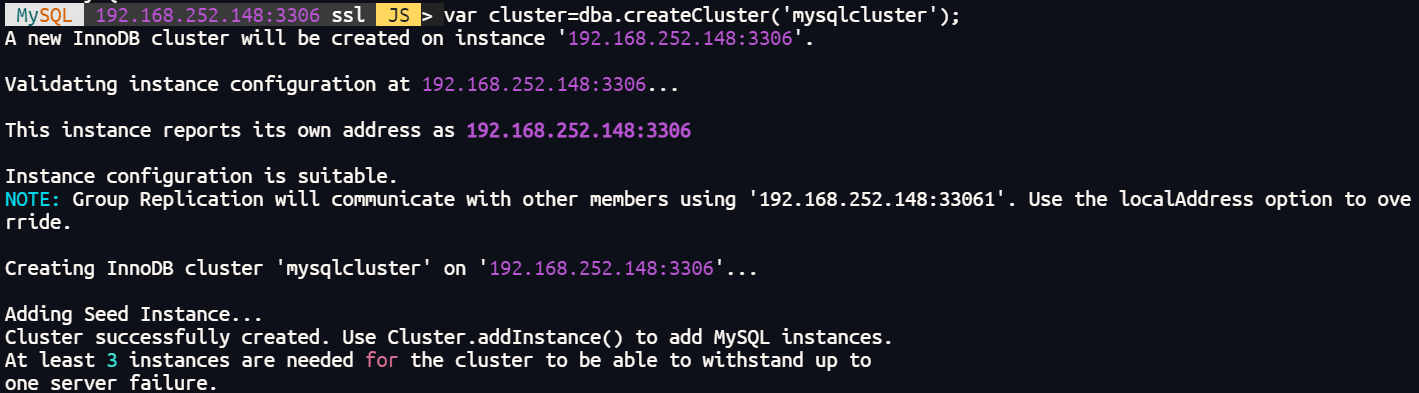

创建一个集群
var cluster=dba.createcluster('mysqlcluster');

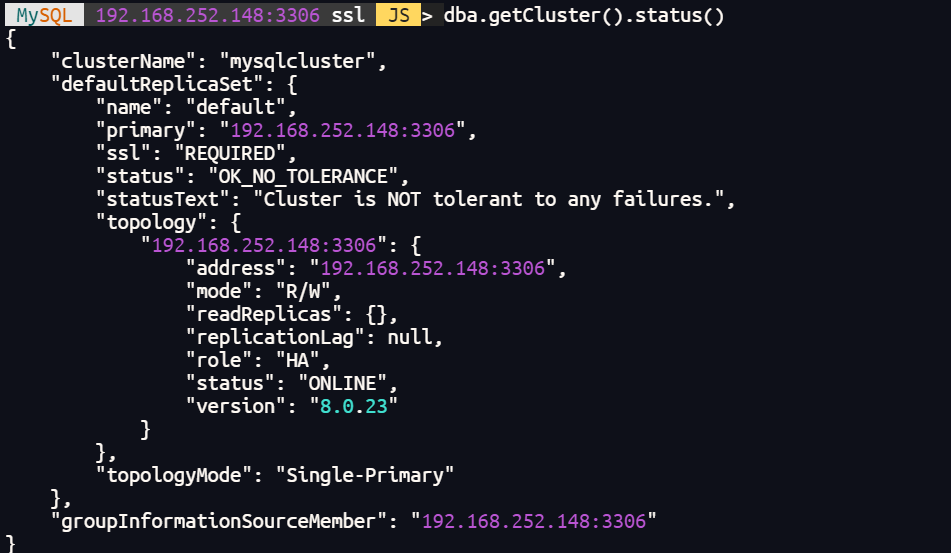

查看主机群状态
dba.getcluster().status();

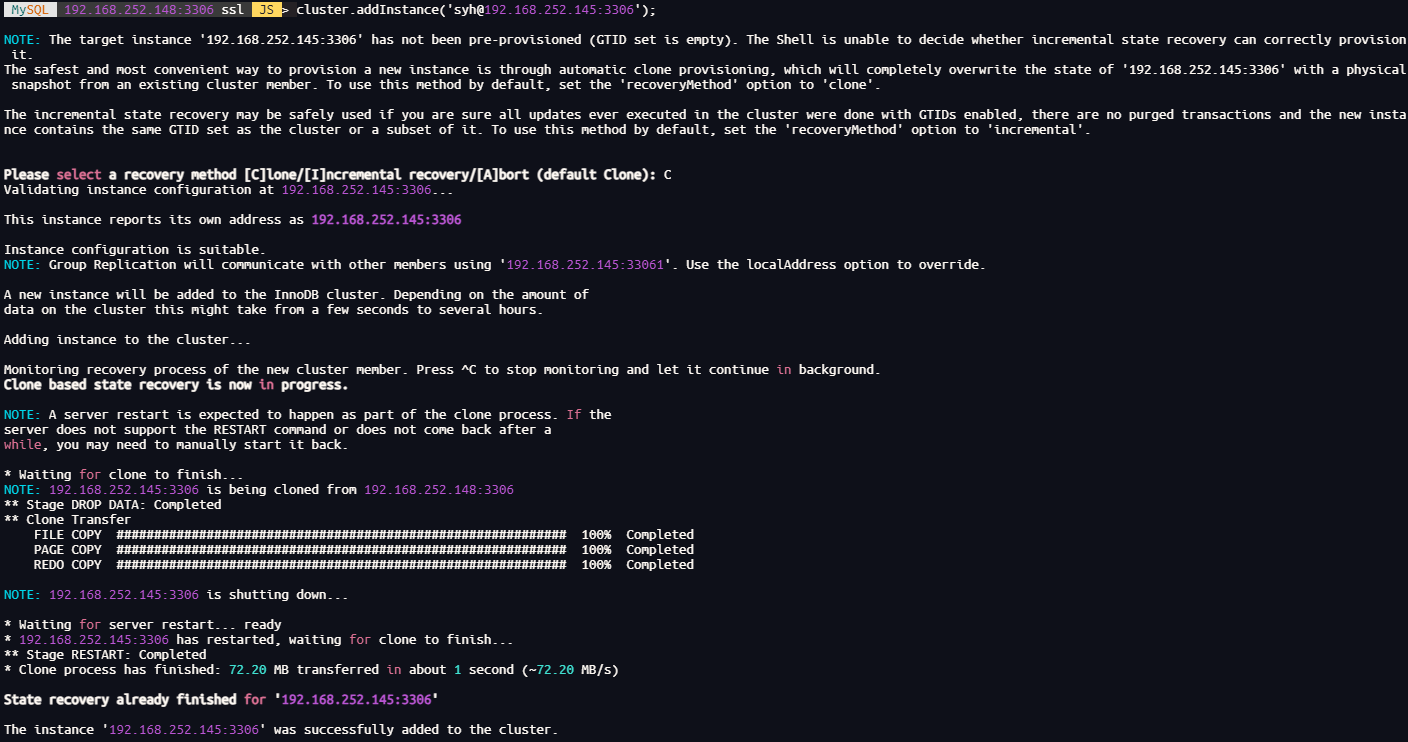

添加两个从节点
var cluster=dba.getcluster();
cluster.addinstance('syh@192.168.252.142:3306');
cluster.addinstance('syh@192.168.252.145:3306');
查看节点
cluster.status();
清空集群
dba.dropmetadataschema(); 清除所有集群
四、故障恢复
安装mysql-router
192.168.252.148：
wget https://downloads.mysql.com/archives/get/p/41/file/mysql-router-8.0.23-linux-glibc2.12-x86_64.tar.xz tar xf mysql-router-8.0.23-linux-glibc2.12-x86_64.tar.xz -c /usr/local cd /usr/local mv mysql-router-8.0.23-linux-glibc2.12-x86_64 mysql-router
修改配置文件

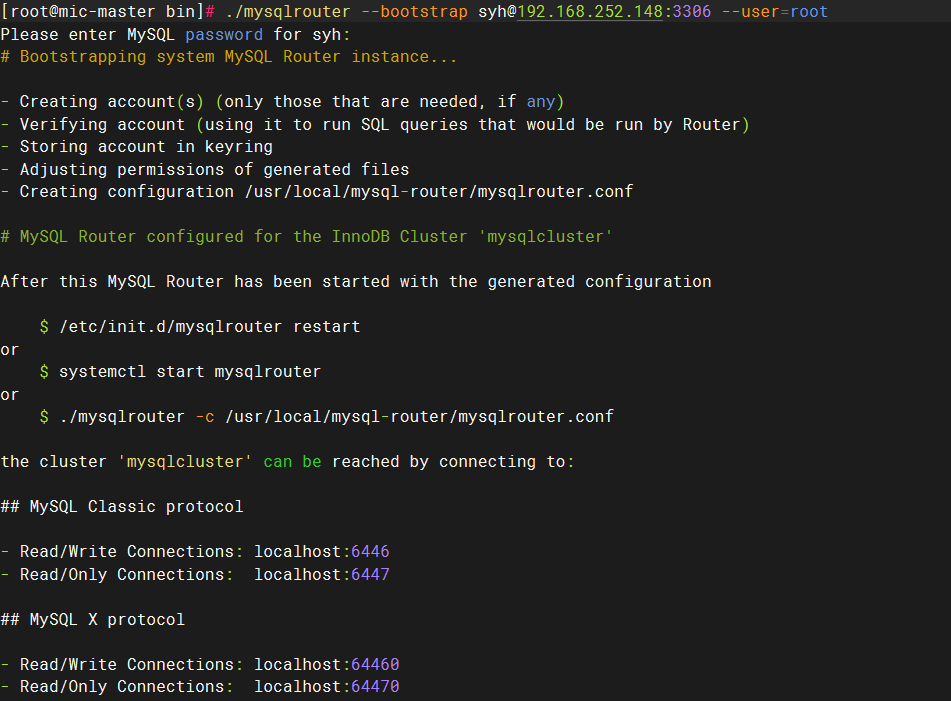

首次启动
192.168.252.148：
cd /usr/local/mysql-router/bin ./mysqlrouter --bootstrap syh@192.168.252.148:3306 --user=root

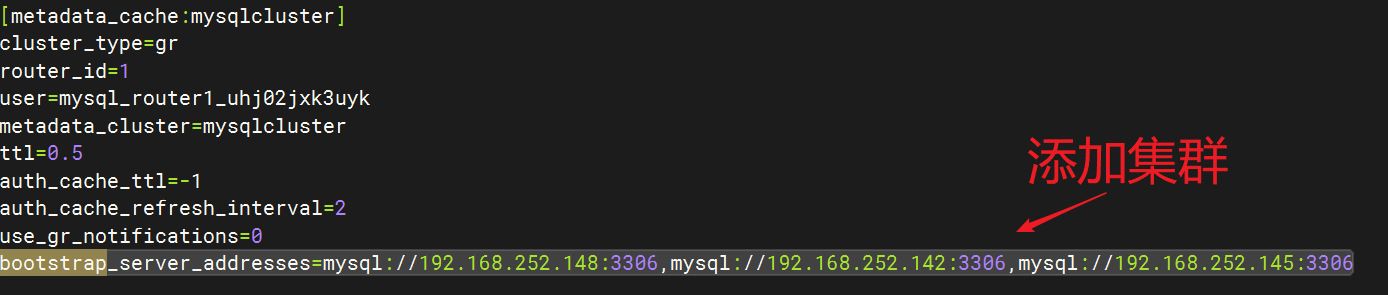

修改配置文件

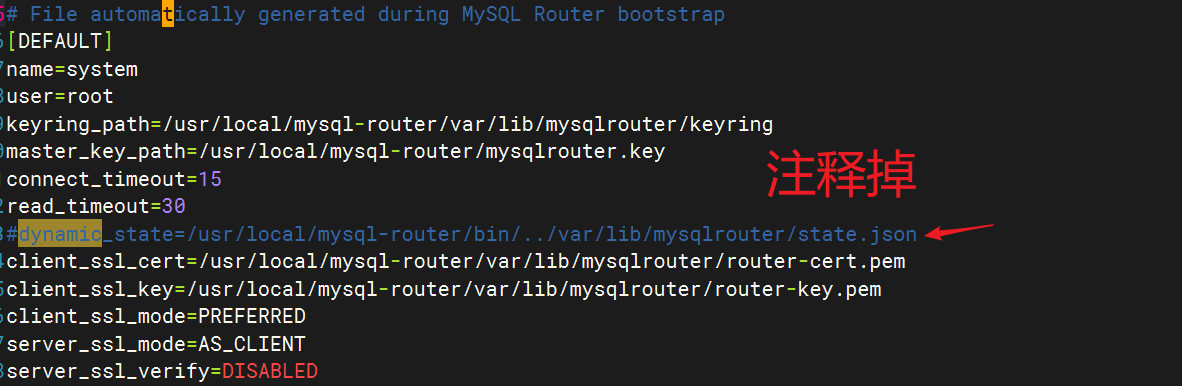

vim /usr/local/mysql-router/mysqlrouter.conf #dynamic_state=/usr/local/mysql-router/bin/../var/lib/mysqlrouter/state.json bootstrap_server_addresses=mysql://192.168.252.148:3306,mysql://192.168.252.142:3306,mysql://192.168.252.145:3306
启动
192.168.252.148：

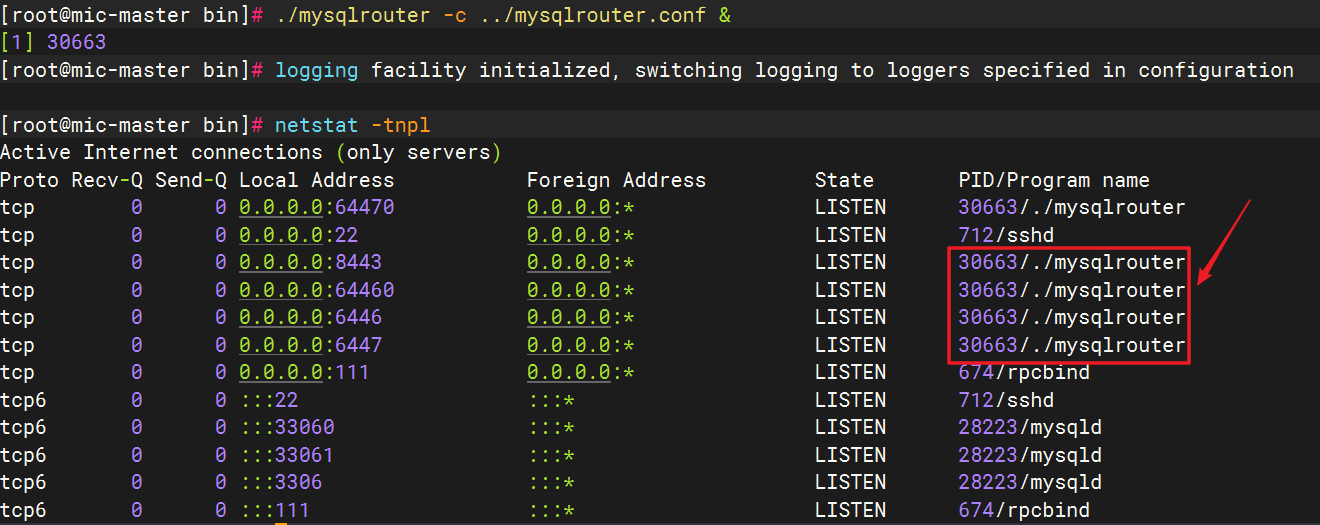

cd /usr/local/mysql-router/bin ./mysqlrouter -c ../mysqlrouter.conf & netstat -tnpl
停掉主库
192.168.252.148：
systemctl stop mysqld

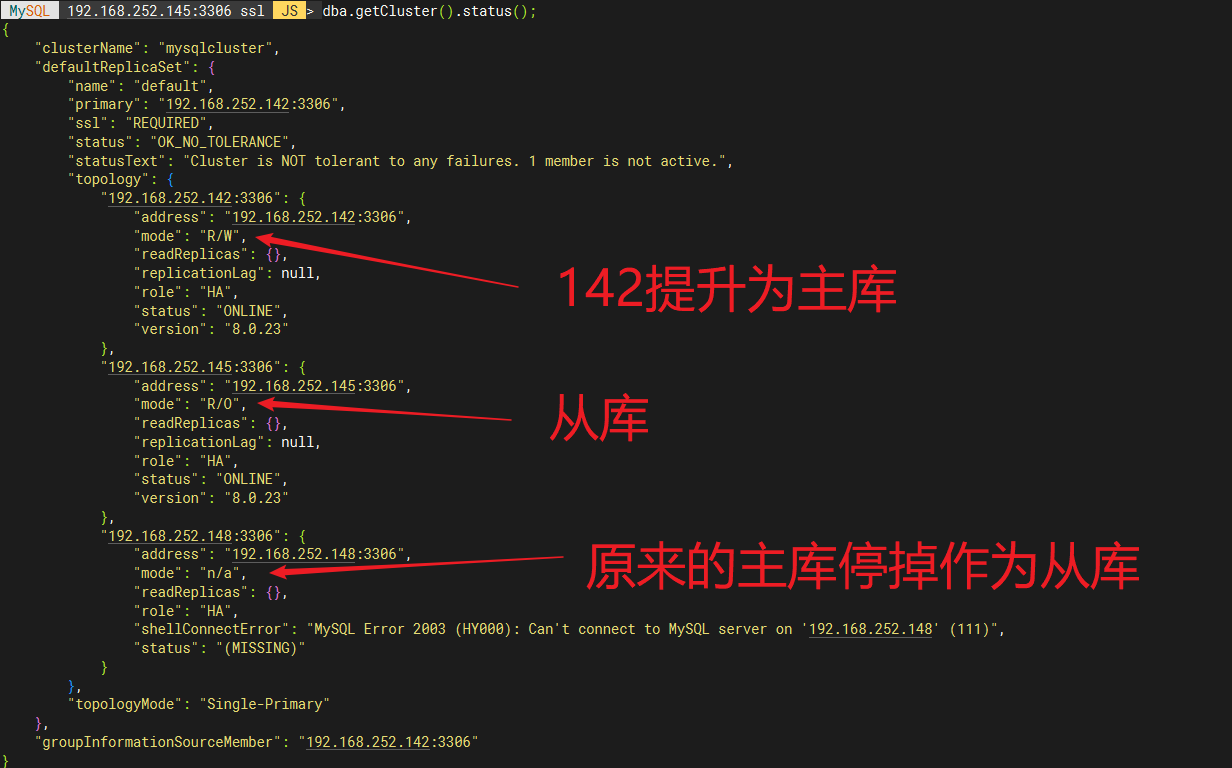

操作mysql-shell
192.168.252.148：
/usr/local/mysql-shell/bin/mysqlsh \c syh@192.168.252.145:3306 var cluster=dba.getcluster(); cluster.status();
192.168.252.148:
systemctl start mysqld

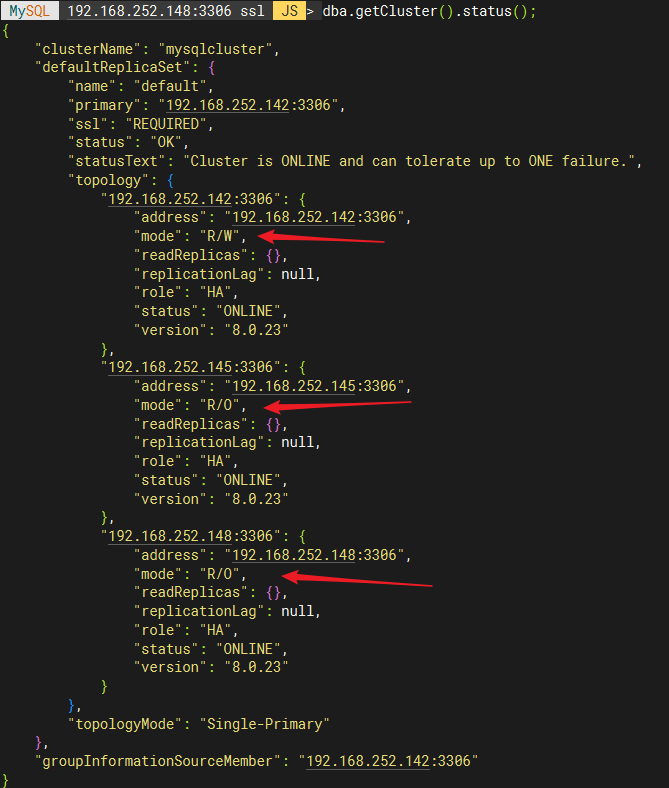

再次查看
恢复！
