基于Spring监听Binlog日志的方法详解

2024年09月08日 Java 我要评论
binlog的三种模式mysql 的二进制日志(binlog)有三种不同的格式,通常被称为 binlog 模式。这三种模式分别是 statement 模式、row 模式和mixed 模式。statem

binlog的三种模式

mysql 的二进制日志(binlog)有三种不同的格式,通常被称为 binlog 模式。这三种模式分别是 statement 模式、row 模式和mixed 模式。

statement 模式:

  • 在 statement 模式下,mysql 记录每个会更改数据的 sql 语句。
  • binlog 记录的是执行的 sql 语句本身,而不是具体的数据变化。
  • 例如,如果执行了 update 语句,binlog 记录的是这个 update 语句的文本。

row 模式:

  • 在 row 模式下,mysql 记录每一行数据的变化。
  • binlog 记录的是行数据的变化,而不是 sql 语句。
  • 例如,如果执行了 update 语句,binlog 记录的是被修改的行的实际数据。

mixed 模式:

  • mixed 模式是 statement 模式和 row 模式的结合。
  • 在 mixed 模式下,mysql 根据执行的 sql 语句的类型来决定是记录语句还是记录行。
  • 通常,对于简单的语句,使用 statement 模式,对于涉及到行变化的复杂语句,使用 row 模式。

这些模式可以通过 mysql 配置文件中的 binlog_format 参数进行配置。例如:

[mysqld]
binlog_format=mixed

其中,statementrowmixed 分别代表 statement 模式、row 模式和 mixed 模式。选择适当的 binlog 模式取决于应用的特定需求和性能要求。不同的模式具有不同的优劣势,例如,statement 模式可能会更轻量,而 row 模式可能提供更详细的数据变化信息。

以mixed 为例

查看binlog是否开启

show variables like '%log_bin%'

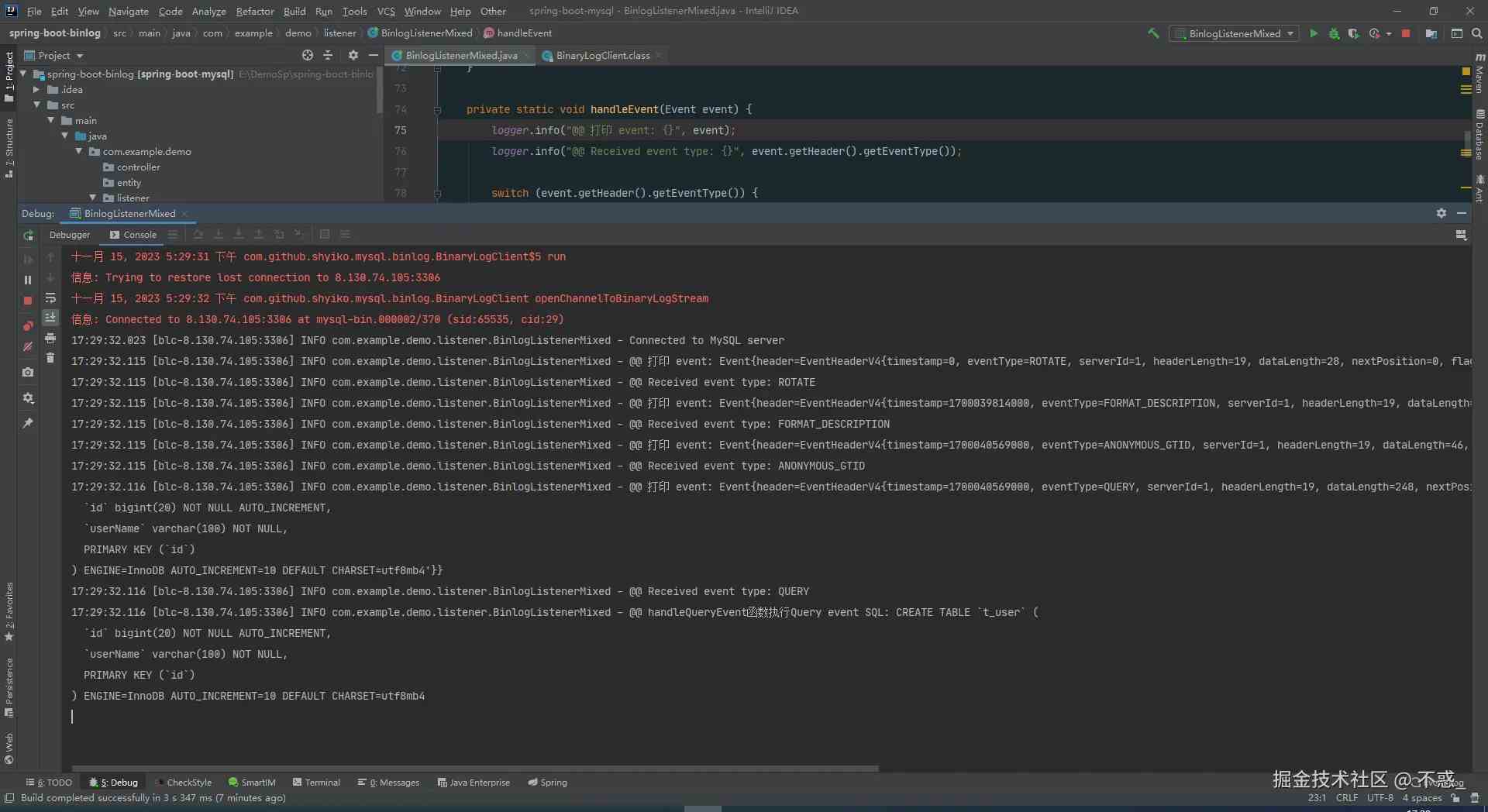

启动springboot程序

新建数据库

这个事件是一个 binlog 事件,其内容表示一个 sql 查询事件。让我解释一下这个事件的各个部分:

  • 事件类型 (eventtype): 该事件的类型是 query,表示这是一个 sql 查询事件。
  • 时间戳 (timestamp): 事件的时间戳为 1700045267000,表示事件发生的时间。
  • 线程id (threadid): 线程id 是 189,表示执行这个查询的线程的标识符。
  • 执行时间 (executiontime): 执行时间为 0,表示执行这个查询所花费的时间。
  • 错误代码 (errorcode): 错误代码为 0,表示查询执行没有错误。
  • 数据库 (database): 数据库为 test2023,表示这个查询发生在 test2023 数据库中。
  • sql 查询 (sql): 实际的 sql 查询为 create database test2023 character set utf8 collate utf8_general_ci,表示执行了创建数据库的操作。

这个事件的作用是在 test2023 数据库中执行了一个创建数据库的 sql 查询。这是 binlog 中的一部分,用于记录数据库中的变化,以便进行数据备份、主从同步等操作。

新建表数据

create table `t_user` (
  `id` bigint(20) not null auto_increment,
  `username` varchar(100) not null,
  primary key (`id`)
) engine=innodb auto_increment=10 default charset=utf8mb4;

这个事件也是一个 binlog 事件,表示一个 sql 查询事件。让我解释一下这个事件的各个部分:

  • 事件类型 (eventtype): 该事件的类型是 query,表示这是一个 sql 查询事件。
  • 时间戳 (timestamp): 事件的时间戳为 1700045422000,表示事件发生的时间。
  • 线程id (threadid): 线程id 是 204,表示执行这个查询的线程的标识符。
  • 执行时间 (executiontime): 执行时间为 0,表示执行这个查询所花费的时间。
  • 错误代码 (errorcode): 错误代码为 0,表示查询执行没有错误。
  • 数据库 (database): 数据库为 test2023,表示这个查询发生在 test2023 数据库中。
  • sql 查询 (sql): 实际的 sql 查询为 create table t_user(idbigint(20) not null auto_increment,username varchar(100) not null, primary key (id) ) engine=innodb auto_increment=10 default charset=utf8mb4,表示执行了在 test2023 数据库中创建名为 t_user 的表的操作。

这个事件的作用是在 test2023 数据库中创建了一个名为 t_user 的表,该表包含 idusername 两个字段,其中 id 是自增的主键。这种类型的事件常常用于记录数据库结构的变化,以便进行数据备份、迁移和版本控制等操作。

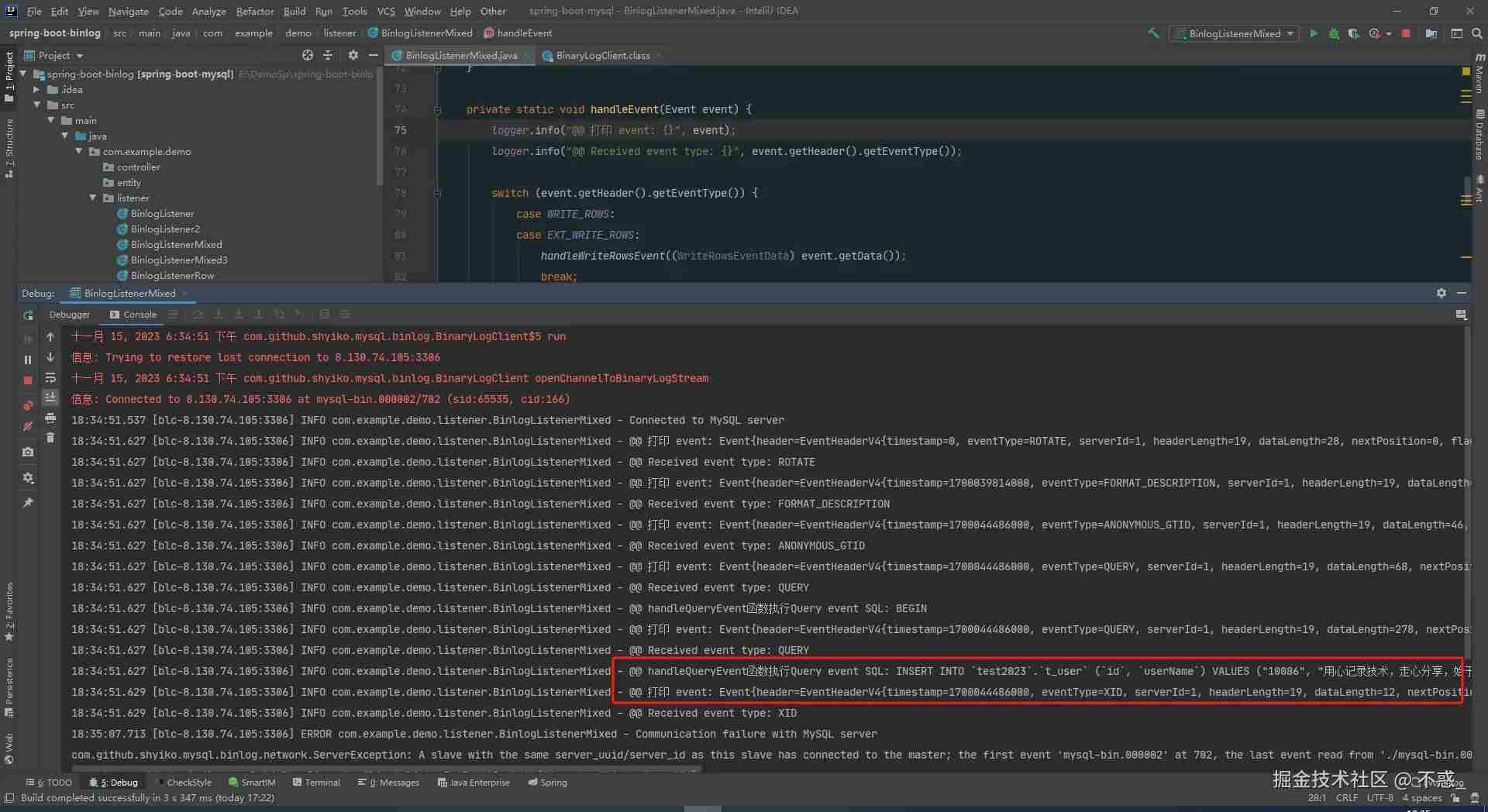

插入表数据

insert into `test2023`.`t_user` (`id`, `username`)
values
    (
        "10086",
        "用心记录技术,走心分享,始于后端,不止于后端,励志成为一名优秀的全栈架构师,真正的实现码中致富。"
    );

这个事件也是一个 binlog 事件,表示一个 sql 查询事件,具体如下:

  • 事件类型 (eventtype): 该事件的类型是 query,表示这是一个 sql 查询事件。
  • 时间戳 (timestamp): 事件的时间戳为 1700045547000,表示事件发生的时间。
  • 线程id (threadid): 线程id 是 204,表示执行这个查询的线程的标识符。
  • 执行时间 (executiontime): 执行时间为 0,表示执行这个查询所花费的时间。
  • 错误代码 (errorcode): 错误代码为 0,表示查询执行没有错误。
  • 数据库 (database): 数据库为 test2023,表示这个查询发生在 test2023 数据库中。
  • sql 查询 (sql): 实际的 sql 查询为 insert into test2023.t_user (id, username) values ( "10086", "用心记录技术,走心分享,始于后端,不止于后端,励志成为一名优秀的全栈架构师,真正的实现码中致富。",表示执行了向 test2023 数据库的 t_user 表中插入一行数据的操作。

这个事件的作用是向 t_user 表中插入了一行数据,包含了 idusername 两个字段的值。这种类型的事件通常用于记录数据的变化,以便进行数据备份、同步和迁移等操作。

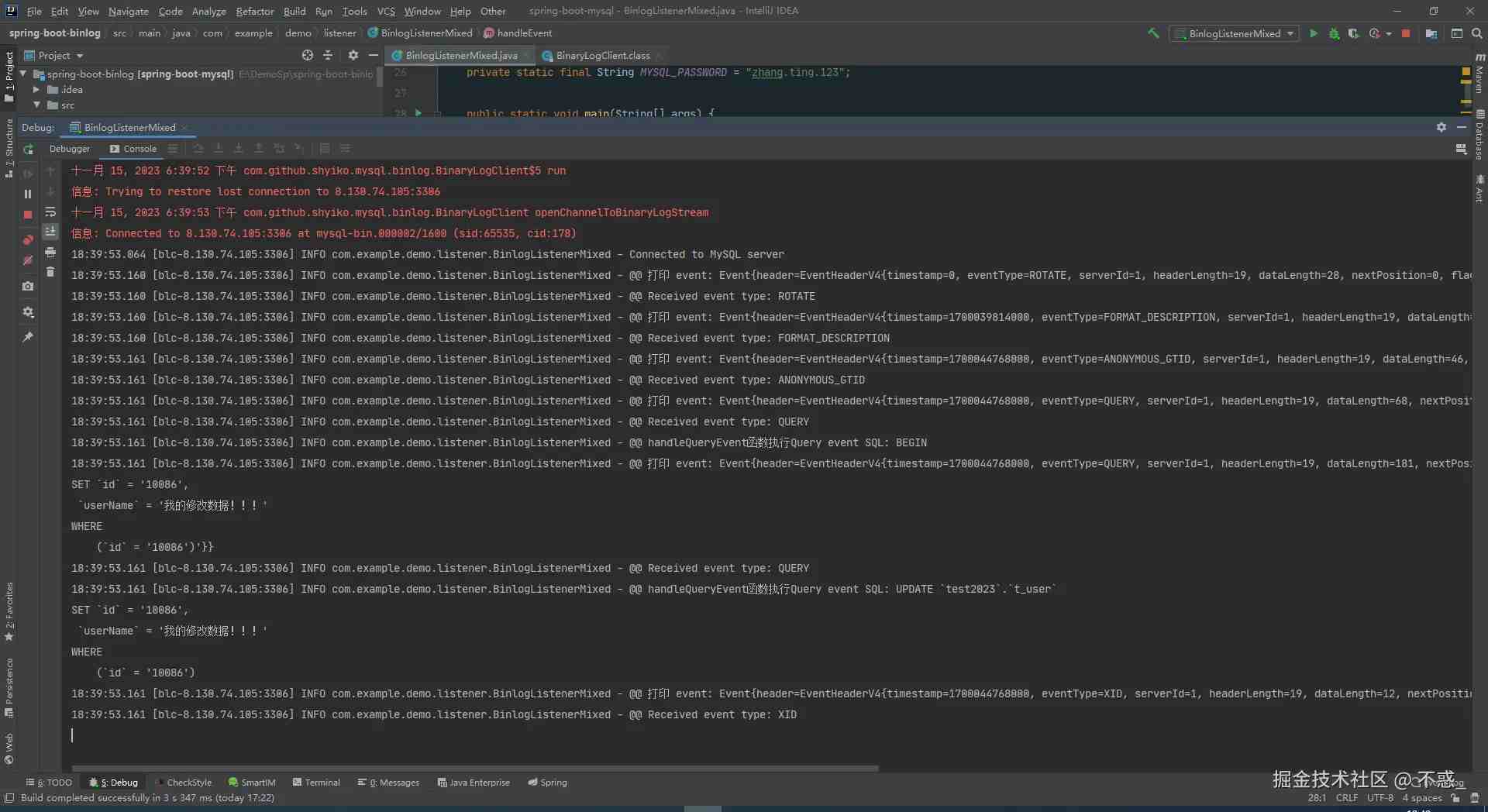

修改表数据修改表数据

修改表数据

update `test2023`.`t_user`
set `id` = '10086',
 `username` = '我的修改数据!!!'
where
	(`id` = '10086');

这个事件同样是一个 binlog 事件,表示一个 sql 查询事件,具体如下:

  • 事件类型 (eventtype): 该事件的类型是 query,表示这是一个 sql 查询事件。
  • 时间戳 (timestamp): 事件的时间戳为 1700045675000,表示事件发生的时间。
  • 线程id (threadid): 线程id 是 204,表示执行这个查询的线程的标识符。
  • 执行时间 (executiontime): 执行时间为 0,表示执行这个查询所花费的时间。
  • 错误代码 (errorcode): 错误代码为 0,表示查询执行没有错误。
  • 数据库 (database): 数据库为 test2023,表示这个查询发生在 test2023 数据库中。
  • sql 查询 (sql): 实际的 sql 查询为 update test2023.t_usersetid= '10086', username = '我的修改数据!!!' where (id = '10086'),表示执行了更新 test2023 数据库中的 t_user 表中一行数据的操作。

这个事件的作用是将 t_user 表中 id10086 的行的数据进行更新,将 id 修改为 10086username 修改为 '我的修改数据!!!'。这种类型的事件通常用于记录数据的变化,以便进行数据备份、同步和迁移等操作。

删除表数据

delete
from
	t_user
where
	id = '10086';

这个事件同样是一个 binlog 事件,表示一个 sql 查询事件,具体如下:

  • 事件类型 (eventtype): 该事件的类型是 query,表示这是一个 sql 查询事件。
  • 时间戳 (timestamp): 事件的时间戳为 1700045755000,表示事件发生的时间。
  • 线程id (threadid): 线程id 是 204,表示执行这个查询的线程的标识符。
  • 执行时间 (executiontime): 执行时间为 0,表示执行这个查询所花费的时间。
  • 错误代码 (errorcode): 错误代码为 0,表示查询执行没有错误。
  • 数据库 (database): 数据库为 test2023,表示这个查询发生在 test2023 数据库中。
  • sql 查询 (sql): 实际的 sql 查询为 delete from t_user where id = '10086',表示执行了删除 test2023 数据库中的 t_user 表中一行数据的操作。

这个事件的作用是删除 t_user 表中 id10086 的行。这种类型的事件通常用于记录数据的删除操作,以便进行数据备份、同步和迁移等操作。

总结: binlog_format 设置为 mixed 时,对于 insert、update 和 delete 操作,它们在 binlog 中的事件类型都会被表示为 query 事件。这是因为在 mixed 模式下,mysql 使用了不同的方式来记录不同类型的操作,但在 binlog 中,它们都被包装成了 query 事件。

在 mixed 模式下:

  • 对于某些语句级别的操作(例如非确定性的语句或不支持事务的存储引擎),会使用 statement 事件。
  • 对于其他一些情况,会使用 row 事件,将变更的行作为事件的一部分进行记录。

这就是为什么看到的 insert、update 和 delete 操作的事件类型都是 query。在处理这些事件时,需要根据具体的 sql 查询语句或其他信息来确定操作的类型。

源码示例

pom.xml

		<dependency>
			<groupid>org.springframework.boot</groupid>
			<artifactid>spring-boot-starter-data-jpa</artifactid>
		</dependency>

		<dependency>
			<groupid>org.springframework.boot</groupid>
			<artifactid>spring-boot-starter-web</artifactid>
		</dependency>

		<dependency>
			<groupid>org.springframework.boot</groupid>
			<artifactid>spring-boot-starter-test</artifactid>
			<scope>test</scope>
		</dependency>

		<dependency>
			<groupid>mysql</groupid>
			<artifactid>mysql-connector-java</artifactid>
			<version>5.1.48</version> <!-- 查看最新版本 -->
		</dependency>

		<dependency>
			<groupid>com.github.shyiko</groupid>
			<artifactid>mysql-binlog-connector-java</artifactid>
			<version>0.21.0</version>
		</dependency>

java示例

package com.example.demo.listener;

import com.github.shyiko.mysql.binlog.binarylogclient;
import com.github.shyiko.mysql.binlog.event.event;
import com.github.shyiko.mysql.binlog.event.eventdata;
import com.github.shyiko.mysql.binlog.event.queryeventdata;
import com.github.shyiko.mysql.binlog.event.tablemapeventdata;
import com.github.shyiko.mysql.binlog.event.writerowseventdata;
import com.github.shyiko.mysql.binlog.event.deserialization.eventdeserializer;
import org.slf4j.logger;
import org.slf4j.loggerfactory;

import javax.naming.authenticationexception;
import java.io.ioexception;
import java.io.serializable;
import java.util.list;
import java.util.concurrent.timeoutexception;

public class binloglistenermixed {

    private static final logger logger = loggerfactory.getlogger(binloglistenermixed.class);

    private static final string mysql_host = "8.130.74.105";
    private static final int mysql_port = 3306;
    private static final string mysql_username = "root";
    private static final string mysql_password = "zhang.ting.123";

    public static void main(string[] args) {
        try {
            binarylogclient client = new binarylogclient(mysql_host, mysql_port, mysql_username, mysql_password);
//            client.setbinlogfilename(null);
//            client.setbinlogposition(-1); // 或者设置为其他适当的初始位置
//            client.setserverid(1);
//            client.setbinlogfilename("mysql-bin.000005");
//            client.setbinlogposition(154);
            eventdeserializer eventdeserializer = new eventdeserializer();
            eventdeserializer.setcompatibilitymode(
                    eventdeserializer.compatibilitymode.date_and_time_as_long,
                    eventdeserializer.compatibilitymode.char_and_binary_as_byte_array
            );
            logger.info("使用主机={}, 端口={}, 用户名={}, 密码={} 连接到 mysql", mysql_host, mysql_port, mysql_username, mysql_password);
            client.seteventdeserializer(eventdeserializer);
            client.registereventlistener(binloglistenermixed::handleevent);
            client.registerlifecyclelistener(new binarylogclient.lifecyclelistener() {
                @override
                public void onconnect(binarylogclient client) {
                    logger.info("connected to mysql server");
                }

                @override
                public void oncommunicationfailure(binarylogclient client, exception ex) {
                    logger.error("communication failure with mysql server", ex);
                }

                @override
                public void oneventdeserializationfailure(binarylogclient client, exception ex) {
                    logger.error("event deserialization failure", ex);
                }

                @override
                public void ondisconnect(binarylogclient client) {
                    logger.warn("disconnected from mysql server");
                    // 在这里添加重新连接或其他处理逻辑
                }
            });

            client.connect();
        } catch (ioexception e) {
            logger.error("@@ 连接到 mysql 时发生错误", e);
            logger.error("@@ error connecting to mysql", e);
        }
    }

    private static void handleevent(event event) {
        logger.info("@@ 打印 event: {}", event);
        logger.info("@@ received event type: {}", event.getheader().geteventtype());

        switch (event.getheader().geteventtype()) {
            case write_rows:
            case ext_write_rows:
                handlewriterowsevent((writerowseventdata) event.getdata());
                break;
            case query:
                handlequeryevent((queryeventdata) event.getdata());
                break;
            case table_map:
                handletablemapevent((tablemapeventdata) event.getdata());
                break;
            // 其他事件处理...
        }
    }

    private static void handlewriterowsevent(writerowseventdata eventdata) {
        list<serializable[]> rows = eventdata.getrows();

        // 获取表名
        string tablename = gettablename(eventdata);

        // 处理每一行数据
        for (serializable[] row : rows) {
            // 根据需要调整以下代码以获取具体的列值
            string column1value = row[0].tostring();
            string column2value = row[1].tostring();

            // 将数据备份到另一个数据库
            backuptoanotherdatabase(tablename, column1value, column2value);
        }
    }

    private static void handlequeryevent(queryeventdata eventdata) {
        string sql = eventdata.getsql();
        logger.info("@@ handlequeryevent函数执行query event sql: {}", sql);

        // 解析sql语句,根据需要处理
        // 例如,检查是否包含写入操作,然后执行相应的逻辑
    }

    private static void handletablemapevent(tablemapeventdata eventdata) {
        // 获取表映射信息,根据需要处理
        logger.info("@@ handletablemapevent函数执行tablemap event: {}", eventdata);
    }

    private static string gettablename(eventdata eventdata) {
        // 获取表名的逻辑,可以使用tablemapeventdata等信息
        // 根据实际情况实现
        return "example_table";
    }

    private static void backuptoanotherdatabase(string tablename, string column1value, string column2value) {
        // 将数据备份到另一个数据库的逻辑
        logger.info("backup to another database: table={}, column1={}, column2={}", tablename, column1value, column2value);
    }
}

以上就是基于spring监听binlog日志的方法详解的详细内容,更多关于spring监听binlog日志的资料请关注代码网其它相关文章!
