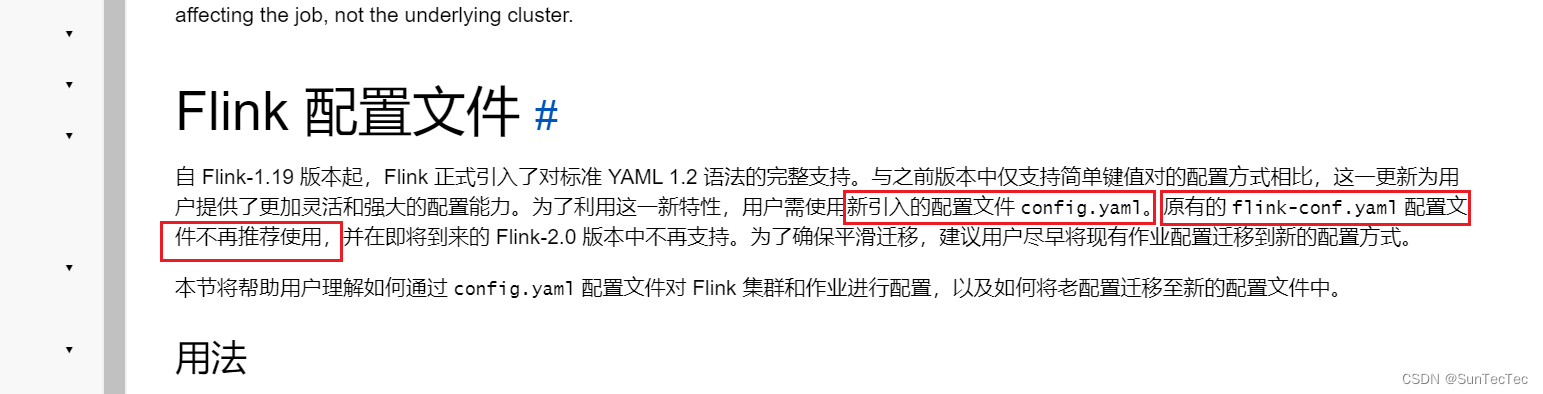

我要评论flink 1.19起 conf/flink-conf.yaml 更改为新的 conf/config.yaml

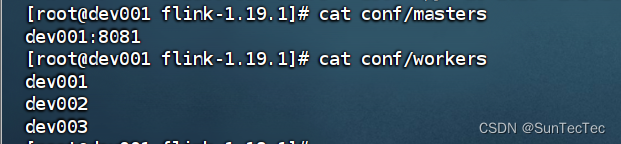

standalone集群: dev001、dev002、dev003
config.yaml: jobmanager address 统一使用 dev001，bind-port 统一改成 0.0.0.0，taskmanager address 分别更改为dev所在host
dev001 config.yaml:
################################################################################
# licensed to the apache software foundation (asf) under one
# or more contributor license agreements. see the notice file
# distributed with this work for additional information
# regarding copyright ownership. the asf licenses this file
# to you under the apache license, version 2.0 (the
# "license"); you may not use this file except in compliance
# with the license. you may obtain a copy of the license at
#
# http://www.apache.org/licenses/license-2.0
#
# unless required by applicable law or agreed to in writing, software
# distributed under the license is distributed on an "as is" basis,
# without warranties or conditions of any kind, either express or implied.
# see the license for the specific language governing permissions and
# limitations under the license.
################################################################################
# these parameters are required for java 17 support.
# they can be safely removed when using java 8/11.
env:
java:
opts:
all: --add-exports=java.base/sun.net.util=all-unnamed --add-exports=java.rmi/sun.rmi.registry=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.api=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.file=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.parser=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.tree=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.util=all-unnamed --add-exports=java.security.jgss/sun.security.krb5=all-unnamed --add-opens=java.base/java.lang=all-unnamed --add-opens=java.base/java.net=all-unnamed --add-opens=java.base/java.io=all-unnamed --add-opens=java.base/java.nio=all-unnamed --add-opens=java.base/sun.nio.ch=all-unnamed --add-opens=java.base/java.lang.reflect=all-unnamed --add-opens=java.base/java.text=all-unnamed --add-opens=java.base/java.time=all-unnamed --add-opens=java.base/java.util=all-unnamed --add-opens=java.base/java.util.concurrent=all-unnamed --add-opens=java.base/java.util.concurrent.atomic=all-unnamed --add-opens=java.base/java.util.concurrent.locks=all-unnamed
#==============================================================================
# common
#==============================================================================
jobmanager:
# the host interface the jobmanager will bind to. by default, this is localhost, and will prevent
# the jobmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
rpc:
# the external address of the host on which the jobmanager runs and can be
# reached by the taskmanagers and any clients which want to connect. this setting
# is only used in standalone mode and may be overwritten on the jobmanager side
# by specifying the --host <hostname> parameter of the bin/jobmanager.sh executable.
# in high availability mode, if you use the bin/start-cluster.sh script and setup
# the conf/masters file, this will be taken care of automatically. yarn
# automatically configure the host name based on the hostname of the node where the
# jobmanager runs.
address: dev001
# the rpc port where the jobmanager is reachable.
port: 6123
memory:
process:
# the total process memory size for the jobmanager.
# note this accounts for all memory usage within the jobmanager process, including jvm metaspace and other overhead.
size: 1600m
execution:
# the failover strategy, i.e., how the job computation recovers from task failures.
# only restart tasks that may have been affected by the task failure, which typically includes
# downstream tasks and potentially upstream tasks if their produced data is no longer available for consumption.
failover-strategy: region
taskmanager:
# the host interface the taskmanager will bind to. by default, this is localhost, and will prevent
# the taskmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
# the address of the host on which the taskmanager runs and can be reached by the jobmanager and
# other taskmanagers. if not specified, the taskmanager will try different strategies to identify
# the address.
#
# note this address needs to be reachable by the jobmanager and forward traffic to one of
# the interfaces the taskmanager is bound to (see 'taskmanager.bind-host').
#
# note also that unless all taskmanagers are running on the same machine, this address needs to be
# configured separately for each taskmanager.
host: dev001
# the number of task slots that each taskmanager offers. each slot runs one parallel pipeline.
numberoftaskslots: 2
memory:
process:
# the total process memory size for the taskmanager.
#
# note this accounts for all memory usage within the taskmanager process, including jvm metaspace and other overhead.
# to exclude jvm metaspace and overhead, please, use total flink memory size instead of 'taskmanager.memory.process.size'.
# it is not recommended to set both 'taskmanager.memory.process.size' and flink memory.
size: 1728m
parallelism:
# the parallelism used for programs that did not specify and other parallelism.
default: 1
# # the default file system scheme and authority.
# # by default file paths without scheme are interpreted relative to the local
# # root file system 'file:///'. use this to override the default and interpret
# # relative paths relative to a different file system,
# # for example 'hdfs://mynamenode:12345'
# fs:
# default-scheme: hdfs://mynamenode:12345
#==============================================================================
# high availability
#==============================================================================
# high-availability:
# # the high-availability mode. possible options are 'none' or 'zookeeper'.
# type: zookeeper
# # the path where metadata for master recovery is persisted. while zookeeper stores
# # the small ground truth for checkpoint and leader election, this location stores
# # the larger objects, like persisted dataflow graphs.
# #
# # must be a durable file system that is accessible from all nodes
# # (like hdfs, s3, ceph, nfs, ...)
# storagedir: hdfs:///flink/ha/
# zookeeper:
# # the list of zookeeper quorum peers that coordinate the high-availability
# # setup. this must be a list of the form:
# # "host1:clientport,host2:clientport,..." (default clientport: 2181)
# quorum: localhost:2181
# client:
# # acl options are based on https://zookeeper.apache.org/doc/r3.1.2/zookeeperprogrammers.html#sc_builtinaclschemes
# # it can be either "creator" (zoo_create_all_acl) or "open" (zoo_open_acl_unsafe)
# # the default value is "open" and it can be changed to "creator" if zk security is enabled
# acl: open
#==============================================================================
# fault tolerance and checkpointing
#==============================================================================
# the backend that will be used to store operator state checkpoints if
# checkpointing is enabled. checkpointing is enabled when execution.checkpointing.interval > 0.
# # execution checkpointing related parameters. please refer to checkpointconfig and executioncheckpointingoptions for more details.
# execution:
# checkpointing:
# interval: 3min
# externalized-checkpoint-retention: [delete_on_cancellation, retain_on_cancellation]
# max-concurrent-checkpoints: 1
# min-pause: 0
# mode: [exactly_once, at_least_once]
# timeout: 10min
# tolerable-failed-checkpoints: 0
# unaligned: false
# state:
# backend:
# # supported backends are 'hashmap', 'rocksdb', or the
# # <class-name-of-factory>.
# type: hashmap
# # flag to enable/disable incremental checkpoints for backends that
# # support incremental checkpoints (like the rocksdb state backend).
# incremental: false
# checkpoints:
# # directory for checkpoints filesystem, when using any of the default bundled
# # state backends.
# dir: hdfs://namenode-host:port/flink-checkpoints
# savepoints:
# # default target directory for savepoints, optional.
# dir: hdfs://namenode-host:port/flink-savepoints
#==============================================================================
# rest & web frontend
#==============================================================================
rest:
# the address to which the rest client will connect to
address: dev001
# the address that the rest & web server binds to
# by default, this is localhost, which prevents the rest & web server from
# being able to communicate outside of the machine/container it is running on.
#
# to enable this, set the bind address to one that has access to outside-facing
# network interface, such as 0.0.0.0.
bind-address: 0.0.0.0
# # the port to which the rest client connects to. if rest.bind-port has
# # not been specified, then the server will bind to this port as well.
# port: 8081
# # port range for the rest and web server to bind to.
# bind-port: 8080-8090
# web:
# submit:
# # flag to specify whether job submission is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
# cancel:
# # flag to specify whether job cancellation is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
#==============================================================================
# advanced
#==============================================================================
# io:
# tmp:
# # override the directories for temporary files. if not specified, the
# # system-specific java temporary directory (java.io.tmpdir property) is taken.
# #
# # for framework setups on yarn, flink will automatically pick up the
# # containers' temp directories without any need for configuration.
# #
# # add a delimited list for multiple directories, using the system directory
# # delimiter (colon ':' on unix) or a comma, e.g.:
# # /data1/tmp:/data2/tmp:/data3/tmp
# #
# # note: each directory entry is read from and written to by a different i/o
# # thread. you can include the same directory multiple times in order to create
# # multiple i/o threads against that directory. this is for example relevant for
# # high-throughput raids.
# dirs: /tmp
# classloader:
# resolve:
# # the classloading resolve order. possible values are 'child-first' (flink's default)
# # and 'parent-first' (java's default).
# #
# # child first classloading allows users to use different dependency/library
# # versions in their application than those in the classpath. switching back
# # to 'parent-first' may help with debugging dependency issues.
# order: child-first
# the amount of memory going to the network stack. these numbers usually need
# no tuning. adjusting them may be necessary in case of an "insufficient number
# of network buffers" error. the default min is 64mb, the default max is 1gb.
#
# taskmanager:
# memory:
# network:
# fraction: 0.1
# min: 64mb
# max: 1gb
#==============================================================================
# flink cluster security configuration
#==============================================================================
# kerberos authentication for various components - hadoop, zookeeper, and connectors -
# may be enabled in four steps:
# 1. configure the local krb5.conf file
# 2. provide kerberos credentials (either a keytab or a ticket cache w/ kinit)
# 3. make the credentials available to various jaas login contexts
# 4. configure the connector to use jaas/sasl
# # the below configure how kerberos credentials are provided. a keytab will be used instead of
# # a ticket cache if the keytab path and principal are set.
# security:
# kerberos:
# login:
# use-ticket-cache: true
# keytab: /path/to/kerberos/keytab
# principal: flink-user
# # the configuration below defines which jaas login contexts
# contexts: client,kafkaclient
#==============================================================================
# zk security configuration
#==============================================================================
# zookeeper:
# sasl:
# # below configurations are applicable if zk ensemble is configured for security
# #
# # override below configuration to provide custom zk service name if configured
# # zookeeper.sasl.service-name: zookeeper
# #
# # the configuration below must match one of the values set in "security.kerberos.login.contexts"
# login-context-name: client
#==============================================================================
# historyserver
#==============================================================================
# the historyserver is started and stopped via bin/historyserver.sh (start|stop)
#
# jobmanager:
# archive:
# fs:
# # directory to upload completed jobs to. add this directory to the list of
# # monitored directories of the historyserver as well (see below).
# dir: hdfs:///completed-jobs/
# historyserver:
# web:
# # the address under which the web-based historyserver listens.
# address: 0.0.0.0
# # the port under which the web-based historyserver listens.
# port: 8082
# archive:
# fs:
# # comma separated list of directories to monitor for completed jobs.
# dir: hdfs:///completed-jobs/
# # interval in milliseconds for refreshing the monitored directories.
# fs.refresh-interval: 10000
dev002 config.yaml:
################################################################################
# licensed to the apache software foundation (asf) under one
# or more contributor license agreements. see the notice file
# distributed with this work for additional information
# regarding copyright ownership. the asf licenses this file
# to you under the apache license, version 2.0 (the
# "license"); you may not use this file except in compliance
# with the license. you may obtain a copy of the license at
#
# http://www.apache.org/licenses/license-2.0
#
# unless required by applicable law or agreed to in writing, software
# distributed under the license is distributed on an "as is" basis,
# without warranties or conditions of any kind, either express or implied.
# see the license for the specific language governing permissions and
# limitations under the license.
################################################################################
# these parameters are required for java 17 support.
# they can be safely removed when using java 8/11.
env:
java:
opts:
all: --add-exports=java.base/sun.net.util=all-unnamed --add-exports=java.rmi/sun.rmi.registry=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.api=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.file=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.parser=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.tree=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.util=all-unnamed --add-exports=java.security.jgss/sun.security.krb5=all-unnamed --add-opens=java.base/java.lang=all-unnamed --add-opens=java.base/java.net=all-unnamed --add-opens=java.base/java.io=all-unnamed --add-opens=java.base/java.nio=all-unnamed --add-opens=java.base/sun.nio.ch=all-unnamed --add-opens=java.base/java.lang.reflect=all-unnamed --add-opens=java.base/java.text=all-unnamed --add-opens=java.base/java.time=all-unnamed --add-opens=java.base/java.util=all-unnamed --add-opens=java.base/java.util.concurrent=all-unnamed --add-opens=java.base/java.util.concurrent.atomic=all-unnamed --add-opens=java.base/java.util.concurrent.locks=all-unnamed
#==============================================================================
# common
#==============================================================================
jobmanager:
# the host interface the jobmanager will bind to. by default, this is localhost, and will prevent
# the jobmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
rpc:
# the external address of the host on which the jobmanager runs and can be
# reached by the taskmanagers and any clients which want to connect. this setting
# is only used in standalone mode and may be overwritten on the jobmanager side
# by specifying the --host <hostname> parameter of the bin/jobmanager.sh executable.
# in high availability mode, if you use the bin/start-cluster.sh script and setup
# the conf/masters file, this will be taken care of automatically. yarn
# automatically configure the host name based on the hostname of the node where the
# jobmanager runs.
address: dev001
# the rpc port where the jobmanager is reachable.
port: 6123
memory:
process:
# the total process memory size for the jobmanager.
# note this accounts for all memory usage within the jobmanager process, including jvm metaspace and other overhead.
size: 1600m
execution:
# the failover strategy, i.e., how the job computation recovers from task failures.
# only restart tasks that may have been affected by the task failure, which typically includes
# downstream tasks and potentially upstream tasks if their produced data is no longer available for consumption.
failover-strategy: region
taskmanager:
# the host interface the taskmanager will bind to. by default, this is localhost, and will prevent
# the taskmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
# the address of the host on which the taskmanager runs and can be reached by the jobmanager and
# other taskmanagers. if not specified, the taskmanager will try different strategies to identify
# the address.
#
# note this address needs to be reachable by the jobmanager and forward traffic to one of
# the interfaces the taskmanager is bound to (see 'taskmanager.bind-host').
#
# note also that unless all taskmanagers are running on the same machine, this address needs to be
# configured separately for each taskmanager.
host: dev002
# the number of task slots that each taskmanager offers. each slot runs one parallel pipeline.
numberoftaskslots: 2
memory:
process:
# the total process memory size for the taskmanager.
#
# note this accounts for all memory usage within the taskmanager process, including jvm metaspace and other overhead.
# to exclude jvm metaspace and overhead, please, use total flink memory size instead of 'taskmanager.memory.process.size'.
# it is not recommended to set both 'taskmanager.memory.process.size' and flink memory.
size: 1728m
parallelism:
# the parallelism used for programs that did not specify and other parallelism.
default: 1
# # the default file system scheme and authority.
# # by default file paths without scheme are interpreted relative to the local
# # root file system 'file:///'. use this to override the default and interpret
# # relative paths relative to a different file system,
# # for example 'hdfs://mynamenode:12345'
# fs:
# default-scheme: hdfs://mynamenode:12345
#==============================================================================
# high availability
#==============================================================================
# high-availability:
# # the high-availability mode. possible options are 'none' or 'zookeeper'.
# type: zookeeper
# # the path where metadata for master recovery is persisted. while zookeeper stores
# # the small ground truth for checkpoint and leader election, this location stores
# # the larger objects, like persisted dataflow graphs.
# #
# # must be a durable file system that is accessible from all nodes
# # (like hdfs, s3, ceph, nfs, ...)
# storagedir: hdfs:///flink/ha/
# zookeeper:
# # the list of zookeeper quorum peers that coordinate the high-availability
# # setup. this must be a list of the form:
# # "host1:clientport,host2:clientport,..." (default clientport: 2181)
# quorum: localhost:2181
# client:
# # acl options are based on https://zookeeper.apache.org/doc/r3.1.2/zookeeperprogrammers.html#sc_builtinaclschemes
# # it can be either "creator" (zoo_create_all_acl) or "open" (zoo_open_acl_unsafe)
# # the default value is "open" and it can be changed to "creator" if zk security is enabled
# acl: open
#==============================================================================
# fault tolerance and checkpointing
#==============================================================================
# the backend that will be used to store operator state checkpoints if
# checkpointing is enabled. checkpointing is enabled when execution.checkpointing.interval > 0.
# # execution checkpointing related parameters. please refer to checkpointconfig and executioncheckpointingoptions for more details.
# execution:
# checkpointing:
# interval: 3min
# externalized-checkpoint-retention: [delete_on_cancellation, retain_on_cancellation]
# max-concurrent-checkpoints: 1
# min-pause: 0
# mode: [exactly_once, at_least_once]
# timeout: 10min
# tolerable-failed-checkpoints: 0
# unaligned: false
# state:
# backend:
# # supported backends are 'hashmap', 'rocksdb', or the
# # <class-name-of-factory>.
# type: hashmap
# # flag to enable/disable incremental checkpoints for backends that
# # support incremental checkpoints (like the rocksdb state backend).
# incremental: false
# checkpoints:
# # directory for checkpoints filesystem, when using any of the default bundled
# # state backends.
# dir: hdfs://namenode-host:port/flink-checkpoints
# savepoints:
# # default target directory for savepoints, optional.
# dir: hdfs://namenode-host:port/flink-savepoints
#==============================================================================
# rest & web frontend
#==============================================================================
rest:
# the address to which the rest client will connect to
address: dev002
# the address that the rest & web server binds to
# by default, this is localhost, which prevents the rest & web server from
# being able to communicate outside of the machine/container it is running on.
#
# to enable this, set the bind address to one that has access to outside-facing
# network interface, such as 0.0.0.0.
bind-address: 0.0.0.0
# # the port to which the rest client connects to. if rest.bind-port has
# # not been specified, then the server will bind to this port as well.
# port: 8081
# # port range for the rest and web server to bind to.
# bind-port: 8080-8090
# web:
# submit:
# # flag to specify whether job submission is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
# cancel:
# # flag to specify whether job cancellation is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
#==============================================================================
# advanced
#==============================================================================
# io:
# tmp:
# # override the directories for temporary files. if not specified, the
# # system-specific java temporary directory (java.io.tmpdir property) is taken.
# #
# # for framework setups on yarn, flink will automatically pick up the
# # containers' temp directories without any need for configuration.
# #
# # add a delimited list for multiple directories, using the system directory
# # delimiter (colon ':' on unix) or a comma, e.g.:
# # /data1/tmp:/data2/tmp:/data3/tmp
# #
# # note: each directory entry is read from and written to by a different i/o
# # thread. you can include the same directory multiple times in order to create
# # multiple i/o threads against that directory. this is for example relevant for
# # high-throughput raids.
# dirs: /tmp
# classloader:
# resolve:
# # the classloading resolve order. possible values are 'child-first' (flink's default)
# # and 'parent-first' (java's default).
# #
# # child first classloading allows users to use different dependency/library
# # versions in their application than those in the classpath. switching back
# # to 'parent-first' may help with debugging dependency issues.
# order: child-first
# the amount of memory going to the network stack. these numbers usually need
# no tuning. adjusting them may be necessary in case of an "insufficient number
# of network buffers" error. the default min is 64mb, the default max is 1gb.
#
# taskmanager:
# memory:
# network:
# fraction: 0.1
# min: 64mb
# max: 1gb
#==============================================================================
# flink cluster security configuration
#==============================================================================
# kerberos authentication for various components - hadoop, zookeeper, and connectors -
# may be enabled in four steps:
# 1. configure the local krb5.conf file
# 2. provide kerberos credentials (either a keytab or a ticket cache w/ kinit)
# 3. make the credentials available to various jaas login contexts
# 4. configure the connector to use jaas/sasl
# # the below configure how kerberos credentials are provided. a keytab will be used instead of
# # a ticket cache if the keytab path and principal are set.
# security:
# kerberos:
# login:
# use-ticket-cache: true
# keytab: /path/to/kerberos/keytab
# principal: flink-user
# # the configuration below defines which jaas login contexts
# contexts: client,kafkaclient
#==============================================================================
# zk security configuration
#==============================================================================
# zookeeper:
# sasl:
# # below configurations are applicable if zk ensemble is configured for security
# #
# # override below configuration to provide custom zk service name if configured
# # zookeeper.sasl.service-name: zookeeper
# #
# # the configuration below must match one of the values set in "security.kerberos.login.contexts"
# login-context-name: client
#==============================================================================
# historyserver
#==============================================================================
# the historyserver is started and stopped via bin/historyserver.sh (start|stop)
#
# jobmanager:
# archive:
# fs:
# # directory to upload completed jobs to. add this directory to the list of
# # monitored directories of the historyserver as well (see below).
# dir: hdfs:///completed-jobs/
# historyserver:
# web:
# # the address under which the web-based historyserver listens.
# address: 0.0.0.0
# # the port under which the web-based historyserver listens.
# port: 8082
# archive:
# fs:
# # comma separated list of directories to monitor for completed jobs.
# dir: hdfs:///completed-jobs/
# # interval in milliseconds for refreshing the monitored directories.
# fs.refresh-interval: 10000
dev003 config.yaml:
################################################################################
# licensed to the apache software foundation (asf) under one
# or more contributor license agreements. see the notice file
# distributed with this work for additional information
# regarding copyright ownership. the asf licenses this file
# to you under the apache license, version 2.0 (the
# "license"); you may not use this file except in compliance
# with the license. you may obtain a copy of the license at
#
# http://www.apache.org/licenses/license-2.0
#
# unless required by applicable law or agreed to in writing, software
# distributed under the license is distributed on an "as is" basis,
# without warranties or conditions of any kind, either express or implied.
# see the license for the specific language governing permissions and
# limitations under the license.
################################################################################
# these parameters are required for java 17 support.
# they can be safely removed when using java 8/11.
env:
java:
opts:
all: --add-exports=java.base/sun.net.util=all-unnamed --add-exports=java.rmi/sun.rmi.registry=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.api=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.file=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.parser=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.tree=all-unnamed --add-exports=jdk.compiler/com.sun.tools.javac.util=all-unnamed --add-exports=java.security.jgss/sun.security.krb5=all-unnamed --add-opens=java.base/java.lang=all-unnamed --add-opens=java.base/java.net=all-unnamed --add-opens=java.base/java.io=all-unnamed --add-opens=java.base/java.nio=all-unnamed --add-opens=java.base/sun.nio.ch=all-unnamed --add-opens=java.base/java.lang.reflect=all-unnamed --add-opens=java.base/java.text=all-unnamed --add-opens=java.base/java.time=all-unnamed --add-opens=java.base/java.util=all-unnamed --add-opens=java.base/java.util.concurrent=all-unnamed --add-opens=java.base/java.util.concurrent.atomic=all-unnamed --add-opens=java.base/java.util.concurrent.locks=all-unnamed
#==============================================================================
# common
#==============================================================================
jobmanager:
# the host interface the jobmanager will bind to. by default, this is localhost, and will prevent
# the jobmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
rpc:
# the external address of the host on which the jobmanager runs and can be
# reached by the taskmanagers and any clients which want to connect. this setting
# is only used in standalone mode and may be overwritten on the jobmanager side
# by specifying the --host <hostname> parameter of the bin/jobmanager.sh executable.
# in high availability mode, if you use the bin/start-cluster.sh script and setup
# the conf/masters file, this will be taken care of automatically. yarn
# automatically configure the host name based on the hostname of the node where the
# jobmanager runs.
address: dev001
# the rpc port where the jobmanager is reachable.
port: 6123
memory:
process:
# the total process memory size for the jobmanager.
# note this accounts for all memory usage within the jobmanager process, including jvm metaspace and other overhead.
size: 1600m
execution:
# the failover strategy, i.e., how the job computation recovers from task failures.
# only restart tasks that may have been affected by the task failure, which typically includes
# downstream tasks and potentially upstream tasks if their produced data is no longer available for consumption.
failover-strategy: region
taskmanager:
# the host interface the taskmanager will bind to. by default, this is localhost, and will prevent
# the taskmanager from communicating outside the machine/container it is running on.
# on yarn this setting will be ignored if it is set to 'localhost', defaulting to 0.0.0.0.
# on kubernetes this setting will be ignored, defaulting to 0.0.0.0.
#
# to enable this, set the bind-host address to one that has access to an outside facing network
# interface, such as 0.0.0.0.
bind-host: 0.0.0.0
# the address of the host on which the taskmanager runs and can be reached by the jobmanager and
# other taskmanagers. if not specified, the taskmanager will try different strategies to identify
# the address.
#
# note this address needs to be reachable by the jobmanager and forward traffic to one of
# the interfaces the taskmanager is bound to (see 'taskmanager.bind-host').
#
# note also that unless all taskmanagers are running on the same machine, this address needs to be
# configured separately for each taskmanager.
host: dev003
# the number of task slots that each taskmanager offers. each slot runs one parallel pipeline.
numberoftaskslots: 2
memory:
process:
# the total process memory size for the taskmanager.
#
# note this accounts for all memory usage within the taskmanager process, including jvm metaspace and other overhead.
# to exclude jvm metaspace and overhead, please, use total flink memory size instead of 'taskmanager.memory.process.size'.
# it is not recommended to set both 'taskmanager.memory.process.size' and flink memory.
size: 1728m
parallelism:
# the parallelism used for programs that did not specify and other parallelism.
default: 1
# # the default file system scheme and authority.
# # by default file paths without scheme are interpreted relative to the local
# # root file system 'file:///'. use this to override the default and interpret
# # relative paths relative to a different file system,
# # for example 'hdfs://mynamenode:12345'
# fs:
# default-scheme: hdfs://mynamenode:12345
#==============================================================================
# high availability
#==============================================================================
# high-availability:
# # the high-availability mode. possible options are 'none' or 'zookeeper'.
# type: zookeeper
# # the path where metadata for master recovery is persisted. while zookeeper stores
# # the small ground truth for checkpoint and leader election, this location stores
# # the larger objects, like persisted dataflow graphs.
# #
# # must be a durable file system that is accessible from all nodes
# # (like hdfs, s3, ceph, nfs, ...)
# storagedir: hdfs:///flink/ha/
# zookeeper:
# # the list of zookeeper quorum peers that coordinate the high-availability
# # setup. this must be a list of the form:
# # "host1:clientport,host2:clientport,..." (default clientport: 2181)
# quorum: localhost:2181
# client:
# # acl options are based on https://zookeeper.apache.org/doc/r3.1.2/zookeeperprogrammers.html#sc_builtinaclschemes
# # it can be either "creator" (zoo_create_all_acl) or "open" (zoo_open_acl_unsafe)
# # the default value is "open" and it can be changed to "creator" if zk security is enabled
# acl: open
#==============================================================================
# fault tolerance and checkpointing
#==============================================================================
# the backend that will be used to store operator state checkpoints if
# checkpointing is enabled. checkpointing is enabled when execution.checkpointing.interval > 0.
# # execution checkpointing related parameters. please refer to checkpointconfig and executioncheckpointingoptions for more details.
# execution:
# checkpointing:
# interval: 3min
# externalized-checkpoint-retention: [delete_on_cancellation, retain_on_cancellation]
# max-concurrent-checkpoints: 1
# min-pause: 0
# mode: [exactly_once, at_least_once]
# timeout: 10min
# tolerable-failed-checkpoints: 0
# unaligned: false
# state:
# backend:
# # supported backends are 'hashmap', 'rocksdb', or the
# # <class-name-of-factory>.
# type: hashmap
# # flag to enable/disable incremental checkpoints for backends that
# # support incremental checkpoints (like the rocksdb state backend).
# incremental: false
# checkpoints:
# # directory for checkpoints filesystem, when using any of the default bundled
# # state backends.
# dir: hdfs://namenode-host:port/flink-checkpoints
# savepoints:
# # default target directory for savepoints, optional.
# dir: hdfs://namenode-host:port/flink-savepoints
#==============================================================================
# rest & web frontend
#==============================================================================
rest:
# the address to which the rest client will connect to
address: dev003
# the address that the rest & web server binds to
# by default, this is localhost, which prevents the rest & web server from
# being able to communicate outside of the machine/container it is running on.
#
# to enable this, set the bind address to one that has access to outside-facing
# network interface, such as 0.0.0.0.
bind-address: 0.0.0.0
# # the port to which the rest client connects to. if rest.bind-port has
# # not been specified, then the server will bind to this port as well.
# port: 8081
# # port range for the rest and web server to bind to.
# bind-port: 8080-8090
# web:
# submit:
# # flag to specify whether job submission is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
# cancel:
# # flag to specify whether job cancellation is enabled from the web-based
# # runtime monitor. uncomment to disable.
# enable: false
#==============================================================================
# advanced
#==============================================================================
# io:
# tmp:
# # override the directories for temporary files. if not specified, the
# # system-specific java temporary directory (java.io.tmpdir property) is taken.
# #
# # for framework setups on yarn, flink will automatically pick up the
# # containers' temp directories without any need for configuration.
# #
# # add a delimited list for multiple directories, using the system directory
# # delimiter (colon ':' on unix) or a comma, e.g.:
# # /data1/tmp:/data2/tmp:/data3/tmp
# #
# # note: each directory entry is read from and written to by a different i/o
# # thread. you can include the same directory multiple times in order to create
# # multiple i/o threads against that directory. this is for example relevant for
# # high-throughput raids.
# dirs: /tmp
# classloader:
# resolve:
# # the classloading resolve order. possible values are 'child-first' (flink's default)
# # and 'parent-first' (java's default).
# #
# # child first classloading allows users to use different dependency/library
# # versions in their application than those in the classpath. switching back
# # to 'parent-first' may help with debugging dependency issues.
# order: child-first
# the amount of memory going to the network stack. these numbers usually need
# no tuning. adjusting them may be necessary in case of an "insufficient number
# of network buffers" error. the default min is 64mb, the default max is 1gb.
#
# taskmanager:
# memory:
# network:
# fraction: 0.1
# min: 64mb
# max: 1gb
#==============================================================================
# flink cluster security configuration
#==============================================================================
# kerberos authentication for various components - hadoop, zookeeper, and connectors -
# may be enabled in four steps:
# 1. configure the local krb5.conf file
# 2. provide kerberos credentials (either a keytab or a ticket cache w/ kinit)
# 3. make the credentials available to various jaas login contexts
# 4. configure the connector to use jaas/sasl
# # the below configure how kerberos credentials are provided. a keytab will be used instead of
# # a ticket cache if the keytab path and principal are set.
# security:
# kerberos:
# login:
# use-ticket-cache: true
# keytab: /path/to/kerberos/keytab
# principal: flink-user
# # the configuration below defines which jaas login contexts
# contexts: client,kafkaclient
#==============================================================================
# zk security configuration
#==============================================================================
# zookeeper:
# sasl:
# # below configurations are applicable if zk ensemble is configured for security
# #
# # override below configuration to provide custom zk service name if configured
# # zookeeper.sasl.service-name: zookeeper
# #
# # the configuration below must match one of the values set in "security.kerberos.login.contexts"
# login-context-name: client
#==============================================================================
# historyserver
#==============================================================================
# the historyserver is started and stopped via bin/historyserver.sh (start|stop)
#
# jobmanager:
# archive:
# fs:
# # directory to upload completed jobs to. add this directory to the list of
# # monitored directories of the historyserver as well (see below).
# dir: hdfs:///completed-jobs/
# historyserver:
# web:
# # the address under which the web-based historyserver listens.
# address: 0.0.0.0
# # the port under which the web-based historyserver listens.
# port: 8082
# archive:
# fs:
# # comma separated list of directories to monitor for completed jobs.
# dir: hdfs:///completed-jobs/
# # interval in milliseconds for refreshing the monitored directories.
# fs.refresh-interval: 10000
conf/masters 及 conf/works 使用 xsync 同步分发命令 分发到各机器节点即可：
-- masters
dev001:8081
-- workers
dev001
dev002
dev003
补充：
linux 查看port是否被占用：nestat -apn|grep 8081
linux 查看各节点flink任务：jps
发表评论
