opencv实现数码管数字的识别小白篇（python）_Python

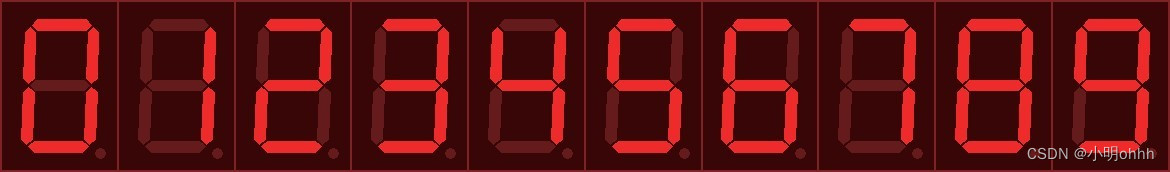

1.测试图片

在这里插入图片描述

2.基本思路

原图 -> 灰度处理 -> 二值化处理（数字部分为白色）-> 膨胀处理 -> 寻找轮廓
找出所有数字的轮廓，分别传入识别函数
（穿针法识别：tubo_roi为各段的区域，通过判断abcdefg有哪几个是白色，来组合成不同的数字）
特殊数字：1 ，通过长宽比大于2来判断为数字1
在这里插入图片描述

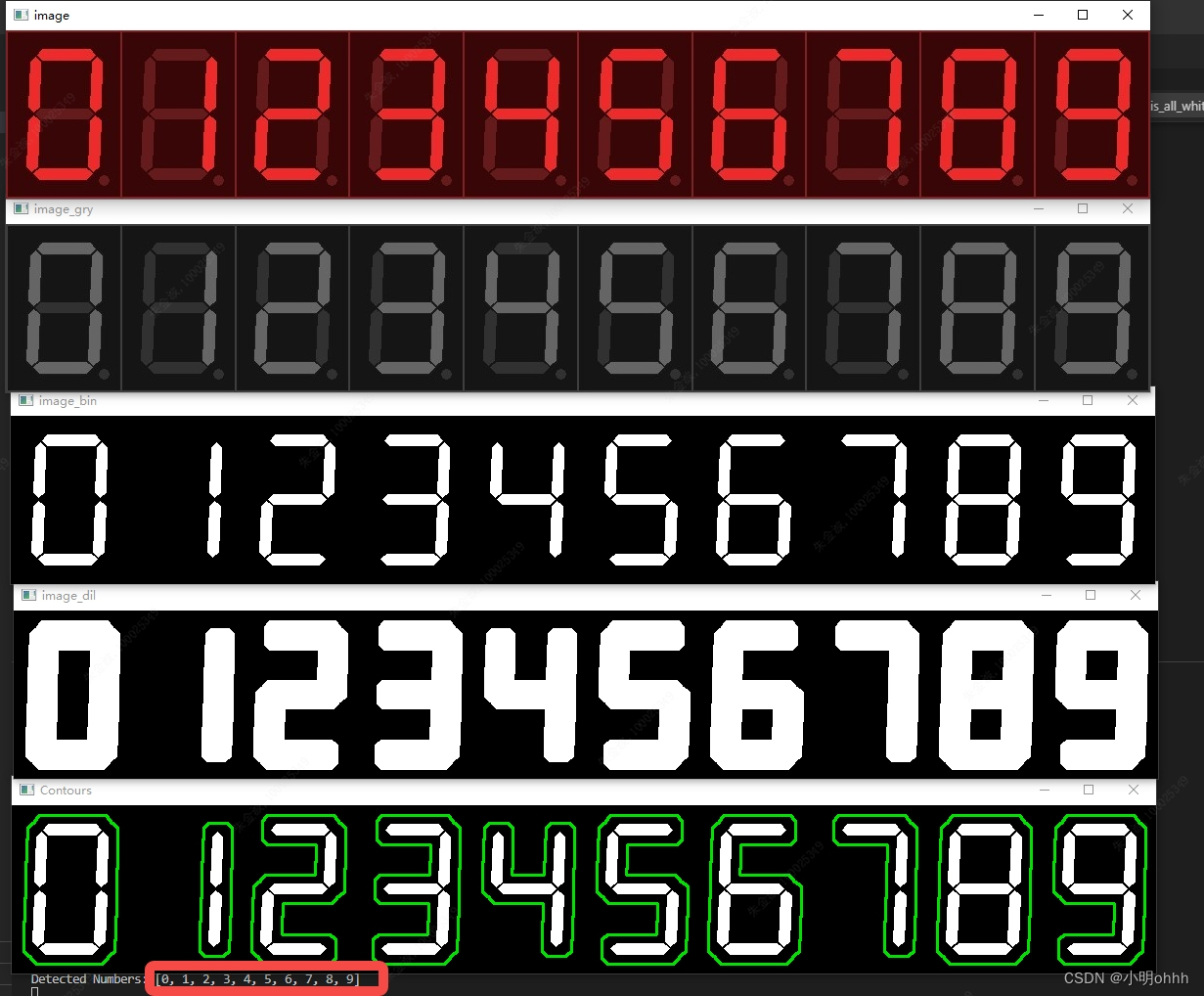

3.代码运行效果

经过多重处理，成功识别出1,2,3,4,5,6,7,8,9
仅本测试图片可用，其他测试场景可能需要优化图片预处理逻辑
在这里插入图片描述

4.代码

使用测试图片可直接运行，注意图片名称以及路径

import cv2
import numpy as np

#原图
image = cv2.imread('photo.jpg',cv2.imread_color)
cv2.imshow("image",image)

#灰度图处理
image_gry = cv2.imread('photo.jpg',cv2.imread_grayscale)
if image_gry is none:
    print("not read")
    exit()
cv2.imshow("image_gry", image_gry)

#二值化
_, image_bin = cv2.threshold(image_gry,80,255,cv2.thresh_binary)
cv2.imshow("image_bin",image_bin)

#进行膨胀处理
element = cv2.getstructuringelement(cv2.morph_rect,(20,20))
image_dil = cv2.dilate(image_bin, element)
cv2.imshow("image_dil",image_dil)

#轮廓寻找
contours_out,hierarchy=cv2.findcontours(image_dil, cv2.retr_external, cv2.chain_approx_none)
#cv2.drawcontours(image_bin,contours,-1,(0,255,0),2)
num_location = [cv2.boundingrect(contour) for contour in contours_out]
num_location.sort(key=lambda x: x[0])
inmage_with_contours = cv2.cvtcolor(image_bin,cv2.color_gray2bgr)
cv2.drawcontours(inmage_with_contours,contours_out,-1,(0,225,0),2)

cv2.imshow("contours",inmage_with_contours)

# 定义判断区域是否全为白色的函数
def is_all_white(image, row_start, row_end, col_start, col_end):
    white_num = 0
    j=row_start
    i=col_start

    while(j <= row_end):
        while(i <= col_end):
            if(image[j][i] == 255):
                white_num+=1
            i+=1
        j+=1
        i=col_start
    #print('white num is',white_num)
    if(white_num >= 5):
        return true
    else:
        return false

# 定义穿线法识别数字的函数
def tube_identification(inputmat):
    tube = 0
    tubo_roi = [
         [inputmat.shape[0] * 0/3, inputmat.shape[0] * 1/3, inputmat.shape[1] * 1/2,inputmat.shape[1] * 1/2], #a
         [inputmat.shape[0] * 1/3, inputmat.shape[0] * 1/3, inputmat.shape[1] * 2/3,inputmat.shape[1] - 1  ], #b
         [inputmat.shape[0] * 2/3, inputmat.shape[0] * 2/3, inputmat.shape[1] * 2/3,inputmat.shape[1] - 1  ], #c
         [inputmat.shape[0] * 2/3, inputmat.shape[0] -1   , inputmat.shape[1] * 1/2,inputmat.shape[1] * 1/2], #d
         [inputmat.shape[0] * 2/3, inputmat.shape[0] * 2/3, inputmat.shape[1] * 0/3,inputmat.shape[1] * 1/3], #e
         [inputmat.shape[0] * 1/3, inputmat.shape[0] * 1/3, inputmat.shape[1] * 0/3,inputmat.shape[1] * 1/3], #f
         [inputmat.shape[0] * 1/3, inputmat.shape[0] * 2/3, inputmat.shape[1] * 1/2,inputmat.shape[1] * 1/2]  #g
         ]
    i = 0
    while(i < 7):
        if(is_all_white(inputmat,int(tubo_roi[i][0]),int(tubo_roi[i][1]), int(tubo_roi[i][2]),int(tubo_roi[i][3]))):
            tube = tube + pow(2,i)

        cv2.line(inputmat, ( int(tubo_roi[i][3]),int(tubo_roi[i][1])),
                (int(tubo_roi[i][2]), int(tubo_roi[i][0])),
                (255,0,0), 1)
        i += 1
    if (inputmat.shape[0] / inputmat.shape[1] > 2):   # 1 is special, which is much narrower than others
        tube = 6
    if(tube==63):
        onenumber = 0
    elif(tube==6):
        onenumber = 1
    elif(tube==91):
        onenumber = 2
    elif(tube==79):
        onenumber = 3
    elif(tube==102 or tube==110):
    #110是因为有干扰情况
        onenumber = 4
    elif(tube==109):
        onenumber = 5
    elif(tube==125):
        onenumber = 6
    elif(tube==7):
        onenumber = 7
    elif(tube==127):
        onenumber = 8
    elif(tube==111):
        onenumber = 9
    else:
        print("error tube = ",tube)
        onenumber = -1

    return onenumber

# 存储通过穿线法识别的数字
detected_numbers = []

# 遍历每个数字区域
for i in range(len(num_location)):
    x, y, w, h = num_location[i]
    num_region = image_dil[y:y+h, x:x+w]  # 提取数字区域

    # 调用穿线法识别数字
    detected_number = tube_identification(num_region)
    detected_numbers.append(detected_number)

    # 显示数字区域
    #cv2.imshow(str(i), num_region)

# 输出识别到的数字
print("detected numbers:", detected_numbers)

cv2.waitkey(0)
cv2.destroyallwindows()
