Android 13 SystemUI 屏蔽导航栏；屏蔽锁屏；隐藏状态栏；禁止状态栏下拉；屏蔽Camera绿色图标；屏蔽原生音量条；屏蔽原生亮度条。

1、屏蔽导航栏

  导航栏屏蔽很简单，直接把创建导航栏的代码屏蔽即可。

代码路径:frameworks\base\packages\systemui\src\com\android\systemui\statusbar\phone\centralsurfacesimpl.java
    // ================================================================================
    // constructing the view
    // ================================================================================
    protected void makestatusbarview(@nullable registerstatusbarresult result) {
    	. . . . . .
    	. . . . . .
    	. . . . . .
    	//createnavigationbar(result);//注释这行代码即可
    	. . . . . .
    	. . . . . .
    	. . . . . .

	}

2、屏蔽锁屏

diff --git a/frameworks/base/packages/settingsprovider/res/values/defaults.xml b/frameworks/base/packages/settingsprovider/res/values/defaults.xml
index 99b15db780..e68bc2f410 100644
--- a/frameworks/base/packages/settingsprovider/res/values/defaults.xml
+++ b/frameworks/base/packages/settingsprovider/res/values/defaults.xml
@@ -82,7 +82,7 @@
     <integer name="def_max_sound_trigger_detection_service_ops_per_day" translatable="false">1000</integer>
     <integer name="def_sound_trigger_detection_service_op_timeout" translatable="false">15000</integer>

-    <bool name="def_lockscreen_disabled">false</bool>
+    <bool name="def_lockscreen_disabled">true</bool>
     <bool name="def_device_provisioned">false</bool>
     <integer name="def_dock_audio_media_enabled">1</integer>

diff --git a/packages/apps/settings/res/xml/security_settings_picker.xml b/packages/apps/settings/res/xml/security_settings_picker.xml
index aed702983c..1c4ee9854e 100644
--- a/packages/apps/settings/res/xml/security_settings_picker.xml
+++ b/packages/apps/settings/res/xml/security_settings_picker.xml
@@ -24,7 +24,7 @@
             android:icon="@drawable/ic_lock_none"
             android:persistent="false"/>

-    <com.android.settingslib.restrictedpreference
+    <!-- <com.android.settingslib.restrictedpreference
             android:key="unlock_set_none"
             android:title="@string/unlock_set_unlock_none_title"
             android:icon="@drawable/ic_lock_swipe"
@@ -70,6 +70,6 @@
     <com.android.settingslib.widget.footerpreference
             android:key="lock_settings_footer"
             android:selectable="false"
-            settings:searchable="false"/>
+            settings:searchable="false"/> -->

 </preferencescreen>
diff --git a/packages/apps/settings/src/com/android/settings/password/chooselockgeneric.java b/packages/apps/settings/src/com/android/settings/password/chooselockgeneric.java
index 8a4e9bb6c1..a1ca5340e3 100644
--- a/packages/apps/settings/src/com/android/settings/password/chooselockgeneric.java
+++ b/packages/apps/settings/src/com/android/settings/password/chooselockgeneric.java
@@ -656,11 +656,11 @@ public class chooselockgeneric extends settingsactivity {

             // used for testing purposes
             findpreference(screenlocktype.none.preferencekey).setviewid(r.id.lock_none);
-            findpreference(key_skip_fingerprint).setviewid(r.id.lock_none);
-            findpreference(key_skip_face).setviewid(r.id.lock_none);
-            findpreference(key_skip_biometrics).setviewid(r.id.lock_none);
-            findpreference(screenlocktype.pin.preferencekey).setviewid(r.id.lock_pin);
-            findpreference(screenlocktype.password.preferencekey).setviewid(r.id.lock_password);
+            // findpreference(key_skip_fingerprint).setviewid(r.id.lock_none); //xuhao add
+            // findpreference(key_skip_face).setviewid(r.id.lock_none);
+            // findpreference(key_skip_biometrics).setviewid(r.id.lock_none);
+            // findpreference(screenlocktype.pin.preferencekey).setviewid(r.id.lock_pin);
+            // findpreference(screenlocktype.password.preferencekey).setviewid(r.id.lock_password);
         }

         private string getfooterstring() {
@@ -686,30 +686,30 @@ public class chooselockgeneric extends settingsactivity {

         private void updatepreferencetext() {
             if (mforfingerprint) {
-                setpreferencetitle(screenlocktype.pattern,
-                        r.string.fingerprint_unlock_set_unlock_pattern);
-                setpreferencetitle(screenlocktype.pin, r.string.fingerprint_unlock_set_unlock_pin);
-                setpreferencetitle(screenlocktype.password,
-                        r.string.fingerprint_unlock_set_unlock_password);
+                // setpreferencetitle(screenlocktype.pattern,
+                //         r.string.fingerprint_unlock_set_unlock_pattern);
+                // setpreferencetitle(screenlocktype.pin, r.string.fingerprint_unlock_set_unlock_pin);
+                // setpreferencetitle(screenlocktype.password,
+                //         r.string.fingerprint_unlock_set_unlock_password);
             } else if (mforface) {
-                setpreferencetitle(screenlocktype.pattern,
-                        r.string.face_unlock_set_unlock_pattern);
-                setpreferencetitle(screenlocktype.pin, r.string.face_unlock_set_unlock_pin);
-                setpreferencetitle(screenlocktype.password,
-                        r.string.face_unlock_set_unlock_password);
+                // setpreferencetitle(screenlocktype.pattern,
+                //         r.string.face_unlock_set_unlock_pattern);
+                // setpreferencetitle(screenlocktype.pin, r.string.face_unlock_set_unlock_pin);
+                // setpreferencetitle(screenlocktype.password,
+                //         r.string.face_unlock_set_unlock_password);
             } else if (mforbiometrics) {
-                setpreferencetitle(screenlocktype.pattern,
-                        r.string.biometrics_unlock_set_unlock_pattern);
-                setpreferencetitle(screenlocktype.pin, r.string.biometrics_unlock_set_unlock_pin);
-                setpreferencetitle(screenlocktype.password,
-                        r.string.biometrics_unlock_set_unlock_password);
+                // setpreferencetitle(screenlocktype.pattern,
+                //         r.string.biometrics_unlock_set_unlock_pattern);
+                // setpreferencetitle(screenlocktype.pin, r.string.biometrics_unlock_set_unlock_pin);
+                // setpreferencetitle(screenlocktype.password,
+                //         r.string.biometrics_unlock_set_unlock_password);
             }

             if (mmanagedpasswordprovider.issettingmanagedpasswordsupported()) {
-                setpreferencetitle(screenlocktype.managed,
-                        mmanagedpasswordprovider.getpickeroptiontitle(mforfingerprint));
+                // setpreferencetitle(screenlocktype.managed,
+                //         mmanagedpasswordprovider.getpickeroptiontitle(mforfingerprint));
             } else {
-                removepreference(screenlocktype.managed.preferencekey);
+                //removepreference(screenlocktype.managed.preferencekey);
             }

             if (!(mforfingerprint && missetnewpassword)) {

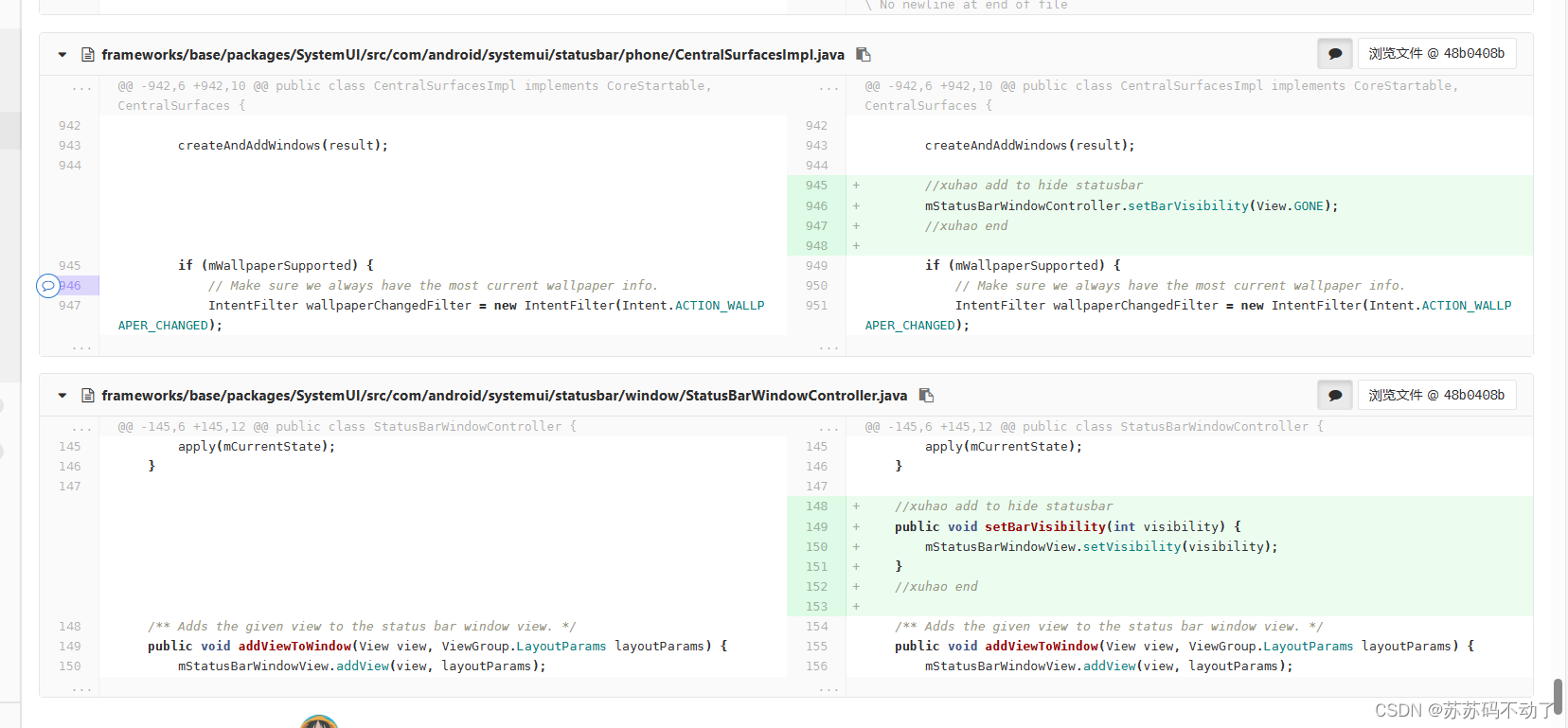

3、隐藏状态栏

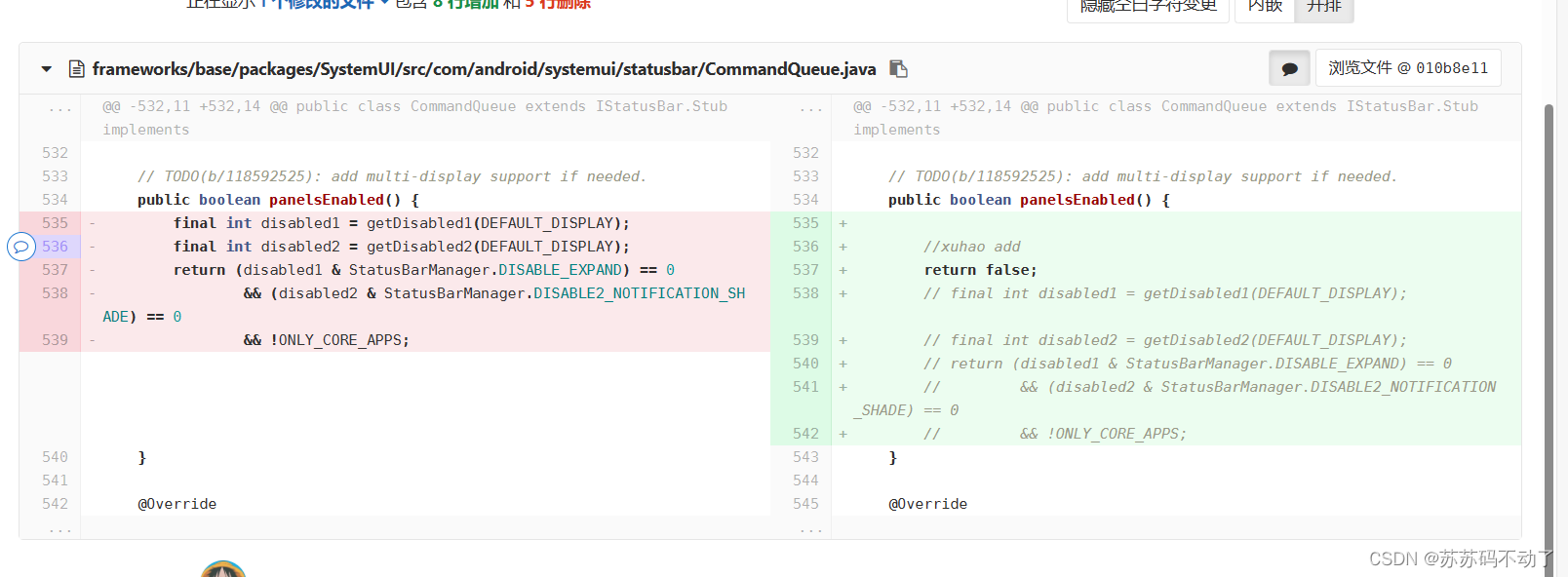

4、禁止状态栏下拉

  解锁之后禁止状态栏下拉显示快捷通知、快捷设置。

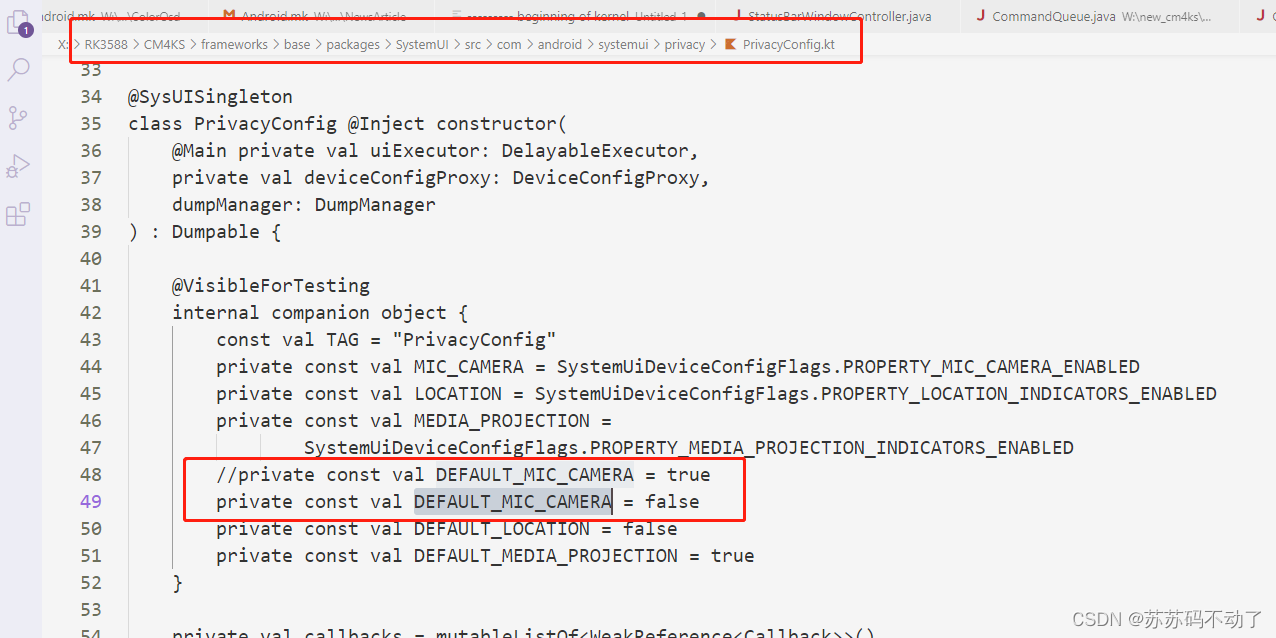

5、屏蔽camera绿色图标

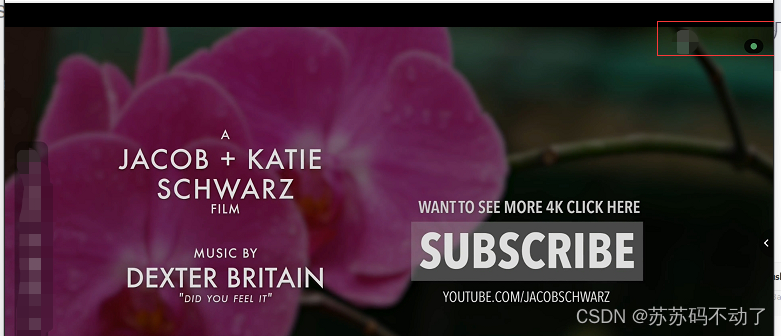

  android 13 使用摄像头时右上角会有绿色图标，屏蔽方法如下：

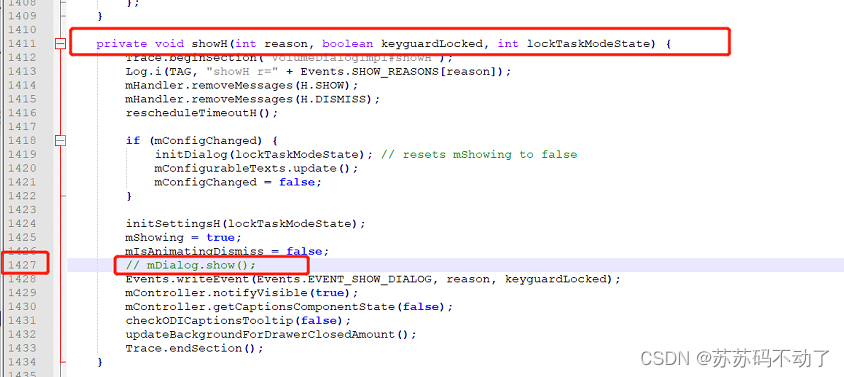

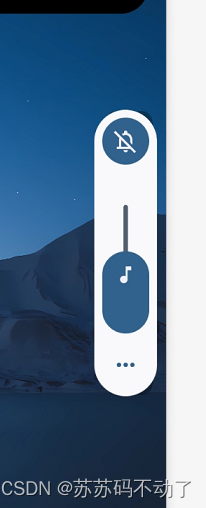

6、屏蔽原生音量条

frameworks\base\packages\systemui\src\com\android\systemui\volume\volumedialogimpl.java

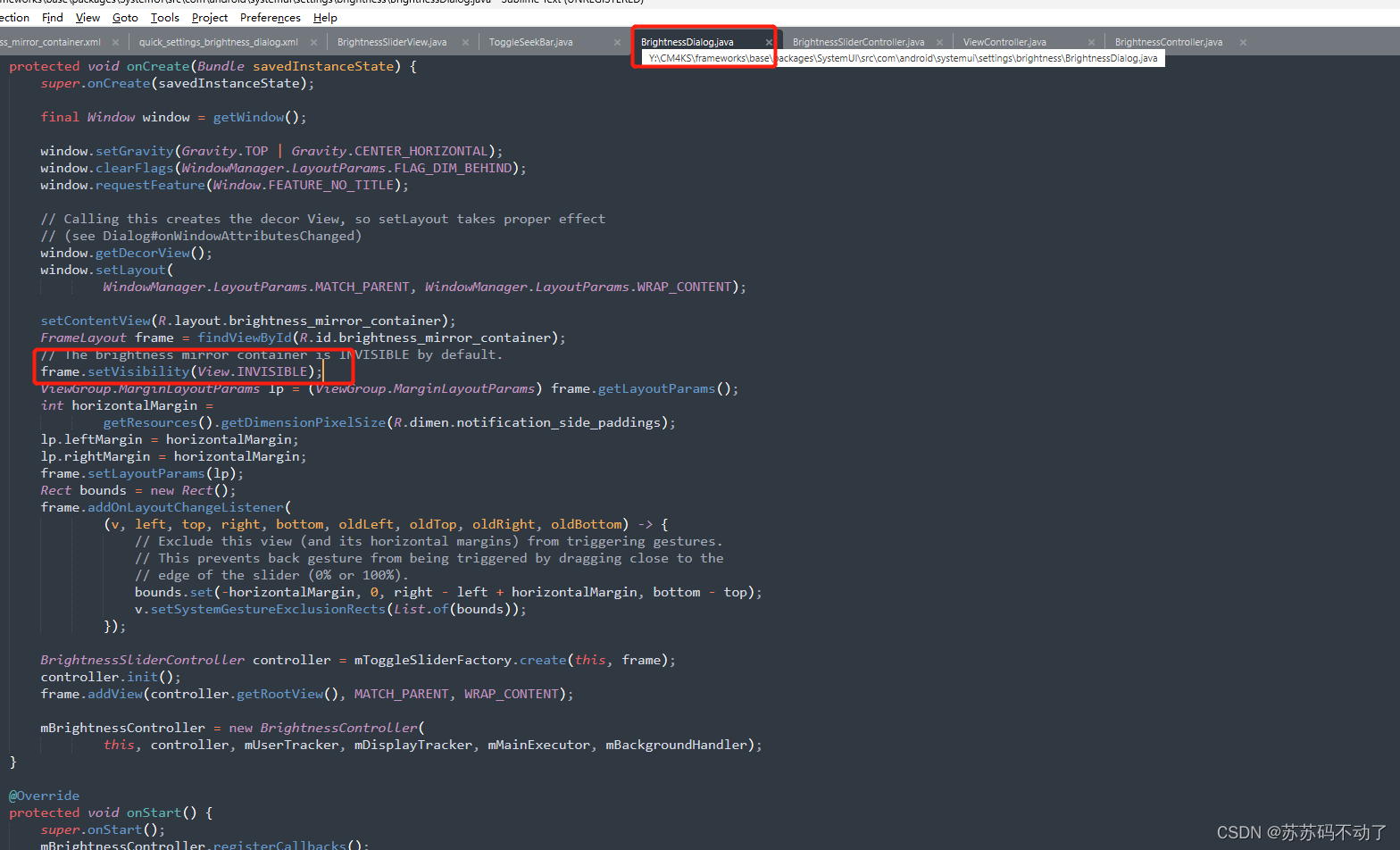

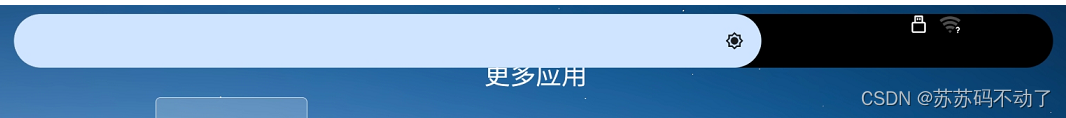

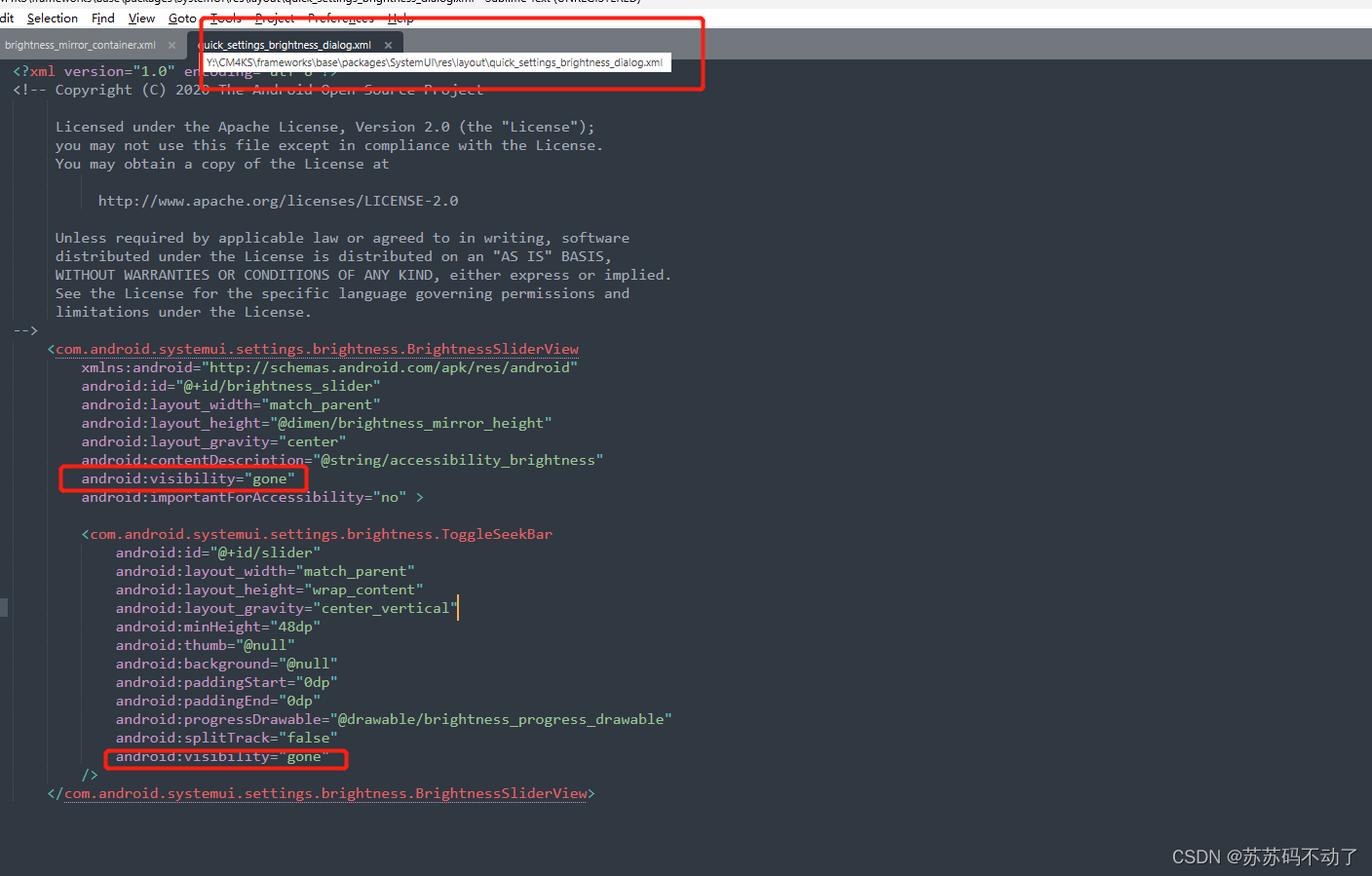

7、屏蔽原生亮度条
