eureka是一个服务发现与注册组件，它包含服务端和客户端，服务端管理服务的注册信息，客户端简化服务实例与服务端的交互。我们结合源码来分析下eureka组件的实现原理，内容分为上下两章，第一章分析eureka的服务注册，第二章分析eureka的心跳机制，本章节是第一章。
参考源码：<spring-cloud.version>hoxton.sr9</spring-cloud.version>
1、注册服务
1.1 服务端接收注册信息
spring-cloud-netflix-eureka-server依赖包下有一个spring.factories文件，文件内容如下
org.springframework.boot.autoconfigure.enableautoconfiguration=\
org.springframework.cloud.netflix.eureka.server.eurekaserverautoconfiguration根据springboot自动配置的原理可知，eurekaserverautoconfiguration会被标记成了一个自动配置类。eurekaserverautoconfiguration配置类中有一个jerseyapplication方法，这个方法会收集指定包下被path或provider注解标记的类的beandefinition，这些类可以看作是controller
// 扫描包路径
private static final string[] eureka_packages =
new string[]{"com.netflix.discovery", "com.netflix.eureka"};
// 收集包下指定类的beandefinition，放入application对象
@bean
public application jerseyapplication(environment environment, resourceloader resourceloader) {
classpathscanningcandidatecomponentprovider provider = new classpathscanningcandidatecomponentprovider(false, environment);
// 收集的对象要求被path或provider注解标记
provider.addincludefilter(new annotationtypefilter(path.class));
provider.addincludefilter(new annotationtypefilter(provider.class));
string[] var5 = eureka_packages;
int var6 = var5.length;
for(int var7 = 0; var7 < var6; ++var7) {
string basepackage = var5[var7];
// 扫描包路径，收集beandefinition
set<beandefinition> beans = provider.findcandidatecomponents(basepackage);
iterator var10 = beans.iterator();
while(var10.hasnext()) {
beandefinition bd = (beandefinition)var10.next();
class<?> cls = classutils.resolveclassname(bd.getbeanclassname(), resourceloader.getclassloader());
classes.add(cls);
}
}
...
return rc;
}
// 获取到application，将beandefinition置入servlet容器
@bean
public filterregistrationbean<?> jerseyfilterregistration(application eurekajerseyapp) {
filterregistrationbean<filter> bean = new filterregistrationbean();
bean.setfilter(new servletcontainer(eurekajerseyapp));
bean.setorder(integer.max_value);
bean.seturlpatterns(collections.singletonlist("/eureka/*"));
return bean;
}收集的beandefinition会通过jerseyfilterregistration方法放入servlet容器，这样接收请求时就能通过url映射给指定的bean来处理请求

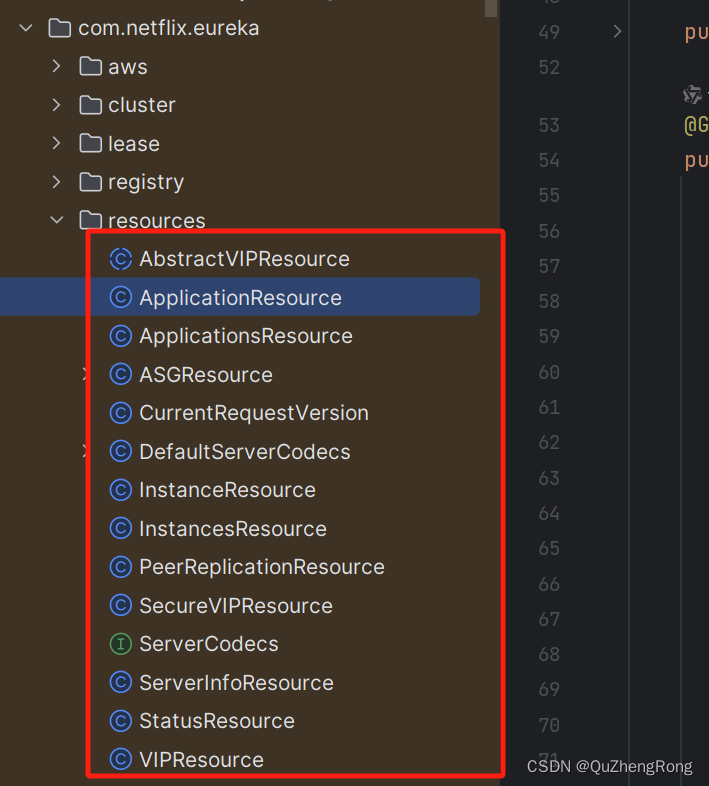

com.netflix.eureka包下被扫描的类如下：
applicationresource类是controller中的一员，它有一个addinstance方法，这个方法就是服务端响应服务注册的方法
@post
@consumes({"application/json", "application/xml"})
public response addinstance(instanceinfo info, @headerparam("x-netflix-discovery-replication") string isreplication) {
...
// 执行注册
this.registry.register(info, "true".equals(isreplication));
return response.status(204).build();
}调用链：
-> applicationresource.addinstance
-> instanceregistry.register
-> peerawareinstanceregistryimpl.register
-> abstractinstanceregistry.register服务端使用currenthashmap来存储服务的信息，服务端响应注册的过程较为简单
// 用currenthashmap存储服务信息
private final concurrenthashmap<string, map<string, lease<instanceinfo>>> registry
= new concurrenthashmap();
public void register(instanceinfo registrant, int leaseduration, boolean isreplication)
{
...
map<string, lease<instanceinfo>> gmap = (map)this.registry.get(registrant.getappname());
lease<instanceinfo> lease = new lease(registrant, leaseduration);
if (existinglease != null) {
lease.setserviceuptimestamp(existinglease.getserviceuptimestamp());
}
// 将服务信息放入map中
((map)gmap).put(registrant.getid(), lease);
...
}
1.2 客户端发送注册信息
1.2.1 client客户端
spring-cloud-netflix-eureka-client依赖包下也有一个spring.factories文件，文件内容如下
...
org.springframework.cloud.netflix.eureka.eurekaclientautoconfiguration
...eurekaclientautoconfiguration被标记成自动配置类，它里面有一个创建eurekaclient类对象的bean方法，看类的名称我们知道这是一个客户端
@bean(
destroymethod = "shutdown"
)
@conditionalonmissingbean(
value = {eurekaclient.class},
search = searchstrategy.current
)
@org.springframework.cloud.context.config.annotation.refreshscope
@lazy
public eurekaclient eurekaclient(applicationinfomanager manager, eurekaclientconfig config, eurekainstanceconfig instance, @autowired(required = false) healthcheckhandler healthcheckhandler) {
applicationinfomanager appmanager;
if (aoputils.isaopproxy(manager)) {
appmanager = (applicationinfomanager)proxyutils.gettargetobject(manager);
} else {
appmanager = manager;
}
// 创建客户端
cloudeurekaclient cloudeurekaclient = new cloudeurekaclient(appmanager, config, this.optionalargs, this.context);
cloudeurekaclient.registerhealthcheck(healthcheckhandler);
return cloudeurekaclient;
}调用链：
-> eurekaautoserviceregistration.eurekaclient
-> new cloudeurekaclient(appmanager, config, this.optionalargs, this.context);
-> cloudeurekaclient.super(applicationinfomanager, config, args);
-> discoveryclient.discoveryclient
... 构造方法重载
-> discoveryclient.discoveryclient
-> initscheduledtasks跟踪eurekaclient类的构造方法找到discoveryclient类，discoveryclient类的构造方法调用了initscheduledtasks方法，初始化了一个定时任务
private void initscheduledtasks() {
...
// 添加状态变更监听器
this.statuschangelistener = new applicationinfomanager.statuschangelistener() {
public string getid() {
return "statuschangelistener";
}
public void notify(statuschangeevent statuschangeevent) {
if (statuschangeevent.getstatus() == instancestatus.down) {
discoveryclient.logger.error("saw local status change event {}", statuschangeevent);
} else {
discoveryclient.logger.info("saw local status change event {}", statuschangeevent);
}
// 监听器被通知后调用ondemandupdate方法
discoveryclient.this.instanceinforeplicator.ondemandupdate();
}
};
...
}定时任务内添加了一个状态修改监听器，监听器调用notify方法时会回调ondemandupdate方法，追踪这个回调方法
调用链：
-> instanceinforeplicator.ondemandupdate
-> instanceinforeplicator.this.run
-> this.discoveryclient.register
-> this.eurekatransport.registrationclient.register(this.instanceinfo)
-> abstractjerseyeurekahttpclient.register进入到abstractjerseyeurekahttpclient类的register方法
public eurekahttpresponse<void> register(instanceinfo info) {
string urlpath = "apps/" + info.getappname();
clientresponse response = null;
eurekahttpresponse var5;
try {
// 向注册中心发送http请求
webresource.builder resourcebuilder = this.jerseyclient
.resource(this.serviceurl)
.path(urlpath)
.getrequestbuilder();
this.addextraheaders(resourcebuilder);
response = (clientresponse)((webresource.builder)((webresource.builder)((webresource.builder)resourcebuilder.header("accept-encoding", "gzip")).type(mediatype.application_json_type)).accept(new string[]{"application/json"})).post(clientresponse.class, info);
var5 = eurekahttpresponse.aneurekahttpresponse(response.getstatus()).headers(headersof(response)).build();
} finally {
if (logger.isdebugenabled()) {
logger.debug("jersey http post {}/{} with instance {}; statuscode={}", new object[]{this.serviceurl, urlpath, info.getid(), response == null ? "n/a" : response.getstatus()});
}
if (response != null) {
response.close();
}
}
return var5;
}注册方法写得很直白了：客户端拿到注册中心地址，然后携带服务元数据，发送请求完成注册。不过还有一个问题，之前我们提到定时任务内初始化了一个监听器，这个监听器只有被通知了才会执行后续的注册方法，那么监听器是如何被通知的？它的触发时机又在何时？
1.2.2 监听器
eurekaclientautoconfiguration配置类还有一个创建eurekaautoserviceregistration类的bean方法
// 创建服务注册客户端
@bean
@conditionalonbean({autoserviceregistrationproperties.class})
@conditionalonproperty(
value = {"spring.cloud.service-registry.auto-registration.enabled"},
matchifmissing = true
)
public eurekaautoserviceregistration eurekaautoserviceregistration(applicationcontext context, eurekaserviceregistry registry, eurekaregistration registration) {
return new eurekaautoserviceregistration(context, registry, registration);
}eurekaautoserviceregistration类实现了smartlifecycle接口。当spring容器加载完所有bean后会调用smartlifecycle接口实现类的start方法，start方法调用eurekaserviceregistry类的regiser方法
public class eurekaautoserviceregistration implements
autoserviceregistration,
smartlifecycle,
ordered,
smartapplicationlistener
{
public void start() {
if (this.port.get() != 0) {
if (this.registration.getnonsecureport() == 0) {
this.registration.setnonsecureport(this.port.get());
}
if (this.registration.getsecureport() == 0 && this.registration.issecure()) {
this.registration.setsecureport(this.port.get());
}
}
if (!this.running.get() && this.registration.getnonsecureport() > 0) {
// 调用eurekaserviceregistry的regiser
this.serviceregistry.register(this.registration);
this.context.publishevent(new instanceregisteredevent(this,
this.registration.getinstanceconfig()));
this.running.set(true);
}
}
}eurekaserviceregistry类的regiser方法会设置实例的状态。进入applicationinfomanager类的setinstancestatus方法
// 设置实例状态
reg.getapplicationinfomanager().setinstancestatus(
reg.getinstanceconfig().getinitialstatus());
setinstancestatus方法触发了一个状态修改事件，并且通知了监听器
public synchronized void setinstancestatus(instanceinfo.instancestatus status) {
instanceinfo.instancestatus next = this.instancestatusmapper.map(status);
if (next != null) {
instanceinfo.instancestatus prev = this.instanceinfo.setstatus(next);
if (prev != null) {
iterator var4 = this.listeners.values().iterator();
while(var4.hasnext()) {
statuschangelistener listener = (statuschangelistener)var4.next();
try {
// 通知监听器
listener.notify(new statuschangeevent(prev, next));
} catch (exception var7) {
logger.warn("failed to notify listener: {}", listener.getid(), var7);
}
}
}
}
}这里的监听器和上面提到的状态修改监听器其实是同一个监听器，在调用eurekaautoserviceregistration对象的start方法后，监听器会收到通知然后调用客户端的register方法，这就是发送注册服务请求的执行时机
2、拉取服务
2.1 初次拉取
客户端第一次拉取服务和discoveryclient类的构造方法有关，详情如下：
@inject
discoveryclient(...){
...
// 调用fetchregistry方法，拉取服务
boolean primaryfetchregistryresult = this.fetchregistry(false);
if (!primaryfetchregistryresult) {
logger.info("initial registry fetch from primary servers failed");
}
...
}
private boolean fetchregistry(boolean forcefullregistryfetch) {
...
// 调用getandstorefullregistry方法，拉取全部服务
this.getandstorefullregistry();
...
}
private void getandstorefullregistry() throws throwable {
...
long currentupdategeneration = this.fetchregistrygeneration.get();
// 启动时会打印这行日志
logger.info("getting all instance registry info from the eureka server");
applications apps = null;
// 发送http请求
eurekahttpresponse<applications> httpresponse = this.clientconfig.getregistryrefreshsinglevipaddress() == null ? this.eurekatransport.queryclient.getapplications((string[])this.remoteregionsref.get()) : this.eurekatransport.queryclient.getvip(this.clientconfig.getregistryrefreshsinglevipaddress(), (string[])this.remoteregionsref.get());
if (httpresponse.getstatuscode() == status.ok.getstatuscode()) {
apps = (applications)httpresponse.getentity();
}
...
}
2.2 定时拉取
为了保证服务信息真实可信，客户端会定时拉取远程注册列表更新本地数据。提到到定时任务，自然的联想到discoveryclient类的initscheduledtasks方法（1.2.1的内容）
private void initscheduledtasks() {
int renewalintervalinsecs;
int expbackoffbound;
if (this.clientconfig.shouldfetchregistry()) {
renewalintervalinsecs = this.clientconfig.getregistryfetchintervalseconds();
expbackoffbound = this.clientconfig.getcacherefreshexecutorexponentialbackoffbound();
// 定时刷新本地服务列表任务，具体任务在cacherefreshthread内
this.cacherefreshtask = new timedsupervisortask("cacherefresh", this.scheduler, this.cacherefreshexecutor, renewalintervalinsecs, timeunit.seconds, expbackoffbound, new
// 执行任务的线程
cacherefreshthread());
this.scheduler.schedule(this.cacherefreshtask, (long)renewalintervalinsecs, timeunit.seconds);
}
}
class cacherefreshthread implements runnable {
cacherefreshthread() {
}
public void run() {
// 刷新服务列表
discoveryclient.this.refreshregistry();
}
}
@visiblefortesting
void refreshregistry() {
...
// 获取服务列表
boolean success = this.fetchregistry(remoteregionsmodified);
...
}3、总结
eureka服务端启动后通过自动配置加载com.netflix.eureka包下的处理器，处理器会响应注册、拉取、剔除服务等http请求
eureka客户端启动后会发送注册请求，并定时更新服务列表
