我要评论本案例，k8s版本为v1.22.17，所以安装v2.7.0版本的dashboard
1、下载dashboard的yaml文件
curl -o https://raw.githubusercontent.com/kubernetes/dashboard/v2.7.0/aio/deploy/recommended.yaml
2、修改recommended.yaml文件

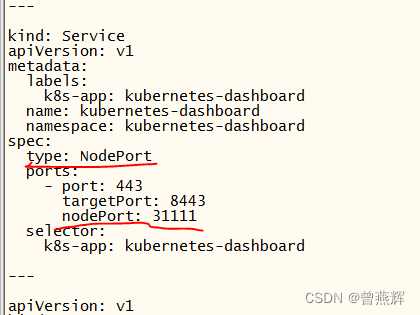

修改定义的service，将type由clusterip修改为nodeport，以便我们直接通过地址+端口进行访问，并配置访问端口。添加的内如为：
type: nodeportnodeport: 31111
如下图 ：
3、kubectl create 生成pod
执行
kubectl create -f recommended.yaml

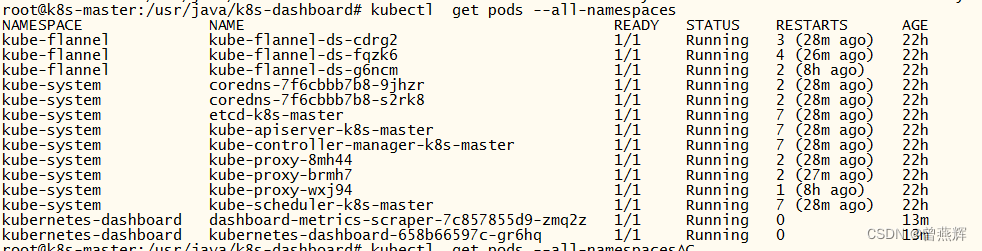

查看 pod
kubectl get pods --all-namespaces

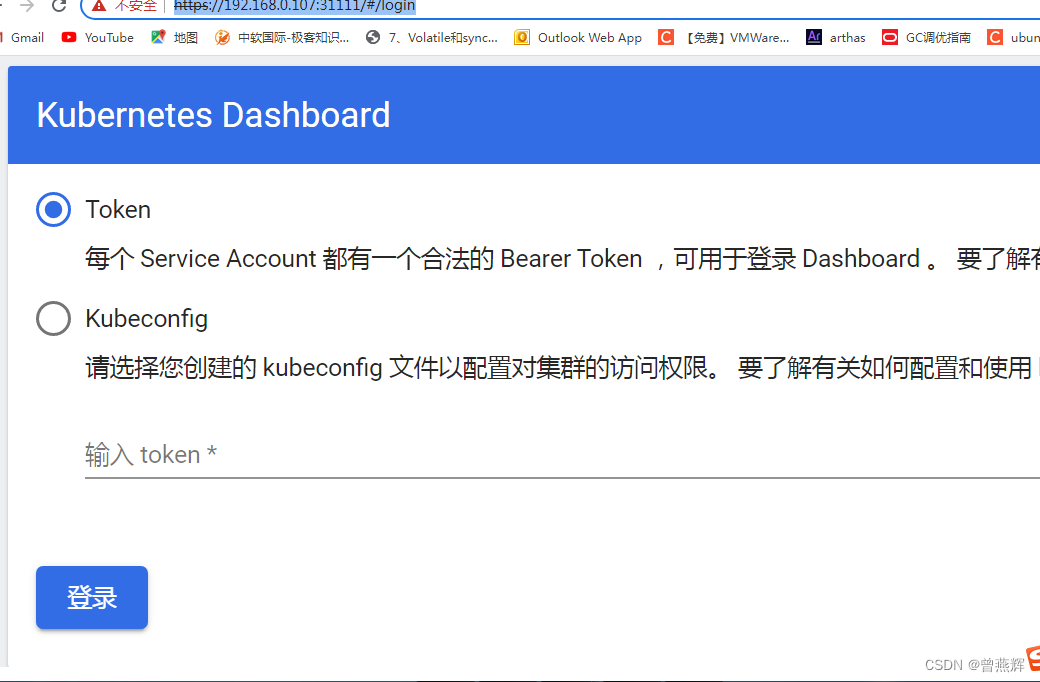

4、访问https://192.168.0.107:31111
5、生成token
1）创建dashboard-adminuser.yaml
apiversion: v1 kind: serviceaccount metadata: name: admin-user namespace: kubernetes-dashboard
2）执行 kubectl apply -f dashboard-adminuser.yaml
kubectl apply -f dashboard-adminuser.yaml
3）创建admin-user-role-binding.yaml
apiversion: rbac.authorization.k8s.io/v1
kind: clusterrolebinding
metadata:
name: admin-user
roleref:
apigroup: rbac.authorization.k8s.io
kind: clusterrole
name: cluster-admin
subjects:
- kind: serviceaccount
name: admin-user
namespace: kubernetes-dashboard
4）执行kubectl create -f admin-user-role-binding.yaml
5）生成token
kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"root@k8s-master:/usr/java/k8s-dashboard# kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

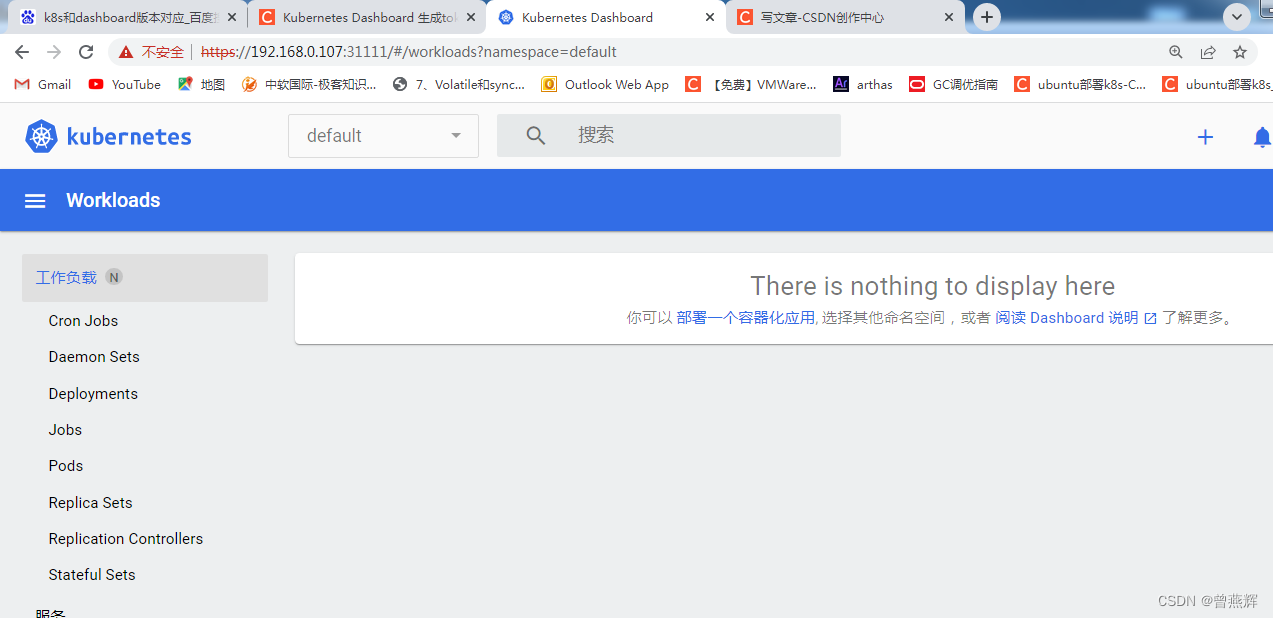

eyjhbgcioijsuzi1niisimtpzci6il9is0x1se9wouhrcexlcs1oewf5aznomehlt3m3bzvqzlrwn3q0eu9mewmifq.eyjpc3mioijrdwjlcm5ldgvzl3nlcnzpy2vhy2nvdw50iiwia3vizxjuzxrlcy5pby9zzxj2awnlywnjb3vudc9uyw1lc3bhy2uioijrdwjlcm5ldgvzlwrhc2hib2fyzcisimt1ymvybmv0zxmuaw8vc2vydmljzwfjy291bnqvc2vjcmv0lm5hbwuioijhzg1pbi11c2vylxrva2vulxc2n2iyiiwia3vizxjuzxrlcy5pby9zzxj2awnlywnjb3vudc9zzxj2awnllwfjy291bnqubmftzsi6imfkbwlulxvzzxiilcjrdwjlcm5ldgvzlmlvl3nlcnzpy2vhy2nvdw50l3nlcnzpy2utywnjb3vudc51awqioijkyzg2ntm3os02mdfjltrmywetytqzos01n2i1ztuxmthlmziilcjzdwiioijzexn0zw06c2vydmljzwfjy291bnq6a3vizxjuzxrlcy1kyxnoym9hcmq6ywrtaw4tdxnlcij9.hf9srfqyatgpydlhkidwranfaoj2kid6p3idzjwtinjpg2djarokbqql29iier8qp1yu0xcljwve-9e3zn_gy8d8r_bzqkvrckxkxwfwlodmujplhewra0eqxzqm9pua2ym0ucsjqgnfrtjeafyhar-3bvkxq1dmnot_slewqorvnonn1pdyd6oofdc4ptj787fbqpo5_5geuezn2dva1-dhcmmadcqxw_f1rsp6fjeevgugwwjbt_8uyx0c9d5wjcoq7opits2tlzbvw2nr_bsmcoyal4g0ev0nfogadxclrui21o5am1wjqvwsvq-ljirkfnd6ojscahisumyz2a6）在页面上输入生成的token
