我要评论1、前言
有个需求：整一个给 word 加水印的demo，于是我就网上找呗~
看到那个 aspose 好像是收费的，然后就把目光转向了 poi，看到各种形形色色的也不知道哪个能用。整了一会，自己拷贝出一个比较精简的能用的 demo 了。
2、人狠话不多，上效果图

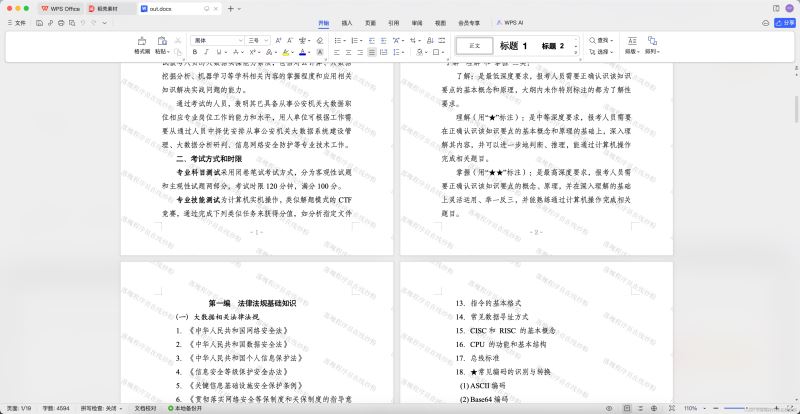

我一般都是直接上图的，先看效果图（每一页都有的）：
水印的分布如果不理想，只能小伙伴们自行研究调整了~
3、人狠话不多，直接来代码
3.1、我的代码结构
3.2 、直接贴代码了
3.2.1、pom 依赖
<?xml version="1.0" encoding="utf-8"?>
<project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelversion>4.0.0</modelversion>
<parent>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter-parent</artifactid>
<version>3.2.2</version>
<relativepath/> <!-- lookup parent from repository -->
</parent>
<groupid>com.lyk</groupid>
<artifactid>springboot-word-finger</artifactid>
<version>0.0.1-snapshot</version>
<name>springboot-word-finger</name>
<description>springboot-word-finger</description>
<properties>
<java.version>17</java.version>
</properties>
<dependencies>
<dependency>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter</artifactid>
</dependency>
<dependency>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-starter-test</artifactid>
<scope>test</scope>
</dependency>
<dependency>
<groupid>org.jsoup</groupid>
<artifactid>jsoup</artifactid>
<version>1.11.2</version>
</dependency>
<dependency>
<groupid>org.apache.poi</groupid>
<artifactid>poi</artifactid>
<version>4.1.0</version>
</dependency>
<dependency>
<groupid>org.apache.poi</groupid>
<artifactid>poi-scratchpad</artifactid>
<version>4.1.0</version>
</dependency>
<dependency>
<groupid>org.apache.poi</groupid>
<artifactid>poi-ooxml</artifactid>
<version>4.1.0</version>
</dependency>
<dependency>
<groupid>org.apache.poi</groupid>
<artifactid>poi-ooxml-schemas</artifactid>
<version>4.1.0</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupid>org.springframework.boot</groupid>
<artifactid>spring-boot-maven-plugin</artifactid>
</plugin>
</plugins>
</build>
</project>
3.2.2、处理工具类
import com.microsoft.schemas.office.office.ctlock;
import com.microsoft.schemas.vml.*;
import org.apache.poi.openxml4j.exceptions.invalidformatexception;
import org.apache.poi.openxml4j.opc.opcpackage;
import org.apache.poi.wp.usermodel.headerfootertype;
import org.apache.poi.xwpf.usermodel.xwpfdocument;
import org.apache.poi.xwpf.usermodel.xwpfheader;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.*;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import java.io.*;
import java.util.stream.stream;
/**
* @author: lyk
* @description: word 添加水印工具类
**/
public class watermarkutil {
private static final logger logger = loggerfactory.getlogger(watermarkutil.class);
/** word字体 */
private static final string font_name = "宋体";
/** 字体大小 */
private static final string font_size = "0.2pt";
/** 字体颜色 */
private static final string font_color = "#d0d0d0";
/** 一个字平均长度，单位pt，用于：计算文本占用的长度（文本总个数*单字长度）*/
private static final integer width_per_word = 10;
/** 与顶部的间距 */
private static integer style_top = 0;
/** 文本旋转角度 */
private static final string style_rotation = "30";
/**
* @param inputpath
* @param putputpath
* @param fingertext
* @author: lyk
* @description: 添加水印入口方法
* @date: 2024/1/25 23:42
**/
public static void watermarkdocxdocument(string inputpath, string putputpath, string fingertext) {
long begintime = system.currenttimemillis();
try (
outputstream out = new fileoutputstream(putputpath);
inputstream in = new fileinputstream(inputpath);
opcpackage srcpackage = opcpackage.open(in);
xwpfdocument doc = new xwpfdocument(srcpackage)
) {
// 把整页都打上水印
for (int lineindex = -5; lineindex < 20; lineindex++) {
style_top = 100 * lineindex;
watermarkdocxdocument(doc, fingertext);
}
// 输出新文档
doc.write(out);
logger.info("添加水印成功!,一共耗时" + (system.currenttimemillis() - begintime) + "毫秒");
} catch (ioexception e) {
throw new runtimeexception(e);
} catch (invalidformatexception e) {
throw new runtimeexception(e);
}
}
/**
* 为文档添加水印
* @param doc 需要被处理的docx文档对象
* @param fingertext 需要添加的水印文字
*/
public static void watermarkdocxdocument(xwpfdocument doc, string fingertext) {
// 水印文字之间使用8个空格分隔
fingertext = fingertext + repeatstring(" ", 8);
// 一行水印重复水印文字次数
fingertext = repeatstring(fingertext, 10);
// 如果之前已经创建过 default 的header，将会复用
xwpfheader header = doc.createheader(headerfootertype.default);
int size = header.getparagraphs().size();
if (size == 0) {
header.createparagraph();
}
ctp ctp = header.getparagrapharray(0).getctp();
byte[] rsidr = doc.getdocument().getbody().getparray(0).getrsidr();
byte[] rsidrdefault = doc.getdocument().getbody().getparray(0).getrsidrdefault();
ctp.setrsidp(rsidr);
ctp.setrsidrdefault(rsidrdefault);
ctppr ppr = ctp.addnewppr();
ppr.addnewpstyle().setval("header");
// 开始加水印
ctr ctr = ctp.addnewr();
ctrpr ctrpr = ctr.addnewrpr();
ctrpr.addnewnoproof();
ctgroup group = ctgroup.factory.newinstance();
ctshapetype shapetype = group.addnewshapetype();
cttextpath shapetypetextpath = shapetype.addnewtextpath();
shapetypetextpath.seton(sttruefalse.t);
shapetypetextpath.setfitshape(sttruefalse.t);
ctlock lock = shapetype.addnewlock();
lock.setext(stext.view);
ctshape shape = group.addnewshape();
shape.setid("powerpluswatermarkobject");
shape.setspid("_x0000_s102");
shape.settype("#_x0000_t136");
// 设置形状样式（旋转，位置，相对路径等参数）
shape.setstyle(getshapestyle(fingertext));
shape.setfillcolor(font_color);
// 字体设置为实心
shape.setstroked(sttruefalse.false);
// 绘制文本的路径
cttextpath shapetextpath = shape.addnewtextpath();
// 设置文本字体与大小
shapetextpath.setstyle("font-family:" + font_name + ";font-size:" + font_size);
shapetextpath.setstring(fingertext);
ctpicture pict = ctr.addnewpict();
pict.set(group);
}
/**
* 构建shape的样式参数
*
* @param fingertext
* @return
*/
private static string getshapestyle(string fingertext) {
stringbuilder sb = new stringbuilder();
// 文本path绘制的定位方式
sb.append("position: ").append("absolute");
// 计算文本占用的长度（文本总个数*单字长度）
sb.append(";width: ").append(fingertext.length() * width_per_word).append("pt");
// 字体高度
sb.append(";height: ").append("20pt");
sb.append(";z-index: ").append("-251654144");
sb.append(";mso-wrap-edited: ").append("f");
// 设置水印的间隔，这是一个大坑，不能用top,必须要margin-top。
sb.append(";margin-top: ").append(style_top);
sb.append(";mso-position-horizontal-relative: ").append("page");
sb.append(";mso-position-vertical-relative: ").append("page");
sb.append(";mso-position-vertical: ").append("left");
sb.append(";mso-position-horizontal: ").append("center");
sb.append(";rotation: ").append(style_rotation);
return sb.tostring();
}
/**
* 将指定的字符串重复repeats次.
*/
private static string repeatstring(string pattern, int repeats) {
stringbuilder buffer = new stringbuilder(pattern.length() * repeats);
stream.generate(() -> pattern).limit(repeats).foreach(buffer::append);
return new string(buffer);
}
}
/**
* @author lyk
* @version 1.0
* @date 2024/1/25 23:16
* @description
*/
public class main {
public static void main(string[] args) {
final string inpath = "src/main/java/com/lyk/finger/doc/aaaa.docx";
final string outpath = "src/main/java/com/lyk/finger/doc/out.docx";
// 添加水印
watermarkutil.watermarkdocxdocument(inpath, outpath, "落魄程序员在线炒粉");
}
}
4、ok 完事~
到此这篇关于springboot+poi实现给word添加水印功能的文章就介绍到这了,更多相关springboot poi word添加水印内容请搜索代码网以前的文章或继续浏览下面的相关文章希望大家以后多多支持代码网！
