目标

通过nginx配置，实现通过https+域名访问springboot部署的tomcat接口

实现步骤

1、首先申请证书

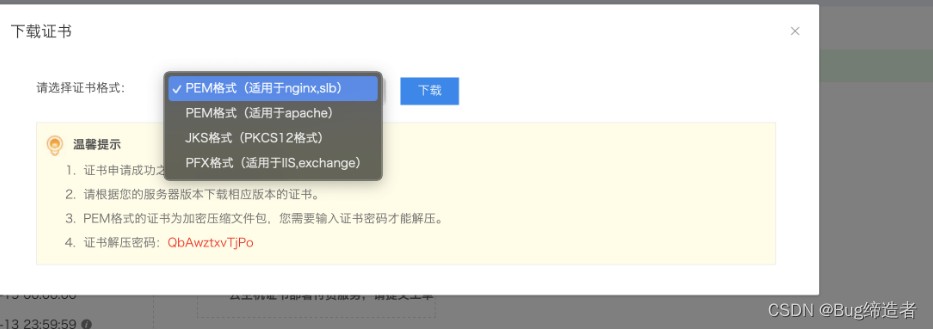

下载适用于ngxin版本的证书（.pem格式）

2、下载压缩包

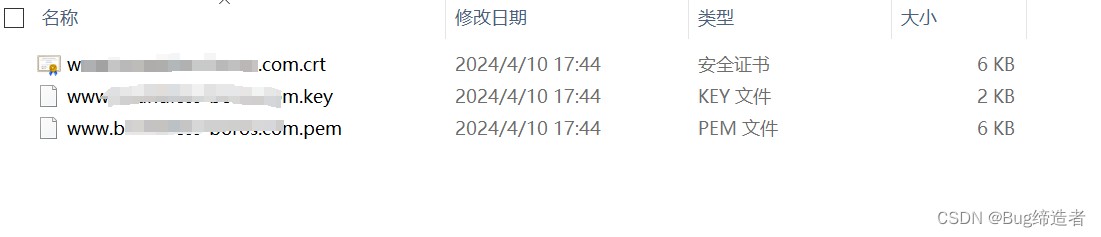

解压后文件夹中存在以下几个文件：

3、将解压后的文件

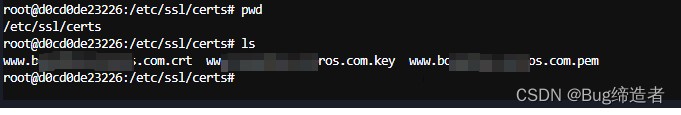

上传至服务器中 /etc/ssl/certs 目录下

4、修改nginx.conf文件

（1）监听自己要访问的端口（18380），并修改服务名为域名信息，每一个虚拟主机监听不同的ssl端口(默认端口为443)

server {
    listen 18380;
	listen 1443 ssl;
	server_name www.xxx.com;
	ssl on;
	ssl_certificate /etc/ssl/certs/www.xxx.com.pem;
	ssl_certificate_key /etc/ssl/certs/www.xxx.com.key;
	ssl_session_timeout 5m;
	ssl_protocols tlsv1 tlsv1.1 tlsv1.2;
	ssl_ciphers ecdhe-rsa-aes128-gcm-sha256:ecdhe:ecdh:aes:high:!null:!anull:!md5:!adh:!rc4;
	ssl_prefer_server_ciphers on;


        #charset koi8-r;

        #access_log  logs/host.access.log  main;

         #前端资源地址
        location / {
            root   /usr/share/nginx/html;
            try_files $uri $uri/ /index.html;
            index  index.html index.htm;
        }
     #后端接口访问地址
       location /prod-api/ {
         proxy_pass http://ip:端口/;
         client_max_body_size     50m;
         proxy_redirect     off;
         proxy_set_header   host             $host;
         proxy_set_header   x-real-ip        $remote_addr;
         proxy_set_header   x-forwarded-for  $proxy_add_x_forwarded_for;
         proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504;
         proxy_max_temp_file_size 0;
         proxy_connect_timeout      90;
         proxy_send_timeout         90;
         proxy_read_timeout         90;
         proxy_buffer_size          4k;
         proxy_buffers              4 32k;
         proxy_busy_buffers_size    64k;
         proxy_temp_file_write_size 64k;
         proxy_cookie_path / /;

     }
#静态资源访问地址
 location /prod-api/ryk1haerqt.txt {
          alias /usr/share/nginx/html/ryk1haerqt.txt;
          allow all;
          autoindex on;
        }

（2）附完整.conf文件

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;
  server {
    listen 18380;
	listen 1443 ssl;
	server_name www.xxx.com;
	ssl on;
	ssl_certificate /etc/ssl/certs/www.xxx.com.pem;
	ssl_certificate_key /etc/ssl/certs/www.xxx.com.key;
	ssl_session_timeout 5m;
	ssl_protocols tlsv1 tlsv1.1 tlsv1.2;
	ssl_ciphers ecdhe-rsa-aes128-gcm-sha256:ecdhe:ecdh:aes:high:!null:!anull:!md5:!adh:!rc4;
	ssl_prefer_server_ciphers on;


        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        #前端资源地址
        location / {
            root   /usr/share/nginx/html;
            try_files $uri $uri/ /index.html;
            index  index.html index.htm;
        }
        #后端接口访问地址
       location /prod-api/ {
         proxy_pass http://ip:端口/;
         client_max_body_size     50m;
         proxy_redirect     off;
         proxy_set_header   host             $host;
         proxy_set_header   x-real-ip        $remote_addr;
         proxy_set_header   x-forwarded-for  $proxy_add_x_forwarded_for;
         proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504;
         proxy_max_temp_file_size 0;
         proxy_connect_timeout      90;
         proxy_send_timeout         90;
         proxy_read_timeout         90;
         proxy_buffer_size          4k;
         proxy_buffers              4 32k;
         proxy_busy_buffers_size    64k;
         proxy_temp_file_write_size 64k;
         proxy_cookie_path / /;

     }


     location /prod-api/ryk1haerqt.txt {
          alias /usr/share/nginx/html/ryk1haerqt.txt;
          allow all;
          autoindex on;
        }
        #error_page  404              /404.html;

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

        # proxy the php scripts to apache listening on 127.0.0.1:80
        #
        #location ~ \.php$ {
        #    proxy_pass   http://127.0.0.1;
        #}

        # pass the php scripts to fastcgi server listening on 127.0.0.1:9000
        #
        #location ~ \.php$ {
        #    root           html;
        #    fastcgi_pass   127.0.0.1:9000;
        #    fastcgi_index  index.php;
        #    fastcgi_param  script_filename  /scripts$fastcgi_script_name;
        #    include        fastcgi_params;
        #}

        # deny access to .htaccess files, if apache's document root
        # concurs with nginx's one
        #
        #location ~ /\.ht {
        #    deny  all;
        #}
    }


    # another virtual host using mix of ip-, name-, and port-based configuration
    #
    #server {
    #    listen       8000;
    #    listen       somename:8080;
    #    server_name  somename  alias  another.alias;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}


    # https server
    #
    #server {
    #    listen       443 ssl;
    #    server_name  localhost;

    #    ssl_certificate      cert.pem;
    #    ssl_certificate_key  cert.key;

    #    ssl_session_cache    shared:ssl:1m;
    #    ssl_session_timeout  5m;

    #    ssl_ciphers  high:!anull:!md5;
    #    ssl_prefer_server_ciphers  on;

    #    location / {
    #        root   html;
    #        index  index.html index.htm;
    #    }
    #}

}
