Java使用poi-tl库操作wold文档的方法_Java

poi-tl 是一个基于apache poi的word模板引擎，也是一个免费开源的java类库，

适用范围:

在线文档生成、合同签订、信息替换方面具有很大优势、采用 标签-替换的实现策略,简单易上手、避免实际业务中的重复开发. 业务与设计解藕.

开始操作

引入 poi-tl 项目

        <poi-version>5.4.0</poi-version>

        -- poi 项目依赖

        <dependency>
            <groupid>org.apache.poi</groupid>
            <artifactid>poi</artifactid>
            <version>${poi-version}</version>
        </dependency>

        <dependency>
            <groupid>org.apache.poi</groupid>
            <artifactid>poi-ooxml</artifactid>
            <version>${poi-version}</version>
        </dependency>

        -- poi-tl 项目依赖
        <dependency>
            <groupid>com.deepoove</groupid>
            <artifactid>poi-tl</artifactid>
            <version>1.12.2</version>
        </dependency>

本讲介绍模版生成(poi - tl支持无模版生成)

读取模版文件、并且定义结果输出

        xwpftemplate
                .compile("模版文档.docx")
                .render(map)
                .writeandclose(new fileoutputstream("01.docx"));

xwpftemplate : 模版操作类
- compile : 模版文档
- render : 数据
- writeandclose : 结果输出

普通图文本替换 (文档内容 {{key}})

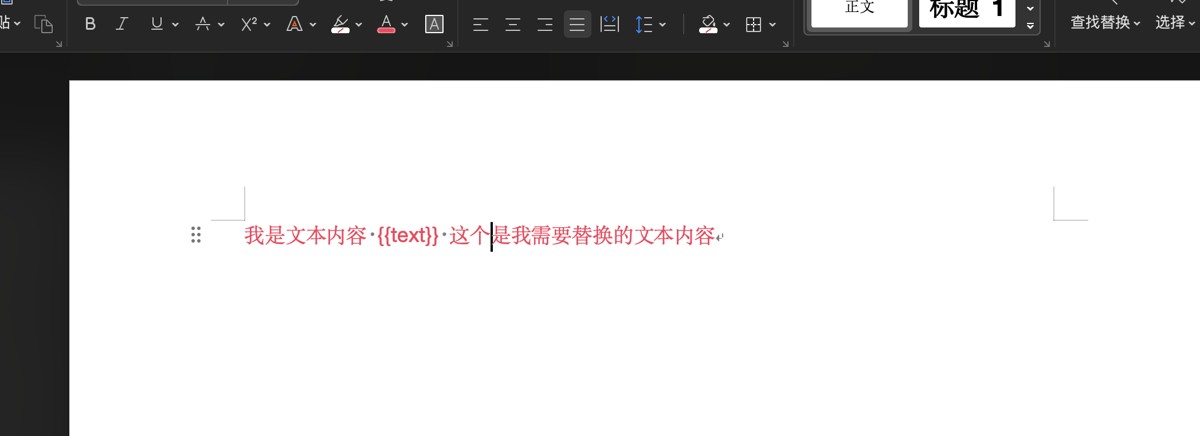

模版文件

代码

        hashmap<string, object> rendermap = new hashmap<>();

        rendermap.put("text","我是被替换的内容");

        xwpftemplate
                .compile("空白文档.docx")
                .render(rendermap).
                writeandclose(new fileoutputstream("01.docx"));

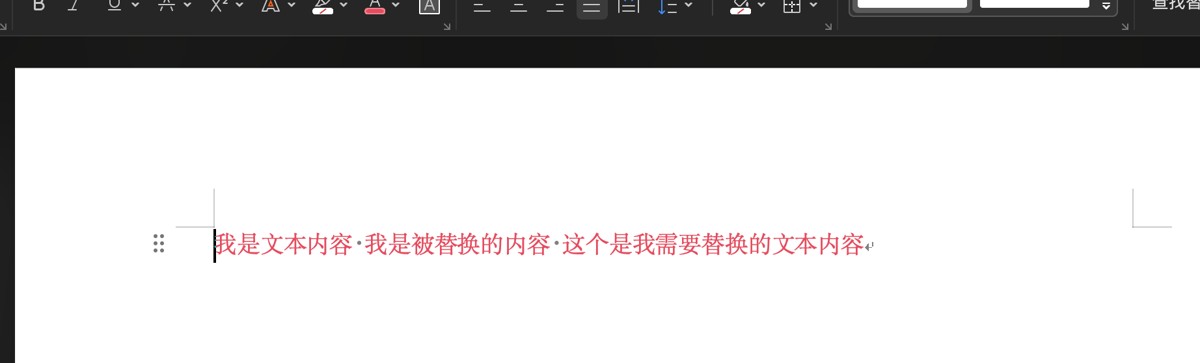

输出文件

列表内容生成 {{#key}}

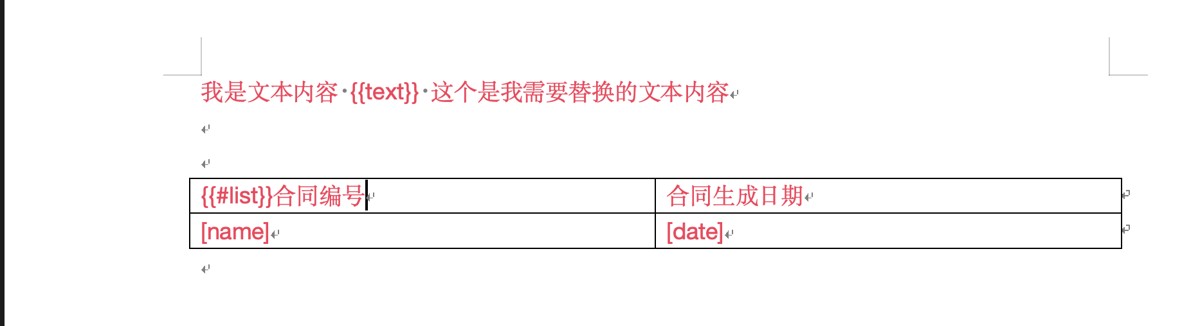

模版

代码实现

        hashmap<string, object> rendermap = new hashmap<>();

        rendermap.put("text", "我是被替换的内容");

        hashmap<string, object> ones = new hashmap<>();

        ones.put("name", "981129-1");
        ones.put("date", new date());

        arraylist<object> list = new arraylist<>();
        list.add(ones);
        list.add(ones);
        list.add(ones);
        list.add(ones);

        rendermap.put("list", list);

        // 表格循环插件
        looprowtablerenderpolicy rowtablerenderpolicy = new looprowtablerenderpolicy();
        configure configure = configure.builder()
                .bind("list", rowtablerenderpolicy)
                .build();


        xwpftemplate
                .compile("空白文档.docx", configure)
                .render(rendermap).
                writeandclose(new fileoutputstream("01.docx"));

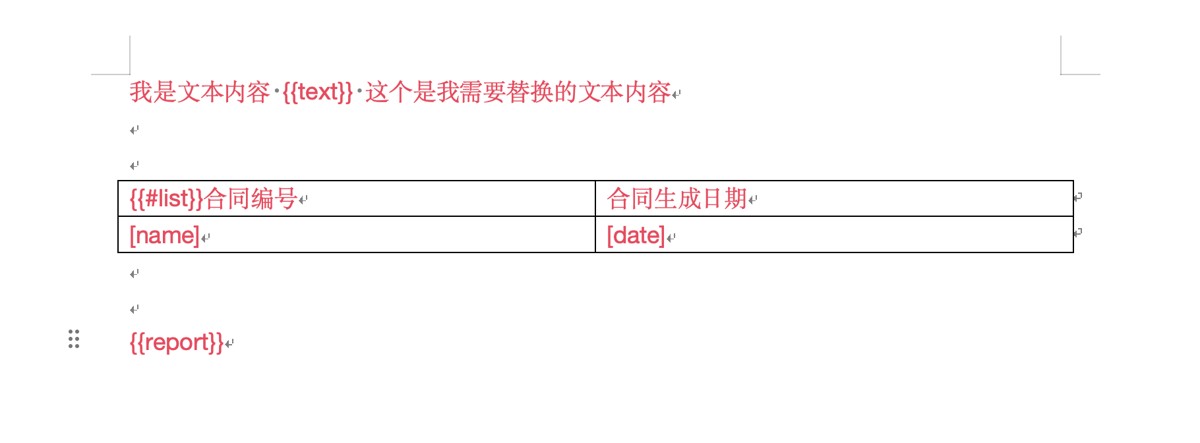

复杂结构列表内容生成 (循环生成普通文本 + 列表)

自定义实现(代码)

package com.bu.poi.world.plugns;

import com.bu.poi.world.vsety;
import com.bu.poi.world.domain.dtentity;
import com.bu.poi.world.domain.objety;
import com.deepoove.poi.policy.abstractrenderpolicy;
import com.deepoove.poi.render.rendercontext;
import com.deepoove.poi.template.run.runtemplate;
import com.deepoove.poi.xwpf.bodycontainer;
import com.deepoove.poi.xwpf.bodycontainerfactory;
import com.deepoove.poi.xwpf.xwpfparagraphwrapper;
import org.apache.poi.xwpf.usermodel.*;

import java.util.list;

/**
 * @author haizhuangbu
 * @date 03 8月 2025 06:46
 * @mark customtablerenderpolicy
 */
public class customtablerenderpolicy extends abstractrenderpolicy<vsety> {

    @override
    protected void afterrender(rendercontext<vsety> context) {
        clearplaceholder(context, true);
    }

    @override
    public void dorender(rendercontext<vsety> rendercontext) {

        // 编辑行
        xwpfrun run = rendercontext.getrun();


        runtemplate runtemplate = (runtemplate) rendercontext.geteletemplate();


        // 数据
        vsety data = rendercontext.getdata();

        bodycontainer bodycontainer = bodycontainerfactory.getbodycontainer(run);


        list<dtentity> list = data.getlist();
        for (dtentity dtentity : list) {

            xwpfrun nvrun = createrun(runtemplate, (xwpfparagraph) run.getparent());

            nvrun.settext(dtentity.gettitle() + "\n");

            bodycontainer.insertnewparagraph(nvrun);
            nvrun.addbreak();

            xwpfrun nvrun1 = createrun(runtemplate, (xwpfparagraph) nvrun.getparent());

            nvrun1.settext(dtentity.getidx() + "\n");
            bodycontainer.insertnewparagraph(nvrun1);
            nvrun1.addbreak();


            list<objety> objetylist = dtentity.getlist();

            for (objety objety : objetylist) {
//                createrun(run);
//                xwpfrun tbrun = createrun(runtemplate, (xwpfparagraph) nvrun1.getparent());
                xwpfrun tbrun = createrun(run);
                xwpftable table = bodycontainer.insertnewtable(tbrun, 0, 0);
                createrow(table, objety);
                table.setwidth(8000);

            }


        }


    }

    private xwpfrun createrun(runtemplate runtemplate, xwpfparagraph parent) {
        xwpfparagraphwrapper paragraphwrapper = new xwpfparagraphwrapper(parent);
        return paragraphwrapper.insertnewrun(runtemplate.getrunpos());

    }

    public void createrow(xwpftable table, objety objety) {

        table.setinsidehborder(xwpftable.xwpfbordertype.single, 10, 2, "e8e8e8");
        table.setleftborder(xwpftable.xwpfbordertype.single, 10, 2, "e8e8e8");
        table.setrightborder(xwpftable.xwpfbordertype.single, 10, 2, "e8e8e8");
        table.settopborder(xwpftable.xwpfbordertype.single, 10, 2, "e8e8e8");
        table.setbottomborder(xwpftable.xwpfbordertype.single, 10, 2, "e8e8e8");
        xwpftablerow r1 = table.getrow(0);


        xwpftablecell left = r1.getcell(0);
        left.settext("姓名");


        xwpftablecell right = r1.createcell();
        right.settext(objety.getname());


        xwpftablerow r2 = table.createrow();
        xwpftablecell r2left = r2.getcell(0);
        r2left.settext("码值");
        xwpftablecell r2right = r2.getcell(1);
        r2right.settext(objety.gettcode());

        xwpftablerow r3 = table.createrow();
        xwpftablecell r3left = r3.getcell(0);
        r3left.settext("中文名");
        xwpftablecell r3right = r3.getcell(1);
        r3right.settext(objety.gettname());


    }


    public xwpfrun createrun(xwpfrun run) {
        xwpfdocument document = run.getdocument();
        xwpfparagraph paragraph = document.createparagraph();
        return paragraph.createrun();
    }


}

        vsety vsety = new vsety();

        arraylist<dtentity> dtentities = new arraylist<>();


        dtentity dtentity = new dtentity();
        dtentity.setidx("我是下标\n");
        dtentity.settitle("我是标题\n");

        list<objety> objeties = new arraylist<>();

        objety objety = new objety();
        objety.setname("name");
        objety.settname("name1");
        objety.settcode("code1");


        objety objety2 = new objety();
        objety2.setname("name");
        objety2.settname("name1");
        objety2.settcode("code1");

        objeties.add(objety);
        objeties.add(objety2);


        dtentity.setlist(objeties);

        dtentities.add(dtentity);


        vsety.setlist(dtentities);

        rendermap.put("report", vsety);

        customtablerenderpolicy customtablerenderpolicy = new customtablerenderpolicy();

        // 表格循环插件
        looprowtablerenderpolicy rowtablerenderpolicy = new looprowtablerenderpolicy();
        configure configure = configure.builder()
                .bind("list", rowtablerenderpolicy)
                .bind("report", customtablerenderpolicy)
                .build();


        xwpftemplate
                .compile("空白文档.docx", configure)
                .render(rendermap).
                writeandclose(new fileoutputstream("01.docx"));
