RabbitMQ 避免消息重复消费的方法_Java

rabbitmq 如何避免消息重复消费？

幂等性

当消费者消费完消息之后，通常会发送一个ack应答确认信息给生产者，但是这中间有可能因为网络中断等原因，导致生产者未能收到确认消息，由此这条消息将会被重复发送给其他消费者进行消费，实际上这条消息已经被消费过了，这就是重复消费的问题。

消息幂等性，其实就是保证同一个消息不被消费者重复消费两次。

如何避免消息重复消费？

消费者端实现幂等性，意味着消息永远不会消费多次，即使收到了多条一样的消息。通常有两种方式来避免消费重复消费：

方式1: 消息全局 id 或者写个唯一标识(如时间戳、uuid 等) ：每次消费消息之前根据消息 id 去判断该消息是否已消费过，如果已经消费过，则不处理这条消息，否则正常消费消息，并且进行入库操作。(消息全局 id 作为数据库表的主键，防止重复)
方式2: 利用 redis 的 setnx 命令：给消息分配一个全局 id，消费该消息时，先去 redis 中查询有没消费记录，无则以键值对形式写入 redis ，有则不消费该消息。

基于本地消息表实现消息幂等性

导入 pom.xml 依赖（公共部分）

<?xml version="1.0" encoding="utf-8"?>
<project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
         xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelversion>4.0.0</modelversion>
    <parent>
        <groupid>org.springframework.boot</groupid>
        <artifactid>spring-boot-starter-parent</artifactid>
        <version>2.7.0</version>
        <relativepath/> <!-- lookup parent from repository -->
    </parent>
    <groupid>com.mq</groupid>
    <artifactid>rabbitmq</artifactid>
    <version>0.0.1-snapshot</version>
    <name>rabbitmq</name>
    <description>demo project for spring boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter</artifactid>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-web</artifactid>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-amqp -->
        <!--springboot rabbit 启动器-->
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-amqp</artifactid>
            <version>2.7.0</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupid>org.projectlombok</groupid>
            <artifactid>lombok</artifactid>
            <version>1.18.24</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupid>mysql</groupid>
            <artifactid>mysql-connector-java</artifactid>
        </dependency>
        <!-- https://mvnrepository.com/artifact/cn.hutool/hutool-all -->
        <dependency>
            <groupid>cn.hutool</groupid>
            <artifactid>hutool-all</artifactid>
            <version>5.8.3</version>
        </dependency>
        <dependency>
            <groupid>com.baomidou</groupid>
            <artifactid>mybatis-plus-boot-starter</artifactid>
            <version>3.4.0</version>
        </dependency>
        <dependency>
            <groupid>com.baomidou</groupid>
            <artifactid>mybatis-plus</artifactid>
            <version>3.4.0</version>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-data-redis</artifactid>
            <version>2.6.7</version>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-test</artifactid>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupid>org.springframework.boot</groupid>
                <artifactid>spring-boot-maven-plugin</artifactid>
            </plugin>
        </plugins>
    </build>
</project>

yml 配置文件（公共部分）

spring:
  application:
    name: rabbitmq
  rabbitmq:
    host: 10.0.0.4
    port: 5672
    username: admin
    password: admin
    virtual-host: /
    publisher-confirm-type: correlated # 开启消息发布确认机制
    publisher-returns: true # 发布消息返回监听回调
    # 指定消息确认模式
    listener:
      simple:
        acknowledge-mode: manual
    # 未正确路由的消息发送到备份队列
    # 使用备份交换机模式，mandatory 将无效，即就算 mandatory设 置为 false，路由失败的消息同样会被投递到绑定的备份交换机
    template:
      mandatory: true
  redis:
    host: 10.0.0.4
    database: 0
    port: 6379
    timeout: 300ms
  datasource:
    url: jdbc:mysql://10.0.0.4:3306/test?useunicode=true&characterencoding=utf-8&servertimezone=asia/shanghai
    username: root
    password: root
server:
  port: 8080
# mybatis 插件打印日志，打印查询结果
mybatis-plus:
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.stdoutimpl

创建本地消息表

create table `message_idempotent` (
  `message_id` varchar(50) not null comment '消息id',
  `message_content` varchar(2000) default null comment '消息内容',
  primary key (`message_id`)
) engine=innodb default charset=utf8;

创建实体类

package com.mq.rabbitmq.vo;
import com.baomidou.mybatisplus.extension.activerecord.model;
import lombok.allargsconstructor;
import lombok.data;
import lombok.noargsconstructor;
/**
 * @classname messageidempotent
 * @description todo
 * @author 听秋
 * @date 2022/6/23 16:25
 * @version 1.0
 **/
@data
@noargsconstructor
@allargsconstructor
public class messageidempotent extends model<messageidempotent> {
    private string messageid;
    private string messagecontent;
}

创建 mapper 接口

package com.mq.rabbitmq.mapper;
import com.baomidou.mybatisplus.core.mapper.basemapper;
import com.mq.rabbitmq.vo.messageidempotent;
import org.apache.ibatis.annotations.mapper;
/**
 * @classname messageidempotentmapper
 * @description todo
 * @author 听秋
 * @date 2022/6/23 19:03
 * @version 1.0
 **/
@mapper
public interface messageidempotentmapper extends basemapper<messageidempotent> {
}

创建 rabbitmq 配置类（公共部分）

package com.mq.rabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.qualifier;
import org.springframework.context.annotation.bean;
import org.springframework.context.annotation.configuration;
import java.util.hashmap;
import java.util.map;
/**
 * @classname directconfig
 * @description todo direct 交换机配置类
 * @author 听秋
 * @date 2022/6/17 16:30
 * @version 1.0
 **/
@configuration
public class exchangeconfig {
    /**
     * 创建 direct 队列
     * */
    @bean
    queue directqueue01() {
        return new queue("directqueue-01",true);
    }
    /**
     * 创建 direct 交换机
     * */
    @bean
    directexchange directexchange01() {
        return new directexchange("directexchange-01");
    }
    /**
     * 绑定 direct 队列和交换机
     * */
    @bean
    binding bindingdirect01() {
        return bindingbuilder.bind(directqueue01()).to(directexchange01()).with("directrouting01");
    }
}

自定义消息发送确认的回调（公共部分）

package com.mq.rabbitmq.callback;
import org.springframework.amqp.core.returnedmessage;
import org.springframework.amqp.rabbit.connection.correlationdata;
import org.springframework.amqp.rabbit.core.rabbittemplate;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.stereotype.component;
import javax.annotation.postconstruct;
/**
 * @classname myconfirmcallback
 * @description todo 自定义消息发送确认的回调
 * @author 听秋
 * @date 2022/6/21 19:12
 * @version 1.0
 **/
@component
public class myconfirmcallback implements rabbittemplate.confirmcallback, rabbittemplate.returnscallback {
    @autowired
    private rabbittemplate rabbittemplate;
    /**
     * postconstruct: 用于在依赖关系注入完成之后需要执行的方法上，以执行任何初始化
     */
    @postconstruct
    public void init() {
        // 指定 confirmcallback
        rabbittemplate.setconfirmcallback(this);
        // 指定 returncallback
        rabbittemplate.setreturnscallback(this);
    }
    /**
     * confirmation callback.
     *
     * 确认消息是否成功到达交换机中，不管是否到达交换机，该回调都会执行
     * 生产者 → 交换机
     */
    @override
    public void confirm(correlationdata correlationdata, boolean ack, string cause) {
        system.out.println("发布消息的uuid为：" + correlationdata.getid());
        if (ack) {
            system.out.println("消息发布成功！");
        } else {
            system.out.println("消息发布失败！失败原因是：" + cause);
        }
    }
    /**
     * returned message callback.
     *
     * 确认消息是否从交换机成功到达队列中，失败将会执行，成功则不执行
     * 交换机 → 队列
     */
    @override
    public void returnedmessage(returnedmessage returned) {
        system.out.println("returnscallback 回调内容：" + returned);
    }
}

创建生产者（公共部分）

package com.mq.rabbitmq.controller;
import lombok.extern.slf4j.slf4j;
import org.springframework.amqp.core.message;
import org.springframework.amqp.core.messagedeliverymode;
import org.springframework.amqp.core.messagepostprocessor;
import org.springframework.amqp.core.messageproperties;
import org.springframework.amqp.rabbit.connection.correlationdata;
import org.springframework.amqp.rabbit.core.rabbittemplate;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.web.bind.annotation.getmapping;
import org.springframework.web.bind.annotation.restcontroller;
import java.util.uuid;
/**
 * @classname directcontroller
 * @description todo
 * @author 听秋
 * @date 2022/6/17 16:48
 * @version 1.0
 **/
@restcontroller
@slf4j
public class queuecontroller {
    @autowired
    private rabbittemplate rabbittemplate;
    /**
     * 消息幂等性
     * */
    @getmapping("/sendmessage")
    public void sendmessage(string msg, string routingkey, string id) {
        messageproperties messageproperties = new messageproperties();
        messageproperties.setmessageid(id);
        messageproperties.setcontenttype("text/plain");
        messageproperties.setcontentencoding("utf-8");
        message message = new message(msg.getbytes(), messageproperties);
        log.info("生产消息:" + message.tostring());
        // 消息发送确认回调
        correlationdata correlationdata = new correlationdata(uuid.randomuuid().tostring());
        rabbittemplate.convertandsend("directexchange-01", routingkey, message, correlationdata);
    }
}

发送消息

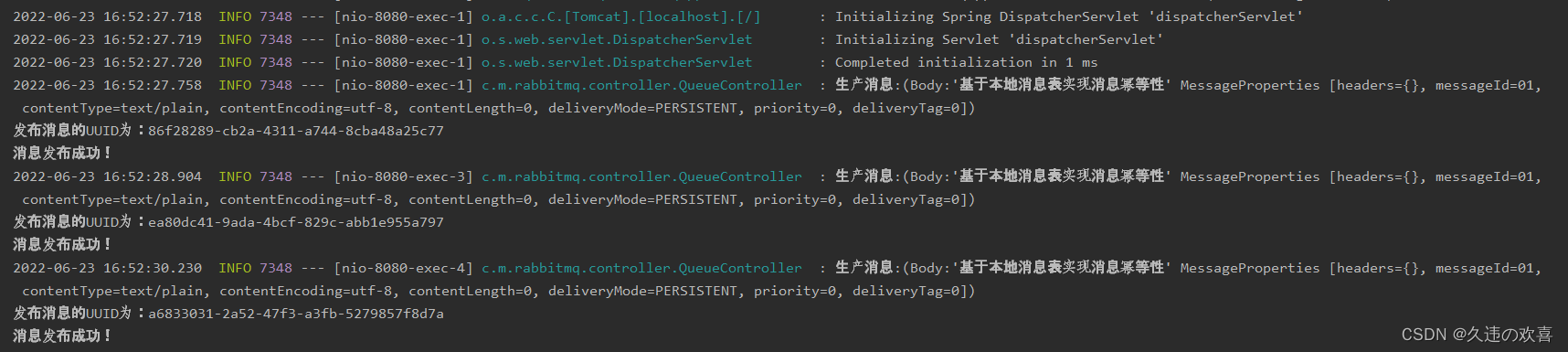

控制台

rabbitmq 队列

创建消费者

package com.mq.rabbitmq.controller;
import cn.hutool.core.util.objectutil;
import com.baomidou.mybatisplus.core.conditions.query.querywrapper;
import com.mq.rabbitmq.vo.messageidempotent;
import com.rabbitmq.client.channel;
import lombok.extern.slf4j.slf4j;
import org.springframework.amqp.core.message;
import org.springframework.amqp.rabbit.annotation.rabbitlistener;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.data.redis.core.stringredistemplate;
import org.springframework.stereotype.component;
import java.io.ioexception;
import java.nio.charset.standardcharsets;
/**
 * @classname directreceiver
 * @description todo
 * @author 听秋
 * @date 2022/6/21 10:40
 * @version 1.0
 **/
@component
@slf4j
public class consumer {
    @autowired
    private stringredistemplate stringredistemplate;
	/**
     * 基于本地消息表实现消息幂等性
     * @param message
     */
    @rabbitlistener(queues = "directqueue-01")
    public void receivemessage02(message message, channel channel) throws ioexception {
        string messageid = message.getmessageproperties().getmessageid();
        string messagecontent = new string(message.getbody(), standardcharsets.utf_8);
        messageidempotent messageidempotent = new messageidempotent();
        querywrapper<messageidempotent> querywrapper = new querywrapper<>();
        querywrapper.eq("message_id", messageid);
        messageidempotent msg = messageidempotent.selectone(querywrapper);
        if (objectutil.isnull(msg)) {
            messageidempotent.setmessageid(messageid);
            messageidempotent.setmessagecontent(messagecontent);
            messageidempotent.insert();
            log.info("directqueue-01-消费者收到消息，消息id：" + messageid + " 消息内容：" + messagecontent);
            // 消息确认
            channel.basicack(message.getmessageproperties().getdeliverytag(), false);
        } else {
            log.info("消息 " + messageid + " 已经消费过！");
        }
    }

消费消息

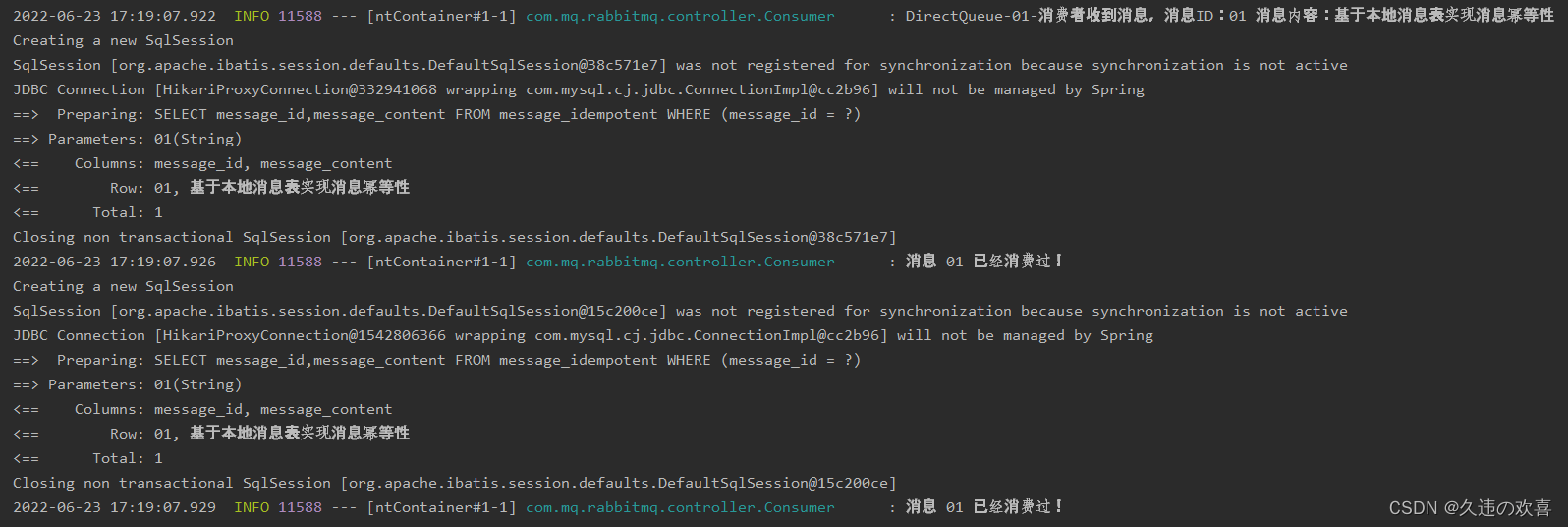

控制台

rabbitmq 队列

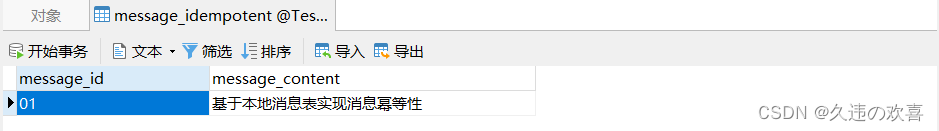

数据库

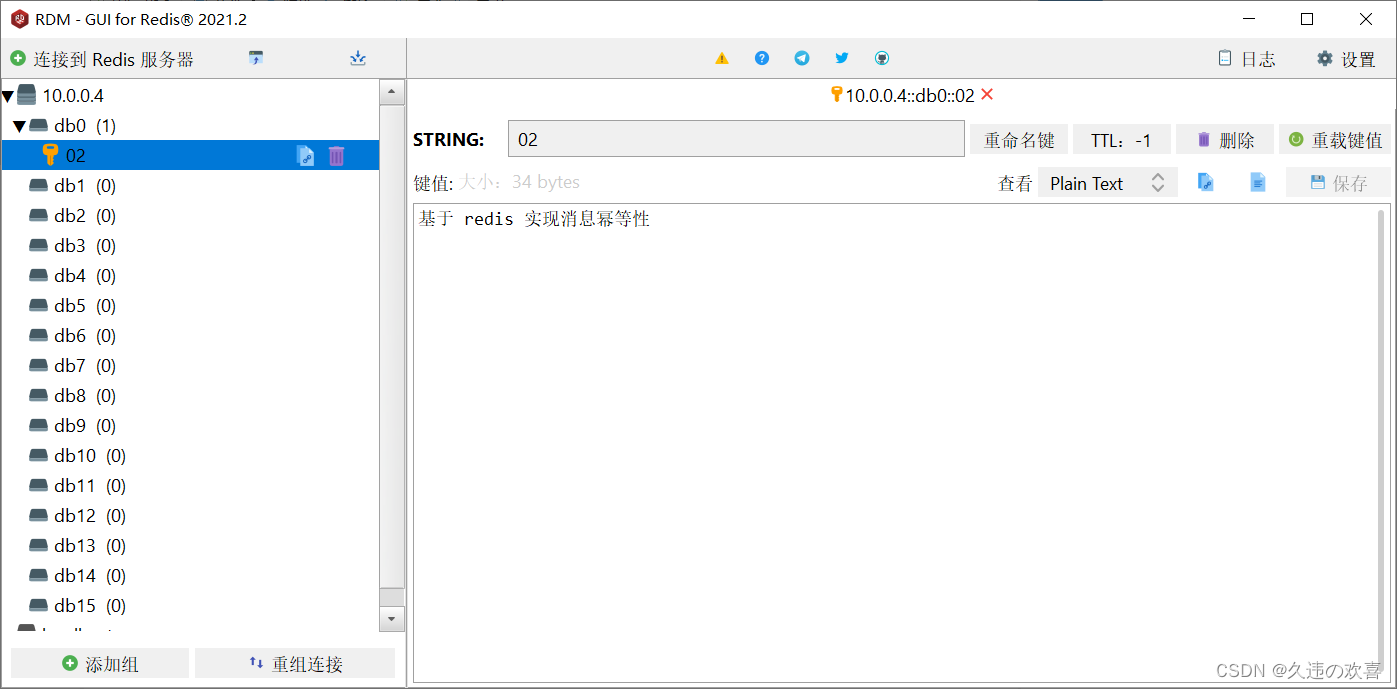

基于 redis 实现消息幂等性

发送消息

控制台

rabbitmq 队列

创建消费者

package com.mq.rabbitmq.controller;
import cn.hutool.core.util.objectutil;
import com.baomidou.mybatisplus.core.conditions.query.querywrapper;
import com.mq.rabbitmq.vo.messageidempotent;
import com.rabbitmq.client.channel;
import lombok.extern.slf4j.slf4j;
import org.springframework.amqp.core.message;
import org.springframework.amqp.rabbit.annotation.rabbitlistener;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.data.redis.core.stringredistemplate;
import org.springframework.stereotype.component;
import java.io.ioexception;
import java.nio.charset.standardcharsets;
/**
 * @classname directreceiver
 * @description todo
 * @author 听秋
 * @date 2022/6/21 10:40
 * @version 1.0
 **/
@component
@slf4j
public class consumer {
    @autowired
    private stringredistemplate stringredistemplate;
	/**
     * 基于 redis 实现消息幂等性
     * @param message
     */
    //@rabbithandler
    //@rabbitlistener(queues = "directqueue-01")
    public void receivemessage01(message message, channel channel) throws ioexception {
        string messageid = message.getmessageproperties().getmessageid();
        string messagecontent = new string(message.getbody(), standardcharsets.utf_8);
        // 消息不存在则创建，返回 true
        boolean exist = stringredistemplate.opsforvalue().setifabsent(messageid, messagecontent);
        if (!exist) {
            log.info("消息 " + messageid + " 已经消费过");
        } else {
        	// 消息确认
            channel.basicack(message.getmessageproperties().getdeliverytag(), false);
            log.info("directqueue-01-消费者收到消息，消息id：" + messageid + " 消息内容：" + messagecontent);
        }
    }
}
