Java(Springboot)项目调用第三方WebService接口实现代码_Java

webservice 简介

webservice 接口的发布通常一般都是使用 wsdl（web service descriptive language）文件的样式来发布的，该文档包含了请求的参数信息，返回的结果信息，我们需要根据 wsdl 文档的信息来编写相关的代码进行调用webservice接口。

业务场景描述

目前需要使用 java 调用一个webservice接口，传递参数的数据类型为 xml，返回的也是一个xml的数据类型，需要实现调用接口，获取到xml 之后并解析为 json 格式数据，并返回所需结果给前端。

wsdl 文档

请求地址及方式

接口地址	请求方式
http://aabb.balabala.com.cn/services/bd?wsdl	soap

接口请求/响应报文

<?xml version="1.0" encoding="utf-8"?>
<transdata>
  <baseinfo>
    <prjid>bbb</prjid>
    <userid>uid</userid>
  </baseinfo>
  <inputdata>
    <writetype>220330</writetype>
    <handcode>8</handcode>
  </inputdata>
  <outputdata>
    <resultcode>0</resultcode>
    <resultmsg>获取权限编号成功！</resultmsg>
    <orgniseno>shug98456</orgniseno>
  </outputdata>
</transdata>

代码实现

1、接口请求/响应报文 json 准备

首先准备好所需要的请求参数和返回数据的实体类

（1）transdata

import javax.xml.bind.annotation.xmlaccesstype;
import javax.xml.bind.annotation.xmlaccessortype;
import javax.xml.bind.annotation.xmlelement;
import javax.xml.bind.annotation.xmlrootelement;

@xmlrootelement(name = "transdata")
@xmlaccessortype(xmlaccesstype.field)
public class transdatadto {

    @xmlelement(name = "baseinfo")
    private baseinfodto baseinfo;

    @xmlelement(name = "inputdata")
    private inputdatadto inputdata;

    @xmlelement(name = "outputdata")
    private outputdatadto outputdata;

    public baseinfodto getbaseinfo() {
        return baseinfo;
    }

    public void setbaseinfo(baseinfodto baseinfo) {
        this.baseinfo = baseinfo;
    }

    public inputdatadto getinputdata() {
        return inputdata;
    }

    public void setinputdata(inputdatadto inputdata) {
        this.inputdata = inputdata;
    }

    public outputdatadto getoutputdata() {
        return outputdata;
    }

    public void setoutputdata(outputdatadto outputdata) {
        this.outputdata = outputdata;
    }

}

（2）baseinfo、inputdata、outputdata

baseinfo

import javax.xml.bind.annotation.xmlaccesstype;
import javax.xml.bind.annotation.xmlaccessortype;
import javax.xml.bind.annotation.xmlelement;
import javax.xml.bind.annotation.xmlrootelement;

@xmlrootelement(name = "baseinfo")
@xmlaccessortype(xmlaccesstype.field)
public class baseinfodto {

    @xmlelement(name = "prjid")
    private string prjid;

    @xmlelement(name = "userid")
    private string userid;

    public string getprjid() {
        return prjid;
    }

    public void setprjid(string prjid) {
        this.prjid = prjid;
    }

    public string getuserid() {
        return userid;
    }

    public void setuserid(string userid) {
        this.userid = userid;
    }
}

inputdata

import javax.xml.bind.annotation.xmlaccesstype;
import javax.xml.bind.annotation.xmlaccessortype;
import javax.xml.bind.annotation.xmlelement;
import javax.xml.bind.annotation.xmlrootelement;

@xmlrootelement(name = "inputdata")
@xmlaccessortype(xmlaccesstype.field)
public class inputdatadto {

    @xmlelement(name = "writetype")
    private string writetype;

    @xmlelement(name = "handcode")
    private string handcode;

    public string getwritetype() {
        return writetype;
    }

    public void setwritetype(string writetype) {
        this.writetype = writetype;
    }

    public string gethandcode() {
        return handcode;
    }

    public void sethandcode(string handcode) {
        this.handcode = handcode;
    }
}

outputdata

import javax.xml.bind.annotation.xmlaccesstype;
import javax.xml.bind.annotation.xmlaccessortype;
import javax.xml.bind.annotation.xmlelement;
import javax.xml.bind.annotation.xmlrootelement;

@xmlrootelement(name = "outputdata")
@xmlaccessortype(xmlaccesstype.field)
public class outputdatadto {

    @xmlelement(name = "resultcode")
    private string resultcode;

    @xmlelement(name = "resultmsg")
    private string resultmsg;

    @xmlelement(name = "orgniseno")
    private string orgniseno;

    public string getresultcode() {
        return resultcode;
    }

    public void setresultcode(string resultcode) {
        this.resultcode = resultcode;
    }

    public string getresultmsg() {
        return resultmsg;
    }

    public void setresultmsg(string resultmsg) {
        this.resultmsg = resultmsg;
    }

    public string getorgniseno() {
        return orgniseno;
    }

    public void setorgniseno(string orgniseno) {
        this.orgniseno = orgniseno;
    }
}

2、业务逻辑实现

（1）httpclientbuilder 调用 webservice 接口实现

1.引入 jar 包

  			<!-- jackson core -->
            <dependency>
                <groupid>com.fasterxml.jackson.core</groupid>
                <artifactid>jackson-core</artifactid>
                <version>2.15.0</version>
            </dependency>

            <!-- jackson databind -->
            <dependency>
                <groupid>com.fasterxml.jackson.core</groupid>
                <artifactid>jackson-databind</artifactid>
                <version>2.15.0</version>
            </dependency>

            <!-- jackson dataformat xml -->
            <dependency>
                <groupid>com.fasterxml.jackson.dataformat</groupid>
                <artifactid>jackson-dataformat-xml</artifactid>
                <version>2.15.0</version>
            </dependency>

2.业务逻辑

package com.ruoyi.system.service;

import com.fasterxml.jackson.dataformat.xml.xmlmapper;

import java.io.ioexception;

import com.fasterxml.jackson.core.jsonprocessingexception;
import com.ruoyi.system.dto.soap.baseinfodto;
import com.ruoyi.system.dto.soap.inputdatadto;
import com.ruoyi.system.dto.soap.outputdatadto;
import com.ruoyi.system.dto.soap.transdatadto;
import org.apache.http.httpentity;
import org.apache.http.client.methods.closeablehttpresponse;
import org.apache.http.client.methods.httppost;
import org.apache.http.entity.stringentity;
import org.apache.http.impl.client.closeablehttpclient;
import org.apache.http.impl.client.httpclientbuilder;
import org.apache.http.util.entityutils;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.stereotype.service;

import java.nio.charset.charset;
import java.util.objects;

@service
public class soaptestservice {

    private static final logger log = loggerfactory.getlogger(soaptestservice.class);

    public string getfinalvalidno(string wsdlurl, string soapacton) {
        string finalvalidno = "";
        transdatadto transdatadto = new transdatadto();
        baseinfodto baseinfodto = new baseinfodto();
        baseinfodto.setprjid("1");
        baseinfodto.setuserid("1");
        inputdatadto inputdatadto = new inputdatadto();
        inputdatadto.sethandcode("1");
        inputdatadto.setwritetype("1");
        transdatadto.setbaseinfo(baseinfodto);
        transdatadto.setinputdata(inputdatadto);
        string soapparam = "";
        try {
            soapparam = transdatadtotoxmlstr(transdatadto);
            string soapresultstr = dosoapcall(wsdlurl, soapparam, soapacton);
            transdatadto transdataresponse = xmltotransdatadto(soapresultstr);
            if (objects.nonnull(transdataresponse)) {
                outputdatadto outputdatadto = transdatadto.getoutputdata();
                if (!"0".equals(outputdatadto.getresultcode())) {
                    log.error("获取权限编号失败，详细信息：{}", outputdatadto.getresultmsg());
                    throw new runtimeexception(outputdatadto.getresultmsg());
                }
                finalvalidno = outputdatadto.getorgniseno();
            }
        } catch (jsonprocessingexception jp) {
            log.error("json 转 xml 异常，详细错误信息：{}", jp.getmessage());
            throw new runtimeexception(jp.getmessage());
        }
        return finalvalidno;
    }


    /**
     * @param wsdlurl:wsdl   地址
     * @param soapparam:soap 请求参数
     * @param soapaction
     * @return
     */
    private string dosoapcall(string wsdlurl, string soapparam, string soapaction) {
        // 返回体
        string responsestr = "";
        // 创建httpclientbuilder
        httpclientbuilder httpclientbuilder = httpclientbuilder.create();
        // httpclient
        closeablehttpclient closeablehttpclient = httpclientbuilder.build();
        httppost httppost = new httppost(wsdlurl);
        try {
            httppost.setheader("content-type", "text/xml;charset=utf-8");
            httppost.setheader("soapaction", soapaction);
            stringentity data = new stringentity(soapparam,
                    charset.forname("utf-8"));
            httppost.setentity(data);
            closeablehttpresponse response = closeablehttpclient
                    .execute(httppost);
            httpentity httpentity = response.getentity();
            if (httpentity != null) {
                // 打印响应内容
                responsestr = entityutils.tostring(httpentity, "utf-8");
                log.info("调用 soap 请求返回结果数据：{}", responsestr);
            }
        } catch (ioexception e) {
            log.error("调用 soap 请求异常，详细错误信息：{}", e.getmessage());
        } finally {
            // 释放资源
            if (closeablehttpclient != null) {
                try {
                    closeablehttpclient.close();
                } catch (ioexception ioe) {
                    log.error("释放资源失败，详细信息：{}", ioe.getmessage());
                }
            }
        }
        return responsestr;
    }


    /**
     * @param transdatadto
     * @return
     * @throws jsonprocessingexception
     * @des json 转 xml 字符串
     */
    private string transdatadtotoxmlstr(transdatadto transdatadto) throws jsonprocessingexception {
        // 将 json 转换为 xml 字符串
        xmlmapper xmlmapper = new xmlmapper();
        stringbuilder stringbuilder = new stringbuilder("<?xml version=\"1.0\" encoding=\"utf-8\"?>");
        stringbuilder.append(xmlmapper.writerwithdefaultprettyprinter().writevalueasstring(transdatadto));
        return stringbuilder.tostring();
    }

    /**
     * @param xmlresponse
     * @return
     * @throws jsonprocessingexception
     * @des xml 转 json
     */
    private transdatadto xmltotransdatadto(string xmlresponse) throws jsonprocessingexception {
        // 将 xml 字符串转换为 java 对象
        xmlmapper xmlmapper = new xmlmapper();
        transdatadto transdatadto = xmlmapper.readvalue(xmlresponse, transdatadto.class);
        return transdatadto;
    }

}

（2）apache axis 方式调用

1.引入依赖

    <dependency>
            <groupid>org.apache.axis</groupid>
            <artifactid>axis</artifactid>
            <version>1.4</version>
    </dependency>

2.业务逻辑

package com.ruoyi.system.service;

import org.apache.axis.client.call;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.stereotype.component;

import org.apache.axis.client.service;

import java.rmi.remoteexception;

@component
public class apacheaxistestservice {

    private static final logger log = loggerfactory.getlogger(apacheaxistestservice.class);

    public string sendwebservice() {

        string requestxml = "";
        string soapresponsestr = "";
        string wsdlurl = "";
        service service = new service();
        object[] obj = new object[1];
        obj[0] = requestxml;
        log.info("调用soap接口wsdl地址：{},请求参数：{}", wsdlurl, requestxml);
        try {
            call call = (call) service.createcall();
            call.settargetendpointaddress(wsdlurl);
            call.settimeout(integer.valueof(30000));
            call.setoperation("doservice");
            soapresponsestr = (string) call.invoke(obj);
        } catch (remoteexception r) {
            log.error("调用 soap 接口失败，详细错误信息：{}", r.getmessage());
            throw new runtimeexception(r.getmessage());
        }
        return soapresponsestr;
    }
}

注意！！！！！！！如果现在开发webservice，用的大多是axis2或者cxf。

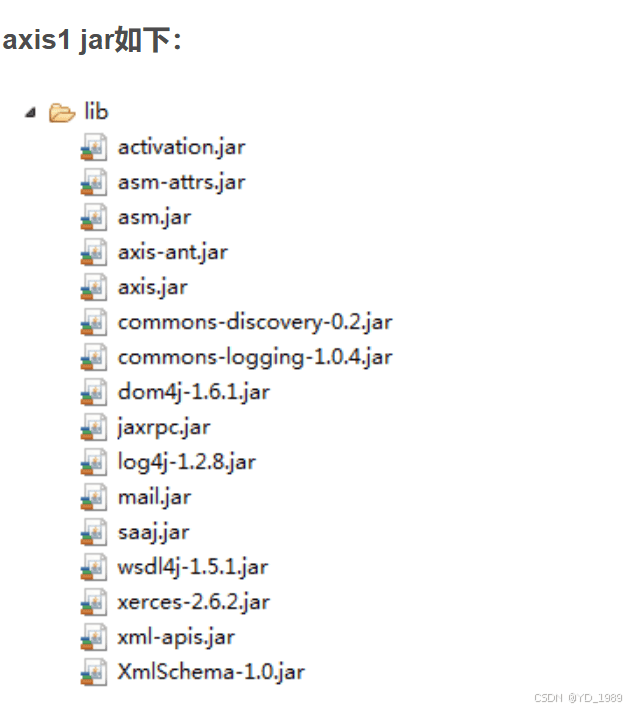

有时候三方给的接口例子中会用到标题上面的类，这个在axis2中是不存在，这两个类属于axis1中的！！！
