我要评论结论: mysql优化器在发现执行全表扫描效率 > 索引的效率时,会选择全表扫描。
- 至于in的数据量占全表的20%或30%以内会走索引，没有明确的答案。
- 根据优化器分析来选择查询成本更低的执行方式。
mysql in流程验证
mysql版本为5.7.34
create table `_default` ( `id` bigint(20) not null auto_increment comment '主键id', `default_name` varchar(100) not null comment '默认名称', `default_code` varchar(50) not null comment '默认编码', `default_type` tinyint(3) unsigned not null comment '默认类型', `start_time` datetime not null comment '开始时间', `end_time` datetime not null comment '结束时间', `status` tinyint(3) unsigned not null default '1' comment '状态(1:未发布, 2:已发布, 3:已生效, 4:已失效, 5:已作废)', `deleted` tinyint(3) unsigned not null default '0' comment '是否删除 0:否 1:是', `create_by` varchar(50) not null comment '创建人', `create_time` datetime not null comment '创建时间', `update_by` varchar(50) default null comment '更新人', `update_time` datetime default null comment '更新时间', primary key (`id`), unique key `uk_default_code` (`default_code`) using btree, key `idx_status` (`status`) using btree ) engine=innodb default charset=utf8mb4 comment='_default';
-- 测试数据 insert into `_default` values (1, 'test2024-07-29 13:56:03', 'default23121410204', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:39', null, null); insert into `_default` values (2, 'demodata', 'default23121410205', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:40', null, null); insert into `_default` values (3, 'demodata', 'default23121410206', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '2', '2023-12-14 16:25:41', null, null); insert into `_default` values (4, 'demodata', 'default23121410207', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:42', null, null); insert into `_default` values (5, 'demodata', 'default23121410208', 1, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:25:43', null, null); insert into `_default` values (6, 'demodata', 'default23121410209', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:09', null, null); insert into `_default` values (7, 'demodata', 'default23121410210', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:10', null, null); insert into `_default` values (8, 'demodata', 'default23121410211', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 2, 0, '1', '2023-12-14 16:27:11', null, null); insert into `_default` values (9, 'demodata', 'default23121410212', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 1, 0, '1', '2023-12-14 16:27:12', null, null); insert into `_default` values (10, 'demodata', 'default23121410213', 0, '2023-08-11 14:35:41', '2023-08-11 14:35:41', 1, 1, '1', '2023-12-14 16:27:13', null, null);
案例一：
explain select * from _default where id in (1);
案例二：
explain select * from _default where id in (1,2,3);
案例三：
explain select * from _default where id in (1,2,3,4,5,6,7);

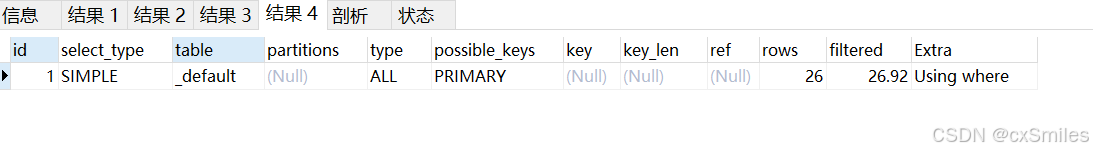

从上面三个案例可以看出案例一、案例二走了索引，案例三没有走索引。why?
mysql trace解析
-- step1:查询mysql optimizer_trace是否开启,on为开启 show variables like 'optimizer_trace'; -- step2:若未开启,设置为开启 set optimizer_trace = 'enabled=on'; -- step3:需要注意查询sql和trace一起查询, 如果单独查询完再查询trac,查询结果为空 select * from _default where id in (1,2,3,4,5,6,7); select trace from `information_schema`.`optimizer_trace`
案例一
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"expanded_query": "/* select#1 */ select `_default`.`id` as `id`,`_default`.`default_name` as `default_name`,`_default`.`default_code` as `default_code`,`_default`.`default_type` as `default_type`,`_default`.`start_time` as `start_time`,`_default`.`end_time` as `end_time`,`_default`.`status` as `status`,`_default`.`deleted` as `deleted`,`_default`.`create_by` as `create_by`,`_default`.`create_time` as `create_time`,`_default`.`update_by` as `update_by`,`_default`.`update_time` as `update_time` from `_default` where (`_default`.`id` = 1)"
}
]
}
},
{
"join_optimization": { -- sql优化阶段
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "where",
"original_condition": "(`_default`.`id` = 1)",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
},
{
"transformation": "constant_propagation",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "multiple equal(1, `_default`.`id`)"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": [
{
"table": "`_default`",
"field": "id",
"equals": "1",
"null_rejecting": false
}
]
},
{
"rows_estimation": [
{
"table": "`_default`",
"rows": 1,
"cost": 1,
"table_type": "const",
"empty": false
}
]
},
{
"condition_on_constant_tables": "1",
"condition_value": true
},
{
"attaching_conditions_to_tables": {
"original_condition": "1",
"attached_conditions_computation": [],
"attached_conditions_summary": []
}
},
{
"refine_plan": []
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}
案例二
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"in_uses_bisection": true
},
{
"expanded_query": "/* select#1 */ select `_default`.`id` as `id`,`_default`.`default_name` as `default_name`,`_default`.`default_code` as `default_code`,`_default`.`default_type` as `default_type`,`_default`.`start_time` as `start_time`,`_default`.`end_time` as `end_time`,`_default`.`status` as `status`,`_default`.`deleted` as `deleted`,`_default`.`create_by` as `create_by`,`_default`.`create_time` as `create_time`,`_default`.`update_by` as `update_by`,`_default`.`update_time` as `update_time` from `_default` where (`_default`.`id` in (1,2,3))"
}
]
}
},
{
"join_optimization": {
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "where",
"original_condition": "(`_default`.`id` in (1,2,3))",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
},
{
"transformation": "constant_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "(`_default`.`id` in (1,2,3))"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": []
},
{
"rows_estimation": [
{
"table": "`_default`",
"range_analysis": {
"table_scan": {
"rows": 26,
"cost": 8.3
},
"potential_range_indexes": [
{
"index": "primary",
"usable": true,
"key_parts": [
"id"
]
},
{
"index": "uk_default_code",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_status",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_default_name",
"usable": false,
"cause": "not_applicable"
}
],
"setup_range_conditions": [],
"group_index_range": {
"chosen": false,
"cause": "not_group_by_or_distinct"
},
"analyzing_range_alternatives": {
"range_scan_alternatives": [
{
"index": "primary",
"ranges": [
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3"
],
"index_dives_for_eq_ranges": true,
"rowid_ordered": true,
"using_mrr": false,
"index_only": false,
"rows": 3,
"cost": 3.6153,
"chosen": true
}
],
"analyzing_roworder_intersect": {
"usable": false,
"cause": "too_few_roworder_scans"
}
},
"chosen_range_access_summary": {
"range_access_plan": {
"type": "range_scan",
"index": "primary",
"rows": 3,
"ranges": [
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3"
]
},
"rows_for_plan": 3,
"cost_for_plan": 3.6153,
"chosen": true
}
}
}
]
},
{
"considered_execution_plans": [
{
"plan_prefix": [],
"table": "`_default`",
"best_access_path": {
"considered_access_paths": [
{
"rows_to_scan": 3,
"access_type": "range",
"range_details": {
"used_index": "primary"
},
"resulting_rows": 3,
"cost": 4.2153,
"chosen": true
}
]
},
"condition_filtering_pct": 100,
"rows_for_plan": 3,
"cost_for_plan": 4.2153,
"chosen": true
}
]
},
{
"attaching_conditions_to_tables": {
"original_condition": "(`_default`.`id` in (1,2,3))",
"attached_conditions_computation": [],
"attached_conditions_summary": [
{
"table": "`_default`",
"attached": "(`_default`.`id` in (1,2,3))"
}
]
}
},
{
"refine_plan": [
{
"table": "`_default`"
}
]
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}
案例三
{
"steps": [
{
"join_preparation": {
"select#": 1,
"steps": [
{
"in_uses_bisection": true
},
{
"expanded_query": "/* select#1 */ select `_default`.`id` as `id`,`_default`.`default_name` as `default_name`,`_default`.`default_code` as `default_code`,`_default`.`default_type` as `default_type`,`_default`.`start_time` as `start_time`,`_default`.`end_time` as `end_time`,`_default`.`status` as `status`,`_default`.`deleted` as `deleted`,`_default`.`create_by` as `create_by`,`_default`.`create_time` as `create_time`,`_default`.`update_by` as `update_by`,`_default`.`update_time` as `update_time` from `_default` where (`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"join_optimization": {
"select#": 1,
"steps": [
{
"condition_processing": {
"condition": "where",
"original_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))",
"steps": [
{
"transformation": "equality_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
},
{
"transformation": "constant_propagation",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
},
{
"transformation": "trivial_condition_removal",
"resulting_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"substitute_generated_columns": {}
},
{
"table_dependencies": [
{
"table": "`_default`",
"row_may_be_null": false,
"map_bit": 0,
"depends_on_map_bits": []
}
]
},
{
"ref_optimizer_key_uses": []
},
{
"rows_estimation": [ -- 预估表的访问成本
{
"table": "`_default`",
"range_analysis": {
"table_scan": { -- 全表扫描的分析
"rows": 26, -- 扫描行数
"cost": 8.3 -- 查询成本
},
"potential_range_indexes": [
{
"index": "primary",
"usable": true,
"key_parts": [
"id"
]
},
{
"index": "uk_default_code",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_status",
"usable": false,
"cause": "not_applicable"
},
{
"index": "idx_default_name",
"usable": false,
"cause": "not_applicable"
}
],
"setup_range_conditions": [],
"group_index_range": {
"chosen": false,
"cause": "not_group_by_or_distinct"
},
"analyzing_range_alternatives": { -- 分析各个索引使用成本
"range_scan_alternatives": [
{
"index": "primary",
"ranges": [ -- 索引使用范围
"1 <= id <= 1",
"2 <= id <= 2",
"3 <= id <= 3",
"4 <= id <= 4",
"5 <= id <= 5",
"6 <= id <= 6",
"7 <= id <= 7"
],
"index_dives_for_eq_ranges": true,
"rowid_ordered": true,
"using_mrr": false,
"index_only": false,
"rows": 7, -- 扫描行数
"cost": 8.4224, -- 索引使用成本
"chosen": false, -- 是否使用索引
"cause": "cost"
}
],
"analyzing_roworder_intersect": {
"usable": false,
"cause": "too_few_roworder_scans"
}
}
}
}
]
},
{
"considered_execution_plans": [
{
"plan_prefix": [],
"table": "`_default`",
"best_access_path": {
"considered_access_paths": [
{
"rows_to_scan": 26,
"access_type": "scan",
"resulting_rows": 26,
"cost": 6.2,
"chosen": true
}
]
},
"condition_filtering_pct": 100,
"rows_for_plan": 26,
"cost_for_plan": 6.2,
"chosen": true
}
]
},
{
"attaching_conditions_to_tables": {
"original_condition": "(`_default`.`id` in (1,2,3,4,5,6,7))",
"attached_conditions_computation": [],
"attached_conditions_summary": [
{
"table": "`_default`",
"attached": "(`_default`.`id` in (1,2,3,4,5,6,7))"
}
]
}
},
{
"refine_plan": [
{
"table": "`_default`"
}
]
}
]
}
},
{
"join_execution": {
"select#": 1,
"steps": []
}
}
]
}
join_optimization.rows_estimation.range_analysis.table_scan 和 join_optimization.rows_estimation.range_analysis.analyzing_range_alternatives
当索引使用成本 > 全表扫描的成本时就会选择全表扫描，全表rows为26,索引rows为7,为什么不用索引？
- 如果是查所有数据，存在回表的情况，in的越多回表成本越高
- 如果是查询条件和返回字段相同并且存在索引的情况(覆盖索引)，这种情况可能优化器是可能选择索引
system > const> eq_ref > ref > range > index > all
system：只有一行记录。const：索引一次就找到了,主键和唯一索引。eq_ref：唯一的索引，表与表之间关联，关联条件为主键或唯一索引。ref：非唯一的索引，根据某个字段查询(有二级索引)，存在多行数据。range：范围查询。index：查询索引树(覆盖索引的场景)。all：查询所有数据(与index的区别在于index只遍历索引树，all会在磁盘中查找)。
小结
