SpringBoot如何使用TraceId日志链路追踪_Java

项目场景：

??有时候一个业务调用链场景，很长，调了各种各样的方法，看日志的时候，各个接口的日志穿插，确实让人头大。为了解决这个痛点，就使用了traceid，根据traceid关键字进入服务器查询日志中是否有这个traceid，这样就把同一次的业务调用链上的日志串起来了。

实现步骤

1、pom.xml 依赖

<dependencies>
????<dependency>
????????<groupid>org.springframework.boot</groupid>
????????<artifactid>spring-boot-starter-web</artifactid>
????</dependency>
????<dependency>
????????<groupid>org.springframework.boot</groupid>
????????<artifactid>spring-boot-starter-test</artifactid>
????????<scope>test</scope>
????</dependency>
????<dependency>
????????<groupid>org.springframework.boot</groupid>
????????<artifactid>spring-boot-starter-logging</artifactid>
????</dependency>
????<!--lombok配置-->
????<dependency>
????????<groupid>org.projectlombok</groupid>
????????<artifactid>lombok</artifactid>
????????<version>1.16.10</version>
????</dependency>
</dependencies>

2、整合logback，打印日志，logback-spring.xml (简单配置下)

关键代码：[traceid:%x{traceid}]，traceid是通过拦截器里mdc.put(traceid, tid)添加

<?xml version="1.0" encoding="utf-8"?>
<configuration debug="false">
    <!--日志存储路径-->
    <property name="log" value="d:/test/log" />
    <!-- 控制台输出 -->
    <appender name="console" class="ch.qos.logback.core.consoleappender">
        <encoder class="ch.qos.logback.classic.encoder.patternlayoutencoder">
            <!--输出格式化-->
            <pattern>[traceid:%x{traceid}]  %d{yyyy-mm-dd hh:mm:ss.sss} [%thread] %-5level %logger{50} - %msg%n</pattern>
        </encoder>
    </appender>
    <!-- 按天生成日志文件 -->
    <appender name="file" class="ch.qos.logback.core.rolling.rollingfileappender">
        <rollingpolicy class="ch.qos.logback.core.rolling.timebasedrollingpolicy">
            <!--日志文件名-->
            <filenamepattern>${log}/%d{yyyy-mm-dd}.log</filenamepattern>
            <!--保留天数-->
            <maxhistory>30</maxhistory>
        </rollingpolicy>
        <encoder class="ch.qos.logback.classic.encoder.patternlayoutencoder">
            <pattern>[traceid:%x{traceid}]  %d{yyyy-mm-dd hh:mm:ss.sss} [%thread] %-5level %logger{50} - %msg%n</pattern>
        </encoder>
        <!--日志文件最大的大小-->
        <triggeringpolicy class="ch.qos.logback.core.rolling.sizebasedtriggeringpolicy">
            <maxfilesize>10mb</maxfilesize>
        </triggeringpolicy>
    </appender>
    <!-- 日志输出级别 -->
    <root level="info">
        <appender-ref ref="console" />
        <appender-ref ref="file" />
    </root>
</configuration>

3、application.yml

server:
  port: 8826
logging:
  config: classpath:logback-spring.xml

4、自定义日志拦截器 loginterceptor.java

用途：每一次链路，线程维度，添加最终的链路id traceid。

mdc(mapped diagnostic context)诊断上下文映射，是@slf4j提供的一个支持动态打印日志信息的工具。

import org.slf4j.mdc;
import org.springframework.lang.nullable;
import org.springframework.util.stringutils;
import org.springframework.web.servlet.handlerinterceptor;
import javax.servlet.http.httpservletrequest;
import javax.servlet.http.httpservletresponse;
import java.util.uuid;
/**
 * 日志拦截器
 */
public class loginterceptor implements handlerinterceptor {
    private static final string traceid = "traceid";
    @override
    public boolean prehandle(httpservletrequest request, httpservletresponse response, object handler) {
        string tid = uuid.randomuuid().tostring().replace("-", "");
        //可以考虑让客户端传入链路id，但需保证一定的复杂度唯一性；如果没使用默认uuid自动生成
        if (!stringutils.isempty(request.getheader("traceid"))){
            tid=request.getheader("traceid");
        }
        mdc.put(traceid, tid);
        return true;
    }
    @override
    public void aftercompletion(httpservletrequest request, httpservletresponse response, object handler,
                                @nullable exception ex) {
        // 请求处理完成后,清除mdc中的traceid,以免造成内存泄漏
        mdc.remove(traceid);
    }
}

5、webconfigureradapter.java 添加拦截器

ps: 其实这个拦截的部分改为使用自定义注解+aop也是很灵活的。

import javax.annotation.resource;
import org.springframework.context.annotation.configuration;
import org.springframework.web.servlet.config.annotation.interceptorregistry;
import org.springframework.web.servlet.config.annotation.webmvcconfigurationsupport;
@configuration
public class webconfigureradapter extends webmvcconfigurationsupport {
    @resource
	private loginterceptor loginterceptor;
	@override
	public void addinterceptors(interceptorregistry registry) {
		registry.addinterceptor(loginterceptor);
		//可以具体制定哪些需要拦截，哪些不拦截，其实也可以使用自定义注解更灵活完成
//                .addpathpatterns("/**")
//                .excludepathpatterns("/testxx.html");
	}
}

6、测试接口

import io.swagger.annotations.api;
import io.swagger.annotations.apioperation;
import lombok.extern.slf4j.slf4j;
import org.springframework.web.bind.annotation.requestmapping;
import org.springframework.web.bind.annotation.requestmethod;
import org.springframework.web.bind.annotation.restcontroller;
import javax.annotation.resource;
@restcontroller
@api(tags = "测试接口")
@requestmapping("/test")
@slf4j
public class testcontroller {
	@requestmapping(value = "/log", method = requestmethod.get)
	@apioperation(value = "测试日志")
	public string sign() {
		log.info("这是一行info日志");
		log.error("这是一行error日志");
		return "success";
	}
}

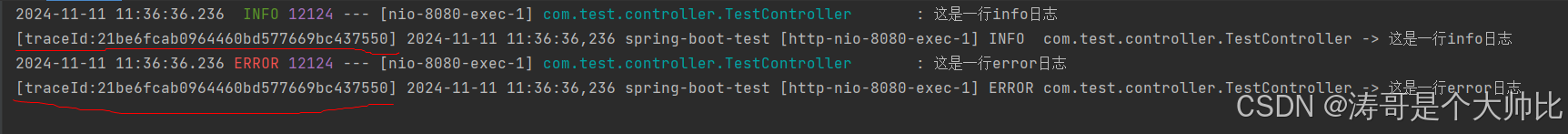

结果：

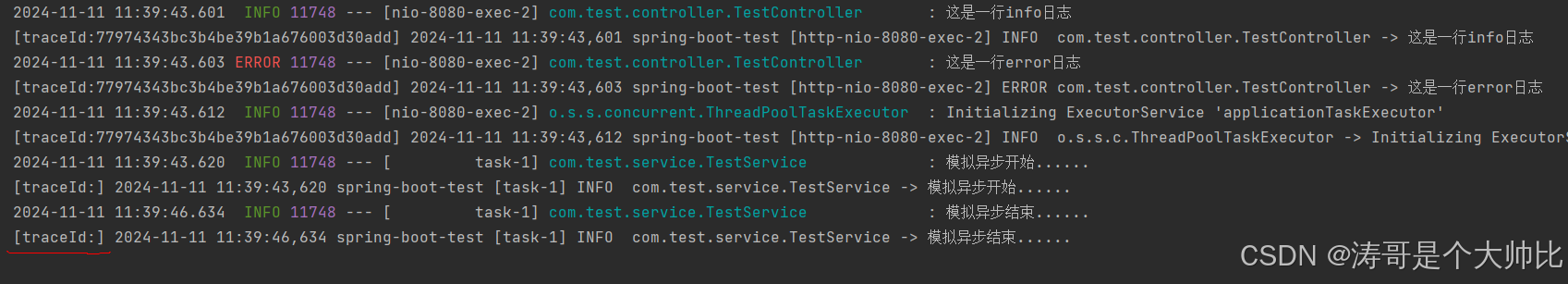

异步场景：

使用线程的场景，写一个异步线程，加入这个调用里面。再次执行看开效果，我们会发现显然子线程丢失了trackid。

所以我们需要针对子线程使用情形，做调整，思路：将父线程的trackid传递下去给子线程即可。

1、threadmdcutil.java

import org.slf4j.mdc;
import java.util.map;
import java.util.uuid;
import java.util.concurrent.callable;
/**
 * @author: jcccc
 * @date: 2022-5-30 11:14
 * @description:
 */
public final class threadmdcutil {
    private static final string traceid = "traceid";
    // 获取唯一性标识
    public static string generatetraceid() {
        return uuid.randomuuid().tostring().replace("-", "");
    }
    public static void settraceidifabsent() {
        if (mdc.get(traceid) == null) {
            mdc.put(traceid, generatetraceid());
        }
    }
    /**
     * 用于父线程向线程池中提交任务时，将自身mdc中的数据复制给子线程
     *
     * @param callable
     * @param context
     * @param <t>
     * @return
     */
    public static <t> callable<t> wrap(final callable<t> callable, final map<string, string> context) {
        return () -> {
            if (context == null) {
                mdc.clear();
            } else {
                mdc.setcontextmap(context);
            }
            settraceidifabsent();
            try {
                return callable.call();
            } finally {
                mdc.clear();
            }
        };
    }
    /**
     * 用于父线程向线程池中提交任务时，将自身mdc中的数据复制给子线程
     *
     * @param runnable
     * @param context
     * @return
     */
    public static runnable wrap(final runnable runnable, final map<string, string> context) {
        return () -> {
            if (context == null) {
                mdc.clear();
            } else {
                mdc.setcontextmap(context);
            }
            settraceidifabsent();
            try {
                runnable.run();
            } finally {
                mdc.clear();
            }
        };
    }
}

2、mythreadpooltaskexecutor.java 是我们自己写的，重写了一些方法

import org.slf4j.mdc;
import org.springframework.scheduling.concurrent.threadpooltaskexecutor;
import java.util.concurrent.callable;
import java.util.concurrent.future;
public final class mythreadpooltaskexecutor  extends threadpooltaskexecutor  {
    public mythreadpooltaskexecutor() {
        super();
    }
    @override
    public void execute(runnable task) {
        super.execute(threadmdcutil.wrap(task, mdc.getcopyofcontextmap()));
    }
    @override
    public <t> future<t> submit(callable<t> task) {
        return super.submit(threadmdcutil.wrap(task, mdc.getcopyofcontextmap()));
    }
    @override
    public future<?> submit(runnable task) {
        return super.submit(threadmdcutil.wrap(task, mdc.getcopyofcontextmap()));
    }
}

3、threadpoolconfig.java 定义线程池，交给spring管理

import org.springframework.context.annotation.bean;
import org.springframework.context.annotation.configuration;
import org.springframework.scheduling.annotation.enableasync;
import java.util.concurrent.executor;
@enableasync
@configuration
public class threadpoolconfig {
    /**
     * 声明一个线程池
     */
    @bean("taskexecutor")
    public executor taskexecutor() {
        mythreadpooltaskexecutor executor = new mythreadpooltaskexecutor();
        //核心线程数5：线程池创建时候初始化的线程数
        executor.setcorepoolsize(5);
        //最大线程数5：线程池最大的线程数，只有在缓冲队列满了之后才会申请超过核心线程数的线程
        executor.setmaxpoolsize(5);
        //缓冲队列500：用来缓冲执行任务的队列
        executor.setqueuecapacity(500);
        //允许线程的空闲时间60秒：当超过了核心线程出之外的线程在空闲时间到达之后会被销毁
        executor.setkeepaliveseconds(60);
        //线程池名的前缀：设置好了之后可以方便我们定位处理任务所在的线程池
        executor.setthreadnameprefix("taskexecutor-");
        executor.initialize();
        return executor;
    }
}

4、service

import lombok.extern.slf4j.slf4j;
import org.springframework.scheduling.annotation.async;
import org.springframework.stereotype.service;
/**
 * 测试service
 */
@service("testservice")
@slf4j
public class testservice {
	/**
	 * 异步操作测试
	 */
	@async("taskexecutor")
	public void asynctest() {
		try {
			log.info("模拟异步开始......");
			thread.sleep(3000);
			log.info("模拟异步结束......");
		} catch (interruptedexception e) {
			log.error("异步操作出错:"+e);
		}
	}
}

5、测试接口

import io.swagger.annotations.api;
import io.swagger.annotations.apioperation;
import lombok.extern.slf4j.slf4j;
import org.springframework.web.bind.annotation.requestmapping;
import org.springframework.web.bind.annotation.requestmethod;
import org.springframework.web.bind.annotation.restcontroller;
import javax.annotation.resource;
@restcontroller
@api(tags = "测试接口")
@requestmapping("/test")
@slf4j
public class testcontroller {
	@resource
	private testservice testservice;
	@requestmapping(value = "/log", method = requestmethod.get)
	@apioperation(value = "测试日志")
	public string sign() {
		log.info("这是一行info日志");
		log.error("这是一行error日志");
		//异步操作测试
		testservice.asynctest();
		return "success";
	}
}

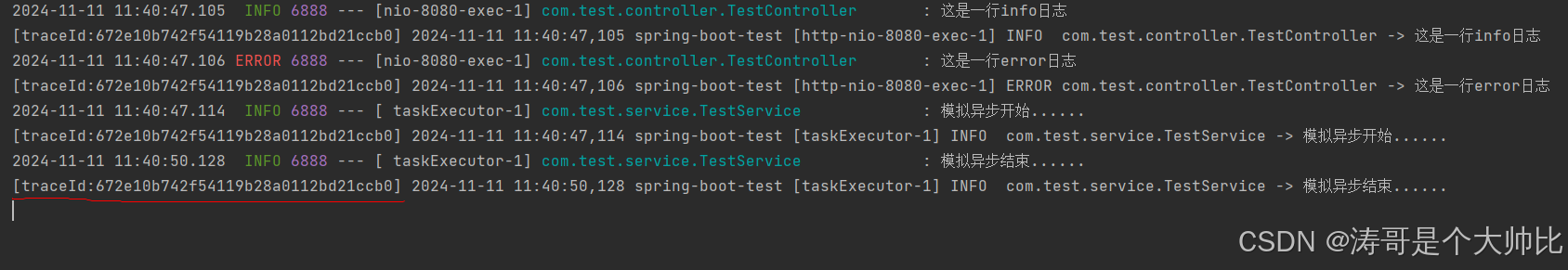

结果：

我们可以看到，子线程的日志也被串起来了。

定时任务：

如果使用了定时任务@scheduled，这时候执行定时任务，不会走上面的拦截器逻辑，所以定时任务需要单独创建个aop切面。

1、创建个定时任务线程池

import org.springframework.context.annotation.configuration;
import org.springframework.scheduling.annotation.enablescheduling;
import org.springframework.scheduling.annotation.schedulingconfigurer;
import org.springframework.scheduling.config.scheduledtaskregistrar;
import java.util.concurrent.executors;
/**
 * 定时任务线程池
 */
@enablescheduling
@configuration
public class seheduleconfig implements schedulingconfigurer{
	@override
	public void configuretasks(scheduledtaskregistrar taskregistrar) {
		taskregistrar.setscheduler(executors.newscheduledthreadpool(5));
	}
}

2、创建个aop切面

import org.aspectj.lang.proceedingjoinpoint;
import org.aspectj.lang.annotation.around;
import org.aspectj.lang.annotation.aspect;
import org.aspectj.lang.annotation.pointcut;
import org.slf4j.mdc;
import org.springframework.context.annotation.configuration;
import java.util.uuid;
@aspect   //定义一个切面
@configuration
public class seheduletaskaspect {
    // 定义定时任务切点pointcut
    @pointcut("@annotation(org.springframework.scheduling.annotation.scheduled)")
    public void seheduletask() {
    }
    @around("seheduletask()")
    public void doaround(proceedingjoinpoint joinpoint) throws throwable {
		try {
			string traceid = uuid.randomuuid().tostring().replace("-", "");
			//用于日志链路追踪，logback配置:%x{traceid}
			mdc.put("traceid", traceid);
			//执行定时任务方法
	        joinpoint.proceed();
		} finally {
			//请求处理完成后，清除mdc中的traceid，以免造成内存泄漏
			mdc.remove("traceid");
		}
    }
}

3、创建定时任务测试

import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.scheduling.annotation.scheduled;
import org.springframework.stereotype.service;
import java.util.date;
@service
public class seheduletasks {
	private logger logger = loggerfactory.getlogger(seheduletasks.class);
	/**
	 * 1分钟执行一次
	 */
	@scheduled(cron = "0 0/1 * * * ?")
	public void testtask() {
		logger.info("执行定时任务>"+new date());
	}
}
