Python基于YOLOv8和OpenCV实现车道线和车辆检测功能_Python

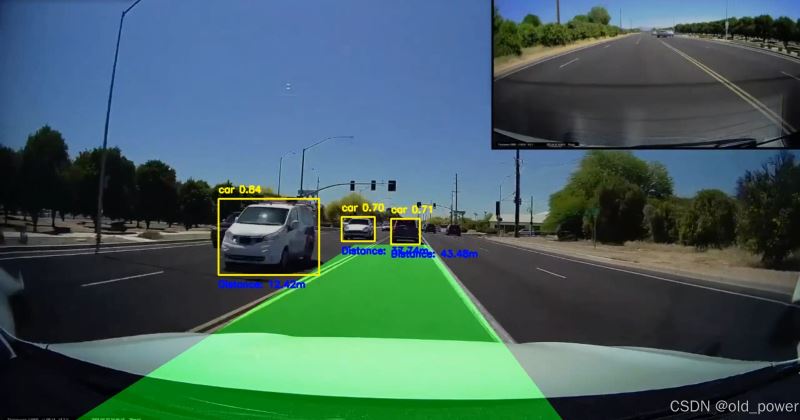

使用yolov8（you only look once）和opencv实现车道线和车辆检测，目标是创建一个可以检测道路上的车道并识别车辆的系统，并估计它们与摄像头的距离。该项目结合了计算机视觉技术和深度学习物体检测。

1、系统主要功能

车道检测：使用边缘检测和霍夫线变换检测道路车道。
汽车检测：使用 yolov8 模型识别汽车并在汽车周围绘制边界框。
距离估计：使用边界框大小计算检测到的汽车与摄像头的距离。

2、环境要求

opencv：用于图像处理和车道检测。
ultralytics yolov8：用于车辆检测。
numpy：用于数组操作。

pip install opencv-python-headless numpy ultralytics

opencv-python 和 opencv-python-headless 区别是 opencv 的 python 包，主要区别在于是否包含 gui 相关的功能。

opencv-python

包含 gui 功能：支持窗口显示、鼠标事件等图形界面操作。
依赖：需要 gui 库（如 gtk、qt）支持。
适用场景：适用于需要显示图像或与用户交互的环境，如桌面应用。

opencv-python-headless

不包含 gui 功能：去除了窗口显示和用户交互功能。
依赖：无需 gui 库，适合无图形界面的环境。
适用场景：适用于服务器或无图形界面的环境，如远程服务器、docker 容器。

3、代码

import cv2
import numpy as np
import math
import time
from ultralytics import yolo  # yolov8 module
# function to mask out the region of interest
def region_of_interest(img, vertices):
    mask = np.zeros_like(img)
    match_mask_color = 255
    cv2.fillpoly(mask, vertices, match_mask_color)
    masked_image = cv2.bitwise_and(img, mask)
    return masked_image
# function to draw the filled polygon between the lane lines
def draw_lane_lines(img, left_line, right_line, color=[0, 255, 0], thickness=10):
    line_img = np.zeros_like(img)
    poly_pts = np.array([[
        (left_line[0], left_line[1]),
        (left_line[2], left_line[3]),
        (right_line[2], right_line[3]),
        (right_line[0], right_line[1])
    ]], dtype=np.int32)
    # fill the polygon between the lines
    cv2.fillpoly(line_img, poly_pts, color)
    # overlay the polygon onto the original image
    img = cv2.addweighted(img, 0.8, line_img, 0.5, 0.0)
    return img
# the lane detection pipeline
def pipeline(image):
    height = image.shape[0]
    width = image.shape[1]
    region_of_interest_vertices = [
        (0, height),
        (width / 2, height / 2),
        (width, height),
    ]
    # convert to grayscale and apply canny edge detection
    gray_image = cv2.cvtcolor(image, cv2.color_rgb2gray)
    cannyed_image = cv2.canny(gray_image, 100, 200)
    # mask out the region of interest
    cropped_image = region_of_interest(
        cannyed_image,
        np.array([region_of_interest_vertices], np.int32)
    )
    # perform hough line transformation to detect lines
    lines = cv2.houghlinesp(
        cropped_image,
        rho=6,
        theta=np.pi / 60,
        threshold=160,
        lines=np.array([]),
        minlinelength=40,
        maxlinegap=25
    )
    # separating left and right lines based on slope
    left_line_x = []
    left_line_y = []
    right_line_x = []
    right_line_y = []
    if lines is none:
        return image
    for line in lines:
        for x1, y1, x2, y2 in line:
            slope = (y2 - y1) / (x2 - x1) if (x2 - x1) != 0 else 0
            if math.fabs(slope) < 0.5:  # ignore nearly horizontal lines
                continue
            if slope <= 0:  # left lane
                left_line_x.extend([x1, x2])
                left_line_y.extend([y1, y2])
            else:  # right lane
                right_line_x.extend([x1, x2])
                right_line_y.extend([y1, y2])
    # fit a linear polynomial to the left and right lines
    min_y = int(image.shape[0] * (3 / 5))  # slightly below the middle of the image
    max_y = image.shape[0]  # bottom of the image
    if left_line_x and left_line_y:
        poly_left = np.poly1d(np.polyfit(left_line_y, left_line_x, deg=1))
        left_x_start = int(poly_left(max_y))
        left_x_end = int(poly_left(min_y))
    else:
        left_x_start, left_x_end = 0, 0  # defaults if no lines detected
    if right_line_x and right_line_y:
        poly_right = np.poly1d(np.polyfit(right_line_y, right_line_x, deg=1))
        right_x_start = int(poly_right(max_y))
        right_x_end = int(poly_right(min_y))
    else:
        right_x_start, right_x_end = 0, 0  # defaults if no lines detected
    # create the filled polygon between the left and right lane lines
    lane_image = draw_lane_lines(
        image,
        [left_x_start, max_y, left_x_end, min_y],
        [right_x_start, max_y, right_x_end, min_y]
    )
    return lane_image
# function to estimate distance based on bounding box size
def estimate_distance(bbox_width, bbox_height):
    # for simplicity, assume the distance is inversely proportional to the box size
    # this is a basic estimation, you may use camera calibration for more accuracy
    focal_length = 1000  # example focal length, modify based on camera setup
    known_width = 2.0  # approximate width of the car (in meters)
    distance = (known_width * focal_length) / bbox_width  # basic distance estimation
    return distance
# main function to read and process video with yolov8
def process_video():
    # load the yolov8 model
    model = yolo('weights/yolov8n.pt')
    # 或者加载官方模型
    # model = yolo("yolov8n.pt")  # load an official model
    # open the video file
    cap = cv2.videocapture('video/video.mp4')
    # check if video opened successfully
    if not cap.isopened():
        print("error: unable to open video file.")
        return
    # set the desired frame rate
    target_fps = 30
    frame_time = 1.0 / target_fps  # time per frame to maintain 30fps
    # resize to 720p (1280x720)
    cap.set(cv2.cap_prop_frame_width, 1280)
    cap.set(cv2.cap_prop_frame_height, 720)
    # loop through each frame
    while cap.isopened():
        ret, frame = cap.read()
        if not ret:
            break
        # resize frame to 720p
        resized_frame = cv2.resize(frame, (1280, 720))
        # run the lane detection pipeline
        lane_frame = pipeline(resized_frame)
        # run yolov8 to detect cars in the current frame
        results = model(resized_frame)
        # process the detections from yolov8
        for result in results:
            boxes = result.boxes
            for box in boxes:
                x1, y1, x2, y2 = map(int, box.xyxy[0])  # bounding box coordinates
                conf = box.conf[0]  # confidence score
                cls = int(box.cls[0])  # class id
                # only draw bounding boxes for cars with confidence >= 0.5
                if model.names[cls] == 'car' and conf >= 0.5:
                    label = f'{model.names[cls]} {conf:.2f}'
                    # draw the bounding box
                    cv2.rectangle(lane_frame, (x1, y1), (x2, y2), (0, 255, 255), 2)
                    cv2.puttext(lane_frame, label, (x1, y1 - 10),
                                cv2.font_hershey_simplex, 0.5, (0, 255, 255), 2)
                    # estimate the distance of the car
                    bbox_width = x2 - x1
                    bbox_height = y2 - y1
                    distance = estimate_distance(bbox_width, bbox_height)
                    # display the estimated distance
                    distance_label = f'distance: {distance:.2f}m'
                    cv2.puttext(lane_frame, distance_label, (x1, y2 + 20),
                                cv2.font_hershey_simplex, 0.5, (255, 0, 0), 2)
        # display the resulting frame with both lane detection and car detection
        cv2.imshow('lane and car detection', lane_frame)
        # limit the frame rate to 30fps
        time.sleep(frame_time)
        # break the loop when 'q' is pressed
        if cv2.waitkey(1) & 0xff == ord('q'):
            break
    # release video capture and close windows
    cap.release()
    cv2.destroyallwindows()
# run the video processing function
process_video()

4、工作原理

4.1 车道线检测 pipeline

车道线检测包括一下几个步骤:

step 1: 屏蔽感兴趣区域（roi）
只处理图像的下半部分（车道线通常是可见的）。

def region_of_interest(img, vertices):
    mask = np.zeros_like(img)
    match_mask_color = 255
    cv2.fillpoly(mask, vertices, match_mask_color)
    masked_image = cv2.bitwise_and(img, mask)
    return masked_image

step 2: 使用canny进行边缘检测
将图像转换为灰度，并应用canny边缘检测来突出显示边缘。

gray_image = cv2.cvtcolor(image, cv2.color_rgb2gray)
cannyed_image = cv2.canny(gray_image, 100, 200)

step 3: 霍夫线变换
霍夫线变换用于检测当前车道的线段。

lines = cv2.houghlinesp(
    cropped_image,
    rho=6,
    theta=np.pi / 60,
    threshold=160,
    lines=np.array([]),
    minlinelength=40,
    maxlinegap=25
)

4.2 使用yolov8进行车辆检测

step 1: 加载yolov8模型
我们使用预训练的yolov8模型来检测每一帧中的汽车（或者使用官方提供的模型）。

from ultralytics import yolo
model = yolo('weights/yolov8n.pt')
# model = yolo('yolov8n.pt') #官方提供的模型

step 2: 绘制边界框
对于每一辆检测到的汽车，绘制边界框，并显示类名（汽车）和置信度分数。

for box in boxes:
    x1, y1, x2, y2 = map(int, box.xyxy[0])
    conf = box.conf[0]
    if model.names[cls] == 'car' and conf >= 0.5:
        label = f'{model.names[cls]} {conf:.2f}'
        cv2.rectangle(lane_frame, (x1, y1), (x2, y2), (0, 255, 255), 2)
        cv2.puttext(lane_frame, label, (x1, y1 - 10), cv2.font_hershey_simplex, 0.5, (0, 255, 255), 2)

step 3:. 距离估计
根据边界框的大小估计到每辆检测到的汽车的距离。

def estimate_distance(bbox_width, bbox_height):
    focal_length = 1000  # example focal length
    known_width = 2.0  # approximate width of a car (in meters)
    distance = (known_width * focal_length) / bbox_width
    return distance

step 4:. 视频处理 pipeline
将车道检测、车辆检测和距离估计结合到一个实时视频处理pipeline中。

while cap.isopened():
    ret, frame = cap.read()
    if not ret:
        break
    lane_frame = pipeline(resized_frame)
    results = model(resized_frame)
    for result in results:
        # draw bounding boxes and estimate distance
    cv2.imshow('lane and car detection', lane_frame)
    if cv2.waitkey(1) & 0xff == ord('q'):
        break
