逻辑实现
gauge 继承 rangebase，支持设置最大值、最小值以及当前值，并且可以显示一个动态的百分比值、标题、刻度。
1. 新增 gauge.cs
依赖属性
title：仪表盘的标题，默认值为 "wd"。valueformat：定义数值显示的格式（{0:0}%），以百分比形式显示当前值。thickness：设置仪表盘的边框，默认值10。
public string title
{
get { return (string)getvalue(titleproperty); }
set { setvalue(titleproperty, value); }
}
public string valueformat
{
get { return (string)getvalue(valueformatproperty); }
set { setvalue(valueformatproperty, value); }
}
public double thickness
{
get { return (double)getvalue(thicknessproperty); }
set { setvalue(thicknessproperty, value); }
}
rangebase 依赖属性
value：设置为0.0，表示当前的仪表盘值（默认0%）。minimum：设置为0.0，表示仪表盘的最小值。maximum：设置为100.0，表示仪表盘的最大值。
public gauge()
{
setvalue(valueproperty, 0.0);
setvalue(minimumproperty, 0.0);
setvalue(maximumproperty, 100.0);
}
2. 重写 onrender 方法绘制控件
背景：使用 ellipse 作为仪表盘的背景，背景色通过 background 属性设置，默认为 #293950。
指针：根据当前值（value），计算出指针的角度，并使用 drawline 绘制红色指针。
外边框：使用渐变颜色绘制仪表盘的外边框。
刻度和标签：绘制了从最小值到最大值的刻度线，并在每个刻度绘制了对应的刻度值。
当前值显示：根据 valueformat 属性格式化显示当前值，并显示在仪表盘的底部位置。
protected override void onrender(drawingcontext drawingcontext)
{
base.onrender(drawingcontext);
if (background == null)
background = new solidcolorbrush((color)colorconverter.convertfromstring("#293950"));
var width = actualwidth;
var height = actualheight;
var radius = math.min(width, height) / 2;
drawingcontext.drawellipse(background, new pen(background, thickness), new point(width / 2, height / 2), radius, radius);
var normalizedvalue = (value - minimum) / (maximum - minimum);
var mappedangle = -220 + normalizedvalue * 260;
var angleinradians = mappedangle * math.pi / 180;
var pointerlength = radius * 0.7;
var pointerx = width / 2 + pointerlength * math.cos(angleinradians);
var pointery = height / 2 + pointerlength * math.sin(angleinradians);
drawingcontext.drawline(new pen(brushes.red, 2), new point(width / 2, height / 2), new point(pointerx, pointery));
drawingcontext.drawellipse(brushes.white, new pen(brushes.red, 2), new point(width / 2, height / 2), width / 20, width / 20);
var pathgeometry = new pathgeometry();
var startangle = -220;
angleinradians = startangle * math.pi / 180;
var startx = width / 2 + radius * math.cos(angleinradians);
var starty = height / 2 + radius * math.sin(angleinradians);
var pathfigure = new pathfigure()
{
startpoint = new point(startx, starty),
};
var endangle = 40;
angleinradians = endangle * math.pi / 180;
var endx = width / 2 + radius * math.cos(angleinradians);
var endy = height / 2 + radius * math.sin(angleinradians);
var islargearc = (endangle - startangle > 180);
var arcsegment = new arcsegment()
{
point = new point(endx, endy),
size = new size(radius, radius),
rotationangle = 0,
sweepdirection = sweepdirection.clockwise,
islargearc = islargearc,
};
pathfigure.segments.add(arcsegment);
pathgeometry.figures.add(pathfigure);
if (borderbrush == null)
{
var gradientbrush = new lineargradientbrush
{
startpoint = new point(0, 0),
endpoint = new point(1, 0)
};
gradientbrush.gradientstops.add(new gradientstop((color)colorconverter.convertfromstring("#37d2c2"), 0.0));
gradientbrush.gradientstops.add(new gradientstop((color)colorconverter.convertfromstring("#5ad2b2"), 0.01));
gradientbrush.gradientstops.add(new gradientstop((color)colorconverter.convertfromstring("#b77d29"), 0.49));
gradientbrush.gradientstops.add(new gradientstop(colors.red, 1.0));
gradientbrush.freeze();
borderbrush = gradientbrush;
}
drawingcontext.drawgeometry(null, new pen(borderbrush, thickness), pathgeometry);
var ticklength = radius * 0.1;
var step = (maximum - minimum) / 10;
for (int i = 0; i <= 10; i++)
{
var angle = startangle + (i * (endangle - startangle) / 10);
var tickstartx = width / 2 + (radius - ticklength) * math.cos(angle * math.pi / 180);
var tickstarty = height / 2 + (radius - ticklength) * math.sin(angle * math.pi / 180);
var tickendx = width / 2 + (radius + thickness / 2) * math.cos(angle * math.pi / 180);
var tickendy = height / 2 + (radius + thickness / 2) * math.sin(angle * math.pi / 180);
drawingcontext.drawline(new pen(brushes.white, 2), new point(tickstartx, tickstarty), new point(tickendx, tickendy));
var labelvalue = minimum + step * i;
var formattedtext = drawingcontexthelper.getformattedtext(labelvalue.tostring(),brushes.white, flowdirection.lefttoright,fontsize);
var labelradius = radius - ticklength * 2;
var labelx = width / 2 + labelradius * math.cos(angle * math.pi / 180) - formattedtext.width / 2;
var labely = height / 2 + labelradius * math.sin(angle * math.pi / 180) - formattedtext.height / 2;
drawingcontext.drawtext(formattedtext, new point(labelx, labely));
}
var formattedvalue = "{0:0}%";
try
{
formattedvalue = string.format(valueformat, value);
}
catch (formatexception ex)
{
throw new invalidoperationexception("formatting failed ", ex);
}
var currentvaluetext = drawingcontexthelper.getformattedtext(formattedvalue, brushes.white, flowdirection.lefttoright, fontsize * 2);
var valuex = width / 2 - currentvaluetext.width / 2;
var valuey = height / 2 + radius * 0.4;
drawingcontext.drawtext(currentvaluetext, new point(valuex, valuey));
var titlevalue = drawingcontexthelper.getformattedtext(title, brushes.white, flowdirection.lefttoright, fontsize);
valuex = width / 2 - titlevalue.width / 2;
valuey = height / 2 + radius * 0.8;
drawingcontext.drawtext(titlevalue, new point(valuex, valuey));
}
xaml 示例
示例引入 wpfdevelopers 1.1.0.3-preview 的 nuget 正式包
<wrappanel horizontalalignment="center" verticalalignment="center">
<stackpanel verticalalignment="bottom">
<wd:gauge
title="min"
width="100"
height="100"
margin="10"
horizontalalignment="center"
verticalalignment="center"
background="black"
borderbrush="red"
fontsize="8"
maximum="90"
minimum="30"
thickness="3"
valueformat="{}{0:0}值"
value="{binding elementname=myslider2, path=value}" />
<slider
name="myslider2"
width="200"
margin="0,0,0,20"
horizontalalignment="center"
verticalalignment="bottom"
maximum="90"
minimum="30" />
</stackpanel>
<stackpanel>
<wd:gauge
title="反对率"
width="200"
height="200"
margin="10"
horizontalalignment="center"
verticalalignment="center"
valueformat="{}{0:0}%"
value="{binding elementname=myslider, path=value}" />
<slider
name="myslider"
width="200"
margin="0,0,0,20"
horizontalalignment="center"
verticalalignment="bottom"
maximum="100"
minimum="0" />
</stackpanel>
<stackpanel verticalalignment="bottom">
<wd:gauge
title="max"
width="100"
height="100"
margin="10"
horizontalalignment="center"
verticalalignment="center"
background="black"
borderbrush="dodgerblue"
fontsize="8"
maximum="90"
minimum="30"
thickness="3"
valueformat="{}{0:0}值"
value="{binding elementname=myslider3, path=value}" />
<slider
name="myslider3"
width="200"
margin="0,0,0,20"
horizontalalignment="center"
verticalalignment="bottom"
maximum="90"
minimum="30" />
</stackpanel>
</wrappanel>

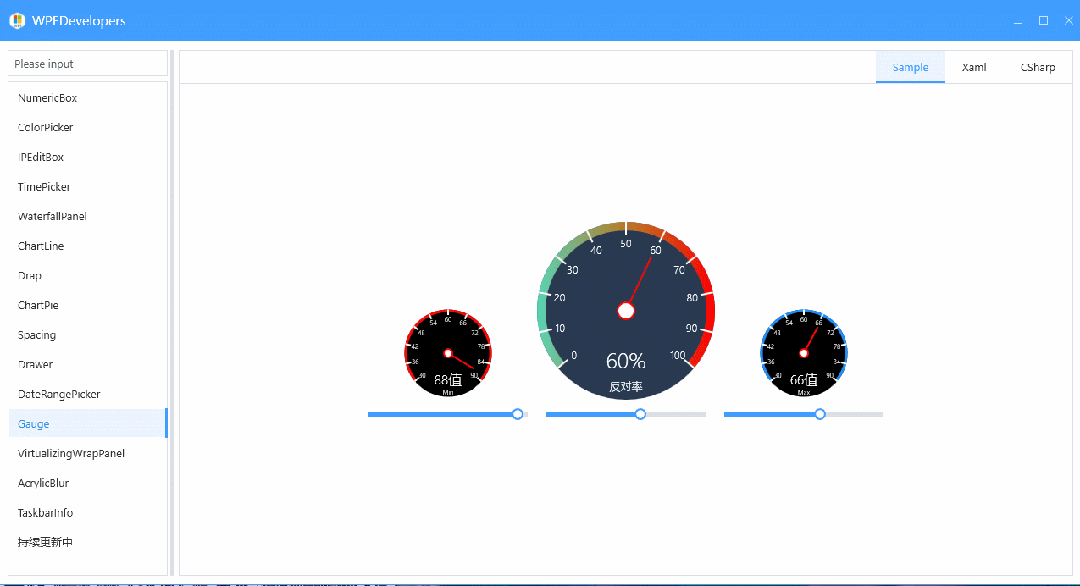

效果图
