利用微信小程序+JAVA实现微信支付的全过程_Java

本文主要讲的是小程序实现微信支付功能，后台采用java。

一.准备工作

1.小程序

2.微信商户号

1.商户号申请

这里对小程序的申请不做赘述。

如果没有微信商户号的同学，点击该链接https://pay.weixin.qq.com/，按照下属步骤进行商户号申请。

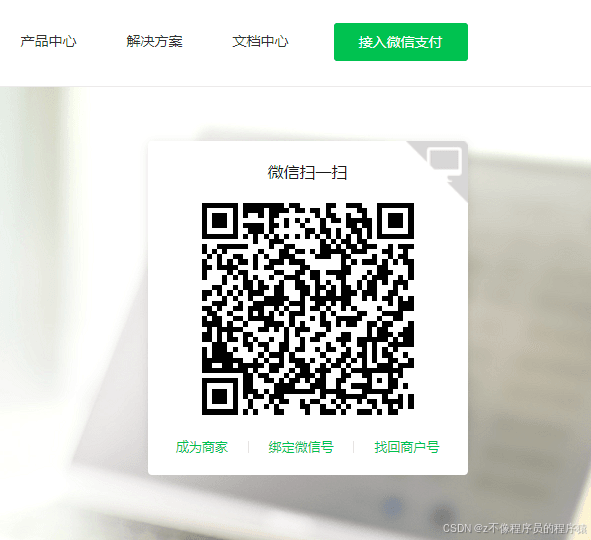

扫码之后点击"成为商家"，这里主要有个体工商户和企业，按照事实填写，然后按照步骤填写就行了。
主要需要营业执照，法人信息，公账信息等。

2.微信商户号关联小程序

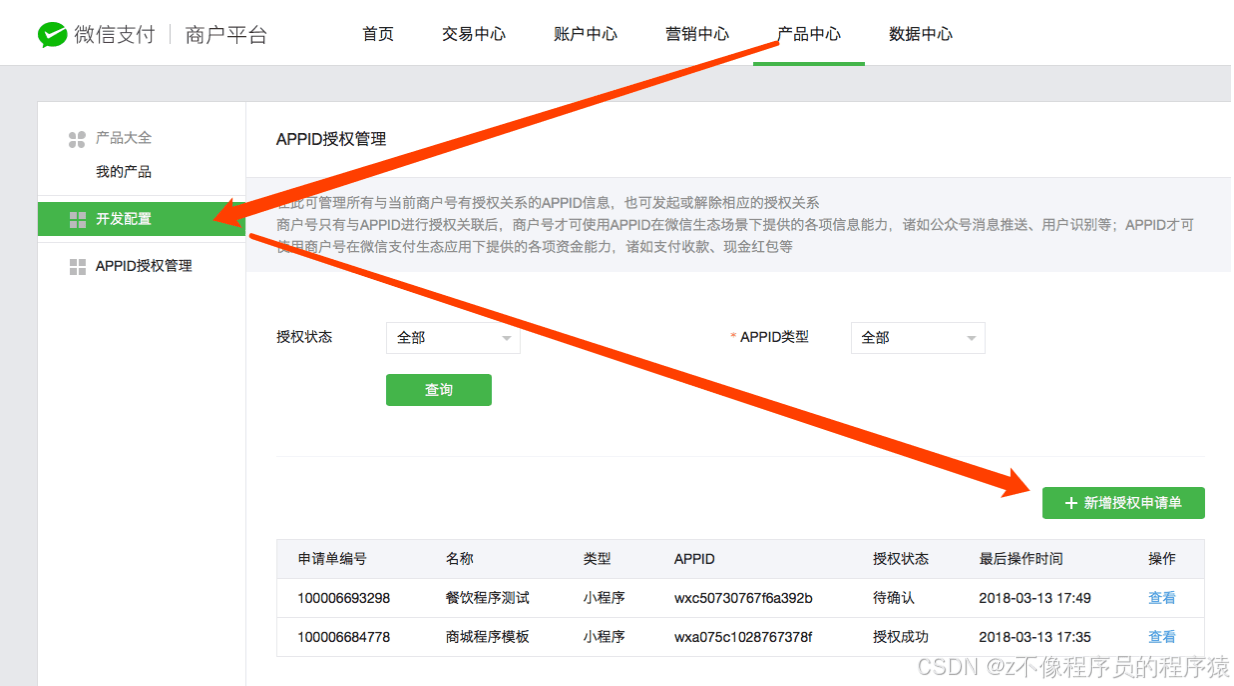

点击"产品中心"的"开发配置"，点击"新增授权申请单"。

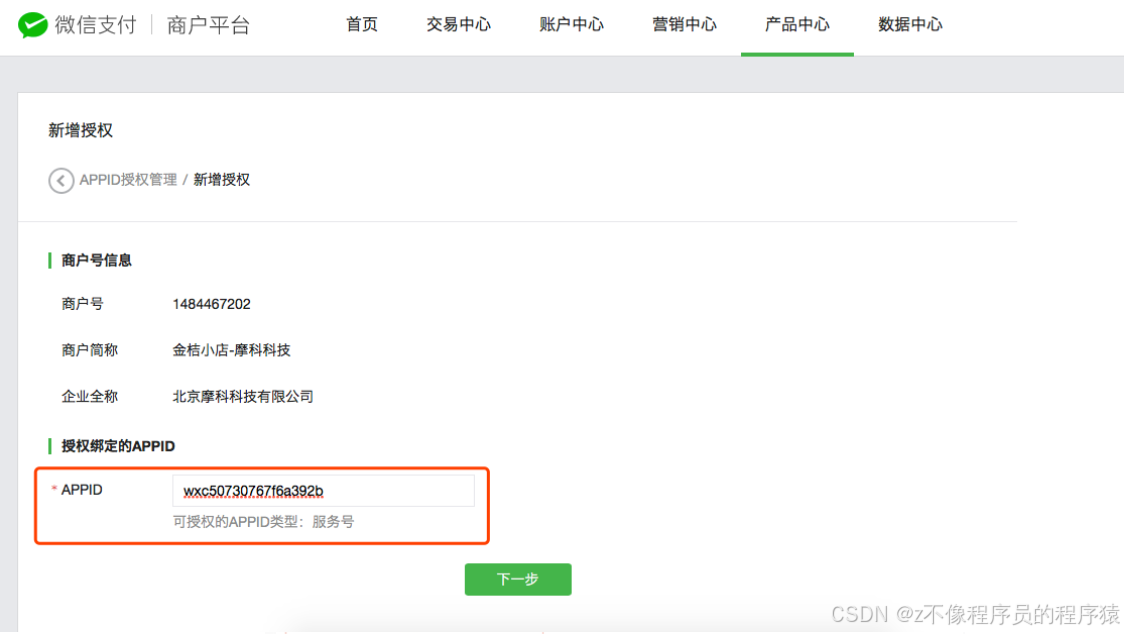

输入你的小程序appid，点击下一步。

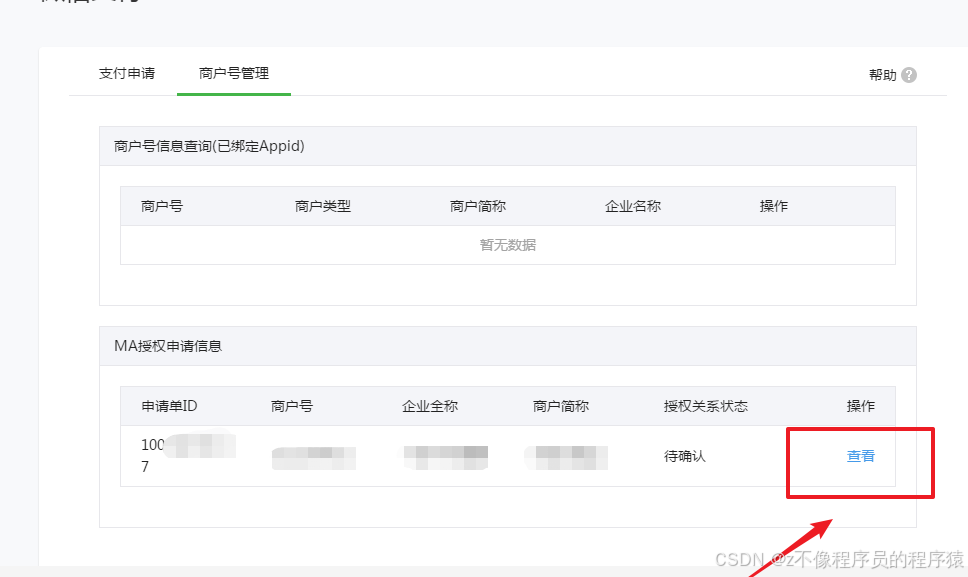

然后到小程序后台>微信支付>商户号管理里，会出现一个申请单，点击“查看”。

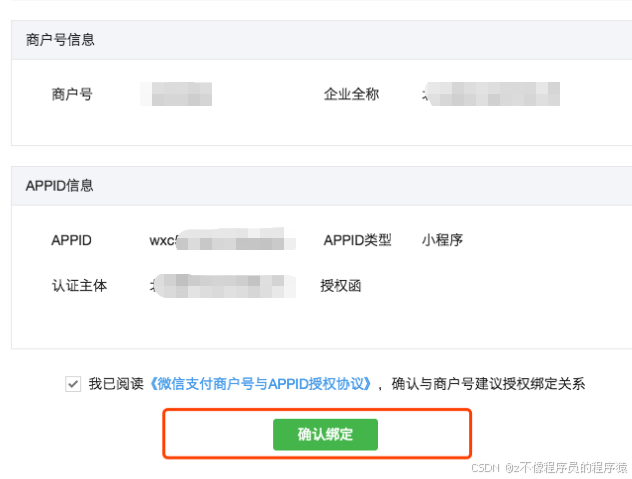

点击确认绑定，这样你的商户号就与小程序进行绑定了。

二.代码编写

1.小程序

小程序这块主要是调用一下后台接口获取参数，然后通过参数拉起微信支付。

orderpay(payinfo){
  let that = this
  wx.requestpayment({
    'timestamp': payinfo.timestamp,
    'noncestr': payinfo.noncestr,
    'package': payinfo.package,
    'signtype': payinfo.signtype,
    'paysign': payinfo.paysign,
    'success': function (res) {
		// 支付成功的回调
    },
    'fail': function (res) {
      console.log(json.stringify(res));
      wx.showtoast({title: '支付失败', icon: 'none',duration: 2000,mask: true})
    }
  })
},

这里的payinfo就是从后台接口获取的支付参数，通过wx.requestpayment就可以拉起微信支付了。具体的参数信息在下面会进行讲解。

2.服务端(java)

服务端这边主要是三个接口：

1.提交支付订单

这个主要是为了获取提交支付订单，获取前端拉起支付的参数。

2.微信支付回调

当你小程序拉起支付并且成功支付后，会将支付结果回调到这个接口

3.支付订单查询

你也可以主动通过订单号查询支付订单状态

下面是我的代码，包含了我的业务代码，大家将就着看吧

controller:

import com.smart.iot.gmt.app.bean.commonreponse;
import com.smart.iot.gmt.app.constant.responsecontant;
import com.smart.iot.gmt.app.constant.sessionkeyconstants;
import com.smart.iot.gmt.app.request.wechatpay.paymentrequest;
import com.smart.iot.gmt.app.request.wechatpay.querypayorderrequest;
import com.smart.iot.gmt.app.response.wechat.wechatpaymentresponse;
import com.smart.iot.gmt.app.response.wechat.wechatquerypayorderresponse;
import com.smart.iot.gmt.app.service.commonservice;
import com.smart.iot.gmt.app.service.pay.wechat.wxpayservice;
import lombok.extern.slf4j.slf4j;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.web.bind.annotation.*;
import javax.servlet.http.httpservletrequest;
import java.util.map;

@slf4j
@restcontroller
public class wxpaycontroller {

    @autowired
    private wxpayservice service;
    @autowired
    private commonservice commonservice;

    /**
     *
     * @author rick chou
     * @date 2024/7/18 15:33
     * 提交支付
     *
     */
    @postmapping("/payment")
    public commonreponse payment(@requestbody paymentrequest paymentrequest) {
        integer price = paymentrequest.getprice();
        string orderid = paymentrequest.getorderid();
        map<string, object> result = service.payment(price, orderid, userid);
        commonreponse commonresponse = commonservice.getcommonresponse(responsecontant.success_code, responsecontant.success, result);
        return new wechatpaymentresponse(commonresponse,result);
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/15 16:57
     * 微信支付回调
     *
     */
    @postmapping("/paynotify")
    public void paynotify(httpservletrequest request) throws exception {
        service.paynotify(request);
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/15 16:57
     * 支付查询
     *
     */
    @postmapping("/querypayorder")
    public commonreponse querypayorder(@requestbody querypayorderrequest request) {
        map<string, object> result = service.querypayorder(request);
        commonreponse commonresponse = commonservice.getcommonresponse(responsecontant.success_code, responsecontant.success, result);
        return new wechatquerypayorderresponse(commonresponse,result);
    }
}

service:

import com.alibaba.fastjson.json;
import com.smart.iot.constant.rediskeys;
import com.smart.iot.device.dto.locknotifymessagedto;
import com.smart.iot.device.service.devicerediscacheservice;
import com.smart.iot.gmt.app.annotation.springutil;
import com.smart.iot.gmt.app.bo.*;
import com.smart.iot.gmt.app.entity.memberorderdetailentity;
import com.smart.iot.gmt.app.enums.memberorderstateenum;
import com.smart.iot.gmt.app.request.wechatpay.querypayorderrequest;
import com.smart.iot.gmt.app.service.locknotifymessageservice;
import com.wechat.pay.java.service.payments.model.transaction;
import lombok.extern.slf4j.slf4j;
import org.springframework.stereotype.service;
import javax.servlet.http.httpservletrequest;
import javax.transaction.transactional;
import java.util.map;

@slf4j
@service
public class wxpayservice {

    public map<string, object> payment(integer price, string orderid, string userid){
        map<string, object> result = wechatpaybo.payment(price, orderid, userid);
        return result;
    }

    @transactional
    public void paynotify(httpservletrequest request) throws exception {
        transaction parse = wechatpaybo.paynotify(request);
        updateaccountdetail(parse,false);
    }

    @transactional
    public map<string,object> querypayorder(querypayorderrequest request) {
        string orderid = request.getorderid();
        transaction parse = wechatpaybo.querypayorder(orderid);
        return updateaccountdetail(parse,true);
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 11:03
     * 支付回调处理
     * 1.更新订单状态
     * 2.添加支付记录
     * 3.通知小程序
     *
     */
    public map<string,object> updateaccountdetail(transaction parse, boolean active) {
        string orderid = parse.getouttradeno();
        transaction.tradestateenum tradestate = parse.gettradestate();
        if(tradestate==transaction.tradestateenum.success) {
            if(orderbo.check(orderid).getstate() == memberorderstateenum.in_progress.code) {
                orderbo order = this.updateorder(orderid);
                this.renewmember(orderid);
                this.saverecord(parse, order.getuserid());
            }
        }
        if(active){
            return json.parseobject(buildparse(parse),map.class);
        }else{
            this.paynoticemessage(parse,orderid);
        }
        return null;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/19 15:31
     * 更新订单状态
     *
     */
    private orderbo updateorder(string orderid){
        orderbo order = orderbo.check(orderid);
        order.finish();
        string key = rediskeys.add_order_pay_time_prefix + orderid;
        springutil.getbean(devicerediscacheservice.class).delete(key);
        return order;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/19 15:32
     * 更新会员时间
     *
     */
    private void renewmember(string orderid){
        memberorderdetailentity orderdetail = orderdetailbo.getbyorderid(orderid);
        usermemberbo.renew(orderdetail);
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/19 15:33
     * 保存支付记录
     *
     */
    private void saverecord(transaction parse,string userid){
        string orderid = parse.getouttradeno();
        integer amount = parse.getamount().gettotal();
        string tradetype = parse.gettradetype().name();
        payrecordbo.create(userid,orderid,amount,tradetype);
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/19 15:38
     * 将支付结果下发小程序
     *
     */
    private void paynoticemessage(transaction parse,string orderid){
        memberorderdetailentity detail = orderdetailbo.getbyorderid(orderid);
        locknotifymessageservice service = springutil.getbean(locknotifymessageservice.class);
        locknotifymessagedto dto = new locknotifymessagedto();
        dto.setlockid(detail.getdeviceid());
        dto.setmessageparams(buildparse(parse));
        service.dealpayresultnotifymessage(dto);
    }

    private string buildparse(transaction parse){
        parse.setmchid(null);
        parse.setappid(null);
        parse.setbanktype(null);
        parse.setbanktype(null);
        parse.setattach(null);
        return json.tojsonstring(parse);
    }
}

bo:

import com.smart.iot.gmt.app.annotation.springutil;
import com.smart.iot.gmt.app.entity.payrecordentity;
import com.smart.iot.gmt.app.service.pay.wechat.payinfoconfig;
import com.smart.iot.gmt.app.service.pay.wechat.wxpayutil;
import com.smart.iot.util.stringutil;
import com.wechat.pay.java.core.config;
import com.wechat.pay.java.core.rsaautocertificateconfig;
import com.wechat.pay.java.core.exception.serviceexception;
import com.wechat.pay.java.core.exception.validationexception;
import com.wechat.pay.java.core.notification.notificationconfig;
import com.wechat.pay.java.core.notification.notificationparser;
import com.wechat.pay.java.core.notification.requestparam;
import com.wechat.pay.java.service.payments.jsapi.jsapiservice;
import com.wechat.pay.java.service.payments.jsapi.model.*;
import com.wechat.pay.java.service.payments.model.transaction;
import lombok.extern.slf4j.slf4j;
import org.springframework.stereotype.component;
import javax.servlet.http.httpservletrequest;
import java.io.ioexception;
import java.util.hashmap;
import java.util.map;
import java.util.uuid;
import java.util.stream.collectors;
import java.util.stream.stream;
import static com.wechat.pay.java.core.http.constant.*;

/**
 *
 * @author rick chou
 * @date 2024/7/16 9:10
 * 微信支付bo
 *
 */
@slf4j
@component
public class wechatpaybo extends payrecordentity {

    private static payinfoconfig getconfig(){
        payinfoconfig payinfoconfig = springutil.getbean(payinfoconfig.class);
        return payinfoconfig;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 9:35
     * 构建支付请求service
     *
     */
    public static jsapiservice getservice(){
        payinfoconfig payinfoconfig = getconfig();
        config config = new rsaautocertificateconfig.builder()
            .merchantid(payinfoconfig.getmchid())
            .privatekeyfrompath(payinfoconfig.getkeypath())
            .merchantserialnumber(payinfoconfig.getmchserialno())
            .apiv3key(payinfoconfig.getapikey())
            .build();
        jsapiservice service = new jsapiservice.builder().config(config).build();
        return service;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 10:31
     * 构造notify_config
     *
     */
    private static notificationconfig buildnotifyconfig(){
        payinfoconfig payinfoconfig = getconfig();
        notificationconfig config = new rsaautocertificateconfig.builder()
                .merchantid(payinfoconfig.getmchid())
                .privatekeyfrompath(payinfoconfig.getkeypath())
                .merchantserialnumber(payinfoconfig.getmchserialno())
                .apiv3key(payinfoconfig.getapikey())
                .build();
        return config;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 9:35
     * 构建支付请求参数
     *
     */
    private static prepayrequest buildparam(integer price, string orderid, string userid){
        payinfoconfig payinfoconfig = getconfig();
        prepayrequest prepayrequest = new prepayrequest();
        amount amount = new amount();
        amount.settotal(price);
        prepayrequest.setamount(amount);
        prepayrequest.setappid(payinfoconfig.getappid());
        prepayrequest.setmchid(payinfoconfig.getmchid());
        prepayrequest.setnotifyurl(payinfoconfig.getnotifyurl());				// 回调接口地址
        prepayrequest.setdescription("微信支付");
        prepayrequest.setouttradeno(orderid);       // 订单号
        prepayrequest.setattach("member");                                     // 订单类型(回调时可根据这个数据辨别订单类型或其他)

        //根据token拿到openid,指定该预支付订单的支付者身份
        payer payer = new payer();
        payer.setopenid(weixinuserbo.getopenid(userid));
        prepayrequest.setpayer(payer);
        return prepayrequest;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 9:53
     * 解析支付结果
     *
     */
    private static map<string,object> parsepay(prepayresponse response){
        payinfoconfig payinfoconfig = getconfig();
        map<string, object> params = new hashmap<>();
        long timestamp = system.currenttimemillis() / 1000;
        string substring = uuid.randomuuid().tostring().replaceall("-", "").substring(0, 32);
        string signaturestr = stream.of(
                payinfoconfig.getappid(),
                string.valueof(timestamp),
                substring,
                "prepay_id=" + response.getprepayid()
        ).collect(collectors.joining("\n", "", "\n"));
        string sign = wxpayutil.getsign(signaturestr, payinfoconfig.getkeypath());
        params.put("timestamp", string.valueof(timestamp));
        params.put("noncestr", substring);
        params.put("paysign", sign);
        params.put("signtype", "rsa");
        params.put("package", "prepay_id=" + response.getprepayid());
        return params;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 10:33
     * 解析回调结果
     *
     */
    private static requestparam parsenotify(httpservletrequest request)throws ioexception {
        string data = stringutil.getstringforinput(request.getinputstream());
        string timestamp = request.getheader(wechat_pay_timestamp);
        string nonce = request.getheader(wechat_pay_nonce);
        string signtype = request.getheader("wechatpay-signature-type");
        string serialno = request.getheader(wechat_pay_serial);
        string signature = request.getheader(wechat_pay_signature);

        requestparam requestparam = new requestparam.builder()
                .serialnumber(serialno)
                .nonce(nonce)
                .signature(signature)
                .timestamp(timestamp)
                .signtype(signtype)         // 若未设置signtype，默认值为 wechatpay2-sha256-rsa2048
                .body(data)
                .build();
        return requestparam;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 9:47
     * 调起支付
     *
     */
    public static map<string, object> payment(integer price, string orderid, string userid){
        jsapiservice service = getservice();
        prepayrequest prepayrequest = buildparam(price, orderid, userid);
        prepayresponse response = service.prepay(prepayrequest);
        map<string, object> result = parsepay(response);
        result.put("orderid",orderid);
        return result;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 10:16
     * 支付回调
     *
     */
    public static transaction paynotify(httpservletrequest request) throws exception {
        notificationconfig config = buildnotifyconfig();
        notificationparser parser = new notificationparser(config);
        requestparam requestparam = parsenotify(request);
        transaction parse = null;
        try {
             parse = parser.parse(requestparam, transaction.class);
        }catch (validationexception e){
            log.error("sign verification failed", e);
        }
        return parse;
    }

    /**
     *
     * @author rick chou
     * @date 2024/7/16 11:17
     * 查询订单
     *
     */
    public static transaction querypayorder(string orderid) {
        payinfoconfig payinfoconfig = getconfig();
        jsapiservice service = getservice();
        queryorderbyouttradenorequest queryrequest = new queryorderbyouttradenorequest();
        queryrequest.setmchid(payinfoconfig.getmchid());
        queryrequest.setouttradeno(orderid);
        transaction parse = null;
        try {
            parse = service.queryorderbyouttradeno(queryrequest);
        }catch (serviceexception e){
            log.info("code=[%s], message=[%s]\n", e.geterrorcode(), e.geterrormessage());
            log.info("reponse body=[%s]\n", e.getresponsebody());
        }
        return parse;
    }
}

payinfoconfig

import lombok.data;
import lombok.tostring;
import org.springframework.boot.context.properties.configurationproperties;
import org.springframework.stereotype.component;

@data
@tostring
@component
@configurationproperties(prefix = "wx")
public class payinfoconfig {

    //小程序appid
    private string appid;
    //商户号
    private string mchid;
    //证书序列号
    private string mchserialno;
    //小程序秘钥
    private string appsecret;
    //api秘钥
    private string apikey;
    //回调接口地址
    private string notifyurl;
    //证书地址
    private string keypath;
}

上述的payinfoconfig中的参数第二、三、五、七个参数去商户号后台获取。
