Unity XR Interaction Toolkit设置或监听手柄按键事件（三）_unity

文章目录

前言
一、xri default input actions
二、按键对应名称
三、代码示例
总结

前言

官方文档input system：链接: input system
安装部分：链接: unity xr interaction toolkit的安装（二）

一、xri default input actions

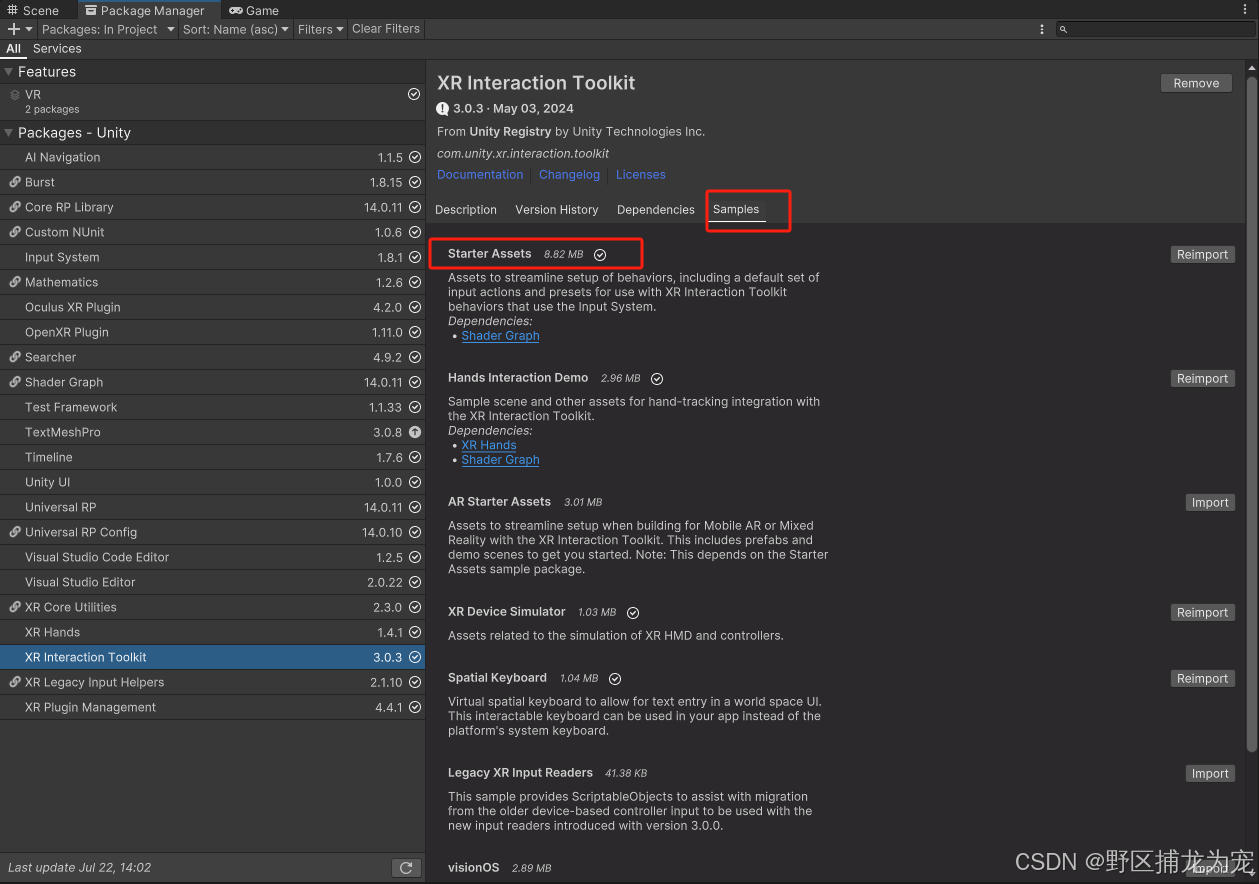

1.导入官方案例

需要导入官方案例：starter assets，方便学习
在这里插入图片描述

2.设置控制器绑定，如手柄、主/辅助按钮、操纵杆等

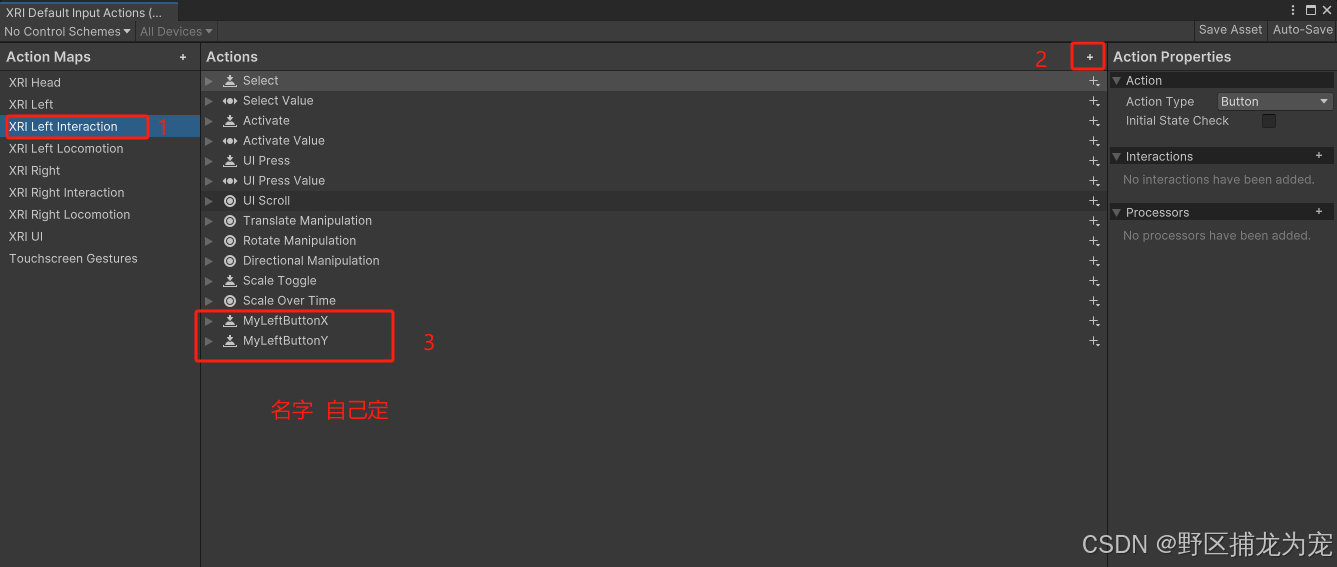

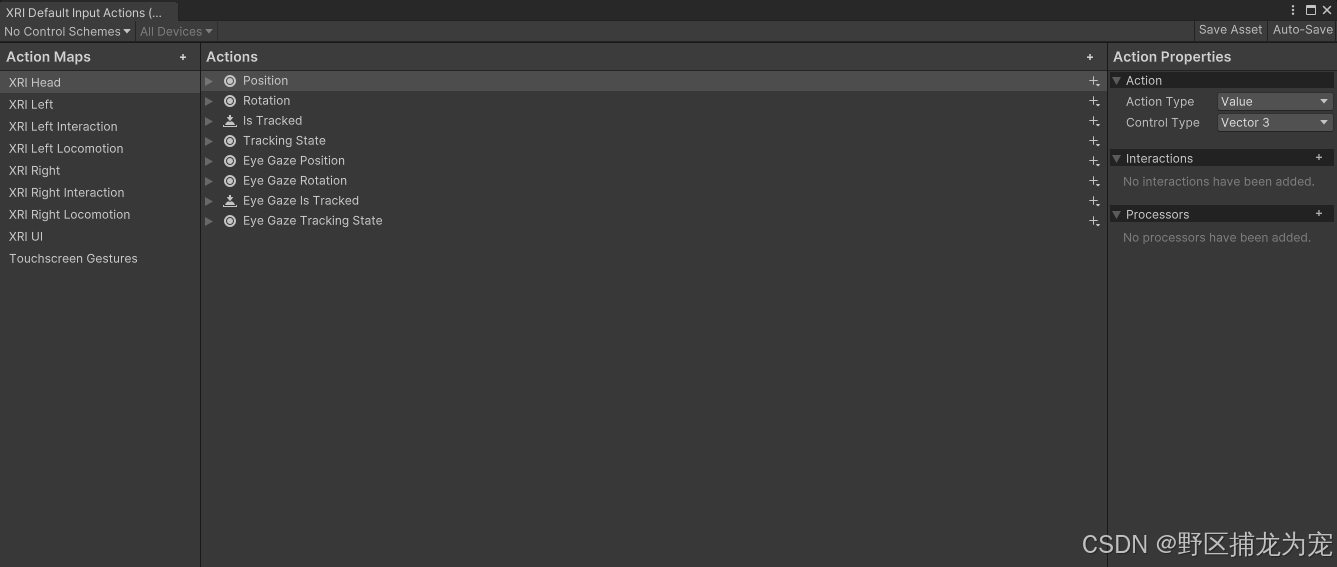

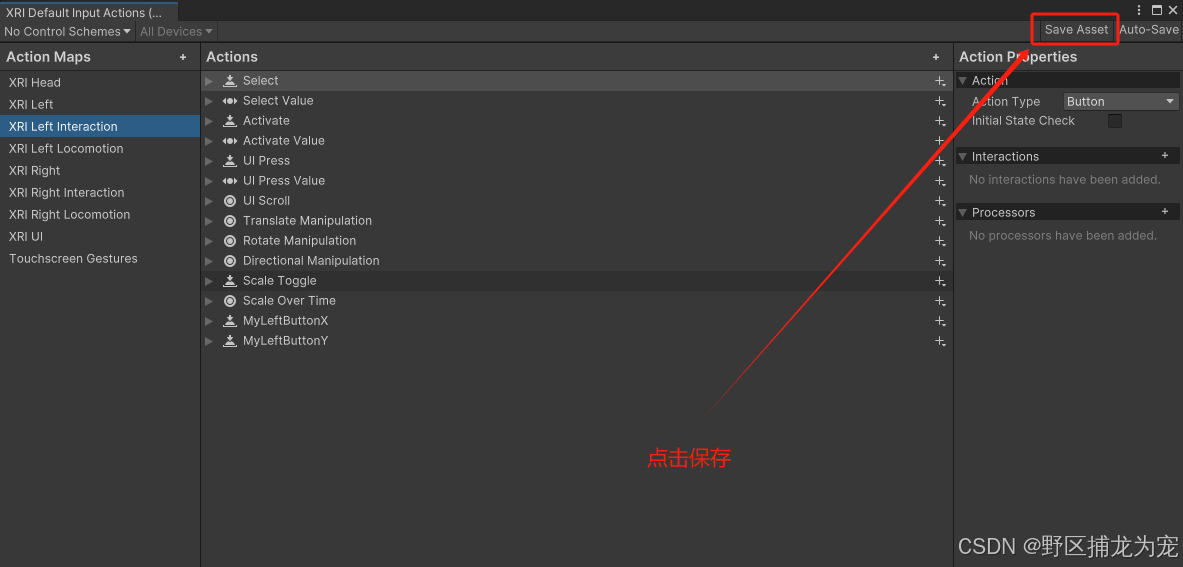

1.要设置控制器绑定，如左右手手柄、主/辅助按钮、操纵杆等，请双击：xri default input actions

在这里插入图片描述

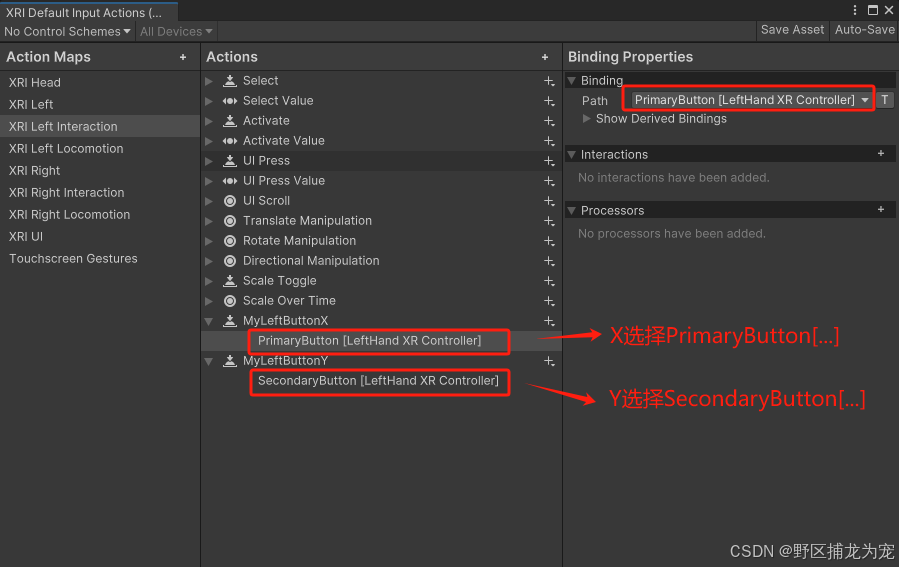

2.获取左手xy键事件（右手ab同理）

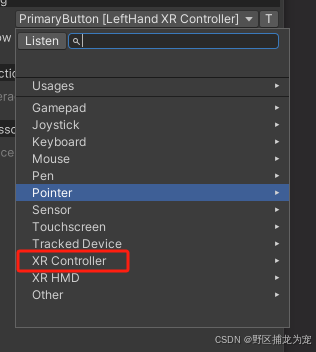

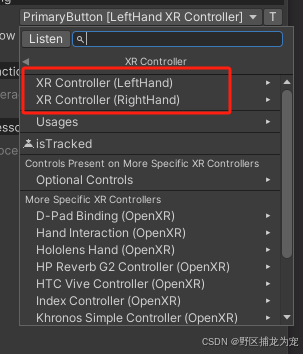

选择顺序 xr controller–>xr controller (righthand)或者xr controller(lefthand)–>usage
在这里插入图片描述

在这里插入图片描述

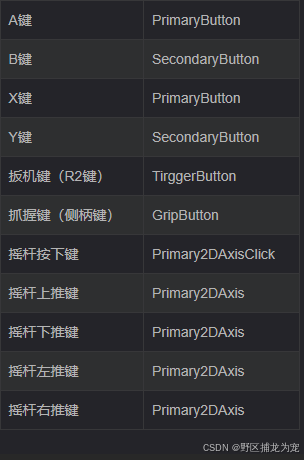

二、按键对应名称

在这里插入图片描述

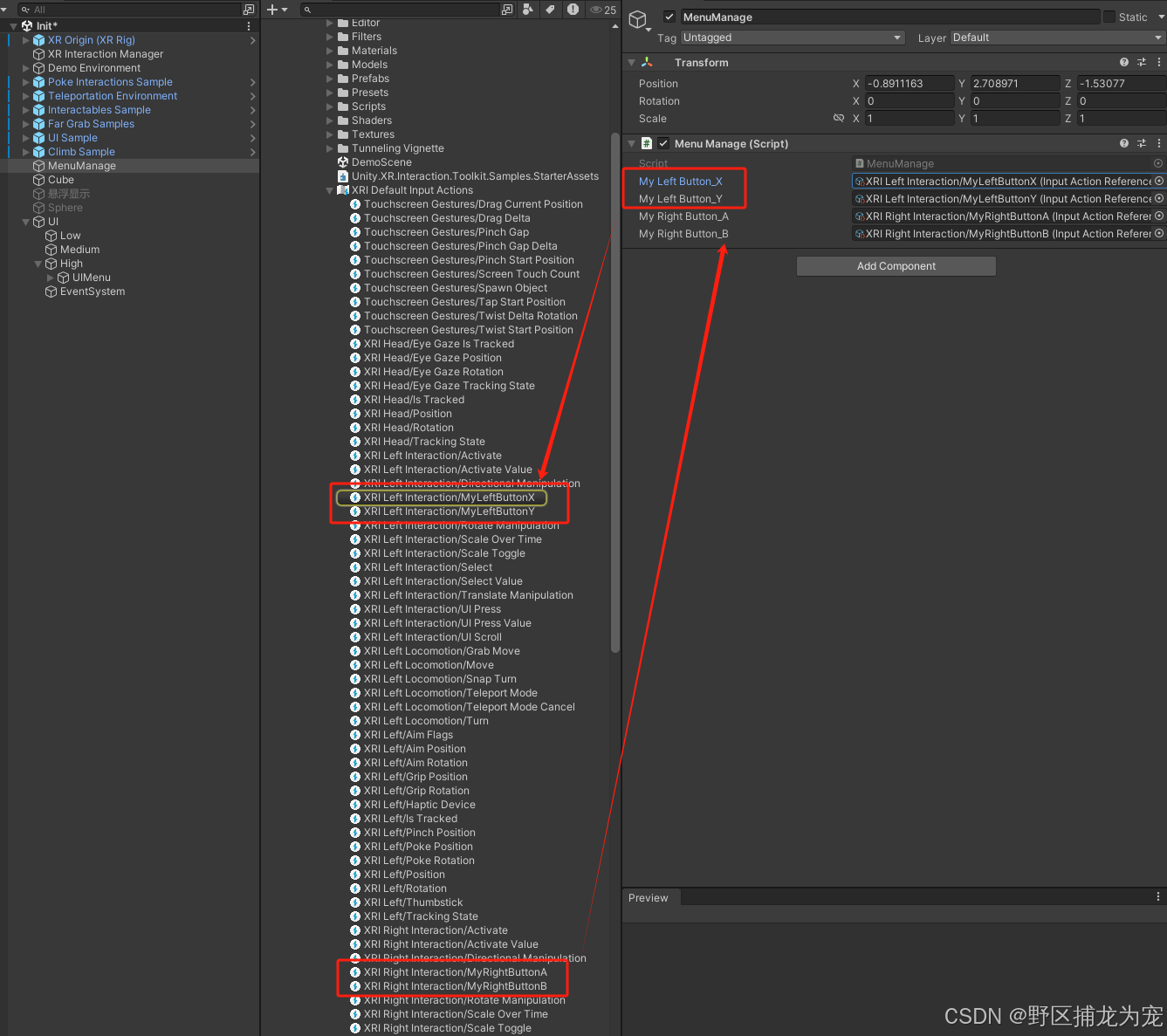

三、代码示例

在这里插入图片描述

代码如下（示例）：


using unityengine;
using unityengine.inputsystem;

namespace twq
{
    public class menumanage : monobehaviour
    {
        public inputactionreference myleftbutton_x;
        public inputactionreference myleftbutton_y;

        public inputactionreference myrightbutton_x;
        public inputactionreference myrightbutton_y;

        private void onenable()
        {
            setupinteractorevents();
        }
        private void ondisable()
        {
            teardowninteractorevents();
        }
        void setupinteractorevents()
        {
            //左手
            var myleftbutton_x_action = getinputaction(myleftbutton_x);
            if (myleftbutton_x_action != null)
            {
                myleftbutton_x_action.performed += onmyleftbutton_x_action;
            }
            var myleftbutton_y_action = getinputaction(myleftbutton_y);
            if (myleftbutton_y_action != null)
            {
                myleftbutton_y_action.performed += onmyleftbutton_y_action;
            }
            //右手
            var myrightbutton_x_action = getinputaction(myrightbutton_x);
            if (myrightbutton_x_action != null)
            {
                myrightbutton_x_action.performed += onmyrightbutton_x_action;
            }
            var myrightbutton_y_action = getinputaction(myrightbutton_y);
            if (myrightbutton_y_action != null)
            {
                myrightbutton_y_action.performed += onmyrightbutton_y_action;
            }

        }
        void teardowninteractorevents()
        {
            var myleftbutton_x_action = getinputaction(myleftbutton_x);
            if (myleftbutton_x_action != null)
            {
                myleftbutton_x_action.performed -= onmyleftbutton_x_action;
            }
            var myleftbutton_y_action = getinputaction(myleftbutton_y);
            if (myleftbutton_y_action != null)
            {
                myleftbutton_y_action.performed -= onmyleftbutton_y_action;
            }
        }

        /// <summary>
        /// 左手x键
        /// </summary>
        /// <param name="context"></param>
        private void onmyleftbutton_x_action(inputaction.callbackcontext context)
        {
            debug.log("按下左手x键--------------------");
        }
        /// <summary>
        /// 左手y键
        /// </summary>
        /// <param name="context"></param>
        private void onmyleftbutton_y_action(inputaction.callbackcontext context)
        {
            debug.log("按下左手y键--------------------");
        }


        /// <summary>
        /// 右手x键
        /// </summary>
        /// <param name="context"></param>
        private void onmyrightbutton_x_action(inputaction.callbackcontext context)
        {
            debug.log("按下右手a键--------------------");
        }
        /// <summary>
        /// 右手y键
        /// </summary>
        /// <param name="context"></param>
        private void onmyrightbutton_y_action(inputaction.callbackcontext context)
        {
            debug.log("按下右手b键--------------------");
        }

        static inputaction getinputaction(inputactionreference actionreference)
        {
#pragma warning disable ide0031 // use null propagation -- do not use for unityengine.object types
            return actionreference != null ? actionreference.action : null;
#pragma warning restore ide0031
        }
    }
}
