【AWS】API Gateway创建Rest API--将文件上传到S3（进阶版）

一、背景

上一篇文章是基础版，这篇文章增加授权方

【aws】api gateway创建rest api--将文件上传到s3（基础版）_某可儿同学的博客的博客-csdn博客aws api gateway创建api将文件上传到s3https://blog.csdn.net/weixin_41758646/article/details/127122227?spm=1001.2014.3001.5501

 二、创建授权方

1、新建lambda函数，来验证授权方，运行时选择 node.js 16.x

代码如下：当header中account和password匹配上，则allow，否则deny

exports.handler = function(event, context, callback) {
    console.log('received event:', json.stringify(event, null, 2));

    // a simple request-based authorizer example to demonstrate how to use request
    // parameters to allow or deny a request. in this example, a request is
    // authorized if the client-supplied headerauth1 header, querystring1
    // query parameter, and stage variable of stagevar1 all match
    // specified values of 'headervalue1', 'queryvalue1', and 'stagevalue1',
    // respectively.

    // retrieve request parameters from the lambda function input:
    var headers = event.headers;
    var querystringparameters = event.querystringparameters;
    var pathparameters = event.pathparameters;
    var stagevariables = event.stagevariables;

    // parse the input for the parameter values
    var tmp = event.methodarn.split(':');
    var apigatewayarntmp = tmp[5].split('/');
    var awsaccountid = tmp[4];
    var region = tmp[3];
    var restapiid = apigatewayarntmp[0];
    var stage = apigatewayarntmp[1];
    var method = apigatewayarntmp[2];
    var resource = '/'; // root resource
    if (apigatewayarntmp[3]) {
        resource += apigatewayarntmp[3];
    }

    // perform authorization to return the allow policy for correct parameters and
    // the 'unauthorized' error, otherwise.
    var authresponse = {};
    var condition = {};
    condition.ipaddress = {};

    if (headers.account === ""
        && headers.password === "") {
        callback(null, generateallow('me', event.methodarn));
    }else {
        callback("unauthorized");
    }
}

// help function to generate an iam policy
var generatepolicy = function(principalid, effect, resource) {
    // required output:
    var authresponse = {};
    authresponse.principalid = principalid;
    if (effect && resource) {
        var policydocument = {};
        policydocument.version = '2012-10-17'; // default version
        policydocument.statement = [];
        var statementone = {};
        statementone.action = 'execute-api:invoke'; // default action
        statementone.effect = effect;
        statementone.resource = resource;
        policydocument.statement[0] = statementone;
        authresponse.policydocument = policydocument;
    }
    // optional output with custom properties of the string, number or boolean type.
    authresponse.context = {
        "account": '',
        "password": '',
        "booleankey": true
    };
    return authresponse;
}

var generateallow = function(principalid, resource) {
    return generatepolicy(principalid, 'allow', resource);
}

var generatedeny = function(principalid, resource) {
    return generatepolicy(principalid, 'deny', resource);
}

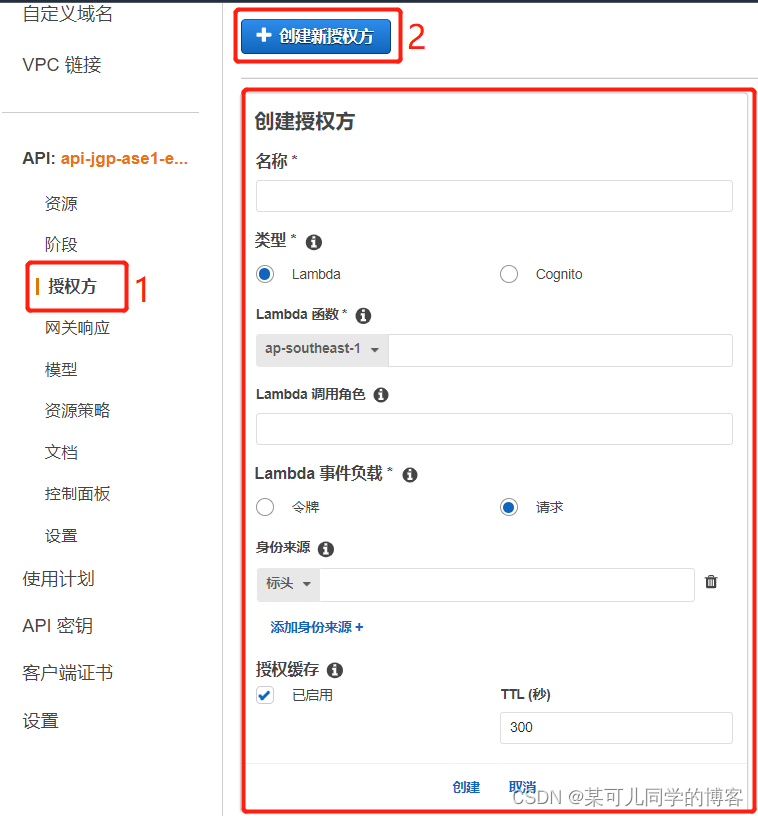

2、创建授权方

授权方名称

类型：选择lambda

lambda函数：填写刚创建好的lambda函数名称

lambda调用角色：填写调用lambda函数的角色

lambda事件负载：选择请求

身份来源：选择标头，添加account和password

授权缓存：取消启用

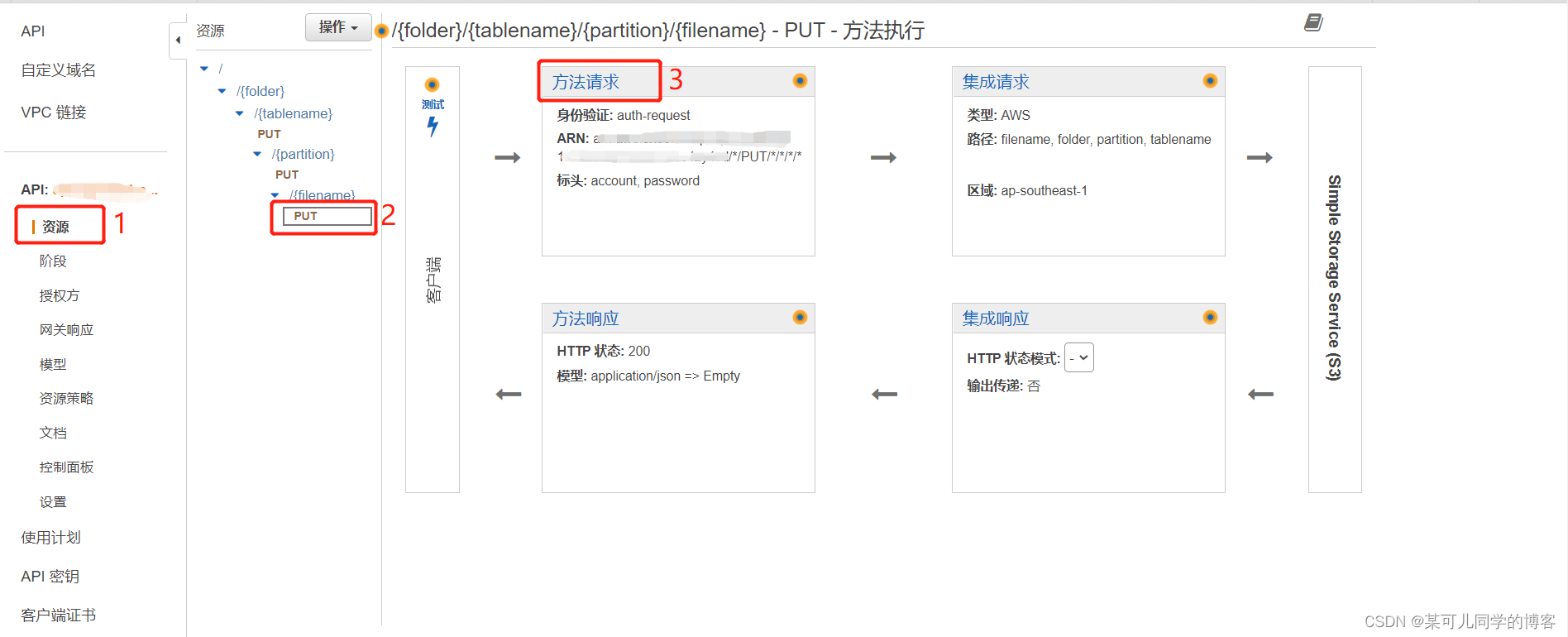

 三、配置授权方

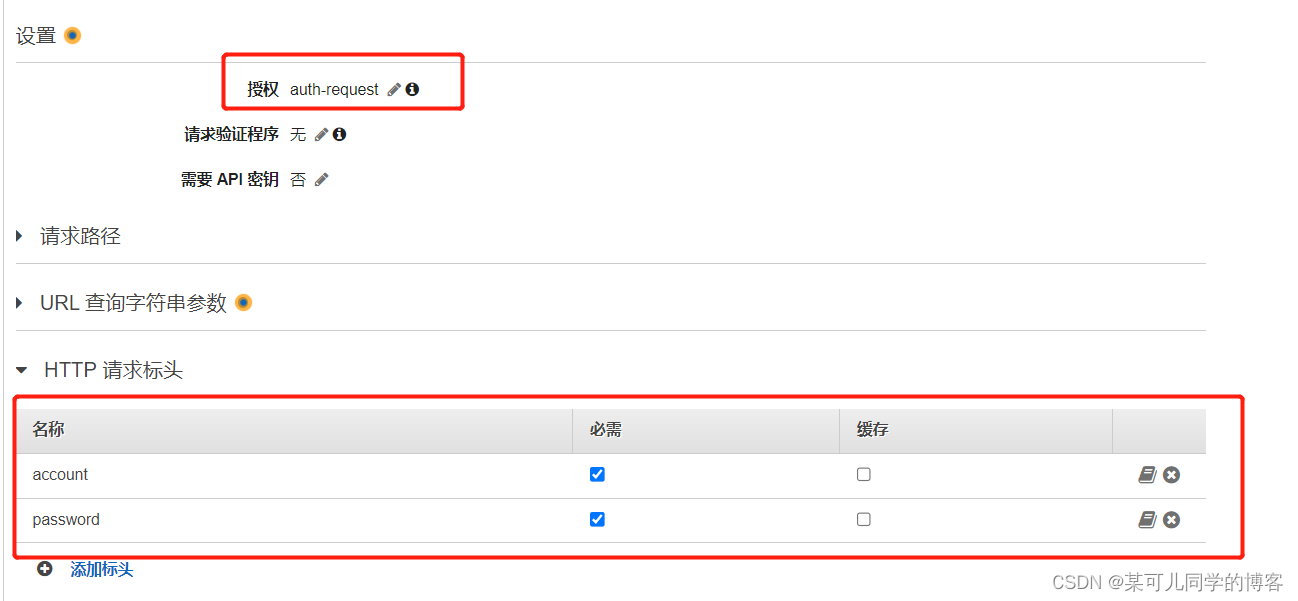

选择 添加授权方的路径资源方法中的方法请求

授权选择配置好的授权方名称

请求验证程序:无

需要api密钥:否

http请求标头:将account和password配置进来

三、测试api

 测试通过两种方式：①postman        ②python代码

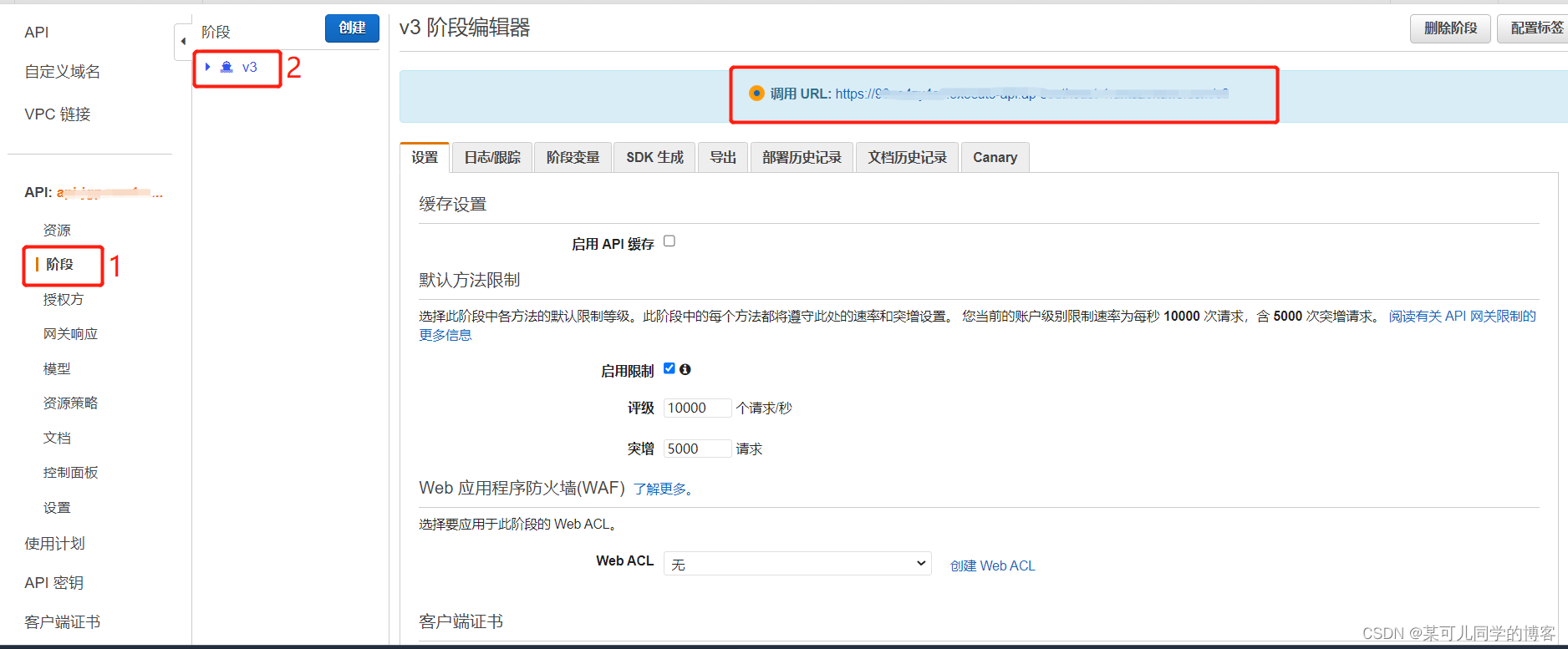

获取url链接

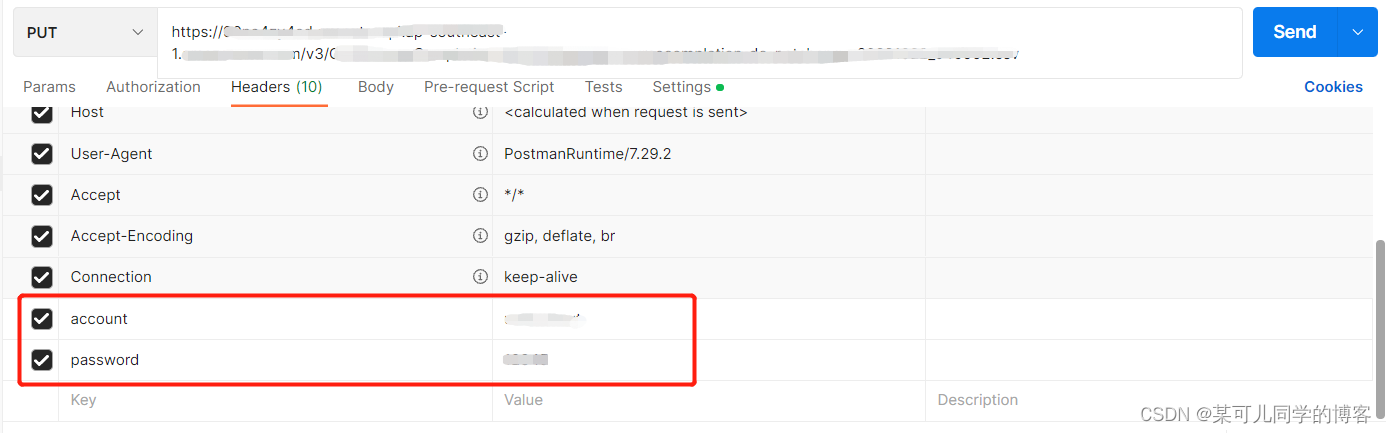

1、postman

进入postman，添加put请求，复制url链接，在其后添加上传到s3的路径，在headers中添加account和password，点击send，即可在下方看到请求结果

2、python代码：在headers中添加account和password

import requests


def call_api(_url, _headers, _files):
    res = requests.put(_url, data=_files, headers=_headers)
    return res

def unload_s3(local_file_name,s3_file_name):
    # api gateway call url
    url_ip = ""
    # generate the url
    url = url_ip + s3_file_name

    # the file on your computer
    uploadfile = open(local_file_name, "rb")

    # request headers
    headers = {"account": "",
               "password": ""}

    # call the api2s3 method
    res = call_api(url, headers, uploadfile)
    # print the result
    if res.ok:
        return ("upload completed successfully!")
    else:
        return ("upload failed!")

if __name__ == '__main__':

    # local file name
    local_file_name = ''
    # s3 file_name to upload
    s3_file_name = ''
    unload_s3(local_file_name,s3_file_name)

四、通过cloudformation创建api

yaml文件如下

awstemplateformatversion: '2010-09-09'
description : template to provision etl workflow for api gateway
parameters:
  region:
    description: 'specify the region for resource.'
    type: string
    default: ase1
  createdate:
    type: string
    default: '2022-07-15'
  iteration:
    type: string
    description: 'specify the iteration for lambda.'
    default: '001'
  s3iteration:
    type: string
    description: 'specify the iteration for s3'
    default: '001'
  iamiteration:
    type: string
    description: 'specify the iteration for iam roles.'
    default: '001'

resources:
  apigatewayrestapi:
    type: aws::apigateway::restapi
    properties:
      name: api-uploads3-{iteration}
      binarymediatypes:
        - "*/*"
      description: create api to load file to s3
      mode: overwrite
      endpointconfiguration:
        types:
          - regional
      minimumcompressionsize: 0

  apigatewayauthorizer:
    type: aws::apigateway::authorizer
    properties:
      authorizercredentials: "arn:aws:iam::role/iamr-replication-${iamiteration}"
      authorizerresultttlinseconds : 0
      authorizeruri: "arn:aws:apigateway:${aws::region}:lambda:path/2015-03-31/functions/arn:aws:lambda:lamb-apigw-authorizer-${s3iteration}/invocations"
      type : request
      authtype: custom
      restapiid:
        !ref  apigatewayrestapi
      name: auth-request
      identitysource : method.request.header.account,method.request.header.password

  apigatewayresourcefolder:
    type: aws::apigateway::resource
    properties:
      restapiid:
        !ref apigatewayrestapi
      pathpart: "{folder}"
      parentid: !getatt
        - apigatewayrestapi
        - rootresourceid

  apigatewayresourcepartition:
    type: aws::apigateway::resource
    properties:
      restapiid:
        !ref apigatewayrestapi
      pathpart: "{partition}"
      parentid:
        !ref apigatewayresourcetablename

  apigatewayresourcetablename:
    type: aws::apigateway::resource
    properties:
      restapiid:
        !ref apigatewayrestapi
      pathpart: "{tablename}"
      parentid:
        !ref apigatewayresourcefolder

  apigatewayresourcefilename:
    type: aws::apigateway::resource
    properties:
      restapiid:
        !ref apigatewayrestapi
      pathpart: "{filename}"
      parentid:
        !ref apigatewayresourcepartition

  apigatewaymethodtablename:
    type: aws::apigateway::method
    properties:
      authorizerid:
        !ref apigatewayauthorizer
      authorizationtype: custom
      requestparameters: {
        "method.request.path.folder": true,
        "method.request.path.tablename": true,
        "method.request.header.account": true,
        "method.request.header.password": true
      }
      httpmethod: put
      methodresponses:
        - statuscode: 200
          responsemodels:
            application/json: empty
      restapiid:
        !ref apigatewayrestapi
      resourceid: !getatt
        - apigatewayresourcetablename
        - resourceid
      integration:
        type: aws
        credentials: "arn:aws:iam::role/iamr-replication-${iamiteration}"
        integrationhttpmethod: put
        integrationresponses:
          - statuscode: 200
        passthroughbehavior: when_no_match
        uri: "arn:aws:apigateway:${aws::region}:s3:path/s3-raw-${iteration}/{folder}/{tablename}"
        requestparameters: {
            "integration.request.path.folder" : "method.request.path.folder",
            "integration.request.path.tablename" : "method.request.path.tablename"
          }


  apigatewaymethodpartition:
    type: aws::apigateway::method
    properties:
      authorizerid:
        !ref apigatewayauthorizer
      authorizationtype: custom
      requestparameters: {
        "method.request.path.folder": true,
        "method.request.path.tablename": true,
        "method.request.path.partition": true,
        "method.request.header.account": true,
        "method.request.header.password": true
      }
      httpmethod: put
      methodresponses:
        - statuscode: 200
          responsemodels:
            application/json: empty
      restapiid:
        !ref apigatewayrestapi
      resourceid: !getatt
        - apigatewayresourcepartition
        - resourceid
      integration:
        type: aws
        credentials: "arn:aws:iam::role/iamr-replication-${iamiteration}"
        integrationhttpmethod: put
        integrationresponses:
          - statuscode: 200
        passthroughbehavior: when_no_match
        uri: "arn:aws:apigateway:${aws::region}:s3:path/s3-raw-${iteration}/{folder}/{tablename}/{partition}"
        requestparameters: {
            "integration.request.path.partition" : "method.request.path.partition",
            "integration.request.path.folder" : "method.request.path.folder",
            "integration.request.path.tablename" : "method.request.path.tablename"
          }


  apigatewaymethodfilename:
    type: aws::apigateway::method
    properties:
      authorizerid:
        !ref apigatewayauthorizer
      authorizationtype: custom
      requestparameters: {
        "method.request.path.folder": true,
        "method.request.path.tablename": true,
        "method.request.path.partition": true,
        "method.request.path.filename": true,
        "method.request.header.account": true,
        "method.request.header.password": true
      }
      httpmethod: put
      methodresponses:
        - statuscode: 200
          responsemodels:
            application/json: empty
      restapiid:
        !ref apigatewayrestapi
      resourceid: !getatt
        - apigatewayresourcefilename
        - resourceid
      integration:
        type: aws
        credentials: "arn:aws:iam::role/iamr-replication-${iamiteration}"
        integrationhttpmethod: put
        integrationresponses:
          - statuscode: 200
        passthroughbehavior: when_no_match
        uri: "arn:aws:apigateway:${aws::region}:s3:path/s3-raw-${iteration}/{folder}/{tablename}/{partition}/{filename}"
        requestparameters: {
            "integration.request.path.partition" : "method.request.path.partition",
            "integration.request.path.filename" : "method.request.path.filename",
            "integration.request.path.folder" : "method.request.path.folder",
            "integration.request.path.tablename" : "method.request.path.tablename"
          }

  apigatewaydeploymentv3:
    dependson: apigatewaymethodfilename
    type: aws::apigateway::deployment
    properties:
      restapiid:
        !ref apigatewayrestapi
      stagename : v3

  permissiontoinvokelambda:
    type: aws::lambda::permission
    properties:
      functionname: lamb-apigw-authorizer-${iteration}
      action: "lambda:invokefunction"
      principal: "apigateway.amazonaws.com"
      sourcearn: !sub
        - "arn:aws:execute-api:${aws::region}:${aws::accountid}:${apiid}/authorizers/${authorizerid}"
        - apiid:
            !ref apigatewayrestapi
          authorizerid:
            !ref apigatewayauthorizer

outputs:
  rootresourceid:
    value: !getatt apigatewayrestapi.rootresourceid
  authorizerid:
    value: !getatt apigatewayauthorizer.authorizerid
