我要评论自托管模式运行dapr
新建订阅webapi项目,取名为backend
项目增加docker支持，取消https支持
修改program.cs
var builder = webapplication.createbuilder(args);
builder.services.addcontrollers();
builder.services.addendpointsapiexplorer();
builder.services.addswaggergen();
var app = builder.build();
//订阅需要用到以下方法
app.usecloudevents();
app.mapsubscribehandler();
//if (app.environment.isdevelopment())
{
app.useswagger();
app.useswaggerui();
}
app.useauthorization();
app.mapcontrollers();
app.run();
修改weatherforecastcontroller.cs
using dapr;
using microsoft.aspnetcore.mvc;
namespace backend.controllers
{
[apicontroller]
[route("[controller]")]
public class weatherforecastcontroller : controllerbase
{
[httppost("testsub")]
[topic("pubsub", "deathstarstatus")]
public object testsub([frombody]string message)
{
console.writeline($"testsub deathstarstatus {message}");
return new { message = "testsub deathstarstatus" };
}
}
}
topic 就是确定接收的主题

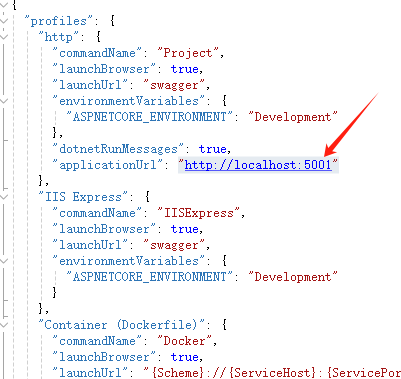

修改launchsettings.json
将applicationurl参数改为"http://localhost:5001"
在backend项目根目录下运行
dapr run --app-id backend --app-port 5001 dotnet run
新建发布事件webapi项目，取名为front
项目增加docker支持，取消https支持

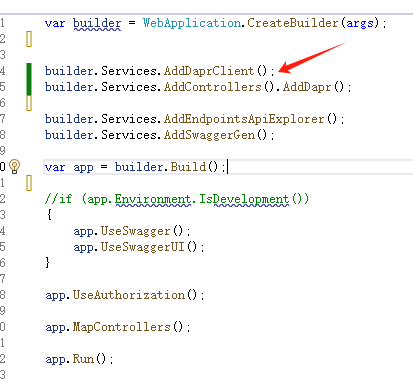

修改program.cs，增加dapr支持
修改weatherforecastcontroller.cs
using dapr.client;
using microsoft.aspnetcore.mvc;
namespace front.controllers
{
[apicontroller]
[route("[controller]")]
public class weatherforecastcontroller : controllerbase
{
private readonly daprclient _daprclient;
public weatherforecastcontroller(daprclient daprclient)
{
_daprclient = daprclient;
}
[httppost("testpub")]
public async task testpub([frombody]string msg)
{
try
{
await _daprclient.publisheventasync<string>("pubsub", "deathstarstatus", msg);
}
catch (exception ex)
{
console.writeline(ex.tostring());
}
}
}
}
_daprclient.publisheventasync(“pubsub”, “deathstarstatus”, msg); 此方法就是发布订阅

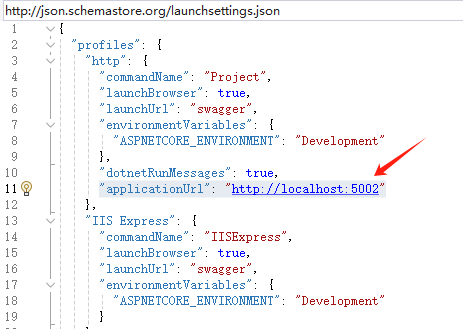

修改launchsettings.json文件，将"applicationurl"改为 “http://localhost:5002”
在front项目根目录运行
dapr run --app-id front --app-port 5002 dotnet run
命令行发布订阅
dapr publish --publish-app-id front --pubsub pubsub --topic deathstarstatus --data "hello"

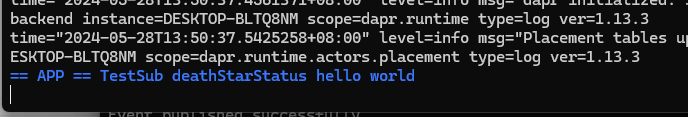

backend控制台会显示下面消息
网页发布订阅

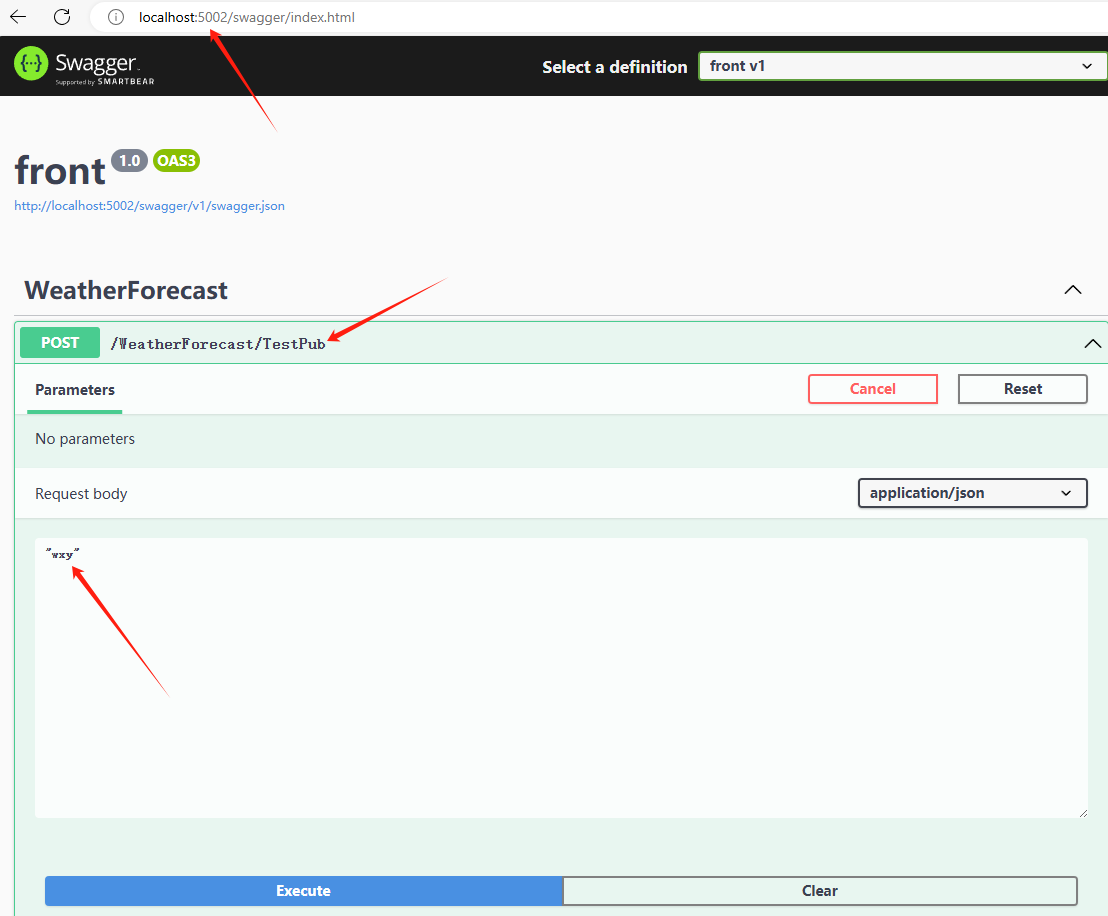

访问front网站，swagger ui

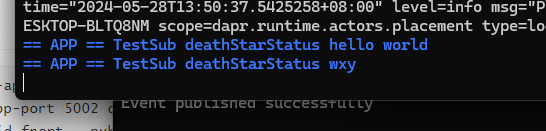

运行testpub后，backend项目控制台会显示接受到订阅消息
k8s模式运行dapr
#初始化dapr集群
dapr uninstall --all
docker rm -f backend front

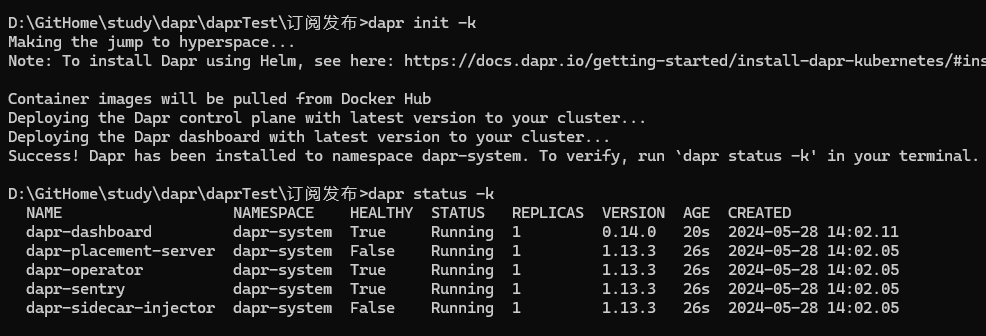

dapr init -k
构建docker镜像
docker build -t daprbackend:v2 -f backend/dockerfile .
docker build -t daprfrontend:v2 -f front/dockerfile .
运行k8s项目
kubectl apply -f k8s/dapr-backend.yaml
kubectl apply -f k8s/dapr-front.yaml
dapr-backend.yaml
kind: deployment
apiversion: apps/v1
metadata:
name: dapr-deploy-backend
labels:
service: backend
spec:
replicas: 1
selector:
matchlabels:
service: backend
template:
metadata:
labels:
service: backend
annotations:
dapr.io/enabled: "true"
dapr.io/app-id: "backend" #这里要注意app-id要与front调用的名称要一致
dapr.io/app-port: "8080"
#dapr.io/config: "dapr-config"
spec:
containers:
- name: daprbackend
image: daprbackend:v2
imagepullpolicy: never
ports:
- name: http
containerport: 8080
protocol: tcp
---
apiversion: v1
kind: service
metadata:
name: daprbackend
labels:
service: backend
spec:
type: nodeport
ports:
- port: 80
targetport: 8080
nodeport: 30003
protocol: tcp
name: http
- port: 50001
targetport: 50001
nodeport: 30042
protocol: tcp
name: dapr-grpc
selector:
service: backend
dapr-front.yaml
kind: deployment
apiversion: apps/v1
metadata:
name: dapr-deploy-front
labels:
service: front
spec:
replicas: 1
selector:
matchlabels:
service: front
template:
metadata:
labels:
service: front
annotations:
dapr.io/enabled: "true"
dapr.io/app-id: "front"
dapr.io/app-port: "8080"
#dapr.io/config: "dapr-config"
spec:
containers:
- name: daprfrontend
image: daprfrontend:v2
imagepullpolicy: never
ports:
- name: http
containerport: 8080
protocol: tcp
---
apiversion: v1
kind: service
metadata:
name: daprfrontend
labels:
service: front
spec:
type: nodeport
ports:
- port: 80
targetport: 8080
nodeport: 30004
protocol: tcp
name: http
- port: 50001
targetport: 50001
nodeport: 30041
protocol: tcp
name: dapr-grpc
selector:
service: front
运行发布端项目
访问http://127.0.0.1:30004/swagger/index.html
运行testpub，
终端会显示以下错误，原因是pubsub组件没运行
运行pubsub组件
kubectl apply -f redis.yaml
kubectl apply -f pubsub.yaml
redis.yaml文件
apiversion: apps/v1
kind: deployment
metadata:
labels:
app: redis
version: v1
name: redis
spec:
replicas: 1
selector:
matchlabels:
app: redis
strategy:
type: recreate
template:
metadata:
labels:
app: redis
spec:
containers:
- name: redis
image: redis:6-alpine
imagepullpolicy: ifnotpresent
ports:
- containerport: 6379
---
apiversion: v1
kind: service
metadata:
labels:
app: redis
name: redis
spec:
type: nodeport
ports:
- name: "data"
port: 6379
targetport: 6379
selector:
app: redis
pubsub.yaml文件
apiversion: dapr.io/v1alpha1
kind: component
metadata:
name: pubsub
spec:
type: pubsub.redis
version: v1
metadata:
- name: redishost
value: redis:6379
- name: redispassword
value: ""
重新运行发布于订阅程序
kubectl delete -f k8s/dapr-front.yaml
kubectl delete -f k8s/dapr-backend.yaml
kubectl apply -f k8s/dapr-front.yaml
kubectl apply -f k8s/dapr-backend.yaml
验证实验成功

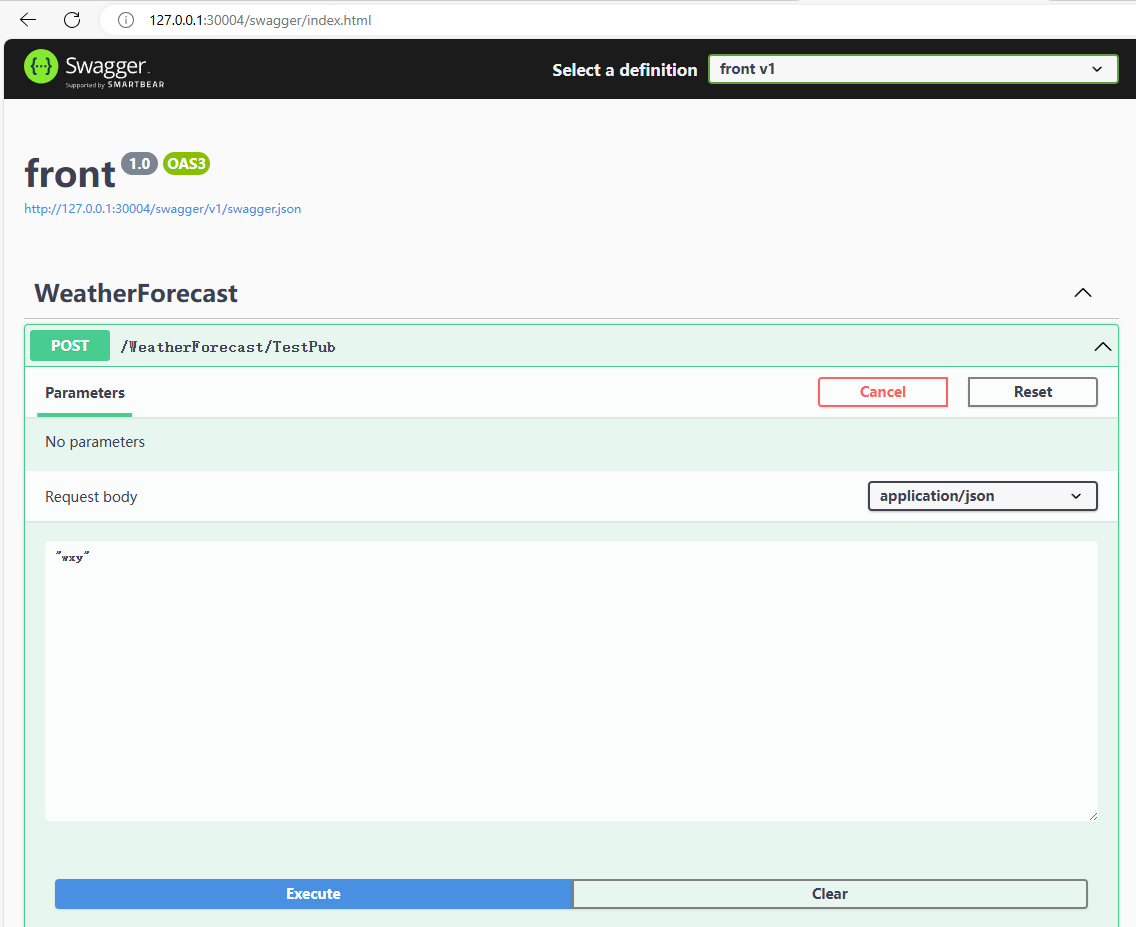

访问 http://127.0.0.1:30004/swagger/index.html

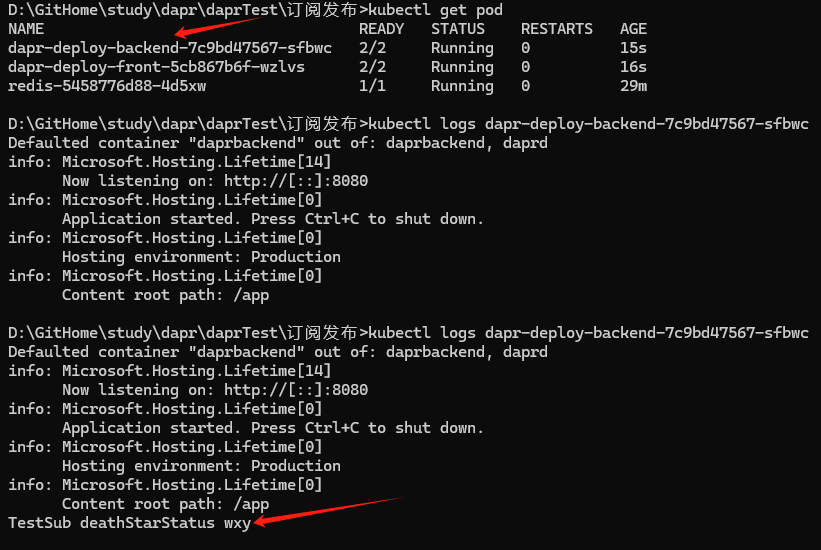

查看订阅端的日志，收到信息“wxy"，就表示实验成功
常用命令
dapr run --app-id backend --app-port 5001 dotnet run
dapr run --app-id front --app-port 5002 dotnet run
dapr publish --publish-app-id front --pubsub pubsub --topic deathstarstatus --data "hello"
::kubectl delete all --all
::dapr uninstall --all
dapr uninstall --all
docker rm -f backend front
dapr init -k
docker build -t daprbackend -f backend/dockerfile .
docker build -t daprfrontend -f front/dockerfile .
dapr uninstall --all
dapr init -k
kubectl apply -f k8s/dapr-backend.yaml
kubectl apply -f k8s/dapr-front.yaml
pause
参考文章
文章源码下载
作者
吴晓阳，微信号:shiningrise，email:shiningrise@qq.com
