本文为了记录自己在实习的过程中，学习到的有关occt开源项目的搭建工作，旨在教会小白从0开始下载开源项目及环境搭配，以及如何添加自定义测试内容，最终结果展示如下：
1、项目所需工具下载
本项目共需要使用四个工具，分别是occt开源代码，qt环境，cmake构建工具，vs2019，版本也会介绍。我会把cmake、vs2019、第三方库放到github链接里https://github.com/shadow0fiend/occt-project，occt源码以及qt环境需要自己下载
其中下载链接如下：
occt（7.8或7.6或7.5皆可）：download - open cascade technology
第三方库及vs2019：github - shadow0fiend/occt-project: 构建occt项目
qt工具（5.14.2）：index of /archive/qt
cmake（3.29.3）：download cmake
其中安装过程如下：

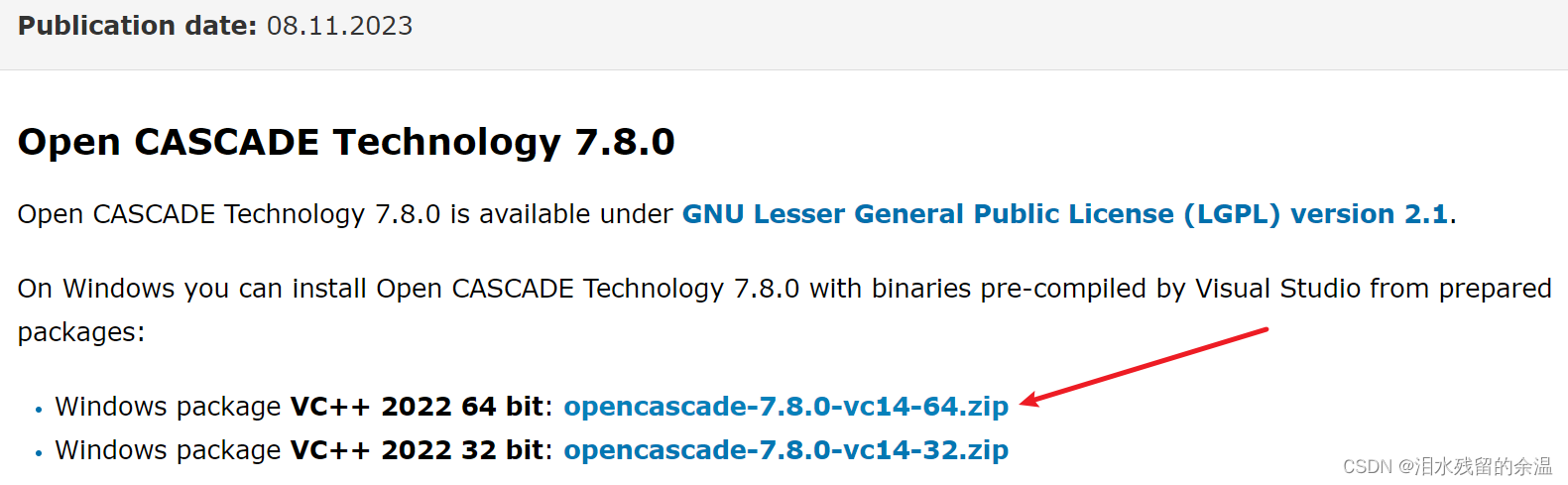

occt：下载64位的压缩包，解压到本地即可。
qt：对于新手，建议在勾选下载内容的时候全部选上（简单粗暴，不会缺少东西）
详情下载过程请参考链接：qt5.14.2安装、配置及测试（win10）-csdn博客
cmake：无脑下一步即可
详情下载过程请参考链接：windows下cmake安装步骤详解（图文）_windows终端安装cmake-csdn博客

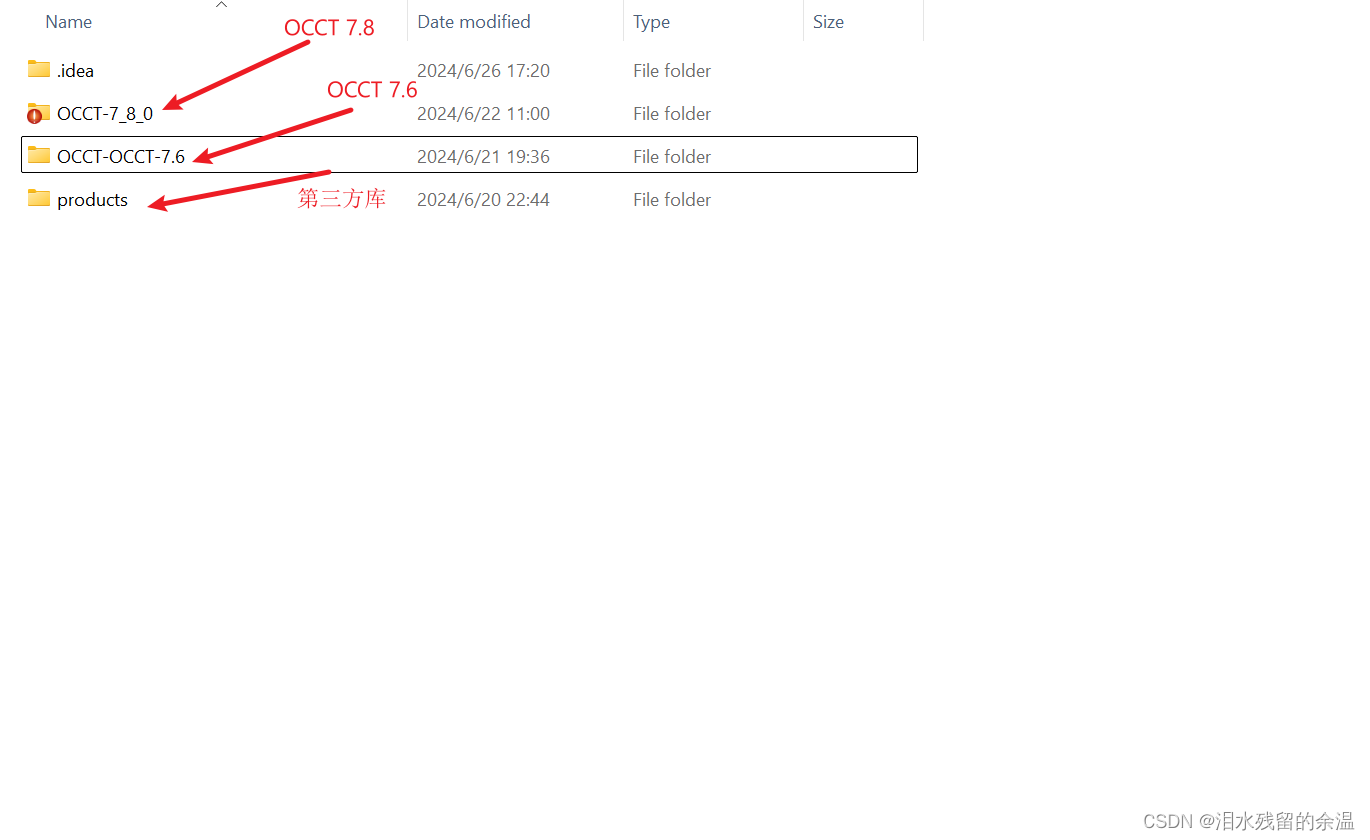

安装完以后，本地应该有以下几个内容，注意检查cmake-gui、occt源码、编译用的三方库（下图product）、qt环境、vs2019
2、使用cmake编译源码

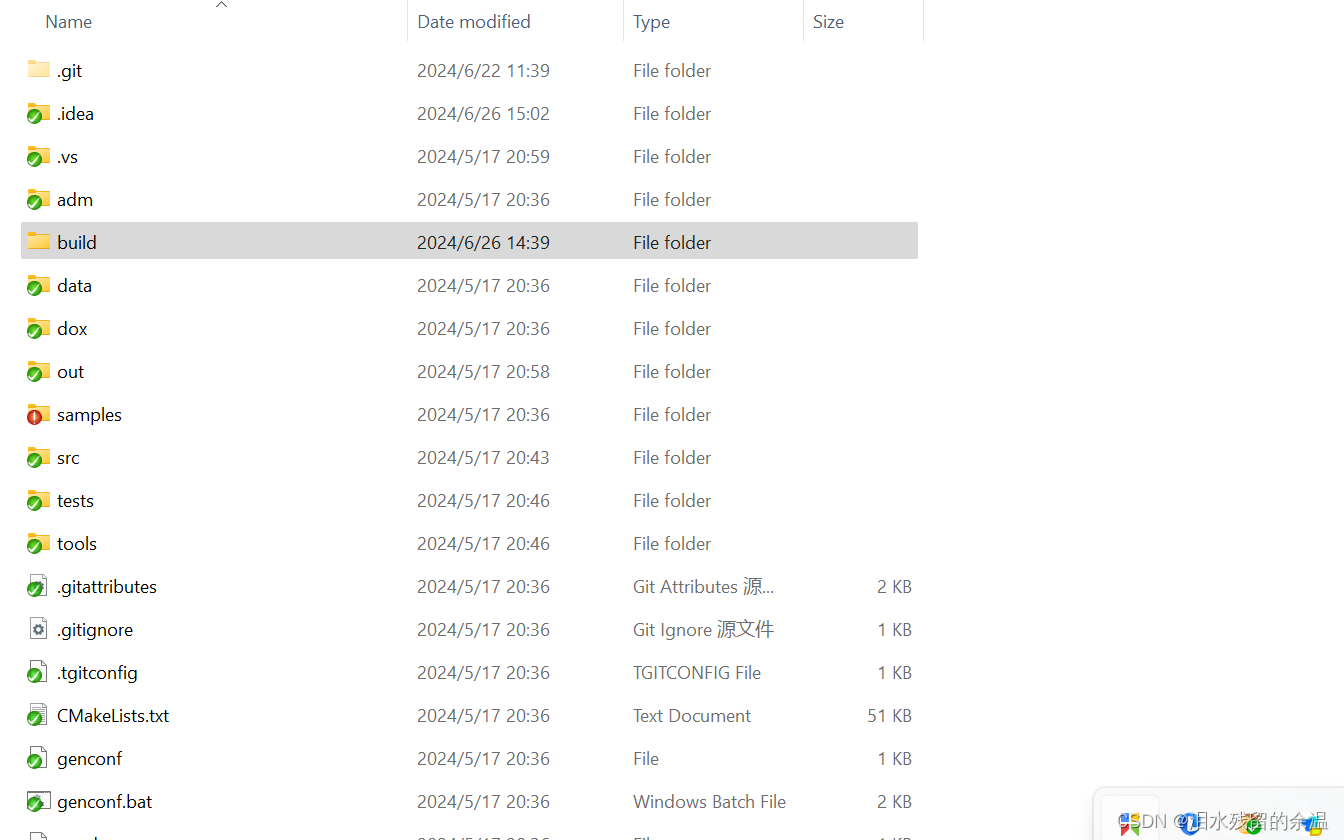

步骤1：在occt源码中建立一个build文件夹，用于存放编译后的文件

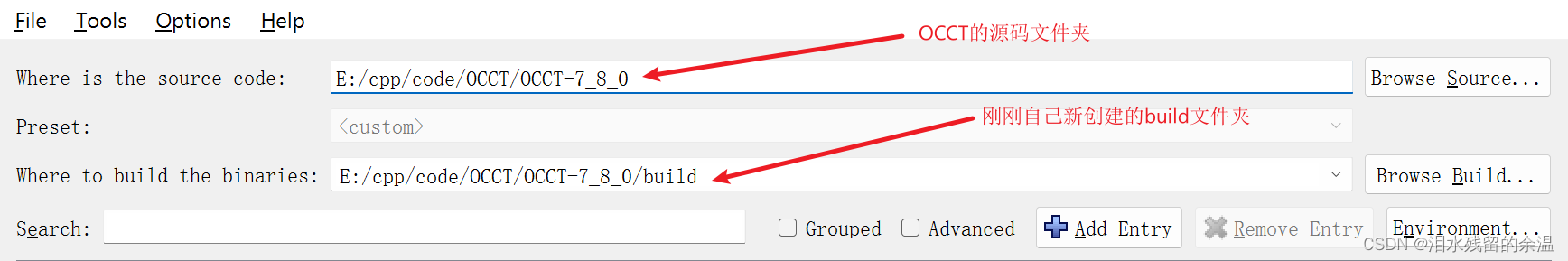

步骤2：打开cmake-gui，第一个位置填入occt源码文件夹的路径，第二个位置填入刚才创建好的build文件夹的路径

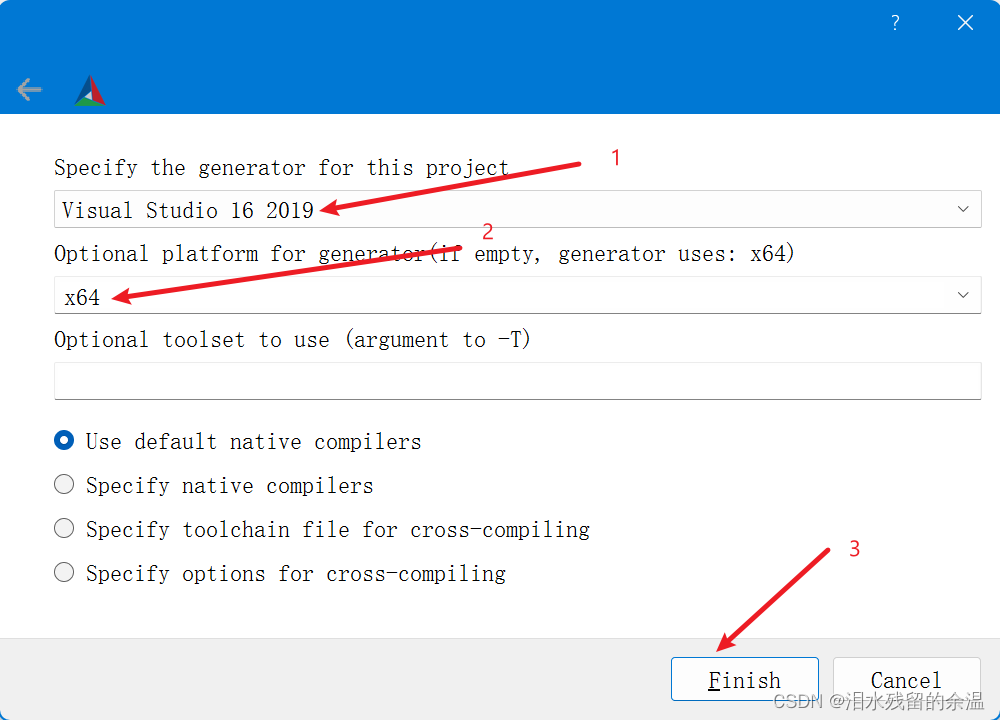

步骤3：点击configure，选择配置vs2019，x64，点击finish

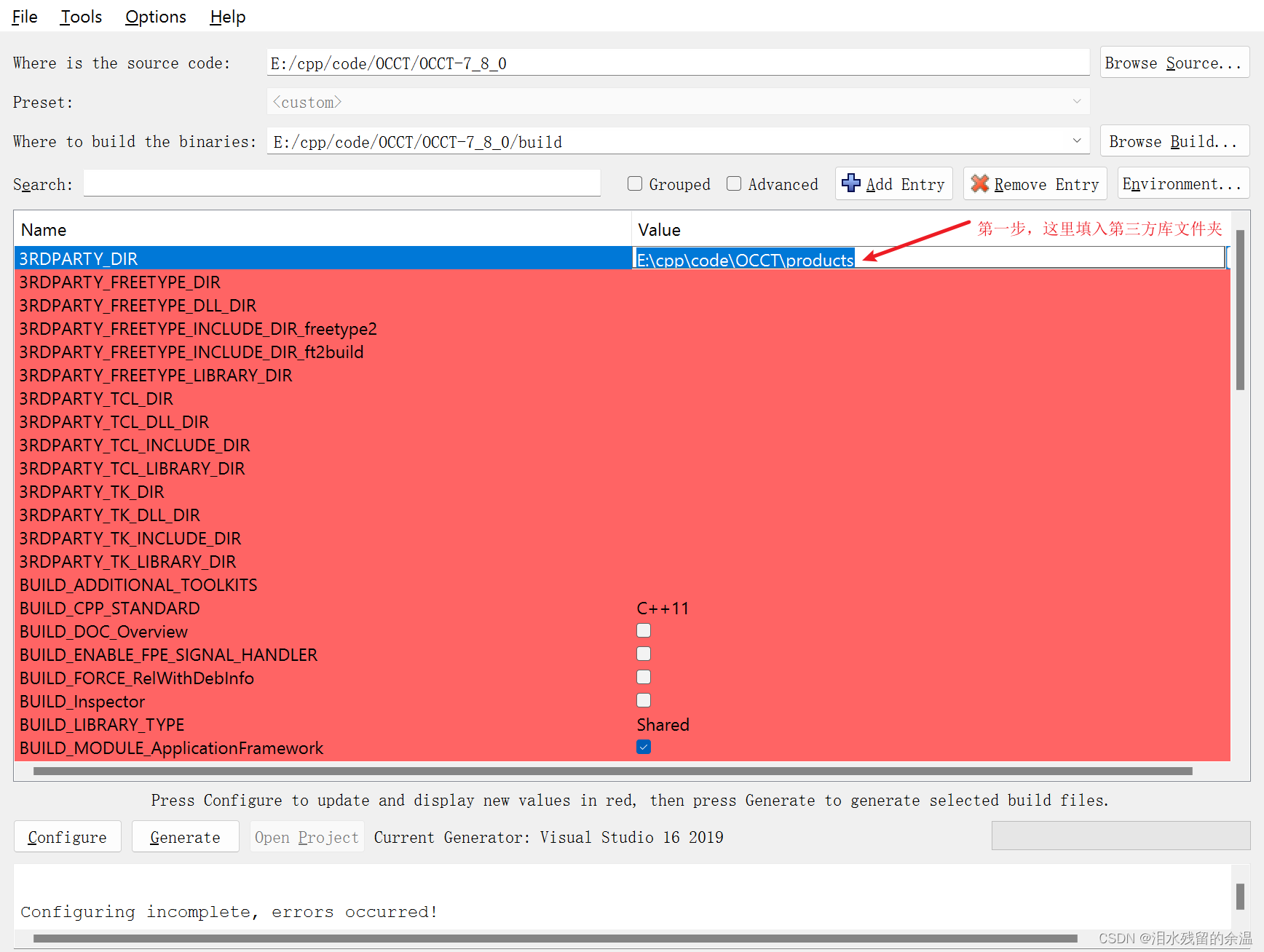

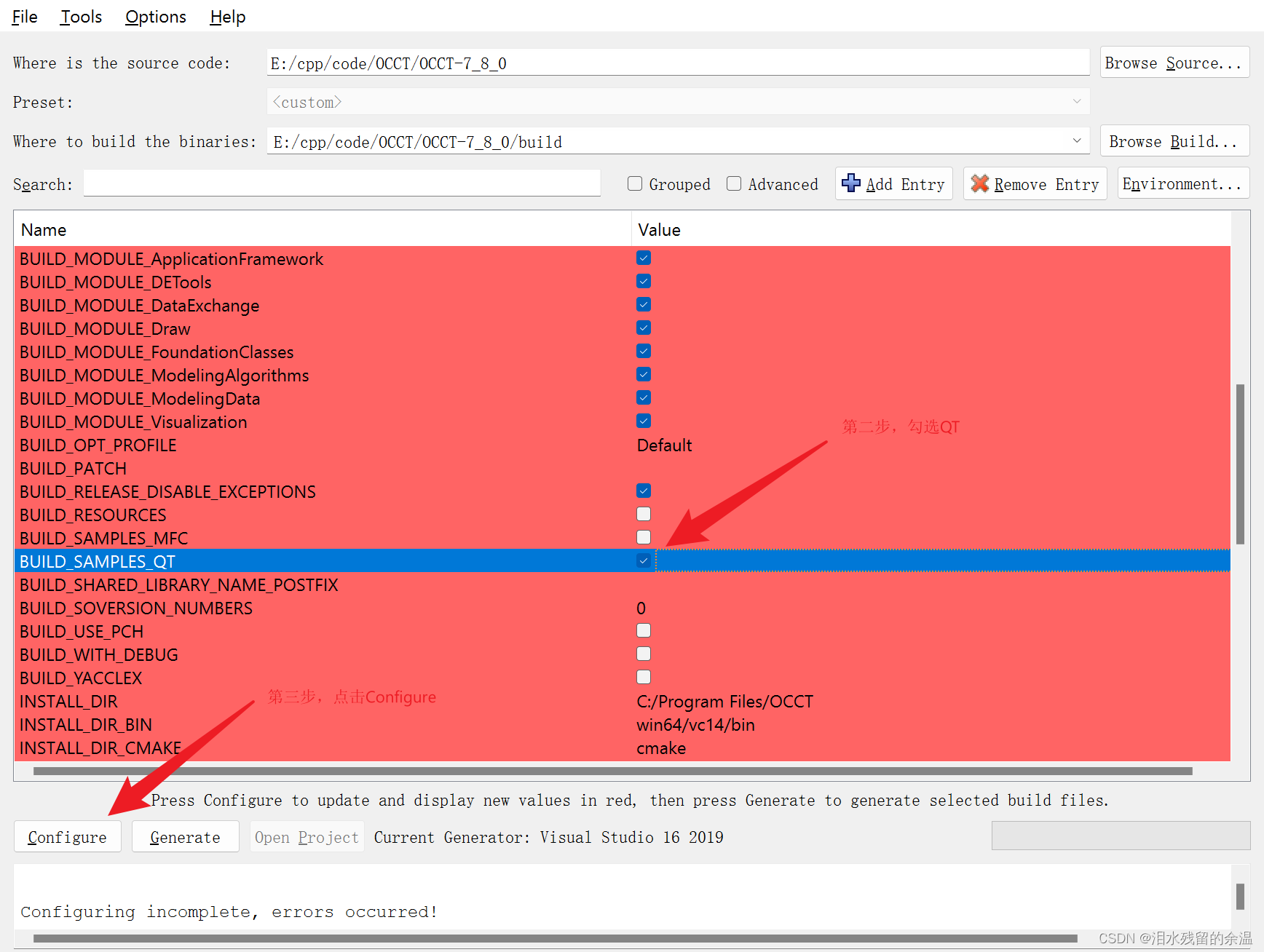

步骤4：
第一步，在3rdparty_dir这一行，填入第三方库文件的路径，也就是product的路径。
第二步，然后勾选上build_samples_qt这一行。
第三步点击config。

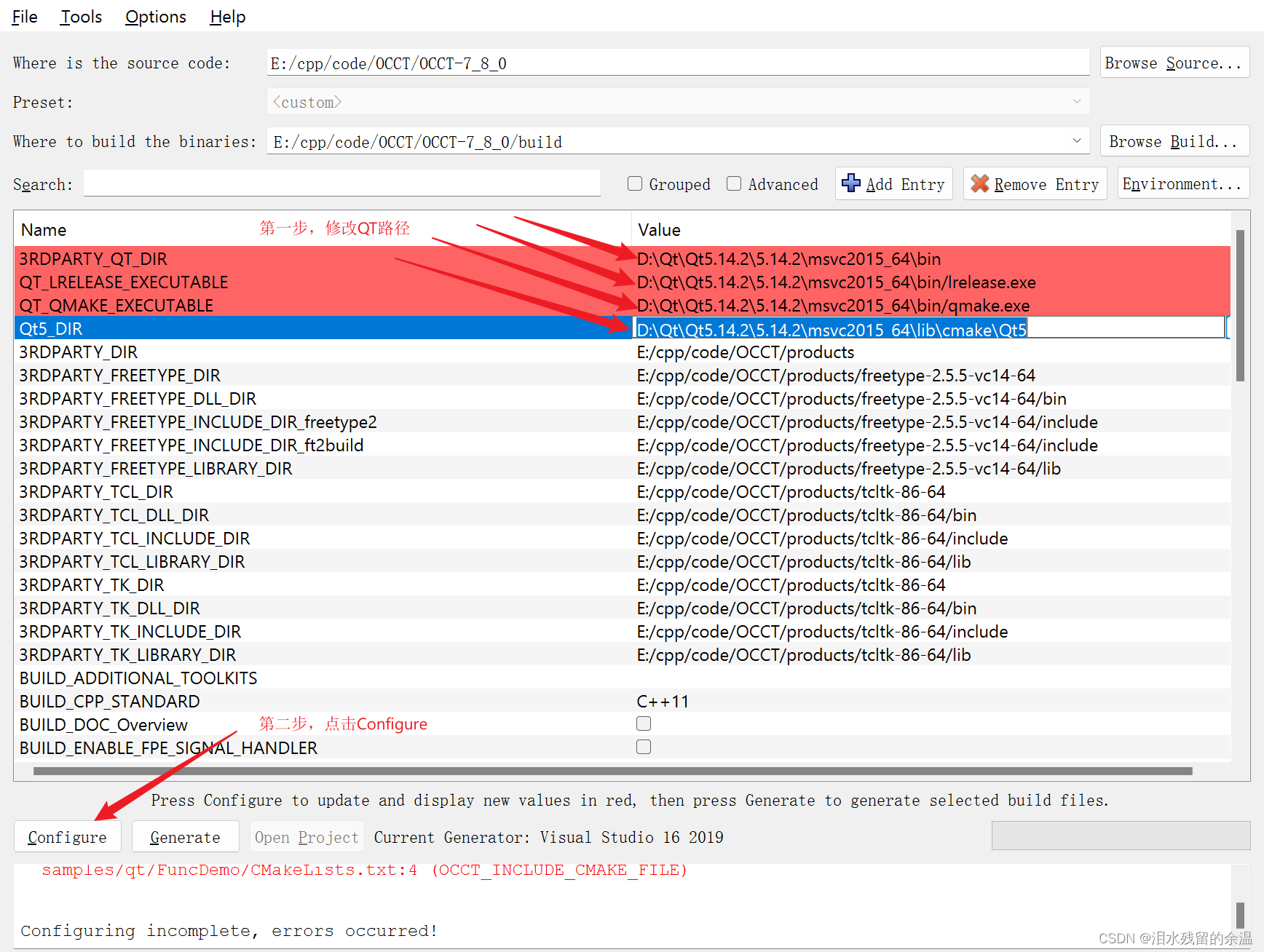

步骤5：
第一步，修改qt路径，这个qt5.14.2是安装完qt以后的文件夹，自行在里面找对应的文件（如果没有找到，应该是qt安装下载的时候，有的选项没有勾上）
第二步，改完以后点击config，点击generate，点击open project

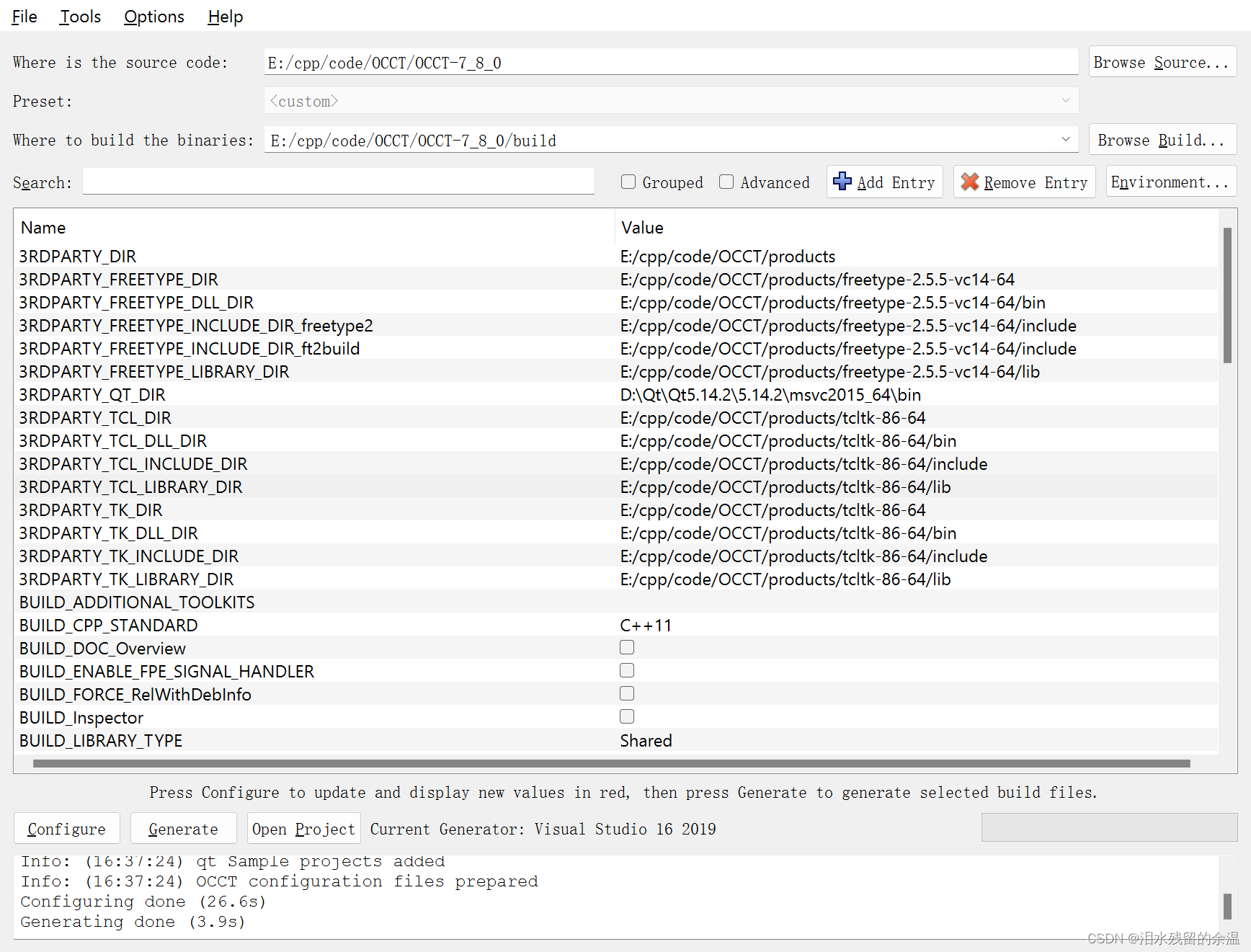

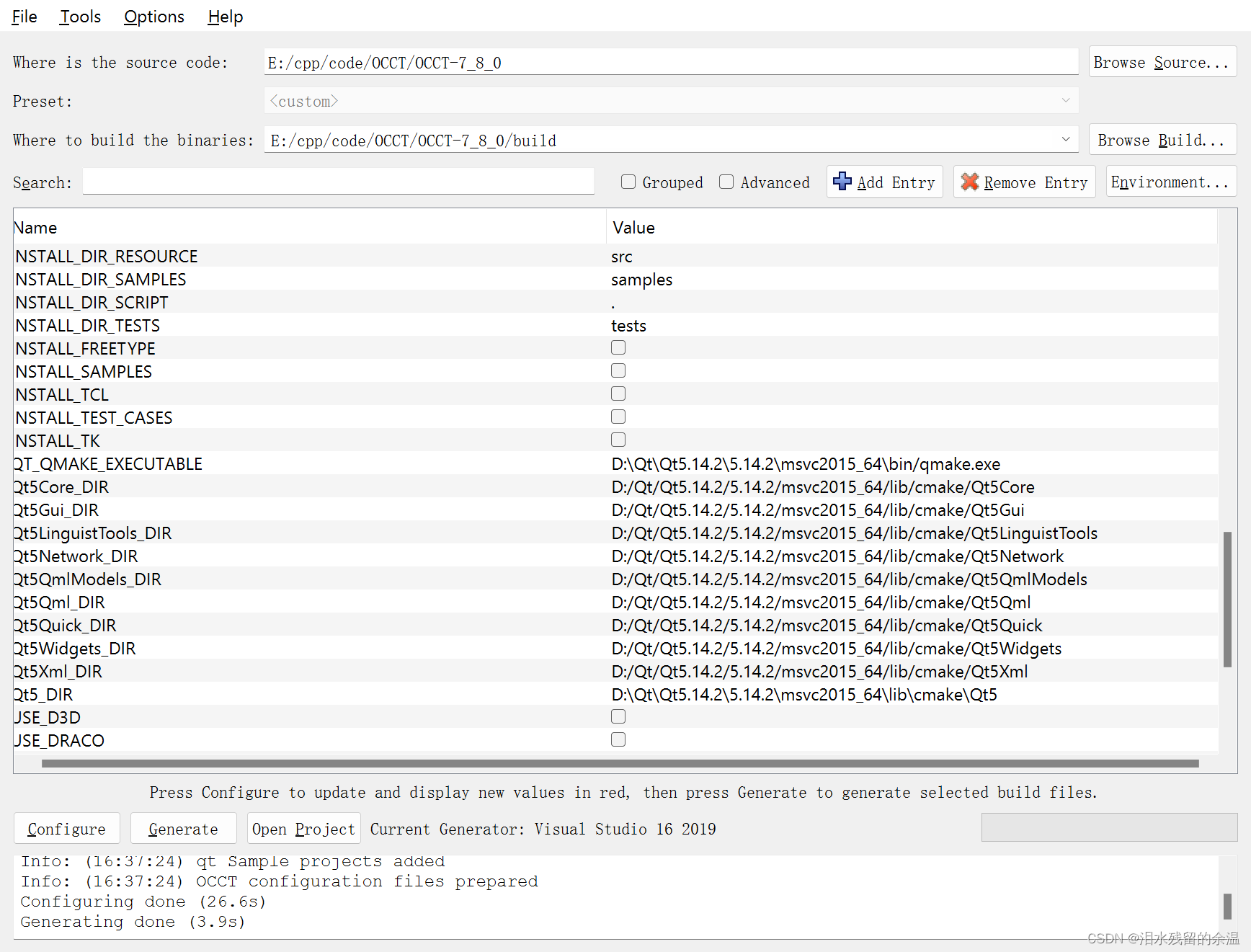

步骤7：cmake配置完毕，最终配置结果如下所示
3、配置项目运行环境

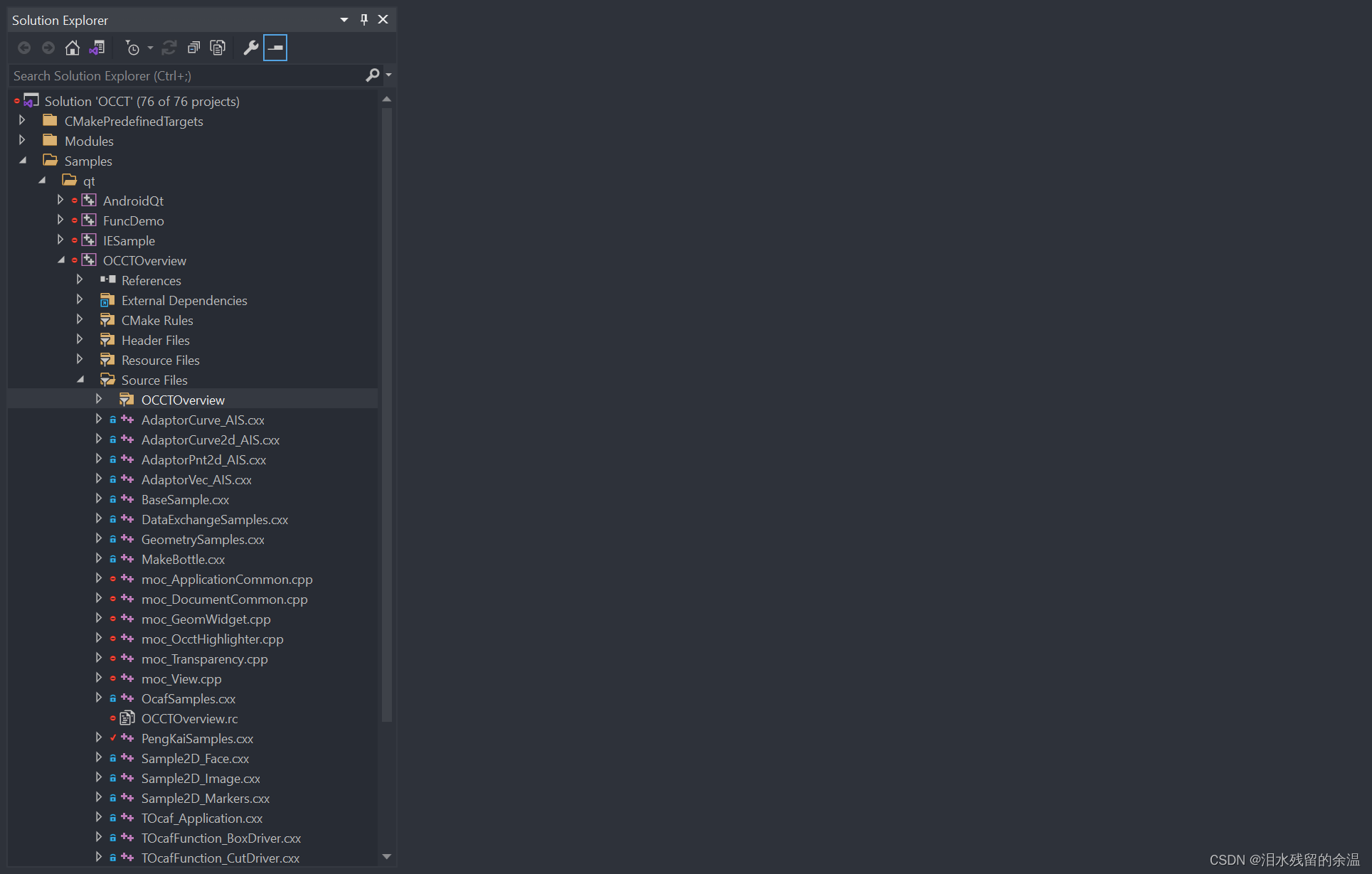

生成的项目如下所示（如果没有勾选qt，那么编译完成以后的项目是不包含samples文件的，只有非常简陋的可视化界面）：
步骤1：鼠标右击occtoverview，设置occtoverview为启动项。
步骤2：鼠标右击occtoverview，依次找到属性、debugging、environment，将以下内容粘贴进去，这是配置项目环境变量的。注意：需要将路径修改为自己电脑的路径。
配置解释：
casroot需要配置occt源码文件夹
csf_occt都是occt源码文件夹里面的文件
最后一行是配置qt的bin，qt的platforms，第三方库文件freetype，freeimage
casroot=e:\cpp\code\occt\occt-7_8_0
csf_fpe=0
csf_occtresourcepath=e:\cpp\code\occt\occt-7_8_0/src
csf_occtdatapath=e:\cpp\code\occt\occt-7_8_0/data
csf_occtsamplespath=e:\cpp\code\occt\occt-7_8_0/samples
csf_occttestspath=e:\cpp\code\occt\occt-7_8_0/tests
csf_occtdocpath=e:\cpp\code\occt\occt-7_8_0/doc
qt_debug_plugins=1
path=%path%;d:\qt\qt5.14.2\5.14.2\msvc2015_64\bin;d:\qt\qt5.14.2\5.14.2\msvc2015_64\plugins\platforms;e:\cpp\code\occt\products\freetype-2.5.5-vc14-64\bin;e:\cpp\code\occt\products\freeimage-3.17.0-vc14-64\bin;步骤3：复制 d:\qt\qt5.14.2\5.14.2\msvc2015_64\plugins 路径下的platforms文件，粘贴到 e:\cpp\code\occt\occt-7_8_0\build\win64\vc14\bind （生成的build文件里）路径下，如果要在release下运行，则将其粘贴到 e:\cpp\code\occt\occt-7_8_0\build\win64\vc14\bin路径下。

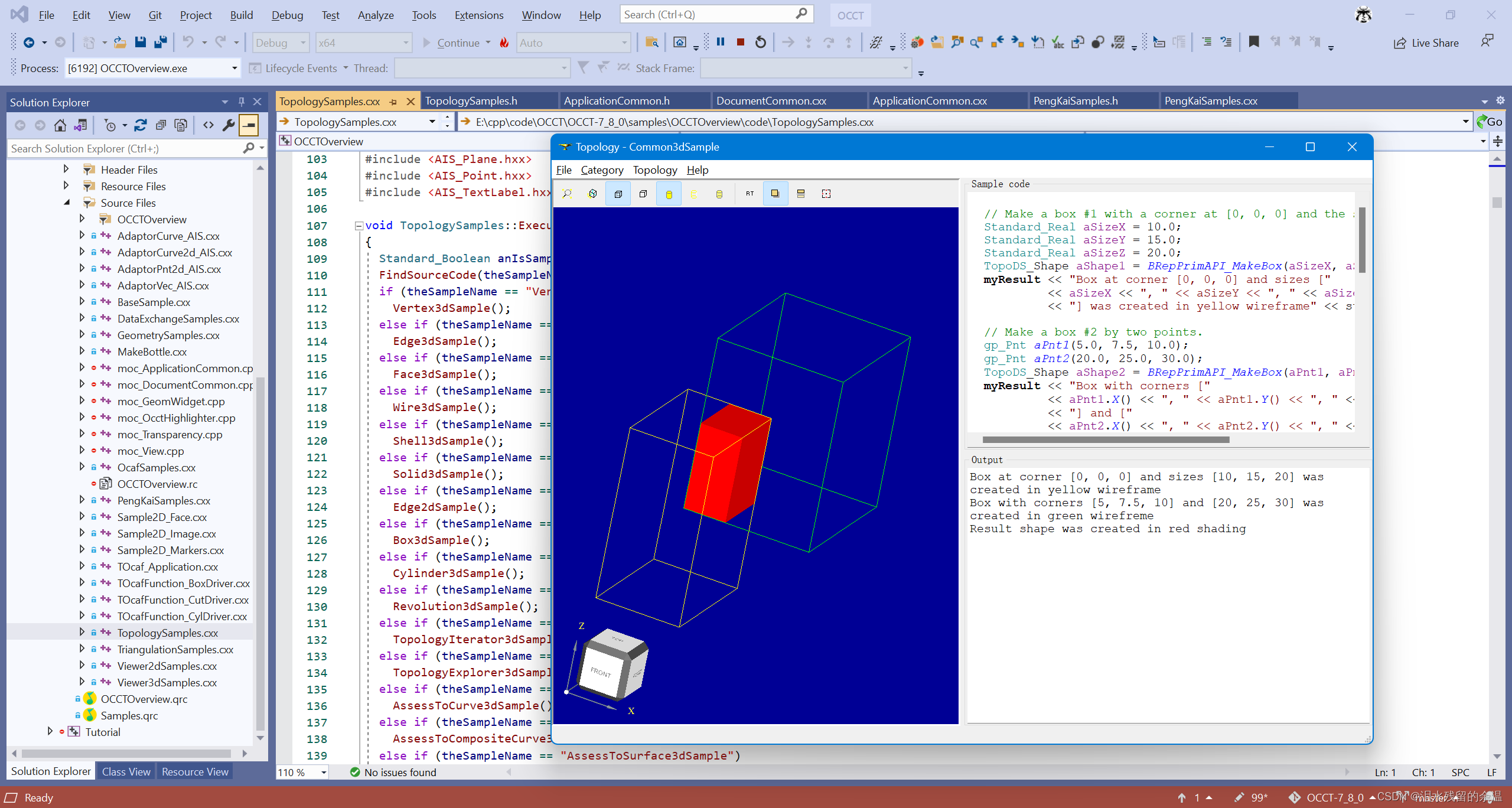

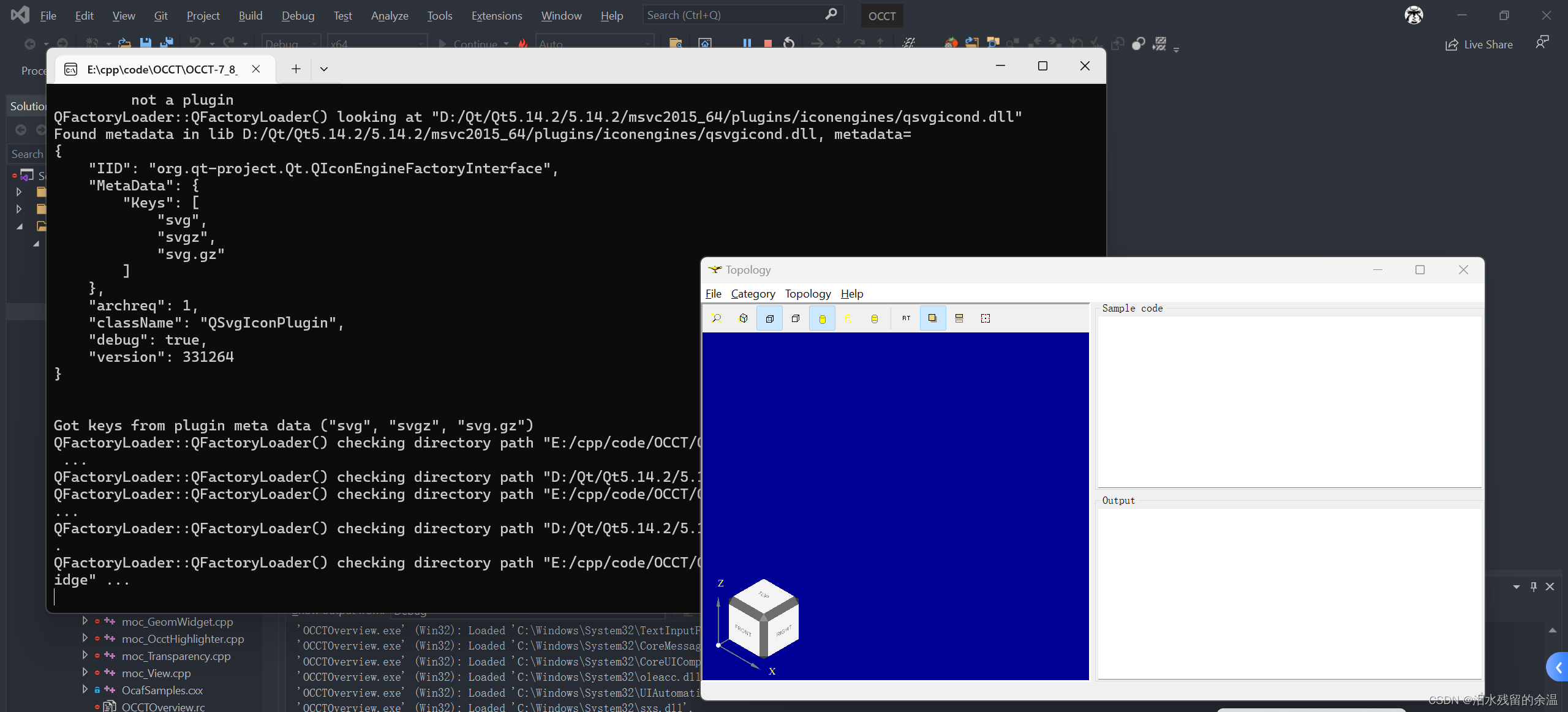

步骤4：编译运行即可完成。
4、如何自定义测试项目

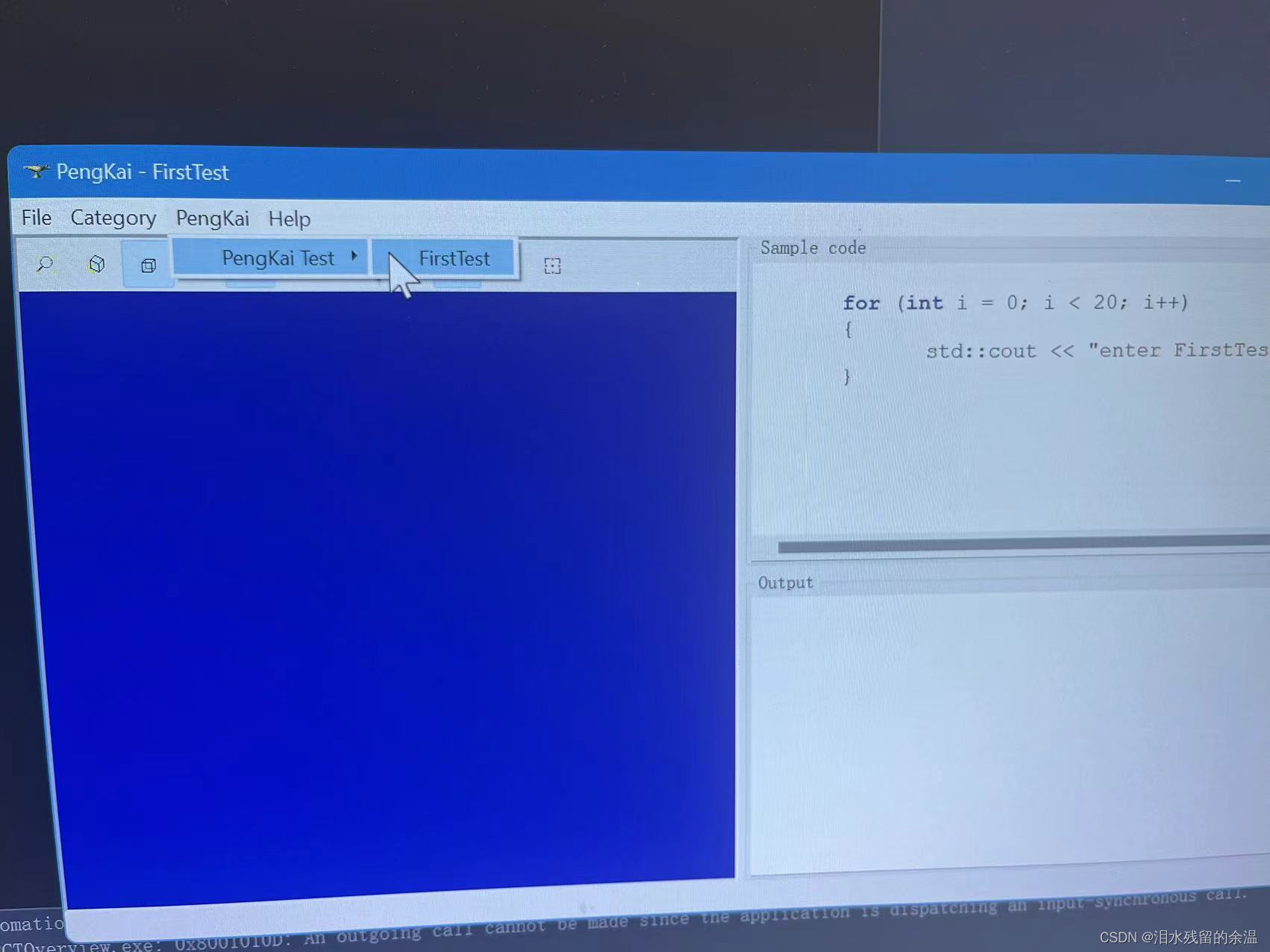

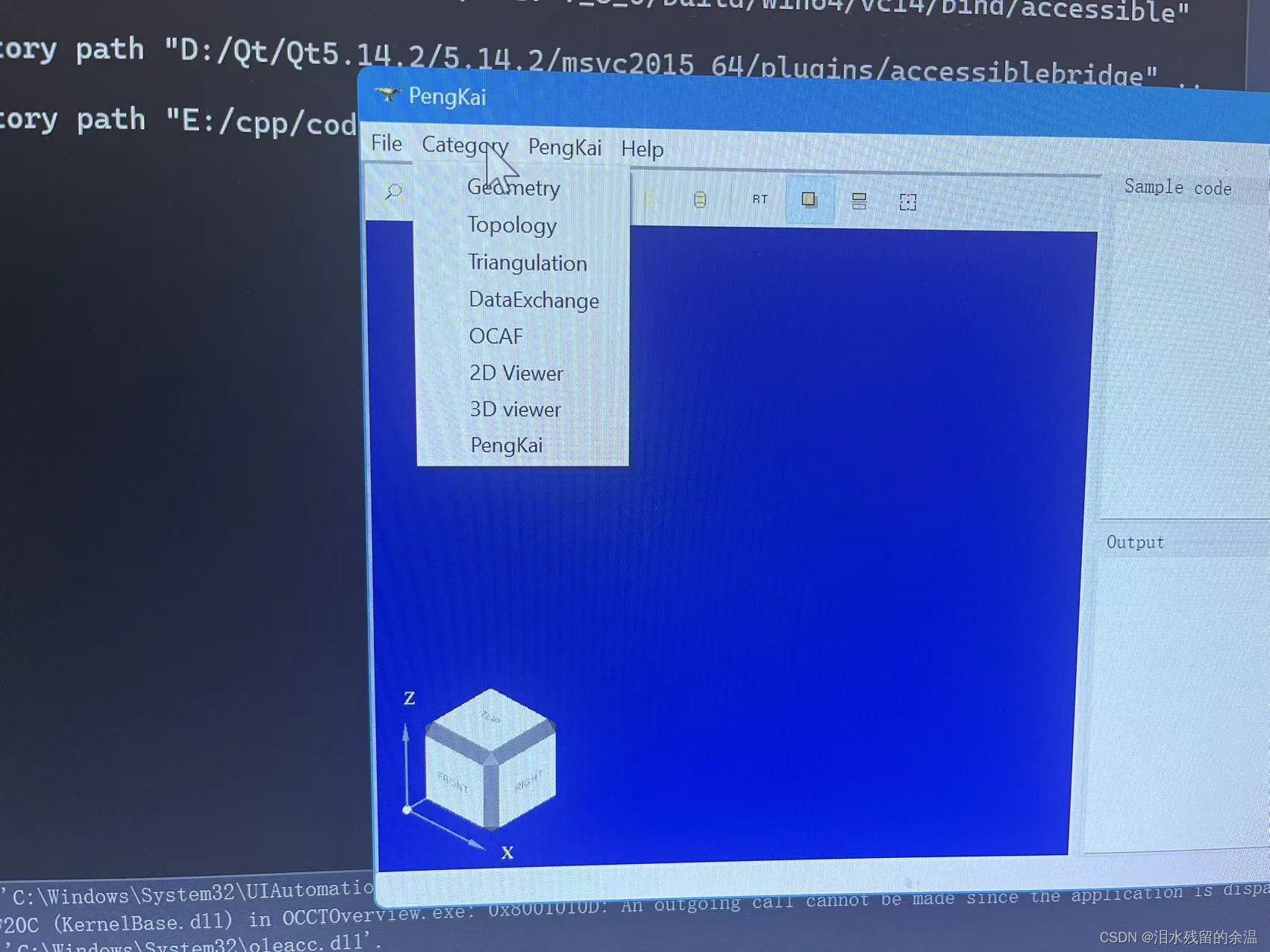

先看自己修改的结果，在qt窗口自己添加按钮，用于触发函数，然后再在被触发的函数里编写自己的测试代码，就可以完成自定义测试了。
具体来说，需要修改5个地方：

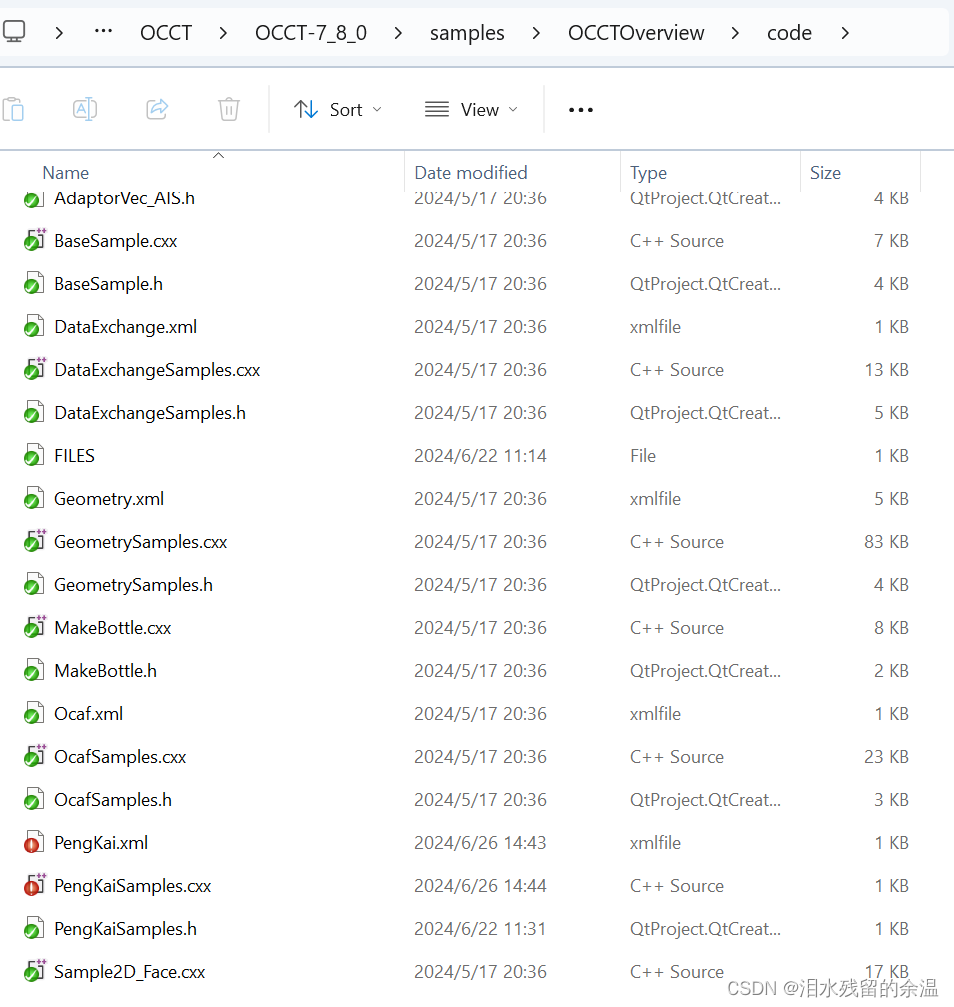

找到occt源码里的samples文件（注意，不是build里的samples），进去以后找到occtoverview，再找到code文件夹。我的路径是：e:\cpp\code\occt\occt-7_8_0\samples\occtoverview\code

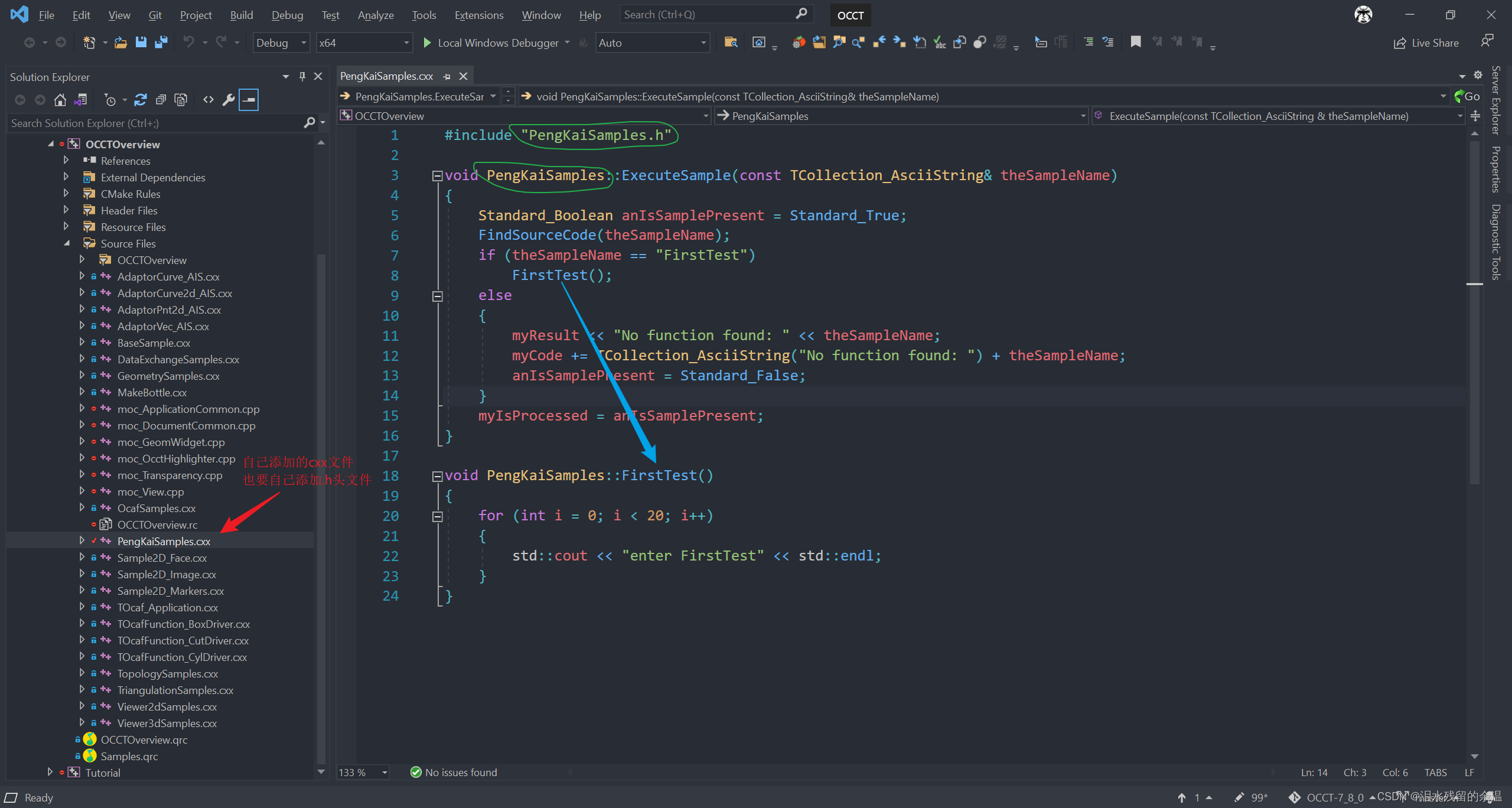

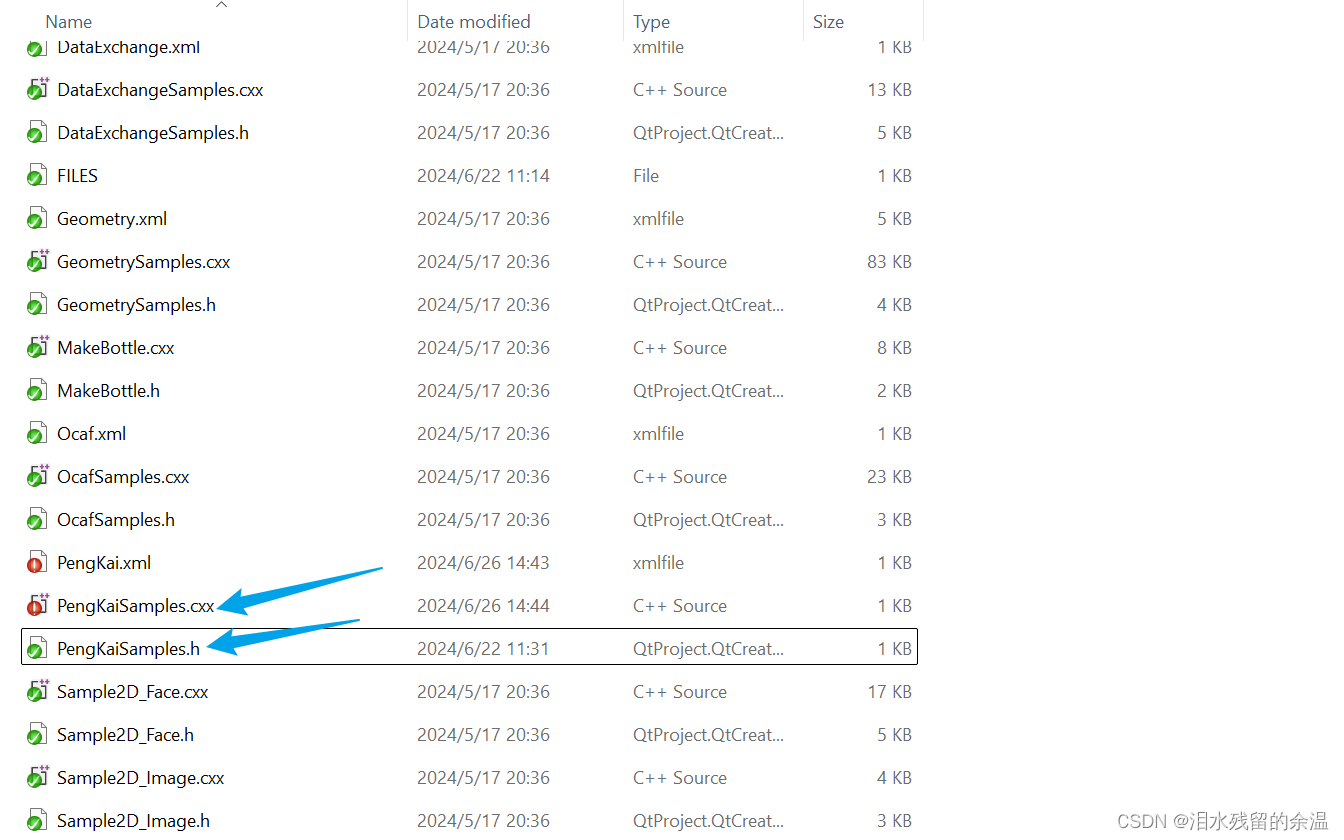

第一处修改：把自己写的cxx文件和.h文件放在这里（注意：直接在build里右键添加cxx文件是添加不到这里来的，因为那只是在build文件里添加了，而这是occt的源码文件，只能在这里添加以后，通过cmake编译进build才行）

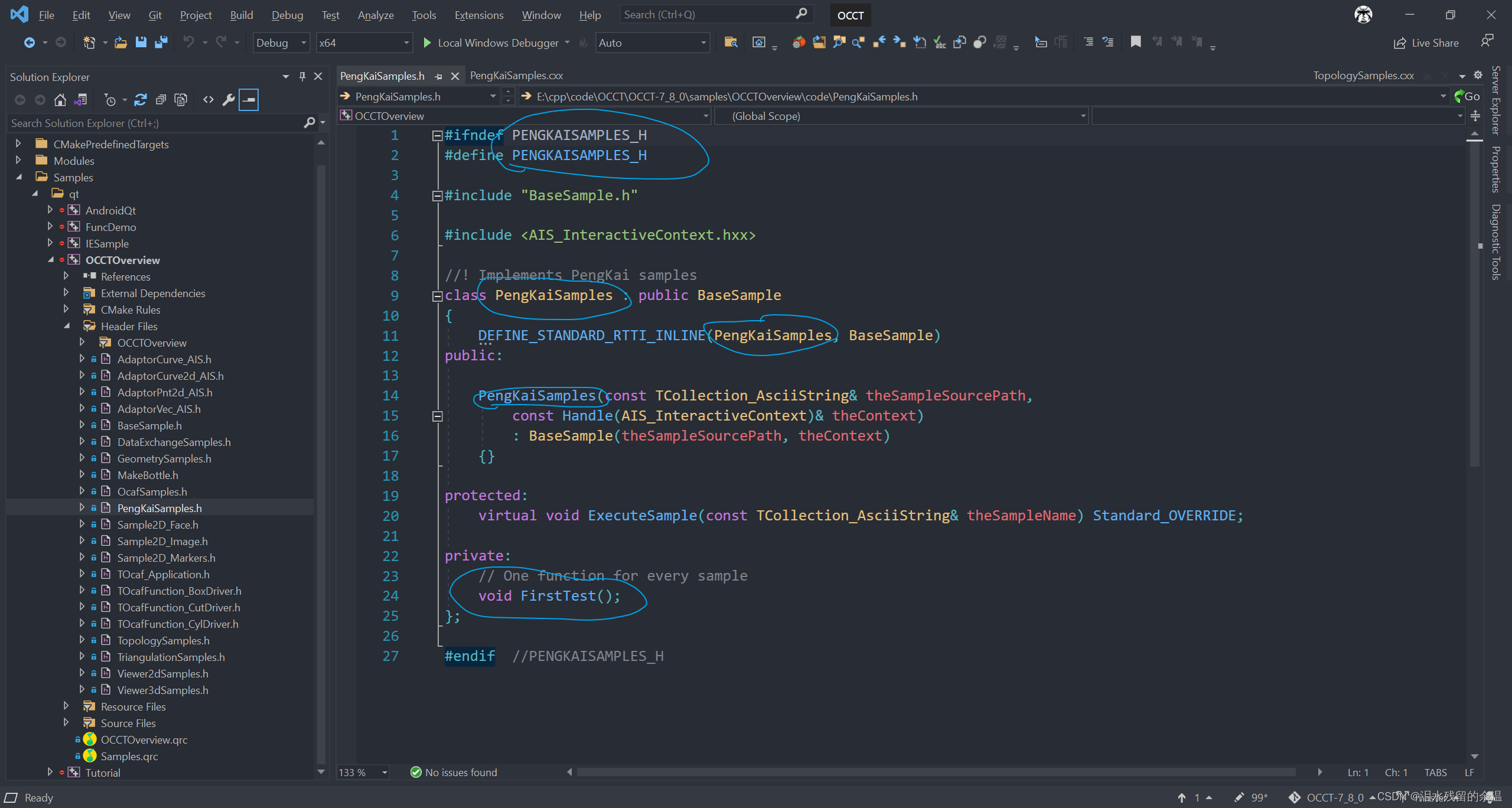

具体的cxx和.h文件的写法参考如下，可以仿照源码的 topologysamples.cxx文件的写法，看我的cxx和topologysamples.cxx不同的地方即可，按照对应位置改就行。这里我附上我的源码。
#include "pengkaisamples.h"
void pengkaisamples::executesample(const tcollection_asciistring& thesamplename)
{
standard_boolean anissamplepresent = standard_true;
findsourcecode(thesamplename);
if (thesamplename == "firsttest")
firsttest();
else
{
myresult << "no function found: " << thesamplename;
mycode += tcollection_asciistring("no function found: ") + thesamplename;
anissamplepresent = standard_false;
}
myisprocessed = anissamplepresent;
}
void pengkaisamples::firsttest()
{
for (int i = 0; i < 20; i++)
{
std::cout << "enter firsttest" << std::endl;
}
}#ifndef pengkaisamples_h
#define pengkaisamples_h
#include "basesample.h"
#include <ais_interactivecontext.hxx>
//! implements pengkai samples
class pengkaisamples : public basesample
{
define_standard_rtti_inline(pengkaisamples, basesample)
public:
pengkaisamples(const tcollection_asciistring& thesamplesourcepath,
const handle(ais_interactivecontext)& thecontext)
: basesample(thesamplesourcepath, thecontext)
{}
protected:
virtual void executesample(const tcollection_asciistring& thesamplename) standard_override;
private:
// one function for every sample
void firsttest();
};

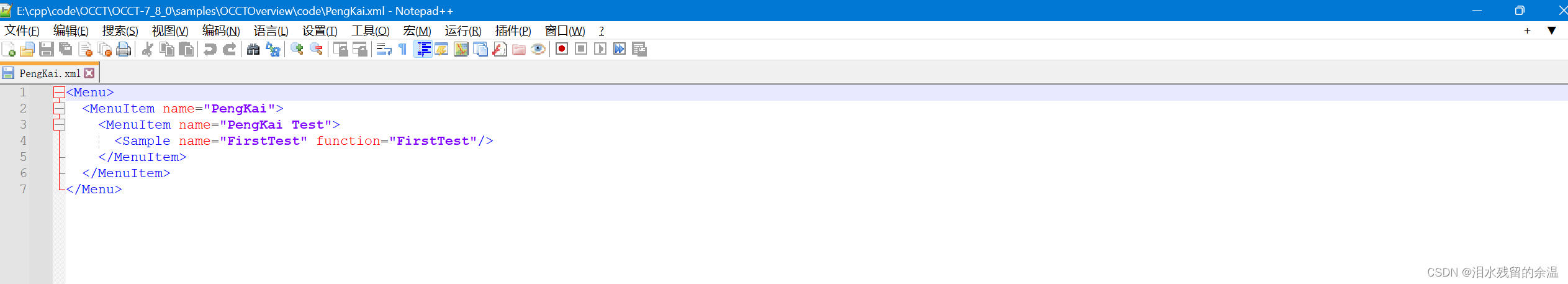

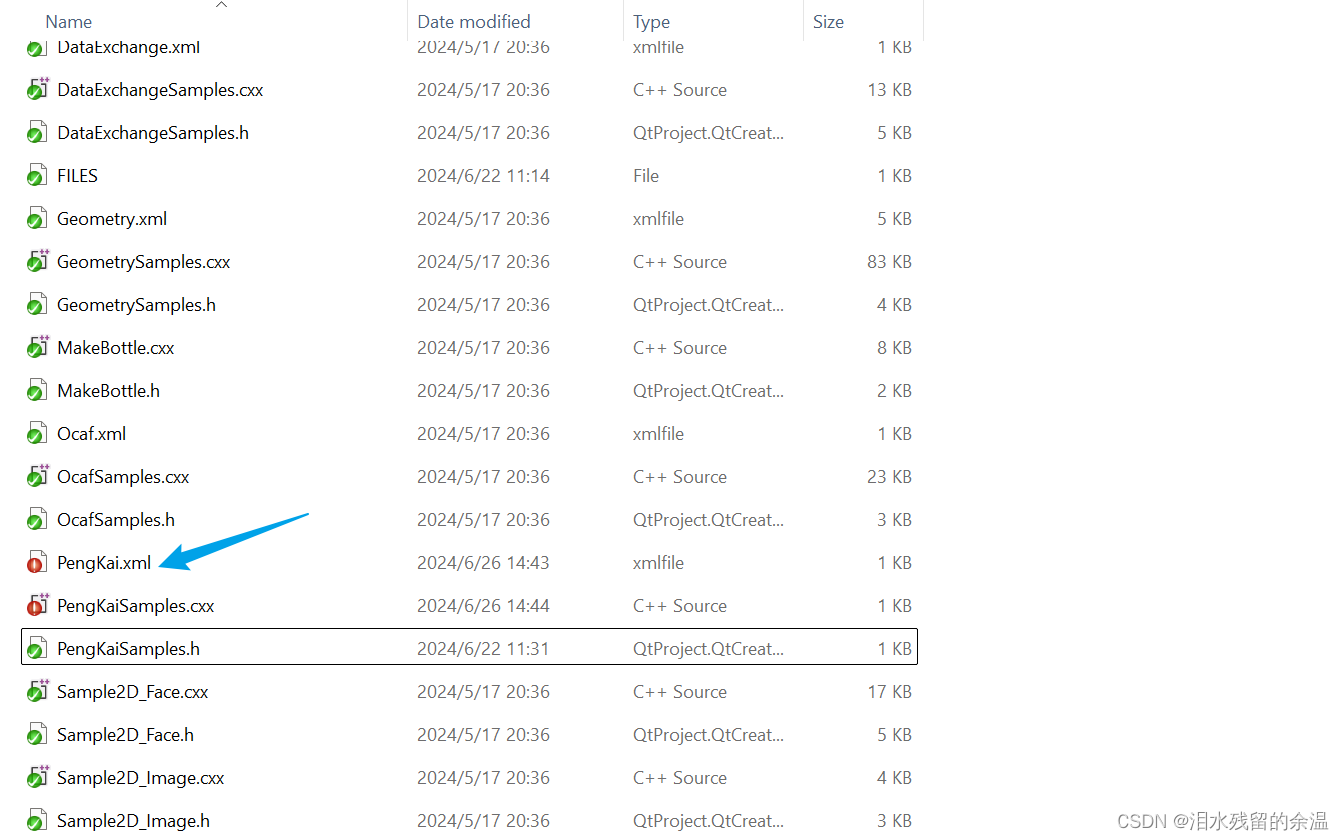

#endif //pengkaisamples_h第二处修改：添加xml文件
思路：仿照其他xml文件来写
<menu>
<menuitem name="pengkai">
<menuitem name="pengkai test">
<sample name="firsttest" function="firsttest"/>
</menuitem>
</menuitem>
</menu>第三处修改：

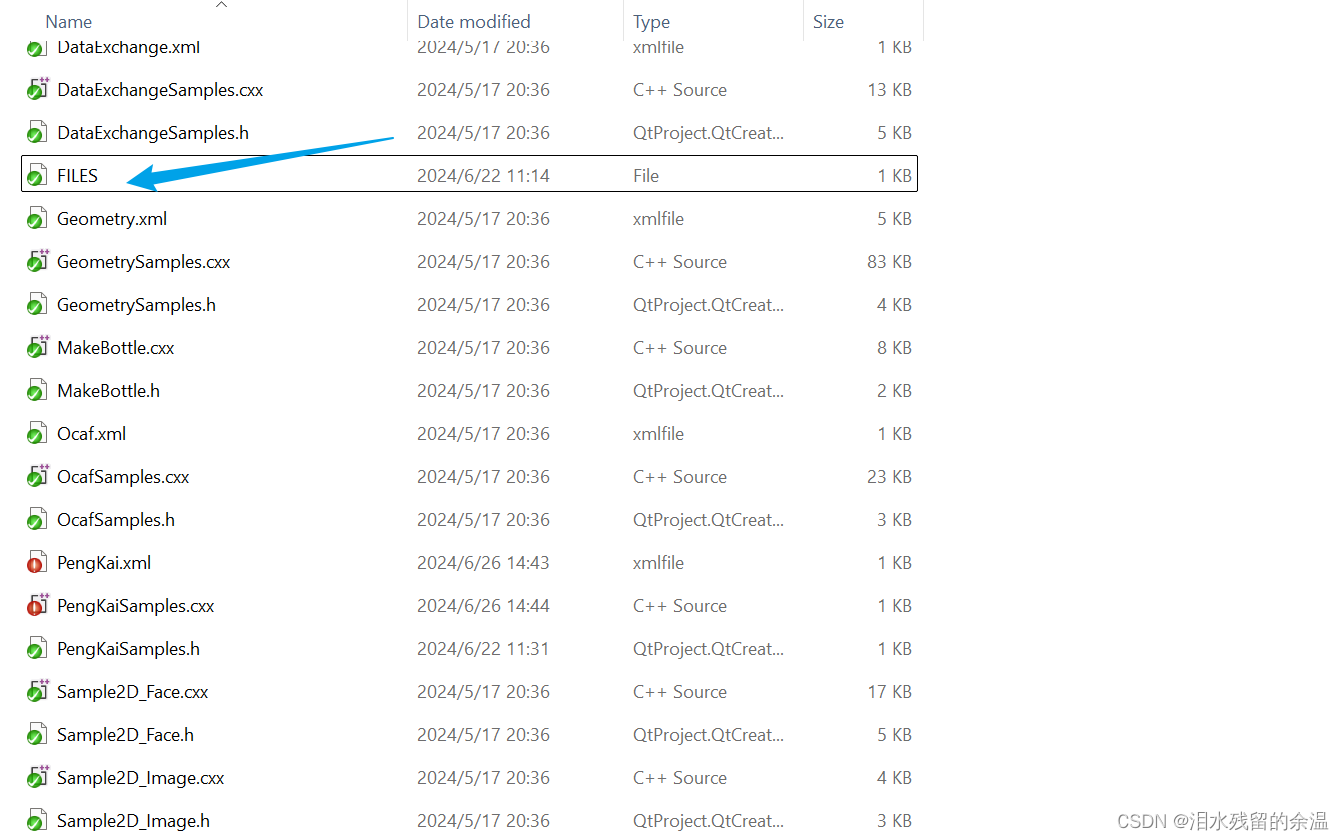

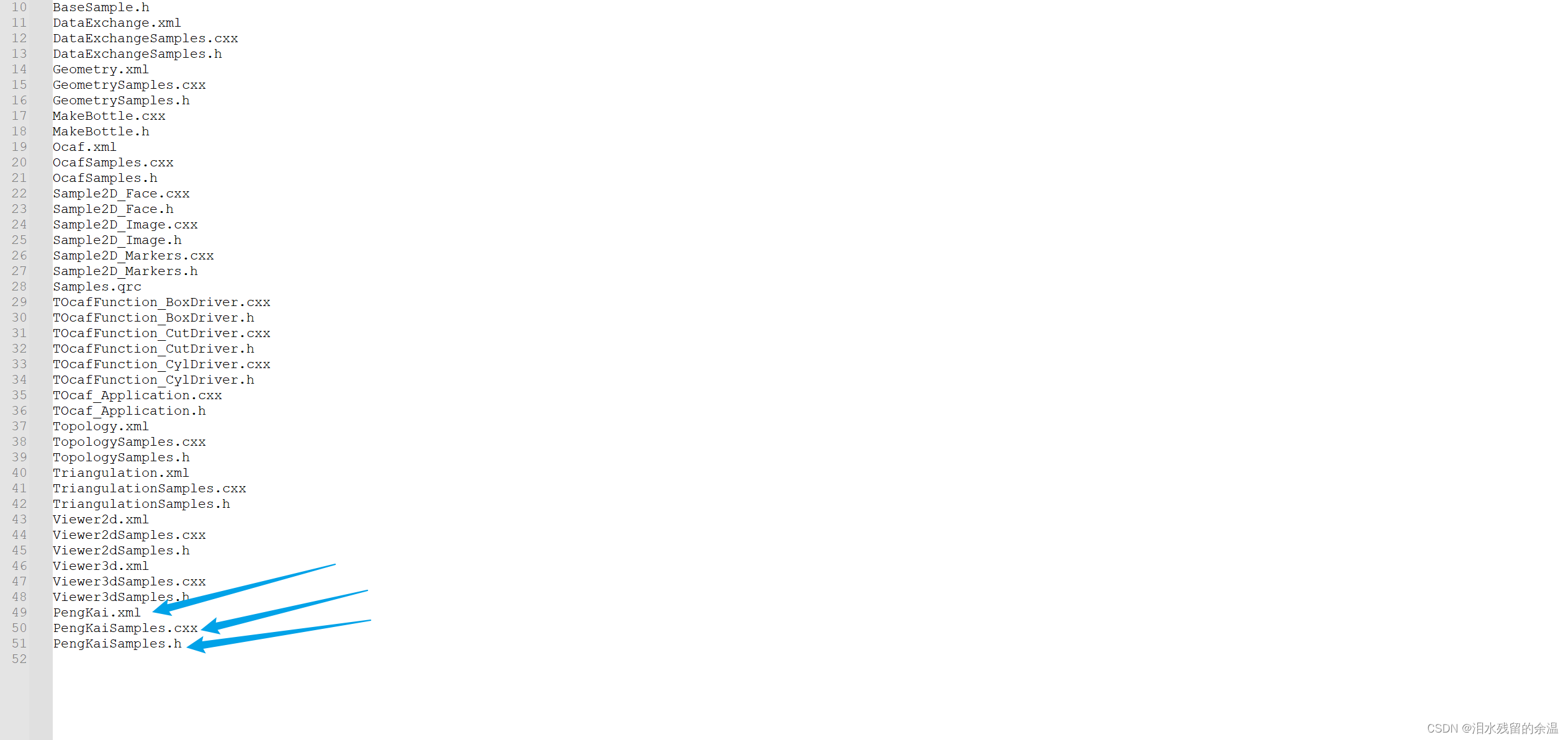

修改files文件，仿照其他人的写法，把cxx文件、xml文件和.h文件添加进去
adaptorcurve2d_ais.cxx
adaptorcurve2d_ais.h
adaptorcurve_ais.cxx
adaptorcurve_ais.h
adaptorpnt2d_ais.cxx
adaptorpnt2d_ais.h
adaptorvec_ais.cxx
adaptorvec_ais.h
basesample.cxx
basesample.h
dataexchange.xml
dataexchangesamples.cxx
dataexchangesamples.h
geometry.xml
geometrysamples.cxx
geometrysamples.h
makebottle.cxx
makebottle.h
ocaf.xml
ocafsamples.cxx
ocafsamples.h
sample2d_face.cxx
sample2d_face.h
sample2d_image.cxx
sample2d_image.h
sample2d_markers.cxx
sample2d_markers.h
samples.qrc
tocaffunction_boxdriver.cxx
tocaffunction_boxdriver.h
tocaffunction_cutdriver.cxx
tocaffunction_cutdriver.h
tocaffunction_cyldriver.cxx
tocaffunction_cyldriver.h
tocaf_application.cxx
tocaf_application.h
topology.xml
topologysamples.cxx
topologysamples.h
triangulation.xml
triangulationsamples.cxx
triangulationsamples.h
viewer2d.xml
viewer2dsamples.cxx
viewer2dsamples.h
viewer3d.xml
viewer3dsamples.cxx
viewer3dsamples.h
pengkai.xml
pengkaisamples.cxx
pengkaisamples.h
第四处修改：

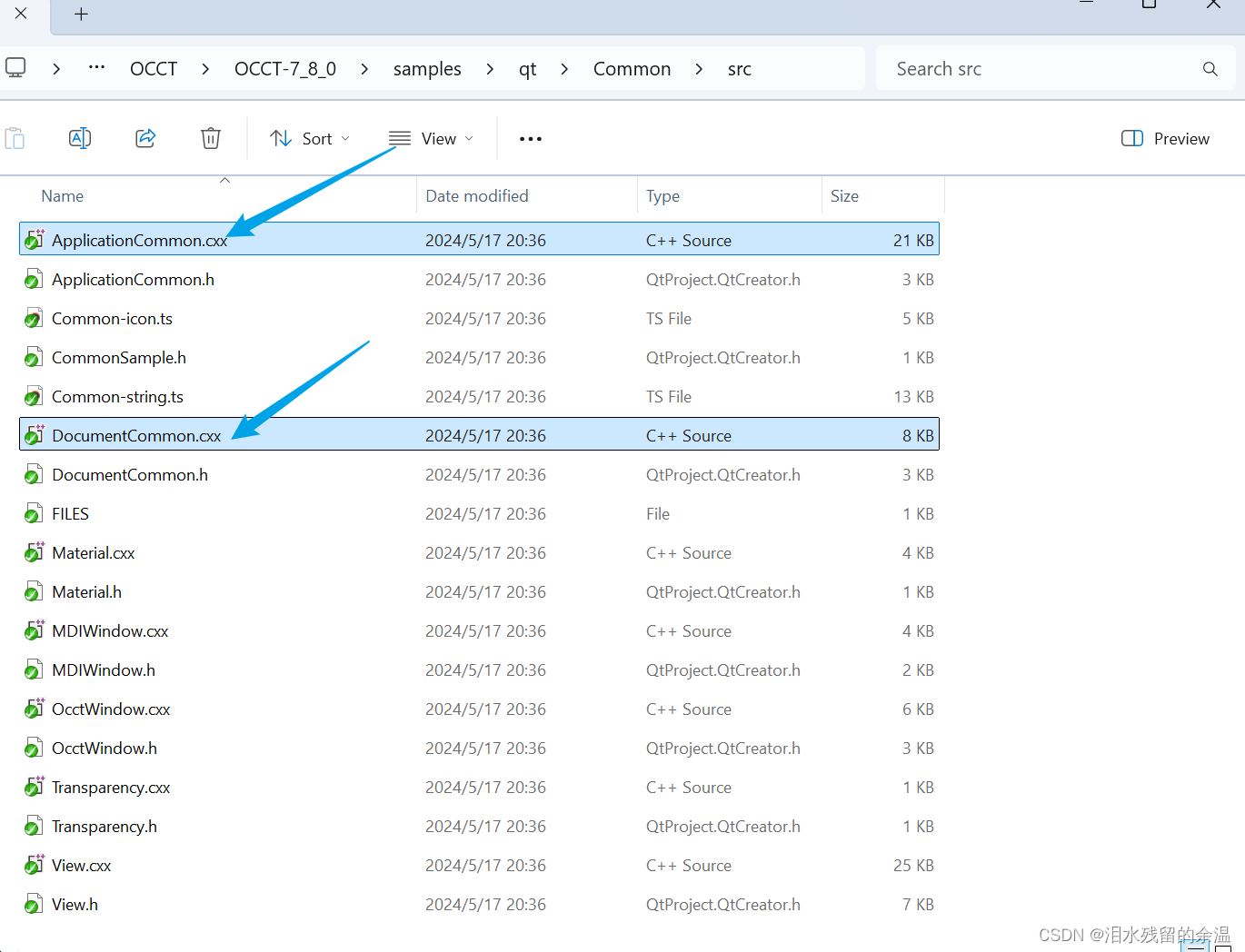

找到samples文件夹里的qt -> common -> src，找到这两个cxx文件，进去修改
仿照文件里topology结构的写法来写，把所有带有topology的地方全部换成自己修改的名字。
内容太多，这里不易说明，建议直接拿我修改后的代码与源码做对比，可以看出添加的部分在哪里
// copyright (c) 2020 open cascade sas
//
// this file is part of the examples of the open cascade technology software library.
//
// permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated documentation files (the "software"), to deal
// in the software without restriction, including without limitation the rights
// to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
// copies of the software, and to permit persons to whom the software is
// furnished to do so, subject to the following conditions:
//
// the above copyright notice and this permission notice shall be included in all
// copies or substantial portions of the software.
//
// the software is provided "as is", without warranty of any kind, express or
// implied, including but not limited to the warranties of merchantability,
// fitness for a particular purpose and noninfringement. in no event shall the
// authors or copyright holders be liable for any claim, damages or other
// liability, whether in an action of contract, tort or otherwise, arising from,
// out of or in connection with the software or the use or other dealings in the software
#include "applicationcommon.h"
#include <standard_warningsdisable.hxx>
#include <qapplication>
#include <qdir>
#include <qfile>
#include <qfont>
#include <qframe>
#include <qgroupbox>
#include <qmap>
#include <qmdiarea>
#include <qmdisubwindow>
#include <qmenubar>
#include <qmessagebox>
#include <qpair>
#include <qsplitter>
#include <qstatusbar>
#include <qtglobal>
#include <qhboxlayout>
#include <qvboxlayout>
#include <qwidget>
#include <qdomdocument>
#include <qdomattr>
#include <standard_warningsrestore.hxx>
#include <opengl_graphicdriver.hxx>
#include <osd_environment.hxx>
#include <stdlib.h>
#include <memory>
applicationcommonwindow::applicationcommonwindow (applicationtype thecategory)
: qmainwindow (nullptr),
myapptype(thecategory),
mystdtoolbar (nullptr),
myviewbar (nullptr),
mycascadebar (nullptr),
myfilepopup (nullptr),
mycategorypopup (nullptr)
{
all_categories[apptype_geometry] = "geometry";
all_categories[apptype_topology] = "topology";
all_categories[apptype_triangulation] = "triangulation";
all_categories[apptype_dataexchange] = "dataexchange";
all_categories[apptype_ocaf] = "ocaf";
all_categories[apptype_viewer3d] = "3d viewer";
all_categories[apptype_viewer2d] = "2d viewer";
all_categories[apptype_pengkai] = "pengkai";
mysamplemapper = new qsignalmapper(this);
myexchangemapper = new qsignalmapper(this);
myocafmapper = new qsignalmapper(this);
myviewer3dmapper = new qsignalmapper(this);
myviewer2dmapper = new qsignalmapper(this);
mycategorymapper = new qsignalmapper(this);
connect(mysamplemapper, signal(mapped(const qstring &)), this, slot(onprocesssample(const qstring &)));
connect(myexchangemapper, signal(mapped(const qstring &)), this, slot(onprocessexchange(const qstring &)));
connect(myocafmapper, signal(mapped(const qstring &)), this, slot(onprocessocaf(const qstring &)));
connect(myviewer3dmapper, signal(mapped(const qstring &)), this, slot(onprocessviewer3d(const qstring &)));
connect(myviewer2dmapper, signal(mapped(const qstring &)), this, slot(onprocessviewer2d(const qstring &)));
connect(mycategorymapper, signal(mapped(const qstring &)), this, slot(onchangecategory(const qstring &)));
setfocuspolicy(qt::strongfocus);
qfont acodeviewfont;
acodeviewfont.setfamily("courier");
acodeviewfont.setfixedpitch(true);
acodeviewfont.setpointsize(10);
qgroupbox* acodeframe = new qgroupbox(tr("sample code"));
qvboxlayout* acodelayout = new qvboxlayout(acodeframe);
acodelayout->setcontentsmargins(3, 3, 3, 3);
mycodeview = new qtextedit(acodeframe);
acodelayout->addwidget(mycodeview);
mycodeview->setdocumenttitle("code");
mycodeview->setlinewrapmode(qtextedit::nowrap);
mycodeview->setreadonly(true);
mycodeview->setfont(acodeviewfont);
mycodeviewhighlighter = new occthighlighter(mycodeview->document());
qgroupbox* aresultframe = new qgroupbox(tr("output"));
qvboxlayout* aresultlayout = new qvboxlayout(aresultframe);
aresultlayout->setcontentsmargins(3, 3, 3, 3);
myresultview = new qtextedit(aresultframe);
aresultlayout->addwidget(myresultview);
myresultview->setdocumenttitle("output");
myresultview->setreadonly(true);
myresultview->setfont(acodeviewfont);
qsplitter* acoderesultsplitter = new qsplitter(qt::vertical);
acoderesultsplitter->addwidget(acodeframe);
acoderesultsplitter->addwidget(aresultframe);
mydocument3d = createnewdocument();
mydocument2d = createnewdocument();
qframe* aviewframe = new qframe;
aviewframe->setframestyle(qframe::panel | qframe::sunken);
aviewframe->setlinewidth(3);
qvboxlayout* aviewlayout = new qvboxlayout(aviewframe);
aviewlayout->setcontentsmargins(0, 0, 0, 0);
mygeomwidget = new geomwidget(mydocument3d, mydocument2d, aviewframe);
aviewlayout->addwidget(mygeomwidget);
mygeomwidget->setcontentsmargins(0, 0, 0, 0);
qsplitter* ageomtextsplitter = new qsplitter(qt::horizontal);
ageomtextsplitter->addwidget(aviewframe);
ageomtextsplitter->addwidget(acoderesultsplitter);
ageomtextsplitter->setstretchfactor(0, 1);
ageomtextsplitter->setstretchfactor(1, 1);
qlist<int> asizelist;
asizelist.append(640);
asizelist.append(640);
ageomtextsplitter->setsizes(asizelist);
setcentralwidget(ageomtextsplitter);
#include <standard_warningsdisable.hxx>
q_init_resource(samples);
#include <standard_warningsrestore.hxx>
tcollection_asciistring asamplesourcepach = getsamplesourcedir();
mygeometrysamples = new geometrysamples(asamplesourcepach,
mydocument3d->getcontext());
mytopologysamples = new topologysamples(asamplesourcepach,
mydocument3d->getcontext());
mytriangulationsamples = new triangulationsamples(asamplesourcepach,
mydocument3d->getcontext());
mydataexchangesamples = new dataexchangesamples(asamplesourcepach,
mygeomwidget->get3dview(),
mydocument3d->getcontext());
myocafsamples = new ocafsamples(asamplesourcepach,
mydocument3d->getviewer(),
mydocument3d->getcontext());
myviewer3dsamples = new viewer3dsamples(asamplesourcepach,
mygeomwidget->get3dview(),
mydocument3d->getcontext());
myviewer2dsamples = new viewer2dsamples(asamplesourcepach,
mygeomwidget->get2dview(),
mydocument2d->getviewer(),
mydocument2d->getcontext());
mypengkaisamples = new pengkaisamples(asamplesourcepach,
mydocument3d->getcontext());
menuformxml(":/menus/geometry.xml", mysamplemapper, mygeometrymenus);
menuformxml(":/menus/topology.xml", mysamplemapper, mytopologymenus);
menuformxml(":/menus/triangulation.xml", mysamplemapper, mytriangulationmenus);
menuformxml(":/menus/dataexchange.xml", myexchangemapper, mydataexchangemenus);
menuformxml(":/menus/ocaf.xml", myocafmapper, myocafmenus);
menuformxml(":/menus/viewer3d.xml", myviewer3dmapper, myviewer3dmenus);
menuformxml(":/menus/viewer2d.xml", myviewer2dmapper, myviewer2dmenus);
menuformxml(":/menus/pengkai.xml", mysamplemapper, mypengkaimenus);
onchangecategory(all_categories[myapptype]);
resize(1280, 560);
}
void applicationcommonwindow::rebuildmenu()
{
menubar()->clear();
mystdactions[stdactions_filequit] = createaction("quit", "ctrl+q");
connect(mystdactions[stdactions_filequit], signal(triggered()), this, slot(oncloseallwindows()));
mystdactions[stdactions_helpabout] = createaction("about", "f1", ":/icons/help.png");
connect(mystdactions[stdactions_helpabout], signal(triggered()), this, slot(onabout()));
// populate a menu with all actions
myfilepopup = new qmenu(this);
myfilepopup = menubar()->addmenu(tr("&file"));
myfilepopup->addaction(mystdactions[stdactions_filequit]);
mycategorypopup = new qmenu(this);
mycategorypopup = menubar()->addmenu(tr("&category"));
foreach (applicationtype acategory, all_categories.keys())
{
qstring acategoryname = all_categories.value(acategory);
qaction* anaction = mycategorypopup->addaction(acategoryname);
anaction->settext(acategoryname);
mycategorymapper->setmapping(anaction, acategoryname);
connect(anaction, signal(triggered()), mycategorymapper, slot(map()));
mycategorypopup->addaction(anaction);
mycategoryactions.insert(acategory, anaction);
}
foreach (qmenu* asamplemenu, getcurrentmenus())
{
menubar()->addmenu(asamplemenu);
}
// add a help menu
qmenu* ahelp = new qmenu(this);
menubar()->addseparator();
ahelp = menubar()->addmenu(tr("&help"));
ahelp->addaction(mystdactions[stdactions_helpabout]);
}
handle(basesample) applicationcommonwindow::getcurrentsamples()
{
switch (myapptype)
{
case apptype_geometry: return mygeometrysamples;
case apptype_topology: return mytopologysamples;
case apptype_triangulation: return mytriangulationsamples;
case apptype_dataexchange: return mydataexchangesamples;
case apptype_ocaf: return myocafsamples;
case apptype_viewer2d: return myviewer2dsamples;
case apptype_viewer3d: return myviewer3dsamples;
case apptype_pengkai: return mypengkaisamples;
case apptype_unknown:
break;
}
throw qstring("unknown application type");
}
const qlist<qmenu*>& applicationcommonwindow::getcurrentmenus()
{
switch (myapptype)
{
case apptype_geometry: return mygeometrymenus;
case apptype_topology: return mytopologymenus;
case apptype_triangulation: return mytriangulationmenus;
case apptype_dataexchange: return mydataexchangemenus;
case apptype_ocaf: return myocafmenus;
case apptype_viewer2d: return myviewer2dmenus;
case apptype_viewer3d: return myviewer3dmenus;
case apptype_pengkai: return mypengkaimenus;
case apptype_unknown:
break;
}
throw qstring("unknown application type");
}
documentcommon* applicationcommonwindow::createnewdocument()
{
return new documentcommon(this);
}
void applicationcommonwindow::onchangecategory(const qstring& thecategory)
{
myapptype = all_categories.key(thecategory);
setwindowtitle(all_categories[myapptype]);
myocafsamples->clearextra();
myviewer3dsamples->clearextra();
myviewer2dsamples->clearextra();
getcurrentsamples()->clear();
mydocument3d->clear();
mydocument2d->clear();
mycodeview->setplaintext("");
myresultview->setplaintext("");
getcurrentsamples()->appendcube();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->fitall();
rebuildmenu();
switch (myapptype)
{
case apptype_dataexchange:
{
mydataexchangesamples->appendbottle();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->show3d();
break;
}
case apptype_ocaf:
{
onprocessocaf("createocafdocument");
mygeomwidget->show3d();
break;
}
case apptype_viewer2d:
{
mygeomwidget->show2d();
break;
}
case apptype_viewer3d:
{
myviewer3dsamples->appendbottle();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->show3d();
break;
}
case apptype_geometry:
case apptype_topology:
case apptype_pengkai:
case apptype_triangulation:
case apptype_unknown:
{
break;
}
}
}
void applicationcommonwindow::onabout()
{
qmessagebox::information(this, tr("occt overview"),
tr("qt based application to study opencascade technology"),
tr("ok"), qstring::null, qstring::null, 0, 0);
}
tcollection_asciistring applicationcommonwindow::getsamplesourcedir()
{
tcollection_asciistring asamplesourcedir = osd_environment("csf_occtoverviewsamplecodepath").value();
if (asamplesourcedir.isempty())
{
tcollection_asciistring acasroot = osd_environment("casroot").value();
if (!acasroot.isempty())
{
asamplesourcedir = acasroot + "/samples/occtoverview/code";
}
}
return asamplesourcedir;
}
qaction* applicationcommonwindow::createaction (const qstring& theactionname,
const qstring& theshortcut,
const qstring& theiconname)
{
qaction* aaction(null);
if (theiconname.isempty())
{
aaction = new qaction(theactionname, this);
}
else
{
qpixmap aicon = qpixmap(theiconname);
aaction = new qaction(aicon, theactionname, this);
}
aaction->settooltip(theactionname);
aaction->setstatustip(theactionname);
aaction->setshortcut(theshortcut);
return aaction;
}
template <typename pointertomemberfunction>
qaction* applicationcommonwindow::createsample (pointertomemberfunction thehandlermethod,
const char* theactionname)
{
qaction* anaction = new qaction(qobject::tr(theactionname), this);
connect(anaction, signal(triggered()), this, slot(thehandlermethod()));
return anaction;
}
void applicationcommonwindow::resizeevent(qresizeevent* e)
{
qmainwindow::resizeevent(e);
statusbar()->setsizegripenabled(!ismaximized());
}
void applicationcommonwindow::onprocesssample(const qstring& thesamplename)
{
qapplication::setoverridecursor(qt::waitcursor);
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
getcurrentsamples()->process(thesamplename.toutf8().data());
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mydocument2d->setobjects(getcurrentsamples()->get2dobjects());
mycodeview->setplaintext(getcurrentsamples()->getcode().tocstring());
myresultview->setplaintext(getcurrentsamples()->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessexchange(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
int amode = 0;
qstring afilename = selectfilename(thesamplename, getdataexchangedialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
qapplication::setoverridecursor(qt::waitcursor);
mydataexchangesamples->setfilename(afilename.toutf8().data());
mydataexchangesamples->setsteptype(static_cast<stepcontrol_stepmodeltype>(amode));
mydataexchangesamples->process(thesamplename.toutf8().data());
mydocument3d->setobjects(mydataexchangesamples->get3dobjects());
mydocument2d->setobjects(mydataexchangesamples->get2dobjects());
mycodeview->setplaintext(mydataexchangesamples->getcode().tocstring());
myresultview->setplaintext(mydataexchangesamples->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessocaf(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
if (thesamplename.indexof("dialog") == 0)
{
int amode = 0; // not used
qstring afilename = selectfilename(thesamplename, getocafdialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
myocafsamples->setfilename(afilename.toutf8().data());
}
qapplication::setoverridecursor(qt::waitcursor);
myocafsamples->process(thesamplename.toutf8().data());
mydocument2d->setobjects(myocafsamples->get2dobjects());
mycodeview->setplaintext(myocafsamples->getcode().tocstring());
myresultview->setplaintext(myocafsamples->getresult().tocstring());
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessviewer3d(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
qapplication::setoverridecursor(qt::waitcursor);
myviewer3dsamples->process(thesamplename.toutf8().data());
mycodeview->setplaintext(myviewer3dsamples->getcode().tocstring());
myresultview->setplaintext(myviewer3dsamples->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessviewer2d(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
standard_boolean anisfilesample = viewer2dsamples::isfilesample(thesamplename.toutf8().data());
qstring afilename;
if (anisfilesample)
{
int amode = 0; // not used
afilename = selectfilename(thesamplename, getocafdialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
myviewer2dsamples->setfilename(afilename.toutf8().data());
}
if (!anisfilesample || (anisfilesample && !afilename.isempty()))
{
qapplication::setoverridecursor(qt::waitcursor);
myviewer2dsamples->process(thesamplename.toutf8().data());
if (!viewer2dsamples::isshadedsample(thesamplename.toutf8().data()))
{
mydocument2d->setobjects(myviewer2dsamples->get2dobjects(), standard_false);
}
else
{
mydocument2d->setobjects(myviewer2dsamples->get2dobjects(), standard_true);
}
mycodeview->setplaintext(myviewer2dsamples->getcode().tocstring());
myresultview->setplaintext(myviewer2dsamples->getresult().tocstring());
mygeomwidget->show2d();
qapplication::restoreoverridecursor();
}
else
{
myresultview->setplaintext("no file selected!");
}
}
qstring applicationcommonwindow::selectfilename(const qstring& thesamplename,
translatedialog* thedialog, int& themode)
{
q_unused(thesamplename)
std::shared_ptr<translatedialog> adialog(thedialog);
int ret = adialog->exec();
themode = adialog->getmode();
qapp->processevents();
qstring afilename;
qstringlist afilenamelist;
if (ret != qdialog::accepted)
{
return afilename;
}
afilenamelist = adialog->selectedfiles();
if (!afilenamelist.isempty())
{
afilename = afilenamelist[0];
}
if (!qfileinfo(afilename).completesuffix().length())
{
qstring selfilter = adialog->selectednamefilter();
int idx = selfilter.indexof("(*.");
if (idx != -1)
{
qstring tail = selfilter.mid(idx + 3);
idx = tail.indexof(" ");
if (idx == -1)
{
idx = tail.indexof(")");
}
qstring ext = tail.left(idx);
if (ext.length())
{
afilename += qstring(".") + ext;
}
}
}
return afilename;
}
translatedialog* applicationcommonwindow::getdataexchangedialog(const qstring& thesamplename)
{
translatedialog* atranslatedialog = new translatedialog(this, 0, true);
tcollection_asciistring asamplename(thesamplename.toutf8().data());
if (dataexchangesamples::isexportsample(asamplename))
{
atranslatedialog->setwindowtitle("export file");
atranslatedialog->setfilemode(qfiledialog::anyfile);
atranslatedialog->setacceptmode(qfiledialog::acceptsave);
}
else if (dataexchangesamples::isimportsample(asamplename))
{
atranslatedialog->setwindowtitle("import file");
atranslatedialog->setfilemode(qfiledialog::existingfile);
atranslatedialog->setacceptmode(qfiledialog::acceptopen);
}
qstring aformatfilter;
if (dataexchangesamples::isbrepsample(asamplename))
{
aformatfilter = "brep files(*.brep *.rle)";
}
else if (dataexchangesamples::isstepsample(asamplename))
{
aformatfilter = "step files (*.stp *.step)";
atranslatedialog->addmode(stepcontrol_manifoldsolidbrep, "manifold solid brep");
atranslatedialog->addmode(stepcontrol_facetedbrep, "faceted brep");
atranslatedialog->addmode(stepcontrol_shellbasedsurfacemodel, "shell based surface model");
atranslatedialog->addmode(stepcontrol_geometriccurveset, "geometric curve set");
}
else if (dataexchangesamples::isigessample(asamplename))
{
aformatfilter = "iges files (*.igs *.iges)";
}
else if (dataexchangesamples::isstlsample(asamplename))
{
aformatfilter = "stl files (*.stl)";
}
else if (dataexchangesamples::isvrmlsample(asamplename))
{
aformatfilter = "vrml files (*.vrml)";
}
else if (dataexchangesamples::isimagesample(asamplename))
{
aformatfilter = "all image files (*.bmp *.gif *.jpg *.jpeg *.png *.tga)";
}
qstringlist afilters;
afilters.append(aformatfilter);
afilters.append("all files(*.*)");
atranslatedialog->setnamefilters(afilters);
atranslatedialog->clear();
return atranslatedialog;
}
translatedialog* applicationcommonwindow::getocafdialog(const qstring& thesamplename)
{
translatedialog* atranslatedialog = new translatedialog(this, 0, true);
tcollection_asciistring asamplename(thesamplename.toutf8().data());
if (ocafsamples::isexportsample(asamplename))
{
atranslatedialog->setwindowtitle("export file");
atranslatedialog->setfilemode(qfiledialog::anyfile);
atranslatedialog->setacceptmode(qfiledialog::acceptsave);
}
else if (ocafsamples::isimportsample(asamplename))
{
atranslatedialog->setwindowtitle("import file");
atranslatedialog->setfilemode(qfiledialog::existingfile);
atranslatedialog->setacceptmode(qfiledialog::acceptopen);
}
qstringlist afilters;
if (ocafsamples::isbinarysample(asamplename))
{
afilters.append("binary ocaf sample (*.cbf)");
}
if (ocafsamples::isxmlsample(asamplename))
{
afilters.append("xml ocaf sample (*.xml)");
}
afilters.append("all files(*.*)");
atranslatedialog->setnamefilters(afilters);
atranslatedialog->clear();
return atranslatedialog;
}
qmenu* applicationcommonwindow::menufromdomnode(qdomelement& theitemelement,
qwidget* theparent,
qsignalmapper* themapper)
{
qstring anitemname = theitemelement.attribute("name");
qmenu* amenu = new qmenu(anitemname, theparent);
qdomelement anchilditemelement = theitemelement.firstchildelement("menuitem");
qdomelement ansampleelement = theitemelement.firstchildelement("sample");
while(anchilditemelement.iselement())
{
amenu->addmenu(menufromdomnode(anchilditemelement, amenu, themapper));
anchilditemelement = anchilditemelement.nextsibling().toelement();
}
while(ansampleelement.iselement())
{
qstring asamplename = ansampleelement.attribute("name");
qstring asamplefunction = ansampleelement.attribute("function");
qaction* anaction = amenu->addaction(asamplefunction);
anaction->settext(asamplename);
themapper->setmapping(anaction, asamplefunction);
connect(anaction, signal(triggered()), themapper, slot(map()));
ansampleelement = ansampleelement.nextsibling().toelement();
}
return amenu;
}
void applicationcommonwindow::menuformxml(const qstring& thepath,
qsignalmapper* themapper,
qlist<qmenu*>& themunuslist)
{
qdomdocument adomdocument;
themunuslist.clear();
qfile axmlfile(thepath);
qstring anerrormessage;
if (axmlfile.error() != qfile::noerror)
{
anerrormessage = axmlfile.errorstring();
message::sendfail() << "qfile creating error: " << anerrormessage.toutf8().constdata();
axmlfile.close();
return;
}
if (!axmlfile.open(qiodevice::readonly | qiodevice::text))
{
message::sendfail() << "file " << thepath.toutf8().constdata() << " could not open";
if (axmlfile.error() != qfile::noerror)
{
anerrormessage = axmlfile.errorstring();
message::sendfail() << "qfile opening error: " << anerrormessage.toutf8().constdata();
}
axmlfile.close();
return;
}
bool anamespaceprocessing(false);
qstring anerrormsg;
int anerrorline(0);
int anerrorcolumn(0);
if (!adomdocument.setcontent(&axmlfile, anamespaceprocessing, &anerrormsg, &anerrorline, &anerrorcolumn))
{
message::sendfail() << "xml file parsing error: " << anerrormsg.tostdstring()
<< " at line: " << anerrorline << " column: " << anerrorcolumn;
axmlfile.close();
return;
}
axmlfile.close();
qdomelement arootelement = adomdocument.documentelement();
qdomelement anitemelement = arootelement.firstchildelement("menuitem");
while(!anitemelement.isnull())
{
themunuslist.push_back(menufromdomnode(anitemelement, this, themapper));
anitemelement = anitemelement.nextsiblingelement("menuitem");
}
}
// copyright (c) 2020 open cascade sas
//
// this file is part of the examples of the open cascade technology software library.
//
// permission is hereby granted, free of charge, to any person obtaining a copy
// of this software and associated documentation files (the "software"), to deal
// in the software without restriction, including without limitation the rights
// to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
// copies of the software, and to permit persons to whom the software is
// furnished to do so, subject to the following conditions:
//
// the above copyright notice and this permission notice shall be included in all
// copies or substantial portions of the software.
//
// the software is provided "as is", without warranty of any kind, express or
// implied, including but not limited to the warranties of merchantability,
// fitness for a particular purpose and noninfringement. in no event shall the
// authors or copyright holders be liable for any claim, damages or other
// liability, whether in an action of contract, tort or otherwise, arising from,
// out of or in connection with the software or the use or other dealings in the software
#include "applicationcommon.h"
#include <standard_warningsdisable.hxx>
#include <qapplication>
#include <qdir>
#include <qfile>
#include <qfont>
#include <qframe>
#include <qgroupbox>
#include <qmap>
#include <qmdiarea>
#include <qmdisubwindow>
#include <qmenubar>
#include <qmessagebox>
#include <qpair>
#include <qsplitter>
#include <qstatusbar>
#include <qtglobal>
#include <qhboxlayout>
#include <qvboxlayout>
#include <qwidget>
#include <qdomdocument>
#include <qdomattr>
#include <standard_warningsrestore.hxx>
#include <opengl_graphicdriver.hxx>
#include <osd_environment.hxx>
#include <stdlib.h>
#include <memory>
applicationcommonwindow::applicationcommonwindow (applicationtype thecategory)
: qmainwindow (nullptr),
myapptype(thecategory),
mystdtoolbar (nullptr),
myviewbar (nullptr),
mycascadebar (nullptr),
myfilepopup (nullptr),
mycategorypopup (nullptr)
{
all_categories[apptype_geometry] = "geometry";
all_categories[apptype_topology] = "topology";
all_categories[apptype_triangulation] = "triangulation";
all_categories[apptype_dataexchange] = "dataexchange";
all_categories[apptype_ocaf] = "ocaf";
all_categories[apptype_viewer3d] = "3d viewer";
all_categories[apptype_viewer2d] = "2d viewer";
all_categories[apptype_pengkai] = "pengkai";
mysamplemapper = new qsignalmapper(this);
myexchangemapper = new qsignalmapper(this);
myocafmapper = new qsignalmapper(this);
myviewer3dmapper = new qsignalmapper(this);
myviewer2dmapper = new qsignalmapper(this);
mycategorymapper = new qsignalmapper(this);
connect(mysamplemapper, signal(mapped(const qstring &)), this, slot(onprocesssample(const qstring &)));
connect(myexchangemapper, signal(mapped(const qstring &)), this, slot(onprocessexchange(const qstring &)));
connect(myocafmapper, signal(mapped(const qstring &)), this, slot(onprocessocaf(const qstring &)));
connect(myviewer3dmapper, signal(mapped(const qstring &)), this, slot(onprocessviewer3d(const qstring &)));
connect(myviewer2dmapper, signal(mapped(const qstring &)), this, slot(onprocessviewer2d(const qstring &)));
connect(mycategorymapper, signal(mapped(const qstring &)), this, slot(onchangecategory(const qstring &)));
setfocuspolicy(qt::strongfocus);
qfont acodeviewfont;
acodeviewfont.setfamily("courier");
acodeviewfont.setfixedpitch(true);
acodeviewfont.setpointsize(10);
qgroupbox* acodeframe = new qgroupbox(tr("sample code"));
qvboxlayout* acodelayout = new qvboxlayout(acodeframe);
acodelayout->setcontentsmargins(3, 3, 3, 3);
mycodeview = new qtextedit(acodeframe);
acodelayout->addwidget(mycodeview);
mycodeview->setdocumenttitle("code");
mycodeview->setlinewrapmode(qtextedit::nowrap);
mycodeview->setreadonly(true);
mycodeview->setfont(acodeviewfont);
mycodeviewhighlighter = new occthighlighter(mycodeview->document());
qgroupbox* aresultframe = new qgroupbox(tr("output"));
qvboxlayout* aresultlayout = new qvboxlayout(aresultframe);
aresultlayout->setcontentsmargins(3, 3, 3, 3);
myresultview = new qtextedit(aresultframe);
aresultlayout->addwidget(myresultview);
myresultview->setdocumenttitle("output");
myresultview->setreadonly(true);
myresultview->setfont(acodeviewfont);
qsplitter* acoderesultsplitter = new qsplitter(qt::vertical);
acoderesultsplitter->addwidget(acodeframe);
acoderesultsplitter->addwidget(aresultframe);
mydocument3d = createnewdocument();
mydocument2d = createnewdocument();
qframe* aviewframe = new qframe;
aviewframe->setframestyle(qframe::panel | qframe::sunken);
aviewframe->setlinewidth(3);
qvboxlayout* aviewlayout = new qvboxlayout(aviewframe);
aviewlayout->setcontentsmargins(0, 0, 0, 0);
mygeomwidget = new geomwidget(mydocument3d, mydocument2d, aviewframe);
aviewlayout->addwidget(mygeomwidget);
mygeomwidget->setcontentsmargins(0, 0, 0, 0);
qsplitter* ageomtextsplitter = new qsplitter(qt::horizontal);
ageomtextsplitter->addwidget(aviewframe);
ageomtextsplitter->addwidget(acoderesultsplitter);
ageomtextsplitter->setstretchfactor(0, 1);
ageomtextsplitter->setstretchfactor(1, 1);
qlist<int> asizelist;
asizelist.append(640);
asizelist.append(640);
ageomtextsplitter->setsizes(asizelist);
setcentralwidget(ageomtextsplitter);
#include <standard_warningsdisable.hxx>
q_init_resource(samples);
#include <standard_warningsrestore.hxx>
tcollection_asciistring asamplesourcepach = getsamplesourcedir();
mygeometrysamples = new geometrysamples(asamplesourcepach,
mydocument3d->getcontext());
mytopologysamples = new topologysamples(asamplesourcepach,
mydocument3d->getcontext());
mytriangulationsamples = new triangulationsamples(asamplesourcepach,
mydocument3d->getcontext());
mydataexchangesamples = new dataexchangesamples(asamplesourcepach,
mygeomwidget->get3dview(),
mydocument3d->getcontext());
myocafsamples = new ocafsamples(asamplesourcepach,
mydocument3d->getviewer(),
mydocument3d->getcontext());
myviewer3dsamples = new viewer3dsamples(asamplesourcepach,
mygeomwidget->get3dview(),
mydocument3d->getcontext());
myviewer2dsamples = new viewer2dsamples(asamplesourcepach,
mygeomwidget->get2dview(),
mydocument2d->getviewer(),
mydocument2d->getcontext());
mypengkaisamples = new pengkaisamples(asamplesourcepach,
mydocument3d->getcontext());
menuformxml(":/menus/geometry.xml", mysamplemapper, mygeometrymenus);
menuformxml(":/menus/topology.xml", mysamplemapper, mytopologymenus);
menuformxml(":/menus/triangulation.xml", mysamplemapper, mytriangulationmenus);
menuformxml(":/menus/dataexchange.xml", myexchangemapper, mydataexchangemenus);
menuformxml(":/menus/ocaf.xml", myocafmapper, myocafmenus);
menuformxml(":/menus/viewer3d.xml", myviewer3dmapper, myviewer3dmenus);
menuformxml(":/menus/viewer2d.xml", myviewer2dmapper, myviewer2dmenus);
menuformxml(":/menus/pengkai.xml", mysamplemapper, mypengkaimenus);
onchangecategory(all_categories[myapptype]);
resize(1280, 560);
}
void applicationcommonwindow::rebuildmenu()
{
menubar()->clear();
mystdactions[stdactions_filequit] = createaction("quit", "ctrl+q");
connect(mystdactions[stdactions_filequit], signal(triggered()), this, slot(oncloseallwindows()));
mystdactions[stdactions_helpabout] = createaction("about", "f1", ":/icons/help.png");
connect(mystdactions[stdactions_helpabout], signal(triggered()), this, slot(onabout()));
// populate a menu with all actions
myfilepopup = new qmenu(this);
myfilepopup = menubar()->addmenu(tr("&file"));
myfilepopup->addaction(mystdactions[stdactions_filequit]);
mycategorypopup = new qmenu(this);
mycategorypopup = menubar()->addmenu(tr("&category"));
foreach (applicationtype acategory, all_categories.keys())
{
qstring acategoryname = all_categories.value(acategory);
qaction* anaction = mycategorypopup->addaction(acategoryname);
anaction->settext(acategoryname);
mycategorymapper->setmapping(anaction, acategoryname);
connect(anaction, signal(triggered()), mycategorymapper, slot(map()));
mycategorypopup->addaction(anaction);
mycategoryactions.insert(acategory, anaction);
}
foreach (qmenu* asamplemenu, getcurrentmenus())
{
menubar()->addmenu(asamplemenu);
}
// add a help menu
qmenu* ahelp = new qmenu(this);
menubar()->addseparator();
ahelp = menubar()->addmenu(tr("&help"));
ahelp->addaction(mystdactions[stdactions_helpabout]);
}
handle(basesample) applicationcommonwindow::getcurrentsamples()
{
switch (myapptype)
{
case apptype_geometry: return mygeometrysamples;
case apptype_topology: return mytopologysamples;
case apptype_triangulation: return mytriangulationsamples;
case apptype_dataexchange: return mydataexchangesamples;
case apptype_ocaf: return myocafsamples;
case apptype_viewer2d: return myviewer2dsamples;
case apptype_viewer3d: return myviewer3dsamples;
case apptype_pengkai: return mypengkaisamples;
case apptype_unknown:
break;
}
throw qstring("unknown application type");
}
const qlist<qmenu*>& applicationcommonwindow::getcurrentmenus()
{
switch (myapptype)
{
case apptype_geometry: return mygeometrymenus;
case apptype_topology: return mytopologymenus;
case apptype_triangulation: return mytriangulationmenus;
case apptype_dataexchange: return mydataexchangemenus;
case apptype_ocaf: return myocafmenus;
case apptype_viewer2d: return myviewer2dmenus;
case apptype_viewer3d: return myviewer3dmenus;
case apptype_pengkai: return mypengkaimenus;
case apptype_unknown:
break;
}
throw qstring("unknown application type");
}
documentcommon* applicationcommonwindow::createnewdocument()
{
return new documentcommon(this);
}
void applicationcommonwindow::onchangecategory(const qstring& thecategory)
{
myapptype = all_categories.key(thecategory);
setwindowtitle(all_categories[myapptype]);
myocafsamples->clearextra();
myviewer3dsamples->clearextra();
myviewer2dsamples->clearextra();
getcurrentsamples()->clear();
mydocument3d->clear();
mydocument2d->clear();
mycodeview->setplaintext("");
myresultview->setplaintext("");
getcurrentsamples()->appendcube();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->fitall();
rebuildmenu();
switch (myapptype)
{
case apptype_dataexchange:
{
mydataexchangesamples->appendbottle();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->show3d();
break;
}
case apptype_ocaf:
{
onprocessocaf("createocafdocument");
mygeomwidget->show3d();
break;
}
case apptype_viewer2d:
{
mygeomwidget->show2d();
break;
}
case apptype_viewer3d:
{
myviewer3dsamples->appendbottle();
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mygeomwidget->show3d();
break;
}
case apptype_geometry:
case apptype_topology:
case apptype_pengkai:
case apptype_triangulation:
case apptype_unknown:
{
break;
}
}
}
void applicationcommonwindow::onabout()
{
qmessagebox::information(this, tr("occt overview"),
tr("qt based application to study opencascade technology"),
tr("ok"), qstring::null, qstring::null, 0, 0);
}
tcollection_asciistring applicationcommonwindow::getsamplesourcedir()
{
tcollection_asciistring asamplesourcedir = osd_environment("csf_occtoverviewsamplecodepath").value();
if (asamplesourcedir.isempty())
{
tcollection_asciistring acasroot = osd_environment("casroot").value();
if (!acasroot.isempty())
{
asamplesourcedir = acasroot + "/samples/occtoverview/code";
}
}
return asamplesourcedir;
}
qaction* applicationcommonwindow::createaction (const qstring& theactionname,
const qstring& theshortcut,
const qstring& theiconname)
{
qaction* aaction(null);
if (theiconname.isempty())
{
aaction = new qaction(theactionname, this);
}
else
{
qpixmap aicon = qpixmap(theiconname);
aaction = new qaction(aicon, theactionname, this);
}
aaction->settooltip(theactionname);
aaction->setstatustip(theactionname);
aaction->setshortcut(theshortcut);
return aaction;
}
template <typename pointertomemberfunction>
qaction* applicationcommonwindow::createsample (pointertomemberfunction thehandlermethod,
const char* theactionname)
{
qaction* anaction = new qaction(qobject::tr(theactionname), this);
connect(anaction, signal(triggered()), this, slot(thehandlermethod()));
return anaction;
}
void applicationcommonwindow::resizeevent(qresizeevent* e)
{
qmainwindow::resizeevent(e);
statusbar()->setsizegripenabled(!ismaximized());
}
void applicationcommonwindow::onprocesssample(const qstring& thesamplename)
{
qapplication::setoverridecursor(qt::waitcursor);
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
getcurrentsamples()->process(thesamplename.toutf8().data());
mydocument3d->setobjects(getcurrentsamples()->get3dobjects());
mydocument2d->setobjects(getcurrentsamples()->get2dobjects());
mycodeview->setplaintext(getcurrentsamples()->getcode().tocstring());
myresultview->setplaintext(getcurrentsamples()->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessexchange(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
int amode = 0;
qstring afilename = selectfilename(thesamplename, getdataexchangedialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
qapplication::setoverridecursor(qt::waitcursor);
mydataexchangesamples->setfilename(afilename.toutf8().data());
mydataexchangesamples->setsteptype(static_cast<stepcontrol_stepmodeltype>(amode));
mydataexchangesamples->process(thesamplename.toutf8().data());
mydocument3d->setobjects(mydataexchangesamples->get3dobjects());
mydocument2d->setobjects(mydataexchangesamples->get2dobjects());
mycodeview->setplaintext(mydataexchangesamples->getcode().tocstring());
myresultview->setplaintext(mydataexchangesamples->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessocaf(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
if (thesamplename.indexof("dialog") == 0)
{
int amode = 0; // not used
qstring afilename = selectfilename(thesamplename, getocafdialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
myocafsamples->setfilename(afilename.toutf8().data());
}
qapplication::setoverridecursor(qt::waitcursor);
myocafsamples->process(thesamplename.toutf8().data());
mydocument2d->setobjects(myocafsamples->get2dobjects());
mycodeview->setplaintext(myocafsamples->getcode().tocstring());
myresultview->setplaintext(myocafsamples->getresult().tocstring());
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessviewer3d(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
qapplication::setoverridecursor(qt::waitcursor);
myviewer3dsamples->process(thesamplename.toutf8().data());
mycodeview->setplaintext(myviewer3dsamples->getcode().tocstring());
myresultview->setplaintext(myviewer3dsamples->getresult().tocstring());
mygeomwidget->fitall();
qapplication::restoreoverridecursor();
}
void applicationcommonwindow::onprocessviewer2d(const qstring& thesamplename)
{
setwindowtitle(all_categories[myapptype] + " - " + thesamplename);
standard_boolean anisfilesample = viewer2dsamples::isfilesample(thesamplename.toutf8().data());
qstring afilename;
if (anisfilesample)
{
int amode = 0; // not used
afilename = selectfilename(thesamplename, getocafdialog(thesamplename), amode);
if (afilename.isempty())
{
return;
}
myviewer2dsamples->setfilename(afilename.toutf8().data());
}
if (!anisfilesample || (anisfilesample && !afilename.isempty()))
{
qapplication::setoverridecursor(qt::waitcursor);
myviewer2dsamples->process(thesamplename.toutf8().data());
if (!viewer2dsamples::isshadedsample(thesamplename.toutf8().data()))
{
mydocument2d->setobjects(myviewer2dsamples->get2dobjects(), standard_false);
}
else
{
mydocument2d->setobjects(myviewer2dsamples->get2dobjects(), standard_true);
}
mycodeview->setplaintext(myviewer2dsamples->getcode().tocstring());
myresultview->setplaintext(myviewer2dsamples->getresult().tocstring());
mygeomwidget->show2d();
qapplication::restoreoverridecursor();
}
else
{
myresultview->setplaintext("no file selected!");
}
}
qstring applicationcommonwindow::selectfilename(const qstring& thesamplename,
translatedialog* thedialog, int& themode)
{
q_unused(thesamplename)
std::shared_ptr<translatedialog> adialog(thedialog);
int ret = adialog->exec();
themode = adialog->getmode();
qapp->processevents();
qstring afilename;
qstringlist afilenamelist;
if (ret != qdialog::accepted)
{
return afilename;
}
afilenamelist = adialog->selectedfiles();
if (!afilenamelist.isempty())
{
afilename = afilenamelist[0];
}
if (!qfileinfo(afilename).completesuffix().length())
{
qstring selfilter = adialog->selectednamefilter();
int idx = selfilter.indexof("(*.");
if (idx != -1)
{
qstring tail = selfilter.mid(idx + 3);
idx = tail.indexof(" ");
if (idx == -1)
{
idx = tail.indexof(")");
}
qstring ext = tail.left(idx);
if (ext.length())
{
afilename += qstring(".") + ext;
}
}
}
return afilename;
}
translatedialog* applicationcommonwindow::getdataexchangedialog(const qstring& thesamplename)
{
translatedialog* atranslatedialog = new translatedialog(this, 0, true);
tcollection_asciistring asamplename(thesamplename.toutf8().data());
if (dataexchangesamples::isexportsample(asamplename))
{
atranslatedialog->setwindowtitle("export file");
atranslatedialog->setfilemode(qfiledialog::anyfile);
atranslatedialog->setacceptmode(qfiledialog::acceptsave);
}
else if (dataexchangesamples::isimportsample(asamplename))
{
atranslatedialog->setwindowtitle("import file");
atranslatedialog->setfilemode(qfiledialog::existingfile);
atranslatedialog->setacceptmode(qfiledialog::acceptopen);
}
qstring aformatfilter;
if (dataexchangesamples::isbrepsample(asamplename))
{
aformatfilter = "brep files(*.brep *.rle)";
}
else if (dataexchangesamples::isstepsample(asamplename))
{
aformatfilter = "step files (*.stp *.step)";
atranslatedialog->addmode(stepcontrol_manifoldsolidbrep, "manifold solid brep");
atranslatedialog->addmode(stepcontrol_facetedbrep, "faceted brep");
atranslatedialog->addmode(stepcontrol_shellbasedsurfacemodel, "shell based surface model");
atranslatedialog->addmode(stepcontrol_geometriccurveset, "geometric curve set");
}
else if (dataexchangesamples::isigessample(asamplename))
{
aformatfilter = "iges files (*.igs *.iges)";
}
else if (dataexchangesamples::isstlsample(asamplename))
{
aformatfilter = "stl files (*.stl)";
}
else if (dataexchangesamples::isvrmlsample(asamplename))
{
aformatfilter = "vrml files (*.vrml)";
}
else if (dataexchangesamples::isimagesample(asamplename))
{
aformatfilter = "all image files (*.bmp *.gif *.jpg *.jpeg *.png *.tga)";
}
qstringlist afilters;
afilters.append(aformatfilter);
afilters.append("all files(*.*)");
atranslatedialog->setnamefilters(afilters);
atranslatedialog->clear();
return atranslatedialog;
}
translatedialog* applicationcommonwindow::getocafdialog(const qstring& thesamplename)
{
translatedialog* atranslatedialog = new translatedialog(this, 0, true);
tcollection_asciistring asamplename(thesamplename.toutf8().data());
if (ocafsamples::isexportsample(asamplename))
{
atranslatedialog->setwindowtitle("export file");
atranslatedialog->setfilemode(qfiledialog::anyfile);
atranslatedialog->setacceptmode(qfiledialog::acceptsave);
}
else if (ocafsamples::isimportsample(asamplename))
{
atranslatedialog->setwindowtitle("import file");
atranslatedialog->setfilemode(qfiledialog::existingfile);
atranslatedialog->setacceptmode(qfiledialog::acceptopen);
}
qstringlist afilters;
if (ocafsamples::isbinarysample(asamplename))
{
afilters.append("binary ocaf sample (*.cbf)");
}
if (ocafsamples::isxmlsample(asamplename))
{
afilters.append("xml ocaf sample (*.xml)");
}
afilters.append("all files(*.*)");
atranslatedialog->setnamefilters(afilters);
atranslatedialog->clear();
return atranslatedialog;
}
qmenu* applicationcommonwindow::menufromdomnode(qdomelement& theitemelement,
qwidget* theparent,
qsignalmapper* themapper)
{
qstring anitemname = theitemelement.attribute("name");
qmenu* amenu = new qmenu(anitemname, theparent);
qdomelement anchilditemelement = theitemelement.firstchildelement("menuitem");
qdomelement ansampleelement = theitemelement.firstchildelement("sample");
while(anchilditemelement.iselement())
{
amenu->addmenu(menufromdomnode(anchilditemelement, amenu, themapper));
anchilditemelement = anchilditemelement.nextsibling().toelement();
}
while(ansampleelement.iselement())
{
qstring asamplename = ansampleelement.attribute("name");
qstring asamplefunction = ansampleelement.attribute("function");
qaction* anaction = amenu->addaction(asamplefunction);
anaction->settext(asamplename);
themapper->setmapping(anaction, asamplefunction);
connect(anaction, signal(triggered()), themapper, slot(map()));
ansampleelement = ansampleelement.nextsibling().toelement();
}
return amenu;
}
void applicationcommonwindow::menuformxml(const qstring& thepath,
qsignalmapper* themapper,
qlist<qmenu*>& themunuslist)
{
qdomdocument adomdocument;
themunuslist.clear();
qfile axmlfile(thepath);
qstring anerrormessage;
if (axmlfile.error() != qfile::noerror)
{
anerrormessage = axmlfile.errorstring();
message::sendfail() << "qfile creating error: " << anerrormessage.toutf8().constdata();
axmlfile.close();
return;
}
if (!axmlfile.open(qiodevice::readonly | qiodevice::text))
{
message::sendfail() << "file " << thepath.toutf8().constdata() << " could not open";
if (axmlfile.error() != qfile::noerror)
{
anerrormessage = axmlfile.errorstring();
message::sendfail() << "qfile opening error: " << anerrormessage.toutf8().constdata();
}
axmlfile.close();
return;
}
bool anamespaceprocessing(false);
qstring anerrormsg;
int anerrorline(0);
int anerrorcolumn(0);
if (!adomdocument.setcontent(&axmlfile, anamespaceprocessing, &anerrormsg, &anerrorline, &anerrorcolumn))
{
message::sendfail() << "xml file parsing error: " << anerrormsg.tostdstring()
<< " at line: " << anerrorline << " column: " << anerrorcolumn;
axmlfile.close();
return;
}
axmlfile.close();
qdomelement arootelement = adomdocument.documentelement();
qdomelement anitemelement = arootelement.firstchildelement("menuitem");
while(!anitemelement.isnull())
{
themunuslist.push_back(menufromdomnode(anitemelement, this, themapper));
anitemelement = anitemelement.nextsiblingelement("menuitem");
}
}
第五处修改：重新使用前面cmake编译的方法进行编译，重新生成build，运行以后就可以看到自己添加的按钮了，点击按钮即可触发测试函数，后续就可以自己在测试函数中编写测试案例
5、总结
注意好以下几个关键点：
1、环境和软件以及源码提前准备好
2、cmake编译的时候记得修改成自己文件路径所在位置
3、一般而言配置完以后运行成功就行，自定义测试需要修改的地方较多，不易操作
发表评论
