前言
在 专栏 之前的文章中,我们已经知道了协程的启动、挂起、取消、异常以及常用的协程作用域等基础应用。
这些基础应用适合的场景是一次性任务,执行完就结束了的场景。
launch / async 适合的场景
- 网络请求
- 数据库查询
- 文件读写
- 并行计算任务
- 等等
而对于一些相对复杂的场景,例如:持续的数据流、需要在不同的协程之间传递数据、需要顺序或背压控制等场景,基础的 launch / async
就不够用了。
例如:
- 用户点击、输入等事件流的处理
- 生产者-消费者模型的需求:任务排队、日志流
- 高频数据源处理(相机帧、音频流等)
类似这种持续的、需要顺序控制、或者多个协程配合执行的场景,就需要用到 channel
了。
channel 的概念和基本使用
概念
顾名思义,channel
有管道、通道的意思。channel
跟 java 中的 blockingqueue
很相似,区别在于 channel
是挂起的,不是阻塞的。
channel
的核心特点就是能够在不同的协程之间进行数据传递,并且能够控制数据传递的顺序。
使用起来很简单,基本就分为以下几步:
- 创建 channel
- 通过
channel.send
发送数据 - 通过
channel.receive
接收数据
整体的概念也比较简单形象,就是一根管道,一个口子发送数据,一个口子接收数据。
channel 的创建
先来看下 channel 的源码,可以看到会根据传入的参数选择不同的实现。
public fun <e> channel( capacity: int = rendezvous, onbufferoverflow: bufferoverflow = bufferoverflow.suspend, onundeliveredelement: ((e) -> unit)? = null ): channel<e> = when (capacity) { rendezvous -> { if (onbufferoverflow == bufferoverflow.suspend) bufferedchannel(rendezvous, onundeliveredelement) // an efficient implementation of rendezvous channel else conflatedbufferedchannel( 1, onbufferoverflow, onundeliveredelement ) // support buffer overflow with buffered channel } conflated -> { require(onbufferoverflow == bufferoverflow.suspend) { "conflated capacity cannot be used with non-default onbufferoverflow" } conflatedbufferedchannel(1, bufferoverflow.drop_oldest, onundeliveredelement) } unlimited -> bufferedchannel( unlimited, onundeliveredelement ) // ignores onbufferoverflow: it has buffer, but it never overflows buffered -> { // uses default capacity with suspend if (onbufferoverflow == bufferoverflow.suspend) bufferedchannel( channel_default_capacity, onundeliveredelement ) else conflatedbufferedchannel(1, onbufferoverflow, onundeliveredelement) } else -> { if (onbufferoverflow === bufferoverflow.suspend) bufferedchannel(capacity, onundeliveredelement) else conflatedbufferedchannel(capacity, onbufferoverflow, onundeliveredelement) } }
参数概览
参数 | 类型 | 默认值 | 描述 |
---|---|---|---|
capacity | int | rendezvous | 通道容量,决定缓冲区大小和行为模式 |
onbufferoverflow | bufferoverflow | suspend | 缓冲区溢出时的处理策略 |
onundeliveredelement | ((e) -> unit)? | null | 元素未能送达时的回调函数 |
capacity(容量配置)
capacity
参数决定了 channel
的缓冲行为和容量大小:
rendezvous
(值为 0):无缓冲,发送者和接收者必须同时准备好conflated
(值为 -1):只保留最新的元素,旧元素会被覆盖unlimited
(值为int.max_value
):理论上就是无限容量,永不阻塞发送buffered
(值为 64):默认缓冲大小- 自定义正整数:自己指定具体的缓冲区大小
onbufferoverflow(溢出策略)
当缓冲区满时的处理策略:
suspend
:挂起发送操作,等待缓冲区有空间(默认)drop_oldest
:丢弃旧的元素,添加新元素drop_latest
:丢弃新元素,保留缓冲区中的现有元素
onundeliveredelement(未送达回调)
当元素无法送达时的清理回调函数:
null
:不执行任何清理操作(默认)- 自定义函数:用于资源清理、日志记录等,根据业务需求来定义
参数组合效果
capacity | onbufferoverflow | 行为 | 适用场景 |
---|---|---|---|
rendezvous | suspend | 无缓冲,同步通信 | 严格的生产者-消费者同步 |
buffered | suspend | 有限缓冲,满时挂起 | 一般的异步处理,默认的缓冲数量是 64 |
unlimited | suspend | 缓冲长度为 int.max_value | 高吞吐量场景(生产上不建议使用,有内存方面的风险) |
conflated | drop_oldest | 无缓冲,只保留最新值 | 状态更新、实时数据 |
自定义大小 | suspend | 固定大小,满时挂起 | 批量处理、批量任务 |
自定义大小 | drop_oldest | 固定大小,丢弃旧数据 | 获取最近 n 个元素 |
自定义大小 | drop_latest | 固定大小,拒绝新数据 | 保护重要历史数据 |
capacity
rendezvous(会合模式)
特点:
- 容量为 0,无缓冲区
- 发送者和接收者必须同时准备好才能完成数据传输
- 提供强同步保证,一手交钱一手交货
使用示例:
suspend fun demonstraterendezvouschannel() { // 创建 rendezvous channel(默认容量为 0),默认什么都不传就是 rendezvous 模式,channel<string>() val rendezvouschannel = channel<string>(channel.rendezvous) // 启动发送者协程 val senderjob = globalscope.launch { println("[发送者] 准备发送消息...") rendezvouschannel.send("hello from rendezvous!") println("[发送者] 消息已发送") rendezvouschannel.send("second message") println("[发送者] 第二条消息已发送") rendezvouschannel.close() } // 启动接收者协程 val receiverjob = globalscope.launch { delay(1000) // 延迟1秒,发送者会等待接收者准备好 println("[接收者] 开始接收消息...") for (message in rendezvouschannel) { println("[接收者] 收到消息: $message") delay(500) // 模拟处理时间 } println("[接收者] channel已关闭") } // 等待所有协程完成 joinall(senderjob, receiverjob) }

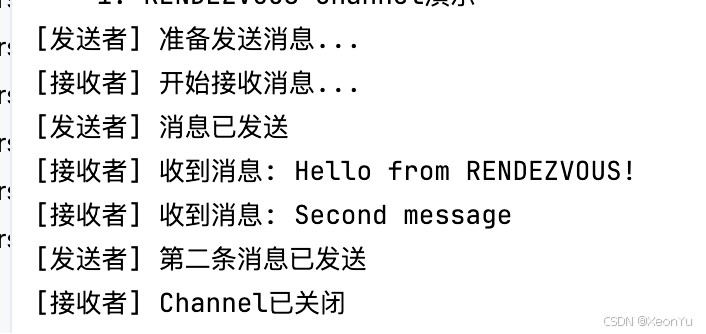

执行结果
conflated(只留最新值)
特点:
- 容量为 1,但会丢弃旧值
- 只保留最新的元素
- 发送操作永不阻塞
- 只能使用
bufferoverflow.suspend
策略
源码分析:
conflated -> { require(onbufferoverflow == bufferoverflow.suspend) { "conflated capacity cannot be used with non-default onbufferoverflow" } conflatedbufferedchannel(1, bufferoverflow.drop_oldest, onundeliveredelement) }
使用示例:

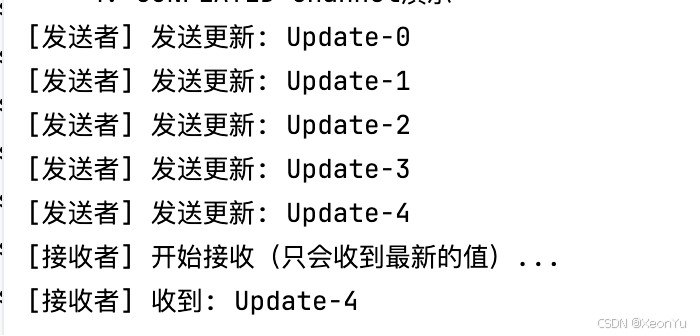

suspend fun demonstrateconflatedchannel() { // 创建 conflated channel,相当于:channel<string>(1, bufferoverflow.drop_oldest) val conflatedchannel = channel<string>(channel.conflated) // 快速发送多个消息 val senderjob = globalscope.launch { repeat(5) { i -> val message = "update-$i" conflatedchannel.send(message) println("[发送者] 发送更新: $message") delay(100) // 短暂延迟 } conflatedchannel.close() } // 慢速接收者 val receiverjob = globalscope.launch { delay(1000) // 延迟1秒,让发送者发送完所有消息 println("[接收者] 开始接收(只会收到最新的值)...") for (message in conflatedchannel) { println("[接收者] 收到: $message") } } joinall(senderjob, receiverjob) }
unlimited(无限容量)
特点:
- 容量为
int.max_value
,理论上无限容量 - 发送操作永不阻塞,但要注意内存使用
- 忽略
onbufferoverflow
参数 - 适用于高吞吐量场景,但生产环境需谨慎使用

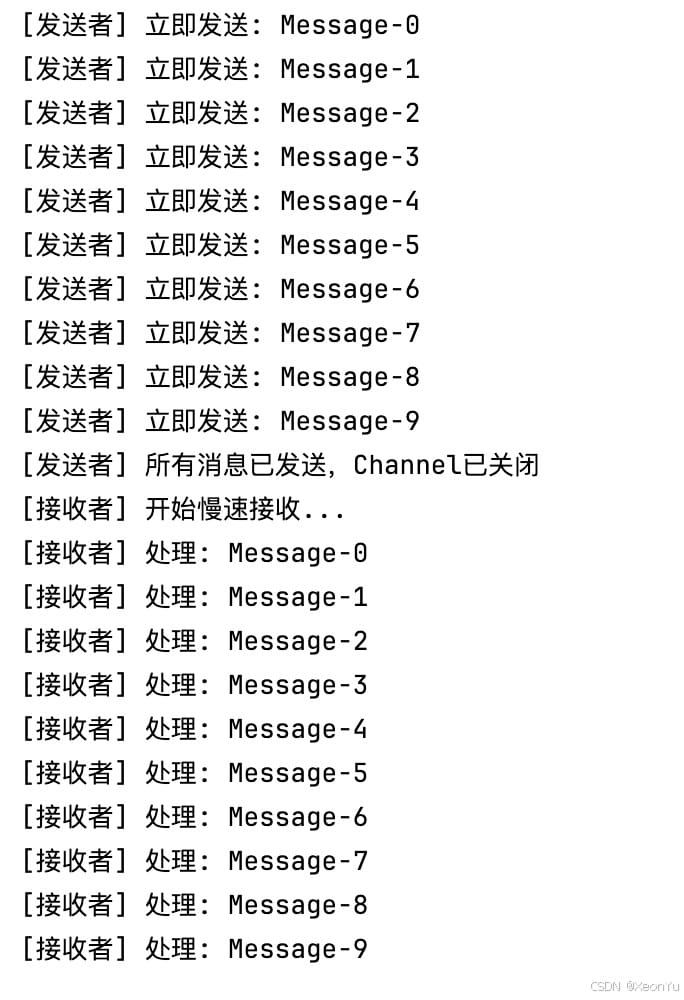

suspend fun demonstrateunlimitedchannel() { val unlimitedchannel = channel<string>(channel.unlimited) val senderjob = globalscope.launch { repeat(10) { i -> val message = "message-$i" unlimitedchannel.send(message) println("[发送者] 立即发送: $message") } unlimitedchannel.close() println("[发送者] 所有消息已发送,channel已关闭") } val receiverjob = globalscope.launch { delay(1000) // 延迟1秒开始接收 println("[接收者] 开始慢速接收...") for (message in unlimitedchannel) { println("[接收者] 处理: $message") delay(300) // 模拟处理时间 } } joinall(senderjob, receiverjob) }
buffered(有限容量)
特点:
- 使用默认容量 (
channel_default_capacity
,通常为 64) - 在缓冲区满时根据
onbufferoverflow
策略处理
源码分析:
buffered -> { if (onbufferoverflow == bufferoverflow.suspend) bufferedchannel(channel_default_capacity, onundeliveredelement) else conflatedbufferedchannel(1, onbufferoverflow, onundeliveredelement) }
使用示例:
suspend fun demonstratebuffereddefaultchannel() { // 创建 buffered channel(默认容量为 64) val bufferedchannel = channel<string>(channel.buffered) val senderjob = globalscope.launch { repeat(100) { i -> bufferedchannel.send("message-$i") println("[发送者] 发送 message-$i") } bufferedchannel.close() } val receiverjob = globalscope.launch { delay(1000) // 延迟接收 for (message in bufferedchannel) { println("[接收者] 收到: $message") delay(50) } } joinall(senderjob, receiverjob) }
与下面自定义容量效果类似。
自定义容量
特点:
- 指定具体的缓冲区大小
- 根据
onbufferoverflow
策略处理溢出
源码分析:
else -> { if (onbufferoverflow === bufferoverflow.suspend) bufferedchannel(capacity, onundeliveredelement) else conflatedbufferedchannel(capacity, onbufferoverflow, onundeliveredelement) }
使用示例:
suspend fun demonstratebufferedchannel() { // 创建容量为3的缓冲channel val bufferedchannel = channel<int>(capacity = 3) // 启动发送者协程 val senderjob = globalscope.launch { repeat(5) { i -> println("[发送者] 发送数字: $i") bufferedchannel.send(i) println("[发送者] 数字 $i 已发送") } bufferedchannel.close() println("[发送者] channel已关闭") } // 启动接收者协程,延迟接收以观察缓冲效果 val receiverjob = globalscope.launch { delay(2000) // 延迟2秒开始接收 println("[接收者] 开始接收数字...") for (number in bufferedchannel) { println("[接收者] 收到数字: $number") delay(800) // 模拟慢速处理 } } joinall(senderjob, receiverjob) }

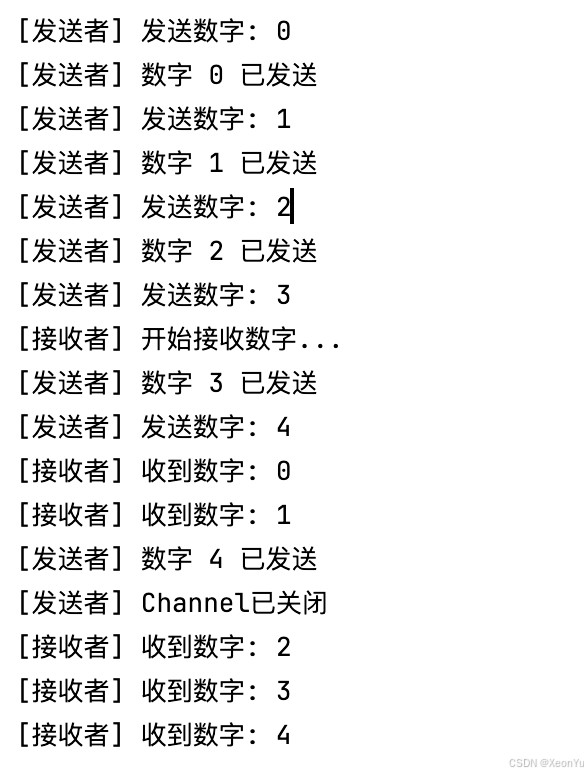

可以看到,因为默认的溢出策略是 suspend
,所以当缓冲区满了时,发送者会被挂起,直到接收者处理完一个元素,才会继续发送。
bufferoverflow 策略详解
当 channel 的缓冲区满时,bufferoverflow
参数决定了如何处理新的发送请求:
suspend(默认策略)
- 行为:当缓冲区满时,挂起发送操作直到有空间可用
- 特点:提供背压控制,防止生产者过快
- 使用场景:需要确保所有数据都被处理的场景
suspend fun demonstratebasicoperations() { //容量为 2,溢出策略为suspend val channel = channel<string>(capacity = 2, onbufferoverflow = bufferoverflow.suspend) //发送的速度快 val job1 = globalscope.launch { repeat(5) { channel.send("message-$it") println("[发送者] 发送 message-$it") } channel.close() } val job2 = globalscope.launch { //除了用 channel.recrive 外,也可以直接 用 for 循环接收数据 for (message in channel) { //接收的速度慢 delay(1000) println("[接收者] 接收到: $message") } } joinall(job1, job2) }
drop_latest
- 行为:当缓冲区满时,丢弃新元素,保留缓冲区中的现有元素
- 特点:保护已缓冲的数据不被覆盖
- 使用场景:保护重要的历史数据,防止新数据覆盖
- 性能特点:发送操作永不阻塞,但新数据可能被丢弃
suspend fun demonstratebasicoperations() { val channel = channel<string>(capacity = 2, onbufferoverflow = bufferoverflow.drop_latest) val job1 = globalscope.launch { repeat(5) { channel.send("message-$it") println("[发送者] 发送 message-$it") } channel.close() } val job2 = globalscope.launch { for (message in channel) { delay(1000) println("[接收者] 接收到: $message") } } joinall(job1, job2) }

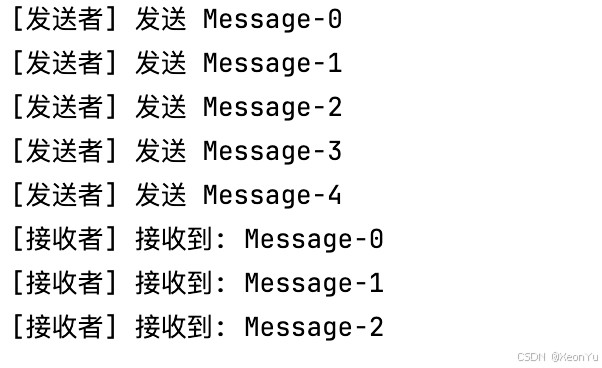

可以看到,当缓冲区满时,会把新数据丢弃掉,因此,接收端只接收到了旧数据。
drop_oldest
- 行为:当缓冲区满时,丢弃旧的元素,添加新元素
- 特点:保持固定的内存使用,优先保留新数据
- 使用场景:实时数据流、最近n个元素
- 性能特点:发送操作永不阻塞,但可能丢失历史数据
suspend fun demonstratebasicoperations() { val channel = channel<string>(capacity = 2, onbufferoverflow = bufferoverflow.drop_oldest) val job1 = globalscope.launch { repeat(5) { channel.send("message-$it") println("[发送者] 发送 message-$it") } channel.close() } val job2 = globalscope.launch { for (message in channel) { delay(1000) println("[接收者] 接收到: $message") } } joinall(job1, job2) }

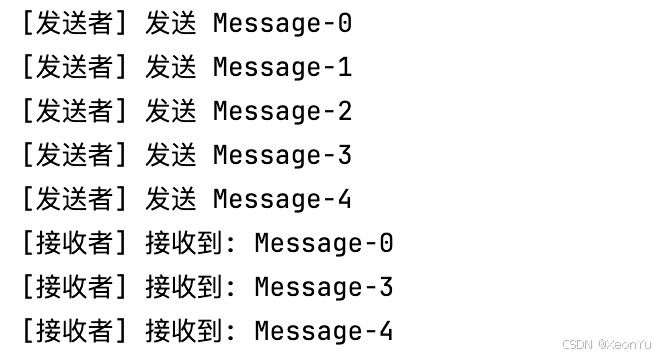

需要注意的是,当缓冲区满了之后,1 和 2 被丢弃了,3 和 4 被放进去了。从这里可以看出,丢弃数据时,并不是把最早的旧数据丢掉,这里跟内部的实现有关。
onundeliveredelement 回调
当元素无法送达时(如 channel 被取消或关闭),会调用此回调函数

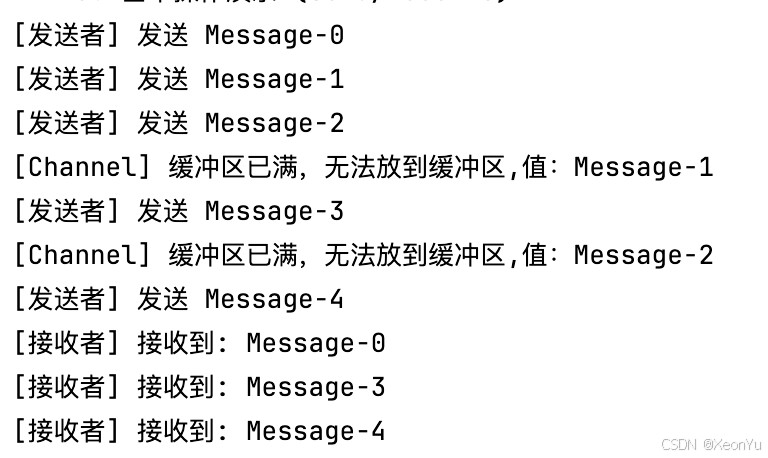

suspend fun demonstratebasicoperations() { val channel = channel<string>(capacity = 2, onbufferoverflow = bufferoverflow.drop_oldest) { println("[channel] 缓冲区已满,无法放到缓冲区,值:${it}") } // 演示基本的send和receive操作 val job1 = globalscope.launch { repeat(5) { channel.send("message-$it") println("[发送者] 发送 message-$it") } channel.close() } val job2 = globalscope.launch { for (message in channel) { delay(1000) println("[接收者] 接收到: $message") } } joinall(job1, job2) }
channel 操作方式
channel 提供了两种操作方式:阻塞操作和非阻塞操作。
阻塞操作(send/receive)
send()
和 receive()
方法都是挂起方法,它们会阻塞当前协程,直到完成操作。
非阻塞操作(trysend/tryreceive)
trysend()
和 tryreceive()
是 channel 提供的非阻塞操作 api。与阻塞版本不同,这些方法会立即返回结果,不会挂起当前协程,也不会抛出异常。
操作对比
操作类型 | 阻塞版本 | 非阻塞版本 | 行为差异 |
---|---|---|---|
发送 | send() | trysend() | send() 会挂起直到有空间;trysend() 立即返回结果 |
接收 | receive() | tryreceive() | receive() 会挂起直到有数据;tryreceive() 立即返回结果 |
返回值类型
trysend()
返回channelresult<unit>
tryreceive()
返回channelresult<t>

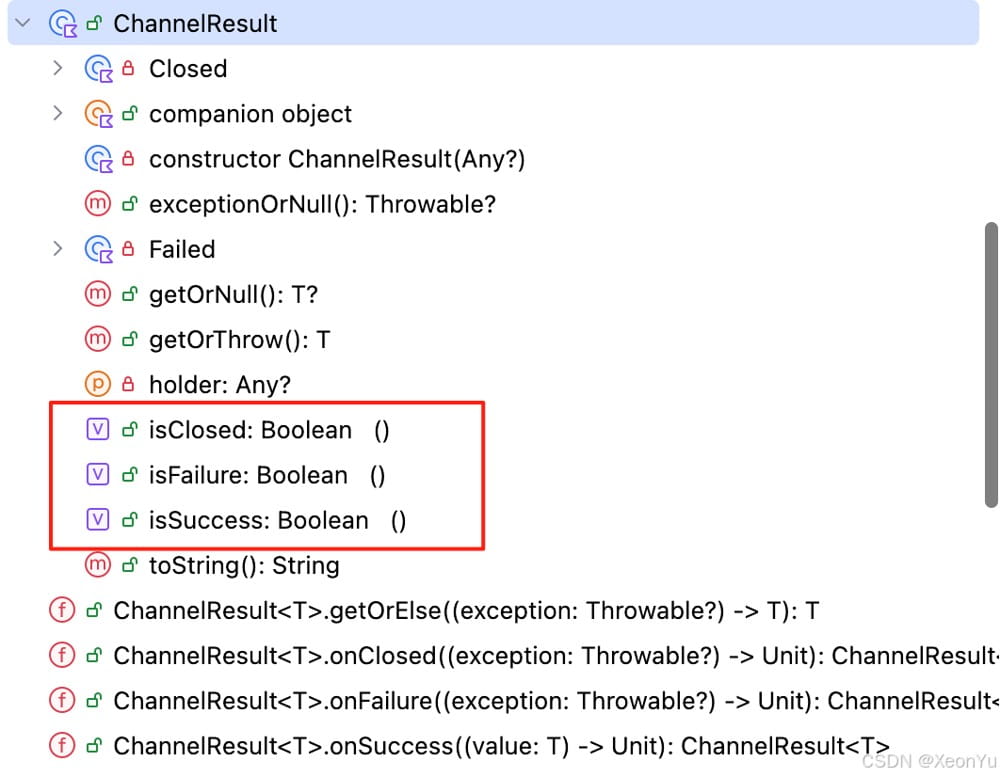

channelresult
是一个密封类,通过密封类中的成员 issuccess
和 getornull()
可以判断操作是否成功。
大部分场景下,send / receive + 合理的 channel 配置就能解决问题,trysend/tryreceive 更多的是想达到如下效果:
- 避免不必要的协程挂起开销,希望立即得到结果
- 提供更精细的控制逻辑,如:超时处理、重试机制等
- 实现更好的错误处理和用户反馈,能更好地处理异常场景

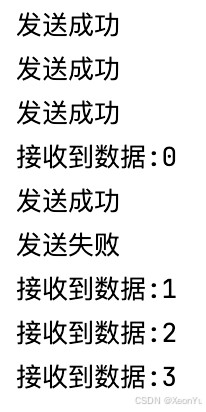

runblocking { val channel = channel<int>(2) val sendjob = launch { repeat(5) { delay(100) val sendresult = channel.trysend(it) sendresult.onsuccess { println("发送成功") }.onfailure { println("发送失败") }.onclosed { println("通道已关闭") } } } val receivejob = launch { for (i in channel) { delay(300) println("接收到数据:${i}") } } joinall(sendjob, receivejob) }
channel 状态管理
channel 在其生命周期中会经历以下几个关键状态:
- 活跃状态(active):可以正常发送和接收数据
- 发送端关闭(closed for send):不能发送新数据,但可以接收缓冲区中的数据
- 接收端关闭(closed for receive):不能接收数据,缓冲区已清空
- 取消状态(cancelled):channel 被取消,所有操作都会失败
api
channel.close()
:关闭 channelchannel.isclosedforsend
:判断发送端是否已关闭channel.isclosedforreceive
:判断接收端是否已关闭channel.cancel()
:取消 channel
close(关闭操作)
- 调用
close()
后,isclosedforsend
立即变为true
- 此时,缓冲区中的数据仍可被消费
- 只有当缓冲区清空后,
isclosedforreceive
才变为true
示例:

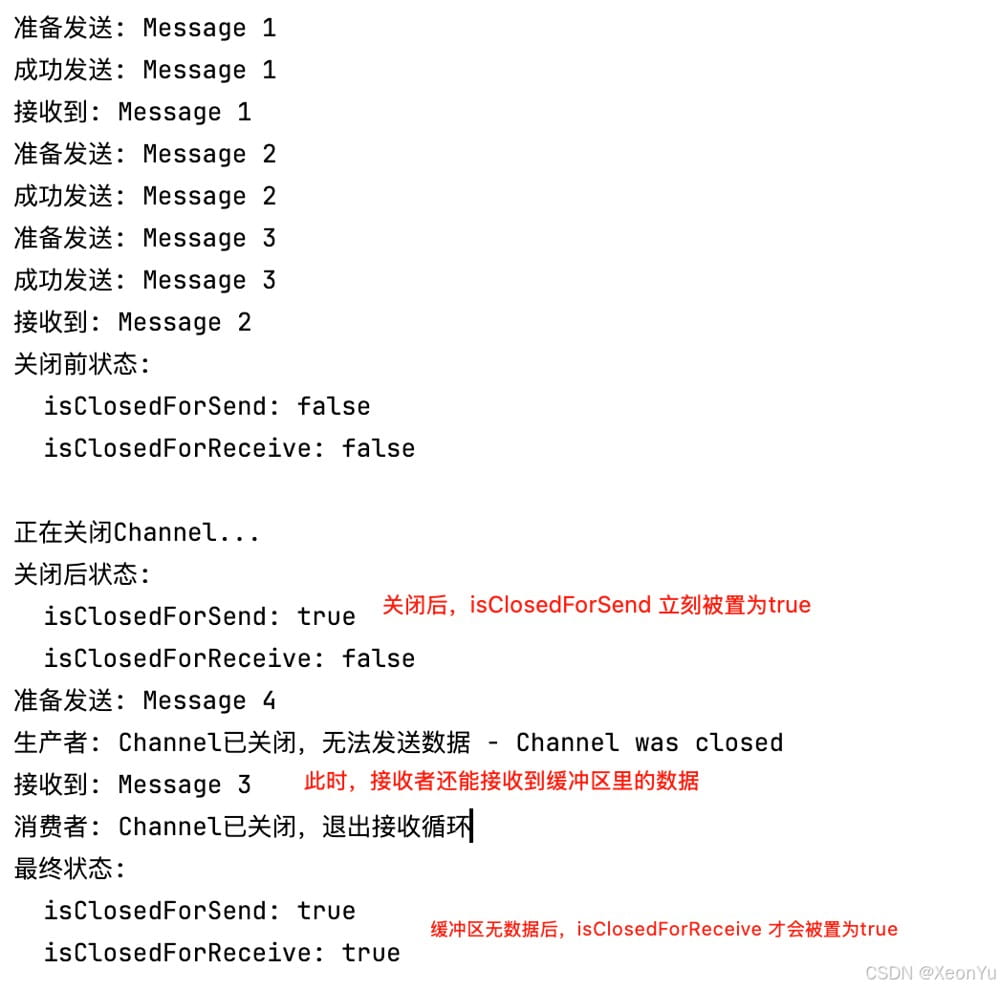

suspend fun demonstratechannelclose() { val channel = channel<string>(1) val producer = globalscope.launch { try { for (i in 1..5) { val message = "message $i" println("准备发送: $message") channel.send(message) println("成功发送: $message") delay(100) } } catch (e: closedsendchannelexception) { println("生产者: channel已关闭,无法发送数据 - ${e.message}") } } val consumer = globalscope.launch { try { for (message in channel) { println("接收到: $message") delay(200) } println("消费者: channel已关闭,退出接收循环") } catch (e: exception) { println("消费者异常: ${e.message}") } } delay(300) // 模拟让一些数据能够被接收到 // 检查channel状态 println("关闭前状态:") println(" isclosedforsend: ${channel.isclosedforsend}") println(" isclosedforreceive: ${channel.isclosedforreceive}") // 关闭channel println("\n正在关闭channel...") channel.close() // 检查关闭后的状态 println("关闭后状态:") println(" isclosedforsend: ${channel.isclosedforsend}") println(" isclosedforreceive: ${channel.isclosedforreceive}") // 等待协程完成 producer.join() consumer.join() println("最终状态:") println(" isclosedforsend: ${channel.isclosedforsend}") println(" isclosedforreceive: ${channel.isclosedforreceive}") }
cancel(取消操作)
cancel()
方法用于强制取消 channel,它会:
- 立即关闭发送和接收端
- 清空缓冲区中的所有数据
- 触发
onundeliveredelement
回调(如果设置了)
suspend fun demonstratechannelcancel() { val channel = channel<string>(capacity = 5) { println("消息未被接收:${it}") } val producer = globalscope.launch { try { for (i in 1..8) { val message = "message $i" println("尝试发送: $message") channel.send(message) println("成功发送: $message") delay(100) } } catch (e: cancellationexception) { println("生产者: channel被取消 - ${e.message}") } } val consumer = globalscope.launch { try { for (message in channel) { println("接收到: $message") delay(300) } } catch (e: cancellationexception) { println("消费者: 协程被取消 - ${e.message}") } } delay(400) // 让一些操作执行 println("\n取消前状态:") println(" isclosedforsend: ${channel.isclosedforsend}") println(" isclosedforreceive: ${channel.isclosedforreceive}") // 取消channel println("\n正在取消channel...") channel.cancel(cancellationexception("主动取消channel")) println("取消后状态:") println(" isclosedforsend: ${channel.isclosedforsend}") println(" isclosedforreceive: ${channel.isclosedforreceive}") // 等待协程完成 producer.join() consumer.join() }
channel 异常处理
在使用 channel 的过程中,会遇到各种异常情况。主要包括以下几种类型:
closedsendchannelexception
触发条件:
- 在已关闭的 channel 上调用
send()
方法 - channel 调用
close()
后,发送端立即关闭
示例:
suspend fun demonstrateclosedsendexception() { val channel = channel<string>() // 关闭 channel channel.close() try { // 尝试在已关闭的 channel 上发送数据 channel.send("this will throw exception") } catch (e: closedsendchannelexception) { println("捕获异常: ${e.message}") println("异常类型: ${e::class.simplename}") } }
closedreceivechannelexception
触发条件:
- 从已关闭且缓冲区为空的 channel 调用
receive()
方法 - 当
isclosedforreceive
为true
时调用receive()
示例:
suspend fun demonstrateclosedreceiveexception() { val channel = channel<string>() // 关闭 channel channel.close() try { // 尝试从已关闭且空的 channel 接收数据 val message = channel.receive() println("收到消息: $message") } catch (e: closedreceivechannelexception) { println("捕获异常: ${e.message}") println("异常类型: ${e::class.simplename}") } }
cancellationexception
触发条件:
- channel 被
cancel()
方法取消 - 父协程被取消,导致 channel 操作被取消
- 超时或其他取消信号
示例:
suspend fun demonstratecancellationexception() { val channel = channel<string>() val job = globalscope.launch { try { // 这个操作会被取消 channel.send("this will be cancelled") } catch (e: cancellationexception) { println("发送操作被取消: ${e.message}") throw e // 重新抛出 cancellationexception } } delay(100) // 取消 channel channel.cancel(cancellationexception("手动取消 channel")) try { job.join() } catch (e: cancellationexception) { println("协程被取消: ${e.message}") } }
异常与状态关系
channel 状态 | send() 行为 | receive() 行为 | trysend() 行为 | tryreceive() 行为 |
---|---|---|---|---|
活跃状态 | 正常发送或挂起 | 正常接收或挂起 | 返回成功/失败结果 | 返回成功/失败结果 |
发送端关闭 | 抛出 closedsendchannelexception | 正常接收缓冲区数据 | 返回失败结果 | 正常返回结果 |
接收端关闭 | 抛出 closedsendchannelexception | 抛出 closedreceivechannelexception | 返回失败结果 | 返回失败结果 |
已取消 | 抛出 cancellationexception | 抛出 cancellationexception | 返回失败结果 | 返回失败结果 |
异常处理技巧
使用非阻塞操作避免异常
非阻塞操作不会抛出异常,而是返回结果对象:
suspend fun safechanneloperations() { val channel = channel<string>() // 安全的发送操作 val sendresult = channel.trysend("safe message") when { sendresult.issuccess -> println("发送成功") sendresult.isfailure -> println("发送失败: ${sendresult.exceptionornull()}") sendresult.isclosed -> println("channel 已关闭") } // 安全的接收操作 val receiveresult = channel.tryreceive() when { receiveresult.issuccess -> println("接收到: ${receiveresult.getornull()}") receiveresult.isfailure -> println("接收失败: ${receiveresult.exceptionornull()}") receiveresult.isclosed -> println("channel 已关闭") } }
健壮的异常处理
suspend fun robustchannelusage() { val channel = channel<string>() val producer = globalscope.launch { try { repeat(5) { i -> if (channel.isclosedforsend) { println("channel 已关闭,停止发送") break } channel.send("message $i") delay(100) } } catch (e: closedsendchannelexception) { println("生产者: channel 已关闭") } catch (e: cancellationexception) { println("生产者: 操作被取消") throw e // 重新抛出取消异常 } finally { println("生产者: 清理资源") } } val consumer = globalscope.launch { try { while (!channel.isclosedforreceive) { try { val message = channel.receive() println("消费者: 收到 $message") } catch (e: closedreceivechannelexception) { println("消费者: channel 已关闭且无更多数据") break } delay(200) } } catch (e: cancellationexception) { println("消费者: 操作被取消") throw e } finally { println("消费者: 清理资源") } } delay(1000) channel.close() joinall(producer, consumer) }
总结
channel 关键概念对比
特性 | rendezvous | conflated | buffered | unlimited | 自定义容量 |
---|---|---|---|---|---|
容量 | 0 | 1 | 64 | int.max_value | 指定值 |
缓冲行为 | 无缓冲,同步 | 只保留最新值 | 有限缓冲 | 无限缓冲 | 有限缓冲 |
发送阻塞 | 是 | 否 | 缓冲满时 | 否 | 缓冲满时 |
适用场景 | 严格同步 | 状态更新 | 一般异步 | 高吞吐量 | 批量处理 |
内存风险 | 低 | 低 | 中等 | 高 | 可控 |
溢出策略对比
策略 | 行为 | 性能特点 | 适用场景 |
---|---|---|---|
suspend | 挂起发送操作 | 提供背压控制 | 确保数据完整性 |
drop_oldest | 丢弃旧元素 | 发送不阻塞 | 实时数据流 |
drop_latest | 丢弃新元素 | 发送不阻塞 | 保护历史数据 |
操作方式
操作类型 | 阻塞版本 | 非阻塞版本 | 异常处理 | 返回值 |
---|---|---|---|---|
发送 | send() | trysend() | 抛出异常 | channelresult<unit> |
接收 | receive() | tryreceive() | 抛出异常 | channelresult<t> |
特点 | 会挂起协程 | 立即返回 | 需要 try-catch | 通过结果对象判断 |
channel 状态生命周期
状态 | 描述 | send() | receive() | 检查方法 |
---|---|---|---|---|
活跃 | 正常工作状态 | ✅ 正常 | ✅ 正常 | - |
发送关闭 | 调用 close() 后 | ❌ 异常 | ✅ 可接收缓冲区数据 | isclosedforsend |
接收关闭 | 缓冲区清空后 | ❌ 异常 | ❌ 异常 | isclosedforreceive |
已取消 | 调用 cancel() 后 | ❌ 异常 | ❌ 异常 | - |
总体来说,channel 是一种非常强大的协程通信机制,它可以帮助我们在协程之间进行安全、高效的通信。在使用 channel时,我们需要注意异常处理、缓冲区容量、溢出策略等问题。
感谢阅读,如果对你有帮助请三连(点赞、收藏、加关注)支持。有任何疑问或建议,欢迎在评论区留言讨论。如需转载,请注明出处:喻志强的博客
