大家好，由于工作上业务的需要，在java项目中引入了socket通信，特此记录一下，用以备份，本文章中的socket通信实现了，服务端与客户端的双向通讯，以及二者之间的心跳通信，服务端重启之后，客户端的自动重连功能。
原理
socket通信是计算机网络中常用的一种通信机制，它是基于tcp/ip协议实现的，提供了两个应用程序之间通过网络进行数据交换的能力。socket本质上是一种抽象概念，为网络服务提供了一组api接口。
- socket通信模型
socket通信模型通常包括客户端和服务器端两部分。
服务器端：负责在特定的端口监听来自客户端的连接请求，当一个请求到达时，服务器会与客户端建立连接，并为客户端提供相应的服务。
客户端：主动向服务器的特定ip地址和端口发起连接请求，连接成功后，客户端可以通过建立的连接向服务器发送请求并接收响应。
- socket通信过程
socket通信过程一般包括以下几个步骤：
- 服务器监听：
服务器通过socket()函数创建一个socket，并通过bind()函数将其绑定到一个ip地址和端口上。然后，服务器调用listen()函数开始监听该端口上的连接请求。
- 客户端请求连接：
客户端也通过socket()函数创建一个socket，然后调用connect()函数尝试与服务器的指定ip地址和端口建立连接。
- 服务器接受连接：
服务器在接收到客户端的连接请求后，通过accept()函数接受这个连接。如果成功，accept()函数会返回一个新的socket（通常称为“子socket”），用于与该客户端进行通信。
数据传输：连接建立成功后，客户端和服务器就可以通过新建立的socket进行数据传输了。数据传输可以是单向的也可以是双向的。应用程序可以使用send(), write(), recv(), read()等函数进行数据发送和接收操作。
- 断开连接：
当通信结束后，客户端和服务器都可以调用close()函数来关闭自己持有的socket，从而断开两者之间的连接。
tcp vs udp
在实际使用中，基于socket的通信方式主要有两种：基于tcp和基于udp。
tcp socket：提供可靠、面向连接、基于字节流的通信方式。适用对数据完整性和顺序有要求的应用场景。
udp socket：提供无连接、不保证可靠性、基于消息（数据报）的通信方式。适用于对实时性要求高、容忍部分数据丢失或乱序的应用场景。
代码实现
服务端
服务端主体逻辑：和每个接入的客户端都会使用独立线程建立起长连接，二者之间使用心跳保持联系，使用clientsockets 存储了每个客户端的信息便于和客户端建立起联系。
package com.example.demo2.server.socket;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.beans.factory.disposablebean;
import org.springframework.stereotype.component;
import javax.annotation.postconstruct;
import java.io.*;
import java.net.serversocket;
import java.net.socket;
import java.util.map;
import java.util.concurrent.*;
/**
* @author kim
*/
@component
public class tcpserver implements disposablebean {
private static final logger logger = loggerfactory.getlogger(tcpserver.class);
private final socketserverconfig config;
private serversocket serversocket;
private executorservice executorservice;
private volatile boolean running = true;
// 存储客户端连接
private final map<string, socket> clientsockets = new concurrenthashmap<>();
public tcpserver(socketserverconfig config) {
this.config = config;
}
@postconstruct
public void start() throws ioexception {
executorservice = executors.newfixedthreadpool(config.getmaxthreads());
serversocket = new serversocket(config.getport());
logger.info("平台socket服务已启动, 监听端口为 {}", config.getport());
new thread(this::acceptconnections).start();
}
private void acceptconnections() {
while (running) {
try {
socket clientsocket = serversocket.accept();
string clientaddress = clientsocket.getinetaddress().gethostaddress();
clientsockets.put(clientaddress, clientsocket);
executorservice.execute(new clienthandler(clientsocket, clientaddress));
} catch (ioexception e) {
if (running) {
logger.error("connection accept error", e);
}
}
}
}
// 用于发送消息到特定客户端
public void sendmessagetoclient(string clientaddress, string message) throws ioexception {
socket socket = clientsockets.get(clientaddress);
if (socket != null && !socket.isclosed()) {
printwriter out = new printwriter(socket.getoutputstream(), true);
out.println(message);
logger.info("sent message to {}: {}", clientaddress, message);
} else {
logger.warn("client {} is not connected or socket is closed", clientaddress);
}
}
@override
public void destroy() throws exception {
running = false;
executorservice.shutdown();
for (socket socket : clientsockets.values()) {
if (!socket.isclosed()) {
socket.close();
}
}
if (serversocket != null && !serversocket.isclosed()) {
serversocket.close();
}
logger.info("tcp server stopped");
}
private class clienthandler implements runnable {
private final socket clientsocket;
private final string clientaddress;
clienthandler(socket socket, string address) {
this.clientsocket = socket;
this.clientaddress = address;
}
@override
public void run() {
try (bufferedreader in = new bufferedreader(
new inputstreamreader(clientsocket.getinputstream()));
printwriter out = new printwriter(
clientsocket.getoutputstream(), true)) {
logger.info("client connected: {}", clientaddress);
string input;
while ((input = in.readline()) != null) {
logger.debug("received: {}", input);
out.println(input);
logger.info("client connected: {}", clientaddress);
}
} catch (ioexception e) {
logger.warn("client connection closed: {}", e.getmessage());
} finally {
try {
clientsockets.remove(clientaddress);
clientsocket.close();
} catch (ioexception e) {
logger.error("error closing socket", e);
}
}
}
}
}
配置类
package com.example.demo2.server.socket;
import lombok.data;
import org.springframework.boot.context.properties.configurationproperties;
import org.springframework.context.annotation.configuration;
@configuration
@configurationproperties(prefix = "socket.server")
@data
public class socketserverconfig {
private int port;
private int maxthreads;
// getters and setters
}
配置文件
server:
port: 8080
socket:
server:
port: 8088
maxthreads: 50
向客户端发送测试信息
@getmapping("/send")
public string sendmessage(string clientaddress) throws ioexception {
tcpserver.sendmessagetoclient("192.168.3.8","77777777777");
return "success";
}

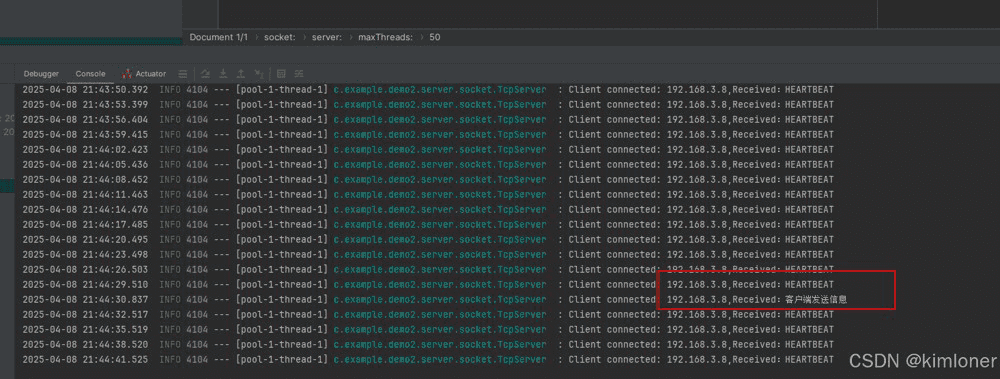

服务端发送日志

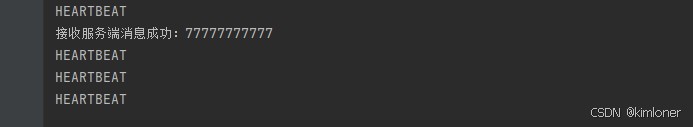

客户端接收日志
客户端
客户端主体逻辑，使用自己设计的心跳机制，监听服务端状态，如果服务端断开连接，则客户端会尝试重新建立联系。
package com.example.demo1.socketclient;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.beans.factory.disposablebean;
import org.springframework.beans.factory.annotation.autowired;
import org.springframework.boot.applicationarguments;
import org.springframework.boot.applicationrunner;
import org.springframework.stereotype.service;
import java.io.bufferedreader;
import java.io.ioexception;
import java.io.inputstreamreader;
import java.io.printwriter;
import java.net.inetsocketaddress;
import java.net.socket;
import java.net.sockettimeoutexception;
import java.util.concurrent.executorservice;
import java.util.concurrent.executors;
import java.util.concurrent.atomic.atomicboolean;
@service
public class tcpclientservice implements applicationrunner, disposablebean {
private static final logger logger = loggerfactory.getlogger(tcpclientservice.class);
private final socketclientconfig config;
private socket socket;
private printwriter out;
private bufferedreader in;
private final atomicboolean running = new atomicboolean(true);
private final executorservice executor = executors.newsinglethreadexecutor();
private final messagelistener messagelistener;
@autowired
public tcpclientservice(socketclientconfig config, messagelistener messagelistener) {
this.config = config;
this.messagelistener = messagelistener;
}
@override
public void run(applicationarguments args) throws exception {
initializeconnection();
}
@override
public void destroy() throws exception {
running.set(false);
closeresources();
executor.shutdown();
}
private synchronized void initializeconnection() {
new thread(() -> {
while (running.get()) {
try {
socket = new socket();
socket.setkeepalive(true);
socket.setsotimeout(config.getheartbeattimeout());
socket.connect(new inetsocketaddress(config.gethost(), config.getport()), config.gettimeout());
out = new printwriter(socket.getoutputstream(), true);
in = new bufferedreader(new inputstreamreader(socket.getinputstream()));
logger.info("connected to server {}:{}", config.gethost(), config.getport());
executor.execute(this::listentoserver);
startheartbeat();
while (!socket.isclosed() && socket.isconnected()) {
thread.sleep(1000);
}
} catch (exception e) {
logger.warn("connection error: {}", e.getmessage());
} finally {
closeresources();
if (running.get()) {
logger.info("attempting to reconnect in 5 seconds...");
sleepsafely(5000);
}
}
}
}, "tcp-client-connector").start();
}
private void listentoserver() {
try {
string response;
while (running.get() && !socket.isclosed()) {
try {
response = in.readline();
if (response == null) {
logger.warn("server closed connection");
break; // 终止循环，表示连接已关闭
}
logger.debug("received server message: {}", response);
messagelistener.onmessage(response);
} catch (sockettimeoutexception e) {
logger.debug("socket read timeout");
} catch (ioexception e) {
if (!socket.isclosed()) {
logger.warn("connection lost: {}", e.getmessage());
break; // 终止循环，表示连接已中断
}
}
}
} finally {
closeresources(); // 确保资源关闭
}
}
private void startheartbeat() {
new thread(() -> {
while (running.get() && !socket.isclosed()) {
try {
sendmessageinternal("heartbeat");
sleepsafely(config.getheartbeatinterval());
} catch (exception e) {
logger.warn("heartbeat failed: {}", e.getmessage());
break;
}
}
}, "heartbeat-thread").start();
}
public synchronized void sendmessage(string message) throws ioexception {
if (socket == null || !socket.isconnected()) {
throw new ioexception("not connected to server");
}
out.println(message);
logger.debug("sent message: {}", message);
}
private synchronized void sendmessageinternal(string message) {
try {
if (socket != null && socket.isconnected()) {
out.println(message);
}
} catch (exception e) {
logger.warn("failed to send heartbeat");
}
}
private synchronized void closeresources() {
try {
if (out != null) out.close();
if (in != null) in.close();
if (socket != null) socket.close();
} catch (ioexception e) {
logger.warn("error closing resources: {}", e.getmessage());
}
}
private void sleepsafely(long millis) {
try {
thread.sleep(millis);
} catch (interruptedexception e) {
thread.currentthread().interrupt();
}
}
public interface messagelistener {
void onmessage(string message);
}
}
消息监听：监听服务发送的消息
package com.example.demo1.socketclient;
import org.apache.commons.lang3.stringutils;
import org.slf4j.logger;
import org.slf4j.loggerfactory;
import org.springframework.stereotype.component;
@component
public class servermessagehandler implements tcpclientservice.messagelistener {
private static final logger logger = loggerfactory.getlogger(servermessagehandler.class);
@override
public void onmessage(string message) {
if(stringutils.isnotempty(message)){
if (!message.contains("heartbeat")){
//处理其他逻辑
system.out.println("接收服务端消息成功："+message);
}else{
//心跳消息
system.out.println(message);
}
}
}
}
配置类
package com.example.demo1.socketclient;
import lombok.data;
import org.springframework.boot.context.properties.configurationproperties;
import org.springframework.context.annotation.configuration;
@configuration
@configurationproperties(prefix = "socket.client")
@data
public class socketclientconfig {
private string host;
private int port;
private int timeout;
private int heartbeatinterval;
private int heartbeattimeout;
// getters and setters
}
发送测试方法
@getmapping("/send")
public responseentity<string> sendmessage() {
try {
tcpclient.sendmessage("客户端发送信息");
return responseentity.ok("message sent");
} catch (ioexception e) {
return responseentity.status(503).body("server unavailable");
}
}
配置文件
socket:
client:
host: 192.168.3.8 #服务端ip地址
port: 8088 #监听端口
timeout: 5000
heartbeat-interval: 3000 # 心跳间隔30秒
heartbeat-timeout: 6000 # 心跳超时60秒
server:
port: 8082
客户端发送信息后，服务端会接收到信息。
总结
以上就是java接入socket通信服务端与客户端的全部代码，二者实现了互相通信，具体的业务场景则需要小伙伴们在此基础上额外的设计逻辑了，有其他疑问或者想要测试demo的可以后台私我，看到会回复。
