SpringBoot整合Netty开发MQTT服务端_Java

netty认知

netty是一款基于nio（nonblocking i/o，非阻塞io）开发的网络通信框架，相比传统socket，在并发性方面有着很大的提升。关于nio,bio,aio之间的区别，可以参考这篇博客：java中aio、bio、nio应用场景及区别

mqtt服务端实现

首先我们启动一个tcp服务，这里我用到了redis与rabbitmq，主要是与分布式web平台之间好对接

@component
public class applicationeventlistener implements commandlinerunner {
    @value("${spring.application.name}")
    private string nodename;

    @value("${gnss.mqttserver.tcpport}")
    private int tcpport;

    @override
    public void run(string... args) throws exception {
        //启动tcp服务
        starttcpserver();

        //清除redis所有此节点的在线终端
        redisservice redisservice = springbeanservice.getbean(redisservice.class);
        redisservice.deleteallonlineterminals(nodename);

        //将所有此节点的终端设置为离线
        rabbitmessagesender messagesender = springbeanservice.getbean(rabbitmessagesender.class);
        messagesender.noticealloffline(nodename);
    }

    /**
     * 启动tcp服务
     *
     * @throws exception
     */
    private void starttcpserver() throws exception {
        //计数器,必须等到所有服务启动成功才能进行后续的操作
        final countdownlatch countdownlatch = new countdownlatch(1);
        //启动tcp服务
        tcpserver tcpserver = new tcpserver(tcpport, protocolenum.mqttcommon, countdownlatch);
        tcpserver.start();
        //等待启动完成
        countdownlatch.await();
    }
}

接下来我们编写一个tcpserver类实现tcp服务

@slf4j
public class tcpserver extends thread{
    private int port;

    private protocolenum protocoltype;

    private eventloopgroup bossgroup;

    private eventloopgroup workergroup;

    private serverbootstrap serverbootstrap = new serverbootstrap();

    private countdownlatch countdownlatch;

    public tcpserver(int port, protocolenum protocoltype, countdownlatch countdownlatch) {
        this.port = port;
        this.protocoltype = protocoltype;
        this.countdownlatch = countdownlatch;

        bossgroup = new nioeventloopgroup(1);
        workergroup = springbeanservice.getbean("workergroup", eventloopgroup.class);
        final eventexecutorgroup executorgroup = springbeanservice.getbean("executorgroup", eventexecutorgroup.class);
        serverbootstrap.group(bossgroup, workergroup)
                .channel(nioserversocketchannel.class)
                .option(channeloption.so_backlog, 1024)
                .childoption(channeloption.so_keepalive, true)
                .childoption(channeloption.tcp_nodelay, true)
                .childhandler(new channelinitializer<socketchannel>() {

                    @override
                    protected void initchannel(socketchannel ch) throws exception {
                        ch.pipeline().addlast(new idlestatehandler(mqttconstant.reader_idle_time, 0, 0, timeunit.seconds));
                        ch.pipeline().addlast("encoder", mqttencoder.instance);
                        ch.pipeline().addlast("decoder", new mqttdecoder());
                        ch.pipeline().addlast(executorgroup, mqttbusinesshandler.instance);
                    }
                });
    }

    @override
    public void run() {
        bind();
    }

    /**
     * 绑定端口启动服务
     */
    private void bind() {
        serverbootstrap.bind(port).addlistener(future -> {
            if (future.issuccess()) {
                log.info("{} mqtt服务器启动,端口:{}", protocoltype, port);
                countdownlatch.countdown();
            } else {
                log.error("{} mqtt服务器启动失败,端口:{}", protocoltype, port, future.cause());
                system.exit(-1);
            }
        });
    }

    /**
     * 关闭服务端
     */
    public void shutdown() {
        workergroup.shutdowngracefully();
        bossgroup.shutdowngracefully();
        log.info("{} tcp服务器关闭,端口:{}", protocoltype, port);
    }
}

编写一个解码器mqttbusinesshandler，实现对mqtt消息接收与处理

@slf4j
@channelhandler.sharable
public class mqttbusinesshandler extends simplechannelinboundhandler<object> {
    public static final mqttbusinesshandler instance = new mqttbusinesshandler();
    private mqttmsgback mqttmsgback;
    private mqttbusinesshandler() {
        mqttmsgback= mqttmsgback.instance;
    }

    /**
     * 接收到消息后处理
     * @param ctx
     * @param msg
     * @throws exception
     */
    @override
    protected void channelread0(channelhandlercontext ctx, object msg) throws exception {
        if (null != msg) {
            mqttmessage mqttmessage = (mqttmessage) msg;
            mqttfixedheader mqttfixedheader = mqttmessage.fixedheader();
            channel channel = ctx.channel();
            if(mqttfixedheader.messagetype().equals(mqttmessagetype.connect)){
                //在一个网络连接上，客户端只能发送一次connect报文。服务端必须将客户端发送的第二个connect报文当作协议违规处理并断开客户端的连接
                //建议connect消息单独处理，用来对客户端进行认证管理等 这里直接返回一个connack消息
                mqttmsgback.connectionack(ctx, mqttmessage);
            }

            switch (mqttfixedheader.messagetype()){
                //客户端发布消息
                case publish:
                    mqttmsgback.publishack(ctx, mqttmessage);
                    break;
                //发布释放
                case pubrel:
                    mqttmsgback.publishcomp(ctx, mqttmessage);
                    break;
                //订阅主题
                case subscribe:
                    mqttmsgback.subscribeack(ctx, mqttmessage);
                    break;
                //取消订阅主题
                case unsubscribe:
                    mqttmsgback.unsubscribeack(ctx, mqttmessage);
                    break;
                //客户端发送心跳报文
                case pingreq:
                    mqttmsgback.pingresp(ctx, mqttmessage);
                    break;
                //客户端主动断开连接
                case disconnect:
                    break;
                default:
                    break;
            }
        }
    }

    @override
    public void channelinactive(channelhandlercontext ctx) throws exception {
        log.info("终端关闭连接,ip信息:{}", commonutil.getclientaddress(ctx));
    }

    @override
    public void exceptioncaught(channelhandlercontext ctx, throwable cause) throws exception {
        ctx.close();
        log.error("终端连接异常,ip信息:{}", commonutil.getclientaddress(ctx), cause);
    }

    /**
     * 	服务端当读超时时会调用这个方法
     */
    @override
    public void usereventtriggered(channelhandlercontext ctx, object evt) throws exception, ioexception {
        ctx.close();
        log.error("读超时,ip信息:{}", commonutil.getclientaddress(ctx), evt);
    }

我们对接收到的消息进行业务处理

@slf4j
public class mqttmsgback {
    public static final mqttmsgback instance = new mqttmsgback();
    private redisservice redisservice;
    private rabbitmessagesender messagesender;
    private environment environment;
    private messageserviceprovider messageserviceprovider;

    private mqttmsgback() {
        redisservice = springbeanservice.getbean(redisservice.class);
        messagesender = springbeanservice.getbean(rabbitmessagesender.class);
        environment = springbeanservice.getbean(environment.class);
        messageserviceprovider = springbeanservice.getbean(messageserviceprovider.class);
    }

    /**
     * 	确认连接请求
     * @param ctx
     * @param mqttmessage
     */
    public void connectionack (channelhandlercontext ctx, mqttmessage mqttmessage) {
        mqttconnectmessage mqttconnectmessage = (mqttconnectmessage) mqttmessage;
        mqttfixedheader mqttfixedheaderinfo = mqttconnectmessage.fixedheader();
        mqttconnectvariableheader mqttconnectvariableheaderinfo = mqttconnectmessage.variableheader();
        //构建返回报文， 可变报头
        mqttconnackvariableheader mqttconnackvariableheaderback = new mqttconnackvariableheader(mqttconnectreturncode.connection_accepted, mqttconnectvariableheaderinfo.iscleansession());
        //构建返回报文， 固定报头
        mqttfixedheader mqttfixedheaderback = new mqttfixedheader(mqttmessagetype.connack,mqttfixedheaderinfo.isdup(), mqttqos.at_most_once, mqttfixedheaderinfo.isretain(), 0x02);
        //构建连接回复消息体
        mqttconnackmessage connack = new mqttconnackmessage(mqttfixedheaderback, mqttconnackvariableheaderback);
        ctx.writeandflush(connack);
        //获取连接者的clientid
        string clientidentifier = mqttconnectmessage.payload().clientidentifier();
        //查询终端号码有无在平台注册
        terminalproto terminalinfo = redisservice.getterminalinfobyterminalnum(clientidentifier);
        if (terminalinfo == null) {
            log.error("终端登录失败,未找到终端信息,终端号:{},ip信息:{}", clientidentifier, commonutil.getclientaddress(ctx));
            ctx.close();
            return;
        }
        //设置节点名
        terminalinfo.setnodename(environment.getproperty("spring.application.name"));
        //保存终端信息和消息流水号到上下文属性中
        session session = new session(terminalinfo);
        channelhandlercontext oldctx = sessionutil.bindsession(session, ctx);
        if (oldctx == null) {
            log.info("终端登录成功,终端id:{},终端号:{},ip信息:{}", terminalinfo.getterminalstrid(), clientidentifier, commonutil.getclientaddress(ctx));
        } else {
            log.info("终端重复登录关闭上一个连接,终端id:{},终端号:{},ip信息:{}", terminalinfo.getterminalstrid(), clientidentifier, commonutil.getclientaddress(ctx));
            oldctx.close();
        }
        //通知上线
        messagesender.noticeonline(terminalinfo);
        log.info("终端登录成功,终端号:{},ip信息:{}", clientidentifier, commonutil.getclientaddress(ctx));
    }

    /**
     * 	根据qos发布确认
     * @param ctx
     * @param mqttmessage
     */
    public void publishack (channelhandlercontext ctx, mqttmessage mqttmessage) {
        mqttpublishmessage mqttpublishmessage = (mqttpublishmessage) mqttmessage;
        mqttfixedheader mqttfixedheaderinfo = mqttpublishmessage.fixedheader();
        mqttqos qos = (mqttqos) mqttfixedheaderinfo.qoslevel();
        //得到主题
        string topicname = mqttpublishmessage.variableheader().topicname();
        //获取消息体
        bytebuf msgbodybuf = mqttpublishmessage.payload();
        log.info("收到:{}", bytebufutil.hexdump(msgbodybuf));
        mqttcommonmessage msg=new mqttcommonmessage();
        msg.setterminalnum(sessionutil.getterminalinfo(ctx).getterminalnum());
        msg.setstrmsgid(topicname);
        //根据主题获取对应的主题消息处理器
        basemessageservice messageservice = messageserviceprovider.getmessageservice(topicname);
        try {
            object result = messageservice.process(ctx, msg, msgbodybuf);
            log.info("收到{}({}),终端id:{},内容:{}", messageservice.getdesc(), topicname,msg.getterminalnum(), msg.getmsgbodyitems());
        } catch (exception e) {
            log.error("收到{}({}),消息异常,终端id:{},消息体:{}", messageservice.getdesc(), topicname,msg.getterminalnum(),bytebufutil.hexdump(msgbodybuf), e);
        }
        switch (qos) {
            //至多一次
            case at_most_once:
                break;
            //至少一次
            case at_least_once:
                //构建返回报文， 可变报头
                mqttmessageidvariableheader mqttmessageidvariableheaderback = mqttmessageidvariableheader.from(mqttpublishmessage.variableheader().packetid());
                //构建返回报文， 固定报头
                mqttfixedheader mqttfixedheaderback = new mqttfixedheader(mqttmessagetype.puback,mqttfixedheaderinfo.isdup(), mqttqos.at_most_once, mqttfixedheaderinfo.isretain(), 0x02);
                //构建puback消息体
                mqttpubackmessage puback = new mqttpubackmessage(mqttfixedheaderback, mqttmessageidvariableheaderback);
                log.info("qos:at_least_once:{}",puback.tostring());
                ctx.writeandflush(puback);
                break;
            //刚好一次
            case exactly_once:
                //构建返回报文，固定报头
                mqttfixedheader mqttfixedheaderback2 = new mqttfixedheader(mqttmessagetype.pubrec,false, mqttqos.at_least_once,false,0x02);
                //构建返回报文，可变报头
                mqttmessageidvariableheader mqttmessageidvariableheaderback2 = mqttmessageidvariableheader.from(mqttpublishmessage.variableheader().packetid());
                mqttmessage mqttmessageback = new mqttmessage(mqttfixedheaderback2,mqttmessageidvariableheaderback2);
                log.info("qos:exactly_once回复:{}"+mqttmessageback.tostring());
                ctx.writeandflush(mqttmessageback);
                break;
            default:
                break;
        }
    }

    /**
     * 发布完成 qos2
     * @param ctx
     * @param mqttmessage
     */
    public void publishcomp (channelhandlercontext ctx, mqttmessage mqttmessage) {

        mqttmessageidvariableheader messageidvariableheader = (mqttmessageidvariableheader) mqttmessage.variableheader();
        //构建返回报文， 固定报头
        mqttfixedheader mqttfixedheaderback = new mqttfixedheader(mqttmessagetype.pubcomp,false, mqttqos.at_most_once,false,0x02);
        //构建返回报文， 可变报头
        mqttmessageidvariableheader mqttmessageidvariableheaderback = mqttmessageidvariableheader.from(messageidvariableheader.messageid());
        mqttmessage mqttmessageback = new mqttmessage(mqttfixedheaderback,mqttmessageidvariableheaderback);
        log.info("发布完成回复:{}"+mqttmessageback.tostring());
        ctx.writeandflush(mqttmessageback);
    }

    /**
     * 	订阅确认
     * @param ctx
     * @param mqttmessage
     */
    public void subscribeack(channelhandlercontext ctx, mqttmessage mqttmessage) {
        mqttsubscribemessage mqttsubscribemessage = (mqttsubscribemessage) mqttmessage;
        mqttmessageidvariableheader messageidvariableheader = mqttsubscribemessage.variableheader();
        //构建返回报文， 可变报头
        mqttmessageidvariableheader variableheaderback = mqttmessageidvariableheader.from(messageidvariableheader.messageid());
        set<string> topics = mqttsubscribemessage.payload().topicsubscriptions().stream().map(mqtttopicsubscription -> mqtttopicsubscription.topicname()).collect(collectors.toset());
        list<integer> grantedqoslevels = new arraylist<>(topics.size());
        for (int i = 0; i < topics.size(); i++) {
            grantedqoslevels.add(mqttsubscribemessage.payload().topicsubscriptions().get(i).qualityofservice().value());
        }
        //	构建返回报文	有效负载
        mqttsubackpayload payloadback = new mqttsubackpayload(grantedqoslevels);
        //	构建返回报文	固定报头
        mqttfixedheader mqttfixedheaderback = new mqttfixedheader(mqttmessagetype.suback, false, mqttqos.at_most_once, false, 2+topics.size());
        //	构建返回报文	订阅确认
        mqttsubackmessage suback = new mqttsubackmessage(mqttfixedheaderback,variableheaderback, payloadback);
        log.info("订阅回复:{}", suback.tostring());
        ctx.writeandflush(suback);
    }

    /**
     * 取消订阅确认
     * @param ctx
     * @param mqttmessage
     */
    public void unsubscribeack(channelhandlercontext ctx, mqttmessage mqttmessage) {
        mqttmessageidvariableheader messageidvariableheader = (mqttmessageidvariableheader) mqttmessage.variableheader();
        //	构建返回报文	可变报头
        mqttmessageidvariableheader variableheaderback = mqttmessageidvariableheader.from(messageidvariableheader.messageid());
        //	构建返回报文	固定报头
        mqttfixedheader mqttfixedheaderback = new mqttfixedheader(mqttmessagetype.unsuback, false, mqttqos.at_most_once, false, 2);
        //	构建返回报文	取消订阅确认
        mqttunsubackmessage unsuback = new mqttunsubackmessage(mqttfixedheaderback,variableheaderback);
        log.info("取消订阅回复:{}",unsuback.tostring());
        ctx.writeandflush(unsuback);
    }

    /**
     * 心跳响应
     * @param ctx
     * @param mqttmessage
     */
    public void pingresp (channelhandlercontext ctx, mqttmessage mqttmessage) {
        mqttfixedheader fixedheader = new mqttfixedheader(mqttmessagetype.pingresp, false, mqttqos.at_most_once, false, 0);
        mqttmessage mqttmessageback = new mqttmessage(fixedheader);
        log.info("心跳回复:{}", mqttmessageback.tostring());
        ctx.writeandflush(mqttmessageback);
    }
}

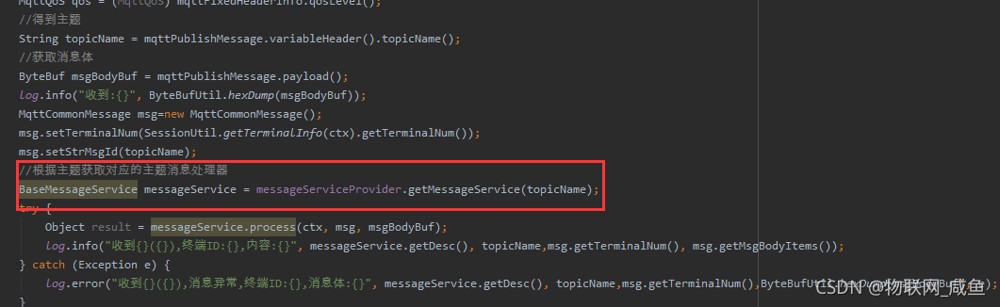

我们可以根据客户端发布消息的主题匹配不同的处理器

最后，我们在对应的处理器里面实现对主题消息的处理逻辑，比如：定位消息，指令消息等等，比如简单实现对定位数据location主题的消息处理

@slf4j
@messageservice(strmessageid = "location", desc = "定位")
public class locationmessageservice extends basemessageservice<mqttcommonmessage> {
    @autowired
    private rabbitmessagesender messagesender;

    @override
    public object process(channelhandlercontext ctx, mqttcommonmessage msg, bytebuf msgbodybuf) throws exception {
        byte[] msgbytearr = new byte[msgbodybuf.readablebytes()];
        msgbodybuf.readbytes(msgbytearr);
        string data = new string(msgbytearr);
        msg.putmessagebodyitem("位置", data);
        return null;
    }
}
