Win10环境借助DockerDesktop部署大数据时序数据库Apache Druid的操作方法_Windows

win10环境借助dockerdesktop部署最新版大数据时序数据库apache druid32.0.0

前言

大数据分析中，有一种常见的场景，那就是时序数据，简言之，数据一旦产生绝对不会修改，随着时间流逝，每个时间点都会有个新的状态值。这种时序数据的量级往往异常夸张，例如传感器的原始监控数据：

https://lizhiyong.blog.csdn.net/article/details/114898620

一个简单的加速度传感器一年的数据量就是31e！！！制造业传感器数据如果不经底层plc等下位机预处理，直接打到边缘计算网关，即使mqtt也会有巨大的负载！！！

类似的，还有服务器的原始监控数据，例如常见的prometheus和zabbix，当集群很多时，监控项同样很多，再算上虚拟化后的容器和虚拟机内都可能部署了监控，此时的数据量级就灰常可观！！！一小时几百亿条数据都是常见的事情！！！

但是很多原始的监控数据如果全部存下来，存储成本高的可怕，同时信息密度极低，更多时候我们可能只关注近期的全部热数据来做在线的模型训练，人工查看每秒钟几千条数据也是不切合实际的，事实上，做一个简单的秒级/分钟级统计就能满足大多数的分析场景，超过1天的冷数据其实已经没什么时效性。

对于此类场景，可以高吞吐、预聚合的数据库，在压测后，从apache druid、clickhouse、kylin中，选择了前者。。。专业的事情要交给专业的组件去做！！！

对于非内核和二开的业务开发人员，更多场景应该关注的是api、特性及用法，不应该在部署这种事情上花费太多精力！！！笔者之前已部署了docker desktop：

https://lizhiyong.blog.csdn.net/article/details/145580868

今天在win10环境再搭建个apache druid最新版玩玩。

版本选择

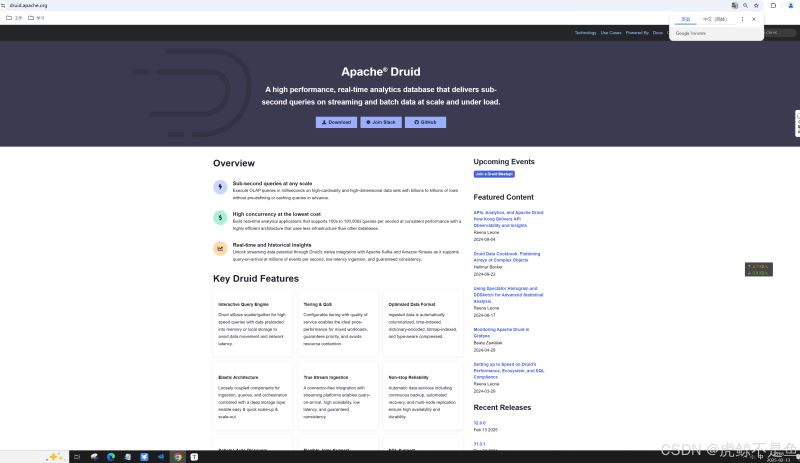

官网：

https://druid.apache.org/

注意不是阿里数据库连接池的那个druid！！！

截至2025-02-13，apache druid最新版本是32.0.0。

资源准备

参考官网：

https://druid.apache.org/docs/latest/tutorials/docker

官方给出了使用docker-compose.yml编排容器的教程，作为一个实时组件，大内存是必须的！！！但是启动8个容器【zookeeper+postgresql+6个druid】每个最多7gb内存也不是什么大事！！！

https://raw.githubusercontent.com/apache/druid/32.0.0/distribution/docker/docker-compose.yml

获取到这个资源文件：

version: "2.2"
volumes:
  metadata_data: {}
  middle_var: {}
  historical_var: {}
  broker_var: {}
  coordinator_var: {}
  router_var: {}
  druid_shared: {}
services:
  postgres:
    container_name: postgres
    image: postgres:latest
    ports:
      - "5432:5432"
    volumes:
      - metadata_data:/var/lib/postgresql/data
    environment:
      - postgres_password=foolishpassword
      - postgres_user=druid
      - postgres_db=druid
  # need 3.5 or later for container nodes
  zookeeper:
    container_name: zookeeper
    image: zookeeper:3.5.10
    ports:
      - "2181:2181"
    environment:
      - zoo_my_id=1
  coordinator:
    image: apache/druid:32.0.0
    container_name: coordinator
    volumes:
      - druid_shared:/opt/shared
      - coordinator_var:/opt/druid/var
    depends_on:
      - zookeeper
      - postgres
    ports:
      - "8081:8081"
    command:
      - coordinator
    env_file:
      - environment
  broker:
    image: apache/druid:32.0.0
    container_name: broker
    volumes:
      - broker_var:/opt/druid/var
    depends_on:
      - zookeeper
      - postgres
      - coordinator
    ports:
      - "8082:8082"
    command:
      - broker
    env_file:
      - environment
  historical:
    image: apache/druid:32.0.0
    container_name: historical
    volumes:
      - druid_shared:/opt/shared
      - historical_var:/opt/druid/var
    depends_on:
      - zookeeper
      - postgres
      - coordinator
    ports:
      - "8083:8083"
    command:
      - historical
    env_file:
      - environment
  middlemanager:
    image: apache/druid:32.0.0
    container_name: middlemanager
    volumes:
      - druid_shared:/opt/shared
      - middle_var:/opt/druid/var
    depends_on:
      - zookeeper
      - postgres
      - coordinator
    ports:
      - "8091:8091"
      - "8100-8105:8100-8105"
    command:
      - middlemanager
    env_file:
      - environment
  router:
    image: apache/druid:32.0.0
    container_name: router
    volumes:
      - router_var:/opt/druid/var
    depends_on:
      - zookeeper
      - postgres
      - coordinator
    ports:
      - "3012:8888" #这里笔者改为3012防止霸占有用的端口
    command:
      - router
    env_file:
      - environment

参照官网另一篇：

https://druid.apache.org/docs/latest/configuration/

自己玩玩可以先不改这些运行时配置，容器启动的，后续要重新部署也非常容易！！！

还需要：

https://raw.githubusercontent.com/apache/druid/32.0.0/distribution/docker/environment

做另一个配置文件：

# java tuning
#druid_xmx=1g
#druid_xms=1g
#druid_maxnewsize=250m
#druid_newsize=250m
#druid_maxdirectmemorysize=6172m
druid_single_node_conf=micro-quickstart
druid_emitter_logging_loglevel=debug
druid_extensions_loadlist=["druid-histogram", "druid-datasketches", "druid-lookups-cached-global", "postgresql-metadata-storage", "druid-multi-stage-query"]
druid_zk_service_host=zookeeper
druid_metadata_storage_host=
druid_metadata_storage_type=postgresql
druid_metadata_storage_connector_connecturi=jdbc:postgresql://postgres:5432/druid
druid_metadata_storage_connector_user=druid
druid_metadata_storage_connector_password=foolishpassword
druid_indexer_runner_javaoptsarray=["-server", "-xmx1g", "-xms1g", "-xx:maxdirectmemorysize=3g", "-duser.timezone=utc", "-dfile.encoding=utf-8", "-djava.util.logging.manager=org.apache.logging.log4j.jul.logmanager"]
druid_indexer_fork_property_druid_processing_buffer_sizebytes=256mib
druid_storage_type=local
druid_storage_storagedirectory=/opt/shared/segments
druid_indexer_logs_type=file
druid_indexer_logs_directory=/opt/shared/indexing-logs
druid_processing_numthreads=2
druid_processing_nummergebuffers=2
druid_log4j=<?xml version="1.0" encoding="utf-8" ?><configuration status="warn"><appenders><console name="console" target="system_out"><patternlayout pattern="%d{iso8601} %p [%t] %c - %m%n"/></console></appenders><loggers><root level="info"><appenderref ref="console"/></root><logger name="org.apache.druid.jetty.requestlog" additivity="false" level="debug"><appenderref ref="console"/></logger></loggers></configuration>

部署文件看起来麻雀虽小五脏俱全！！！

部署

ps c:\users\zhiyong> cd e:\dockerdata\volume\druid1
ps e:\dockerdata\volume\druid1> ls
    目录: e:\dockerdata\volume\druid1
mode                 lastwritetime         length name
----                 -------------         ------ ----
-a----        2025-02-13     23:26           2980 docker-compose.yml
-a----        2025-02-13     23:33           1576 environment
ps e:\dockerdata\volume\druid1> docker compose up -d
time="2025-02-13t23:34:39+08:00" level=warning msg="e:\\dockerdata\\volume\\druid1\\docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion"
[+] running 72/15
 ✔ router pulled                                          230.7s
 ✔ coordinator pulled                                     230.7s
 ✔ postgres pulled                                        181.0s
 ✔ historical pulled                                      230.7s
 ✔ broker pulled                                          230.7s
 ✔ middlemanager pulled                                   230.7s
 ✔ zookeeper pulled                                        85.7s
[+] running 15/15
 ✔ network druid1_default           created                 0.1s
 ✔ volume "druid1_druid_shared"     created                 0.0s
 ✔ volume "druid1_historical_var"   created                 0.0s
 ✔ volume "druid1_middle_var"       created                 0.0s
 ✔ volume "druid1_router_var"       created                 0.0s
 ✔ volume "druid1_metadata_data"    created                 0.0s
 ✔ volume "druid1_coordinator_var"  created                 0.0s
 ✔ volume "druid1_broker_var"       created                 0.0s
 ✔ container postgres               started                 2.4s
 ✔ container zookeeper              started                 2.4s
 ✔ container coordinator            started                 1.6s
 ✔ container router                 started                 2.5s
 ✔ container broker                 started                 2.3s
 ✔ container historical             started                 2.5s
 ✔ container middlemanager          started                 2.8s
ps e:\dockerdata\volume\druid1>

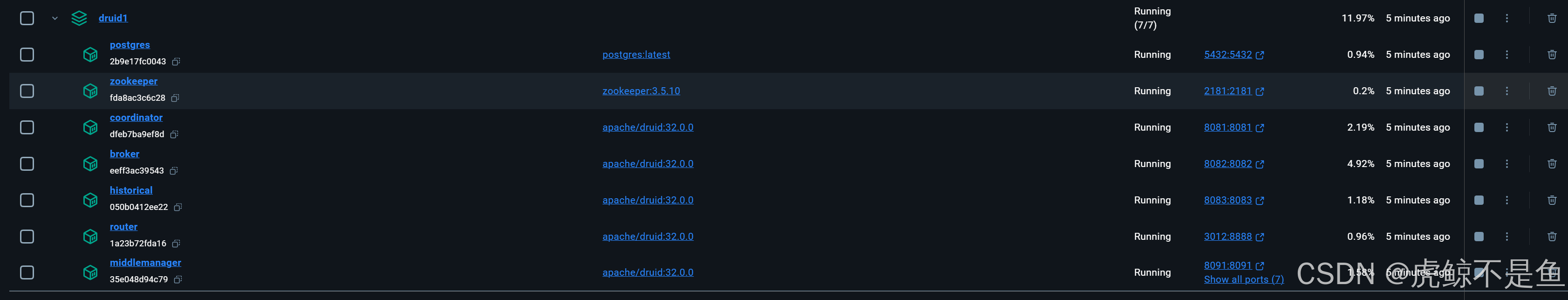

拉取镜像成功后很快就能拉起容器：
