centos7基于keepalived+nginx部署k8s1.26.0高可用集群_Linux

k8s集群角色	ip地址	主机名
master	192.168.209.116	k8s-master1
master	192.168.209.117	k8s-master2
master	192.168.209.118	k8s-master3
node	192.168.209.119	k8s-node1

echo "设置主机名"

echo "在 192.168.209.116 上执行如下："
hostnamectl set-hostname k8s-master1 && bash

echo "在 192.168.209.117 上执行如下："
hostnamectl set-hostname k8s-master2 && bash

echo "在 192.168.209.118 上执行如下："
hostnamectl set-hostname k8s-master3 && bash

echo "在 192.168.209.119 上执行如下："
hostnamectl set-hostname k8s-node1 && bash

一、初始化（所有节点都执行）

echo "配置阿里云yum源"
mv /etc/yum.repos.d/centos-base.repo /etc/yum.repos.d/centos-base.repo.bak
curl -o /etc/yum.repos.d/centos-base.repo http://mirrors.aliyun.com/repo/centos-7.repo
yum clean all
yum makecache


echo "更新系统并安装必要工具..."
yum update -y
yum install -y yum-utils device-mapper-persistent-data lvm2 bash-completion


echo "禁用 selinux 和防火墙..."
setenforce 0
sed -i 's/^selinux=.*/selinux=disabled/' /etc/selinux/config
systemctl disable --now firewalld

echo "禁用 swap..."
swapoff -a
sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

echo "# 优化系统配置，开启 ip 转发、关闭 swap 等"
echo "优化系统配置..."
cat <<eof | tee /etc/sysctl.d/k8s.conf
vm.swappiness = 0
vm.panic_on_oom = 0
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_tw_recycle = 0
net.ipv4.tcp_fin_timeout = 30
net.ipv4.tcp_syncookies = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-arptables = 1
net.ipv4.ip_forward = 1
net.ipv6.conf.all.disable_ipv6 = 1
net.netfilter.nf_conntrack_max = 2310720
fs.inotify.max_user_instances = 8192
fs.inotify.max_user_watches = 1048576
fs.file-max = 52706963
fs.nr_open = 52706963
eof

sysctl -p /etc/sysctl.d/k8s.conf

echo "加载 br_netfilter 模块..."
modprobe br_netfilter
lsmod | grep br_netfilter


echo "安装 ipset 和 ipvsadm..."
yum -y install ipset ipvsadm


echo "配置 ipvsadm 模块加载方式..."
cat > /etc/sysconfig/modules/ipvs.modules <<eof
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
eof

chmod 755 /etc/sysconfig/modules/ipvs.modules
bash /etc/sysconfig/modules/ipvs.modules
lsmod | grep -e ip_vs
lsmod | grep -e ip_vs -e nf_conntrack

二、安装containerd（所有节点都执行）

echo "安装 containerd..."
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum install -y containerd.io
containerd config default > /etc/containerd/config.toml

#修改/etc/containerd/config.toml文件：
#1、把 systemdcgroup = false 修改成 systemdcgroup = true

#2、把 sandbox_image = "k8s.gcr.io/pause:3.6"修改成sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.7"

#3、在[plugins."io.containerd.grpc.v1.cri".registry.mirrors]下面加4行
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."swr.cn-north-4.myhuaweicloud.com"]
          endpoint = ["https://swr.cn-north-4.myhuaweicloud.com"]

        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = ["https://swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io"]

systemctl enable --now containerd
systemctl start containerd

三、安装docker-ce（所有节点都执行）

echo "停止旧版本docker"
sudo systemctl stop docker

echo "卸载旧版本docker"
# yum remove -y docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-selinux \
docker-engine-selinux \
docker-engine

sudo rm -rf /var/lib/docker
sudo rm -rf /run/docker
sudo rm -rf /var/run/docker
sudo rm -rf /etc/docker

echo "安装docker-ce"

yum install -y yum-utils device-mapper-persistent-data lvm2 git
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

yum install docker-ce -y

cat /etc/docker/daemon.json
{
    "exec-opts": ["native.cgroupdriver=systemd"],
    "registry-mirrors": [
    "https://2a6bf1988cb6428c877f723ec7530dbc.mirror.swr.myhuaweicloud.com",
    "https://docker.m.daocloud.io",
    "https://hub-mirror.c.163.com",
    "https://mirror.baidubce.com",
    "https://your_preferred_mirror",
    "https://dockerhub.icu",
    "https://docker.registry.cyou",
    "https://docker-cf.registry.cyou",
    "https://dockercf.jsdelivr.fyi",
    "https://docker.jsdelivr.fyi",
    "https://dockertest.jsdelivr.fyi",
    "https://mirror.aliyuncs.com",
    "https://dockerproxy.com",
    "https://mirror.baidubce.com",
    "https://docker.m.daocloud.io",
    "https://docker.nju.edu.cn",
    "https://docker.mirrors.sjtug.sjtu.edu.cn",
    "https://docker.mirrors.ustc.edu.cn",
    "https://mirror.iscas.ac.cn",
    "https://docker.rainbond.cc"
    ]
}

systemctl enable --now docker
systemctl restart docker

四、安装kubelet+kubeadm+kubectl（所有节点都执行）

echo "安装 kubernetes 工具..."
cat <<eof > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
eof

yum install -y kubelet-1.26.0 kubeadm-1.25.0 kubectl-1.26.0

systemctl enable kubelet
systemctl restart kubelet

五、安装keepalived+nginx（只在master节点执行）

sudo yum install -y epel-release
sudo yum install -y nginx keepalived

echo "配置nginx"
vim /etc/nginx/nginx.conf

#在http块的上方加上stream块
...
stream {
    log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
    access_log  /var/log/nginx/k8s-access.log  main;
    upstream k8s-apiserver {
            server 192.168.209.118:6443 weight=5 max_fails=3 fail_timeout=30s;
            server 192.168.209.117:6443 weight=5 max_fails=3 fail_timeout=30s;
            server 192.168.209.116:6443 weight=5 max_fails=3 fail_timeout=30s;
    }
    server {
       listen 16443; # 由于nginx与master节点复用，这个监听端口不能是6443，否则会冲突
       proxy_pass k8s-apiserver;
    }
}

http {

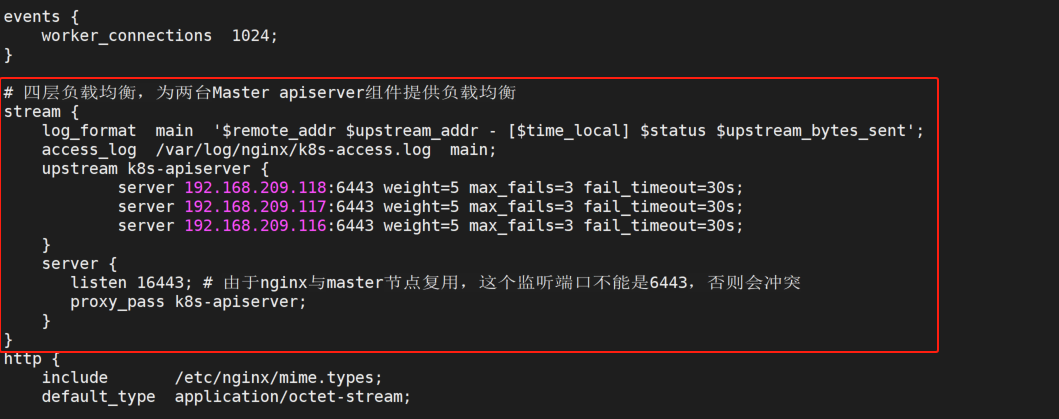

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+nginx

echo "配置keepalived"

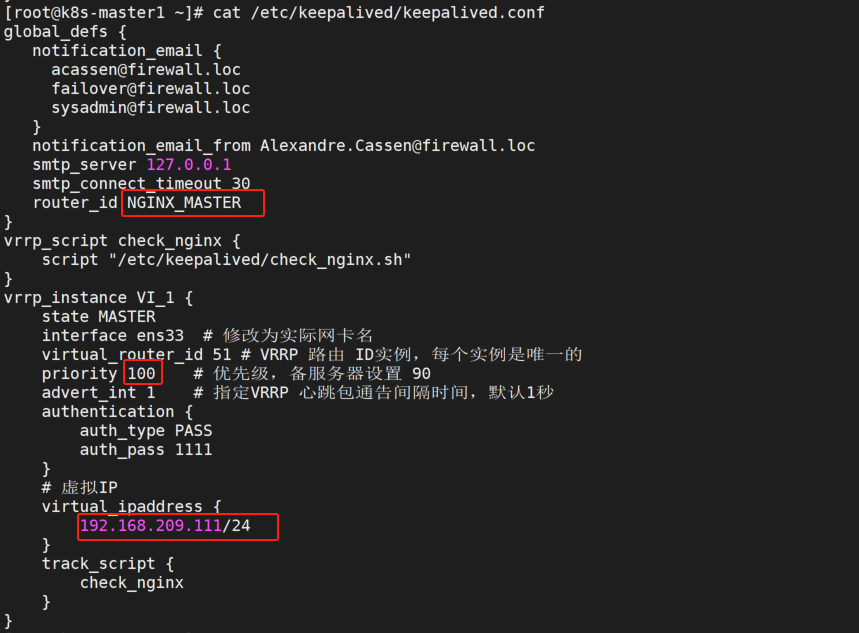

echo "--------k8s-master1配置--------------"


cat /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from alexandre.cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id nginx_master
}
vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
}
vrrp_instance vi_1 {
    state master
    interface ens33  # 修改为实际网卡名
    virtual_router_id 51 # vrrp 路由 id实例，每个实例是唯一的
    priority 100    # 优先级，备服务器设置 90
    advert_int 1    # 指定vrrp 心跳包通告间隔时间，默认1秒
    authentication {
        auth_type pass
        auth_pass 1111
    }
    # 虚拟ip
    virtual_ipaddress {
        192.168.209.111/24
    }
    track_script {
        check_nginx
    }
}

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm部署k8s高可用集群_02

echo "配置keepalived"

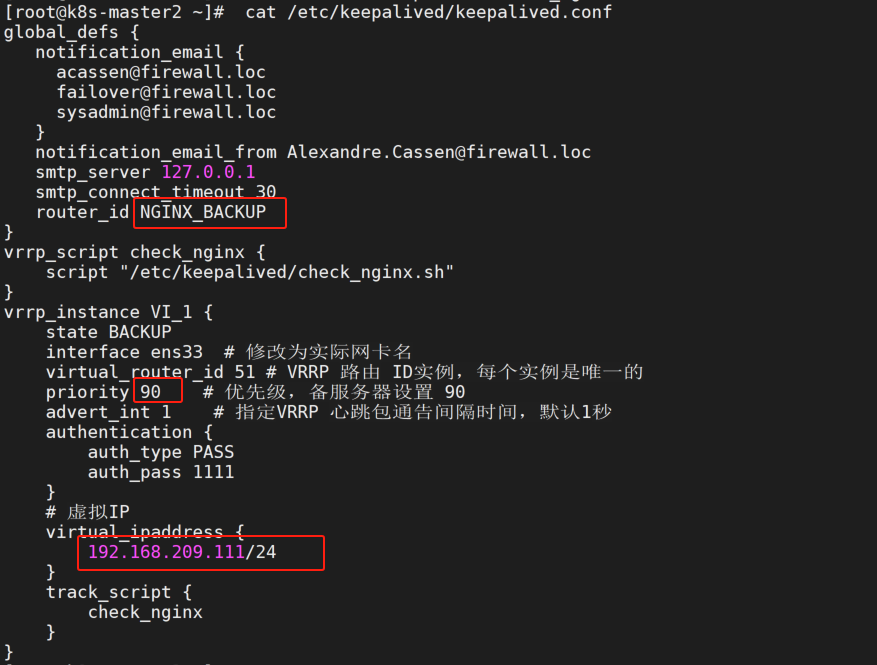

echo "--------k8s-master2配置--------------"


cat /etc/keepalived/keepalived.conf
global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from alexandre.cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id nginx_backup
}
vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
}
vrrp_instance vi_1 {
    state backup
    interface ens33  # 修改为实际网卡名
    virtual_router_id 51 # vrrp 路由 id实例，每个实例是唯一的
    priority 90    # 优先级，备服务器设置 90
    advert_int 1    # 指定vrrp 心跳包通告间隔时间，默认1秒
    authentication {
        auth_type pass
        auth_pass 1111
    }
    # 虚拟ip
    virtual_ipaddress {
        192.168.209.111/24
    }
    track_script {
        check_nginx
    }
}

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+nginx_03

echo "配置keepalived"
echo "--------k8s-master3配置--------------"

global_defs {
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   notification_email_from alexandre.cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id nginx_backup
}
vrrp_script check_nginx {
    script "/etc/keepalived/check_nginx.sh"
}
vrrp_instance vi_1 {
    state backup
    interface ens33  # 修改为实际网卡名
    virtual_router_id 51 # vrrp 路由 id实例，每个实例是唯一的
    priority 80    # 优先级，备服务器设置 80
    advert_int 1    # 指定vrrp 心跳包通告间隔时间，默认1秒
    authentication {
        auth_type pass
        auth_pass 1111
    }
    # 虚拟ip
    virtual_ipaddress {
        192.168.209.111/24
    }
    track_script {
        check_nginx
    }
}

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm部署k8s高可用集群_04

cat /etc/keepalived/check_nginx.sh
#!/bin/bash
#1、判断nginx是否存活
counter=$(ps -ef |grep nginx | grep sbin | egrep -cv "grep|$$" )
if [ $counter -eq 0 ]; then
    #2、如果不存活则尝试启动nginx
    service nginx start
    sleep 2
    #3、等待2秒后再次获取一次nginx状态
    counter=$(ps -ef |grep nginx | grep sbin | egrep -cv "grep|$$" )
    #4、再次进行判断，如nginx还不存活则停止keepalived，让地址进行漂移
    if [ $counter -eq 0 ]; then
        service  keepalived stop
    fi
fi

echo "启动nginx和keepalived服务"

chmod +x /etc/keepalived/check_nginx.sh
systemctl daemon-reload && systemctl restart nginx
systemctl restart keepalived && systemctl enable nginx keepalived

六、kubeadm初始化k8s集群（只在k8s-master1执行）

改注释文字的地方，改成下面这个样子

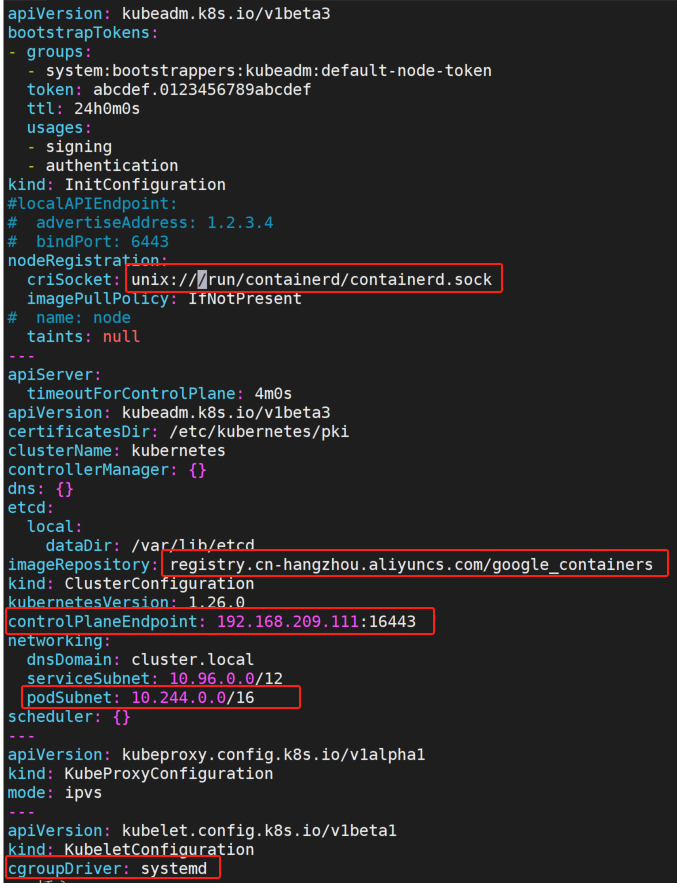

kubeadm config print init-defaults > kubeadm.yaml

cat kubeadm.yaml

apiversion: kubeadm.k8s.io/v1beta3
bootstraptokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: initconfiguration
#localapiendpoint:            #注释掉
#  advertiseaddress: 1.2.3.4  #注释掉
#  bindport: 6443             #注释掉
noderegistration:
  crisocket: unix:///run/containerd/containerd.sock   #指定好
  imagepullpolicy: ifnotpresent
#  name: node
  taints: null
---
apiserver:
  timeoutforcontrolplane: 4m0s
apiversion: kubeadm.k8s.io/v1beta3
certificatesdir: /etc/kubernetes/pki
clustername: kubernetes
controllermanager: {}
dns: {}
etcd:
  local:
    datadir: /var/lib/etcd
imagerepository: registry.cn-hangzhou.aliyuncs.com/google_containers     #改成这样
kind: clusterconfiguration
kubernetesversion: 1.26.0
controlplaneendpoint: 192.168.209.111:16443                              #改成vip+nginx端口
networking:
  dnsdomain: cluster.local
  servicesubnet: 10.96.0.0/12
  podsubnet: 10.244.0.0/16                                    #指定pod网段
scheduler: {}
---
apiversion: kubeproxy.config.k8s.io/v1alpha1
kind: kubeproxyconfiguration
mode: ipvs
---
apiversion: kubelet.config.k8s.io/v1beta1
kind: kubeletconfiguration
cgroupdriver: systemd

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_keepalived+nginx_05

kubeadm init --cnotallow=kubeadm.yaml --ignore-preflight-errors=systemverification

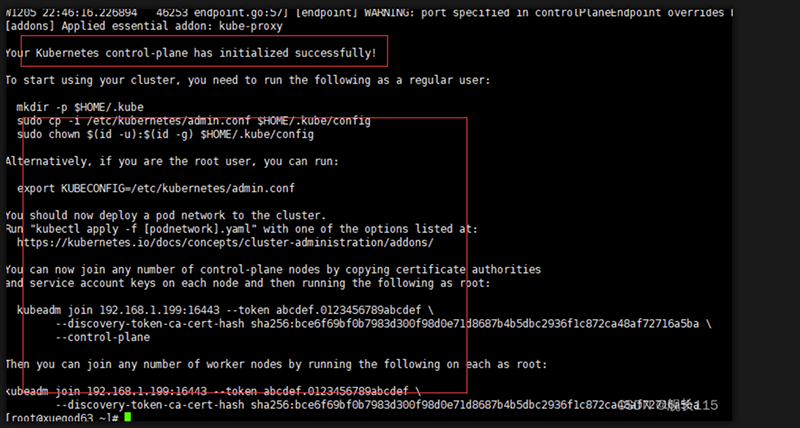

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+nginx_06

mkdir -p $home/.kube
sudo cp -i /etc/kubernetes/admin.conf $home/.kube/config
sudo chown $(id -u):$(id -g) $home/.kube/config
kubectl get nodes

至此 k8s主节点已安装完成

-----------------------------

注意提前去k8s-master2和k8s-master3节点上创建个文件夹

mkdir -p /etc/kubernetes/pki/etcd/

echo "将k8s-master1中的证书scp到k8s-master2和k8s-master3节点"

cd  /etc/kubernetes/pki/
scp ca.* k8s-master2:/etc/kubernetes/pki/
scp sa.* k8s-master2:/etc/kubernetes/pki/
scp front-proxy-ca.*  k8s-master2:/etc/kubernetes/pki/
scp etcd/ca.*  k8s-master2:/etc/kubernetes/pki/etcd/

scp ca.* k8s-master3:/etc/kubernetes/pki/
scp sa.* k8s-master3:/etc/kubernetes/pki/
scp front-proxy-ca.*  k8s-master3:/etc/kubernetes/pki/
scp etcd/ca.*  k8s-master3:/etc/kubernetes/pki/etcd/

七、将其他master join到k8s集群（在k8s-master2和k8s-master3执行）

--control-plane --ignore-preflight-errors=systemverification 加上这两个

kubeadm join 192.168.209.111:16443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:ec363a06d7681d941e7969fb6e994f4a4c1c4ef0d154c7290131c1e830b4bec5 \
        --control-plane --ignore-preflight-errors=systemverification

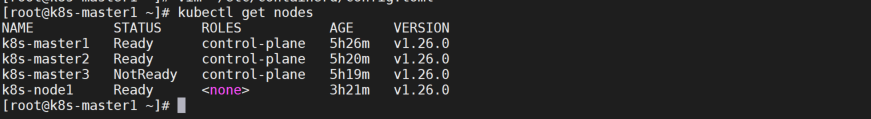

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_centos7部署k8s高可用集群_07

八、将node节点join到k8s集群（只在k8s-node1节点执行）

kubeadm join 192.168.209.111:16443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:ec363a06d7681d941e7969fb6e994f4a4c1c4ef0d154c7290131c1e830b4bec5   --ignore-preflight-errors=systemverification

九、部署calico网络插件（只在k8s-master1执行）

curl https://raw.githubusercontent.com/projectcalico/calico/v3.26.0/manifests/calico.yaml -o

sed -i 's|docker.io/calico/cni:v3.25.0|swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/cni:v3.25.0|g' calico.yaml
sed -i 's|docker.io/calico/node:v3.25.0|swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/node:v3.25.0|g' calico.yaml
sed -i 's|docker.io/calico/kube-controllers:v3.25.0|swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/calico/kube-controllers:v3.25.0|g' calico.yaml

cat calico.yaml

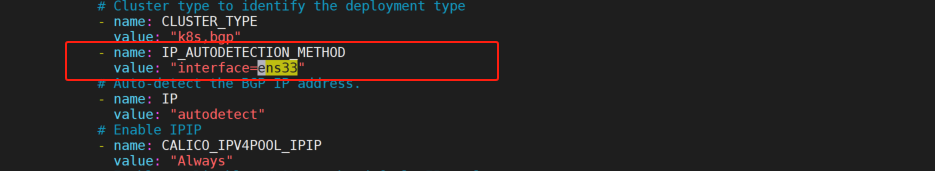

#在下面对应位置加上2行内容
            - name: ip_autodetection_method
              value: "interface=ens33"

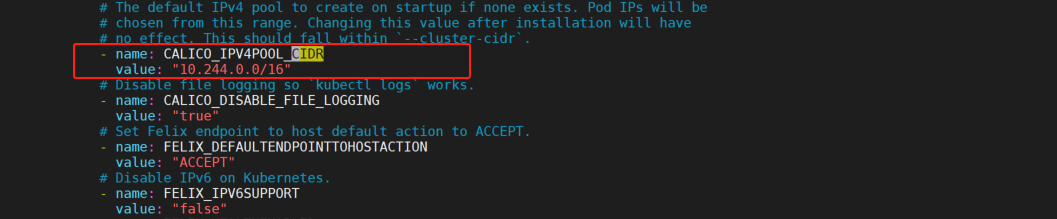

#在下面对应位置加上2行内容
            - name: calico_ipv4pool_cidr
              value: "10.244.0.0/16"

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_centos7部署k8s高可用集群_08

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm部署k8s高可用集群_09

kubectl apply -f calico.yaml

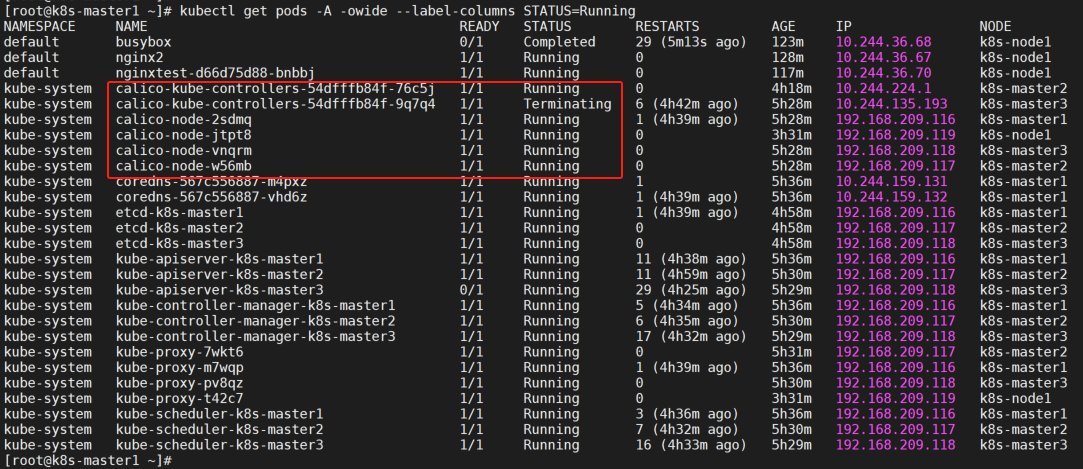

calico相关pod为running代表成功

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+nginx_10

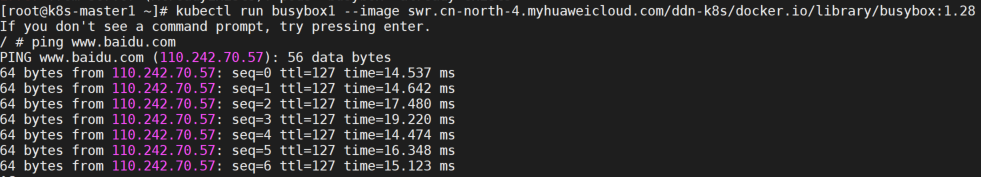

测试dns 解析和网络是否正常

kubectl run busybox --image swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/library/busybox:1.28 --image-pull-policy=ifnotpresent --restart=never --rm -it busybox -- sh

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_centos7部署k8s高可用集群_11

十、配置etcd高可用状态

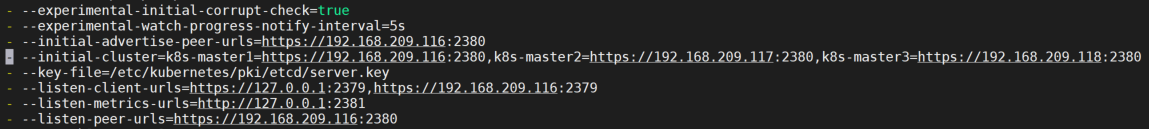

vim /etc/kubernetes/manifests/etcd.yaml

#将- --initial-cluster=xuegod63=https://192.168.209.116:2380
改成
- --initial-cluster=k8s-master1=https://192.168.209.116:2380,k8s-master2=https://192.168.209.117:2380,k8s-master3=https://192.168.209.118:2380

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_centos7部署k8s高可用集群_12

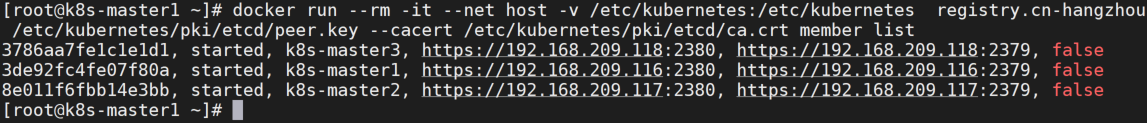

测试 etcd 集群是否配置成功：

docker run --rm -it --net host -v /etc/kubernetes:/etc/kubernetes  registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.4-0 etcdctl --cert /etc/kubernetes/pki/etcd/peer.crt --key /etc/kubernetes/pki/etcd/peer.key --cacert /etc/kubernetes/pki/etcd/ca.crt member list

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+keepalived_13

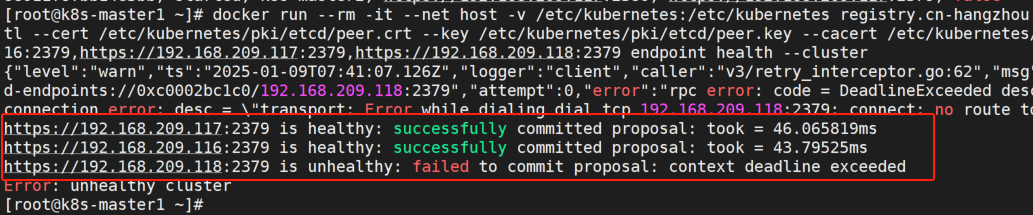

docker run --rm -it --net host -v /etc/kubernetes:/etc/kubernetes registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.4-0 etcdctl --cert /etc/kubernetes/pki/etcd/peer.crt --key /etc/kubernetes/pki/etcd/peer.key --cacert /etc/kubernetes/pki/etcd/ca.crt --endpoints=https://192.168.209.116:2379,https://192.168.209.117:2379,https://192.168.209.118:2379 endpoint health --cluster

全是successfuly代表正常，博主电脑资源不足把一台master3关机了

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_centos7部署k8s高可用集群_14

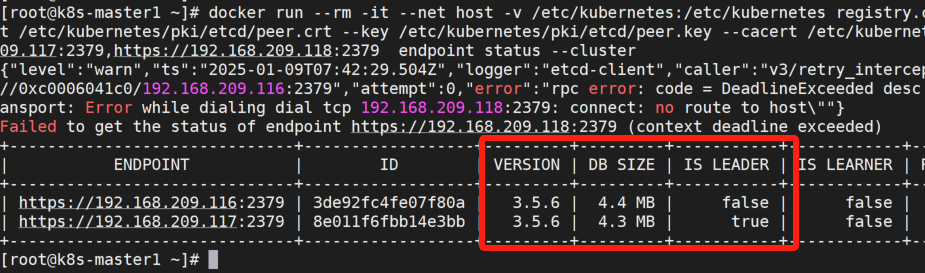

docker run --rm -it --net host -v /etc/kubernetes:/etc/kubernetes registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.4-0 etcdctl -w table --cert /etc/kubernetes/pki/etcd/peer.crt --key /etc/kubernetes/pki/etcd/peer.key --cacert /etc/kubernetes/pki/etcd/ca.crt --endpoints=https://192.168.209.116:2379,https://192.168.209.117:2379,https://192.168.209.118:2379  endpoint status --cluster

能看到三个endpoint代表正常，博主电脑资源不足把一台master3关机了

centos7基于keepalived+nginx部署k8s1.26.0高可用集群_kubeadm+keepalived_15
