我要评论一、磁盘分区表分类
linux中想使用磁盘的步骤和windows一样
加硬盘->分区->格式化->挂载
#通过命令行方式对磁盘进行分区（两种方式，第一种就是mbr，第二种就是gpt）
如果想采用mbr（master boot record）的方式进行分区就使用fdisk命令
mbr特征：
- 较旧的分区表格式，仅支持最多4个主分区（或者3个主分区加一个扩展分区）。
- 支持的最大磁盘容量为2tb。
- 常用于较旧的bios启动系统。
- mbr的结构较简单，但不如gpt可靠。
如果想采用gpt（guid partition table）的方式进行分区就使用gdisk命令
gpt特征：
- 现代的分区表格式，支持超过2tb的磁盘容量。
- 支持最多128个主分区。
- 具有更强的冗余功能，可以存储多个备份的分区表。
- 必须使用uefi（unified extensible firmware interface）启动。
1、手动创建分区（效率太低）
2、自动创建分区（有一定的操作性）
# 查看当前所有磁盘的分区情况 [server root ~] # fdisk -l # 查看当前模块硬盘的分区情况 [server root ~] # fdisk -l /dev/sdb disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors 一个sectors等于512b
[server root ~] # fdisk -l disk /dev/sda: 42.9 gb, 42949672960 bytes, 83886080 sectors units = sectors of 1 * 512 = 512 bytes sector size (logical/physical): 512 bytes / 512 bytes i/o size (minimum/optimal): 512 bytes / 512 bytes disk label type: dos disk identifier: 0x000e1369 device boot start end blocks id system /dev/sda1 * 2048 1050623 524288 83 linux /dev/sda2 1050624 9439231 4194304 82 linux swap / solaris /dev/sda3 9439232 83886079 37223424 83 linux disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors units = sectors of 1 * 512 = 512 bytes sector size (logical/physical): 512 bytes / 512 bytes i/o size (minimum/optimal): 512 bytes / 512 bytes [server root ~] # fdisk -l /dev/sdb disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors units = sectors of 1 * 512 = 512 bytes sector size (logical/physical): 512 bytes / 512 bytes i/o size (minimum/optimal): 512 bytes / 512 bytes [server root ~] #
二、fdisk命令创建分区
对于服务器来说，磁盘从使用目的来说分为三种，
- 第一种是用来存放操作系统的，此类硬盘一个只存放操作系统以及配置文件，剩下的任何数据都不应该主动存放在此硬盘中。
- 第二种磁盘是用来存放本地大文件，一般这种磁盘叫做本地存储盘。
- 第三种磁盘是用来存放本地大文件，而是使用了网络存储（san->storage area network），一般这种磁盘叫做网络存储
1、交互式的命令
[server root ~] # fdisk /dev/sdb
[server root ~] # fdisk /dev/sdb welcome to fdisk (util-linux 2.23.2). changes will remain in memory only, until you decide to write them. be careful before using the write command. device does not contain a recognized partition table building a new dos disklabel with disk identifier 0x0f1f0bcc. command (m for help): q（quit 不保存的） [server root ~] # fdisk /dev/sdb welcome to fdisk (util-linux 2.23.2). changes will remain in memory only, until you decide to write them. be careful before using the write command. device does not contain a recognized partition table building a new dos disklabel with disk identifier 0x57ae1208. command (m for help): w（write 保存） the partition table has been altered! calling ioctl() to re-read partition table. syncing disks. [server root ~] #
2、分区主分区
对/dev/sdb磁盘进行分区，如果分了四个主分区后，还有剩余空间，那就没法进行额外分区了，如下：
[server root ~] # fdisk /dev/sdb
welcome to fdisk (util-linux 2.23.2).
changes will remain in memory only, until you decide to write them.
be careful before using the write command.
device does not contain a recognized partition table
building a new dos disklabel with disk identifier 0x05cc5d51.
command (m for help): m
command action
a toggle a bootable flag
b edit bsd disklabel
c toggle the dos compatibility flag
d delete a partition（删除一个分区）
g create a new empty gpt partition table
g create an irix (sgi) partition table
l list known partition types（列出当前支持的分区种类）
m print this menu
n add a new partition（添加一个分区）
o create a new empty dos partition table
p print the partition table（列出当前状态的所有分区）
q quit without saving changes
s create a new empty sun disklabel
t change a partition's system id
u change display/entry units
v verify the partition table
w write table to disk and exit
x extra functionality (experts only)
command (m for help):
command (m for help): n
partition type:
p primary (0 primary, 0 extended, 4 free)
e extended
select (default p): p
partition number (1-4, default 1):
first sector (2048-41943039, default 2048):
using default value 2048
last sector, +sectors or +size{k,m,g} (2048-41943039, default 41943039): +5g
partition 1 of type linux and of size 5 gib is set
command (m for help): w
the partition table has been altered!
calling ioctl() to re-read partition table.
syncing disks.
[server root ~] # fdisk /dev/sdb
welcome to fdisk (util-linux 2.23.2).
changes will remain in memory only, until you decide to write them.
be careful before using the write command.
......
command (m for help): p
disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors
units = sectors of 1 * 512 = 512 bytes
sector size (logical/physical): 512 bytes / 512 bytes
i/o size (minimum/optimal): 512 bytes / 512 bytes
disk label type: dos
disk identifier: 0x05cc5d51
device boot start end blocks id system
/dev/sdb1 2048 10487807 5242880 83 linux
/dev/sdb2 10487808 12584959 1048576 83 linux
/dev/sdb3 12584960 14682111 1048576 83 linux
/dev/sdb4 14682112 16779263 1048576 83 linux
command (m for help): n
if you want to create more than four partitions, you must replace a
primary partition with an extended partition first.
# 如果要创建四个以上的分区，则必须替换首先使用扩展分区的主分区。
command (m for help): n
if you want to create more than four partitions, you must replace a
primary partition with an extended partition first.3、创建扩展分区，然后继续创建主分区
# 需要先删除一个主分区，然后创建扩展分区，默认剩余空间都给扩展分区
[server root ~] # fdisk /dev/sdb
welcome to fdisk (util-linux 2.23.2).
changes will remain in memory only, until you decide to write them.
be careful before using the write command.
command (m for help): d
partition number (1-4, default 4): 4
partition 4 is deleted
command (m for help): n
partition type:
p primary (3 primary, 0 extended, 1 free)
e extended
select (default e): e
selected partition 4
first sector (14682112-41943039, default 14682112):
using default value 14682112
last sector, +sectors or +size{k,m,g} (14682112-41943039, default 41943039):
using default value 41943039
partition 4 of type extended and of size 13 gib is set
command (m for help): p
disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors
units = sectors of 1 * 512 = 512 bytes
sector size (logical/physical): 512 bytes / 512 bytes
i/o size (minimum/optimal): 512 bytes / 512 bytes
disk label type: dos
disk identifier: 0x05cc5d51
device boot start end blocks id system
/dev/sdb1 2048 10487807 5242880 83 linux
/dev/sdb2 10487808 12584959 1048576 83 linux
/dev/sdb3 12584960 14682111 1048576 83 linux
/dev/sdb4 14682112 41943039 13630464 5 extended
# 创建扩展分区之后，就可以在创建主分区了
[server root ~] # fdisk /dev/sdb
welcome to fdisk (util-linux 2.23.2).
changes will remain in memory only, until you decide to write them.
be careful before using the write command.
command (m for help): n
all primary partitions are in use
adding logical partition 5
first sector (14684160-41943039, default 14684160):
using default value 14684160
last sector, +sectors or +size{k,m,g} (14684160-41943039, default 41943039): +5g
partition 5 of type linux and of size 5 gib is set
command (m for help): p
disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors
units = sectors of 1 * 512 = 512 bytes
sector size (logical/physical): 512 bytes / 512 bytes
i/o size (minimum/optimal): 512 bytes / 512 bytes
disk label type: dos
disk identifier: 0x05cc5d51
device boot start end blocks id system
/dev/sdb1 2048 10487807 5242880 83 linux
/dev/sdb2 10487808 12584959 1048576 83 linux
/dev/sdb3 12584960 14682111 1048576 83 linux
/dev/sdb4 14682112 41943039 13630464 5 extended
/dev/sdb5 14684160 25169919 5242880 83 linux
4、自动创建分区
自动分区采用了重定向的方法
fdisk /dev/sdb < test
或者
fdisk /dev/sdb < test &>> /dev/null
区别：显示创建过程与不显示创建过程
# 先将需要分区大小，分区类型是主分区还是扩展分区，直接写到一个文本中，如下（注意一定要空行）
[server root ~] # vim test
n
p
+1g
n
e
w
q
# 重定向分区
[server root ~] # fdisk /dev/sdb < test
welcome to fdisk (util-linux 2.23.2).
changes will remain in memory only, until you decide to write them.
be careful before using the write command.
command (m for help): partition type:
p primary (0 primary, 0 extended, 4 free)
e extended
select (default p): partition number (1-4, default 1): first sector (2048-41943039, default 2048): using default value 2048
last sector, +sectors or +size{k,m,g} (2048-41943039, default 41943039): partition 1 of type linux and of size 1 gib is set
command (m for help): command (m for help): partition type:
p primary (1 primary, 0 extended, 3 free)
e extended
select (default p): partition number (2-4, default 2): first sector (2099200-41943039, default 2099200): using default value 2099200
last sector, +sectors or +size{k,m,g} (2099200-41943039, default 41943039): using default value 41943039
partition 2 of type extended and of size 19 gib is set
command (m for help): the partition table has been altered!
calling ioctl() to re-read partition table.
syncing disks.
[server root ~] # fdisk -l /dev/sdb
disk /dev/sdb: 21.5 gb, 21474836480 bytes, 41943040 sectors
units = sectors of 1 * 512 = 512 bytes
sector size (logical/physical): 512 bytes / 512 bytes
i/o size (minimum/optimal): 512 bytes / 512 bytes
disk label type: dos
disk identifier: 0x05cc5d51
device boot start end blocks id system
/dev/sdb1 2048 2099199 1048576 83 linux
/dev/sdb2 2099200 41943039 19921920 5 extended

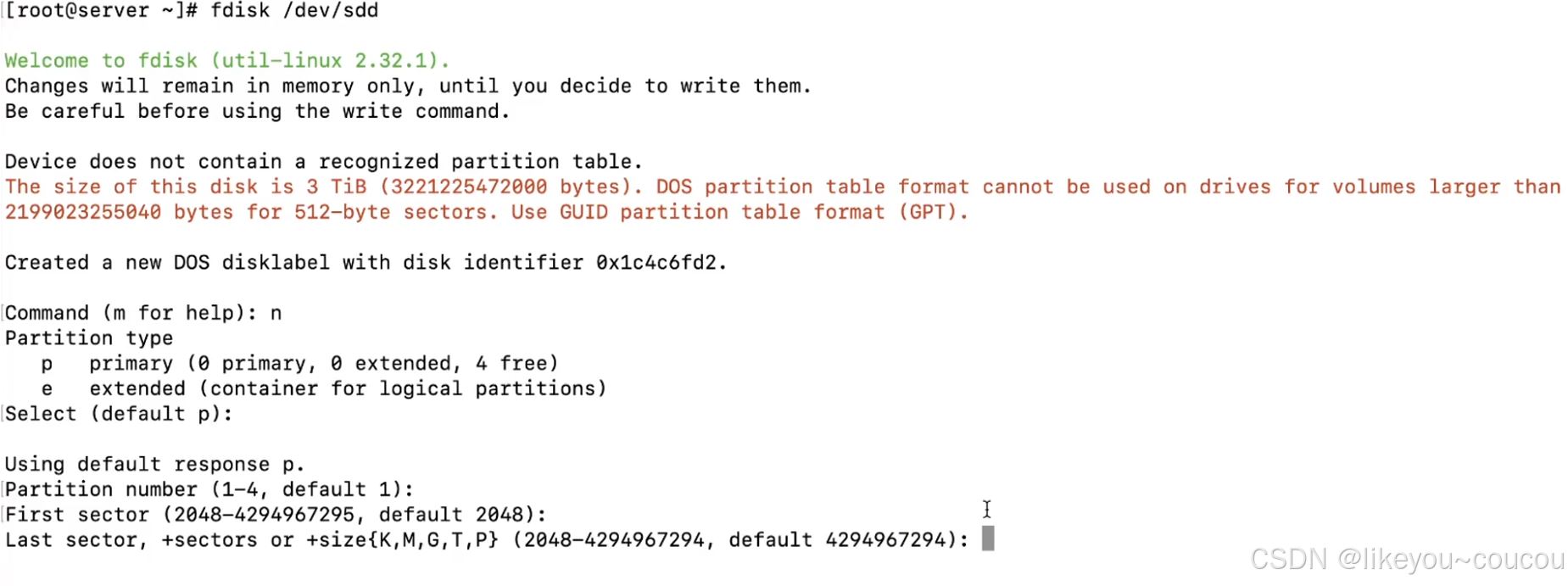

注意：在 linux 中，分区大于 2tb 的硬盘时，通常需要使用 gpt（guid partition table） 分区表，因为 mbr（master boot record） 分区表只支持最多 2tb 的磁盘容量。gpt 分区表则没有这个限制，能够支持最大 9.4zb 的磁盘容量

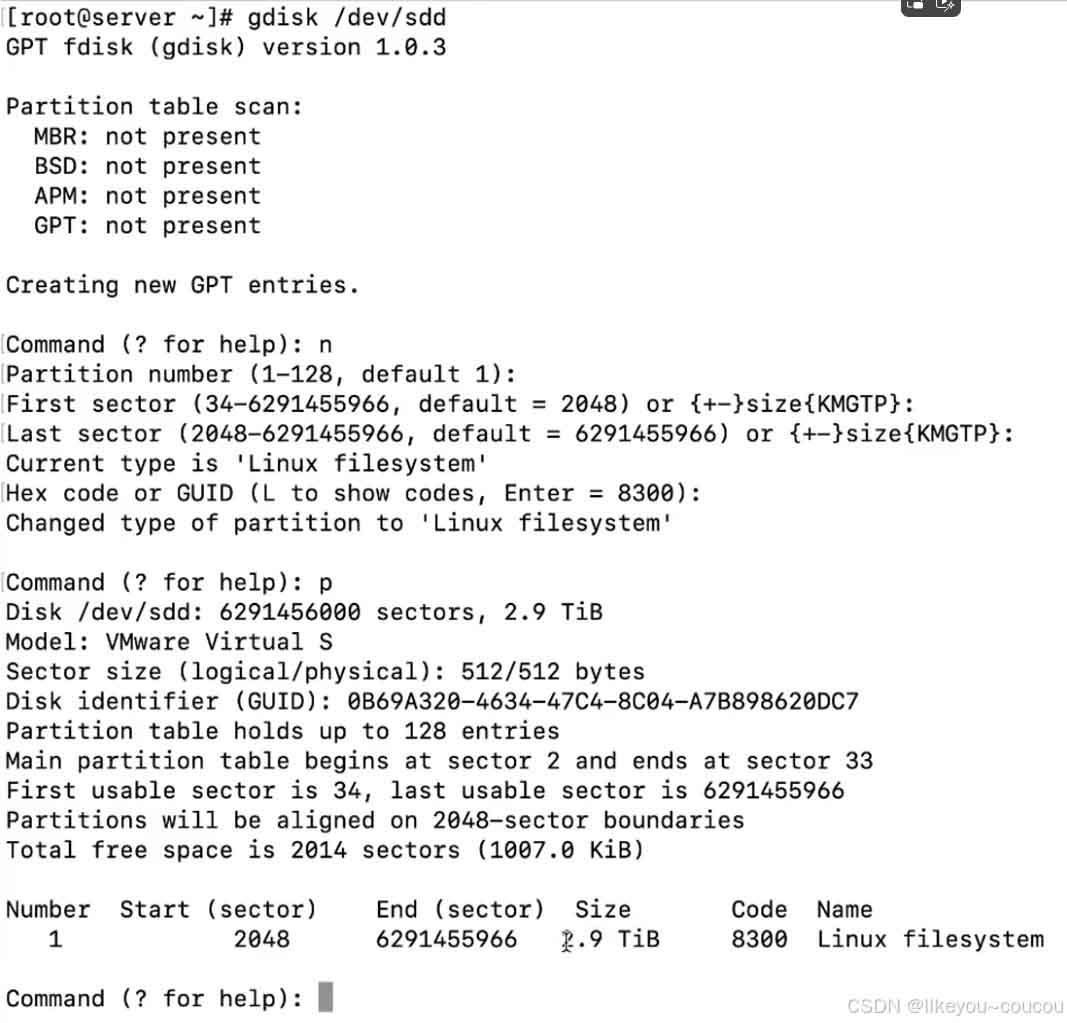

需要安装gdisk
apt-get install gdisk # debian/ubuntu 系统 yum install gdisk # centos/rhel 系统
gdisk 相关参数
b back up gpt data to a file #备份当前的 gpt 数据到一个文件 c change a partition's name #更改某个分区的名称 d delete a partition #删除一个分区。 i show detailed information on a partition #显示某个分区的详细信息 l list known partition types #列出已知的分区类型 n add a new partition #添加一个新的分区 o create a new empty guid partition table (gpt) #创建一个新的空的 gpt 分区表 p print the partition table # 打印当前分区表的内容，显示磁盘的分区信息 q quit without saving changes #退出 gdisk r recovery and transformation options (experts only) #恢复和转换选项。 s sort partitions #对分区进行排序。 t change a partition's type code #更改某个分区的类型 v verify disk #验证磁盘的 gpt 分区表 w write table to disk and exit #将更改后的分区表写入磁盘并退出 x extra functionality (experts only) #扩展功能，适用于高级用户，提供一些特殊的操作，如转换分区表格式等
三、格式化分区
1、linux常见文件系统格式有
ext2、ext3、ext4、xfs、btrfs和btrfs
#ext4的文件系统限制是，单个文件大小不能超过1t #xfs的文件系统每个文件系统量最大支持8eb，单个文件可以支持16tb
2、mkfs命令格式化分区
# mkfs.ext4格式化分区/dev/sdb1
[server root ~] # mkf
mkfifo mkfs.btrfs mkfs.ext2 mkfs.ext4 mkfs.xfs
mkfs mkfs.cramfs mkfs.ext3 mkfs.minix
[server root ~] # mkfs.ext
mkfs.ext2 mkfs.ext3 mkfs.ext4
[server root ~] # mkfs.ext4 /dev/sdb1
mke2fs 1.42.9 (28-dec-2013)
filesystem label=
os type: linux
block size=4096 (log=2)
fragment size=4096 (log=2)
stride=0 blocks, stripe width=0 blocks
327680 inodes, 1310720 blocks
65536 blocks (5.00%) reserved for the super user
first data block=0
maximum filesystem blocks=1342177280
40 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736
allocating group tables: done
writing inode tables: done
creating journal (32768 blocks): done
writing superblocks and filesystem accounting information: done
# mkfs.xfs格式化分区/dev/sdb5
[server root ~] # mkfs.xfs /dev/sdb5
meta-data=/dev/sdb5 isize=512 agcount=4, agsize=327680 blks
= sectsz=512 attr=2, projid32bit=1
= crc=1 finobt=0, sparse=0
data = bsize=4096 blocks=1310720, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0 ftype=1
log =internal log bsize=4096 blocks=2560, version=2
= sectsz=512 sunit=0 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
[server root ~] #
# mkfs.ext2格式化分区/dev/sdb6
[server root ~] # mkfs.ext2 /dev/sdb6
mke2fs 1.42.9 (28-dec-2013)
filesystem label=
os type: linux
block size=4096 (log=2)
fragment size=4096 (log=2)
stride=0 blocks, stripe width=0 blocks
393216 inodes, 1572864 blocks
78643 blocks (5.00%) reserved for the super user
first data block=0
maximum filesystem blocks=1610612736
48 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736
allocating group tables: done
writing inode tables: done
writing superblocks and filesystem accounting information: done
[server root ~] # 四、挂载linux分区（文件系统）
1、临时挂载
mount命令格式mount -t文件系统类型 文件系统所在的分区路径 文件系统的挂载点路径mount -t fstypes分区路径 挂载点路径
# 还未挂载前
[server root ~] # df -th
filesystem type size used avail use% mounted on
devtmpfs devtmpfs 900m 0 900m 0% /dev
tmpfs tmpfs 910m 0 910m 0% /dev/shm
tmpfs tmpfs 910m 9.5m 901m 2% /run
tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup
/dev/sda3 xfs 36g 3.7g 32g 11% /
/dev/sda1 xfs 509m 138m 372m 28% /boot
tmpfs tmpfs 182m 0 182m 0% /run/user/0
# 创建挂载目录
[server root ~] # mkdir /mount-point{1..3}
[server root ~] #
[server root ~] # ls /mount-point* -d
/mount-point1 /mount-point2 /mount-point3
[server root ~] #
# 将三个分区进行挂载，挂载到/mount-point（1,2,3）目录下
[server root ~] # mount /dev/sdb1 /mount-point1
[server root ~] # mount /dev/sdb5 /mount-point2
[server root ~] # mount /dev/sdb6 /mount-point3
[server root ~] #
[server root ~] # df -th
filesystem type size used avail use% mounted on
devtmpfs devtmpfs 900m 0 900m 0% /dev
tmpfs tmpfs 910m 0 910m 0% /dev/shm
tmpfs tmpfs 910m 9.5m 901m 2% /run
tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup
/dev/sda3 xfs 36g 3.7g 32g 11% /
/dev/sda1 xfs 509m 138m 372m 28% /boot
tmpfs tmpfs 182m 0 182m 0% /run/user/0
/dev/sdb1 ext4 4.8g 20m 4.6g 1% /mount-point1
/dev/sdb5 xfs 5.0g 33m 5.0g 1% /mount-point2
/dev/sdb6 ext2 6.0g 12m 5.6g 1% /mount-point3
[server root ~] # 2、永久挂载分区
mount命令只是临时挂载，系统重启之后就没了
如果想文件系统永久挂载，就需要把挂载信息写入到/etc/fstab。
/etc/fstab这个文件非常重要，一旦这个文件删除了，或者里边的某些行错误删除了，甚至写法错误都会导致系统无法正常启动。
# 系统重启后，挂载的分区没了 [server root ~] # reboot connection closing...socket close. connection closed by foreign host. disconnected from remote host(centos) at 14:15:58. type `help' to learn how to use xshell prompt. [c:\~]$ reconnecting in 30 seconds. press any key to exit local shell. .............................. connecting to 192.168.18.134:22... connection established. to escape to local shell, press 'ctrl+alt+]'. last login: fri nov 22 09:21:41 2024 from 192.168.18.1 [server root ~] # df -th filesystem type size used avail use% mounted on devtmpfs devtmpfs 900m 0 900m 0% /dev tmpfs tmpfs 910m 0 910m 0% /dev/shm tmpfs tmpfs 910m 9.5m 901m 2% /run tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup /dev/sda3 xfs 36g 3.7g 32g 11% / /dev/sda1 xfs 509m 138m 372m 28% /boot tmpfs tmpfs 182m 0 182m 0% /run/user/0 [server root ~] #
编辑/etc/fstab之前，最好先备份
# 备份文件 [server root ~] # cp /etc/fstab /etc/fstab.bak [server root ~] # ls /etc/fstab fstab fstab.bak [server root ~] # cat /etc/fstab # # /etc/fstab # created by anaconda on tue jan 16 23:35:15 2024 # # accessible filesystems, by reference, are maintained under '/dev/disk' # see man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info # uuid=7f5b46d3-e0da-430a-97f2-2e6a19f9e4ff / xfs defaults 0 0 uuid=ebaf11a7-f84f-4429-8df8-0ee0111e76e5 /boot xfs defaults 0 0 uuid=48826076-975a-4d59-bf1a-5b1004e96f29 swap swap defaults 0 0 # 第一列是文件系统所在的分区路径 #第二列是文件系统的挂载点 #第三列是文件系统的类型 #第四列是挂载参数 #第五列和第六列分别写0，只有在一些特殊的文件系统，后两列才需要改成非0 /dev/sdb1 /mount-point1 ext4 defaults 0 0 /dev/sdb5 /mount-point2 xfs defaults 0 0 /dev/sdb6 /mount-point3 ext2 defaults 0 0
当fstab文件编辑完成后，需使用mount -a命令自动挂载生效。
注意：如果某个文件系统已经挂载了。且还在fstab里边被记录，那么mount -a不会将该文件卸载，再重新挂载，mount -a会自动忽略改文件系统
[server root ~] # df -th filesystem type size used avail use% mounted on devtmpfs devtmpfs 900m 0 900m 0% /dev tmpfs tmpfs 910m 0 910m 0% /dev/shm tmpfs tmpfs 910m 9.5m 901m 2% /run tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup /dev/sda3 xfs 36g 3.7g 32g 11% / /dev/sda1 xfs 509m 138m 372m 28% /boot tmpfs tmpfs 182m 0 182m 0% /run/user/0 # mount -a命令自动挂载生效 [server root ~] # mount -a [server root ~] # df -th filesystem type size used avail use% mounted on devtmpfs devtmpfs 900m 0 900m 0% /dev tmpfs tmpfs 910m 0 910m 0% /dev/shm tmpfs tmpfs 910m 9.5m 901m 2% /run tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup /dev/sda3 xfs 36g 3.7g 32g 11% / /dev/sda1 xfs 509m 138m 372m 28% /boot tmpfs tmpfs 182m 0 182m 0% /run/user/0 /dev/sdb1 ext4 4.8g 20m 4.6g 1% /mount-point1 /dev/sdb5 xfs 5.0g 33m 5.0g 1% /mount-point2 /dev/sdb6 ext2 6.0g 12m 5.6g 1% /mount-point3 [server root ~] #
重启之后挂载正常
[server root ~] # reboot channel(socket) closed from remote host(centos) at 14:35:29. type `help' to learn how to use xshell prompt. [c:\~]$ warning! the remote ssh server rejected x11 forwarding request. warning! the remote ssh server rejected x11 forwarding request. last login: fri nov 22 14:36:10 2024 from 192.168.18.1 [server root ~] # df -th filesystem type size used avail use% mounted on devtmpfs devtmpfs 900m 0 900m 0% /dev tmpfs tmpfs 910m 0 910m 0% /dev/shm tmpfs tmpfs 910m 9.6m 901m 2% /run tmpfs tmpfs 910m 0 910m 0% /sys/fs/cgroup /dev/sda3 xfs 36g 3.7g 32g 11% / /dev/sdb5 xfs 5.0g 33m 5.0g 1% /mount-point2 /dev/sda1 xfs 509m 138m 372m 28% /boot /dev/sdb6 ext2 6.0g 12m 5.6g 1% /mount-point3 /dev/sdb1 ext4 4.8g 20m 4.6g 1% /mount-point1 tmpfs tmpfs 182m 0 182m 0% /run/user/0 [server root ~] #
总结
以上为个人经验，希望能给大家一个参考，也希望大家多多支持代码网。
发表评论
