我要评论一、前言
本次部署方式为setafulset的方式部署rabbitmq集群，使用svc的无头服务，本次涉及使用到的服务有setafulset、secret、configmap、service、pv、pvc、sa，在rabbitmq的官网中使用的是operator的方式
operator方式参考:rabbitmq cluster kubernetes operator quickstart | rabbitmq
二、部署
创建rabbitmq yaml文件存放目录
mkdir /opt/rabbitmq && cd /opt/rabbitmq
编辑secret配置
vi secret.yaml
kind: secret apiversion: v1 metadata: name: rabbitmq namespace: rabbitmq type: opaque stringdata: rabbitdefauluser: admin #设置rabbitmq集群的用户名 rabbitdefaultpass: admin #设置rabbitmq集群的密码 erlang.cookie: erlang_cookie #集群需要用到的cookie值，每个节点都需要保持一致
编辑configmap配置
vi configmap.yaml
kind: configmap
apiversion: v1
metadata:
name: rabbitmq-config
namespace: rabbitmq
data:
enabled_plugins: |
[rabbitmq_management,rabbitmq_peer_discovery_k8s].
rabbitmq.conf: |
cluster_formation.peer_discovery_backend = rabbit_peer_discovery_k8s
cluster_formation.k8s.host = kubernetes.default.svc.cluster.local
cluster_formation.k8s.address_type = hostname
cluster_formation.k8s.hostname_suffix = .rabbitmq-headless.rabbitmq.svc.cluster.local
cluster_formation.node_cleanup.interval = 30
cluster_formation.node_cleanup.only_log_warning = true
cluster_partition_handling = autoheal
queue_master_locator=min-masters
cluster_formation.randomized_startup_delay_range.max = 2
vm_memory_high_watermark.absolute = 1gb
disk_free_limit.absolute = 2gb
loopback_users.guest = false编辑rbac配置
vi rbac.yaml
apiversion: v1 kind: serviceaccount metadata: name: rabbitmq namespace: rabbitmq --- kind: role apiversion: rbac.authorization.k8s.io/v1 metadata: name: endpoint-reader namespace: rabbitmq rules: - apigroups: [""] resources: ["endpoints"] verbs: ["get"] --- kind: rolebinding apiversion: rbac.authorization.k8s.io/v1 metadata: name: endpoint-reader namespace: rabbitmq subjects: - kind: serviceaccount name: rabbitmq roleref: apigroup: rbac.authorization.k8s.io kind: role name: endpoint-reader
编辑service配置
vi service.yaml
kind: service
apiversion: v1
metadata:
name: rabbitmq-headless #该service服务为提供无头服务
namespace: rabbitmq
spec:
clusterip: none
publishnotreadyaddresses: true
ports:
- name: amqp
port: 5672
- name: http
port: 15672
selector:
app: rabbitmqvi service-nodeport.yaml
kind: service
apiversion: v1
metadata:
namespace: rabbitmq
name: rabbitmq-service
spec:
ports:
- name: http
protocol: tcp
port: 15672
nodeport: 30015 #管理web界面
- name: amqp
protocol: tcp
port: 5672
targetport: 5672
nodeport: 30016
selector:
app: rabbitmq
type: nodeport编辑pv配置(使用该nfs路径时一定要配置一定的写入权限，不然启动rabbitmq服务时会出现没有写入权限而报错)
vi pv.yaml
apiversion: v1
kind: persistentvolume
metadata:
name: rabbitmq-pv01
spec:
storageclassname: rabbitmq-pv #定义了存储类型
capacity:
storage: 30gi
accessmodes:
- readwritemany
persistentvolumereclaimpolicy: retain
nfs:
path: /volume2/k8s-data/rabbitmq/rabbitmq-pv01
server: 10.1.13.99
---
apiversion: v1
kind: persistentvolume
metadata:
name: rabbitmq-pv02
spec:
storageclassname: rabbitmq-pv #定义了存储类型
capacity:
storage: 30gi
accessmodes:
- readwritemany
persistentvolumereclaimpolicy: retain
nfs:
path: /volume2/k8s-data/rabbitmq/rabbitmq-pv02
server: 10.1.13.99
---
apiversion: v1
kind: persistentvolume
metadata:
name: rabbitmq-pv03
spec:
storageclassname: rabbitmq-pv #定义了存储类型
capacity:
storage: 30gi
accessmodes:
- readwritemany
persistentvolumereclaimpolicy: retain
nfs:
path: /volume2/k8s-data/rabbitmq/rabbitmq-pv03
server: 10.1.13.99编辑setafulset配置
vi setafulset.yaml
apiversion: apps/v1
kind: statefulset
metadata:
name: rabbitmq
namespace: rabbitmq
spec:
podmanagementpolicy: parallel
servicename: rabbitmq-headless
selector:
matchlabels:
app: rabbitmq
replicas: 3 #副本数3
template:
metadata:
labels:
app: rabbitmq
annotations:
pod.alpha.kubernetes.io/initialized: "true"
spec:
affinity: #配置反亲和性，使pod不能部署再同一个node上
podantiaffinity:
requiredduringschedulingignoredduringexecution:
- labelselector:
matchexpressions:
- key: "app"
operator: in
values:
- rabbitmq
topologykey: "kubernetes.io/hostname"
tolerations: #该配置是容忍污点，使pod可以部署再master上，可以不要该配置
- key: "node-role.kubernetes.io/control-plane"
operator: "exists"
effect: noschedule
serviceaccountname: rabbitmq
terminationgraceperiodseconds: 10
containers:
- name: rabbitmq
image: rabbitmq:3.10-management
securitycontext:
runasuser: 1000
resources:
limits:
cpu: 2
memory: 2gi
requests:
cpu: 1
memory: 1gi
volumemounts:
- name: config-volume
mountpath: /etc/rabbitmq
- name: rabbitmq-data #使用pvc挂载数据目录，rabbitmq启动时会往该目录写入数据，所以挂载的该目录要具有写入权限
mountpath: /var/lib/rabbitmq/mnesia
ports:
- name: http
protocol: tcp
containerport: 15672
- name: amqp
protocol: tcp
containerport: 5672
livenessprobe:
exec:
command: ["rabbitmq-diagnostics", "status"]
initialdelayseconds: 60
periodseconds: 60
timeoutseconds: 5
readinessprobe:
exec:
command: ["rabbitmq-diagnostics", "status"]
initialdelayseconds: 20
periodseconds: 60
timeoutseconds: 5
imagepullpolicy: always
env:
- name: rabbitmq_default_user
valuefrom:
secretkeyref:
key: rabbitdefauluser
name: rabbitmq
- name: rabbitmq_default_pass
valuefrom:
secretkeyref:
key: rabbitdefaultpass
name: rabbitmq
- name: rabbitmq_erlang_cookie
valuefrom:
secretkeyref:
name: rabbitmq
key: erlang.cookie
- name: hostname
valuefrom:
fieldref:
fieldpath: metadata.name
- name: namespace
valuefrom:
fieldref:
fieldpath: metadata.namespace
- name: rabbitmq_use_longname
value: "true"
- name: service_name
value: "rabbitmq-headless"
- name: rabbitmq_nodename
value: rabbit@$(hostname).$(service_name).$(namespace).svc.cluster.local
- name: k8s_hostname_suffix
value: .$(service_name).$(namespace).svc.cluster.local
volumes:
- name: config-volume
configmap:
name: rabbitmq-config
items:
- key: rabbitmq.conf
path: rabbitmq.conf
- key: enabled_plugins
path: enabled_plugins
volumeclaimtemplates:
- metadata:
name: rabbitmq-data
spec:
storageclassname: "rabbitmq-pv"
accessmodes: [ "readwritemany" ]
resources:
requests:
storage: 30gi创建命名空间
kubectl create namespace rabbitmq
创建各yaml服务
kubectl create -f secret.yaml kubectl create -f configmap.yaml kubectl create -f pv.yaml kubectl create -f service.yaml kubectl create -f service-nodeport.yaml kubectl create -f setafulset.yaml
查看集群状态

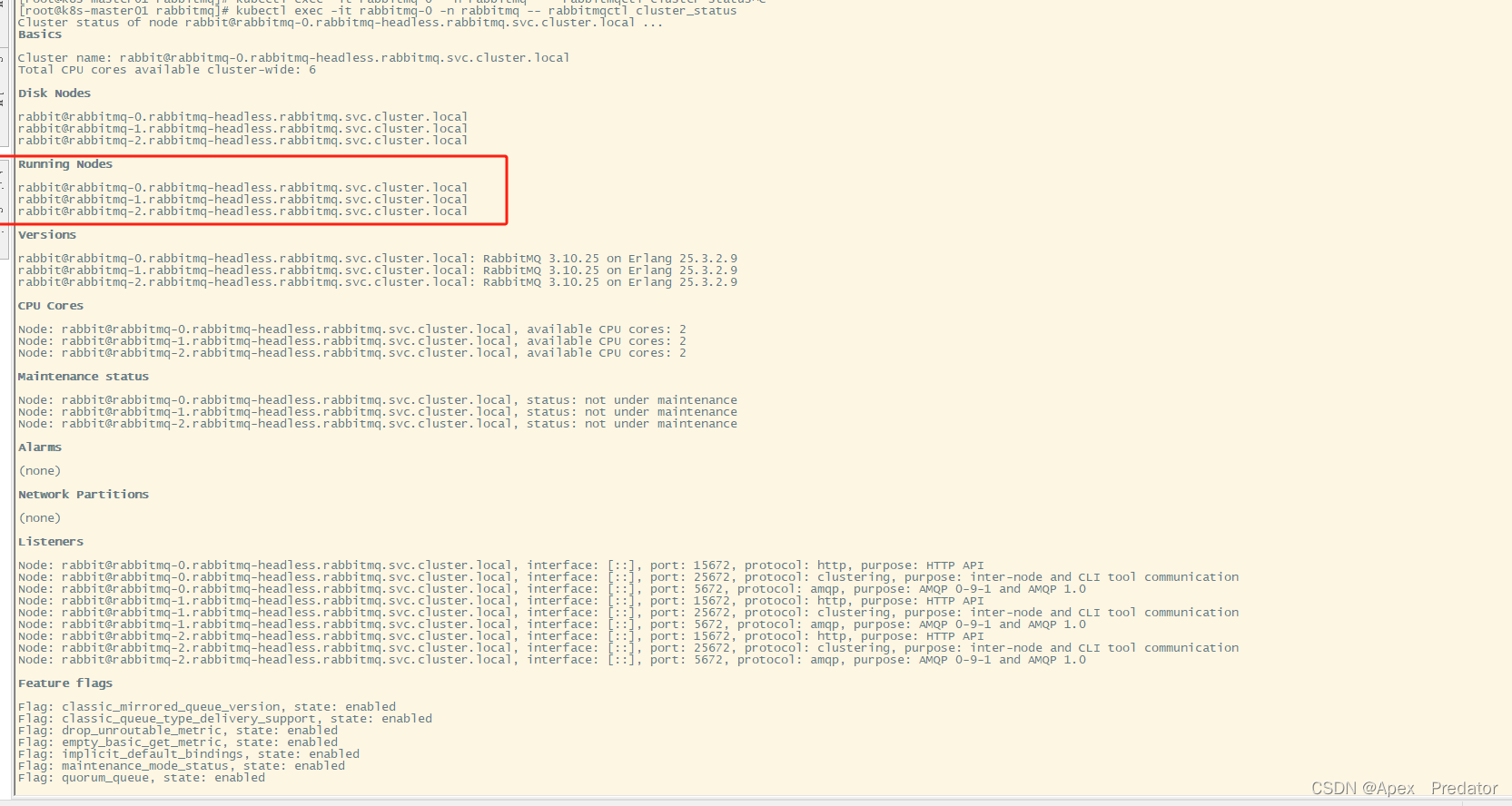

kubectl exec -it rabbitmq-0 -n rabbitmq -- rabbitmqctl cluster_status
可以看到rabbitmq集群正常运行，至此rabbitmq集群部署完成。
