我要评论- 在虚拟机中安装docker、docker-compose
- 安装docker
- 清除旧版本的docker
- 安装docker
yum remove docker docker-client docker-client-latest docker-common docker-latest docker-latest-logrotate docker-logrotate docker-engine
-
-
- 安装docker的依赖
-
yum install -y yum-utils device-mapper-persistent-data lvm2
1.1.3 安装gcc
yum install -y gcc gcc-c++
-
-
- 添加软件源国内镜像
-
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
1.1.5 更新yum索引
yum makecache
1.1.6 安装docker-ce
yum install docker-ce docker-ce-cli containerd.io
1.1.7 启动docker，并设置开机启动
systemctl start docker
systemctl enable docker

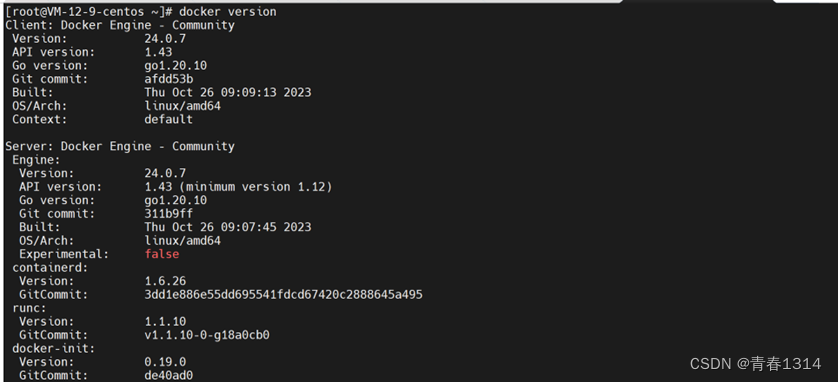

1.1.8 验证docker的安装是否成功
docker version
1.2 安装docker-compose
1.2.1下载docker-compose的二进制文件

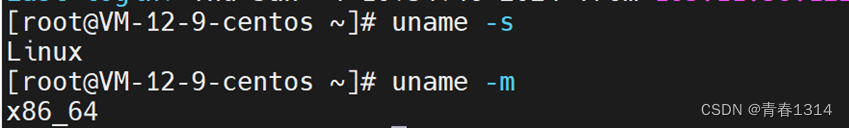

1.2.1.1 查询虚拟机内核名和计算机硬件架构

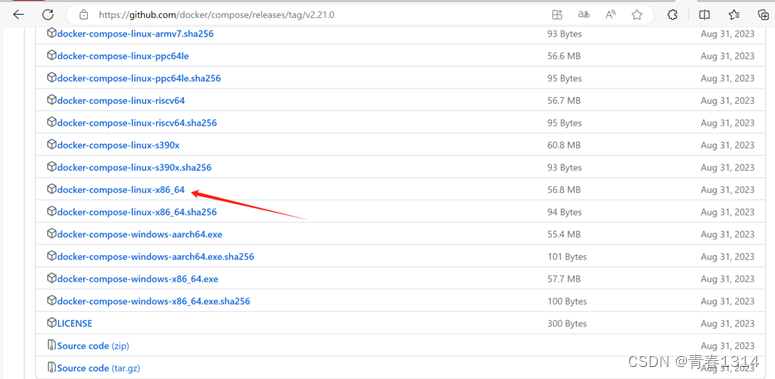

1.2.1.2 下载地址
https://github.com/docker/compose/releases/tag/v2.21.0
1.2.1.3 将其迁移到/usr/local/bin目录下，并授予读写权限
chmod -r 777 /usr/local/bin/docker-compose
1.2.1.4 验证docker-compose的安装是否成功
docker-compose version
2、安装apisix
2.1 下载 apisix-docker仓库
git clone https://github.com/apache/apisix-docker.git
2.2 进入拉取的目录中
cd apisix-docker/example
2.3 修改docker-compose.yml文件内容
# licensed to the apache software foundation (asf) under one or more
# contributor license agreements. see the notice file distributed with
# this work for additional information regarding copyright ownership.
# the asf licenses this file to you under the apache license, version 2.0
# (the "license"); you may not use this file except in compliance with
# the license. you may obtain a copy of the license at
#
# http://www.apache.org/licenses/license-2.0
#
# unless required by applicable law or agreed to in writing, software
# distributed under the license is distributed on an "as is" basis,
# without warranties or conditions of any kind, either express or implied.
# see the license for the specific language governing permissions and
# limitations under the license.
#
version: "3"
services:
apisix:
image: apache/apisix:${apisix_image_tag:-3.7.0-debian}
restart: always
volumes:
- ./apisix_conf/config.yaml:/usr/local/apisix/conf/config.yaml:ro
depends_on:
- etcd
##network_mode: host
ports:
- "9180:9180/tcp"
- "9080:9080/tcp"
- "9091:9091/tcp"
- "9443:9443/tcp"
- "9092:9092/tcp"
networks:
apisix:
etcd:
image: bitnami/etcd:3.4.15
restart: always
volumes:
- etcd_data:/bitnami/etcd
environment:
etcd_enable_v2: "true"
allow_none_authentication: "yes"
etcd_advertise_client_urls: "http://43.139.54.145:2379"
etcd_listen_client_urls: "http://0.0.0.0:2379"
ports:
- "2379:2379/tcp"
networks:
apisix:
web1:
image: nginx:1.19.0-alpine
restart: always
volumes:
- ./upstream/web1.conf:/etc/nginx/nginx.conf
ports:
- "9081:80/tcp"
environment:
- nginx_port=80
networks:
apisix:
web2:
image: nginx:1.19.0-alpine
restart: always
volumes:
- ./upstream/web2.conf:/etc/nginx/nginx.conf
ports:
- "9082:80/tcp"
environment:
- nginx_port=80
networks:
apisix:
prometheus:
image: prom/prometheus:v2.25.0
restart: always
volumes:
- ./prometheus_conf/prometheus.yml:/etc/prometheus/prometheus.yml
ports:
- "9090:9090"
networks:
apisix:
grafana:
image: grafana/grafana:7.3.7
restart: always
ports:
- "3000:3000"
volumes:
- "./grafana_conf/provisioning:/etc/grafana/provisioning"
- "./grafana_conf/dashboards:/var/lib/grafana/dashboards"
- "./grafana_conf/config/grafana.ini:/etc/grafana/grafana.ini"
networks:
apisix:
networks:
apisix:
driver: bridge
volumes:
etcd_data:
driver: local

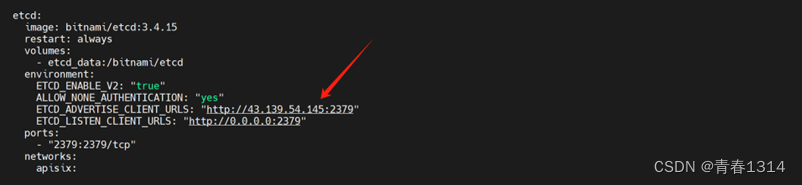

修改etcd的ip地址

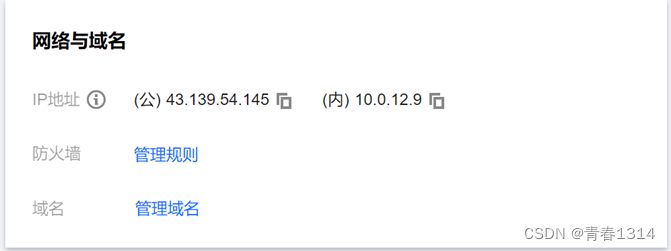

43.139.54.145是腾讯云外网ip
2.4 使用docker-compose启用 apisix
```
docker-compose -p docker-apisix up -d
2.5 查看apisix安装的情况
docker ps -a
3、安装apisix-dashboard
3.1 拉取apisix-dashboard镜像
docker pull apache/apisix-dashboard

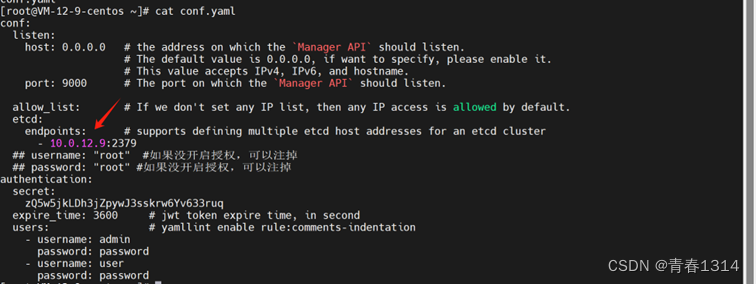

3.2、在/root路径下，添加dashboard的配置文件conf.yaml
conf:
listen:
host: 0.0.0.0 # the address on which the `manager api` should listen.
# the default value is 0.0.0.0, if want to specify, please enable it.
# this value accepts ipv4, ipv6, and hostname.
port: 9000 # the port on which the `manager api` should listen.
allow_list: # if we don't set any ip list, then any ip access is allowed by default.
etcd:
endpoints: # supports defining multiple etcd host addresses for an etcd cluster
- 10.0.12.9:2379
## username: "root" #如果没开启授权，可以注掉
## password: "root" #如果没开启授权，可以注掉
authentication:
secret:
zq5w5jkldh3jzpywj3sskrw6yv633ruq
expire_time: 3600 # jwt token expire time, in second
users: # yamllint enable rule:comments-indentation
- username: admin
password: password
- username: user
password: password

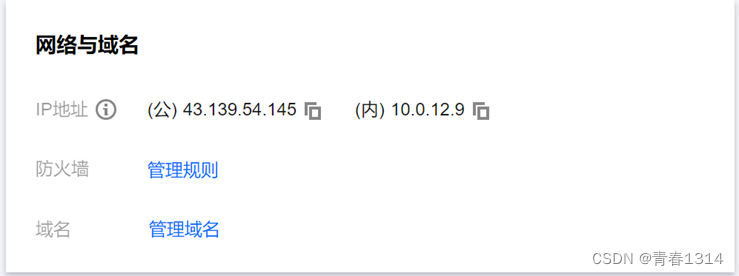

10.0.12.9是腾讯云内网ip
3.3 启动容器
cd /root
docker run -it -p 9000:9000 -v ./conf.yaml:/usr/local/apisix-dashboard/conf/conf.yaml apache/apisix-dashboard

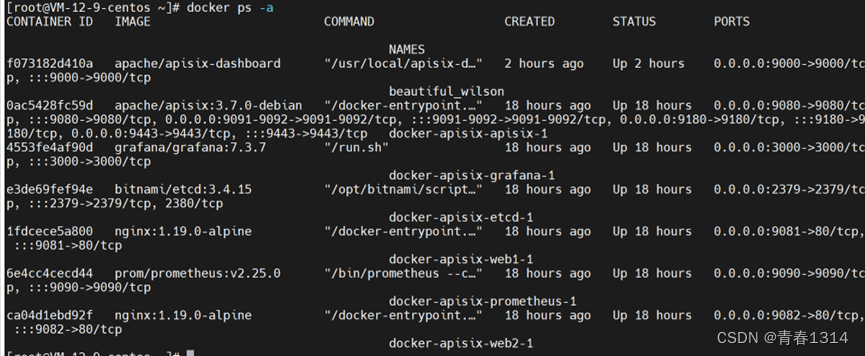

3.4 查看容器启动情况
docker ps -a
4、测试

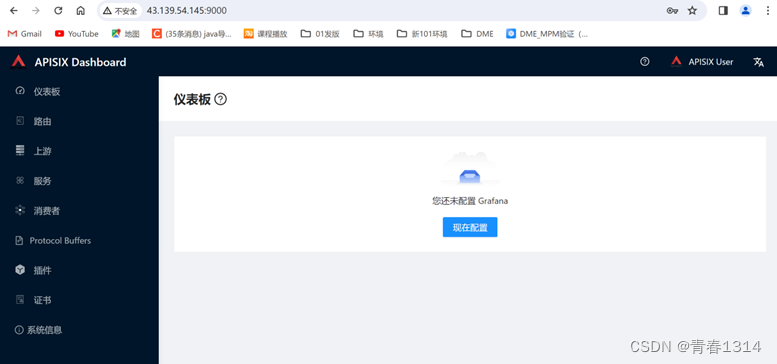

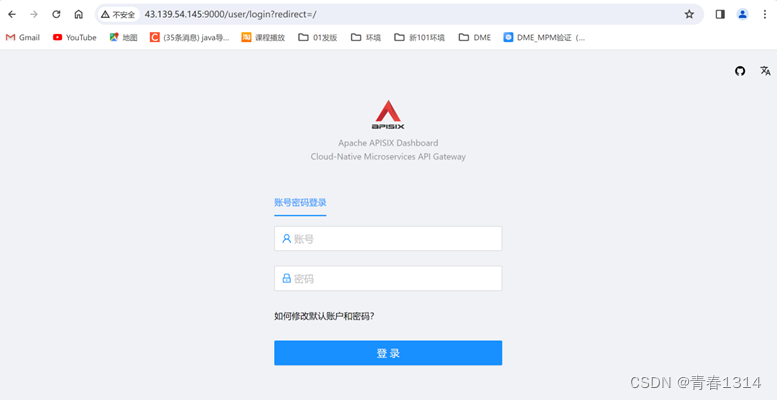

4.1 访问dashboard页面
访问地址：http://43.139.54.145:9000，账号密码为conf.yaml文件中的

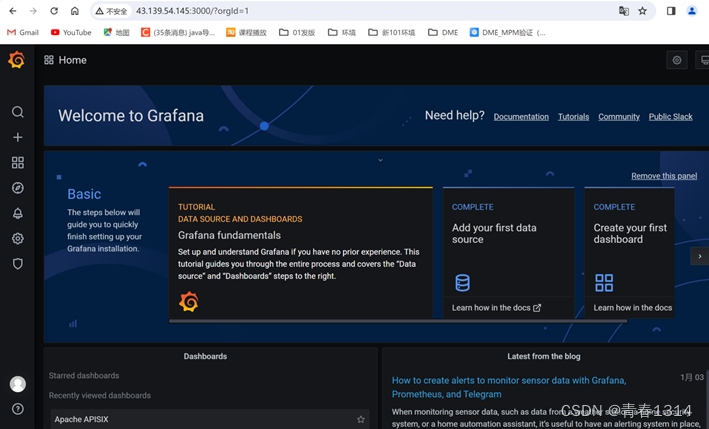

4.2 访问到grafana的页面
grafana，账号密码均为admin

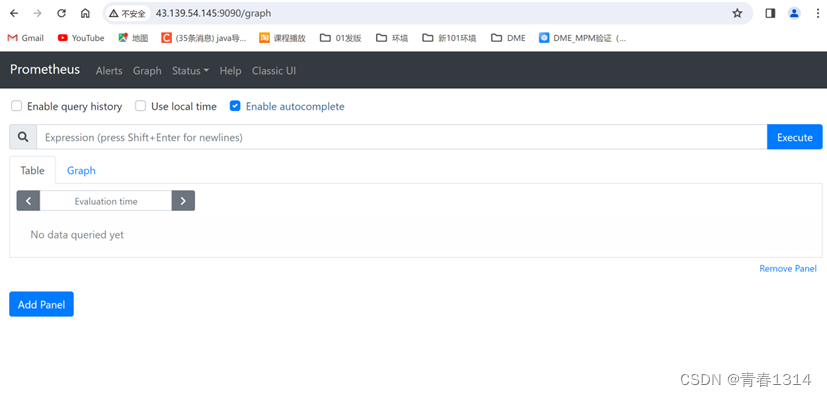

4.3 访问prometheus页面
5、防火墙
5.1 虚拟机防火墙
5.2 腾讯云服务器防火墙
