vue3使用vuedraggable和grid实现自定义拖拽布局方式_Vue.js

使用vuedraggable和grid实现自定义拖拽布局

实现思路

使用vuedraggable实现拖拽功能，拖拽改变的是模块在list的顺序，使用gird设置动态类名，根据模块在list的位置匹配对应的gird样式。

效果图

每个模块可以拖拽，不同数量和不同位置模块宽度和高度不同（注意：模块样式width:100%,height:100%）

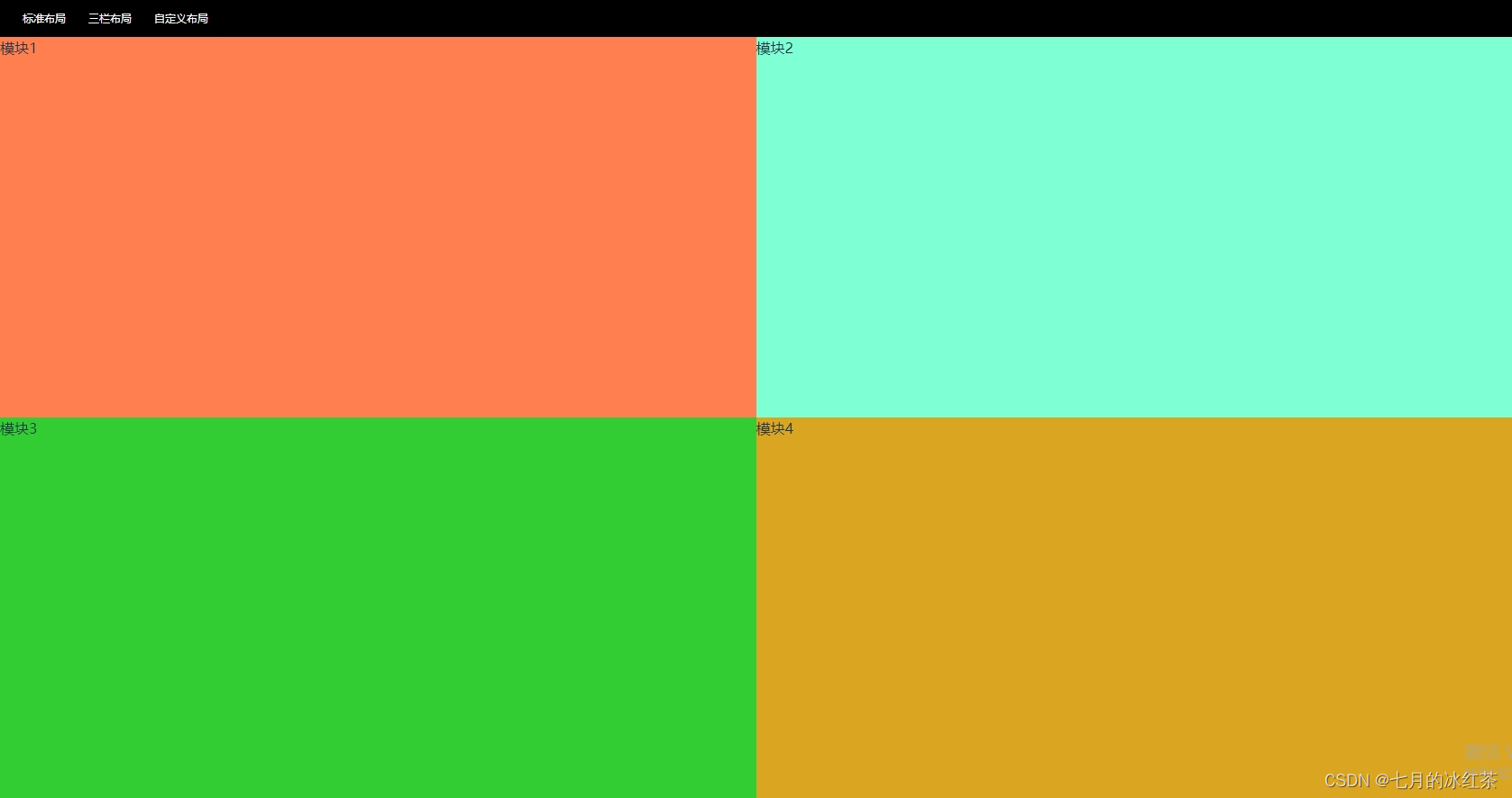

图1-标准布局

图2-三块布局

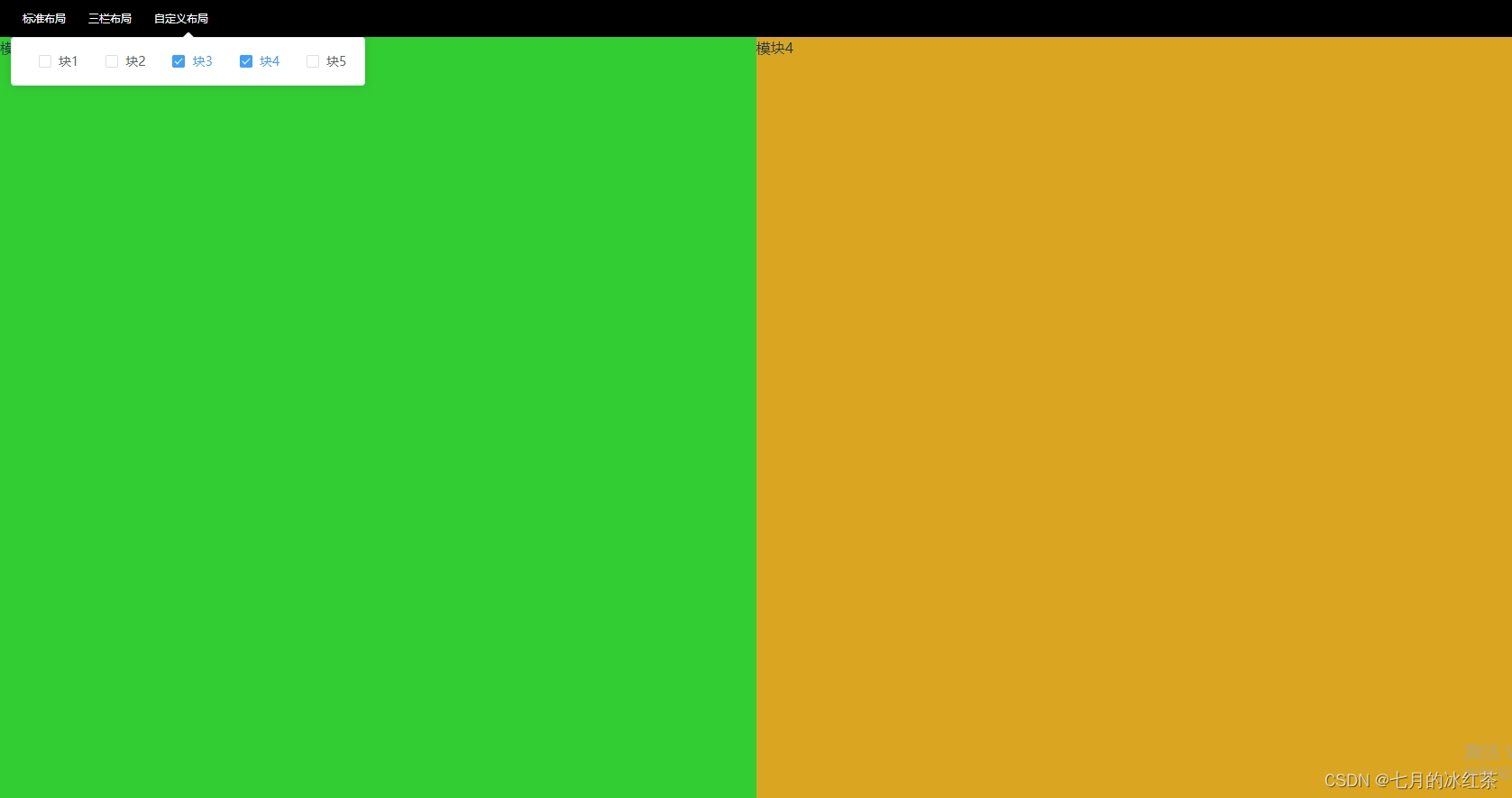

图3-自定义布局

<template>
  <div class="wrap">
    <div class="flex-row-start definelayout">
      <div class="flex-row" @click="changelayout(layouttype.four)">
        <div class="name">标准布局</div>
      </div>
      <div class="flex-row" @click="changelayout(layouttype.three)">
        <div class="name">三块布局</div>
      </div>
      <el-dropdown ref="dropdown1" trigger="contextmenu" style="margin-right: 30px">
        <div class="flex-row el-dropdown-link" @click="() => {
          if (dropdown1) dropdown1.handleopen();
        }">
          <div class="name">自定义布局</div>
        </div>
        <template #dropdown>
          <el-checkbox-group class="flex-col-start" v-model="checkedidlist" :max="4" style="padding: 10px 0 10px 30px;">
            <el-checkbox @change="changelayout(layouttype.define)" v-for="(item, index) of clist" :key="index"
              :label='item.id'>{{
                item.name }}</el-checkbox>
          </el-checkbox-group>
        </template>
      </el-dropdown>
    </div>
    <div class="draggable-border">
      <draggable :list="modulelist" item-key="id" :options="{ animation: 200, ghostclass: 'ghost' }" :class="{
        gird1col: modulelist.length == 1,
        gird2col: modulelist.length == 2,
        gird3col: modulelist.length == 3,
        gird4col: modulelist.length == 4
      }">
        <template #item="{ element, index }">
          <component :ref="element.ref" :is="element.component" :name="element.name" :class="{
            [`dragitem${index}`]: true,
          }">
          </component>
        </template>
      </draggable>
    </div>
  </div>
</template>

<script lang="ts" setup>
import { ref, onmounted } from "vue";
import { usestate, usemutations } from "@/utils/usestore";
import block1 from '@/components/block1/block1';
import block2 from '@/components/block2/block2';
import block3 from '@/components/block3/block3';
import block4 from '@/components/block4/block4';
import block5 from '@/components/block5/block5.vue';

//@ts-ignore
import draggable from "vuedraggable";
import { layouttype } from '@/utils/enum';

//资源对象
let resource = ref<any>();
//@ts-ignore
const { modulelist } = usestate(["modulelist"], "drag");
//@ts-ignore
const { setmodulelist } = usemutations(["setmodulelist"], "drag");

let dropdown1 = ref();
let checkedidlist = ref<number[]>([]);//自定义选择的模块

let clist: any[] = [
  {
    type: '1',
    id: 1,
    name: '块1',
    component: block1
  }, {
    type: '1',
    id: 2,
    name: '块2',
    component: block2
  }, {
    type: '2',
    id: 3,
    name: '块3',
    component: block3
  }, {
    type: '2',
    id: 4,
    name: '块4',
    component: block4
  }, {
    type: '2',
    id: 5,
    name: '块5',
    component: block5
  },
];

onmounted(() => {
  setcompontent([1, 2, 3, 4]);
})

// 自定义当前页包含组件
const setcompontent = (idlist: number[]) => {
  checkedidlist.value = idlist;
  let list = clist.filter((f: any) => {
    return idlist.indexof(f.id) != -1;
  });
  setmodulelist(list);
  console.log("list", list);
};

// 切换布局
const changelayout = (type) => {
  switch (type) {
    case layouttype.three:
      setcompontent([1, 2, 5]);
      break;
    case layouttype.define:
      if (checkedidlist.value) setcompontent(checkedidlist.value);
      break;
    default:
      // 默认四宫格
      setcompontent([1, 2, 3, 4]);
      break;
  }
}
</script>

<style scoped lang="scss">
.wrap {
  height: 100vh;
  width: 100vw;
  position: relative;
  display: block;
  overflow: hidden;

  .definelayout {
    color: #fff;
    height: 41px;
    width: 100%;
    background-color: #000;
    align-items: center;
    padding: 0 20px;

    .name {
      font-size: 12px;
      font-weight: 500;
      color: #ffffff;
      line-height: 17px;
      margin-left: 5px;
      margin-right: 20px;
      cursor: pointer;
    }
  }

  .draggable-border {
    background-color: #fff;
    width: 100%;
    height: calc(100vh - 41px);
  }
}

// 设置拖拽组件的样式
.draggable-border>div {
  width: 100%;
  height: 100%;
  display: grid;
  grid:
    'one two'
    'three four';
  grid-template-columns: 50% 50%;
  grid-template-rows: 50% 50%;
}

.gird4col {
  grid:
    'one two'
    'three four' !important;
  grid-template-columns: 50% 50% !important;
  grid-template-rows: 50% 50% !important;
}

.gird3col {
  grid:
    'one three'
    'two three' !important;
  grid-template-columns: 50% 50% !important;
  grid-template-rows: 50% 50% !important;
}

.gird2col {
  grid:
    'one two'
    'one two' !important;
  grid-template-columns: 50% 50% !important;
  grid-template-rows: 50% 50% !important;
}

.gird1col {
  grid:
    'one' !important;
  grid-template-columns: 100% !important;
  grid-template-rows: 100% !important;
}

.fullscreen {
  width: 100vw;
  height: 100vh;
  position: fixed;
  top: 0;
  left: 0;
  z-index: 999;
}

.dragitem0 {
  grid-area: one;
}

.dragitem1 {
  grid-area: two;
}

.dragitem2 {
  grid-area: three;
}

.dragitem3 {
  grid-area: four;
}
</style>
