使用Vue-neo4j实现绘制三国人物图谱关系_Vue.js

前言

发现一个很有用的vue插件：https://www.npmjs.com/package/vue-neo4j

这个能在前端直连neo4j服务器啦，下图就是测试效果绘制三国人物图谱关系

版本说明

vue 3.0版本
vue-neo4j 0.4.8版本
neo4j服务端版本 4.3.6版本，可以直接去官网下载。
echarts 5.22版本

开发说明

一、windows服务器部署neo4j

1、部署jdk11, 因为neo4j 4.3.6使用的版本是jdk11以上，否则启动不了哦

2、下载neo4j，解压

3、到 .\conf目录修改 neo4j.conf文件修改default_listen_address为0.0.0.0，因为不改的话，会导致启动后只能本机访问

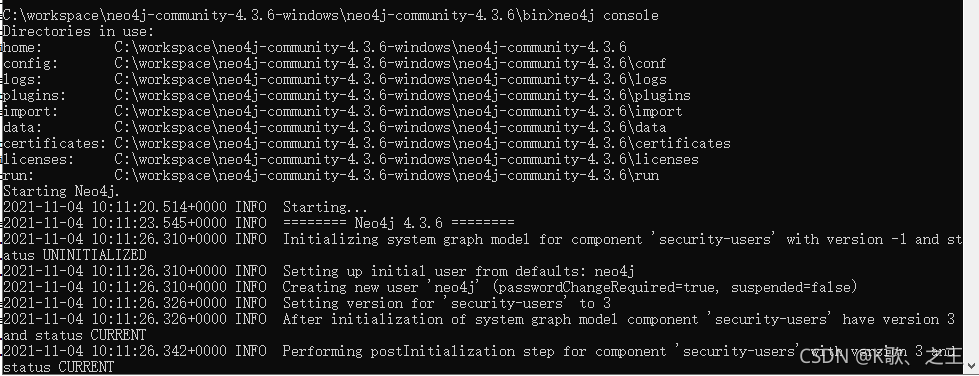

4、cmd到.\bin目录执行 noe4j console. 这样就完成启动了

5、浏览器打开网址 http://127.0.0.1:7474

默认密码为neo4j/neo4j 首次进入会提示修改密码

二、vue3.0 版本前端工程说明

1、引入依赖 yarn add vue-neo4j

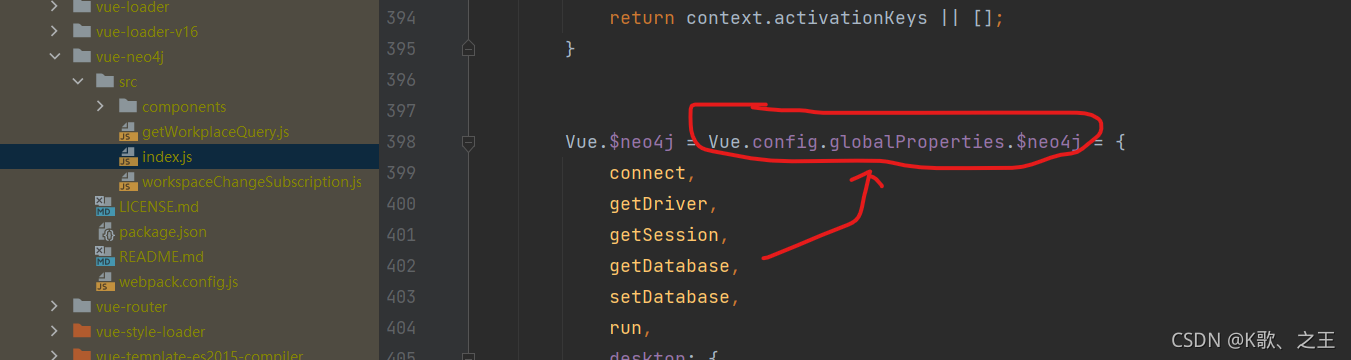

2、由于vue-neo4j 0.4.8 该版本只适配vue2.0版本，所以要改下源码，把 vue.property.$neo4j 改为 vue.config.globalproperties.$neo4j

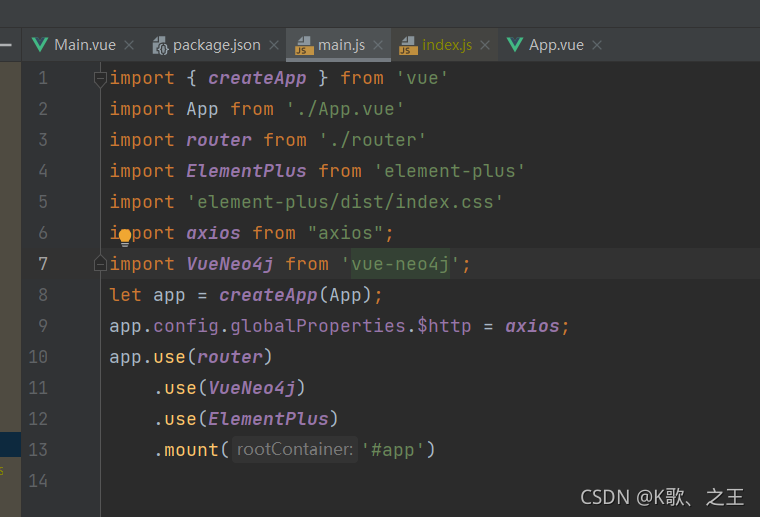

3、main.js引入

import vueneo4j from 'vue-neo4j';
let app = createapp(app);
app.use(vueneo4j );

4、逻辑编写

<template>
  <div class="neo4jmain">
    <div class="addcontent">
      <el-form :inline="true" :model="forminline" :rules="rules" ref="neo4jform">
        <el-form-item label="开始节点名称" prop="startnode">
          <el-input v-model="forminline.startnode" placeholder="请输入开始节点名称"></el-input>
        </el-form-item>
        <el-form-item label="关系名称" prop="relationname">
          <el-input v-model="forminline.relationname" placeholder="请输入关系名称"></el-input>
        </el-form-item>
        <el-form-item label="结束节点名称" prop="endnode">
          <el-input v-model="forminline.endnode" placeholder="请输入结束节点名称"></el-input>
        </el-form-item>
        <el-form-item>
          <el-button type="primary" @click="onsubmit">提交</el-button>
<!--          <el-button type="primary" @click="ondelete">清空表</el-button>-->
        </el-form-item>
      </el-form>
    </div>
    <div class="echarts" ref="echarts">
    </div>
  </div>
</template>

<script>
import * as echarts from 'echarts'

export default {
  name: "main.vue",
  mounted() {
    this.query();
  },
  data() {
    return {
      forminline: {
        startnode: '',
        endnode: '',
        relationname: ''
      },
      rules: {
        startnode: [{required: true, trigger: 'blur'}],
        endnode: [{required: true, trigger: 'blur'}],
        relationname: [{required: true, trigger: 'blur'}]
      },
      protocol: 'bolt',
      host: '127.0.0.1',
      port: 7687,
      username: 'neo4j',
      password: '123456',
      echartsdata: [],
      nodesrelation: []
    }
  },
  methods: {
    ondelete() {
      this.connect();
      const session = this.$neo4j.getsession();
      let cypher = `match p=(n:person)-[]->(m:person) delete p `;
      session.run(cypher);
      cypher = `match (n:person) delete n`;
      session.run(cypher).then(() => {
        session.close()
      });
      this.query();
    },
    initecharts() {
      // 基于准备好的dom，初始化echarts实例
      let mychart = echarts.init(this.$refs.echarts)
      // 绘制图表
      mychart.setoption({
        title: {
          text: 'neo4j 图谱关系'
        },
        tooltip: {},
        animationdurationupdate: 1500,
        animationeasingupdate: 'quinticinout',
        series: [
          {
            type: 'graph',
            layout: 'force',
            force: {
              edgelength: 40,
              repulsion: 50,
              gravity: 0.1
            },
            symbolsize: 50,
            roam: true,
            label: {
              show: true
            },
            edgesymbol: ['circle', 'arrow'],
            edgesymbolsize: [4, 10],
            edgelabel: {
              fontsize: 20
            },
            data: this.echartsdata,
            // links: [],
            links: this.nodesrelation,
            linestyle: {
              opacity: 0.9,
              width: 2,
              curveness: 0
            }
          }
        ]
      });
    },
    query() {
      this.connect();
      const session = this.$neo4j.getsession();
      let cypher = `match p=(n:person)-[]->(m:person) return p limit 1000`;
      session.run(cypher).then(res => {
        let records = res.records;
        let nodes = new set();
        this.nodesrelation = [];
        for (let i = 0; i < records.length; i++) {
          nodes.add(records[i]._fields[0].segments[0].start.properties.name);
          nodes.add(records[i]._fields[0].segments[0].end.properties.name);
          this.nodesrelation.push({
            source: records[i]._fields[0].segments[0].start.properties.name,
            target: records[i]._fields[0].segments[0].end.properties.name,
            linestyle: {
              curveness: 0
            },
            label: {
              show: true,
              formatter: function() {
                return records[i]._fields[0].segments[0].relationship.type
              }
            }
          });
        }
        let curveness = [0, 0.4, -0.4, 0.3, -0.3, 0.2, -0.2, 0.1, -0.1];
        for (let j = 0; j < this.nodesrelation.length; j++) {
          let repeatnumber = 0;
          for (let s = j+1; s < this.nodesrelation.length; s++) {
            let r1 = this.nodesrelation[j];
            let r2 = this.nodesrelation[s];
            if (r1.source === r2.source &&
                r1.target === r2.target) {
              repeatnumber =  repeatnumber + 1;
            }
            else if (r1.target === r2.source &&
                r1.source === r2.target) {
              repeatnumber =  repeatnumber + 1;
            }
          }
          this.nodesrelation[j].repeatnumber = repeatnumber;
        }
        for (let j = 0; j < this.nodesrelation.length; j++) {
          console.log(this.nodesrelation[j].repeatnumber);
          this.nodesrelation[j].linestyle.curveness = curveness[this.nodesrelation[j].repeatnumber];
        }


        this.echartsdata = [];
        nodes.foreach((e) => {
          let index = math.ceil(math.random()*10);
          let color = () => {
            if (index%4===0) {
              return '#228b22'
            } else if (index%4===1) {
              return '#ffff00'
            } else if (index%4===2) {
              return '#20b2aa'
            } else if (index%4===3) {
              return '#ffb6c1'
            }
            return '#87cefa';
          }
          this.echartsdata.push({
            name: e,
            x: math.random() * 100,
            y: math.random() * 100,
            itemstyle: {
              color: color()
            }
          });
        })
        this.initecharts();
      }).then(() => {
        session.close()
      });
    },
    onsubmit() {
      this.$refs.neo4jform.validate((valid) => {
        if (valid) {
          this.connect();
          const session = this.$neo4j.getsession();
          let cypher = `merge (n:person{name: '${this.forminline.startnode}'})
          merge (m:person{name: '${this.forminline.endnode}'}) merge (n)-[r:${this.forminline.relationname}]->(m)`;
          session.run(cypher).then(() => {
            this.forminline = {
              startnode: '',
              endnode: '',
              relationname: ''
            };
            this.query();
          }).then(() => {
            session.close()
          });
        }
      })
    },
    connect() {
      return this.$neo4j.connect(this.protocol, this.host, this.port, this.username, this.password);
    },
    driver() {
      // get a driver instance
      return this.$neo4j.getdriver()
    },
    testquery() {
      // get a session from the driver
      const session = this.$neo4j.getsession()

      // or you can just call this.$neo4j.run(cypher, params)
      session.run('match (n) return n')
          .then(res => {
            console.log(res)
            // console.log(res.records[0].get('count'))
          })
          .then(() => {
            session.close()
          })
    }
  }
}
</script>

<style scoped lang="less">
.neo4jmain {
  height: 100%;
  display: flex;
  flex-direction: column;
  .addcontent {
    padding: 15px;
    box-shadow: -10px 0 10px #d3d3d3, /*左边阴影*/ 10px 0 10px #d3d3d3, /*右边阴影*/
      0 -10px 10px #d3d3d3, /*顶部阴影*/ 0 10px 10px #d3d3d3;
  }

  .echarts {
    background-color: #333;
    flex: 1;
    flex-grow: 1;
  }
}
</style>

心得：
