Vue路由实现页面跳转的示例代码_Vue.js

一、需求说明

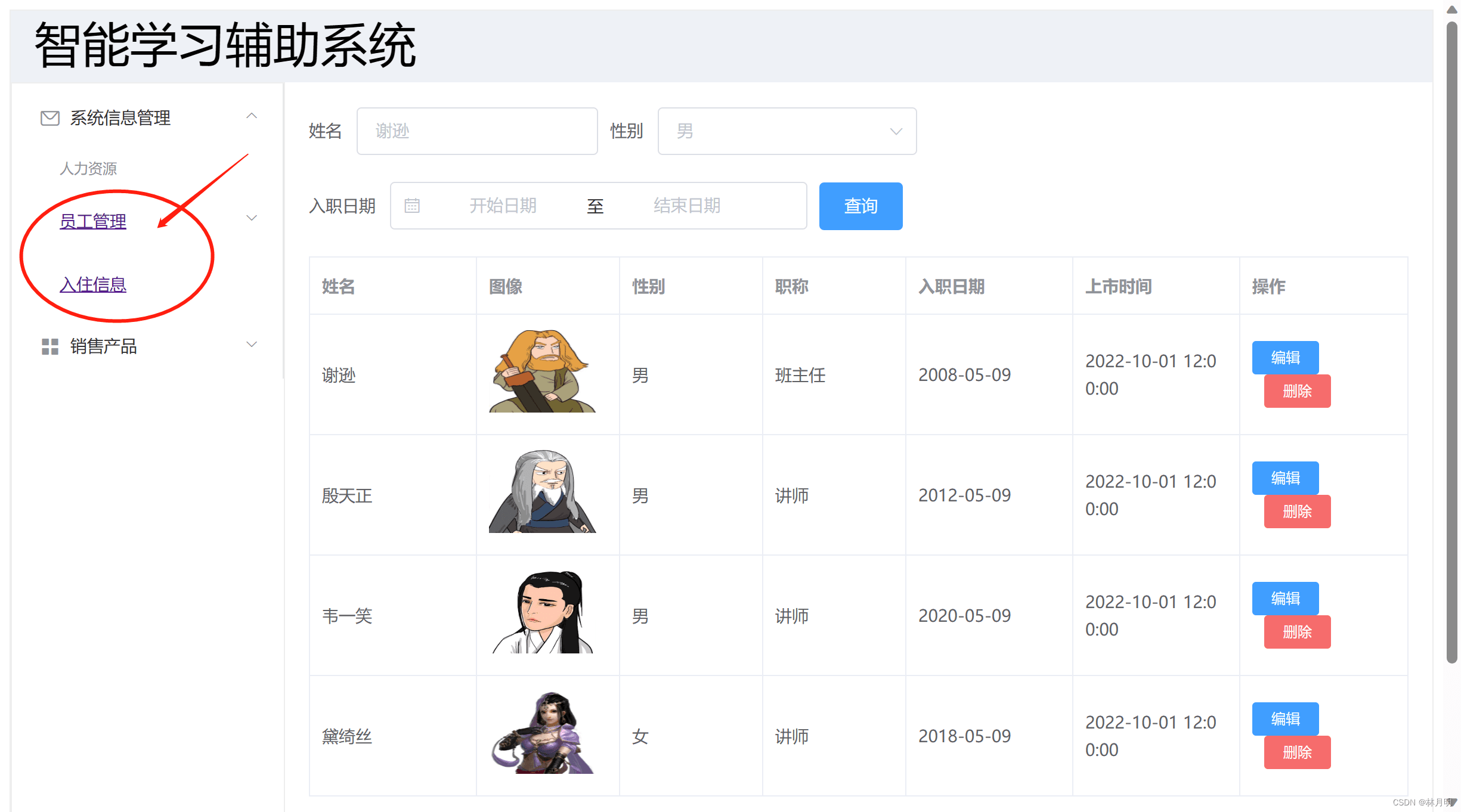

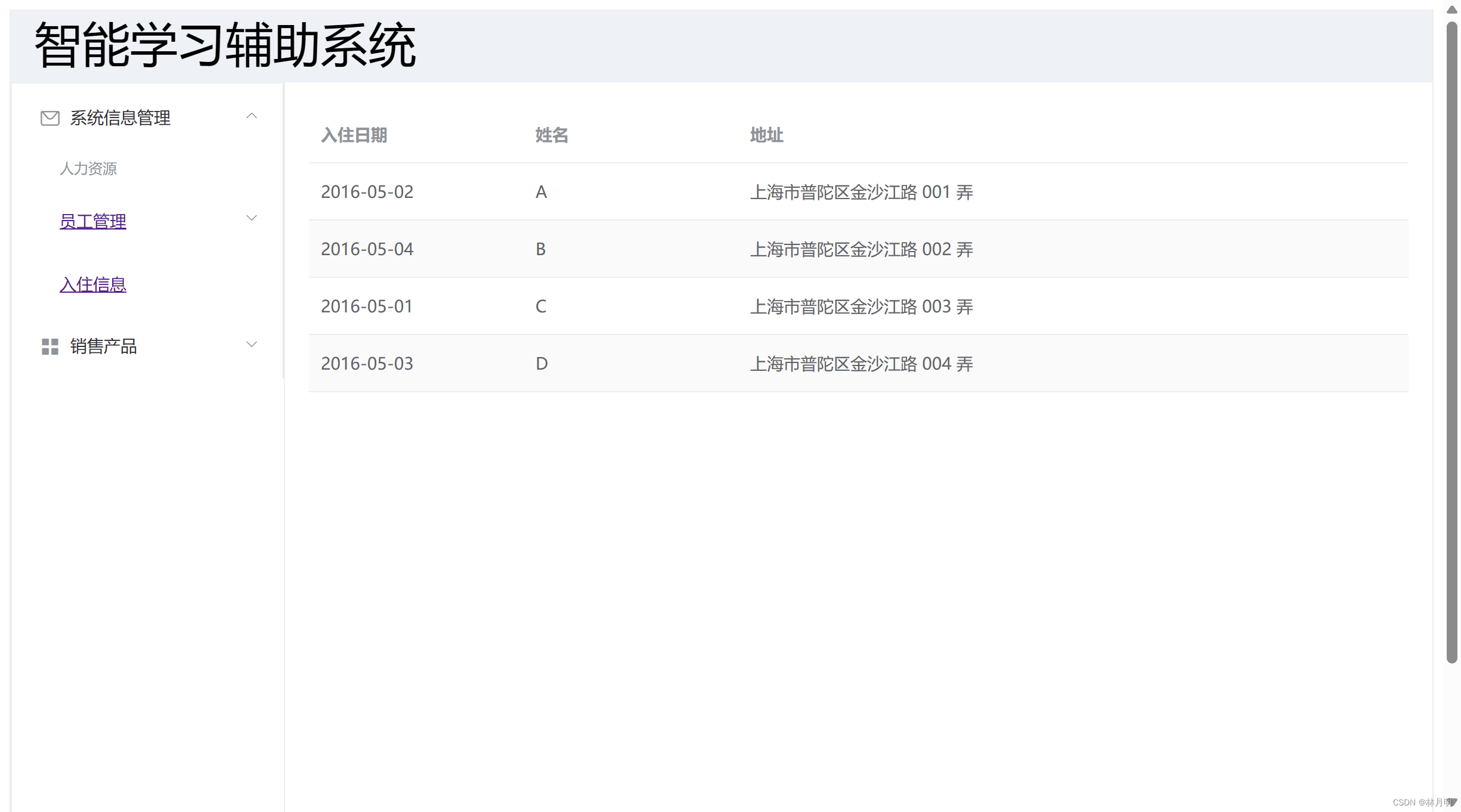

点击不同的模块实现页面跳转，如下点击“员工管理”右侧会显示员工管理页面，如下图1；点击“入住信息”右侧会显示入住信息，如下图二

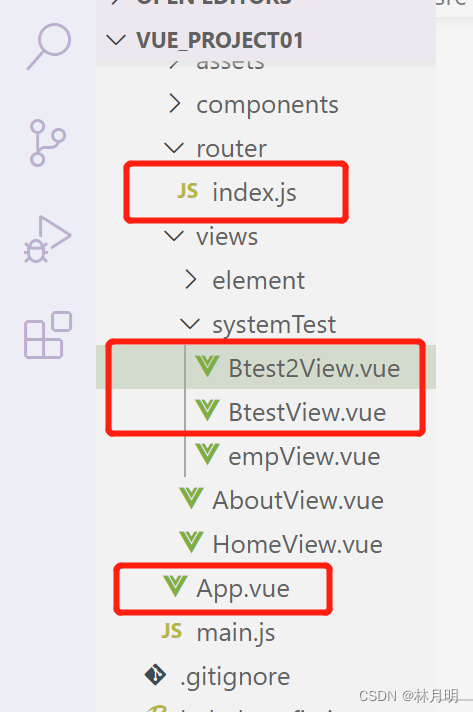

二、涉及文件

1、主要上图在这几个文件中修改相关代码

2、知识点整理

1）vue router 是 vue 的官方路由，其组成有:

vuerouter:路由器类，根据路由请求在路由视图中动态染选中的组件

<router-link>:请求链接组件，浏览器会解析成<a>

<router-view>:动态视图组件，用来染展示与路由路径对应的组件

三、代码参考

1、app.vue文件,动态展示组件

<template>
  <div >
    <!-- <h1>{{ message }}</h1> -->
    <!-- <element-view></element-view> -->
    <!--<emp-view></emp-view>-->
   <!-- <btest2-view></btest2-view>-->
   <router-view></router-view>
  </div>
</template>

<script>
//import empview from './views/systemtest/empview.vue'
//import btest2view from './views/systemtest/btest2view.vue'
//import elementview from './views/element/elementview.vue'
export default {
  //components: { empview },
  //components: { elementview },
  components: { /*btest2view*/ },
  data() {
    return {
      message: "hello world!"
    }
  },
  methods: {

  }
}
</script>

<style>

</style>

2、index.js文件，定义路由配置信息

import vue from 'vue'
import vuerouter from 'vue-router'
//import homeview from '../views/homeview.vue'

vue.use(vuerouter)

const routes = [
  {
    path: '/b1',
    name: 'btest',
    component: () => import('../views/systemtest/btestview.vue')
  },
  {
    path: '/b2',
    name: 'btest2',
    // route level code-splitting
    // this generates a separate chunk (about.[hash].js) for this route
    // which is lazy-loaded when the route is visited.
    component: () => import('../views/systemtest/btest2view.vue')
  },
  {
    path: '/',
    redirect: '/b1'
  }
]

const router = new vuerouter({
  routes
})

export default router

3、main.js，导入路由信息，指定路由

import vue from 'vue'
import app from './app.vue'
import router from './router'
//引入elementui组件
import 'element-ui/lib/theme-chalk/index.css';
import elementui from 'element-ui';
//引入axios
import axios from 'axios'
//使用axios
vue.prototype.axios=axios

vue.config.productiontip = false
vue.use(elementui);

new vue({
  router,
  render: h => h(app)
}).$mount('#app')

4、请求链接组件

1)btestview.vue文件

<template>
    <div>
        <el-container style="height: 800px; border: 1px solid #eee">
            <el-header style="font-size: 40px;background-color: rgb(238, 241, 246)">智能学习辅助系统</el-header>

            <el-container>
                <el-aside width="230px" style=" border: 1px solid #eee">
                    <!-- 目录</el-aside> -->
                    <!-- <br> -->
                    <el-menu :default-openeds="['1', '3']">
                    <el-submenu index="1">
                        <template slot="title"><i class="el-icon-message"></i>系统信息管理</template>
                        <el-menu-item-group>
                        <template slot="title">人力资源</template>
                        <el-submenu index="1-1">
                        <template slot="title">
                            <router-link to="/b1">员工管理</router-link>
                        </template>
                        <el-menu-item index="1-1-1">模块1</el-menu-item>
                        <el-menu-item index="1-1-2">模块2</el-menu-item>
                        </el-submenu>
                        <el-menu-item index="1-2">
                            <router-link to="/b2">入住信息</router-link>
                        </el-menu-item>
                        </el-menu-item-group>
                    </el-submenu>
                <el-submenu index="2">
                        <template slot="title"><i class="el-icon-menu"></i>销售产品</template>
                        <el-menu-item-group>
                        <template slot="title">产品1</template>
                        <el-menu-item index="2-1">产品2</el-menu-item>
                        </el-menu-item-group>
                    </el-submenu>
                    </el-menu>
                </el-aside>

            <el-main>
                <!--表单，可输入查询条件-->
                <el-form :inline="true" :model="searchform" class="demo-form-inline">
                <el-form-item label="姓名">
                    <el-input v-model="searchform.name" placeholder="谢逊"></el-input>
                </el-form-item>
                <el-form-item label="性别">
                    <el-select v-model="searchform.source" placeholder="男">
                    <el-option label="男" value="1"></el-option>
                    <el-option label="女" value="2"></el-option>
                    </el-select>
                </el-form-item>
                <el-form-item label="入职日期">
                    <!--日期选择-->
                    <el-date-picker
                    v-model="searchform.ttm"
                    type="daterange"
                    range-separator="至"
                    start-placeholder="开始日期"
                    end-placeholder="结束日期">
                    </el-date-picker>
                </el-form-item>
                <el-form-item>
                    <el-button type="primary" @click="onsubmit">查询</el-button>
                </el-form-item>
                </el-form>

                <!--表格-->
                <el-table :data="tabledata" border >
                <el-table-column prop="name" label="姓名" width="140">
                </el-table-column>
                <el-table-column  label="图像" width="120">
                    <template slot-scope="scope">
                        <img :src="scope.row.image" width="90px" height="70px">
                        <!-- <img :src="homeicon"> -->
                    </template>
                </el-table-column>
                <el-table-column  label="性别" width="120">
                    <template slot-scope="scope">
                        {{ scope.row.gender==1?'男':'女' }}
                    </template>
                </el-table-column>
                <el-table-column prop="job" label="职称" width="120">
                </el-table-column>
                <el-table-column prop="entrydate" label="入职日期" width="140">
                </el-table-column>
                <el-table-column prop="updatetime" label="上市时间" width="140">
                </el-table-column>
                <el-table-column label="操作">
                    <el-button type="primary" size="mini">编辑</el-button>
                    <el-button type="danger" size="mini">删除</el-button>
                </el-table-column>
                </el-table>
                <br>

      <!--页码-->
            <el-pagination background  layout="total, sizes, prev, pager, next"
                @size-change="handlesizechange"
                @current-change="handlecurrentchange"
                :total="100">
            </el-pagination>
            </el-main>
            </el-container>
        </el-container>

        <!-- <img v-bind:src="craftwool.json.image" alt="" /> -->
        <!-- <img :src=" require('@/assets/craftwool/'+img)" alt=""> -->
        <!-- <img src="../../桂花兔.jpg\" alt="\"> -->


    </div>

</template>
<script>
import axios from 'axios';
//import { scope } from 'eslint-scope';
//let imgs= require('@/public/craftwool.json')
//console.img(imgs);
//var img = require('/test01/src/assets/craftwool/桂花兔.jpg');
//console.log(img);
//import homeicon from '@/assets/craftwool/桂花兔.jpg'


export default {
    data(){
        return {
        tabledata: [],
        searchform:{
            name:"",
            gender:"",
            entrydate:[]
        },
        //img:imgs.url
      }
    },
    methods: {
        onsubmit:function(){

        },
        handlesizechange:function(val) {
            console.log(`每页 ${val} 条`);
            alert("每页记录数变化"+val)
        },
        handlecurrentchange:function(val) {
            console.log(`当前页: ${val}`);
            alert("页码变化"+val)
        }
    },
    mounted() {
        //发送异步请求，获取数据
        //axios.get("//test01/src/jsondata/craftwool.json").then((result)=>{//出错，多了“/”
        axios.get("http://yapi.smart-xwork.cn/mock/169327/emp/list").then((result)=>{//教程参考表格链接
        //axios.get("/test01/public/craftwool.json").then((result)=>{
            //成功回调
            this.tabledata=result.data.data;
            //this.image = result.data.image;
            //this.img=result.img.image;
        });

    }
}
</script>
<style scoped>

</style>

2)btest2view.vue文件

<template>
    <div>
        <el-container style="height: 800px; border: 1px solid #eee">
            <el-header style="font-size: 40px;background-color: rgb(238, 241, 246)">智能学习辅助系统</el-header>

            <el-container>
                <el-aside width="230px" style=" border: 1px solid #eee">
                    <!-- 目录</el-aside> -->
                    <!--
 -->
                    <el-menu :default-openeds="['1', '3']">
                    <el-submenu index="1">
                        <template slot="title"><i class="el-icon-message"></i>系统信息管理</template>
                        <el-menu-item-group>
                        <template slot="title">人力资源</template>
                        <el-submenu index="1-1">
                        <template slot="title">
                            <router-link to="/b1">员工管理</router-link>
                        </template>
                        <el-menu-item index="1-1-1">模块1</el-menu-item>
                        <el-menu-item index="1-1-2">模块2</el-menu-item>
                        </el-submenu>
                        <el-menu-item index="1-2">
                            <router-link to="/b2">入住信息</router-link>
                        </el-menu-item>
                        </el-menu-item-group>
                    </el-submenu>
                <el-submenu index="2">
                        <template slot="title"><i class="el-icon-menu"></i>销售产品</template>
                        <el-menu-item-group>
                        <template slot="title">产品1</template>
                        <el-menu-item index="2-1">产品2</el-menu-item>
                        </el-menu-item-group>
                    </el-submenu>
                    </el-menu>
                </el-aside>

            <el-main>
                <el-table
                :data="tabledata"
                stripe
                style="width: 100%">
                <el-table-column

                prop="date"
                label="入住日期"
                width="180">
                </el-table-column>
                <el-table-column

                prop="name"
                label="姓名"
                width="180">
                </el-table-column>
                <el-table-column

                prop="address"
                label="地址">
                </el-table-column>

            </el-table>
            </el-main>
            </el-container>
        </el-container>

        <!-- <img v-bind:src="craftwool.json.image" alt="" /> -->
        <!-- <img :src=" require('@/assets/craftwool/'+img)" alt=""> -->
        <!-- <img src="../../桂花兔.jpg\" alt="\"> -->


    </div>

</template>
<script>
//import axios from 'axios';
//import { scope } from 'eslint-scope';
//let imgs= require('@/public/craftwool.json')
//console.img(imgs);
//var img = require('/test01/src/assets/craftwool/桂花兔.jpg');
//console.log(img);
//import homeicon from '@/assets/craftwool/桂花兔.jpg'


export default {
    data(){
        return {
        //namedata: [],
        tabledata: [{
          date: '2016-05-02',
          name: 'a',
          address: '上海市普陀区金沙江路 001 弄'
        }, {
          date: '2016-05-04',
          name:  'b',
          address: '上海市普陀区金沙江路 002 弄'
        }, {
          date: '2016-05-01',
          name:  'c',
          address: '上海市普陀区金沙江路 003 弄'
        }, {
          date: '2016-05-03',
          name:  'd',
          address: '上海市普陀区金沙江路 004 弄'
        }]

    }

    },

    methods: {
        onsubmit:function(){

        },
        handlesizechange:function(val) {
            console.log(`每页 ${val} 条`);
            alert("每页记录数变化"+val)
        },
        handlecurrentchange:function(val) {
            console.log(`当前页: ${val}`);
            alert("页码变化"+val)
        }
    },
    mounted() {
        //发送异步请求，获取数据
        //axios.get("//test01/src/jsondata/craftwool.json").then((result)=>{//出错，多了“/”
       // axios.get("http://yapi.smart-xwork.cn/mock/169327/emp/list").then((result)=>{//教程参考表格链接
        //axios.get("/test01/public/craftwool.json").then((result)=>{
            //成功回调
           // this.namedata=result.data.data.name;
            //this.image = result.data.image;
            //this.img=result.img.image;
       // });

    }
}
</script>
<style scoped>

</style>
