SpringBoot集成itext实现html转PDF_Java

1.itext介绍

itext是著名的开放源码的站点sourceforge一个项目，是用于生成pdf文档的一个java类库。通过itext不仅可以生成pdf或rtf的文档，而且可以将xml、html文件转化为pdf文件

itext 的特点

以下是 itext 库的显着特点 −

interactive − itext 为你提供类（api）来生成交互式 pdf 文档。使用这些，你可以创建地图和书籍。
adding bookmarks, page numbers, etc − 使用 itext，你可以添加书签、页码和水印。
split & merge − 使用 itext，你可以将现有的 pdf 拆分为多个 pdf，还可以向其中添加/连接其他页面。
fill forms − 使用 itext，你可以在 pdf 文档中填写交互式表单。
save as image − 使用 itext，你可以将 pdf 保存为图像文件，例如 png 或 jpeg。
canvas − itext 库为您提供了一个 canvas 类，你可以使用它在 pdf 文档上绘制各种几何形状，如圆形、线条等。
create pdfs − 使用 itext，你可以从 java 程序创建新的 pdf 文件。你也可以包含图像和字体。

2.代码工程

实验目标：将thymeleaf 的views生成成pdf

pom.xml

<?xml version="1.0" encoding="utf-8"?>
<project xmlns="http://maven.apache.org/pom/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
         xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactid>springboot-demo</artifactid>
        <groupid>com.et</groupid>
        <version>1.0-snapshot</version>
    </parent>
    <modelversion>4.0.0</modelversion>

    <artifactid>itextpdf</artifactid>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>
    <dependencies>

        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-web</artifactid>
        </dependency>

        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-autoconfigure</artifactid>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-test</artifactid>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-thymeleaf</artifactid>
        </dependency>
        <dependency>
            <groupid>com.itextpdf</groupid>
            <artifactid>html2pdf</artifactid>
            <version>3.0.1</version>
        </dependency>
        <dependency>
            <groupid>com.itextpdf</groupid>
            <artifactid>kernel</artifactid>
            <version>7.1.12</version>
        </dependency>
        <dependency>
            <groupid>org.projectlombok</groupid>
            <artifactid>lombok</artifactid>
        </dependency>
    </dependencies>
</project>

application.yaml

server:
  port: 8088
spring:
  thymeleaf:
    cache: false

demoapplication

package com.et.itextpdf;

import org.springframework.boot.springapplication;
import org.springframework.boot.autoconfigure.springbootapplication;
import org.springframework.boot.web.servlet.servletcomponentscan;

@servletcomponentscan
@springbootapplication
public class demoapplication {

   public static void main(string[] args) {
      springapplication.run(demoapplication.class, args);
   }
}

controller

converterproperties.setbaseuri 很重要。否则，像 /main.css 这样的静态资源将无法找到

package com.et.itextpdf.controller;

import com.et.itextpdf.pojo.order;
import com.et.itextpdf.util.orderhelper;
import com.itextpdf.html2pdf.converterproperties;
import com.itextpdf.html2pdf.htmlconverter;

import org.springframework.beans.factory.annotation.autowired;
import org.springframework.http.httpheaders;
import org.springframework.http.mediatype;
import org.springframework.http.responseentity;
import org.springframework.stereotype.controller;
import org.springframework.ui.model;
import org.springframework.web.bind.annotation.requestmapping;
import org.thymeleaf.templateengine;
import org.thymeleaf.context.webcontext;

import javax.servlet.servletcontext;
import javax.servlet.http.httpservletrequest;
import javax.servlet.http.httpservletresponse;
import java.io.bytearrayoutputstream;
import java.io.ioexception;

@controller
@requestmapping("/orders")
public class pdfcontroller {


    @autowired
    servletcontext servletcontext;

    private final templateengine templateengine;

    public pdfcontroller(templateengine templateengine) {
        this.templateengine = templateengine;
    }

    @requestmapping(path = "/")
    public string getorderpage(model model) {
        order order = orderhelper.getorder();
        model.addattribute("orderentry", order);
        return "order";
    }

    @requestmapping(path = "/pdf")
    public responseentity<?> getpdf(httpservletrequest request, httpservletresponse response) throws ioexception {

        /* do business logic*/

        order order = orderhelper.getorder();

        /* create html using thymeleaf template engine */

        webcontext context = new webcontext(request, response, servletcontext);
        context.setvariable("orderentry", order);
        string orderhtml = templateengine.process("order", context);

        /* setup source and target i/o streams */

        bytearrayoutputstream target = new bytearrayoutputstream();
        converterproperties converterproperties = new converterproperties();
        converterproperties.setbaseuri("http://localhost:8088");
        /* call convert method */
        htmlconverter.converttopdf(orderhtml, target, converterproperties);

        /* extract output as bytes */
        byte[] bytes = target.tobytearray();


        /* send the response as downloadable pdf */

        return responseentity.ok()
                .header(httpheaders.content_disposition, "attachment; filename=order.pdf")
                .contenttype(mediatype.application_pdf)
                .body(bytes);

    }

}

view

spring mvc 带有模板引擎，可以提供动态的 html 内容。我们可以通过以下方法轻松将这些回复转换为 pdf 格式。在本例中，我导入了 spring-boot-starter-web 和 spring-boot-starter-thymeleaf 来为我的 spring boot 项目提供 mvc 和 thymeleaf 支持。您可以使用自己选择的模板引擎。看看下面这个thymeleaf模板内容。主要展示订单详细信息。另外，通过 orderhelper 的辅助方法来生成一些虚拟订单内容。

<!doctype html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="utf-8">
    <meta content="width=device-width, user-scalable=no, initial-scale=1.0, maximum-scale=1.0, minimum-scale=1.0"
          name="viewport">
    <meta content="ie=edge" http-equiv="x-ua-compatible">
    <title>spring boot - thymeleaf</title>
    <link th:href="@{/main.css}" rel="stylesheet"/>
</head>
<body class="flex items-center justify-center h-screen">
<div class="rounded-lg border shadow-lg p-10 w-3/5">
    <div class="flex flex-row justify-between pb-4">
        <div>
            <h2 class="text-xl font-bold">order #<span class="text-green-600" th:text="${orderentry.orderid}"></span>
            </h2>
        </div>
        <div>
            <div class="text-xl font-bold" th:text="${orderentry.date}"></div>
        </div>
    </div>
    <div class="flex flex-col pb-8">
        <div class="pb-2">
            <h2 class="text-xl font-bold">delivery address</h2>
        </div>
        <div th:text="${orderentry.account.address.street}"></div>
        <div th:text="${orderentry.account.address.city}"></div>
        <div th:text="${orderentry.account.address.state}"></div>
        <div th:text="${orderentry.account.address.zipcode}"></div>

    </div>
    <table class="table-fixed w-full text-right border rounded">
        <thead class="bg-gray-100">
        <tr>
            <th class="text-left pl-4">product</th>
            <th>qty</th>
            <th>price</th>
            <th class="pr-4">total</th>
        </tr>
        </thead>
        <tbody>
        <tr th:each="item : ${orderentry.items}">
            <td class="pl-4 text-left" th:text="${item.name}"></td>
            <td th:text="${item.quantity}"></td>
            <td th:text="${item.price}"></td>
            <td class="pr-4" th:text="${item.price * item.quantity}"></td>
        </tr>
        </tbody>
    </table>
    <div class="flex flex-row-reverse p-5">
        <h2 class="font-medium  bg-gray-200 p-2 rounded">
            grand total: <span class="text-green-600" th:text="${orderentry.payment.amount}"></span>
        </h2>
    </div>
    <h2 class="text-xl font-bold">payment details</h2>
    <table class="table-fixed text-left w-2/6 border">
        <tr>
            <th class="text-green-600">card number</th>
            <td th:text="${orderentry.payment.cardnumber}"></td>
        </tr>
        <tr>
            <th class="text-green-600">cvv</th>
            <td th:text="${orderentry.payment.cvv}"></td>
        </tr>
        <tr>
            <th class="text-green-600">expires (mm/yyyy)</th>
            <td th:text="${orderentry.payment.month +'/'+ orderentry.payment.year}"></td>
        </tr>
    </table>
</div>
</body>
</html>

pojo

package com.et.itextpdf.pojo;

import lombok.data;

@data
public class account {
    private string name;
    private string phonenumber;
    private string email;
    private address address;


}

package com.et.itextpdf.pojo;

import lombok.data;

@data
public class address {
    private string street;
    private string city;
    private string state;
    private string zipcode;
}

package com.et.itextpdf.pojo;

import lombok.data;

import java.math.bigdecimal;

@data
public class item {
    private string sku;
    private string name;
    private integer quantity;
    private bigdecimal price;
}

package com.et.itextpdf.pojo;

import lombok.data;

import java.util.list;

@data
public class order {
    private integer orderid;
    private string date;
    private account account;
    private payment payment;
    private list<item> items;
}

package com.et.itextpdf.pojo;

import lombok.data;

import java.math.bigdecimal;

@data
public class payment {
    private bigdecimal amount;
    private string cardnumber;
    private string cvv;
    private string month;
    private string year;
}

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

github.com/harries/springboot-demo

3.测试

启动spring boot应用

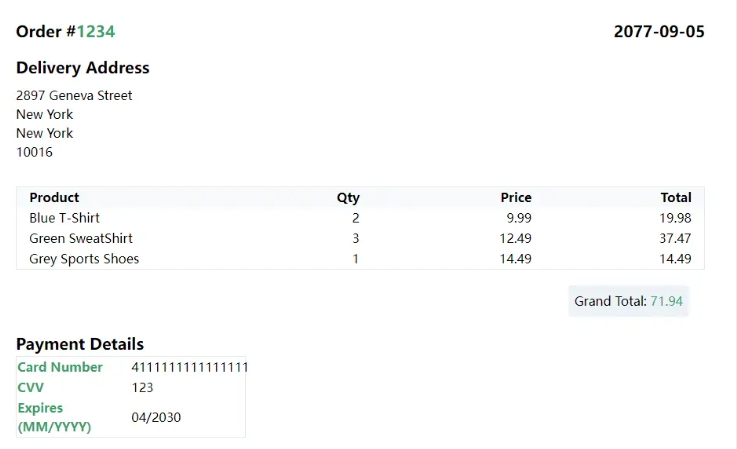

访问http://127.0.0.1:8088/orders/

访问http://127.0.0.1:8088/orders/pdf,生成pdf并下载

以上就是springboot集成itext实现html转pdf的详细内容，更多关于springboot itext实现html转pdf的资料请关注代码网其它相关文章！
