Linux I2C驱动注册详解_Linux

注册接口

#define i2c_add_driver(driver) \
       i2c_register_driver(this_module, driver)

int i2c_register_driver(struct module *owner, struct i2c_driver *driver)

注册的结构体是struct i2c_driver，主要填充name、probe和id_table字段，其中name是驱动名称，到时会在/sys/bus/i2c/drivers显示这个驱动名称，probe会在i2c设备匹配后调用，不是发现i2c设备，即便实际上这个设备不在，但是代码里注册了这个设备，或者设备树里配置了这个设备，就会被调用。

driver.of_match_table和 id_table两个成员列出的是驱动程序所能支持的所有设备，其中driver.of_match_table里的设备，是跟设备树匹配的，id_table是跟静态注册是调用的struct i2c_board_info里的name做比较的。

示例代码

驱动注册：

static int __devinit zsl_i2c_drv_probe(struct i2c_client *client, const struct i2c_device_id *id)
{
	struct property *pp = null;
	uint8_t buf[4];
	struct i2c_msg msgs[2] = {{0}, {0}};
	int len = sizeof(msgs) / sizeof(msgs[0]);

	printk(kern_info "%s: %x\n",__func__,client->addr);

	pp = of_find_property(client->dev.of_node, "testdata", null);
	if (pp)
		printk(kern_info "%s: %d:%s \n",__func__,pp->length,(char *)pp->value);

	dump_stack();

	if (client->adapter)
	{
		buf[0] = 0;
		buf[1] = 4;
		buf[2] = 0;
		buf[3] = 0;
		memset(msgs,0,sizeof(struct i2c_msg)*2);
		msgs[0].addr  = client->addr;
		msgs[0].flags = 0x0;
		msgs[0].len   = 2;
		msgs[0].buf   = buf;

		msgs[1].addr  = client->addr;
		msgs[1].flags = i2c_m_rd;
		msgs[1].len   = 4;
		msgs[1].buf   = buf;

		if (i2c_transfer(client->adapter, msgs,	len) == len)
			printk(kern_info "zsl i2c_transfer r: %d:%x %x %x %x\n",len,buf[0],buf[1],buf[2],buf[3]);

		buf[0] = 0;
		buf[1] = 4;
		buf[2] = 7;
		buf[3] = 8;

		memset(msgs,0,sizeof(struct i2c_msg)*2);
		msgs[0].addr = client->addr;
		msgs[0].flags = 0;
		msgs[0].len = 4;
		msgs[0].buf = buf;

		if (i2c_transfer(client->adapter, msgs,	1) == 1)
			printk(kern_info "zsl i2c_transfer w: %d:%x %x %x %x\n",1,buf[0],buf[1],buf[2],buf[3]);

		buf[0] = 0;
		buf[1] = 4;
		buf[2] = 0;
		buf[3] = 0;
		memset(msgs,0,sizeof(struct i2c_msg)*2);
		msgs[0].addr  = client->addr;
		msgs[0].flags = 0x0;
		msgs[0].len   = 2;
		msgs[0].buf   = buf;

		msgs[1].addr  = client->addr;
		msgs[1].flags = i2c_m_rd;
		msgs[1].len   = 4;
		msgs[1].buf   = buf;
		msleep(100);
		len = i2c_transfer(client->adapter, msgs, len);
		if (2 == len)
			printk(kern_info "zsl i2c_transfer r: %d:%x %x %x %x\n",len,buf[0],buf[1],buf[2],buf[3]);
	}

    return 0;
}

static void __devexit zsl_i2c_drv_remove(struct i2c_client *client)
{
	printk(kern_info "%s: \n",__func__);
}

static const struct i2c_device_id zsl_dev_id_table[] = {
    { "zsl_i2c_dev", 0 },
    {}
};//这里的名字很重要，驱动第一种匹配设备的方式要用到

static const struct of_device_id zsl_of_match_ids[] = {
	{ .compatible = "i2c_name,zsl",		.data = null },
	{ /* end of list */ } //最后一项为空，用于判断数组遍历完成
};

static struct i2c_driver zsl_i2c_driver = {
    .driver        = {
        .name        = "zsl_i2c",
        .owner        = this_module,
        .of_match_table = zsl_of_match_ids,//设备树匹配用
    },
    .probe		= zsl_i2c_drv_probe,
    .remove		= __devexit_p(zsl_i2c_drv_remove),
    .id_table	= zsl_dev_id_table,  //设备树不需要，i2c_register_board_info匹配使用
};

void zsl_i2c_drv_init(void)
{
    i2c_add_driver(&zsl_i2c_driver);
}

静态设备注册

static struct i2c_board_info zsl_i2c_dev = {
    i2c_board_info("zsl_i2c_dev", 0x50),//这个名字很重要，用于匹配 i2c 驱动
};

static struct i2c_client *zsl_i2c_client;

void zsl_i2c_dev_init(void)
{
       i2c_register_board_info(4, &zsl_i2c_dev, 1);
}

设备树注册

&i2c4 {
       zsli2c0: zsli2c@50 {
              compatible = "i2c_name,zsl";
              status = "okay";
              testdata = "asdfg";
              reg = <0x50>;
       };
};

运行后probe就会被调用，无论配的是什么地址，0x50设备存在，0x60设备不存在，probe都能被调用，但是0x60的读不到数据。

调用关系

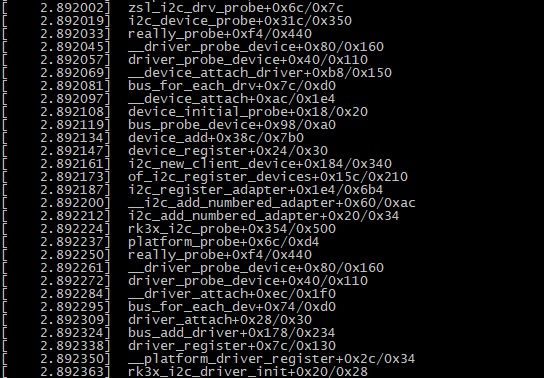

probe里的堆栈打印如下：

从芯片厂家的i2c驱动初始化接口rk3x_i2c_driver_init开始，使用platform_driver_register接口注册rk3x_i2c_driver，当设备树里有对应的i2c总线时，就会注册i2c设备，匹配后调用这里的probe接口rk3x_i2c_probe。

rk3x_i2c_probe里会初始化 rockchip i2c控制器，调用 i2c_register_adapter将 i2c 适配器注册到内核，进而调用of_i2c_register_devices 扫描设备树，调用i2c_new_client_device创建配置的i2c设备。

i2c_new_client_device里会创建struct i2c_client并调用device_register注册到内核，触发 device_add，内核会尝试匹配驱动（通过 compatible 字符串或者name）。如果匹配成功，调用 i2c_device_probe到probe接口的zsl_i2c_drv_probe。
