Apache HTTP Server 从安装到配置过程详解

# 1. 安装apache
sudo dnf install httpd -y
# 2. 放行防火墙（允许http/https流量）
sudo firewall-cmd --permanent --add-service=http
sudo firewall-cmd --permanent --add-service=https
sudo firewall-cmd --reload
# 3. 启动并设置开机自启
sudo systemctl enable --now httpd
# 4.生成默认测试页文件
echo 172.25.254.100 > /var/www/html/index.html
# 5.测试：
curl 172.25.254.100
172.25.254.100

#修改配置文件
[root@apache ~]# vim /etc/httpd/conf/httpd.conf
47 listen 8080
#刷新服务
[root@apache ~]# systemctl reload httpd
#设定火墙通过
[root@apache ~]# firewall-cmd --permanent --add-port=8080/tcp
success
[root@apache ~]# firewall-cmd --reload
#检测
[root@apache ~]# netstat -antlupe | grep httpd
tcp6       0      0 :::8080                 :::*                   listen      0
         78081      32315/httpd
#访问：
[root@apache ~]# curl 172.25.254.100:8080
172.25.254.100

修改selinux  ——开着的话会有所影响
grubby --update-kernel all --args selinux=0
reboot ——重启
getenforce
disabled
#建立默认发布目录
[root@apache ~]# mkdir /web/html -p
#修改配置文件
[root@apache ~]# vim /etc/httpd/conf/httpd.conf
125 documentroot "/web/html" #指定默认发布目录位置
126 <directory "/web/html">
127         require all granted #对于目录访问进行授权
128 </directory>
[root@apache ~]# systemctl restart httpd
[root@apache ~]# echo "/web/html's page" > /web/html/index.html
[root@apache ~]# curl 172.25.254.100:8080
/web/html's page

#建立新的默认发布文件
[root@apache ~]# echo "/web/html/lee's page" > /web/html/lee.html
#当没有对配置进行修改时新默认发布文件不会被默认访问
[root@apache ~]# curl 172.25.254.100:8080
/web/html's page
[root@apache ~]# curl 172.25.254.100:8080/lee.html
/web/html/lee's page
#修改配置文件
[root@apache ~]# vim /etc/httpd/conf/httpd.conf
172 <ifmodule dir_module>
173     directoryindex lee.html index.html
174 </ifmodule>
#重启服务
[root@apache ~]# systemctl reload httpd
#测试：
[root@apache ~]# curl 172.25.254.100:8080
/web/html/lee's page

#安装mod_ssl
[root@apache ~]# dnf install mod_ssl -y
#建立证书和key文件目录
[root@apache ~]# mkdir /etc/httpd/certs
#制作证书
[root@apache ~]# openssl req \
-newkey rsa:2048 \
-nodes \
-sha256 \
-keyout /etc/httpd/certs/timinglee.org.key \
-x509 \
-days 365 \
-out /etc/httpd/certs/timinglee.org.crt
country name (2 letter code) [xx]:cn
state or province name (full name) []:shannxi
locality name (eg, city) [default city]:xi'an
organization name (eg, company) [default company ltd]:timinglee
organizational unit name (eg, section) []:webserver
common name (eg, your name or your server's hostname) []:www.timinglee.org
email address []:timinglee@timinglee.org
#命令执行完成，证书出现
[root@apache ~]# ls /etc/httpd/certs/
timinglee.org.crt timinglee.org.key
#编辑主配置文件
[root@apache ~]# vim /etc/httpd/conf.d/ssl.conf
 86 sslcertificatefile /etc/httpd/certs/timinglee.org.crt
 95 sslcertificatekeyfile /etc/httpd/certs/timinglee.org.key
#重启服务
root@apache ~]# systemctl reload httpd
[root@apache ~]# netstat -antlupe | grep httpd
tcp6       0     0 :::443                 :::*                   listen     0
        85111     33518/httpd
tcp6       0     0 :::80                   :::*                   listen     0
        80172     33518/httpd

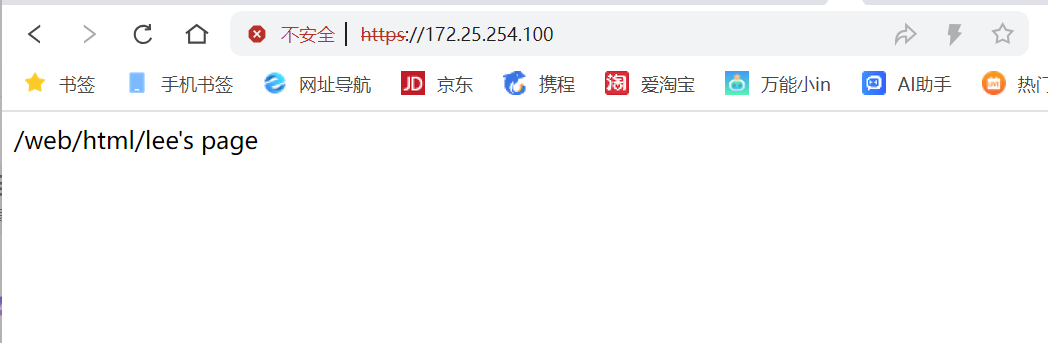

#在浏览器中访问
https://服务器ip

修改selinux  ——有所影响
grubby --update-kernel all --args selinux=1
reboot ——重启
getenforce
enforcing
#为每个发布站点建立默认发布目录
[root@apache ~]# mkdir -p /var/www/virtual/timinglee.org/news
[root@apache ~]# mkdir -p /var/www/virtual/timinglee.org/bbs
#为每个站点建立默认发布文件
[root@apache ~]# echo new.timinglee.org > /var/www/virtual/timiniglee.org/news/index.html
[root@apache ~]# echo bbs.timinglee.org > /var/www/virtual/timiniglee.org/bbs/index.html
#修改配置文件
[root@apache ~]# vim /etc/httpd/conf.d/vhosts.conf
<virtualhost _default_:80>
 documentroot /var/www/html
</virtualhost>
<virtualhost *:80>
 servername bbs.timinglee.org
 documentroot /var/www/virtual/timiniglee.org/bbs/
</virtualhost>
<virtualhost *:80>
 servername news.timinglee.org
 documentroot /var/www/virtual/timiniglee.org/news/
</virtualhost>
#刷新服务
[root@apache ~]# systemctl reload httpd
#测试：
1.在浏览器所在主机中手动编写本地解析文件
[root@apache ~]# vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
#加入虚拟主机解析域名
172.25.254.100 mariadb.timinglee.org www.timinglee.org news.timinglee.org
bbs.timinglee.org
2.测试效果
[root@apache ~]# curl www.timinglee.org
172.25.254.100
[root@apache ~]# curl bbs.timinglee.org
bbs.timinglee.org
[root@apache ~]# curl news.timinglee.org
new.timinglee.org
