我要评论1. 简介
这是一个基于 python编写的tkinter 和 pyserial 的串口调试工具。通过图形化界面（gui），用户可以方便地进行串口通信的设置、数据发送与接收、文件传输等操作。程序提供了对串口参数的全面控制（如波特率、数据位、校验位等），并且支持对发送和接收数据的格式进行多种定制，如 hex 格式显示、校验码（crc-16、xor）等。除此之外，工具还支持自动发送功能，用户可以根据需求设置数据发送的时间间隔，极大地提高了工作效率。
功能
1.串口设置：
用户可以选择串口号、波特率、数据位、校验位、停止位和流控方式。
支持串口端口列表的动态更新。
2.数据发送：
可以手动输入文本数据，或者发送文件。
支持以 hex 编码发送数据。
可以在数据末尾添加 crc-16 或 xor 校验码。
3.数据接收：
支持显示接收到的数据（可以选择以文本或 hex 格式显示）。
支持接收时显示时间戳。
4.文件传输：
支持发送文件内容，并将其以二进制形式发送。
支持将接收到的数据保存到本地文件。
5.自动发送：
支持定时自动发送数据，发送间隔时间可以设置。
可根据设置的间隔自动循环发送数据。
6.颜色定制：
用户可以设置接收和发送数据的颜色。
7.扩展功能：
提供了“预置命令”和“自动答复”两个扩展功能选项卡，供高级用户自定义命令或响应。
8.状态栏：
显示当前串口连接状态。
显示接收和发送的数据计数。
9.串口控制：
可以打开或关闭串口连接。
在串口连接成功后，自动开始接收数据。

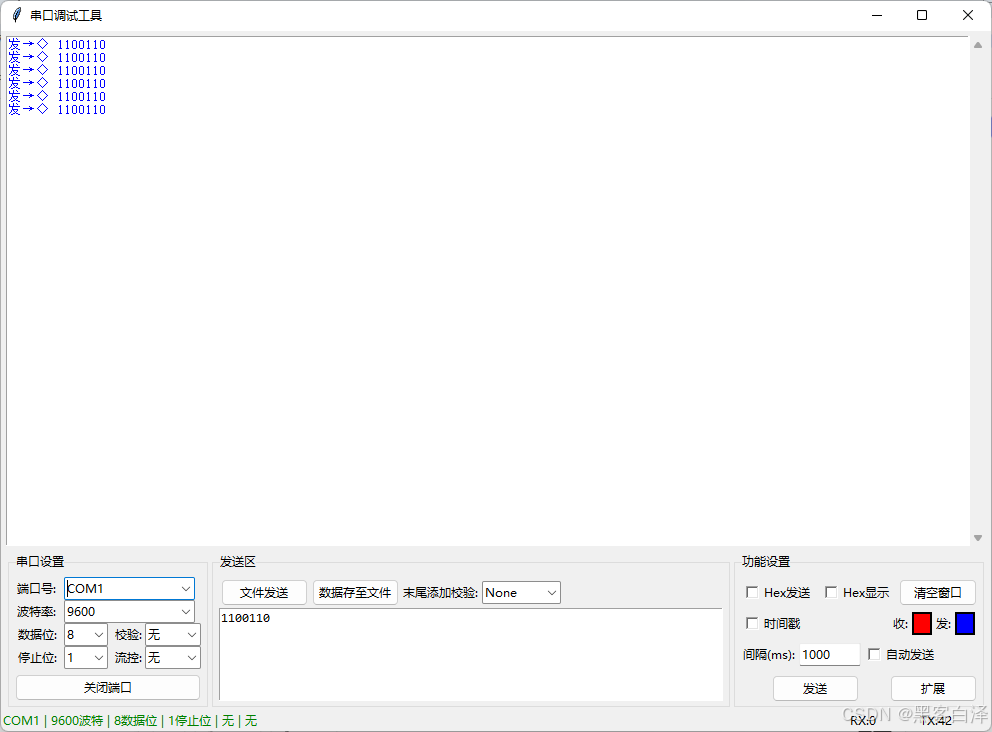

2. 运行效果
3.相关源码
import serial
import serial.tools.list_ports
import tkinter as tk
from tkinter import ttk, messagebox, colorchooser, filedialog
from threading import thread, event
import time
import binascii
from datetime import datetime
class serialdebugger:
def __init__(self, master):
self.master = master
self.serial_port = none
self.receive_flag = event()
self.auto_send_flag = false
self.rx_counter = 0
self.tx_counter = 0
self.recv_color = '#ff0000' # 默认接收颜色红色
self.send_color = '#0000ff' # 默认发送颜色蓝色
self.extension_visible = false # 扩展窗口可见状态
# 获取默认checkbutton背景颜色
temp = tk.checkbutton(master)
self.default_bg = temp.cget('bg')
temp.destroy()
# 初始化ttk样式
self.style = ttk.style()
self.style.configure('yellow.tcombobox', fieldbackground='yellow')
# 初始化界面
self.setup_ui()
self.setup_extension_window()
self.update_ports()
# 绑定事件
self.port_combo.bind("<<comboboxselected>>", self.on_port_change)
def setup_ui(self):
"""初始化主界面布局"""
self.master.geometry("990x700")
self.master.title("串口调试工具")
self.master.minsize(650, 450)
# 配置主窗口网格布局
self.master.grid_columnconfigure(0, weight=1)
self.master.grid_columnconfigure(1, weight=0, minsize=0) # 扩展窗口列
self.master.grid_rowconfigure(0, weight=1) # 数据显示区
self.master.grid_rowconfigure(1, weight=0) # 控制区
self.master.grid_rowconfigure(2, weight=0) # 状态栏
# ========== 数据显示区 ==========
display_frame = ttk.frame(self.master)
display_frame.grid(row=0, column=0, sticky="nsew", padx=5, pady=5)
self.text_display = tk.text(display_frame, state=tk.disabled, wrap=tk.word)
scroll_display = ttk.scrollbar(display_frame, orient="vertical", command=self.text_display.yview)
self.text_display.configure(yscrollcommand=scroll_display.set)
self.text_display.grid(row=0, column=0, sticky="nsew")
scroll_display.grid(row=0, column=1, sticky="ns")
display_frame.grid_columnconfigure(0, weight=1)
display_frame.grid_rowconfigure(0, weight=1)
# ========== 中间控制区 ==========
control_frame = ttk.frame(self.master)
control_frame.grid(row=1, column=0, columnspan=2, sticky="nsew", padx=5, pady=2)
control_frame.grid_columnconfigure(0, minsize=200, weight=0)
control_frame.grid_columnconfigure(1, weight=1)
control_frame.grid_columnconfigure(2, minsize=250, weight=0)
control_frame.grid_rowconfigure(0, minsize=155, weight=0)
# 串口设置区
self.setup_serial_controls(control_frame)
# 发送输入区
self.setup_send_controls(control_frame)
# 功能区
self.setup_function_controls(control_frame)
# ========== 状态栏 ==========
self.setup_status_bar()
def setup_extension_window(self):
"""初始化扩展窗口"""
self.extension_frame = ttk.frame(self.master, width=425)
self.extension_frame.grid(row=0, column=1, sticky="nsew")
self.extension_frame.grid_remove()
# 创建notebook
self.notebook = ttk.notebook(self.extension_frame)
self.notebook.pack(expand=true, fill='both')
# 预置命令标签页
self.preset_frame = ttk.frame(self.notebook)
self.notebook.add(self.preset_frame, text="预置命令")
# 自动答复标签页
self.auto_reply_frame = ttk.frame(self.notebook)
self.notebook.add(self.auto_reply_frame, text="自动答复")
# 设置固定宽度
self.extension_frame.grid_propagate(false)
self.extension_frame.config(width=425)
def toggle_extension(self):
"""切换扩展窗口显示状态"""
self.extension_visible = not self.extension_visible
if self.extension_visible:
self.extension_frame.grid()
self.master.grid_columnconfigure(1, minsize=425, weight=0)
else:
self.extension_frame.grid_remove()
self.master.grid_columnconfigure(1, weight=0, minsize=0)
def setup_status_bar(self):
"""初始化底部状态栏"""
status_bar = ttk.frame(self.master, height=22)
status_bar.grid(row=2, column=0, columnspan=2, sticky="sew")
self.status_conn = ttk.label(status_bar, text="未连接", anchor=tk.w)
self.status_rx = ttk.label(status_bar, text="rx:0", width=8)
self.status_tx = ttk.label(status_bar, text="tx:0", width=8)
self.status_author = ttk.label(status_bar, text=" ", anchor=tk.e)
self.status_conn.pack(side=tk.left, fill=tk.x, expand=true)
self.status_rx.pack(side=tk.left, padx=5)
self.status_tx.pack(side=tk.left, padx=5)
self.status_author.pack(side=tk.right)
def setup_serial_controls(self, parent):
"""串口设置区"""
frame = ttk.labelframe(parent, text="串口设置", padding=5)#padding 与顶部的距离
frame.grid(row=0, column=0, sticky="nsew", padx=2)
frame.grid_propagate(false)
frame.config(width=200, height=155)
frame.grid_columnconfigure(1, weight=1)
row = 0
ttk.label(frame, text="端口号:").grid(row=row, column=0, sticky=tk.w)
self.port_combo = ttk.combobox(frame)
self.port_combo.grid(row=row, column=1, sticky=tk.ew, padx=6)
row += 1
ttk.label(frame, text="波特率:").grid(row=row, column=0, sticky=tk.w)
self.baud_combo = ttk.combobox(frame, values=[
'300', '600', '1200', '2400', '4800', '9600',
'14400', '19200', '38400', '57600', '115200'
])
self.baud_combo.set('9600')
self.baud_combo.grid(row=row, column=1, sticky=tk.ew, padx=6)
row += 1
# 数据位和校验行
param_row = ttk.frame(frame)
param_row.grid(row=row, column=0, columnspan=2, sticky=tk.ew)
ttk.label(param_row, text="数据位:").grid(row=0, column=0, padx=1)
self.data_bits = ttk.combobox(param_row, values=['5', '6', '7', '8'], width=3)
self.data_bits.set('8')
self.data_bits.grid(row=0, column=1, padx=4)
ttk.label(param_row, text="校验:").grid(row=0, column=2, padx=1)
self.parity = ttk.combobox(param_row, values=['无', '奇校验', '偶校验'], width=3)
self.parity.set('无')
self.parity.grid(row=0, column=3, sticky=tk.ew)
param_row.grid_columnconfigure(3, weight=1)
row += 1
# 停止位和流控行
param_row = ttk.frame(frame)
param_row.grid(row=row, column=0, columnspan=2, sticky=tk.ew)
ttk.label(param_row, text="停止位:").grid(row=0, column=0, padx=1)
self.stop_bits = ttk.combobox(param_row, values=['1', '1.5', '2'], width=3)
self.stop_bits.set('1')
self.stop_bits.grid(row=0, column=1, padx=4)
ttk.label(param_row, text="流控:").grid(row=0, column=2, padx=1)
self.flow_control = ttk.combobox(param_row, values=['无', 'rts/cts', 'xon/xoff'], width=3)
self.flow_control.set('无')
self.flow_control.grid(row=0, column=3, sticky=tk.ew)
param_row.grid_columnconfigure(3, weight=1)
row += 1
self.open_btn = ttk.button(frame, text="打开端口", command=self.toggle_serial)
self.open_btn.grid(row=row, column=0, columnspan=2, pady=5, sticky=tk.ew)
def setup_send_controls(self, parent):
"""发送输入区"""
frame = ttk.labelframe(parent, text="发送区", padding=5)
frame.grid(row=0, column=1, sticky="nsew", padx=2)
frame.grid_propagate(false)
frame.config(height=155)
frame.grid_rowconfigure(0, weight=0)
frame.grid_rowconfigure(1, weight=1)
frame.grid_columnconfigure(0, weight=1)
top_row = ttk.frame(frame)
top_row.grid(row=0, column=0, sticky="ew", pady=2)
ttk.button(top_row, text="文件发送", command=self.send_file).pack(side=tk.left, padx=2)
ttk.button(top_row, text="数据存至文件", command=self.save_data).pack(side=tk.left, padx=2)
ttk.label(top_row, text="末尾添加校验:").pack(side=tk.left)
self.checksum_combo = ttk.combobox(top_row, values=['none', 'crc-16', 'xor'], width=8)
self.checksum_combo.set('none')
self.checksum_combo.pack(side=tk.left, padx=2)
self.checksum_combo.bind("<<comboboxselected>>", self.on_checksum_selected)
self.on_checksum_selected(none)
text_frame = ttk.frame(frame)
text_frame.grid(row=1, column=0, sticky="nsew")
self.send_text = tk.text(text_frame, wrap=tk.word, font=('consolas', 10))
scroll_send = ttk.scrollbar(text_frame, orient="vertical", command=self.send_text.yview)
self.send_text.configure(yscrollcommand=scroll_send.set)
self.send_text.pack(side=tk.left, fill=tk.both, expand=true)
scroll_send.pack(side=tk.right, fill=tk.y)
def setup_function_controls(self, parent):
"""功能区"""
frame = ttk.labelframe(parent, text="功能设置", padding=5)
frame.grid(row=0, column=2, sticky="nsew", padx=2)
frame.grid_propagate(false)
frame.config(width=250, height=155)
frame.grid_columnconfigure(0, weight=1)
top_row = ttk.frame(frame)
top_row.grid(row=0, column=0, sticky="ew", pady=2)
self.hex_send = tk.booleanvar()
self.hex_send_cb = tk.checkbutton(top_row, text="hex发送", variable=self.hex_send)
self.hex_send_cb.pack(side=tk.left)
self.hex_send.trace_add('write', lambda *args: self.update_checkbutton_bg(self.hex_send_cb, self.hex_send))
self.hex_display = tk.booleanvar()
self.hex_display_cb = tk.checkbutton(top_row, text="hex显示", variable=self.hex_display)
self.hex_display_cb.pack(side=tk.left, padx=5)
self.hex_display.trace_add('write', lambda *args: self.update_checkbutton_bg(self.hex_display_cb, self.hex_display))
ttk.button(top_row, text="清空窗口", command=self.clear_display).pack(side=tk.right)
middle_row = ttk.frame(frame)
middle_row.grid(row=1, column=0, sticky="ew", pady=2)
self.timestamp = tk.booleanvar()
self.timestamp_cb = tk.checkbutton(middle_row, text="时间戳", variable=self.timestamp)
self.timestamp_cb.pack(side=tk.left)
self.timestamp.trace_add('write', lambda *args: self.update_checkbutton_bg(self.timestamp_cb, self.timestamp))
color_frame = ttk.frame(middle_row)
color_frame.pack(side=tk.right)
ttk.label(color_frame, text="收:").pack(side=tk.left)
self.recv_color_lbl = tk.label(color_frame, width=2, bg=self.recv_color, relief="solid")
self.recv_color_lbl.bind("<button-1>", lambda e: self.choose_color('recv'))
self.recv_color_lbl.pack(side=tk.left, padx=2)
ttk.label(color_frame, text="发:").pack(side=tk.left)
self.send_color_lbl = tk.label(color_frame, width=2, bg=self.send_color, relief="solid")
self.send_color_lbl.bind("<button-1>", lambda e: self.choose_color('send'))
self.send_color_lbl.pack(side=tk.left, padx=2)
auto_frame = ttk.frame(frame)
auto_frame.grid(row=2, column=0, sticky="ew", pady=2)
ttk.label(auto_frame, text="间隔(ms):").pack(side=tk.left)
self.interval_var = ttk.entry(auto_frame, width=8)
self.interval_var.insert(0, "1000")
self.interval_var.pack(side=tk.left, padx=2)
self.auto_send = tk.booleanvar()
self.auto_send_cb = tk.checkbutton(auto_frame, text="自动发送", variable=self.auto_send, command=self.toggle_auto_send)
self.auto_send_cb.pack(side=tk.left)
self.auto_send.trace_add('write', lambda *args: self.update_checkbutton_bg(self.auto_send_cb, self.auto_send))
# 修改发送按钮并添加扩展按钮
button_frame = ttk.frame(frame)
button_frame.grid(row=3, column=0, sticky="ew", pady=5)
ttk.button(button_frame, text="发送", command=self.send_data).pack(side=tk.left, expand=true)
ttk.button(button_frame, text="扩展", command=self.toggle_extension).pack(side=tk.right)
def choose_color(self, direction):
"""选择颜色"""
chinese_dir = "接收" if direction == "recv" else "发送"
color = colorchooser.askcolor(title=f'选择{chinese_dir}颜色')[1]
if color:
if direction == 'recv':
self.recv_color = color
self.recv_color_lbl.config(bg=color)
else:
self.send_color = color
self.send_color_lbl.config(bg=color)
def update_checkbutton_bg(self, checkbutton, var):
"""更新复选框背景颜色"""
checkbutton.config(bg='yellow' if var.get() else self.default_bg)
def on_checksum_selected(self, event):
"""校验选项变化事件处理"""
if self.checksum_combo.get() != 'none':
self.checksum_combo.config(style='yellow.tcombobox')
else:
self.checksum_combo.config(style='tcombobox')
def send_file(self):
"""发送文件"""
if not self.serial_port or not self.serial_port.is_open:
messagebox.showwarning("警告", "请先打开串口")
return
file_path = filedialog.askopenfilename()
if not file_path: return
try:
with open(file_path, 'rb') as f:
data = f.read()
if self.hex_send.get():
hex_str = data.hex()
data = binascii.unhexlify(hex_str)
data = self.add_checksum(data)
self.serial_port.write(data)
self.tx_counter += len(data)
self.display_data(data, 'send')
self.update_counters()
except exception as e:
messagebox.showerror("发送文件错误", str(e))
def save_data(self):
"""保存数据"""
content = self.text_display.get("1.0", tk.end)
file_path = filedialog.asksaveasfilename(
defaultextension=".txt",
filetypes=[("text files", "*.txt"), ("all files", "*.*")]
)
if not file_path: return
try:
with open(file_path, 'w', encoding='utf-8') as f:
f.write(content)
messagebox.showinfo("保存成功", "数据已保存至文件")
except exception as e:
messagebox.showerror("保存错误", str(e))
def add_checksum(self, data):
"""添加校验码"""
checksum_type = self.checksum_combo.get()
if checksum_type == 'none':
return data
elif checksum_type == 'crc-16':
crc = self.calculate_crc16(data)
return data + crc
elif checksum_type == 'xor':
xor = self.calculate_xor(data)
return data + xor.to_bytes(1, 'big')
return data
def calculate_crc16(self, data):
"""计算crc16校验"""
crc = 0xffff
for byte in data:
crc ^= byte
for _ in range(8):
if crc & 0x0001:
crc >>= 1
crc ^= 0xa001
else:
crc >>= 1
return crc.to_bytes(2, 'little')
def calculate_xor(self, data):
"""计算异或校验"""
xor = 0
for byte in data:
xor ^= byte
return xor
def update_ports(self):
"""更新端口列表"""
ports = [port.device for port in serial.tools.list_ports.comports()]
self.port_combo['values'] = ports
self.port_combo.set(ports[0] if ports else '')
def update_status(self, status, success=true):
"""更新状态栏"""
if success:
conn_info = f"{self.port_combo.get()} | {self.baud_combo.get()}波特 | {self.data_bits.get()}数据位 | "
conn_info += f"{self.stop_bits.get()}停止位 | {self.parity.get()} | {self.flow_control.get()}"
self.status_conn.config(text=conn_info, foreground='green')
else:
self.status_conn.config(text=status, foreground='red')
def update_counters(self):
"""更新计数器"""
self.status_rx.config(text=f"rx:{self.rx_counter}")
self.status_tx.config(text=f"tx:{self.tx_counter}")
def clear_display(self):
"""清空显示"""
self.text_display.config(state=tk.normal)
self.text_display.delete(1.0, tk.end)
self.text_display.config(state=tk.disabled)
self.rx_counter = self.tx_counter = 0
self.update_counters()
def toggle_auto_send(self):
"""切换自动发送"""
self.auto_send_flag = self.auto_send.get()
if self.auto_send_flag:
self.auto_send_loop()
def auto_send_loop(self):
"""自动发送循环"""
if self.auto_send_flag and self.serial_port.is_open:
self.send_data()
self.master.after(max(100, int(self.interval_var.get())), self.auto_send_loop)
def on_port_change(self, event):
"""端口变更处理"""
if self.serial_port and self.serial_port.is_open:
self.close_serial()
self.open_serial()
def toggle_serial(self):
"""切换串口状态"""
if self.serial_port and self.serial_port.is_open:
self.close_serial()
else:
self.open_serial()
def open_serial(self):
"""打开串口"""
try:
params = {
'port': self.port_combo.get(),
'baudrate': int(self.baud_combo.get()),
'bytesize': int(self.data_bits.get()),
'stopbits': {'1':1, '1.5':1.5, '2':2}[self.stop_bits.get()],
'parity': {'无':'n', '奇校验':'o', '偶校验':'e'}[self.parity.get()],
'xonxoff': 1 if self.flow_control.get() == 'xon/xoff' else 0,
'rtscts': 1 if self.flow_control.get() == 'rts/cts' else 0
}
self.serial_port = serial.serial(**params)
self.open_btn.config(text="关闭端口")
self.update_status("", true)
self.receive_flag.set()
thread(target=self.receive_data, daemon=true).start()
except exception as e:
self.update_status(f"连接失败：{str(e)}", false)
def close_serial(self):
"""关闭串口"""
self.receive_flag.clear()
if self.serial_port:
self.serial_port.close()
self.open_btn.config(text="打开端口")
self.status_conn.config(text="未连接", foreground='black')
def receive_data(self):
"""接收数据"""
while self.receive_flag.is_set():
try:
if self.serial_port.in_waiting:
data = self.serial_port.read(self.serial_port.in_waiting)
self.rx_counter += len(data)
self.display_data(data, 'recv')
self.update_counters()
time.sleep(0.01)
except exception as e:
print("接收错误:", e)
break
def send_data(self):
"""发送数据"""
if not (self.serial_port and self.serial_port.is_open):
messagebox.showwarning("警告", "请先打开串口")
return
text = self.send_text.get("1.0", tk.end).strip()
if not text: return
try:
if self.hex_send.get():
hex_str = text.replace(' ', '').replace('\n', '')
data = binascii.unhexlify(hex_str)
else:
data = text.encode('utf-8')
data = self.add_checksum(data)
self.serial_port.write(data)
self.tx_counter += len(data)
self.display_data(data, 'send')
self.update_counters()
except exception as e:
messagebox.showerror("发送错误", str(e))
def display_data(self, data, direction):
"""显示数据"""
prefix = "收←◆ " if direction == 'recv' else "发→◇ "
color = self.send_color if direction == 'send' else self.recv_color
if self.hex_display.get():
display = ' '.join(f'{b:02x}' for b in data)
else:
try: display = data.decode('utf-8', 'replace')
except: display = str(data)
if self.timestamp.get():
timestamp = datetime.now().strftime("%h:%m:%s.%f")[:-3]
full_text = f"[{timestamp}] {prefix}{display}"
else:
full_text = f"{prefix}{display}"
self.text_display.config(state=tk.normal)
self.text_display.insert(tk.end, full_text + '\n', (color,))
self.text_display.tag_config(color, foreground=color)
self.text_display.see(tk.end)
self.text_display.config(state=tk.disabled)
if __name__ == "__main__":
root = tk.tk()
app = serialdebugger(root)
root.mainloop()
4.总结
这款串口调试工具通过简洁的图形化界面和强大的功能，提供了一个全面的串口通信调试平台。用户可以方便地控制串口参数，进行数据的发送与接收，支持多种数据格式和校验方式，还能够将数据保存至文件。自动发送和扩展功能增加了工具的灵活性，可以满足更复杂的调试需求。整体而言，工具适用于硬件开发、嵌入式调试、协议分析等场景，对于串口通信的开发者和调试人员来说，是一个非常实用的工具。
到此这篇关于基于python编写一个串口调试工具的文章就介绍到这了,更多相关python串口调试内容请搜索代码网以前的文章或继续浏览下面的相关文章希望大家以后多多支持代码网！
发表评论
