Vue3实现vueFLow流程组件的详细指南_Vue.js

一、前言

使用vueflow封装了一个层级关系组件。

二、官网

vue flow

三、安装

方式一：papackage.json添加依赖后直接npm install

@vue-flow/background@^1.3.0
- 组件名称：背景栅格组件
- 功能：为vue flow提供背景支持，通常用于显示栅格线或背景图案，以帮助用户更好地对齐和布局流程图中的元素。
- 版本：^1.3.0 表示该组件的版本号至少为1.3.0，但会兼容该版本之后的任何更新（遵循语义化版本控制规则）。
@vue-flow/controls@^1.1.2
- 组件名称：控件组件
- 功能：提供用于缩放、平移和旋转流程图的控制元素。这些控件允许用户以交互方式调整流程图的视角和布局。
- 版本：^1.1.2 表示该组件的版本号至少为1.1.2，同样遵循语义化版本控制规则。
@vue-flow/core@^1.41.2
- 组件名称：核心组件
- 功能：vue flow的核心功能组件，提供了创建和管理流程图所需的基础设施。这包括节点、边（连接线）、事件处理、状态管理等核心功能。
- 版本：^1.41.2 表示该组件的版本号至少为1.41.2，并兼容后续更新。
@vue-flow/minimap@^1.5.0
- 组件名称：缩略图组件
- 功能：提供一个缩略图视图，用于显示整个流程图的概览。用户可以通过缩略图快速定位到流程图中的特定区域。
- 版本：^1.5.0 表示该组件的版本号至少为1.5.0，遵循语义化版本控制规则。
@vue-flow/node-resizer@^1.4.0
- 组件名称：节点调整大小组件
- 功能：允许用户通过拖动边缘来调整节点的大小。这增加了流程图创建的灵活性和用户友好性。
- 版本：^1.4.0 表示该组件的版本号至少为1.4.0，同样遵循语义化版本控制规则。
@vue-flow/node-toolbar@^1.1.0
- 组件名称：节点工具栏组件
- 功能：为节点提供附加的工具栏，通常包含用于编辑、删除或配置节点选项的按钮。这增强了流程图编辑的交互性和便捷性。
- 版本：^1.1.0 表示该组件的版本号至少为1.1.0，遵循语义化版本控制规则。

方式二：npm install @vue-flow

四、引用

1.app.vue文件

<script setup>
import { ref, toref } from 'vue'
import { minimap } from '@vue-flow/minimap'
import { position, vueflow } from '@vue-flow/core'
import colorselectornode from './colorselectornode.vue'
import outputnode from './outputnode.vue'
import { presets } from './presets.js'

const nodes = ref([
  {
    id: '1',
    type: 'color-selector',
    data: { color: presets.ayame },
    position: { x: 0, y: 50 },
  },
  {
    id: '2',
    type: 'output',
    position: { x: 350, y: 114 },
    targetposition: position.left,
  },
])

const edges = ref([
  {
    id: 'e1a-2',
    source: '1',
    sourcehandle: 'a',
    target: '2',
    animated: true,
    style: {
      stroke: presets.ayame,
    },
  },
])

const colorselectordata = toref(() => nodes.value[0].data)

// minimap stroke color functions
function nodestroke(n) {
  switch (n.type) {
    case 'input':
      return '#0041d0'
    case 'color-selector':
      return n.data.color
    case 'output':
      return '#ff0072'
    default:
      return '#eee'
  }
}

function nodecolor(n) {
  if (n.type === 'color-selector') {
    return n.data.color
  }

  return '#fff'
}
</script>

<template>
  <vueflow
    v-model:nodes="nodes"
    :edges="edges"
    class="custom-node-flow"
    :class="[colorselectordata?.isgradient ? 'animated-bg-gradient' : '']"
    :style="{ backgroundcolor: colorselectordata?.color }"
    fit-view-on-init
  >
    <template #node-color-selector="props">
      <colorselectornode :id="props.id" :data="props.data" />
    </template>

    <template #node-output>
      <outputnode />
    </template>

    <minimap :node-stroke-color="nodestroke" :node-color="nodecolor" />
  </vueflow>
</template>

2.colorselectornode.vue

<script setup>
import { handle, position, usevueflow } from '@vue-flow/core'
import { colors } from './presets.js'

const props = defineprops({
  id: {
    type: string,
    required: true,
  },
  data: {
    type: object,
    required: true,
  },
})

const { updatenodedata, getconnectededges } = usevueflow()

function onselect(color) {
  updatenodedata(props.id, { color, isgradient: false })

  const connectededges = getconnectededges(props.id)
  for (const edge of connectededges) {
    edge.style = {
      stroke: color,
    }
  }
}

function ongradient() {
  updatenodedata(props.id, { isgradient: true })
}
</script>

<template>
  <div>select a color</div>

  <div class="color-selector nodrag nopan">
    <button
      v-for="{ name: colorname, value: color } of colors"
      :key="colorname"
      :title="colorname"
      :class="{ selected: color === data.color }"
      :style="{ backgroundcolor: color }"
      type="button"
      @click="onselect(color)"
    />

    <button class="animated-bg-gradient" title="gradient" type="button" @click="ongradient" />
  </div>

  <handle id="a" type="source" :position="position.right" />
</template>

3.outputnode.vue

<script setup>
import { handle, position, usehandleconnections, usenodesdata } from '@vue-flow/core'

const connections = usehandleconnections({
  type: 'target',
})

const nodesdata = usenodesdata(() => connections.value[0]?.source)
</script>

<template>
  <handle
    type="target"
    :position="position.left"
    :style="{ height: '16px', width: '6px', backgroundcolor: nodesdata.data?.color, filter: 'invert(100%)' }"
  />
  {{ nodesdata.data?.isgradient ? 'gradient' : nodesdata.data?.color }}
</template>

4.presets.js

export const presets = {
  sumi: '#1c1c1c',
  gofun: '#fffffb',
  byakuroku: '#a8d8b9',
  mizu: '#81c7d4',
  asagi: '#33a6b8',
  ukon: '#efbb24',
  mushikuri: '#d9cd90',
  hiwa: '#bec23f',
  ichigo: '#b5495b',
  kurenai: '#cb1b45',
  syojyohi: '#e83015',
  konjyo: '#113285',
  fuji: '#8b81c3',
  ayame: '#6f3381',
  torinoko: '#dac9a6',
  kurotsurubami: '#0b1013',
  ohni: '#f05e1c',
  kokikuchinashi: '#fb9966',
  beniukon: '#e98b2a',
  sakura: '#fedfe1',
  toki: '#eea9a9',
}

export const colors = object.keys(presets).map((color) => {
  return {
    name: color,
    value: presets[color],
  }
})

5.main.css

@import 'https://cdn.jsdelivr.net/npm/@vue-flow/core@1.41.2/dist/style.css';
@import 'https://cdn.jsdelivr.net/npm/@vue-flow/core@1.41.2/dist/theme-default.css';
@import 'https://cdn.jsdelivr.net/npm/@vue-flow/controls@latest/dist/style.css';
@import 'https://cdn.jsdelivr.net/npm/@vue-flow/minimap@latest/dist/style.css';
@import 'https://cdn.jsdelivr.net/npm/@vue-flow/node-resizer@latest/dist/style.css';

html,
body,
#app {
  margin: 0;
  height: 100%;
}

#app {
  text-transform: uppercase;
  font-family: 'jetbrains mono', monospace;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
}

.vue-flow__minimap {
  transform: scale(75%);
  transform-origin: bottom right;
}

.vue-flow__edges {
    filter:invert(100%)
}

.vue-flow__handle {
    height:24px;
    width:8px;
    border-radius:4px
}

.vue-flow__node-color-selector {
    border:1px solid #777;
    padding:10px;
    border-radius:10px;
    background:#f5f5f5;
    display:flex;
    flex-direction:column;
    justify-content:space-between;
    align-items:center;
    gap:10px;
    max-width:250px
}

.vue-flow__node-color-selector .color-selector {
    display:flex;
    flex-direction:row;
    flex-wrap:wrap;
    justify-content:center;
    max-width:90%;
    margin:auto;
    gap:4px
}

.vue-flow__node-color-selector .color-selector button {
    border:none;
    cursor:pointer;
    padding:5px;
    width:25px;
    height:25px;
    border-radius:8px;
    box-shadow:0 0 10px #0000004d
}

.vue-flow__node-color-selector .color-selector button:hover {
    box-shadow:0 0 0 2px #2563eb;
    transition:box-shadow .2s
}

.vue-flow__node-color-selector .color-selector button.selected {
    box-shadow:0 0 0 2px #2563eb
}

.vue-flow__node-color-selector .vue-flow__handle {
    background-color:#ec4899;
    height:24px;
    width:8px;
    border-radius:4px
}

.animated-bg-gradient {
    background:linear-gradient(122deg,#6f3381,#81c7d4,#fedfe1,#fffffb);
    background-size:800% 800%;
    -webkit-animation:gradient 4s ease infinite;
    -moz-animation:gradient 4s ease infinite;
    animation:gradient 4s ease infinite
}

@-webkit-keyframes gradient {
    0% {
    background-position:0% 22%
}

50% {
    background-position:100% 79%
}

to {
    background-position:0% 22%
}


}

@-moz-keyframes gradient {
    0% {
    background-position:0% 22%
}

50% {
    background-position:100% 79%
}

to {
    background-position:0% 22%
}


}

@keyframes gradient {
    0% {
    background-position:0% 22%
}

50% {
    background-position:100% 79%
}

to {
    background-position:0% 22%
}


}

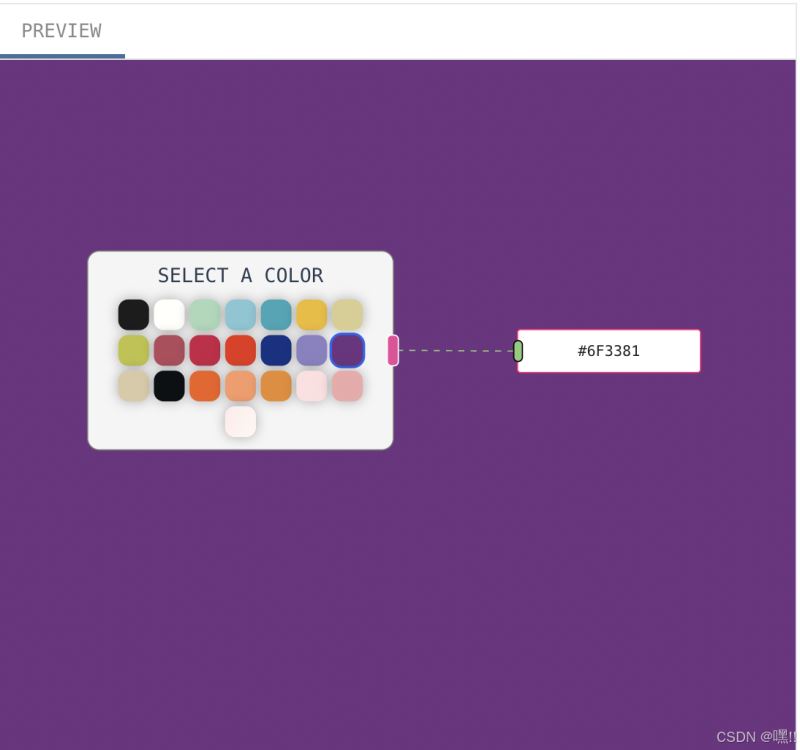

五、预览效果

六、个人实现

七、问题记录

vueflow每个层级节点的位置position无法自动生成，所以需要自己进行封装。我是根据层级来进行计算从顶部依次向下布局。

<script setup lang="ts">
import {ref} from "vue";
import {tabledetail} from "./datatable.api";
import blood from "./compoent/blood.vue"
import {markertype} from "@vue-flow/core";
import { gettestlistindexbytablename } from "@/views/test/common/test.api";
import {useuserstore} from "@/store/modules/user";


const userstore = useuserstore();

// 详情抽屉
const drawerdetail = ref({})
const draweropenflag = ref(false)
const drawerdetailfields = ref([])

const nodes = ref([]);
const edges = ref([]);

/**
 * 查看详情
 * @param record
 */
const onhandleopendrawer = async (record) => {
  const detail = await tabledetail(record)
  let fields = []
  for (let fieldname of object.keys(detail.fields) || []) {
    fields.push(detail.fields[fieldname])
  }
  drawerdetail.value = detail
  drawerdetailfields.value = fields
  draweropenflag.value = true

  nodes.value = []
  edges.value = []
  // 添加节点
  addnode({
    id: 'testyuan',
    type: 'data-source',
    data: { database: record.database, testyuantable: record.tablename, fieldarr: fields },
    position: { x: 0, y: 90 },
  });
  addnode({
    id: '0',
    type: 'data-set',
    data: { database: record.database, testyuantable: record.tablename, fieldarr: fields },
    position: { x: 350, y: 70 },
  });

  // 添加从到集的边
  addedge({ id: 'first', source: 'testyuan', target: '0', markerend: markertype.arrowclosed });

  // 获取指标列表并添加节点和边
  const tests = await gettestlistindexbytablename({ tablename: record.tablename });
  if (tests.length > 0) {
    for (let i = 0; i < tests.length; i++) {
      const test = tests[i];
      addnode({
        id: test.id.tostring(),
        type: 'index-info',
        position: { x: 0, y:  0 },
        data: {
          indexnameen: test.indexnameen,
          indexnamecn: test.indexnamecn,
          group: getindexclass(test.secondlevel),
          type: gettesttype(test.indextype)
        },
      });
      addedge({
        id: test.id.tostring(),
        source: test.parentid,
        target: test.id.tostring(),
        markerend: markertype.arrowclosed,
      });
    }
    // 记录每个 level 出现的次数
    let levelcounts = {};
    for (let j=2; j<nodes.value.length; j++) {
      const node = nodes.value[j];
      const level = number(getnodelevel(edges.value,node.id.tostring()));
      node.position.x =  350 * level;
      // 更新 level 出现的次数
      if (levelcounts[level]) {
        levelcounts[level]++;
      } else {
        levelcounts[level] = 1;
      }
      node.position.y =  100 * levelcounts[level];
    }

  } else {
    console.warn('no tests found for table:', record.tablename);
  }
}

// 封装获取当前节点层级的函数
const getnodelevel = (edges, nodeid) => {
  const levelmap = {};
  const visited = new set();
  const dfs = (node, level) => {
    visited.add(node);
    levelmap[node] = level;
    // 遍历边列表，找到所有从当前节点出发的边
    edges.foreach((edge) => {
      if (edge.source === node && !visited.has(edge.target)) {
        // 递归地更新目标节点的下一层级
        dfs(edge.target, level + 1);
      }
    });
  };
  // 起始节点id为"0"
  dfs('0', 1);
  return levelmap[nodeid] || 'node not found in the graph';
};

// 封装添加节点的函数
const addnode = (node) => {
  nodes.value.push(node);
};

// 封装添加边的函数
const addedge = (edge) => {
  edges.value.push(edge);
};

const firstarr = ref([]);
const tree = userstore.gettestdictalltree.find(t => t.dictcode === "first");
firstarr.value = tree ? tree.dictitemlist : [];
// 获取指标分级并转成对象
const firstmap = firstarr.value.reduce((acc, item) => {
  acc[item.itemvalue] = item.itemtext;
  return acc;
}, {});

const getindexclass = (indexclass) => {
  return firstmap[indexclass] || '';
};

// 获取指标分类并转成对象
const testtypemap = userstore.testdictalltreeobj['testtype'].reduce((acc, item) => {
  acc[item.itemvalue] = item.itemtext;
  return acc;
}, {});

// 根据indextype获取指标类型
const gettesttype = (indextype) => {
  return testtypemap[indextype] || '';
};

</script>

<template>
  <a-drawer
    v-model:open="draweropenflag"
    title="详情"
    width="700"
    placement="right"
  >
    <div style="font-size: 16px; font-weight: 500; color: rgba(0, 0, 0, 0.88); margin-left: 23px">
      基础信息
    </div>
    <blood :nodes="nodes" :edges="edges"></blood>

  </a-drawer>
</template>

<style scoped lang="less"></style>

以上就是vue3实现vueflow流程组件的详细指南的详细内容，更多关于vue3 vueflow流程组件的资料请关注代码网其它相关文章！
