android 自定义view实现彩虹进度条功能_Android

实现一个彩虹色进度条功能，不说明具体用途大家应该能猜到。想找别人造的轮子，但是没有合适的，所以决定自己实现一个。

实现步骤

自定义view

自定义一个tmcview类继承view

重写两个构造方法。构造方法一共有4个，这里边重写两个

重写ongsizechanged方法，用来获取控件宽、高，来计算内部组件尺寸。

重写ondraw方法，里边要描画背景drawbackground，分段数据drawsection，和seekbar图片drawimage。

import android.content.context;
import android.graphics.canvas;
import android.util.attributeset;
import android.view.view;
import androidx.annotation.nullable;
import java.util.list;
public class tmcview extends view {
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
    }
    @override
    protected void ondraw(canvas canvas) {
        super.ondraw(canvas);
        drawbackground(canvas);
        drawsection(canvas);
        drawimage(canvas);
    }
    /**
     * 画背景
     * @param canvas 画布
     */
    private void drawbackground(canvas canvas) {
    }
    /**
     * 画分段数据
     * @param canvas 画布
     */
    private void drawsection(canvas canvas) {
    }
    /**
     * 画图片
     * @param canvas 画布
     */
    private void drawimage(canvas canvas) {
    }
    /**
     * 更新view
     * @param total 总长度
     * @param rest 剩余长度
     * @param sections 分段数据
     */
    public void updateview(int total, int rest, list<sectiondata> sections){
    }

实现几个重构方法

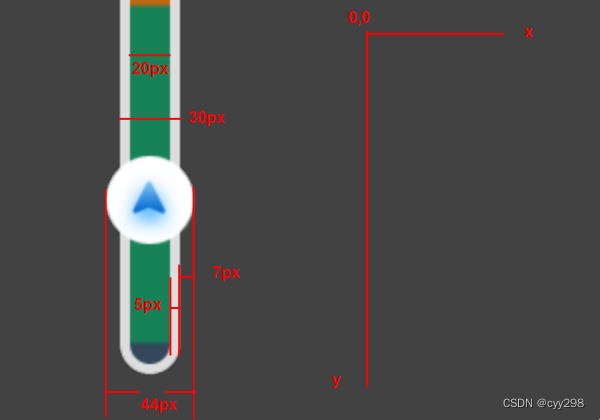

标注：

整体宽度为图片宽度44px

背景条宽度30px，外边距7px，圆角15px

带颜色的条宽度20xp，外边距5px，圆角15px

自定义view的坐标轴是以view的左上角位置为原点，向右为x轴正方向，向下为y轴正方向

在视图中用rectf创建背景，和颜色条，并在onsizechanged中设置尺寸

public class tmcview extends view {
    private final rectf backgroundrectf = new rectf();
    private final rectf colorrectf = new rectf();
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
        //设置矩形 left top right bottom 左上右下点的值  按照标注计算得出
        backgroundrectf.set(7, 0, 37, h);
        colorrectf.set(12, 5, 32, h-5);
    }
    ...
}

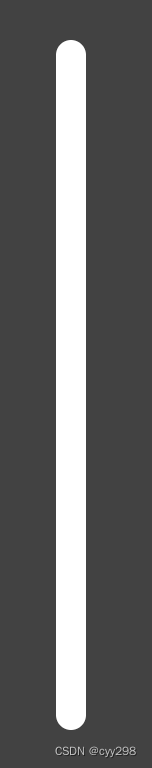

绘制背景条

实现drawbackground方法，画背景需要一根画笔paint 为了避免重复创建，声明为成员变量

public class tmcview extends view {
    /*背景画笔*/
    private final paint backpaint = new paint(paint.anti_alias_flag);
    private final rectf backgroundrectf = new rectf();
    private final rectf colorrectf = new rectf();
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
        //设置矩形 left top right bottom 左上右下点的值  按照标注计算得出
        backgroundrectf.set(7, 0, 37, h);
        colorrectf.set(12, 5, 32, h-5);
    }
    @override
    protected void ondraw(canvas canvas) {
        super.ondraw(canvas);
        drawbackground(canvas);
        drawsection(canvas);
        drawimage(canvas);
    }
    /**
     * 画背景
     * @param canvas 画布
     */
    private void drawbackground(canvas canvas) {
        backpaint.setstyle(paint.style.fill);
        backpaint.setantialias(true); //抗锯齿
        backpaint.setcolor(color.parsecolor("#ffffff"));
        //画圆角矩形，15为圆角的角度
        canvas.drawroundrect(backgroundrectf, 15, 15, backpaint);
    }
...
}

布局中加入tmcview

<com.bigxuan.tesapp.view.tmcview
        android:id="@+id/tmc"
        android:layout_width="44px"
        android:layout_height="690px"
        android:layout_marginend="1230px"
        android:layout_marginbottom="100px"
        app:layout_constraintbottom_tobottomof="parent"
        app:layout_constraintend_toendof="parent"
        />

绘制颜色条

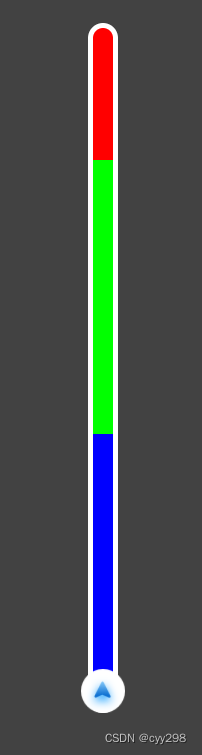

实现drawsection方法，这里要用到线性渐变lineargradient

lineargradient 简单说，指定每一段的颜色和位置百分比，就能实现每一段显示不同颜色。

但它默认是渐变色，要想不变就在每一段的开始和结束位置都设置相同的颜色。

再创建一个画笔 paint，画颜色条

public class tmcview extends view {
    private final paint backpaint = new paint(paint.anti_alias_flag);
    private final paint colorpaint = new paint(paint.anti_alias_flag);
    private final rectf backgroundrectf = new rectf();
    private final rectf colorrectf = new rectf();
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
        //设置矩形 left top right bottom 左上右下点的值  按照标注计算得出
        backgroundrectf.set(7, 0, 37, h);
        colorrectf.set(12, 5, 32, h-5);
    }
    @override
    protected void ondraw(canvas canvas) {
        super.ondraw(canvas);
        drawbackground(canvas);
        drawsection(canvas);
        drawimage(canvas);
    }
    /**
     * 画背景
     * @param canvas 画布
     */
    private void drawbackground(canvas canvas) {
        backpaint.setstyle(paint.style.fill);
        backpaint.setantialias(true); //抗锯齿
        backpaint.setcolor(color.parsecolor("#ffffff"));
        //画圆角矩形，15为圆角的角度
        canvas.drawroundrect(backgroundrectf, 15, 15, backpaint);
    }
    /**
     * 画分段数据
     * @param canvas 画布
     */
    private void drawsection(canvas canvas) {
        int[] colorarray = {
                color.parsecolor("#ff0000"), color.parsecolor("#ff0000"),
                color.parsecolor("#00ff00"), color.parsecolor("#00ff00"),
                color.parsecolor("#0000ff"), color.parsecolor("#0000ff")
        };
        float[] positionarray = {
                0f, 0.2f,
                0.2f, 0.6f,
                0.6f, 1f
        };
        colorpaint.setstyle(paint.style.fill);
        colorpaint.setantialias(true);
        //指定渐变色方向x轴方向不变，沿y方向渐变，渐变范围为 颜色条高度
        colorpaint.setshader(new lineargradient(0, 0, 0, colorrectf.bottom, colorarray, positionarray, shader.tilemode.repeat));
        canvas.drawroundrect(colorrectf,15, 15, colorpaint);
    }
    ...
}

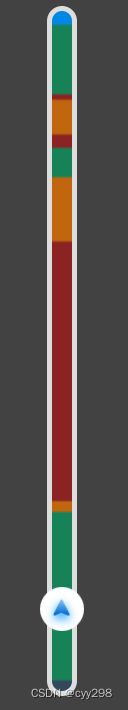

绘制进度图片

app加入图片资源，根据资源id获取bitmap对象，绘制。

需要注意的是，坐标轴的顶点在左上角，绘制图片时也是以图片左上顶点位置做定位，图片位置是view的高度减掉图片的高度，才能显示在正确位置。

public class tmcview extends view {
    private context context;
    private final paint backpaint = new paint(paint.anti_alias_flag);
    private final paint colorpaint = new paint(paint.anti_alias_flag);
    private final rectf backgroundrectf = new rectf();
    private final rectf colorrectf = new rectf();
    /*图片资源id*/
    private int imgresid;
    /*图片位置*/
    private int imgpos;
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
        this.context = context;
        this.imgresid = r.drawable.icon_seekbar_day;
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
        //设置矩形 left top right bottom 左上右下点的值  按照标注计算得出
        backgroundrectf.set(7, 0, 37, h);
        colorrectf.set(12, 5, 32, h-5);
        imgpos = h - 44; // 设置一个初始位置
    }
    @override
    protected void ondraw(canvas canvas) {
        super.ondraw(canvas);
        drawbackground(canvas);
        drawsection(canvas);
        drawimage(canvas);
    }
    /**
     * 画背景
     * @param canvas 画布
     */
    private void drawbackground(canvas canvas) {
        backpaint.setstyle(paint.style.fill);
        backpaint.setantialias(true); //抗锯齿
        backpaint.setcolor(color.parsecolor("#ffffff"));
        //画圆角矩形，15为圆角的角度
        canvas.drawroundrect(backgroundrectf, 15, 15, backpaint);
    }
    /**
     * 画分段数据
     * @param canvas 画布
     */
    private void drawsection(canvas canvas) {
        int[] colorarray = {
                color.parsecolor("#ff0000"), color.parsecolor("#ff0000"),
                color.parsecolor("#00ff00"), color.parsecolor("#00ff00"),
                color.parsecolor("#0000ff"), color.parsecolor("#0000ff")
        };
        float[] positionarray = {
                0f, 0.2f,
                0.2f, 0.6f,
                0.6f, 1f
        };
        colorpaint.setstyle(paint.style.fill);
        colorpaint.setantialias(true);
        //指定渐变色方向x轴方向不变，沿y方向渐变，渐变范围为 颜色条高度
        colorpaint.setshader(new lineargradient(0, 0, 0, colorrectf.bottom, colorarray, positionarray, shader.tilemode.repeat));
        canvas.drawroundrect(colorrectf,15, 15, colorpaint);
    }
    /**
     * 画图片
     * @param canvas 画布
     */
    private void drawimage(canvas canvas) {
        bitmap bitmap = initbitmap(imgresid);
        canvas.save();
        canvas.translate(0, 0);
        canvas.drawbitmap(bitmap, 0, imgpos, null);
        canvas.restore();
    }
    /**
     * 通过资源id 创建bitmap
     * @param resid 资源id
     * @return
     */
    private bitmap initbitmap(int resid) {
        bitmap originalbmp = bitmapfactory.decoderesource(context.getresources(), resid);
        return bitmap.createscaledbitmap(originalbmp, 44, 44, true);
    }
...
}

公共方法

暴露方法用来更新进度updateview

定义一个图片有效的运动距离为view高度减掉图片高度，函数参数为总距离和剩余距离，计算百分比后乘以有效运动距离得出图片描画位置。最后调用invalidate方法刷新view

import android.content.context;
import android.graphics.bitmap;
import android.graphics.bitmapfactory;
import android.graphics.canvas;
import android.graphics.color;
import android.graphics.lineargradient;
import android.graphics.paint;
import android.graphics.rectf;
import android.graphics.shader;
import android.util.attributeset;
import android.view.view;
import androidx.annotation.nullable;
import com.navinfo.tesapp.r;
import java.util.list;
public class tmcview extends view {
    private context context;
    private final paint backpaint = new paint(paint.anti_alias_flag);
    private final paint colorpaint = new paint(paint.anti_alias_flag);
    private final rectf backgroundrectf = new rectf();
    private final rectf colorrectf = new rectf();
    /*图片资源id*/
    private int imgresid;
    /*图片位置*/
    private int imgpos;
    /*图片有效的运动距离*/
    private int imgvalidheight;
    public tmcview(context context) {
        super(context);
    }
    public tmcview(context context, @nullable attributeset attrs) {
        super(context, attrs);
        this.context = context;
        this.imgresid = r.drawable.icon_seekbar_day;
    }
    @override
    protected void onsizechanged(int w, int h, int oldw, int oldh) {
        super.onsizechanged(w, h, oldw, oldh);
        //设置矩形 left top right bottom 左上右下点的值  按照标注计算得出
        backgroundrectf.set(7, 0, 37, h);
        colorrectf.set(12, 5, 32, h-5);
        imgvalidheight = h - 44;
        imgpos = h - 44; // 设置一个初始位置
    }
    @override
    protected void ondraw(canvas canvas) {
        super.ondraw(canvas);
        drawbackground(canvas);
        drawsection(canvas);
        drawimage(canvas);
    }
    /**
     * 画背景
     * @param canvas 画布
     */
    private void drawbackground(canvas canvas) {
        backpaint.setstyle(paint.style.fill);
        backpaint.setantialias(true); //抗锯齿
        backpaint.setcolor(color.parsecolor("#ffffff"));
        //画圆角矩形，15为圆角的角度
        canvas.drawroundrect(backgroundrectf, 15, 15, backpaint);
    }
    /**
     * 画分段数据
     * @param canvas 画布
     */
    private void drawsection(canvas canvas) {
        int[] colorarray = {
                color.parsecolor("#ff0000"), color.parsecolor("#ff0000"),
                color.parsecolor("#00ff00"), color.parsecolor("#00ff00"),
                color.parsecolor("#0000ff"), color.parsecolor("#0000ff")
        };
        float[] positionarray = {
                0f, 0.2f,
                0.2f, 0.6f,
                0.6f, 1f
        };
        colorpaint.setstyle(paint.style.fill);
        colorpaint.setantialias(true);
        //指定渐变色方向x轴方向不变，沿y方向渐变，渐变范围为 颜色条高度
        colorpaint.setshader(new lineargradient(0, 0, 0, colorrectf.bottom, colorarray, positionarray, shader.tilemode.repeat));
        canvas.drawroundrect(colorrectf,15, 15, colorpaint);
    }
    /**
     * 画图片
     * @param canvas 画布
     */
    private void drawimage(canvas canvas) {
        bitmap bitmap = initbitmap(imgresid);
        canvas.save();
        canvas.translate(0, 0);
        canvas.drawbitmap(bitmap, 0, imgpos, null);
        canvas.restore();
    }
    /**
     *
     * @param resid
     * @return
     */
    private bitmap initbitmap(int resid) {
        bitmap originalbmp = bitmapfactory.decoderesource(context.getresources(), resid);
        return bitmap.createscaledbitmap(originalbmp, 44, 44, true);
    }
    /**
     * 更新view
     * @param total 总长度
     * @param rest 剩余长度
     * @param sections 分段数据
     */
    public void updateview(int total, int rest, list<sectiondata> sections){
        float percent = (1f * rest) / total;
        //防止溢出
        if(percent < 0){
            return;
        }
        imgpos = (int)(percent * imgvalidheight);
        invalidate();
    }
}

updateview方法还有第三个参数，是用来传出颜色条不同段的颜色和百分比数据的。根据此数据来更新颜色条。这里需要根据业务不同自己实现，我这里就不写了。
