1. 拉取镜像

docker pull clickhouse/clickhouse-server:22.3.11.12-alpine

2. clickhouse单机版

2.1. 配置容器

因为如下原因，需要将clickhouse的配置文件及数据目录复制到宿主机

修改配置文件
避免容器重启时，丢失数据文件

#启动容器
docker run -d --name ch-server --ulimit nofile=262144:262144 clickhouse/clickhouse-server:22.3.11.12-alpine
# 复制文件到宿主机
docker cp ch-server:/etc/clickhouse-server d:/docker/ch/etc/clickhouse-server
docker cp ch-server:/var/lib/clickhouse d:/docker/ch/data
#停止容器
docker stop ch-server
# 再次启动容器
docker run -d --name=single-ch-server -p 8123:8123 -p 9000:9000 -p 9009:9009 --ulimit nofile=262144:262144 -v d:/docker/ch/data:/var/lib/clickhouse:rw -v d:/docker/ch/etc/clickhouse-server:/etc/clickhouse-server:rw clickhouse/clickhouse-server:22.3.11.12-alpine

2.2. 测试jdbc连接

启动成功后，使用dbeaver测试，用户名default,密码为空，则可以正常连接。

在这里插入图片描述

3 clickhouse集群版

3.1. 修改集群配置

将配置、日志放在ch01目录下
修改 d:\docker\ch\ch01\etc\clickhouse-server下的config.xml中，删除 <remote_servers>节点并添加如下信息

	<include_from>/etc/clickhouse-server/metrika01.xml</include_from>
	<remote_servers incl="clickhouse_remote_servers" optional="true"/>
	<zookeeper incl="zookeeper_servers" optional="true"/>
	<macros incl="macros" optional="true"/>
    <!--mergetree引擎表的数据压缩设置，在metrika.xml-->
    <compression incl="clickhouse_compression"></compression>

新增metrika01.xml文件，内容如下：
考虑到一台笔记本的资源比较有限，所以就安装单个节点的zk, clickhouse的集群也是2分片1副本的。

<?xml version="1.0"?>
<yandex>
    <clickhouse_remote_servers>
      <cluster01>
            <shard>
                <internal_replication>true</internal_replication>
				<weight>1</weight>
                <replica>
                    <host>ch01</host>
                    <port>9000</port>
                    <user>default</user>
                    <password></password>
                </replica>
            </shard>
			<shard>
                <internal_replication>true</internal_replication>
				<weight>1</weight>
                <replica>
                    <host>ch02</host>
                    <port>9000</port>
                    <user>default</user>
                    <password></password>
                </replica>
            </shard>
		</cluster01>
    </clickhouse_remote_servers>

    <macros>
        <layer>01</layer>
        <shard>01</shard>
        <replica>ch01</replica>
    </macros>

    <zookeeper_servers>
        <node index="1">
            <host>zk01</host>
            <port>2181</port>
        </node>
    </zookeeper_servers>

   <networks>
     <ip>::/0</ip>
   </networks>

  <clickhouse_compression>
    <case>
      <min_part_size>1073741824</min_part_size>
      <min_part_size_ratio>0.01</min_part_size_ratio>
      <method>lz4</method>
    </case>
  </clickhouse_compression>
</yandex>

节点ch02的配置：复制ch01目录，产生ch02目录

修改metrika01.xml，将macros内容调整，其它配置与上面一致。

   <macros>
        <layer>01</layer>
        <shard>02</shard>
        <replica>ch02</replica>
    </macros>

3.2. 编辑docker-compose.yml

采用卷标的方式挂载数据

version: '3.1'
services:
  zookeeper:
    image: zookeeper:3.4.14
    ports:
      - "8181:2181"
      - "8182:2182"
    hostname: zk01
  ch01:
    image: clickhouse/clickhouse-server:22.3.11.12-alpine
    restart: on-failure
    container_name: ch01
    ports:
      - 9000:9000
      - 8123:8123
      - 9009:9009
    volumes:
      - ch1-data:/var/lib/clickhouse
      - d:/docker/ch/ch01/etc/clickhouse-server:/etc/clickhouse-server:rw
      - d:/docker/ch/ch01/log:/var/log/clickhouse-server:rw
    hostname: ch01
    ulimits:
      nofile:
        soft: 262144
        hard: 262144
    depends_on:
      - "zookeeper"
  ch02:
    image: clickhouse/clickhouse-server:22.3.11.12-alpine
    restart: on-failure
    container_name: ch02
    ports:
      - 9800:9000
      - 8823:8123
      - 9809:9009
    volumes:
      - ch2-data:/var/lib/clickhouse
      - d:/docker/ch/ch02/etc/clickhouse-server:/etc/clickhouse-server:rw
      - d:/docker/ch/ch02/log:/var/log/clickhouse-server:rw
    hostname: ch02
    ulimits:
      nofile:
        soft: 262144
        hard: 262144
    depends_on:
      - "zookeeper"
volumes:
  ch1-data:
  ch2-data:

3.3. 启动ch集群

docker-compose up -d

3.4. 测试

create database test on cluster cluster01;
use test;
create table events_local on cluster cluster01 (
	id string,
	eventtype uint8,
	url string,
	eventtime datetime
) engine = mergetree()
partition by tostartofday(eventtime)
order by (eventtime,eventtype)
settings index_granularity = 8192;

create table events on cluster cluster01 as test.events_local engine = distributed('cluster01', 'test', 'events_local', rand());

insert into events(id,eventtype,url,eventtime) values ('11',1,'http://www.baidu.com','2021-12-20 12:00:00');
insert into events(id,eventtype,url,eventtime) values ('12',1,'http://www.baidu.com','2021-12-20 12:00:00');
insert into events(id,eventtype,url,eventtime) values ('13',1,'http://www.baidu.com','2021-12-20 12:00:00');
insert into events(id,eventtype,url,eventtime) values ('14',1,'http://www.baidu.com','2021-12-20 12:00:00');
insert into events(id,eventtype,url,eventtime) values ('15',1,'http://www.baidu.com','2021-12-20 12:00:00');
insert into events(id,eventtype,url,eventtime) values ('16',1,'http://www.baidu.com','2021-12-20 12:00:00');

4. 存在的解决问题

4.1. permission denied

将clickhouse的数据目录放在宿主机时，在插入数据时报如下错误，但如果不放在宿主机，则数据会丢失。

received exception from server (version 22.3.11):
code: 1001. db::exception: received from localhost:9000. db::exception: std::__1::__fs::filesystem::filesystem_error: filesystem error: in rename: permission denied [/var/lib/clickhouse/store/0d4/0d4a6f52-b3a6-4496-8174-e03ae9503321/tmp_insert_1639958400_1_1_0/] [/var/lib/clickhouse/store/0d4/0d4a6f52-b3a6-4496-8174-e03ae9503321/1639958400_1_1_0/]. (std_exception)

采用将宿主机路径直接挂载到本地，比较直观，但需要管理本地的路径，但这种方式在clickhouse写数据时，会报：permission denied
使用卷标的方式，比较简洁，但你不知道数据存在本地什么位置，但这种方式在clickhouse写数据时是正常的

目前不清楚具体的原因，如果你知道，烦请告知。 4.2. ports are not available

报错信息：error response from daemon: ports are not available: exposing port tcp 0.0.0.0:8848 -> 0.0.0.0:0: listen tcp 0.0.0.0:8848: bind: an attempt was made to access a socket in a way forbidden by its access permissions.

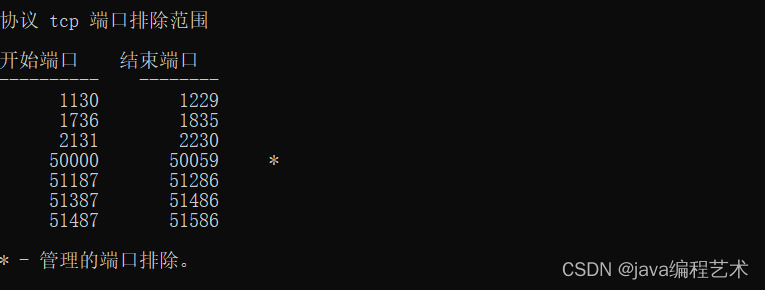

通过cmd命令查看哪些端口被禁用tcp协议

netsh interface ipv4 show excludedportrange protocol=tcp

将docker启动命令中的宿主机端口改成禁用之外的就可以了

在这里插入图片描述
