我要评论一、dashdot介绍
dashdot是一个简洁清晰的服务器数据仪表板，基于react实现 ，主要是显示操作系统、进程、存储、内存、网络这五个的数据。
二、本次实践介绍
1. 本次实践简介
本次实践部署环境为个人测试环境
2. 本地环境规划
本次实践环境规划：docker快速拉取dashdot镜像，然后后台启动dashdot镜像
| 启动镜像后的名字 | ip地址 | 容器镜像版本 | 操作系统版本 |
|---|---|---|---|
dashdot | 192.168.20.8 | latest | ubuntu 22.04 |
三、检查本地docker环境
检查本地docker版本
检查docker版本：docker version root@welldone:/home/goodjob# docker version client: docker engine - community version: 25.0.0 api version: 1.44 go version: go1.21.6 git commit: e758fe5 built: thu jan 18 17:09:49 2024 os/arch: linux/amd64 context: default server: docker engine - community engine: version: 25.0.0 api version: 1.44 (minimum version 1.24) go version: go1.21.6 git commit: 615dfdf built: thu jan 18 17:09:49 2024 os/arch: linux/amd64 experimental: false containerd: version: 1.6.27 gitcommit: a1496014c916f9e62104b33d1bb5bd03b0858e59 runc: version: 1.1.11 gitcommit: v1.1.11-0-g4bccb38 docker-init: version: 0.19.0 gitcommit: de40ad0 root@welldone:/home/goodjob#
2. 检查docker服务状态
检查docker服务状态，确保docker服务正常运行。
systemctl status docker
root@welldone:/home/goodjob/downloads# systemctl status docker
● docker.service - docker application container engine
loaded: loaded (/lib/systemd/system/docker.service; enabled; vendor preset: enabled)
active: active (running) since wed 2024-01-24 08:54:31 cst; 1 day 4h ago
triggeredby: ● docker.socket
docs: https://docs.docker.com
main pid: 1549 (dockerd)
tasks: 65
memory: 419.5m
cpu: 38.874s
cgroup: /system.slice/docker.service
├─ 1549 /usr/bin/dockerd -h fd:// --containerd=/run/containerd/containerd.sock
├─ 2010 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 6379 -container-ip 172.17.0.2 -container-port 6379
├─ 2016 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 6379 -container-ip 172.17.0.2 -container-port 6379
├─ 2029 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 5432 -container-ip 172.17.0.3 -container-port 5432
├─ 2036 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 5432 -container-ip 172.17.0.3 -container-port 5432
├─123083 /usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 8888 -container-ip 172.17.0.4 -container-port 8080
└─123095 /usr/bin/docker-proxy -proto tcp -host-ip :: -host-port 8888 -container-ip 172.17.0.4 -container-port 8080
1月 24 08:54:31 welldone dockerd[1549]: time="2024-01-24t08:54:31.067895045+08:00" level=info msg="api listen on /run/docker.sock"
1月 24 08:54:31 welldone systemd[1]: started docker application container engine.
1月 24 16:13:48 welldone dockerd[1549]: time="2024-01-24t16:13:48.185008219+08:00" level=info msg="ignoring event" container=8ad99af82d8a41dd661d>
1月 24 16:13:48 welldone dockerd[1549]: time="2024-01-24t16:13:48.189484205+08:00" level=warning msg="shouldrestart failed, container will not be>
1月 24 21:58:08 welldone dockerd[1549]: time="2024-01-24t21:58:08.024915139+08:00" level=info msg="ignoring event" container=27fd28e2993f31b170b8>
1月 24 21:58:08 welldone dockerd[1549]: time="2024-01-24t21:58:08.029986730+08:00" level=warning msg="shouldrestart failed, container will not be>
1月 25 10:46:16 welldone dockerd[1549]: time="2024-01-25t10:46:16.329180722+08:00" level=info msg="container failed to exit within 10s of signal >
1月 25 10:46:16 welldone dockerd[1549]: time="2024-01-25t10:46:16.350757439+08:00" level=info msg="ignoring event" container=b1223add00f36bbb3246>
1月 25 10:49:21 welldone dockerd[1549]: time="2024-01-25t10:49:21.993755983+08:00" level=info msg="container failed to exit within 10s of signal >
1月 25 10:49:22 welldone dockerd[1549]: time="2024-01-25t10:49:22.015822650+08:00" level=info msg="ignoring event" container=edb0e153b45dbe62acd8>
lines 1-28/28 (end)四、部署dashdot镜像
1. 下载dashdot镜像
docker pull mauricenino/dashdot root@welldone:/home/goodjob# docker pull mauricenino/dashdot using default tag: latest latest: pulling from mauricenino/dashdot 661ff4d9561e: pull complete be93293fd536: pull complete 376f9b7a6770: pull complete 4e53c60b2bbe: pull complete 49bb1447e827: pull complete a756fa12f0ae: pull complete 2bf2a9e293f3: pull complete ba77d82c7692: pull complete 4b4fb9a95dae: pull complete 6daae4045e4d: pull complete 3d13531fe87b: pull complete 9c911b84930a: pull complete 7f902ce40bc3: pull complete 12ff3c516952: pull complete digest: sha256:d78f64ccdd92b769794c8ff79d9e27509c4482b8e3d342aa04cd772b3dbd7b74 status: downloaded newer image for mauricenino/dashdot:latest docker.io/mauricenino/dashdot:latest
2. 创建容器
使用docker快速创建dashdot的容器。
完整创建过程： 1.启动一个dashdot的测试容器。 docker run -d -p 2828:3001 --name dashdot -v /etc/os-release:/etc/os-release:ro -v /proc/1/ns/net:/mnt/host_ns_net:ro --privileged mauricenino/dashdot:latest 2.启动完毕后查看下是否启动正常 root@welldone:/opt# docker ps container id image command created status ports names 811df11cf0f2 mauricenino/dashdot:latest "docker-entrypoint.s…" 2 seconds ago up 1 second 0.0.0.0:2828->3001/tcp, :::2828->3001/tcp dashdot 3.容器启动正常，访问 http://ip:2828
3. 检查容器运行状态
检查容器的运行状态，确保服务的正常运行。
docker ps

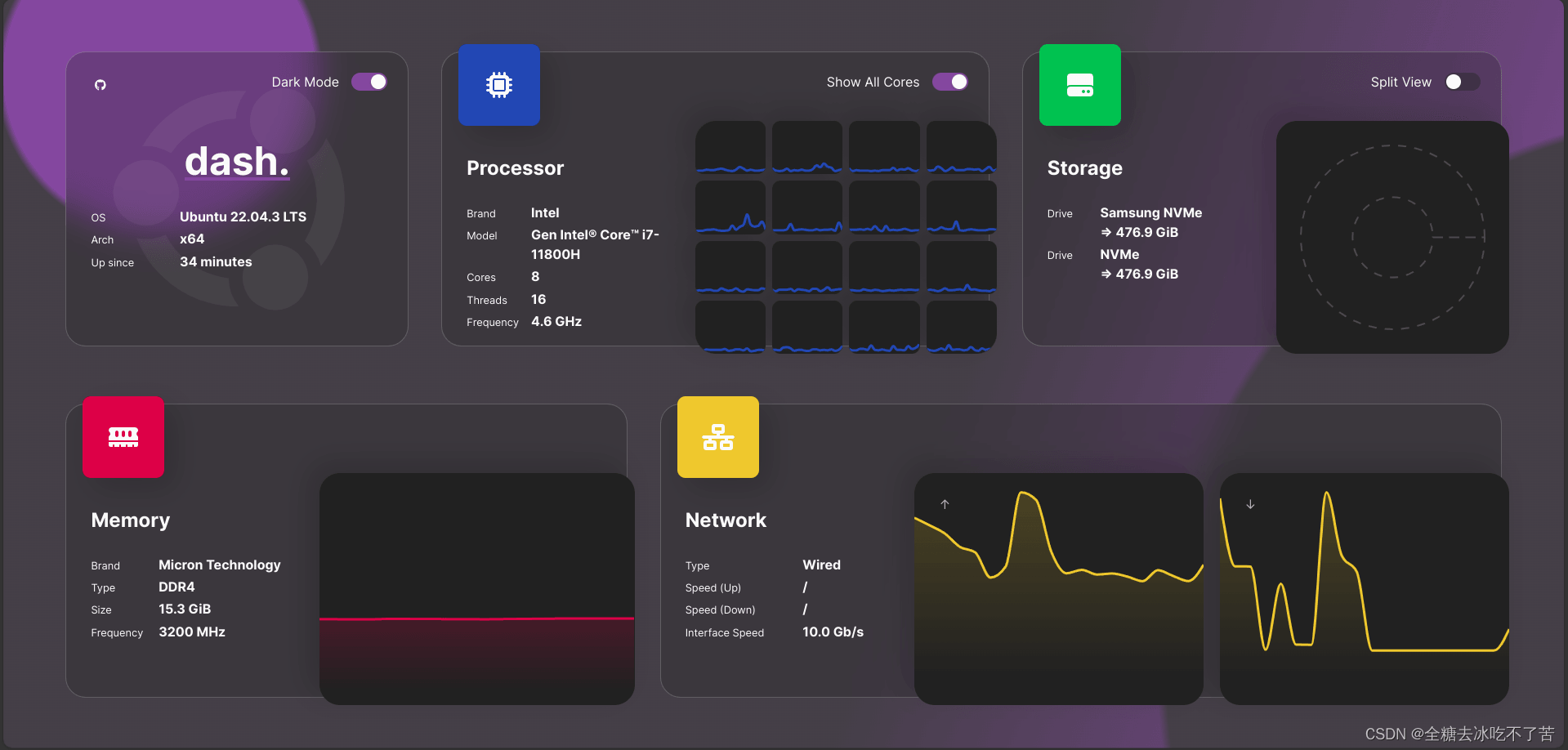

五、访问dashdot页面
访问地址：http://192.168.20.8:2828
