nginx代理minio的实现示例_Linux

一、nginx的配置（代理minio并支持预签名url）

这里是我的项目的整个配置文件

server {
    # 监听的端口
    listen 15743;
    # 监听地址
    server_name 172.16.49.10;
    #allow 127.0.0.1;

    # 设定本虚拟主机的访问与错误日志
    access_log /home/project/nginx/nginx-access.log;
    error_log /home/project/nginx/nginx-error.log;

    # 设置整个 server 的最大请求体大小为 10mb
    client_max_body_size 100m;

  location / {
        proxy_pass http://172.16.49.10:8888; # 代理到java应用的地址和端口
        proxy_set_header host $host;
        proxy_set_header x-real-ip $remote_addr;
        proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;
        proxy_set_header x-forwarded-proto $scheme;
    }

	# 文件上传代理路径
	location /minio-upload/ {
		rewrite ^/minio-upload/(.*)$ /$1 break;  # 关键路径重写

		proxy_pass http://172.16.49.10:9000;

		# 必须透传的请求头
		proxy_set_header host 172.16.49.10:9000;  # 必须与minio服务地址完全一致
		proxy_set_header x-real-ip $remote_addr;
		proxy_set_header x-forwarded-proto $scheme;
		proxy_set_header authorization $http_authorization;  # 传递签名头

		# 支持大文件上传
		client_max_body_size 0;

		# 优化代理连接
		proxy_http_version 1.1;
		proxy_connect_timeout 300;
		proxy_read_timeout 300;
		proxy_send_timeout 300;
		chunked_transfer_encoding off;
	}
}

二、java生成预签名url（spring boot示例）

1. 添加依赖（pom.xml）

<!-- minio 文件存储 -->
<dependency>
	<groupid>io.minio</groupid>
	<artifactid>minio</artifactid>
	<version>8.2.1</version>
</dependency>

2.配置类

配置信息(application.yml)

minio:
  url: http://172.16.49.10:9000
  accesskey: minioadmin
  secretkey: minioadmin

import io.minio.minioclient;
import lombok.data;
import lombok.extern.slf4j.slf4j;
import org.springframework.boot.context.properties.configurationproperties;
import org.springframework.context.annotation.bean;
import org.springframework.stereotype.component;

/**
 * minio 配置信息
 */
@slf4j
@data
@component
@configurationproperties(prefix = "minio")
public class minioconfig
{
    /**
     * 服务地址
     */
    private string url;

    /**
     * 用户名
     */
    private string accesskey;

    /**
     * 密码
     */
    private string secretkey;

    @bean
    public minioclient getminioclient()
    {
        log.info("连接minioclient");
        return minioclient.builder().endpoint(url).credentials(accesskey, secretkey).build();
    }
}

3. 生成预签名url的服务类

import io.minio.getpresignedobjecturlargs;
import io.minio.minioclient;
import io.minio.http.method;
import org.springframework.stereotype.service;

import javax.annotation.resource;
import java.util.concurrent.timeunit;

@service
public class minioservice
{
    @resource
    private minioclient minioclient;

    @resource
    private miniotemplate miniotemplate;

    /**
     * 生成put方法预签名url（有效期1小时）
     *
     * @param bucket 存储桶名称
     * @param object 对象路径（如：uploads/device1/20240326.zip）
     */
    public string generateuploadurl(string bucket, string object)
    {
        try
        {
            miniotemplate.existbucket(bucket);
            string string = minioclient.getpresignedobjecturl(
                    getpresignedobjecturlargs.builder()
                            .method(method.put)
                            .bucket(bucket)
                            .object(object)
                            .expiry(1, timeunit.hours)
                            .build()
            );

            // 替换为nginx代理地址
            return string.replace("http://172.16.49.10:9000", "http://172.16.49.10:15743/minio-upload");
        } catch (exception e)
        {
            throw new runtimeexception("生成预签名url失败", e);
        }
    }
}

4. minio工具类

我只需要判断桶存在。其他方法可以从网上找替换掉这个工具类

import io.minio.*;
import lombok.allargsconstructor;
import lombok.data;
import lombok.noargsconstructor;
import lombok.sneakythrows;
import org.springframework.stereotype.component;
import org.springframework.web.multipart.multipartfile;

import javax.annotation.resource;


@data
@allargsconstructor
@noargsconstructor
@component
public class miniotemplate
{

    @resource
    private minioclient minioclient;


    /**
     * 判断桶是否存在,如果存在返回true,如果不存在返回false
     *
     * @param bucketname
     * @return
     */
    @sneakythrows
    public boolean existbucket(string bucketname)
    {
        boolean exist = minioclient.bucketexists(bucketexistsargs.builder().bucket(bucketname).build());
        if (!exist)
        {
            makebucket(bucketname);
        }
        return true;

    }

    /**
     * 创建桶
     *
     * @param bucketname
     * @return
     */
    @sneakythrows
    public void makebucket(string bucketname)
    {
        minioclient.makebucket(makebucketargs.builder().bucket(bucketname).build());
    }
}

5. 调用示例（controller）

@restcontroller
@requestmapping("/api")
public class filecontroller {

    @autowired
    private minioservice minioservice;

    @getmapping("/presigned-url")
    public responseentity<string> getpresignedurl(@requestparam string bucket, @requestparam string objectpath) {
        string url = minioservice.generateuploadurl(bucket, objectpath);
        return responseentity.ok(url);
    }
}

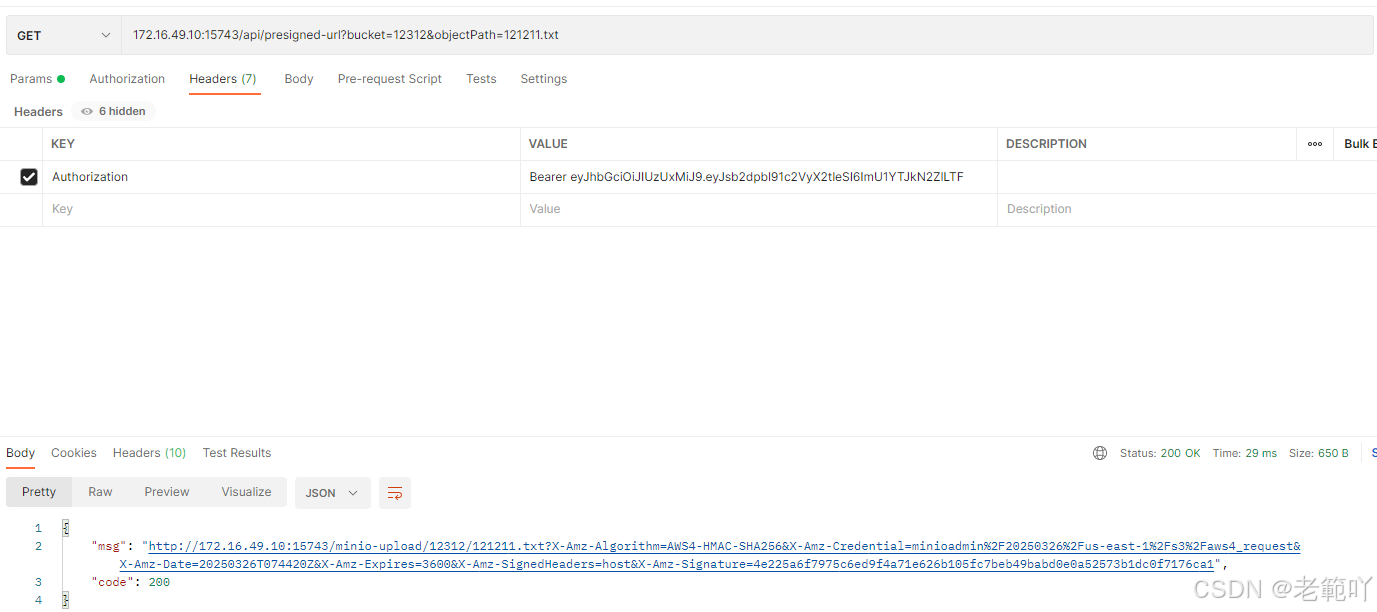

我的后端端口使用nginx代理15743，获取预签名url:

get
http://172.16.49.10:15743/api/presigned-url?bucket=12312&objectpath=121211.txt

在这里插入图片描述

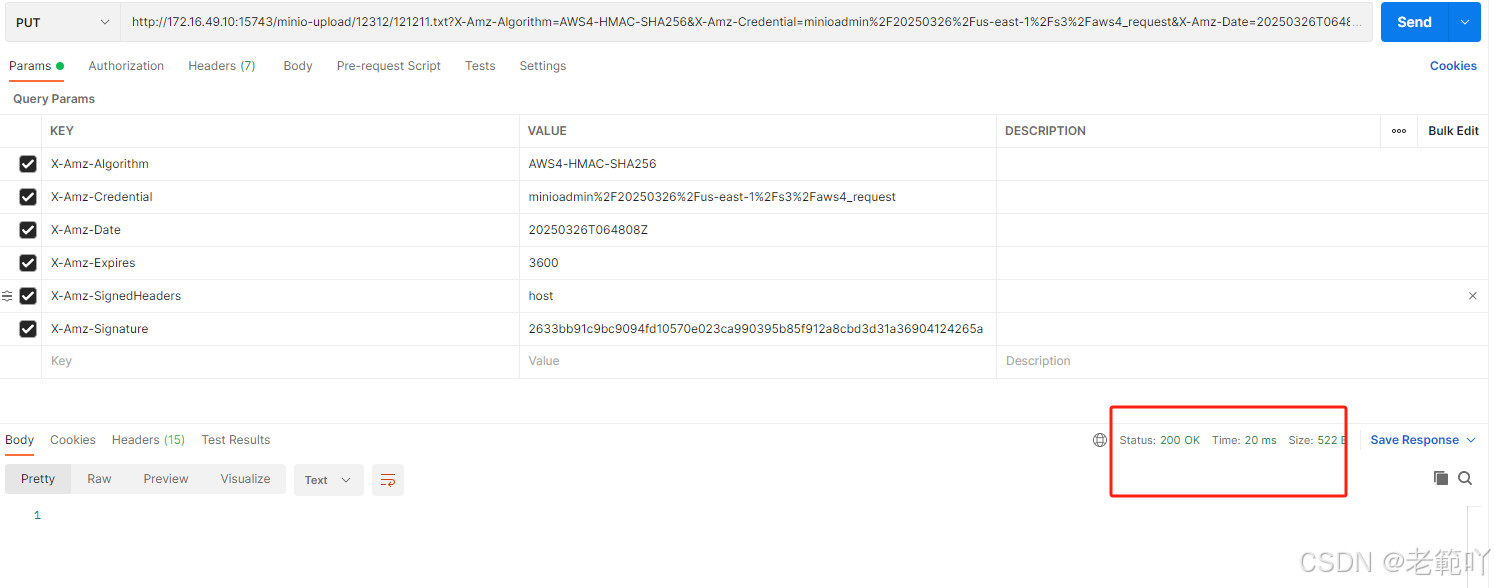

上传文件：根据返回的url，直接调用

put
http://172.16.49.10:15743/minio-upload/12312/121211.txt?x-amz-algorithm=aws4-hmac-sha256&x-amz-credential=minioadmin%2f20250326%2fus-east-1%2fs3%2faws4_request&x-amz-date=20250326t064808z&x-amz-expires=3600&x-amz-signedheaders=host&x-amz-signature=2633bb91c9bc9094fd10570e023ca990395b85f912a8cbd3d31a36904124265a

在这里插入图片描述
